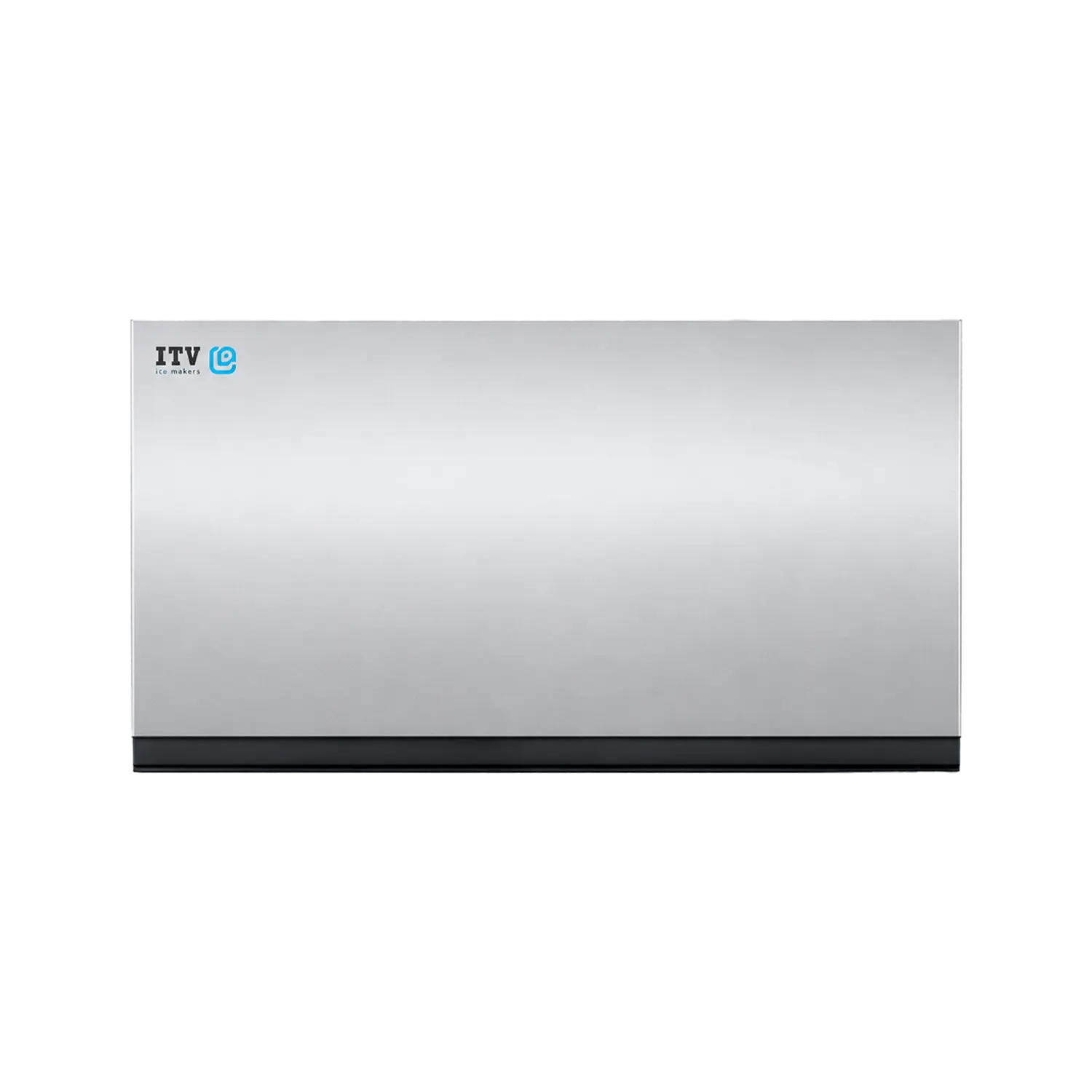

ITV Ice Makers SPIKA MS1500A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,698 lb/Day, 208–230V (Head Only)

Name: ITV Ice Makers SPIKA MS1500A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,698 lb/Day, 208–230V (Head Only)
Brand: ITV Ice Makers
SKU: 18820
Price: 8000.0 USD
Availability: InStock

$8,000.00

$8,000.00 ~~$16,000.00~~

Save 50%

The ITV SPIKA MS1500A1FR is ITV's highest-output single-head modular ice machine — a 48"-wide head with a remote air condenser that produces up to 1,698 lb (770 kg) of ice per day. Because the condenser mounts away from the head — on a roof, in a mechanical room, or outdoors — it keeps heat and noise out of the work area while delivering maximum throughput. Its classic full-dice cube is clear, slow-melting, and ideal for bars, restaurants, and premium beverage service. This is a head-only unit that requires a separate RC15V remote condenser and storage bin.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS1500A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,698 lb/Day, 208–230V (Head Only) Description

The SPIKA MS1500R 48" is the top of ITV's modular cube line: a single 48"-wide head paired with a separate RC15V remote air-cooled condenser, connected by a field-installed refrigerant line set. Moving the condenser away from the head directs its waste heat outdoors or into a mechanical space rather than the kitchen, reducing ambient heat and noise where staff work and allowing the system to sustain very high output. The remote condenser is rated to operate in ambient temperatures from −4°F to 122°F, so it can be mounted outdoors in most climates.

At nominal conditions, the MS1500A1FR makes about 1,698 lb (770 kg) per day — and roughly 1,576 lb (715 kg) at ASHRAE conditions — the most of any single-head SPIKA. It runs on 208–230V / 60 Hz single-phase power, with the head and the RC15V condenser each on their own circuit.

The ice is full dice — about 1" × 0.9" × 1" (26 × 23 × 26 mm). This classic cube is clear, dense, and slow to melt, so it cools drinks without watering them down — the preferred choice for bars, restaurants, and premium beverage service. The machine forms about 640 cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor for clean, consistent cubes.

The head pairs with ITV's larger storage bins and can be stacked two-high on the biggest SCD-series bins to push capacity even higher in the same floor space. A smart electronic control board manages all parameters and displays self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. A remote system requires professional installation of the condenser and refrigerant lines.

Key Features

Remote air condenser (RC15V): keeps condenser heat and noise out of the work area; rated for outdoor mounting (−4°F to 122°F)
Highest-output single-head SPIKA: up to 1,698 lb (770 kg) per day; ~1,576 lb (715 kg) at ASHRAE
208–230V / 60 Hz / single-phase power (head and condenser on separate circuits)
Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — clear, slow-melting, premium presentation
Approx. 640 cubes per cycle
Stackable two-high on the largest SCD-series bins
Energy: 3.86 kWh / 100 lb of ice
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

The highest-volume operations needing maximum ice from a single head
Bars, restaurants, and premium beverage service that want a clear, slow-melting cube
Sites that need to keep condenser heat and noise out of the kitchen or service area
Large restaurants, cafeterias, hotels, banquet, and catering operations
Installations with a suitable roof, mechanical room, or outdoor location for the condenser

Full Specifications

Specification	Detail
Ice Type	Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm)
Machine Type	Modular head with remote air condenser (requires RC15V condenser + separate storage bin); stackable 2-high on larger bins
Condenser / Cooling	Air-cooled, remote condenser (RC15V, sold separately)
Ice Production (nominal)	1,698 lb (770 kg) / 24 h
Ice Production (ASHRAE)	1,576 lb (715 kg) / 24 h
Production Range (across conditions)	~1,335–1,708 lb (606–775 kg) / 24 h
Cubes per Cycle	~640
Refrigerant	R404A
Electrical	208–230 V / 60 Hz / 1-phase (±10%)
Power Consumption (at 109°F)	Head 2,700 W + RC15V condenser 206 W
ASHRAE Cooling Capacity	28,746 BTU/h (8,424 W)
Heat Rejected	19,250 BTU/h (5,640 W) — at remote condenser
Energy Use	3.86 kWh / 100 lb of ice
Water Consumption†	≈40.76 gal (154 L) / 100 lb of ice
Wiring / Fuse (head)	14 AWG (2.5 mm²), 3-conductor / 25 A fuse
Wiring / Fuse (RC15V condenser)	16 AWG (1.5 mm²), 3-conductor / 25 A fuse
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range (machine)	41–109°F (5–43°C)
Ambient Temp. Range (remote condenser)	−4–122°F (−20–50°C) — outdoor-capable
Water Temp. Range	41–95°F (5–35°C)
Head Dimensions (W × D × H)	48" × 24" × 30" (1220 × 620 × 763 mm)
Head Shipping Dimensions	51" × 27" × 34" (1290 × 685 × 890 mm)
Head Weight (net/shipping)	320 lb (145 kg) / 373 lb (169 kg)
RC15V Condenser Dimensions (approx.)	~45" × 29" × 33.5" (1145 × 729 × 850 mm)
Certifications	NSF, ETL (Intertek)

†The remote datasheet's water-consumption column reads ambiguously (40.76 / 10.76); the figure shown reflects the higher gal/100 lb reading. Confirm exact water use with ITV.

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Required (sold separately):

RC15V remote air condenser — mounts on a roof, in a mechanical room, or outdoors
Refrigerant line set — field-installed between head and RC15V condenser
Storage bin — head is head-only

Optional (not included):

CS102 — double 10" anti-limescale + anti-chlorine water filter
CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
Adapter plates — for mounting on various storage bins
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S900, S1050, SCD900, SCD1400, and SCD1800 (larger SCD bins support two stacked heads).

💡The SPIKA MS1500A1FR is a head-only unit and requires the RC15V remote condenser, a refrigerant line set, and a separate storage bin to operate. Need a compact cube that packs densely for high-volume dispensing? See the half-dice SPIKA MS1500A1HR. Don't need a remote condenser? See the self-contained SPIKA MS1500A1F.

ITV Ice Makers SPIKA MS1500A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,698 lb/Day, 208–230V (Head Only) Features

Premium Quality

Build to Last

Full Cube Ice

Slow Melting

High Output

Up to 1,698 lb/day

Remote Condenser

Cooler Workspace

Modular Design

Choose Your Bin

Stainless Frame

AISI 304 Build

Easy Service

Removable Panels

Commercial Listed

NSF ETL Certified

ITV Ice Makers SPIKA MS1500A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,698 lb/Day, 208–230V (Head Only) Resources

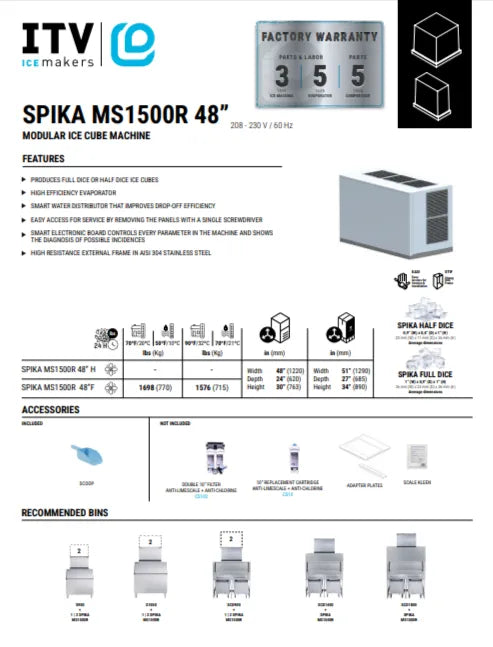

Specification
