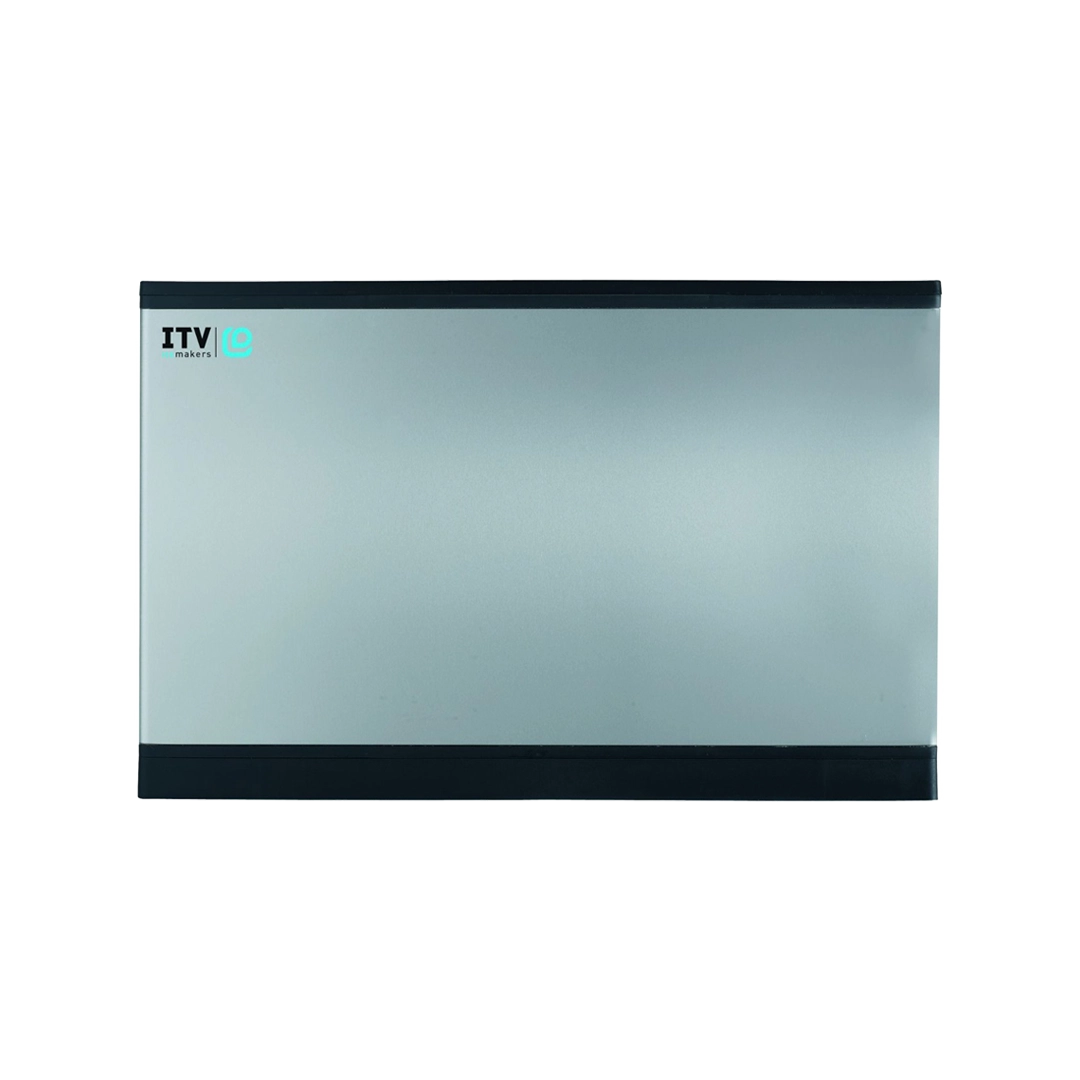

ITV SPIKA MS500A1FR Commercial Ice Machine Head - 441 lb/Day Full Dice Cube, 30 inches Remote Air-Cooled Modular
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
ITV SPIKA MS500A1FR Commercial Ice Machine Head - 441 lb/Day Full Dice Cube, 30 inches Remote Air-Cooled Modular
ITV SPIKA MS500A1FR Commercial Ice Machine Head - 441 lb/Day Full Dice Cube, 30 inches Remote Air-Cooled Modular Description
The "R" in this model means remote: instead of rejecting heat into the room like a self-contained machine, the MS500A1FR pairs with an outdoor or remotely mounted RC5 condenser connected by a refrigerant line set. The benefit is a noticeably cooler, quieter ice-making area — about 8,250 BTU/h of heat is moved away from the space — which is ideal where kitchen heat load, ventilation, or noise is a concern. It does require professional refrigeration installation and the matching RC5 condensing unit and line set, which are ordered separately.
Full-dice cubes measure about 1" × 0.9" × 1" (26 × 23 × 26 mm) — a substantial, traditional cube that melts slowly and dilutes drinks less, making it the go-to choice for spirits, cocktails, and upscale fountain and bar service. The machine forms about 200 of these cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor that cascades water across the entire evaporator so each cube takes shape cleanly and consistently.

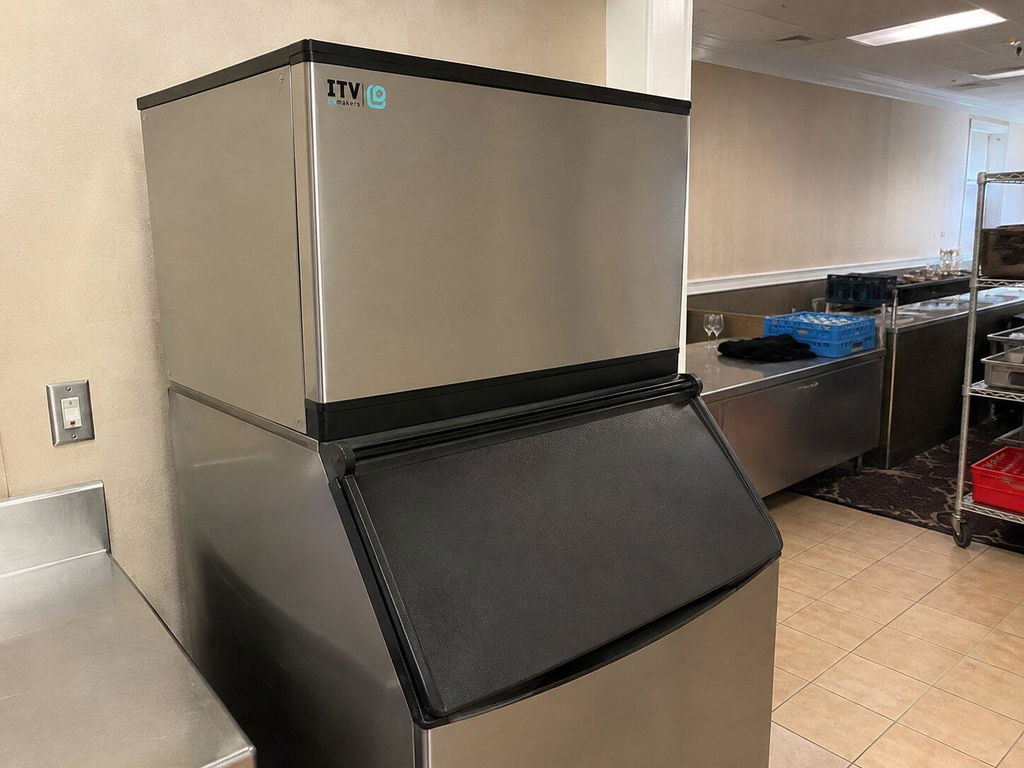

On a 30" footprint, the head pairs with a range of ITV storage bins and is stackable — two heads can sit on one large bin with the optional stacking kit. A smart electronic control board manages every parameter and shows self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. The head runs on 115 V single-phase power.
Key Features

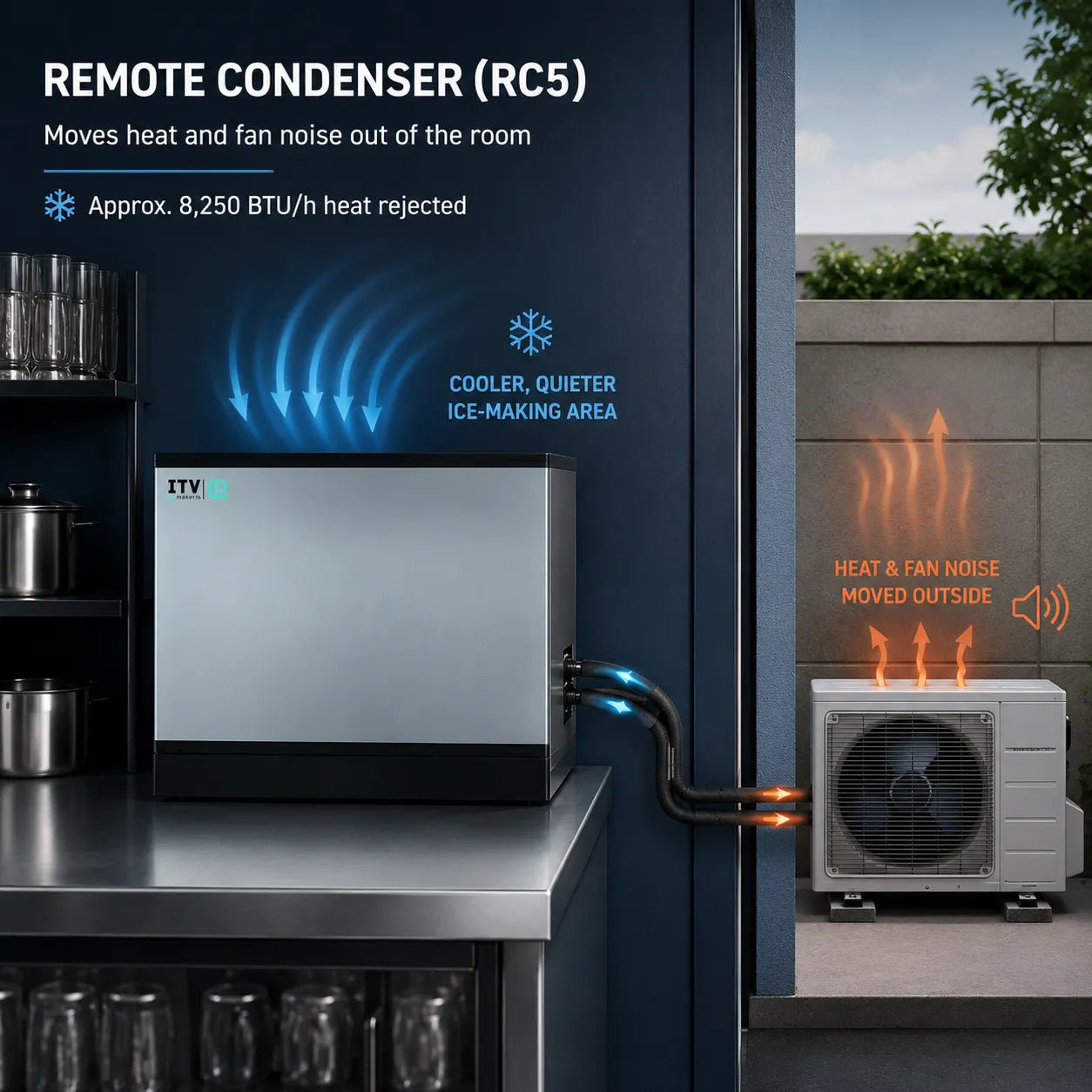

- Remote condenser (RC5): rejects ~8,250 BTU/h of heat and fan noise out of the room for a cooler, quieter kitchen
- Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — slow-melting, low-dilution "Classic American" cube
- High output: up to 441 lb (200 kg) of ice per day
- Approx. 200 cubes per cycle

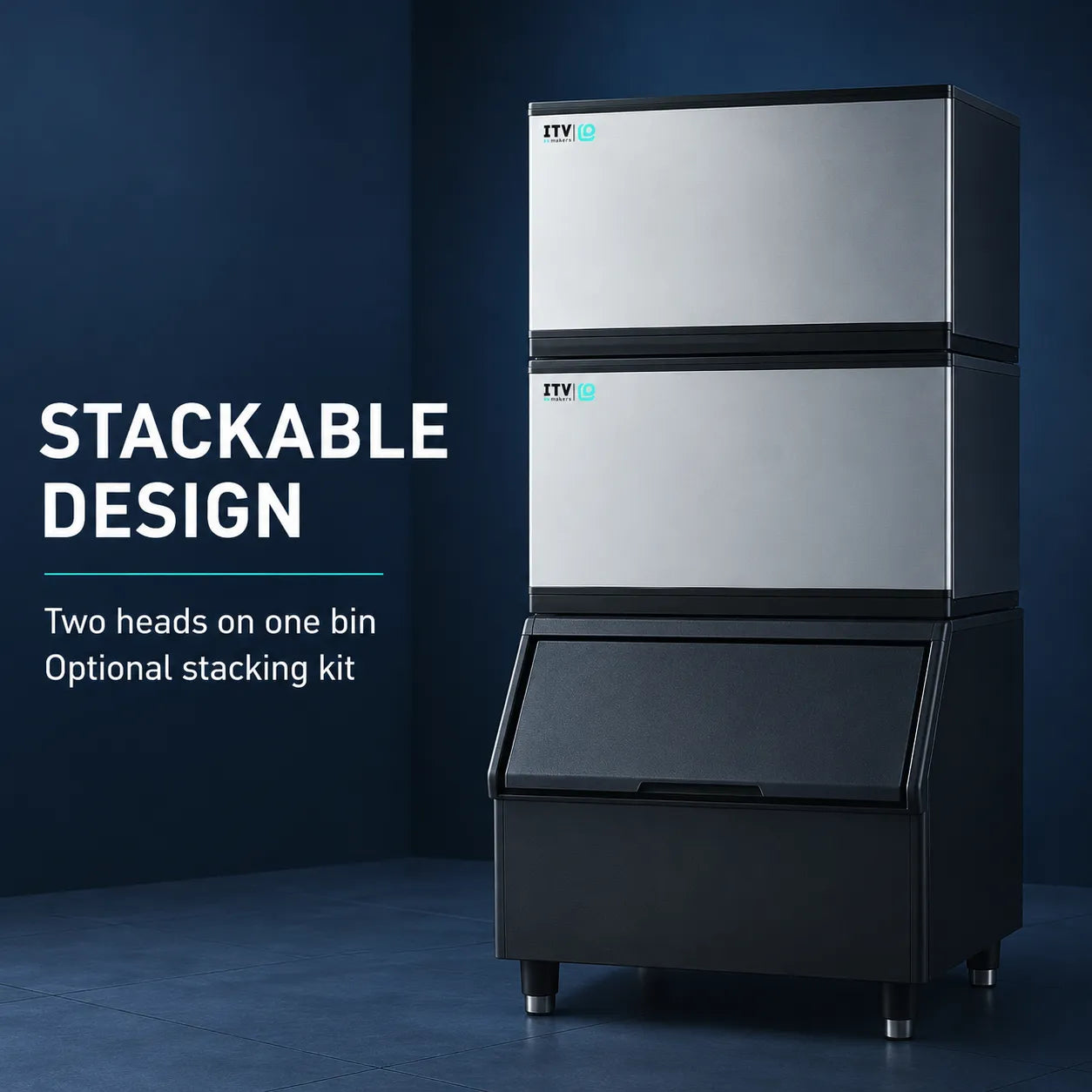

- Stackable: two heads on one bin with the optional stacking kit
- 115 V / 60 Hz / single-phase head power
- Patented smart water distributor for clean, consistent cubes and better scale resistance
- High-efficiency vertical plate evaporator
- Smart electronic control board with self-diagnostics
- Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
- High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
- Ice scoop included
- NSF and ETL (Intertek) certified
Best For

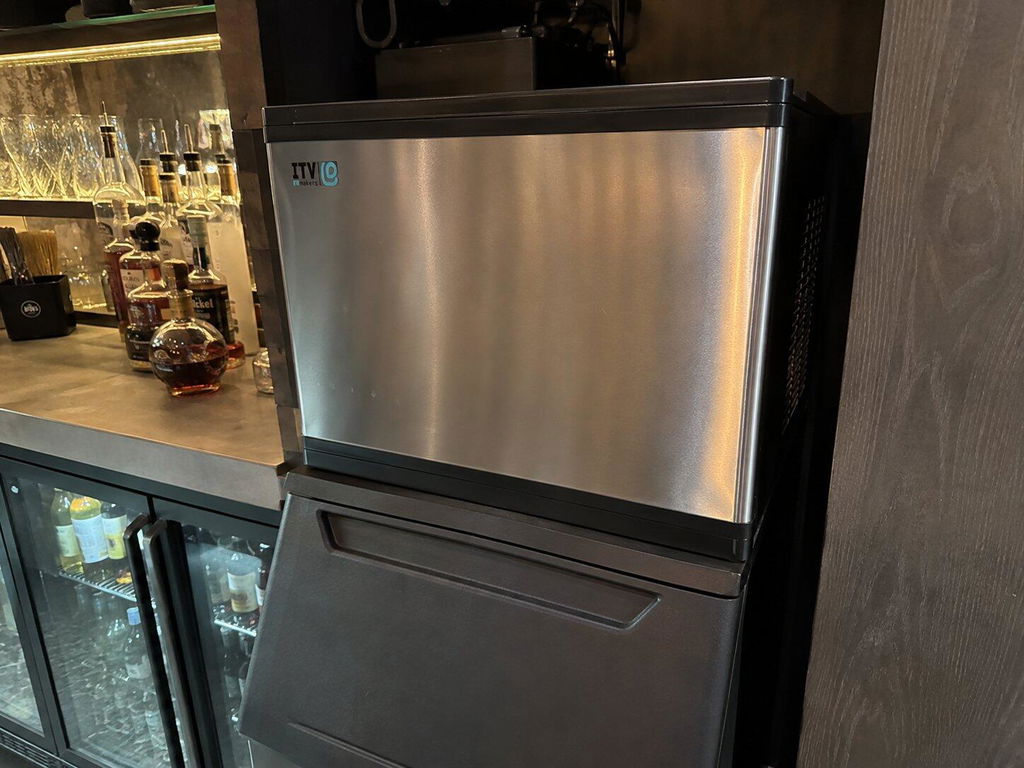

- Bars, lounges, and restaurants serving spirits and cocktails where slow-melting, low-dilution cubes matter
- Kitchens where heat load, ventilation, or noise makes a self-contained machine impractical
- Sites that can accommodate a remotely mounted condenser and professional refrigeration installation
- Operations that may scale up later by stacking a second head on the same bin

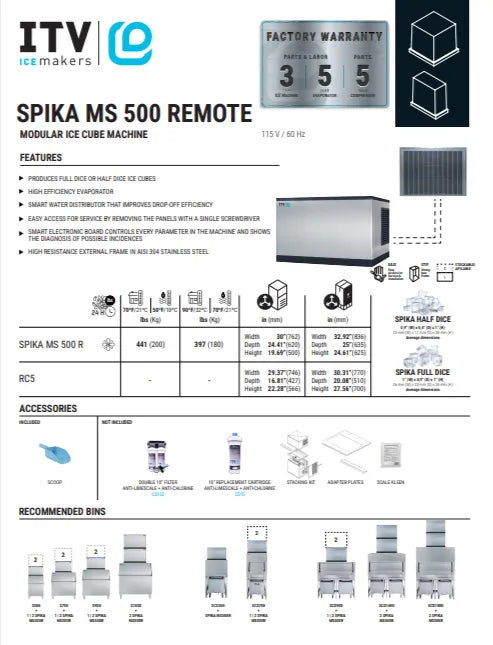

Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm) |
| Machine Type | Remote modular ice machine head (requires RC5 remote condenser, line set, and separate storage bin); stackable 2-high |
| Condenser / Cooling | Remote air-cooled (RC5 condensing unit, sold separately) |
| Ice Production (nominal, 70°F air / 50°F water) | 441 lb (200 kg) / 24 h |
| Ice Production (ASHRAE, 90°F air / 70°F water) | 397 lb (180 kg) / 24 h |
| Production Range (across conditions) | ~286–467 lb (130–212 kg) / 24 h |
| Cubes per Cycle | ~200 |
| Refrigerant | R404A |
| Electrical (head) | 115 V / 60 Hz / 1-phase (±10%) |
| Power Consumption — Head (at 109°F) | 874 W |
| Power Consumption — RC5 Condenser (at 109°F) | 200 W |
| System ASHRAE Cooling Capacity | 10,639 BTU/h (3,118 W) |
| Heat Rejected (at remote condenser) | 8,250 BTU/h (2,418 W) |
| Energy Use | 4.6 kWh / 100 lb of ice |
| Water Consumption | 2.9 gal / 100 lb of ice (10.8 L/h) |
| Wiring / Fuse — Head | 19 AWG (2.5 mm²), 3-conductor / 20 A fuse |
| Wiring / Fuse — RC5 Condenser | 14 AWG (1.5 mm²), 3-conductor / 15 A fuse |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 41–109°F (5–43°C) |
| Water Temp. Range | 41–95°F (5–35°C) |
| Head Cabinet Dimensions (W × D × H) | 30" × 24.41" × 19.69" (762 × 620 × 500 mm) |
| Head Shipping Dimensions (W × D × H) | 32.92" × 25" × 24.61" (836 × 635 × 625 mm) |
| RC5 Condenser Dimensions (W × D × H) | 29.37" × 16.81" × 22.28" (746 × 427 × 566 mm) |
| RC5 Condenser Shipping Dimensions (W × D × H) | 30.31" × 20.08" × 27.56" (770 × 510 × 700 mm) |
| Net Weight (head / RC5) | 146 lb (66 kg) / 55 lb (25 kg) |
| Shipping Weight (head / RC5) | 165 lb (75 kg) / 62 lb (28 kg) |
| Certifications | NSF, ETL (Intertek) |
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Compressor: 5 years parts
Accessories
Included: ice scoop
Required (sold separately):
- RC5 remote condenser — the matching remote condensing unit
- Refrigerant line set — SPIKA MS500R, available in 20, 35, and 50 ft lengths
Optional (not included):
- CS102 — double 10" anti-limescale + anti-chlorine water filter
- CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
- Stacking kit — to install two heads on a single bin
- Adapter plates — for mounting on various storage bins
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: SCS350 (recommended); also pairs with S500, S750, S900, S1050, SCS700, SCD900, SCD1400, and SCD1800 (larger bins support two stacked heads).
💡The SPIKA MS500A1FR is a head-only unit and requires the RC5 remote condenser, a refrigerant line set, and a separate storage bin to operate. Prefer the same full-dice cube without a remote condenser? See the self-contained air-cooled SPIKA MS500A1F. Need a smaller, faster-chilling cube on this remote platform? See the half-dice SPIKA MS500A1HR.
