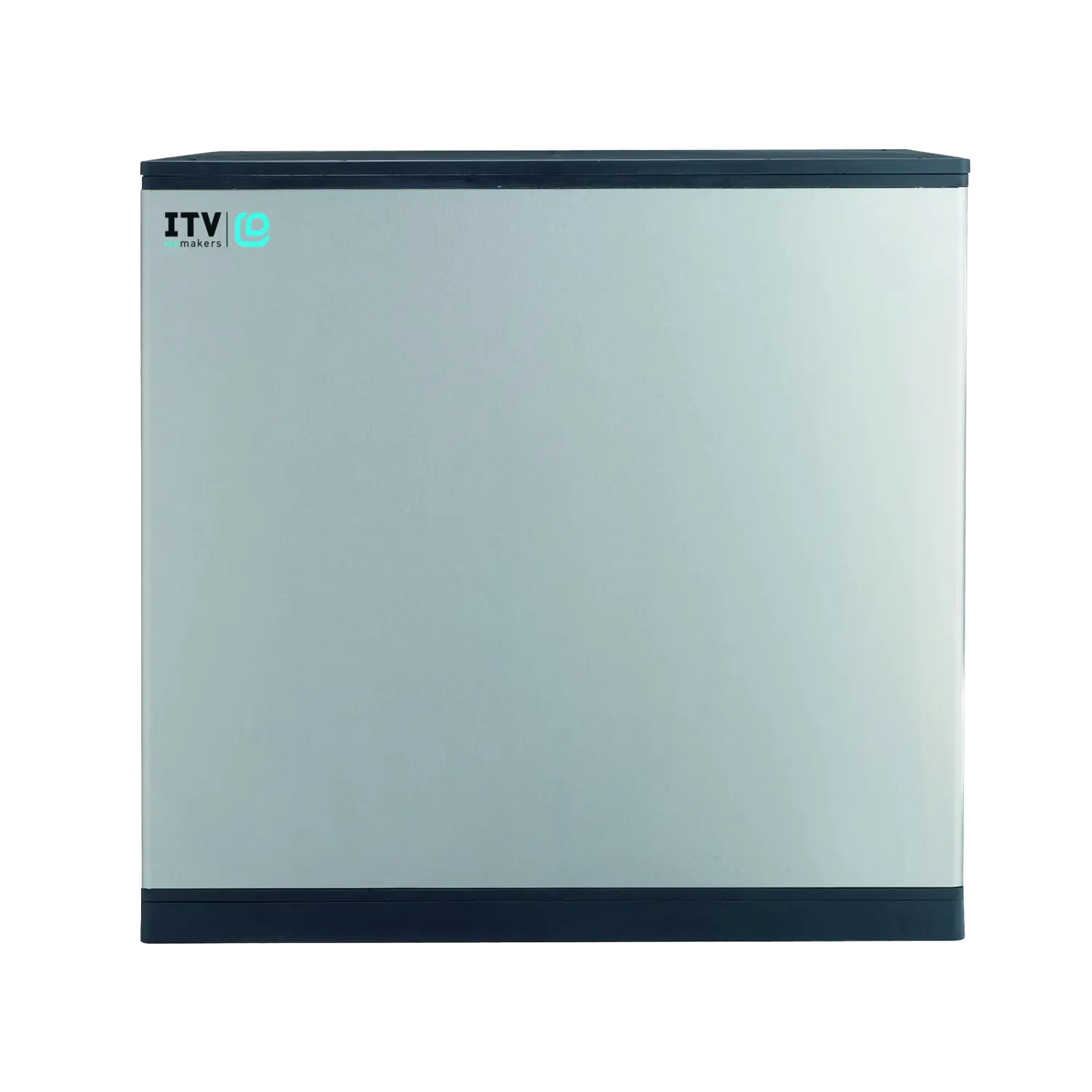

ITV Ice Makers SPIKA MS1000A2H 30" Air-Cooled Modular Half-Dice Cube Ice Machine – 970 lb/Day, 208–230V (Head Only)

Name: ITV Ice Makers SPIKA MS1000A2H 30" Air-Cooled Modular Half-Dice Cube Ice Machine – 970 lb/Day, 208–230V (Head Only)
Brand: ITV Ice Makers
SKU: 17402
Price: 6487.5 USD
Availability: InStock

$6,487.50

$6,487.50 ~~$12,975.00~~

Save 50%

The ITV SPIKA MS1000A2H is a high-capacity 30"-wide air-cooled modular ice machine head that produces up to 970 lb (440 kg) of ice per day. Running on 208–230V single-phase power, it delivers serious output for busy operations, and its compact half-dice cube packs densely and chills drinks fast. This is a head-only unit that sits on a separate storage bin and can be stacked two-high on larger bins for even greater capacity.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS1000A2H 30" Air-Cooled Modular Half-Dice Cube Ice Machine – 970 lb/Day, 208–230V (Head Only) Description

The SPIKA MS1000 is one of ITV's large-format modular cube machines, built to feed high-demand beverage and food-service operations from a single 30"-wide head. At up to 970 lb (440 kg) per day, the MS1000A2H pairs that capacity with 208–230V / 60 Hz single-phase power and an efficient 16 A circuit.

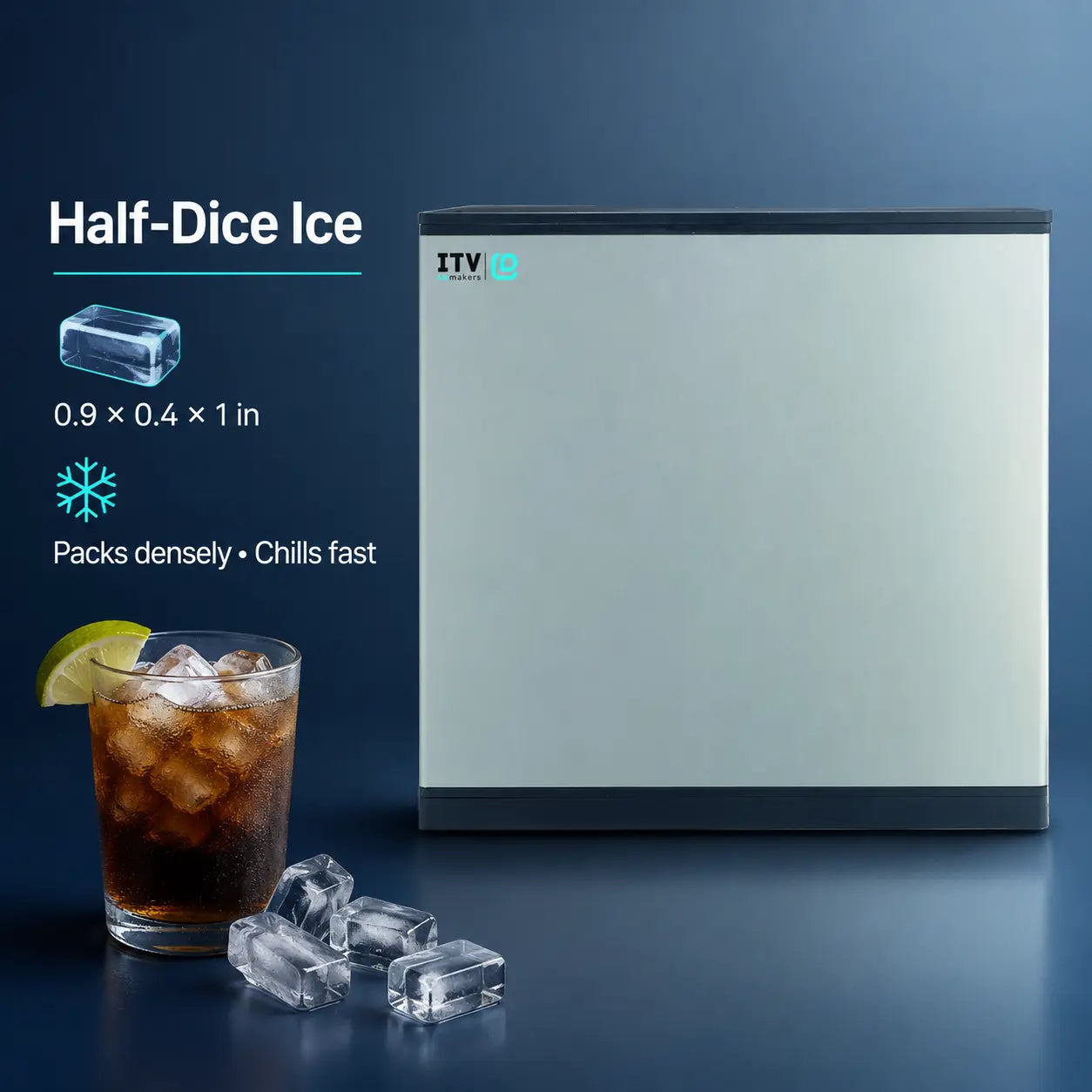

The ice is half dice — about 0.9" × 0.4" × 1" (23 × 11 × 26 mm). These smaller, flatter cubes pack tightly into a cup, expose more surface area to cool drinks quickly, and stretch further per pound, which makes them ideal for soft-drink fountains, self-serve dispensing, and high-volume food service. The machine forms about 800 cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor that cascades water across the evaporator for clean, consistent cubes.

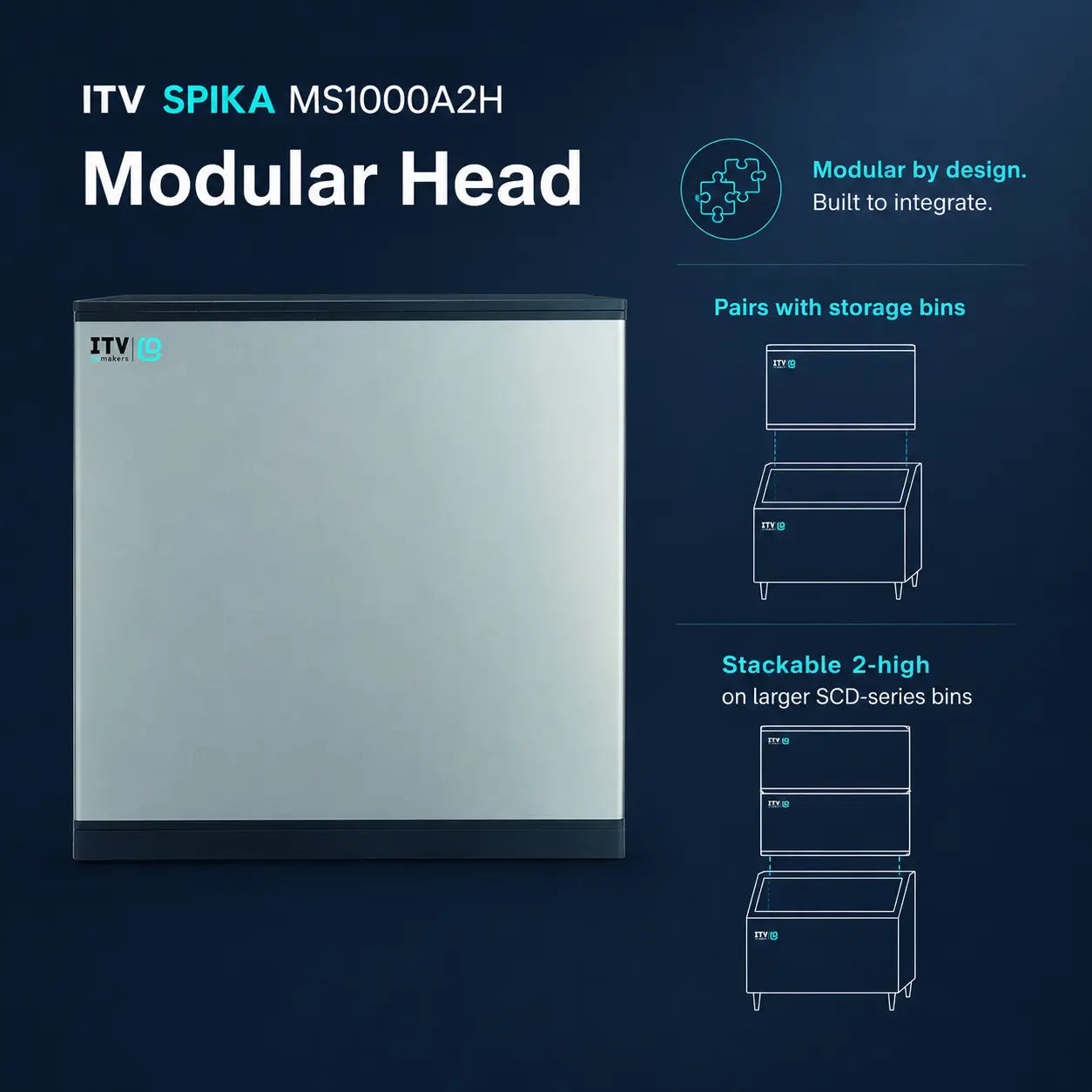

The head pairs with a wide range of ITV storage bins, and it can be stacked two-high on the larger SCD-series bins to roughly double output in the same floor footprint — a major advantage for growing operations. A smart electronic control board manages all parameters and displays self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. As an air-cooled machine, it installs easily wherever there's adequate ventilation.

Key Features

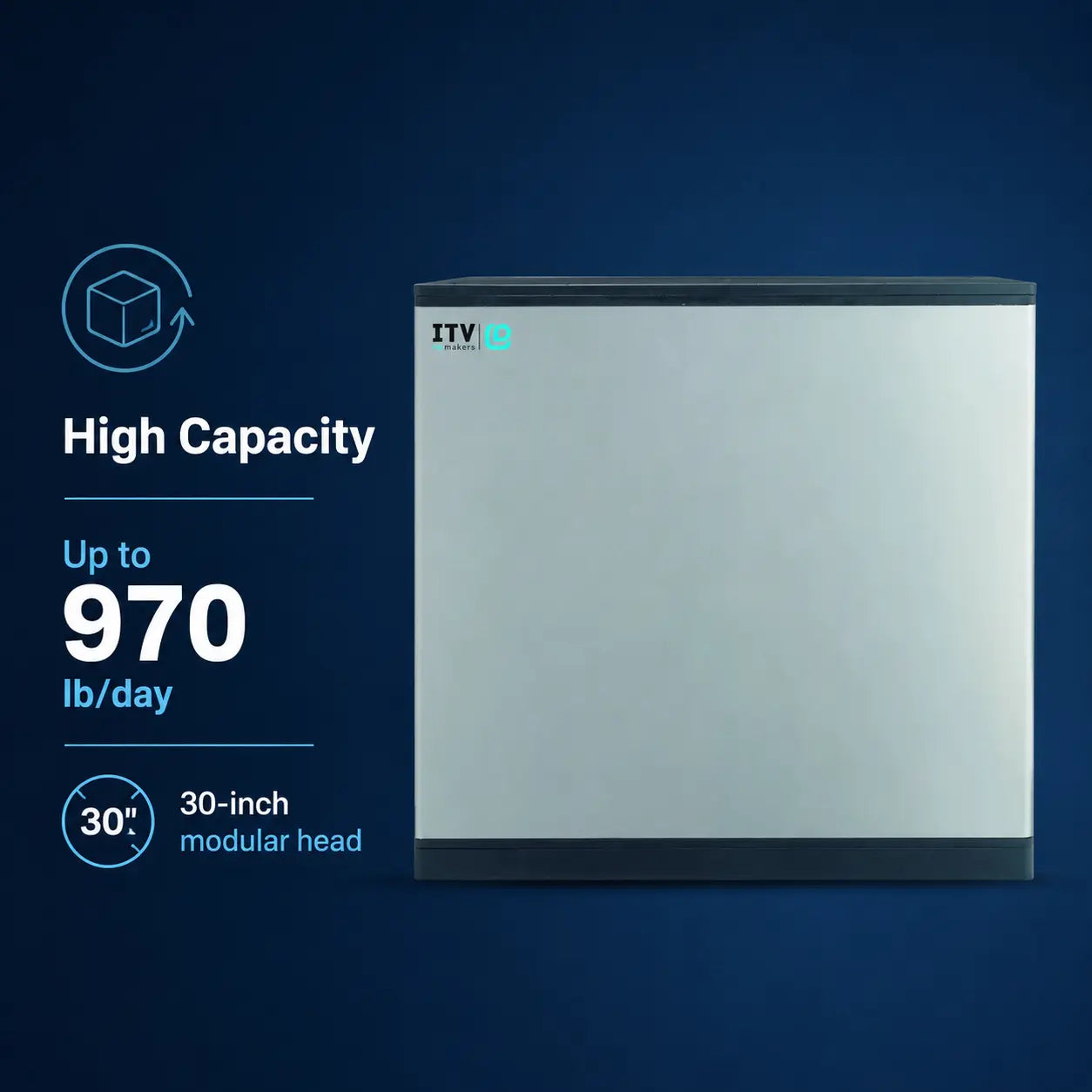

High capacity: up to 970 lb (440 kg) per day from a single 30" head

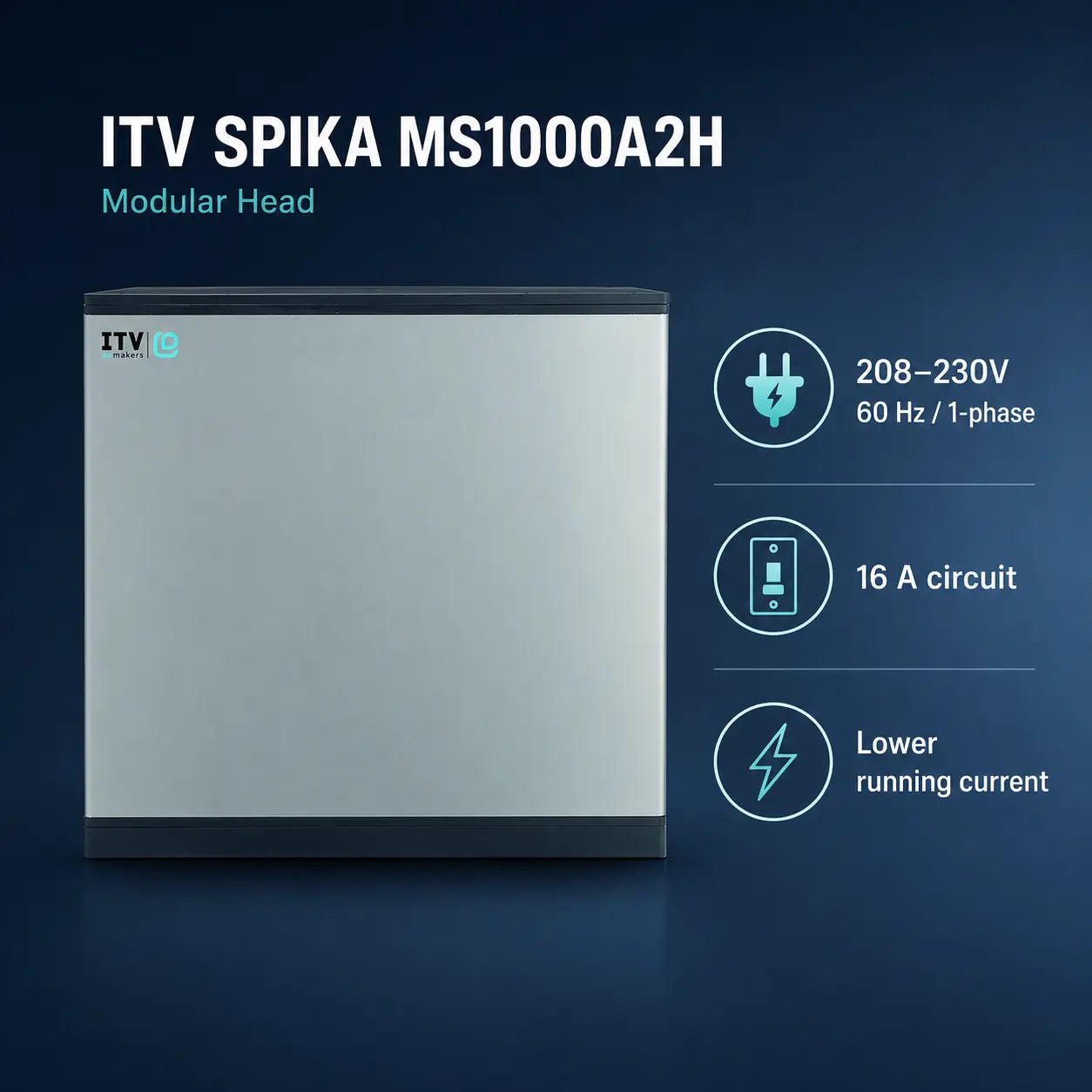

208–230V / 60 Hz / single-phase power on a 16 A circuit
Compact half-dice cube: ~0.9" × 0.4" × 1" (23 × 11 × 26 mm) — packs densely and chills drinks fast
Approx. 800 cubes per cycle
Stackable two-high on larger SCD-series bins to roughly double output
Energy: 4.43 kWh / 100 lb of ice
Air-cooled for simple installation wherever there's adequate ventilation
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

High-volume soft-drink fountains and self-serve beverage dispensing
Large restaurants, cafeterias, hotels, and catering operations
Sites that need maximum ice throughput and may stack a second head later
Operations wired for 208–230V power

Full Specifications

Specification	Detail
Ice Type	Half-dice cube, ~0.9" × 0.4" × 1" (23 × 11 × 26 mm)
Machine Type	Modular ice machine head (requires separate storage bin); stackable 2-high on larger bins
Condenser / Cooling	Air-cooled
Ice Production (nominal)*	970 lb (440 kg) / 24 h
Ice Production (ASHRAE)*	730 lb (331 kg) / 24 h
Production Range (across conditions)*	~623–986 lb (283–447 kg) / 24 h
Cubes per Cycle	~800
Refrigerant	R404A
Electrical	208–230 V / 60 Hz / 1-phase (±10%)
Power Consumption (at 109°F)	1,540 W
ASHRAE Cooling Capacity	17,586 BTU/h (5,154 W)
Heat Rejected	12,024 BTU/h (3,524 W)
Energy Use	4.43 kWh / 100 lb of ice
Water Consumption	14.8 gal (55.9 L) / 100 lb of ice
Wiring / Fuse	12 AWG (2.5 mm²), 3-conductor / 16 A fuse
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range	41–109°F (5–43°C)
Water Temp. Range	41–95°F (5–35°C)
Cabinet Dimensions (W × D × H)	30" × 24.41" × 29.92" (762 × 620 × 760 mm)
Shipping Dimensions (W × D × H)	34.41" × 25" × 32.92" (874 × 635 × 836 mm)
Net Weight	231 lb (105 kg)
Shipping Weight	243 lb (110 kg)
Certifications	NSF, ETL (Intertek)

*Production figures are the documented full-dice air-cooled values; the datasheet does not publish separate half-dice output. Across the SPIKA line, half-dice production runs comparable to full dice. Confirm the exact half-dice rating with ITV.

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Optional (not included):

CS112 — double 11" anti-limescale + anti-chlorine water filter
CS11 — 11" replacement cartridge (anti-limescale + anti-chlorine)
Stacking kit — for mounting two heads on a single larger bin
Adapter plates — for mounting on various storage bins
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S500, S750, S900, S1050, SCS350, SCS700, SCD900, SCD1400, and SCD1800 (larger SCD bins support two stacked heads).

💡The SPIKA MS1000A2H is a head-only unit and needs a separate storage bin to operate. Prefer a larger, slow-melting cube for bar and premium service? See the full-dice SPIKA MS1000A2F. Running in a hot or poorly ventilated room? See the water-cooled SPIKA MS1000W2H. Need to locate the condenser remotely? See the SPIKA MS1000A2HR.
