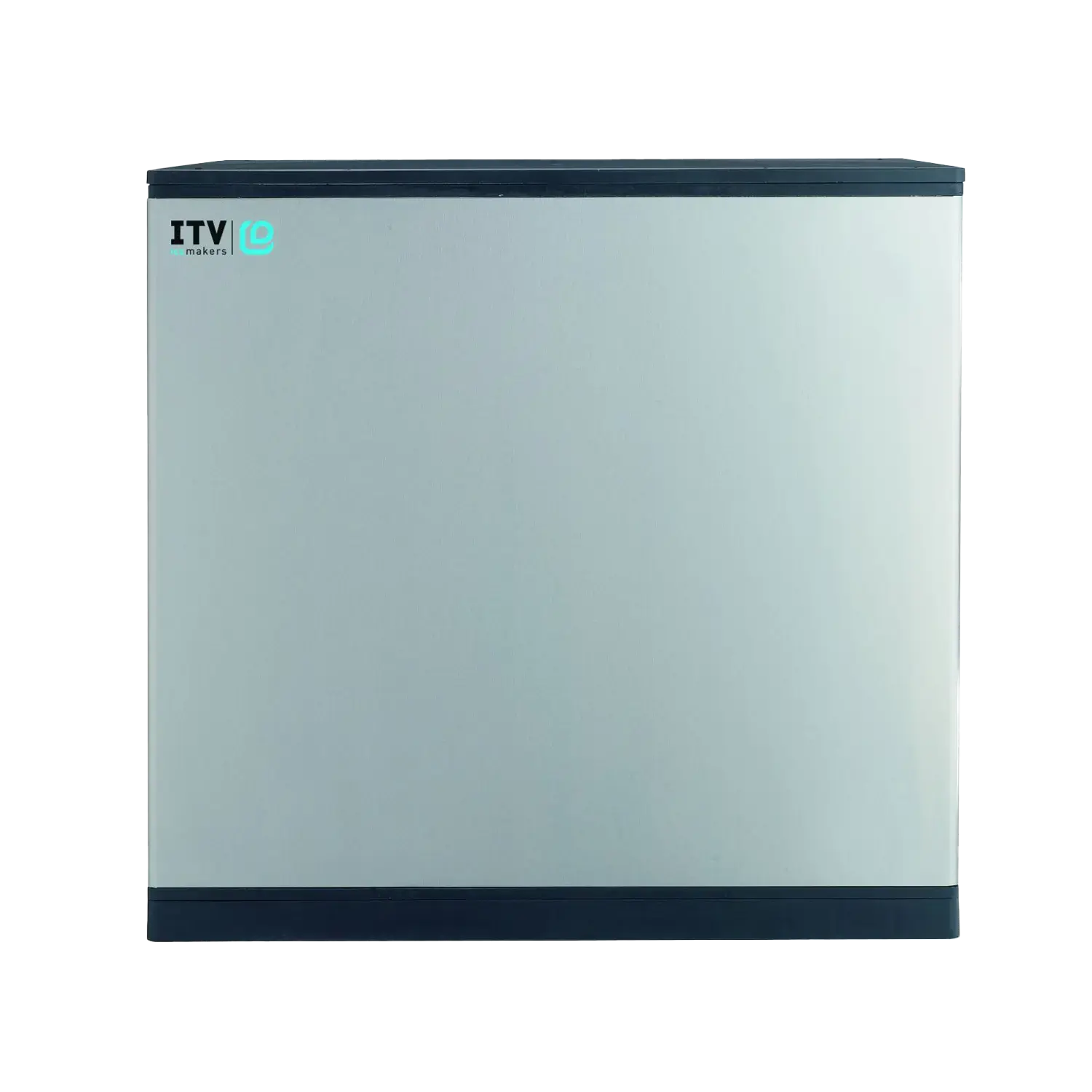

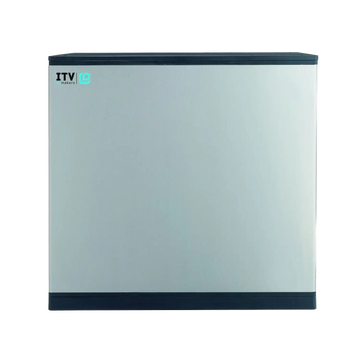

ITV SPIKA MS1000W2H Commercial Ice Machine Head - 974 lb/Day Half Dice Cube, 30 inches Water-Cooled Modular 208-230V
ITV SPIKA MS1000W2H Commercial Ice Machine Head - 974 lb/Day Half Dice Cube, 30 inches Water-Cooled Modular 208-230V Description
The SPIKA MS1000 is one of ITV's large-format modular cube machines, built to feed high-demand beverage and food-service operations from a single 30"-wide head. This W2H version runs on 208–230V / 60 Hz single-phase power and uses water cooling, which makes it especially well suited to hot or poorly ventilated rooms.
Water cooling transfers condenser heat to a water loop rather than blowing it into the room, so the machine runs cooler and quieter and — importantly at this capacity — maintains its output far better when ambient temperatures climb. At ASHRAE conditions, this water-cooled head is rated at about 915 lb/day, compared with roughly 730 lb/day for the equivalent air-cooled model, a meaningful advantage in hot kitchens. The trade-off is water use: beyond the water consumed to make ice, a water-cooled condenser consumes a substantial amount of additional water, so it's best where ambient heat or ventilation is the limiting factor and that water cost is acceptable. Water-cooled SPIKA units are typically supplied as a special order.
The ice is half dice — about 0.9" × 0.4" × 1" (23 × 11 × 26 mm). These smaller, flatter cubes pack tightly into a cup, expose more surface area to cool drinks quickly, and stretch further per pound, which makes them ideal for soft-drink fountains, self-serve dispensing, and high-volume food service. The machine forms about 800 cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor for clean, consistent cubes.

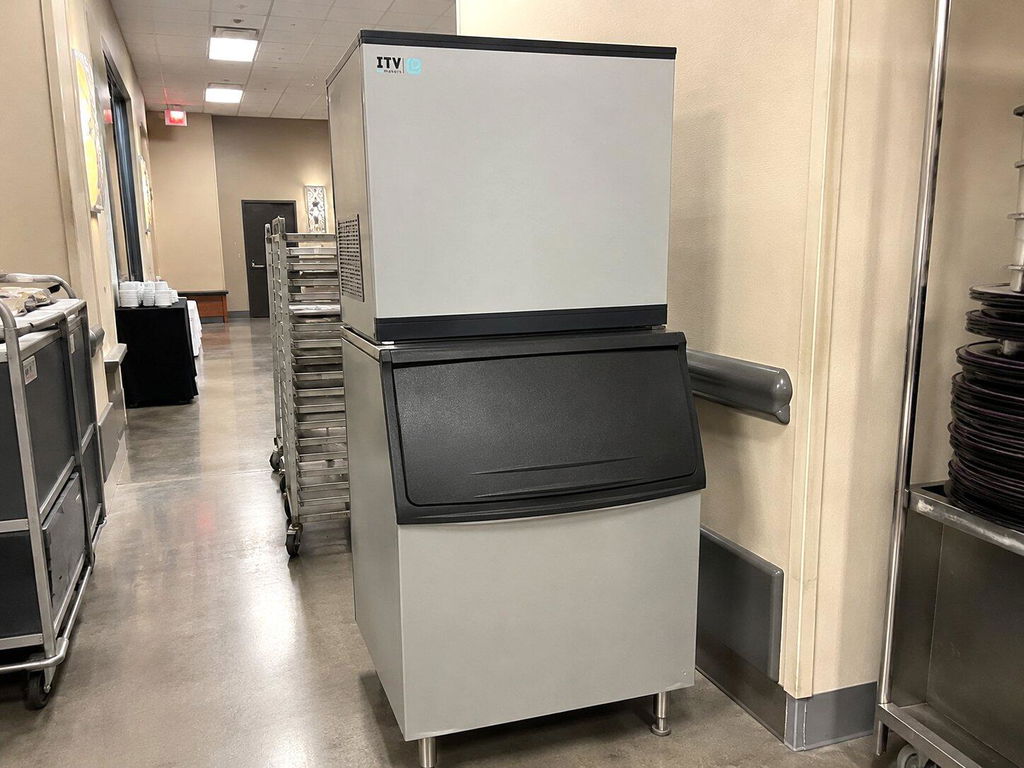

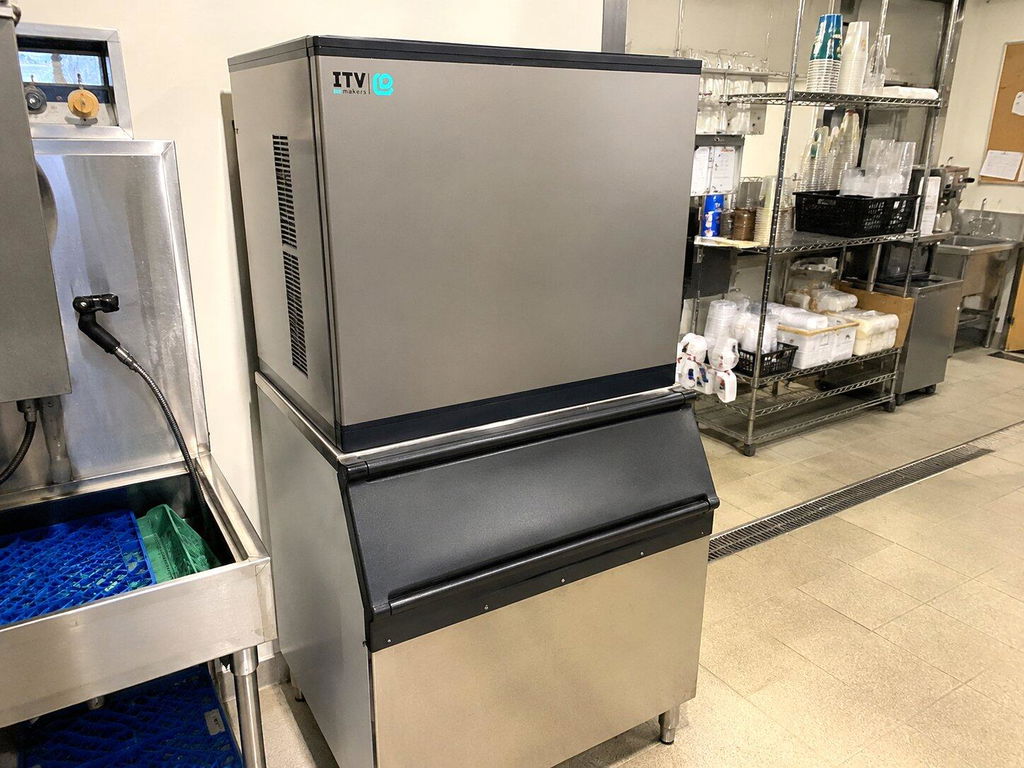

The head pairs with a wide range of ITV storage bins, and it can be stacked two-high on the larger SCD-series bins to roughly double output in the same floor footprint. A smart electronic control board manages every parameter and shows self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens.
Key Features
- Water-cooled: runs cooler and quieter and holds output in hot or poorly ventilated rooms
- High capacity: up to 974 lb (442 kg) per day; ~915 lb (415 kg) at ASHRAE — strong high-ambient performance
- 208–230V / 60 Hz / single-phase power on a 16 A circuit
- Compact half-dice cube: ~0.9" × 0.4" × 1" (23 × 11 × 26 mm) — packs densely and chills drinks fast
- Approx. 800 cubes per cycle
- Stackable two-high on larger SCD-series bins to roughly double output
- Energy: 3.7 kWh / 100 lb of ice (more efficient than the air-cooled model)
- Patented smart water distributor for clean, consistent cubes and better scale resistance
- High-efficiency vertical plate evaporator
- Smart electronic control board with self-diagnostics
- Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
- High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
- Ice scoop included
- NSF and ETL (Intertek) certified
Best For
- Hot kitchens or rooms with limited ventilation where air-cooled output would suffer
- High-volume soft-drink fountains and self-serve beverage dispensing
- Large restaurants, cafeterias, hotels, and catering operations
- Sites where lower noise and heat output in the room are priorities and water cost is acceptable
Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Half-dice cube, ~0.9" × 0.4" × 1" (23 × 11 × 26 mm) |
| Machine Type | Modular ice machine head (requires separate storage bin); stackable 2-high on larger bins |
| Condenser / Cooling | Water-cooled |
| Ice Production (nominal)* | 974 lb (442 kg) / 24 h |
| Ice Production (ASHRAE)* | 915 lb (415 kg) / 24 h |
| Production Range (across conditions)* | ~810–991 lb (367–450 kg) / 24 h |
| Cubes per Cycle | ~800 |
| Refrigerant | R404A |
| Electrical | 208–230 V / 60 Hz / 1-phase (±10%) |
| Power Consumption (at 109°F) | 1,540 W |
| ASHRAE Cooling Capacity | 17,586 BTU/h (5,154 W) |
| Heat Rejected | 12,024 BTU/h (3,524 W) |
| Energy Use | 3.7 kWh / 100 lb of ice |
| Water Consumption (ice-making) | 14.8 gal (55.9 L) / 100 lb of ice |
| Water Consumption (condenser, additional) | 51.8 gal (196.42 L) / 100 lb of ice |
| Wiring / Fuse | 12 AWG (2.5 mm²), 3-conductor / 16 A fuse |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 41–109°F (5–43°C) |
| Water Temp. Range | 41–95°F (5–35°C) |
| Cabinet Dimensions (W × D × H) | 30" × 24.41" × 29.92" (762 × 620 × 760 mm) |
| Shipping Dimensions (W × D × H) | 34.41" × 25" × 32.92" (874 × 635 × 836 mm) |
| Net Weight | 231 lb (105 kg) |
| Shipping Weight | 243 lb (110 kg) |
| Certifications | NSF, ETL (Intertek) |
*Production figures are the documented full-dice water-cooled values; the datasheet does not publish separate half-dice output. Across the SPIKA line, half-dice production runs comparable to full dice. Confirm the exact half-dice rating with ITV.
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Compressor: 5 years parts
Accessories
Included: ice scoop
Optional (not included):
- CS112 — double 11" anti-limescale + anti-chlorine water filter
- CS11 — 11" replacement cartridge (anti-limescale + anti-chlorine)
- Stacking kit — for mounting two heads on a single larger bin
- Adapter plates — for mounting on various storage bins
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: S500, S750, S900, S1050, SCS350, SCS700, SCD900, SCD1400, and SCD1800 (larger SCD bins support two stacked heads).
💡The SPIKA MS1000W2H is a head-only unit and needs a separate storage bin to operate. Have good ventilation and want to avoid condenser water cost? See the air-cooled SPIKA MS1000A2H. Prefer a larger, slow-melting cube for bar and premium service? See the full-dice SPIKA MS1000W2F.
