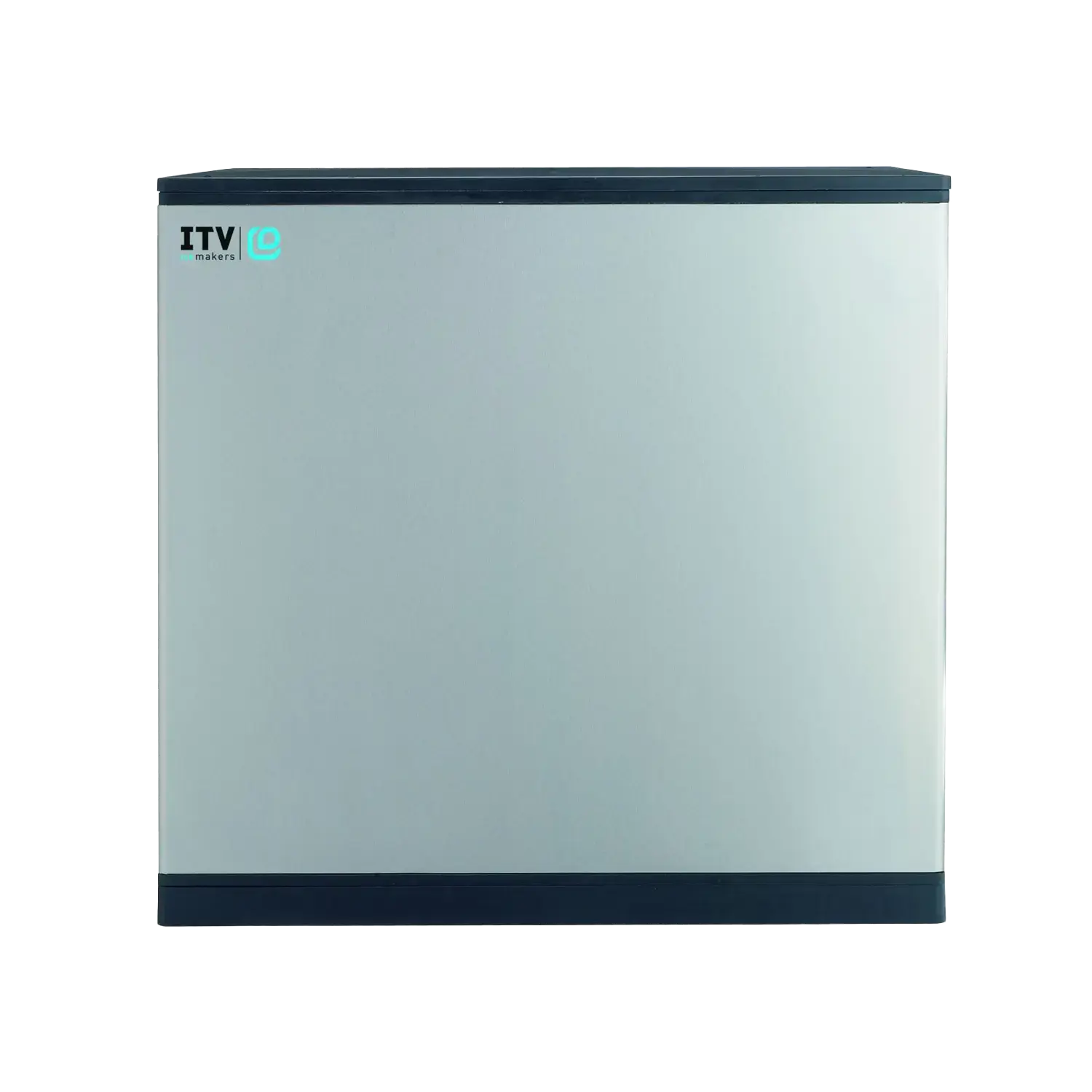

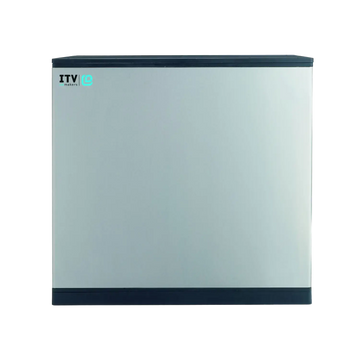

Side view of the ITV SPIKA MS1000 A2FR remote modular full-dice ice machine head, rated at up to 1,041 lb/day

ITV Ice Makers SPIKA MS1000A2FR 30" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,041 lb/Day, 208–230V (Head Only)

Name: ITV Ice Makers SPIKA MS1000A2FR 30" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,041 lb/Day, 208–230V (Head Only)
Brand: ITV Ice Makers
SKU: 18419
Price: 6539.5 USD
Availability: InStock

$6,539.50

$6,539.50 ~~$13,079.00~~

Save 50%

The ITV SPIKA MS1000A2FR is a high-capacity 30"-wide modular ice machine head with a remote air condenser, producing up to 1,041 lb (472 kg) of classic full-dice cube ice per day. Because the condenser mounts away from the head — on a roof, in a mechanical room, or outdoors — it keeps heat and noise out of the work area while delivering more ice than the equivalent self-contained model. Its larger, slow-melting full-dice cube is the "Classic American" cube preferred for bars and premium beverage service. This is a head-only unit that requires a separate RC10 remote condenser and storage bin.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS1000A2FR 30" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,041 lb/Day, 208–230V (Head Only) Description

The SPIKA MS1000 REMOTE is ITV's large-format modular cube machine for operations that want maximum ice and minimum heat in the room. The MS1000A2FR pairs a 30"-wide head with a separate RC10 remote air-cooled condenser, connected by a field-installed refrigerant line set. Moving the condenser away from the head sends its waste heat outdoors or into a mechanical space instead of the kitchen, which lowers ambient heat and noise where staff work and helps the system hold high output.

That remote configuration also lifts capacity: at nominal conditions the MS1000A2FR makes about 1,041 lb (472 kg) per day — and roughly 1,006 lb (456 kg) at ASHRAE conditions — noticeably more than the self-contained MS1000A2F. It runs on 208–230V / 60 Hz single-phase power, with the head and the RC10 condenser each on their own circuit.

Full-dice cubes measure about 1" × 0.9" × 1" (26 × 23 × 26 mm) — a substantial, traditional cube that melts slowly and dilutes drinks less, making it the go-to choice for spirits, cocktails, and upscale fountain and bar service. The machine forms about 400 of these cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor for clean, consistent cubes.

The head pairs with a wide range of ITV storage bins and can be stacked two-high on the larger SCD-series bins to roughly double output in the same floor footprint. A smart electronic control board manages every parameter and shows self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. A remote system requires professional installation of the condenser and refrigerant lines.

Key Features

Remote air condenser (RC10): keeps condenser heat and noise out of the work area
High capacity: up to 1,041 lb (472 kg) per day; ~1,006 lb (456 kg) at ASHRAE — more than the self-contained model
208–230V / 60 Hz / single-phase power (head and condenser on separate circuits)
Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — slow-melting, low-dilution "Classic American" cube
Approx. 400 cubes per cycle
Stackable two-high on larger SCD-series bins to roughly double output
Energy: 4.46 kWh / 100 lb of ice
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

Sites that need to keep condenser heat and noise out of the kitchen or service area
Bars, lounges, and restaurants serving spirits and cocktails where slow-melting, low-dilution cubes matter
Large restaurants, cafeterias, hotels, and catering operations wanting maximum throughput
Installations with a suitable roof, mechanical room, or outdoor location for the condenser

Full Specifications

Specification	Detail
Ice Type	Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm)
Machine Type	Modular head with remote air condenser (requires RC10 condenser + separate storage bin); stackable 2-high on larger bins
Condenser / Cooling	Air-cooled, remote condenser (RC10, sold separately)
Ice Production (nominal)*	1,041 lb (472 kg) / 24 h
Ice Production (ASHRAE)*	1,006 lb (456 kg) / 24 h
Production Range (across conditions)*	~728–1,076 lb (330–488 kg) / 24 h
Cubes per Cycle	~400
Refrigerant	R404A
Electrical	208–230 V / 60 Hz / 1-phase (±10%)
Power Consumption (at 109°F)	Head 1,912 W + RC10 condenser 206 W
ASHRAE Cooling Capacity	23,892 BTU/h (7,002 W)
Heat Rejected	13,294 BTU/h (3,896 W) — at remote condenser
Energy Use	4.46 kWh / 100 lb of ice
Water Consumption (ice-making)	≈14.8 gal (55.9 L) / 100 lb of ice
Wiring / Fuse (head)	14 AWG (2.5 mm²), 3-conductor / 20 A fuse
Wiring / Fuse (RC10 condenser)	14 AWG (1.5 mm²), 3-conductor / 10 A fuse
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range	41–109°F (5–43°C)
Water Temp. Range	41–95°F (5–35°C)
Head Dimensions (W × D × H)	30" × 24" × 30" (762 × 620 × 762 mm)
Head Shipping Dimensions	34.41" × 25" × 32.92" (874 × 635 × 836 mm)
Head Weight (net/shipping)	214 lb (97 kg) / 246 lb (112 kg)
RC10 Condenser Dimensions (W × D × H)	29.37" × 16.81" × 22.29" (746 × 427 × 566 mm)
RC10 Shipping Dimensions	30.32" × 20.08" × 27.56" (770 × 510 × 700 mm)
RC10 Weight (net/shipping)	88 lb (40 kg) / 110 lb (50 kg)
Certifications	NSF, ETL (Intertek)

*Production figures are the documented half-dice values; the datasheet does not publish separate full-dice output. Across the SPIKA line, full-dice production runs comparable to half-dice. Confirm the exact full-dice rating with ITV.

The remote datasheet's water-consumption column reads ambiguously; the figure shown reflects the MS1000 platform (air-cooled, ice-making water only). Confirm exact water use with ITV.

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Required (sold separately):

RC10 remote air condenser — mounts on a roof, in a mechanical room, or outdoors
Refrigerant line set — field-installed between head and RC10 condenser
Storage bin — head is head-only

Optional (not included):

CS112 — double 11" anti-limescale + anti-chlorine water filter
CS11 — 11" replacement cartridge (anti-limescale + anti-chlorine)
Stacking kit — for mounting two heads on a single larger bin
Adapter plates — for mounting on various storage bins
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S500, S750, S900, S1050, SCS350, SCS700, SCD900, SCD1400, and SCD1800 (larger SCD bins support two stacked heads).

💡The SPIKA MS1000A2FR is a head-only unit and requires the RC10 remote condenser, a refrigerant line set, and a separate storage bin to operate. Need smaller, faster-chilling cubes for high-volume fountain service? See the half-dice SPIKA MS1000A2HR. Don't need a remote condenser? See the self-contained SPIKA MS1000A2F.

ITV Ice Makers SPIKA MS1000A2FR 30" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,041 lb/Day, 208–230V (Head Only) Features

Premium Quality

Build to Last

Full Cube Ice

Slow Melting

High Output

Up to 1,041 lb/day

Modular Design

Choose Your Bin

Remote Condenser

Cooler Workspace

Stainless Frame

AISI 304 Build

Easy Service

Removable Panels

Commercial Listed

NSF ETL Certified

ITV Ice Makers SPIKA MS1000A2FR 30" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 1,041 lb/Day, 208–230V (Head Only) Resources

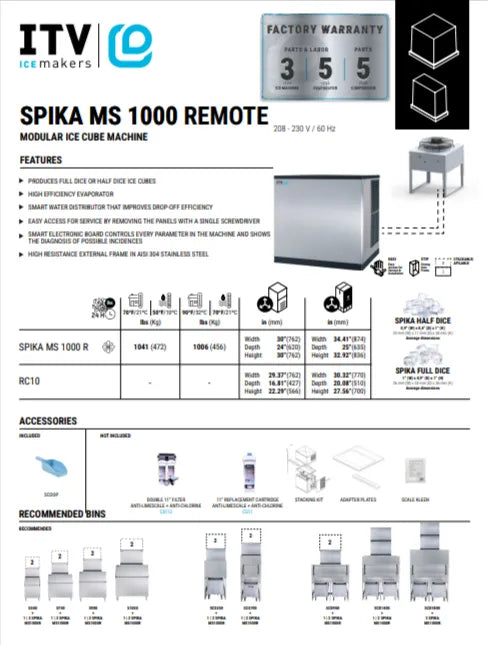

Specification
