Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

Brand:Scotsman
Model:Prodigy Plus NH0922AX-1
H² Nugget Ice Air-Cooled Up to 862 lb/day 22 in. Wide Modular Head 115V
Free Standard Shipping on Eligible Orders Within the Contiguous U.S.
Regular price $8,332.00
Sale price $8,332.00 Regular price $20,322.00
Unit price
Save 59%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

NH0922AX-1 is an air-cooled modular ice machine head producing up to 862 lb/day of h² nugget ice. 115/60/1; R290.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

We’ll use these details only to respond to your quote request.

Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.
A commercial ice machine with a stainless steel body, dark gray hopper lid, and an ice maker unit mounted on top, shown against a plain white background.

Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

Regular price $8,332.00
Sale price $8,332.00 Regular price $20,322.00
Unit price

Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Description

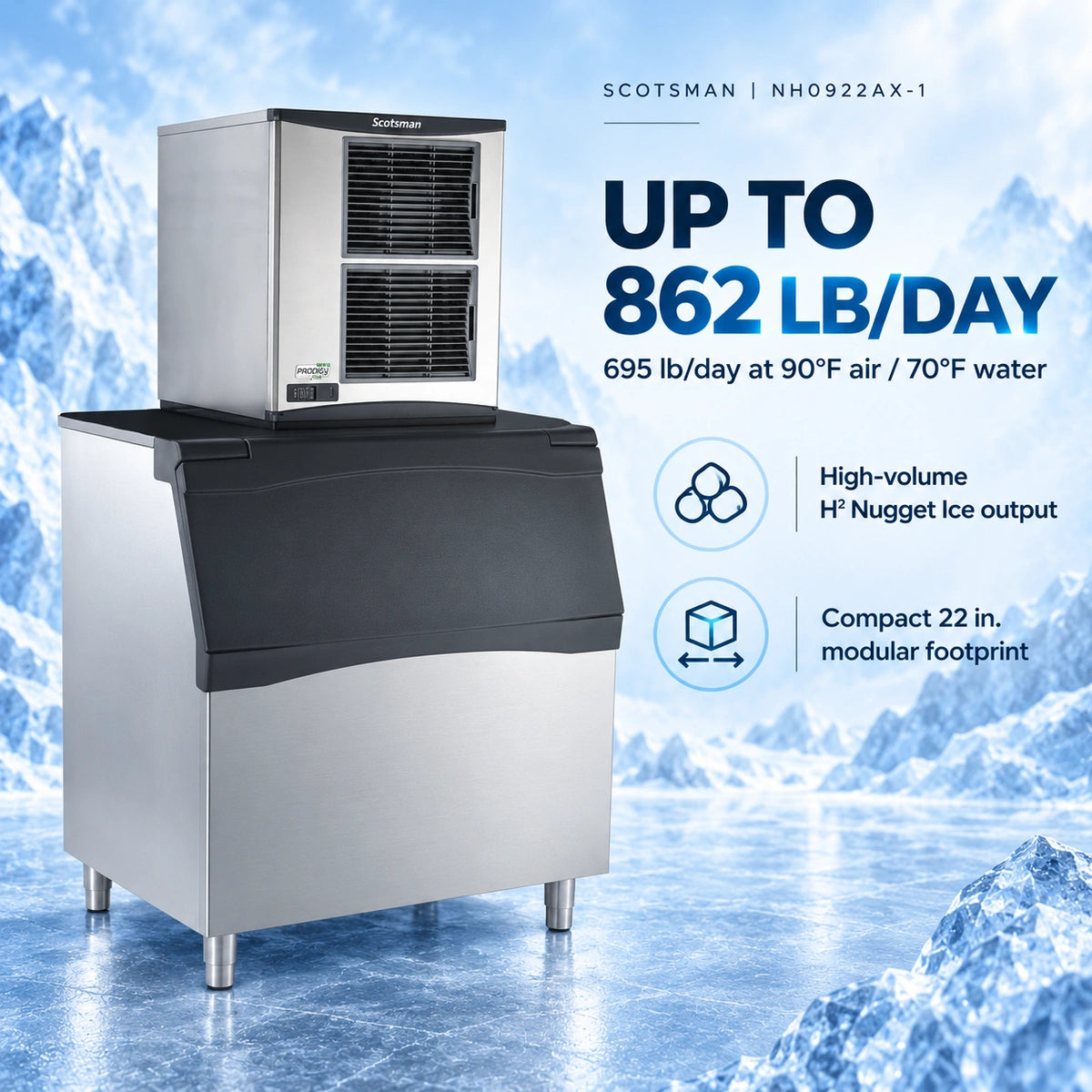

High-Volume H² Nugget Ice with a Compact 22-Inch Footprint

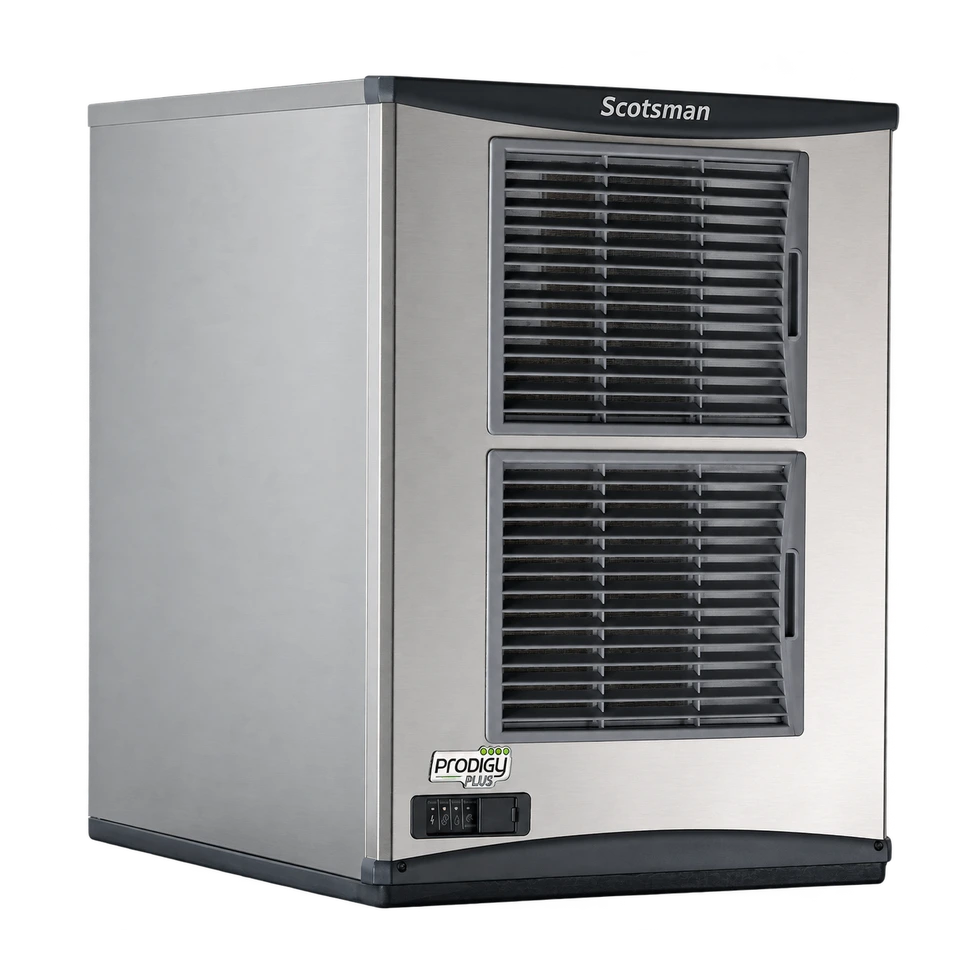

The Scotsman NH0922AX-1 Prodigy Plus is a head-only, air-cooled modular nugget ice machine rated for up to 862 lb of H² Nugget Ice per day. Under the warmer 90°F air/70°F water test condition, the official rating is 695 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. The 22-inch cabinet sits on a compatible bin or dispenser, giving restaurants, healthcare facilities, hotels, and beverage programs the freedom to choose storage separately from production.

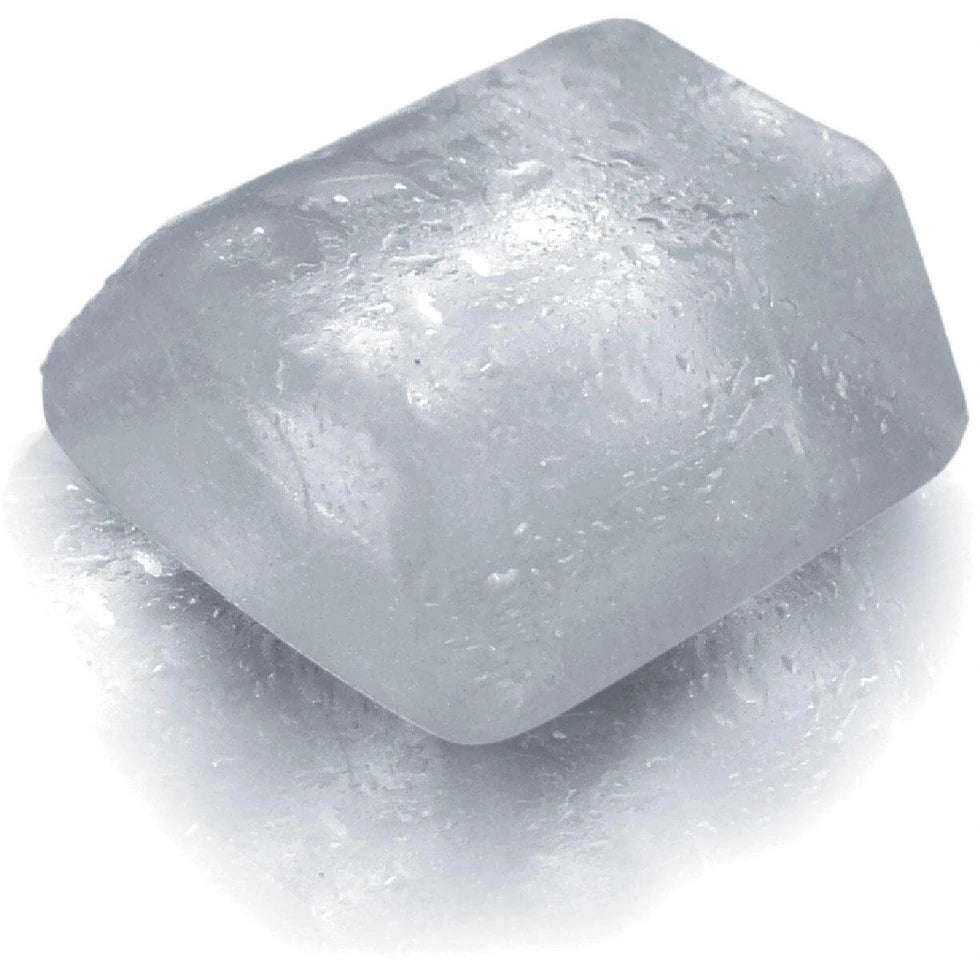

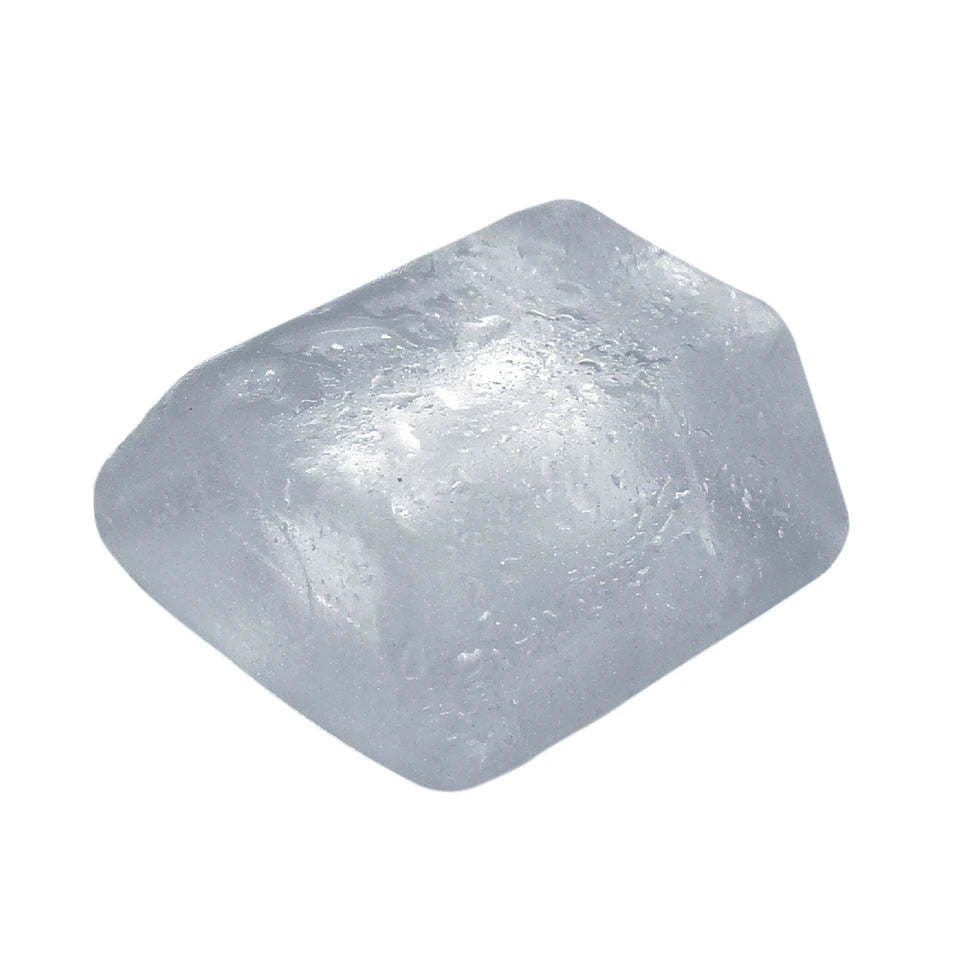

This exact model produces H² Nugget Ice, approximately 3/4 x 5/16 x 3/8 in.; hard rating 87%. Scotsman rates H² at about 87% hardness: it remains chewable, but is firmer and slower melting than the Original Chewable form, making it especially useful in fountain beverages and high-volume dispensing.

Prodigy Plus engineering is designed to reduce routine maintenance. Sealed, maintenance-free bearings eliminate bearing greasing, while a stainless-steel evaporator and auger support long service life. AutoAlert™ indicators show operating status, and a unit-specific QR code gives technicians direct access to cleaning guides, service manuals, and warranty history. The compact front-breathing design requires no side air clearance when installed according to the manual.

Optional Vari-Smart™ control can maintain a chosen ice level, and the optional Smart-Board™ adds diagnostic and operating data. Antimicrobial protection guards internal surfaces between cleanings. This NH0922AX-1 is the 115/60/1, air-cooled R290 version; the bin or dispenser, any required top adapter or ice deflector, water treatment, and code-compliant utilities are ordered separately.


Key Features

  • Up to 862 lb/day: 695 lb/day at 90°F air/70°F water

  • H² Nugget Ice: 3/4 x 5/16 x 3/8 in.; hard rating 87%

  • Sealed, maintenance-free bearings: no routine bearing greasing or wearable bearing parts

  • Stainless-steel evaporator and auger: durable food-zone components

  • AutoAlert™ and unit QR code: visible status and direct access to model-specific support

  • Front-breathing air cooling: no side air clearance required when installed to the manual

  • Optional controls: Vari-Smart ice-level control and Smart-Board advanced diagnostics

  • Antimicrobial protection: guards internal surfaces between scheduled cleanings

  • Compact operational footprint: supports high production without an oversized cabinet

  • Exact utility package: air-cooled, 115/60/1, R290


Best For

Beverage dispensers, quick-service restaurants, and high-volume operations that want a firmer, slower-melting nugget.


Full Specifications

Brand | Scotsman |

Model | NH0922AX-1 |

Series | N0922 Prodigy Plus |

Machine Type | Modular ice machine head; storage bin sold separately |

Ice Type | H² Nugget Ice |

Ice Size / Hardness | 3/4 x 5/16 x 3/8 in.; hard rating 87% |

Cooling | Air-cooled |

Daily Production - 70°F air/50°F water | 862 lb (391 kg)/24 hours |

Daily Production - 90°F air/70°F water | 695 lb (315 kg)/24 hours |

Storage Capacity | Separate bin or dispenser required |

Cabinet Dimensions (W x D x H) | 22 x 24 x 27 in. |

Shipping Weight | 210 lb |

Electrical | 115/60/1 |

Maximum Fuse / Breaker | 20 A |

Minimum Circuit Ampacity | 16.7 A |

Power Connection | Field electrical connection; follow model wiring diagram |

Refrigerant | R290 |

Refrigerant Charge | 7 oz |

Heat Rejection | 10,500 BTU/hr |

Energy Use at 90°F/70°F | 3.87 kWh/100 lb |

Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |

Potable Water Inlet | 3/8 in. FPT potable-water inlet |

Drain Connection | 3/4 in. FPT machine drain |

Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |

Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |

Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |

Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |

Published Certifications | cULus, NSF, AHRI, ENERGY STAR® |


Warranty

  • Machine: 3 years parts and labor on all components

  • Compressor: 5 years parts

The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.


Accessories & Installation

Optional controls: KVS Vari-Smart™ ice-level control and KSBU/KSBU-N Smart-Board™ diagnostic modules. Choose a compatible Scotsman storage bin or dispenser and confirm the required adapter, ice deflector, and bin-control arrangement before ordering.

This listing is for the ice-production head only. The storage bin or dispenser, bin-top adapter or ice deflector where required, machine-to-bin control arrangement, water filter, drain materials, and field electrical connection are separate. Verify the complete Scotsman combination and total installed height before ordering. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.

Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Features

Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Resources

Scotsman Prodigy Plus NH0922AX-1 Commercial Nugget Ice Machine Head - 862 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Buying Guide

Quick Answer: Choose the Scotsman NH0922AX-1 when a busy beverage operation needs H2 nugget ice and a separately sized reserve. The air-cooled head is rated at up to 862 lb/day, or 695 lb/day at 90 F air and 70 F water. A compatible bin or dispenser is a separate purchase.

Who should consider this model

Start with the ice texture your service needs. H2 is the firmer Scotsman nugget form. It is different from the Original Chewable Nugget made by NS models. Ask for an ice sample if texture is part of your drink offer, then weigh actual cup fills and ice used for preparation. A high production figure cannot tell you whether customers prefer the result.

Key buying facts

Item

Published detail

Ice and configuration

H2 nugget air-cooled modular head

Output at 70 F air and 50 F water

Up to 862 lb per 24 hours

Output at 90 F air and 70 F water

695 lb per 24 hours

Storage

Compatible bin or dispenser sold separately

Head dimensions W x D x H

22-inch class x 24 x 27 in; confirm exact installation dimensions

Electrical supply

115V 60 Hz single phase

The main buying decision

Compared with NH0622AX-1, the published warm-condition output rises by 229 lb/day, about 49%. The reviewed head price rises by $1,650. That comparison favors evaluating NH0922AX-1 when daily volume is the constraint. It does not decide the storage size, dispensing compatibility, or complete installed cost.

For planning, list the pounds removed during each busy interval and the reserve available when it starts. A four-hour service period drawing 300 lb needs more starting reserve than a day with the same total spread over many hours. Ask the equipment team to size the bin around that measured pattern rather than matching its nominal capacity to 862 lb.

Installation checks

This is a 115V model, but it still requires the specified commercial electrical installation. Have an electrician use the exact nameplate and installation manual. The January 2026 family sheet lists 22.9 inches in its overall-width summary, while its drawing shows 22.00 and 22.70 inches. Obtain the current dimension drawing before planning a tight opening.

Compare the right alternative

Compare the NH0622AX-1 if its lower daily production leaves adequate headroom. Compare the NS1322AX-32 only if you also evaluate its softer Original Chewable ice, different electrical supply, and larger system requirements. These are different configurations, not interchangeable capacity labels.

Plan the complete purchase

Request a written combination of head, bin or dispenser, required top components, water treatment, and utilities. Check that staff can reach the bin and remove ice safely. Keep the cleaning route, drain access, and local service arrangements in the purchase plan. Compare current delivery estimates for your ZIP code before committing to an opening date.

Use our bin sizing guide to organize your peak-demand and reserve measurements.

Buyer questions

Does NH0922AX-1 store 862 lb of ice?

No. That is a maximum daily production rating. Storage depends on the separately selected compatible bin or dispenser.

Is NH0922AX-1 the softer Scotsman nugget model?

It makes H2 nugget ice. Scotsman identifies Original Chewable Nugget separately in its NS model range.

Can I use the 22-inch label as the exact opening width?

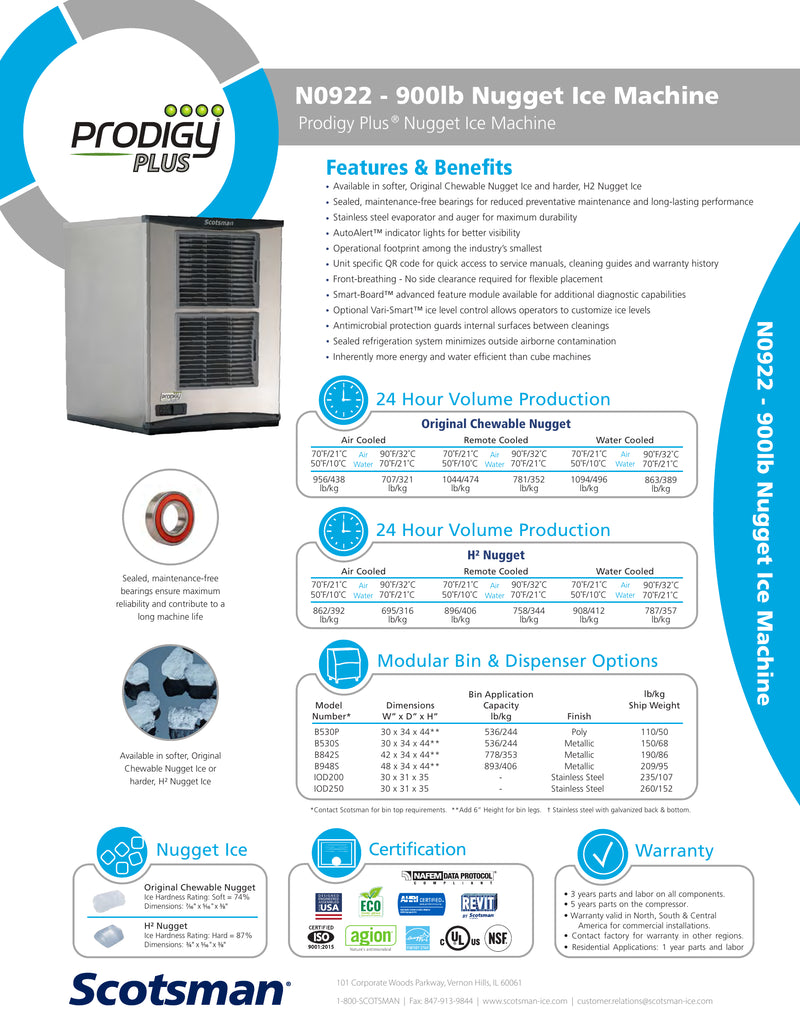

Use the current drawing for the exact unit. The reviewed family sheet lists 22.9 inches in its width summary, conflicting with the 22.00- and 22.70-inch drawing dimensions.

Request a complete quote

Send your ZIP code, current equipment models, measured peak demand, and available space. Ask Ice Maker Supply for a quote for the Scotsman NH0922AX-1 with the required storage, installation components, and current delivery estimate.
