Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

Brand:Scotsman
Model:Prodigy Plus NH0622AX-1
H² Nugget Ice Air-Cooled Up to 644 lb/day 22 in. Wide Modular Head 115V
Free Standard Shipping on Eligible Orders Within the Contiguous U.S.
Regular price $6,682.00
Sale price $6,682.00 Regular price $16,298.00
Unit price
Save 59%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

NH0622AX-1 is an air-cooled modular ice machine head producing up to 644 lb/day of h² nugget ice. 115/60/1; R290.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

We’ll use these details only to respond to your quote request.

Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.

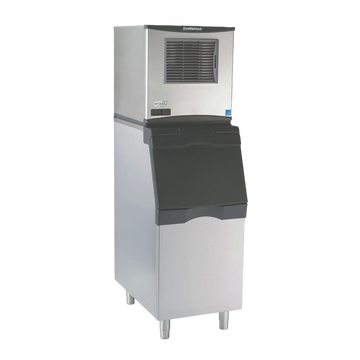

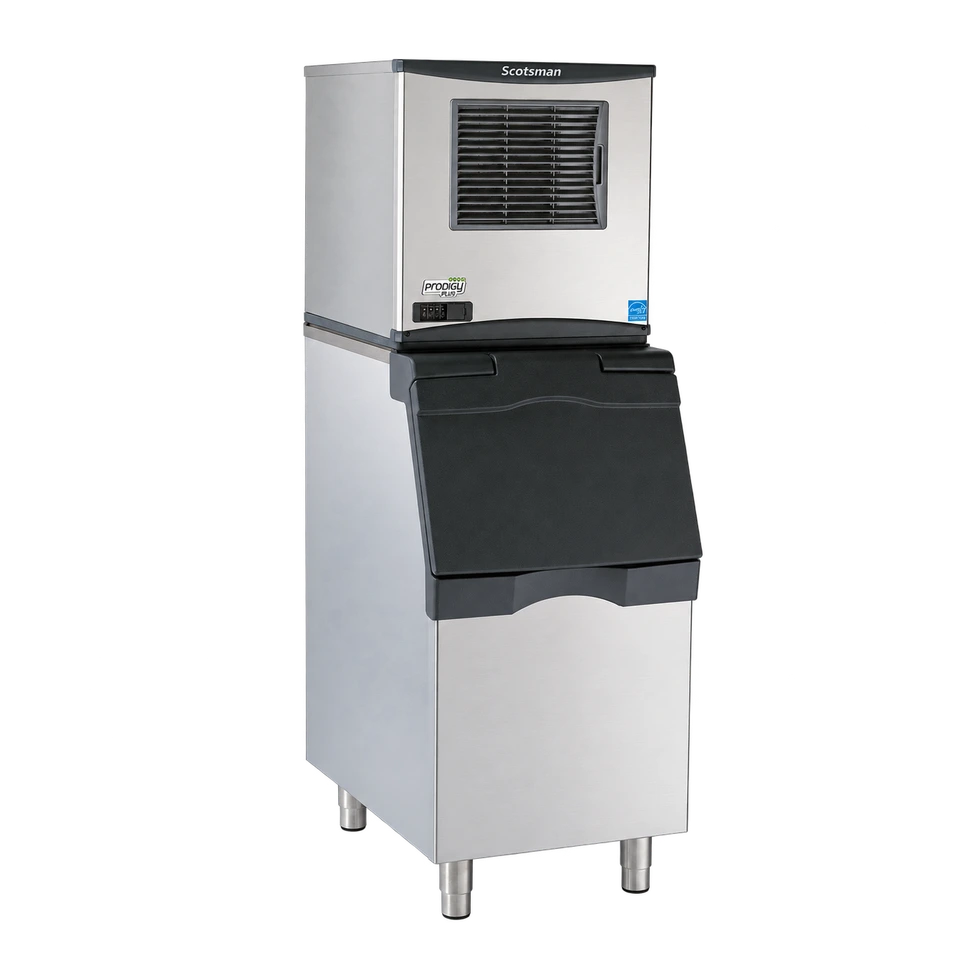

A commercial ice machine with a stainless steel body, a dark gray hopper, and a top freezer compartment, shown on a plain white background.

Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

Regular price $6,682.00
Sale price $6,682.00 Regular price $16,298.00
Unit price

Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Description

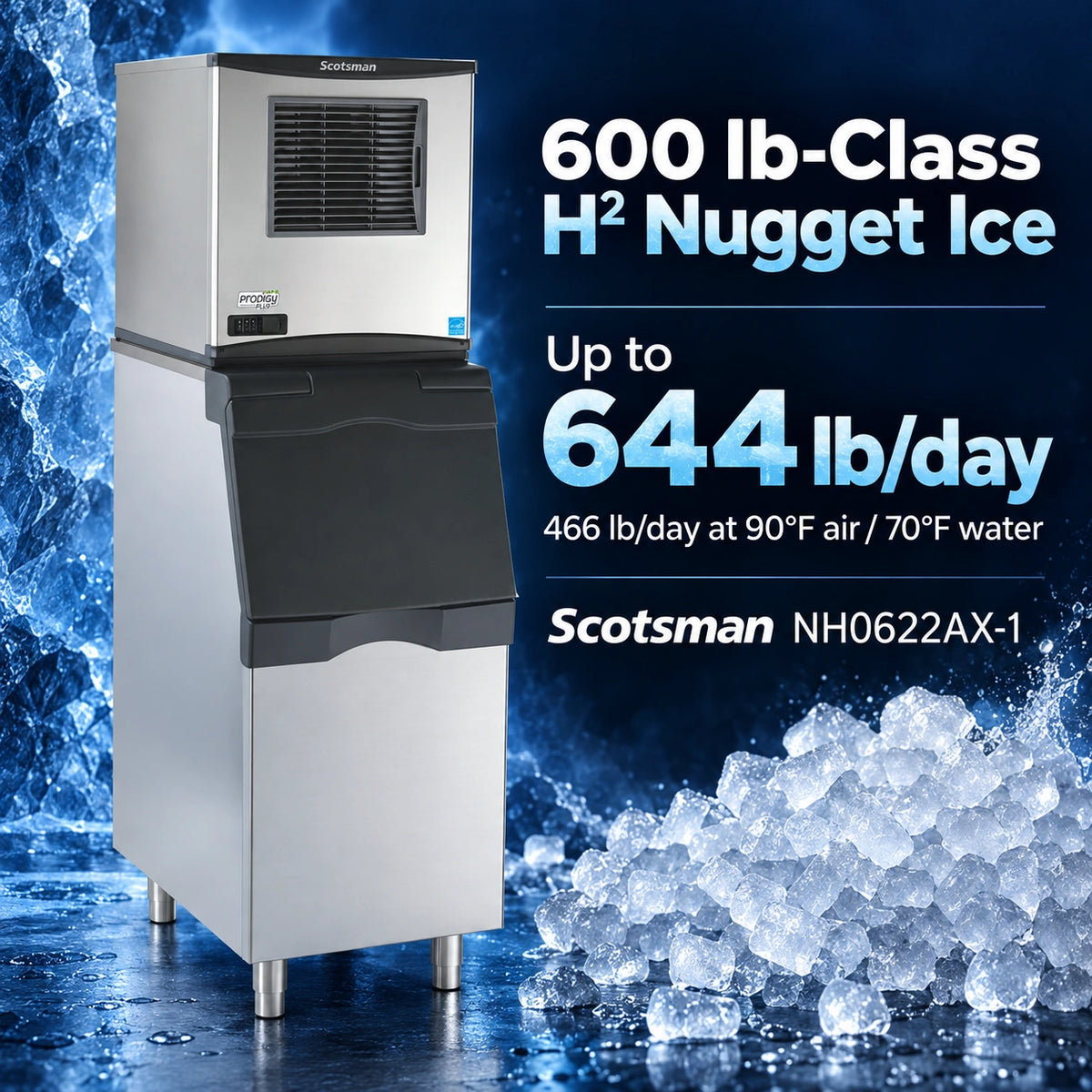

600 lb-Class H² Nugget Ice in a Front-Breathing 22-Inch Head

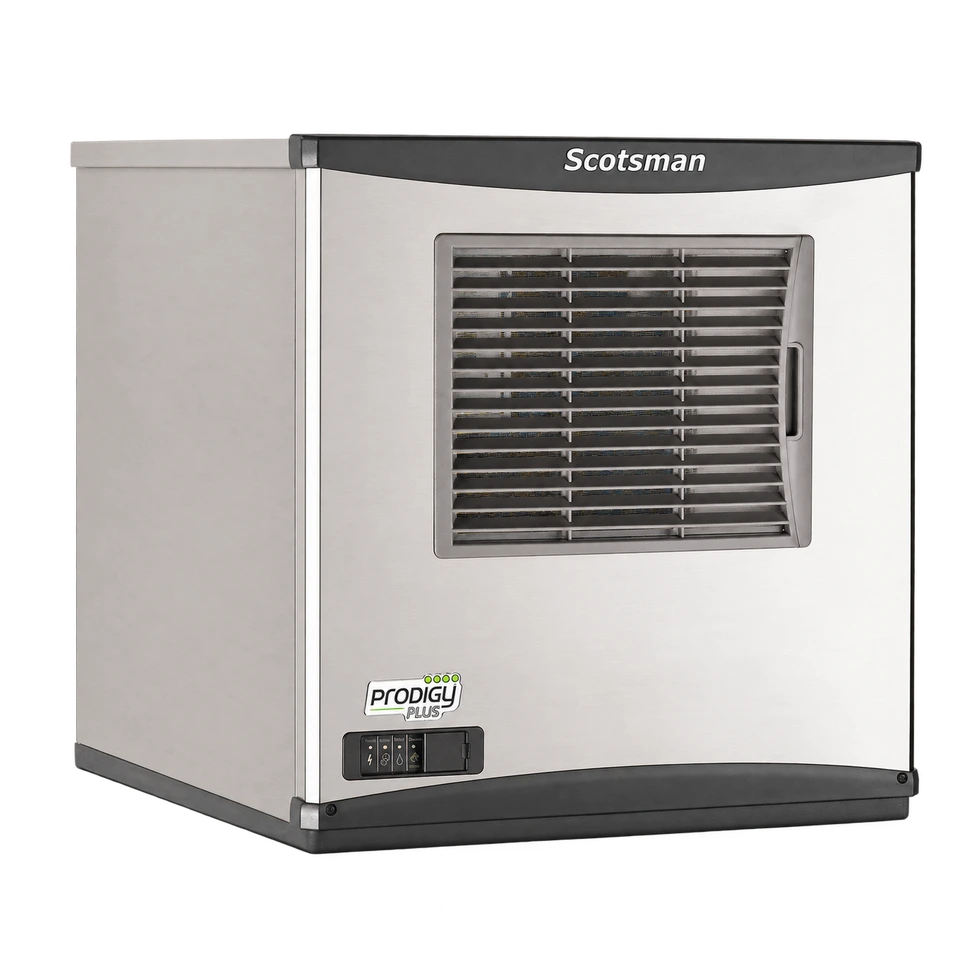

The Scotsman NH0622AX-1 Prodigy Plus is a head-only, air-cooled modular nugget ice machine rated for up to 644 lb of H² Nugget Ice per day. Under the warmer 90°F air/70°F water test condition, the official rating is 466 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. The 22-inch cabinet sits on a compatible bin or dispenser, giving restaurants, healthcare facilities, hotels, and beverage programs the freedom to choose storage separately from production.

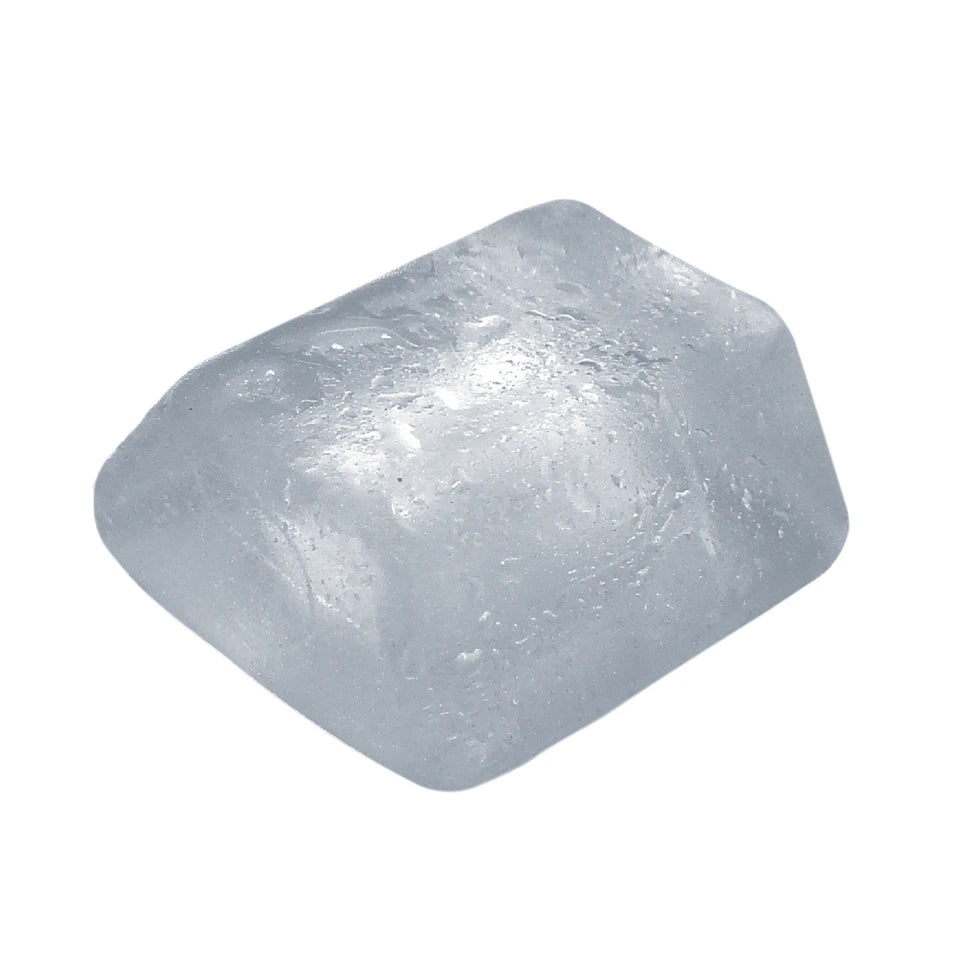

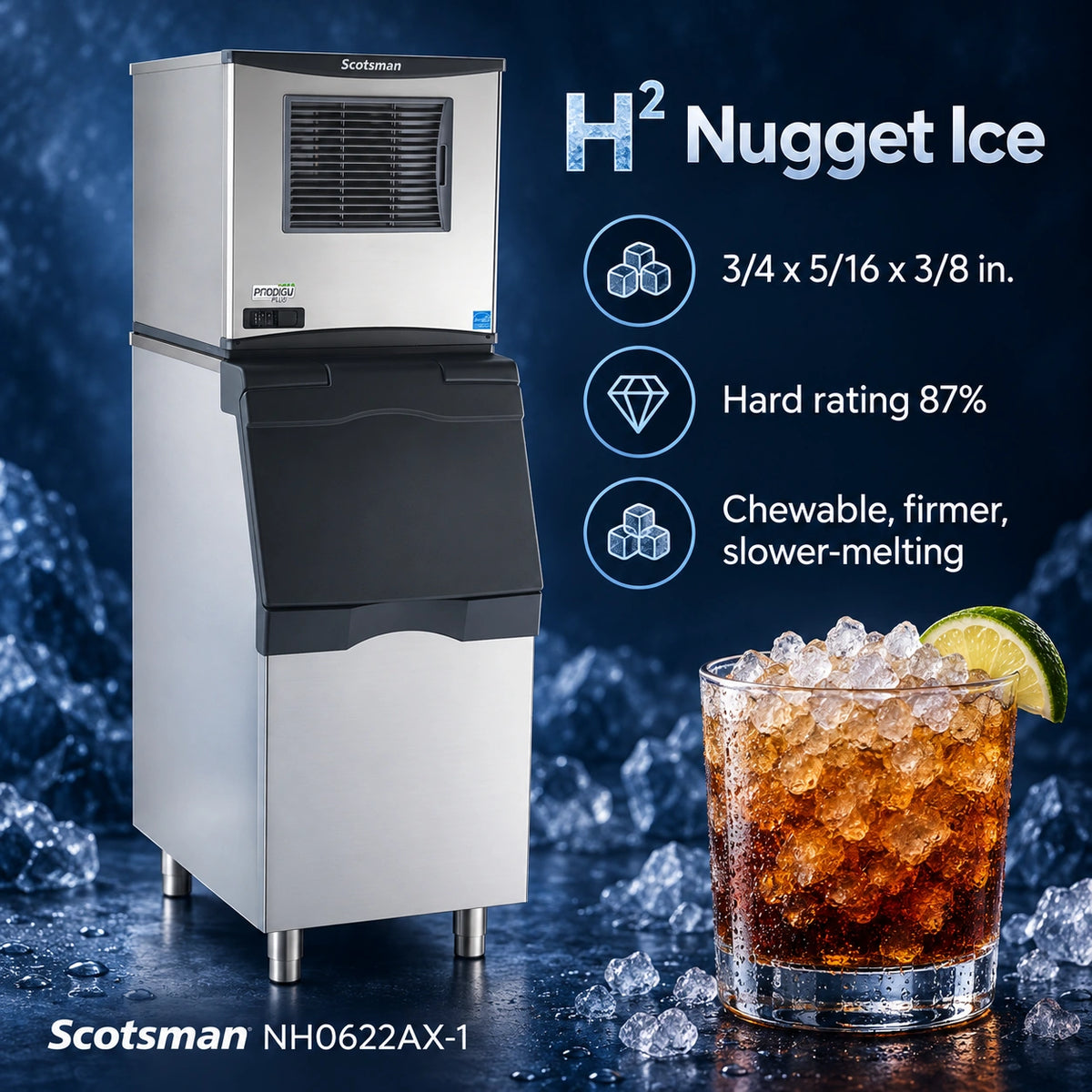

This exact model produces H² Nugget Ice, approximately 3/4 x 5/16 x 3/8 in.; hard rating 87%. Scotsman rates H² at about 87% hardness: it remains chewable, but is firmer and slower melting than the Original Chewable form, making it especially useful in fountain beverages and high-volume dispensing.

Prodigy Plus engineering is designed to reduce routine maintenance. Sealed, maintenance-free bearings eliminate bearing greasing, while a stainless-steel evaporator and auger support long service life. AutoAlert™ indicators show operating status, and a unit-specific QR code gives technicians direct access to cleaning guides, service manuals, and warranty history. The compact front-breathing design requires no side air clearance when installed according to the manual.

Optional Vari-Smart™ control can maintain a chosen ice level, and the optional Smart-Board™ adds diagnostic and operating data. Antimicrobial protection guards internal surfaces between cleanings. This NH0622AX-1 is the 115/60/1, air-cooled R290 version; the bin or dispenser, any required top adapter or ice deflector, water treatment, and code-compliant utilities are ordered separately.

💡 Need a higher-capacity H² nugget head? Compare the Scotsman NH0922AX-1.


Key Features

  • Up to 644 lb/day: 466 lb/day at 90°F air/70°F water

  • H² Nugget Ice: 3/4 x 5/16 x 3/8 in.; hard rating 87%

  • Sealed, maintenance-free bearings: no routine bearing greasing or wearable bearing parts

  • Stainless-steel evaporator and auger: durable food-zone components

  • AutoAlert™ and unit QR code: visible status and direct access to model-specific support

  • Front-breathing air cooling: no side air clearance required when installed to the manual

  • Optional controls: Vari-Smart ice-level control and Smart-Board advanced diagnostics

  • Antimicrobial protection: guards internal surfaces between scheduled cleanings

  • Compact operational footprint: supports high production without an oversized cabinet

  • Exact utility package: air-cooled, 115/60/1, R290


Best For

Beverage dispensers, quick-service restaurants, and high-volume operations that want a firmer, slower-melting nugget.


Full Specifications

Brand | Scotsman |

Model | NH0622AX-1 |

Series | N0622 Prodigy Plus |

Machine Type | Modular ice machine head; storage bin sold separately |

Ice Type | H² Nugget Ice |

Ice Size / Hardness | 3/4 x 5/16 x 3/8 in.; hard rating 87% |

Cooling | Air-cooled |

Daily Production - 70°F air/50°F water | 644 lb (292 kg)/24 hours |

Daily Production - 90°F air/70°F water | 466 lb (211 kg)/24 hours |

Storage Capacity | Separate bin or dispenser required |

Cabinet Dimensions (W x D x H) | 22 x 24 x 23 in. |

Shipping Weight | 180 lb |

Electrical | 115/60/1 |

Maximum Fuse / Breaker | 20 A |

Minimum Circuit Ampacity | 14.8 A |

Power Connection | Field electrical connection; follow model wiring diagram |

Refrigerant | R290 |

Heat Rejection | 7,100 BTU/hr |

Energy Use at 90°F/70°F | 4.10 kWh/100 lb |

Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |

Potable Water Inlet | 3/8 in. FPT potable-water inlet |

Drain Connection | 3/4 in. FPT machine drain |

Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |

Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |

Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |

Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |

Published Certifications | cULus, NSF, ENERGY STAR®, AHRI |


Warranty

  • Machine: 3 years parts and labor on all components

  • Compressor: 5 years parts

The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.


Accessories & Installation

Optional controls: KVS Vari-Smart™ ice-level control and KSBU/KSBU-N Smart-Board™ diagnostic modules. Choose a compatible Scotsman storage bin or dispenser and confirm the required adapter, ice deflector, and bin-control arrangement before ordering.

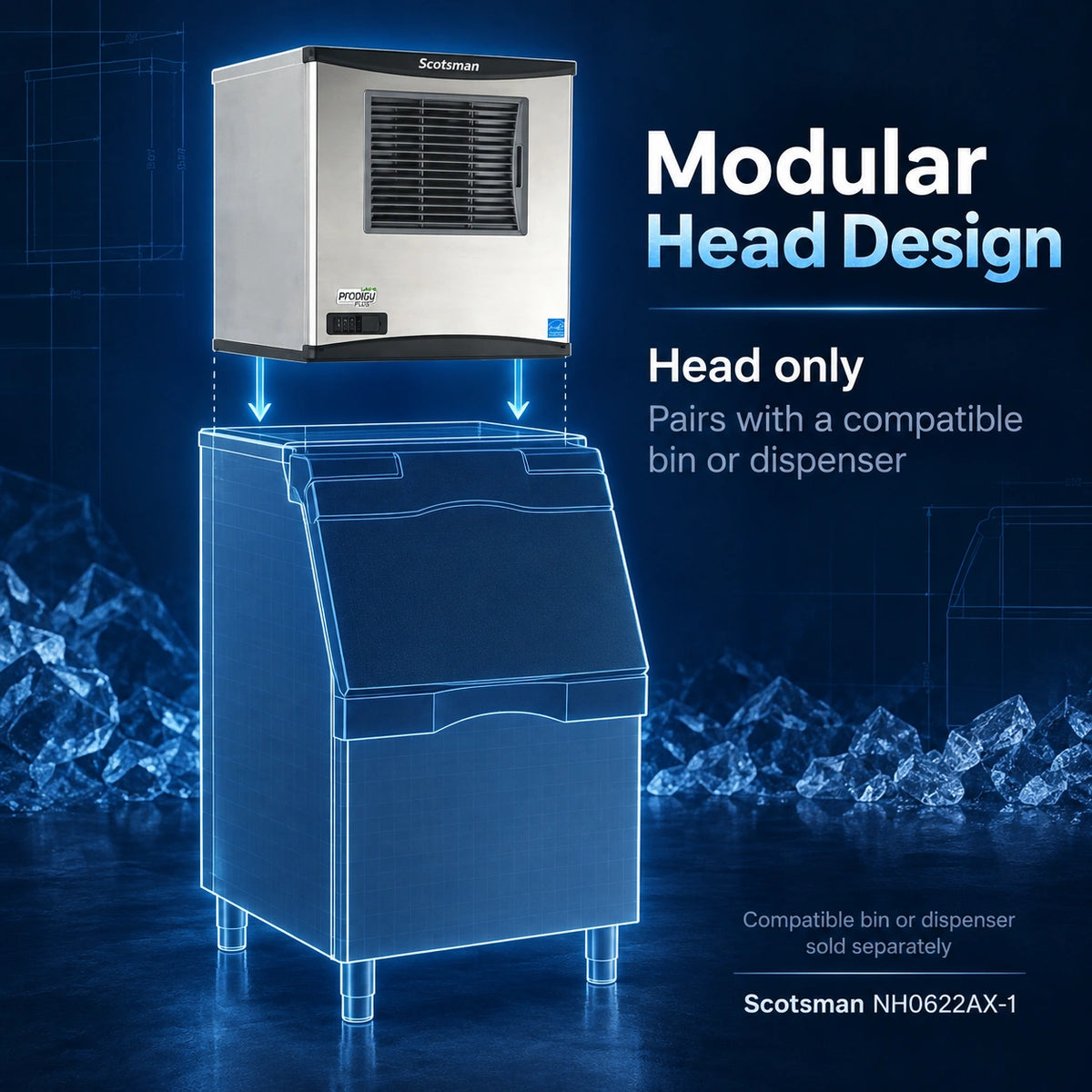

This listing is for the ice-production head only. The storage bin or dispenser, bin-top adapter or ice deflector where required, machine-to-bin control arrangement, water filter, drain materials, and field electrical connection are separate. Verify the complete Scotsman combination and total installed height before ordering. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.

Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Features

Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Resources

Scotsman Prodigy Plus NH0622AX-1 Commercial Nugget Ice Machine Head - 644 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Buying Guide

Quick Answer: The Scotsman NH0622AX-1 suits a business that wants firmer H2 nugget ice from a modular system. It is rated at up to 644 lb/day and 466 lb/day at 90 F air and 70 F water. Choose its separate storage around your busiest service period, then verify the complete installed footprint.

Who should consider this model

Consider this model when the smaller NH0422AX-1 leaves too little production headroom but the larger NH0922AX-1 is unnecessary for measured demand. For beverage service, check the actual ice fill in your glasses and cups. Include ice that staff carry to other stations; overlooking those draws can change the capacity decision.

Key buying facts

Item

Published detail

Ice and configuration

H2 nugget air-cooled modular head

Output at 70 F air and 50 F water

Up to 644 lb per 24 hours

Output at 90 F air and 70 F water

466 lb per 24 hours

Storage

Compatible bin or dispenser sold separately

Head dimensions W x D x H

22-inch class x 24 x 23 in; confirm exact installation dimensions

Electrical supply

115V 60 Hz single phase

The main buying decision

At the reviewed prices, moving from NH0422AX-1 adds $1,631 to the head price. Warm-condition output increases by 181 lb/day, about 64%. This is a useful production upgrade to compare. Storage remains your choice because neither head includes a bin. An existing bin can be reused only after compatibility is confirmed.

A practical sizing exercise is to weigh the first fill for each satellite station, then record refill times during a busy day. If most ice leaves the main bin before lunch, opening reserve may drive the bin decision. If staff draw ice evenly throughout service, production and overnight recovery may matter more. Keep both measurements on the quotation request.

Installation checks

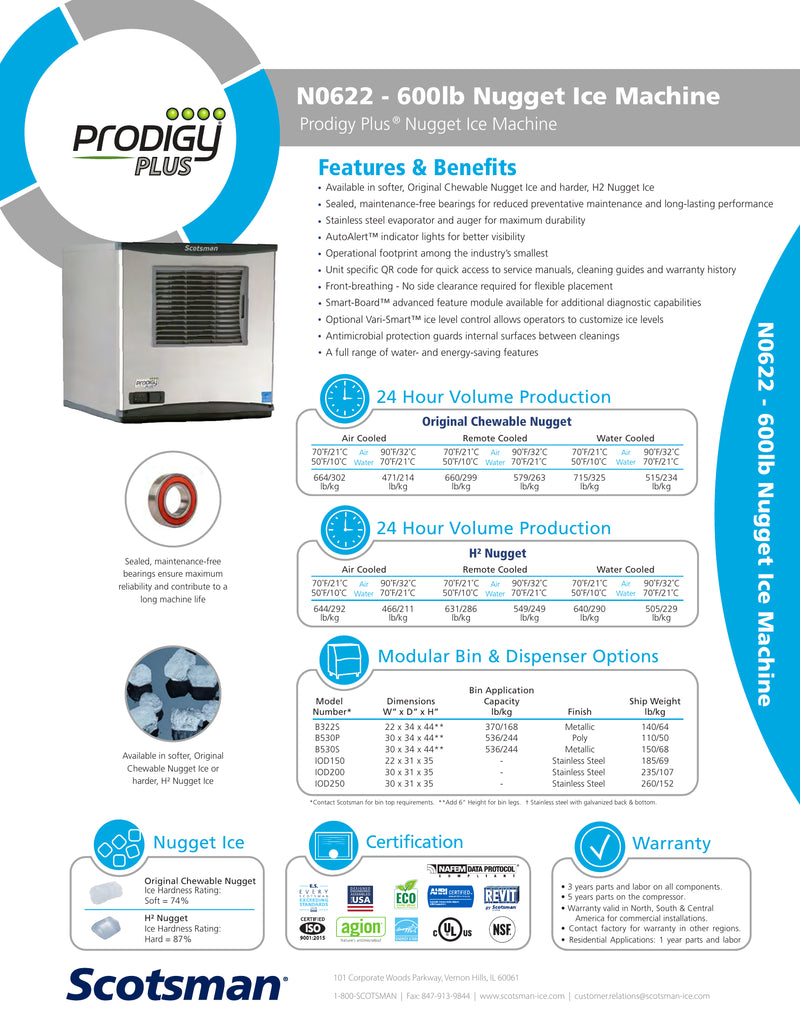

The January 2026 sheet lists a 22.9 x 24 x 23-inch unit in its summary. The same sheet’s drawing uses 22.00- and 22.70-inch width dimensions. Confirm the exact drawing before selecting a replacement for a tight space. The head needs the specified 115V supply, water, drainage, and an approved mounting arrangement. Front breathing does not remove utility and service-access requirements.

Compare the right alternative

The NH0422AX-1 is the smaller production option. The NH0922AX-1 adds more daily output and has a taller listed head. Compare all three at the same air and water conditions. Do not compare the 644 lb maximum here with a warmer-condition rating on another machine.

Plan the complete purchase

Ask the seller to itemize the head, compatible bin, any required top kit, filtration, freight services, and installation. Verify that the proposed dispenser accepts this exact ice-machine combination if you want automatic dispensing. Cleaning and sanitation remain necessary even with antimicrobial components and sealed bearings.

Use our bin sizing guide to organize your peak-demand and reserve measurements.

Buyer questions

Does NH0622AX-1 include a storage bin?

No. Select a manufacturer-approved bin or dispenser separately.

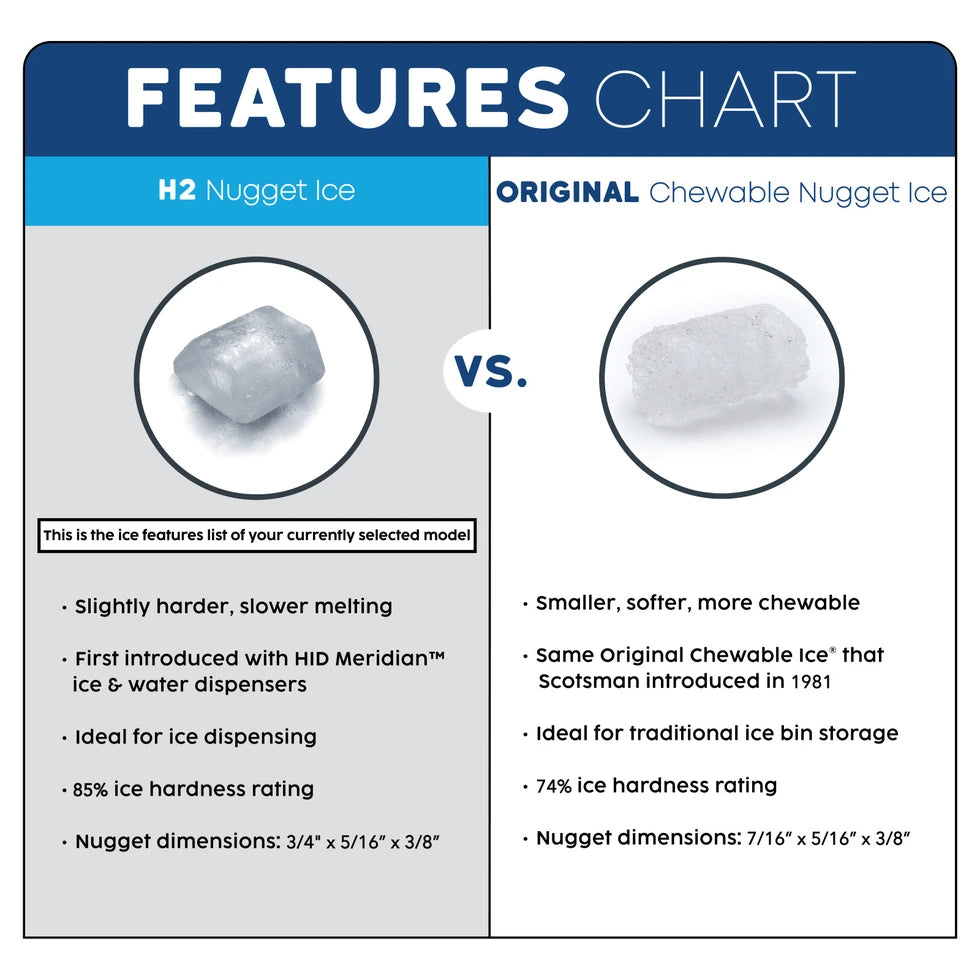

Does NH0622AX-1 make the same ice as NS0622AX-1?

The NH model makes H2 nugget. The NS model is identified as Original Chewable Nugget; the texture and production ratings differ.

Is the 466 lb/day rating guaranteed in my kitchen?

No. It is a published test-condition rating at 90 F air and 70 F water. Actual output depends on installation and operating conditions.

Request a complete quote

Send your ZIP code, current equipment models, measured peak demand, and available space. Ask Ice Maker Supply for a quote for the Scotsman NH0622AX-1 with the required storage, installation components, and current delivery estimate.
