Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V

Brand:Scotsman
Model:Prodigy Plus NS1322AX-32
Original Chewable Nugget Ice Air-Cooled Up to 1,314 lb/day 22 in. Wide Modular Head 208-230V
Free Standard Shipping on Eligible Orders Within the Contiguous U.S.
Regular price $10,671.00
Sale price $10,671.00 Regular price $26,027.00
Unit price
Save 59%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

NS1322AX-32 is an air-cooled modular ice machine head producing up to 1,314 lb/day of original chewable nugget ice. 208-230/60/1; R290.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V

We’ll use these details only to respond to your quote request.

Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.

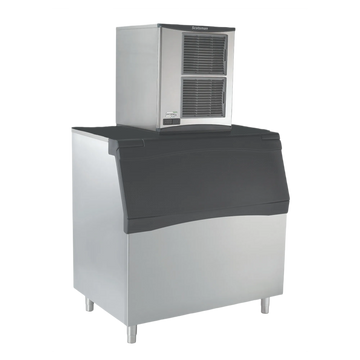

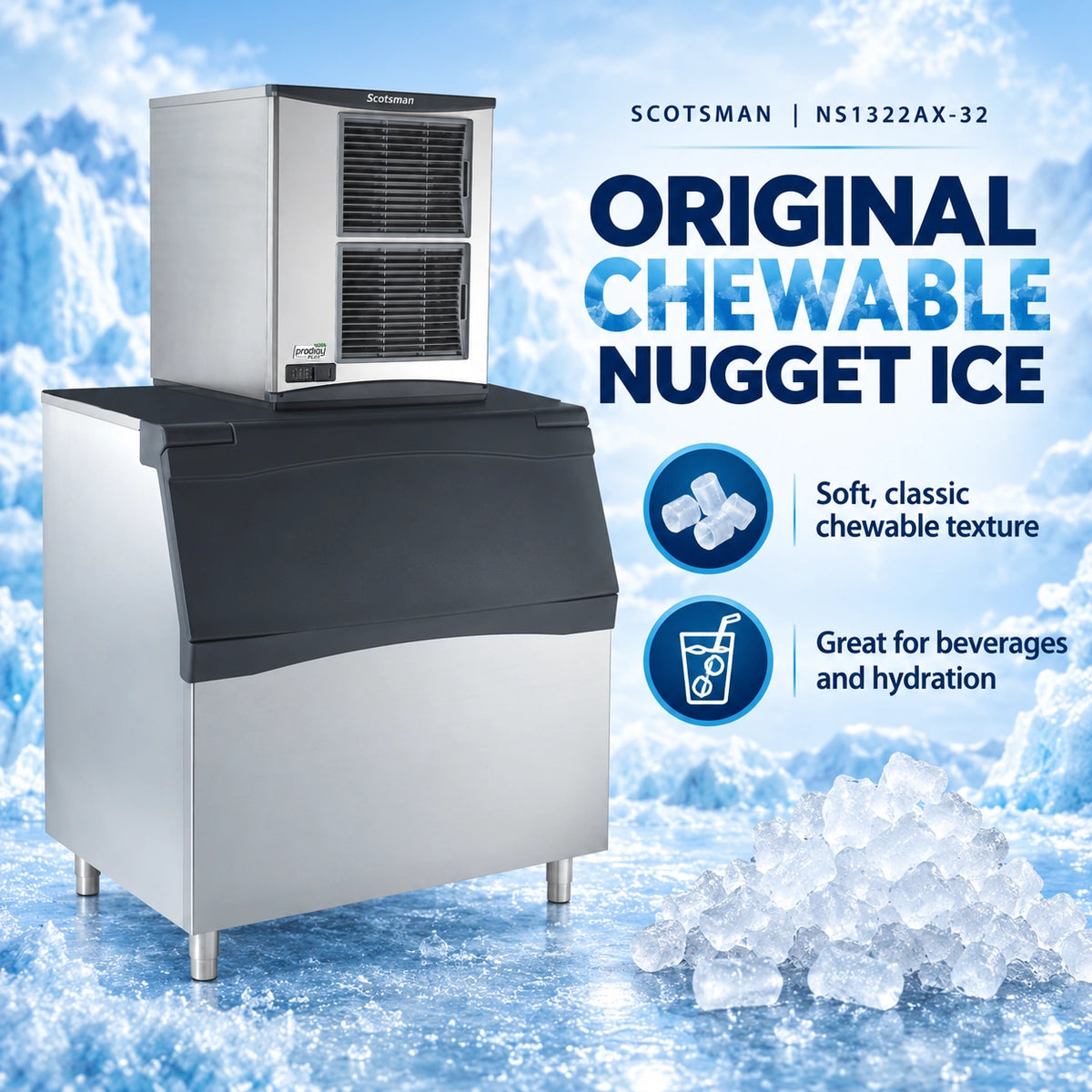

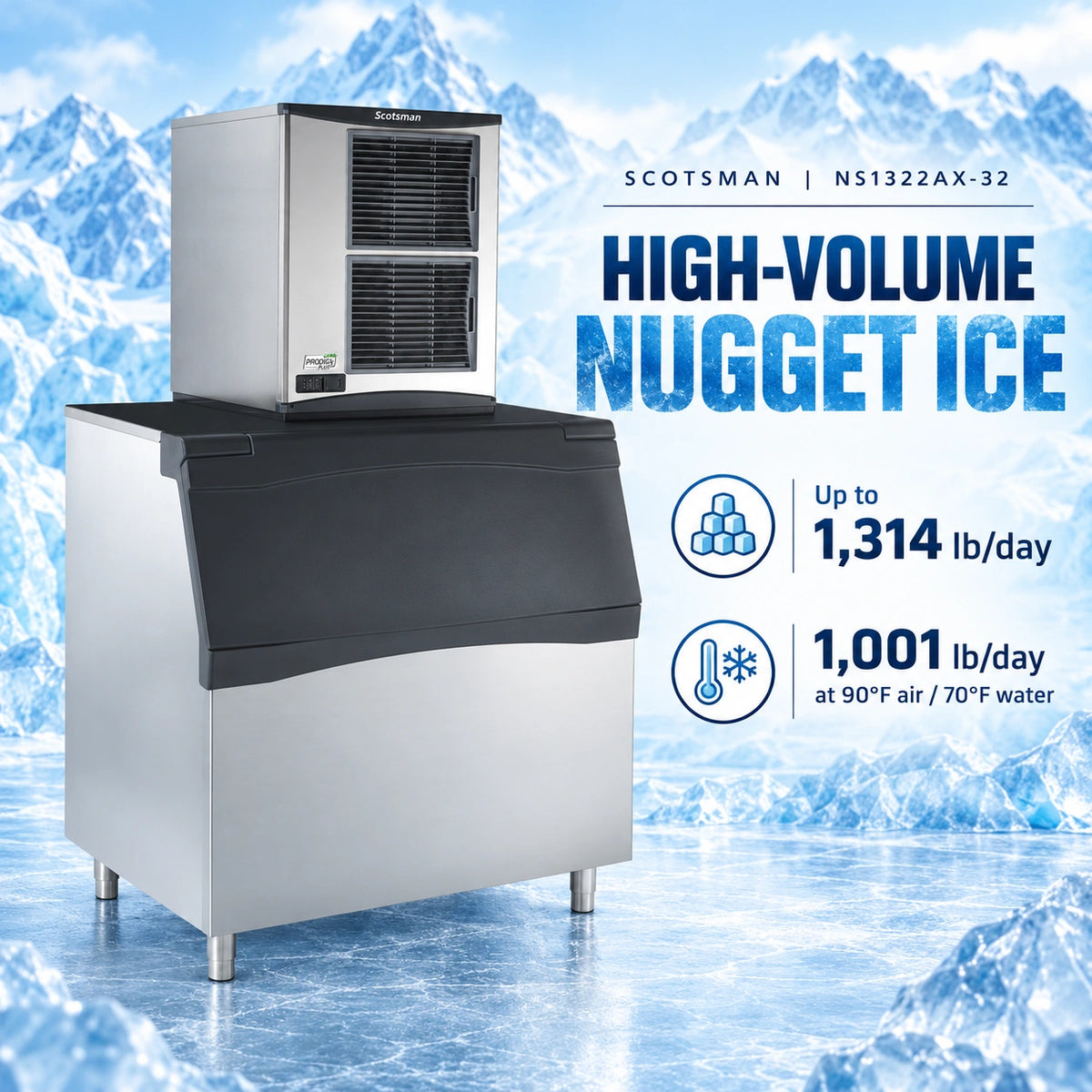

A commercial ice machine with a stainless steel body, dark gray hopper lid, and a matching stainless steel ice maker unit on top, shown on a plain white background.

Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V

Regular price $10,671.00
Sale price $10,671.00 Regular price $26,027.00
Unit price

Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V Description

More Than 1,300 lb/Day of Original Chewable Nugget Ice

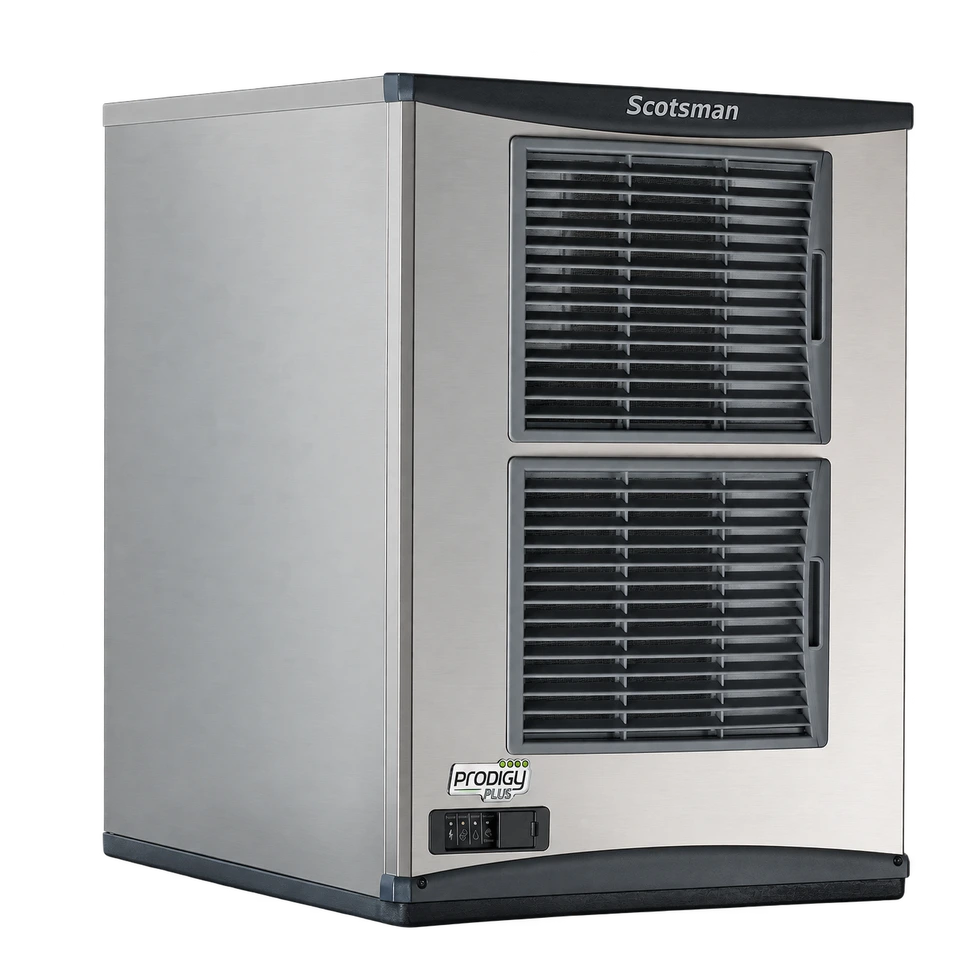

The Scotsman NS1322AX-32 Prodigy Plus is a head-only, air-cooled modular nugget ice machine rated for up to 1,314 lb of Original Chewable Nugget Ice per day. Under the warmer 90°F air/70°F water test condition, the official rating is 1,001 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. The 22-inch cabinet sits on a compatible bin or dispenser, giving restaurants, healthcare facilities, hotels, and beverage programs the freedom to choose storage separately from production.

This exact model produces Original Chewable Nugget Ice, approximately 7/16 x 5/16 x 3/8 in.; soft rating 74%. Scotsman rates Original Chewable Nugget Ice at about 74% hardness, producing the soft texture associated with “The Original Chewable Ice®” for beverages, patient hydration, and self-service applications.

Prodigy Plus engineering is designed to reduce routine maintenance. Sealed, maintenance-free bearings eliminate bearing greasing, while a stainless-steel evaporator and auger support long service life. AutoAlert™ indicators show operating status, and a unit-specific QR code gives technicians direct access to cleaning guides, service manuals, and warranty history. The compact front-breathing design requires no side air clearance when installed according to the manual.

Optional Vari-Smart™ control can maintain a chosen ice level, and the optional Smart-Board™ adds diagnostic and operating data. Antimicrobial protection guards internal surfaces between cleanings. This NS1322AX-32 is the 208-230/60/1, air-cooled R290 version; the bin or dispenser, any required top adapter or ice deflector, water treatment, and code-compliant utilities are ordered separately.


Key Features

  • Up to 1,314 lb/day: 1,001 lb/day at 90°F air/70°F water

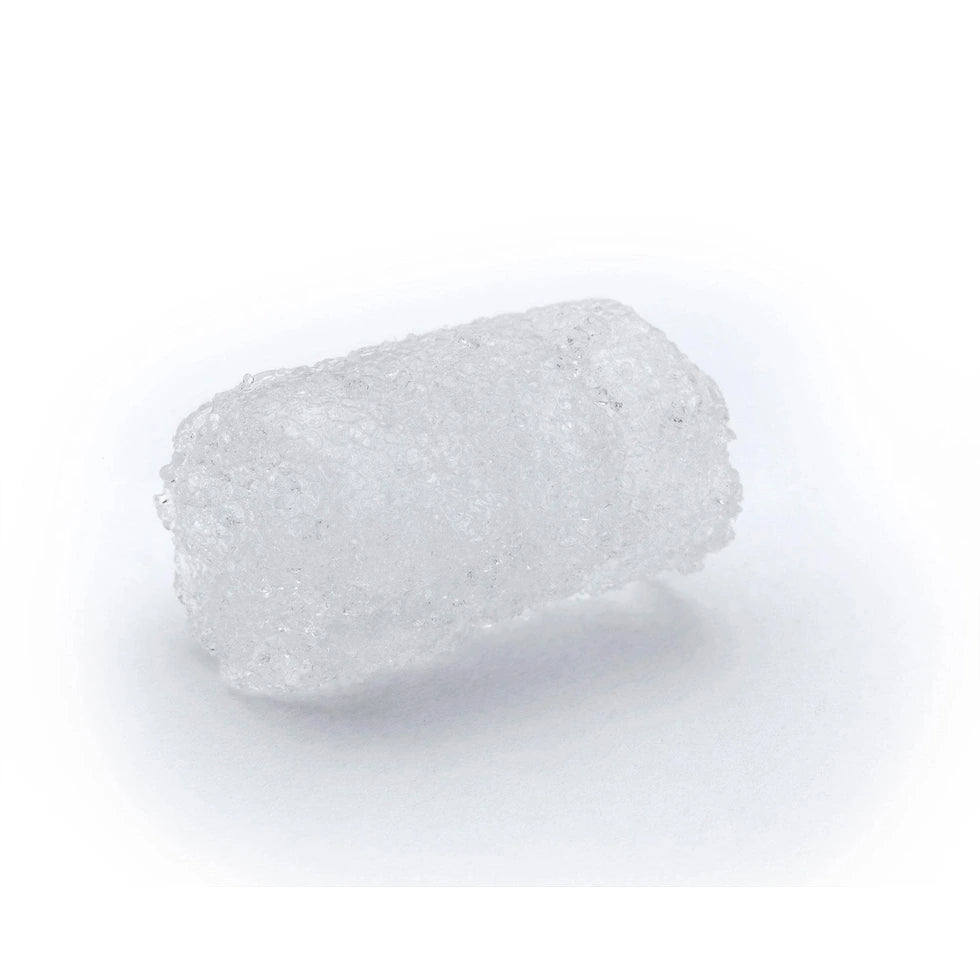

  • Original Chewable Nugget Ice: 7/16 x 5/16 x 3/8 in.; soft rating 74%

  • Sealed, maintenance-free bearings: no routine bearing greasing or wearable bearing parts

  • Stainless-steel evaporator and auger: durable food-zone components

  • AutoAlert™ and unit QR code: visible status and direct access to model-specific support

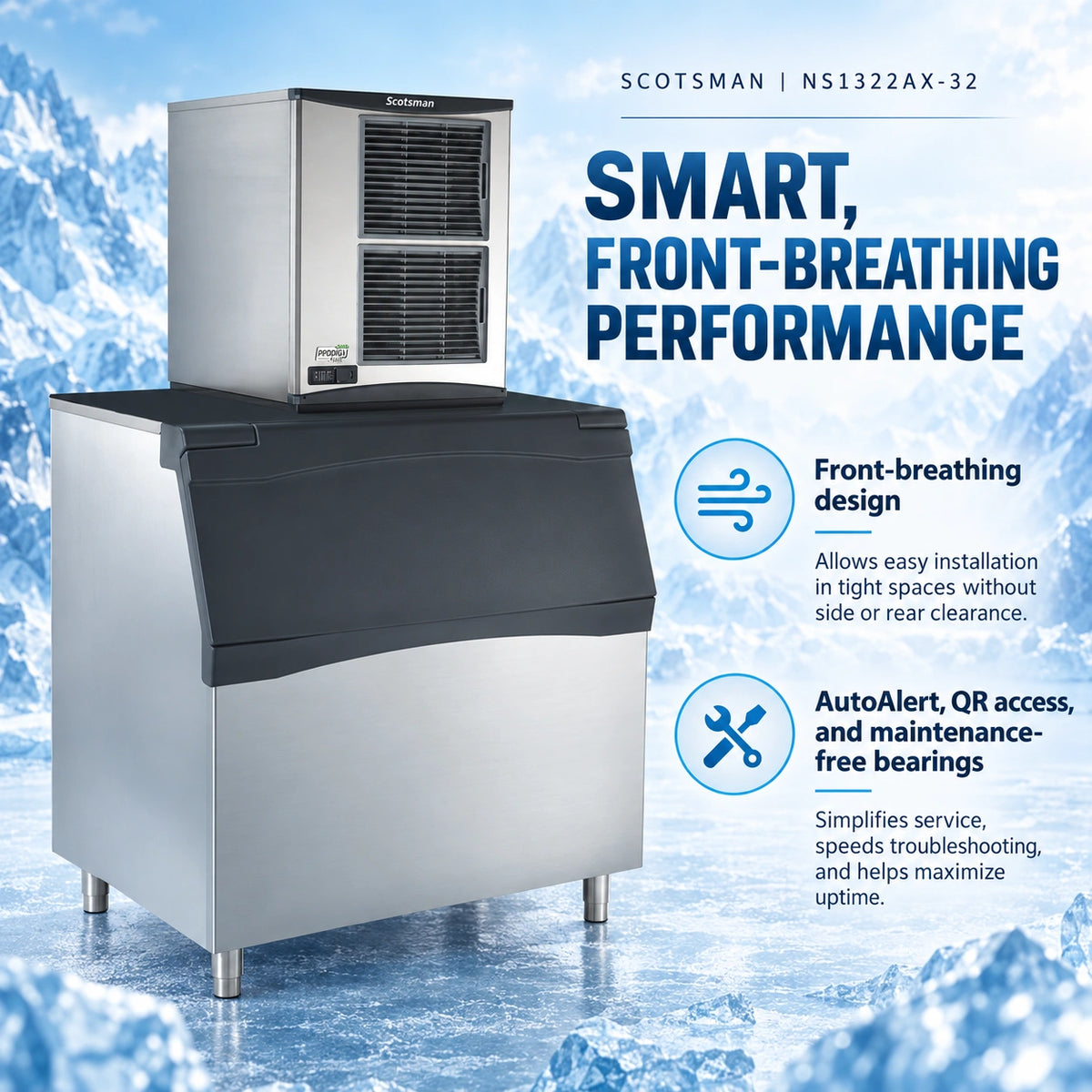

  • Front-breathing air cooling: no side air clearance required when installed to the manual

  • Optional controls: Vari-Smart ice-level control and Smart-Board advanced diagnostics

  • Antimicrobial protection: guards internal surfaces between scheduled cleanings

  • Compact operational footprint: supports high production without an oversized cabinet

  • Exact utility package: air-cooled, 208-230/60/1, R290


Best For

Healthcare, hospitality, beverage, and foodservice operations that want the classic soft, chewable Scotsman nugget.


Full Specifications

Brand | Scotsman |

Model | NS1322AX-32 |

Series | N1322 Prodigy Plus |

Machine Type | Modular ice machine head; storage bin sold separately |

Ice Type | Original Chewable Nugget Ice |

Ice Size / Hardness | 7/16 x 5/16 x 3/8 in.; soft rating 74% |

Cooling | Air-cooled |

Daily Production - 70°F air/50°F water | 1,314 lb (596 kg)/24 hours |

Daily Production - 90°F air/70°F water | 1,001 lb (454 kg)/24 hours |

Storage Capacity | Separate bin or dispenser required |

Cabinet Dimensions (W x D x H) | 22 x 24 x 27 in. |

Shipping Weight | 225 lb |

Electrical | 208-230/60/1 |

Maximum Fuse / Breaker | 20 A |

Minimum Circuit Ampacity | 14.8 A |

Power Connection | Field electrical connection; follow model wiring diagram |

Refrigerant | R290 |

Heat Rejection | 16,000 BTU/hr |

Energy Use at 90°F/70°F | 3.78 kWh/100 lb |

Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |

Potable Water Inlet | 3/8 in. FPT potable-water inlet |

Drain Connection | 3/4 in. FPT machine drain |

Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |

Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |

Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |

Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |

Published Certifications | cULus, NSF, AHRI, ENERGY STAR® |


Warranty

  • Machine: 3 years parts and labor on all components

  • Compressor: 5 years parts

The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.


Accessories & Installation

Optional controls: KVS Vari-Smart™ ice-level control and KSBU/KSBU-N Smart-Board™ diagnostic modules. Choose a compatible Scotsman storage bin or dispenser and confirm the required adapter, ice deflector, and bin-control arrangement before ordering.

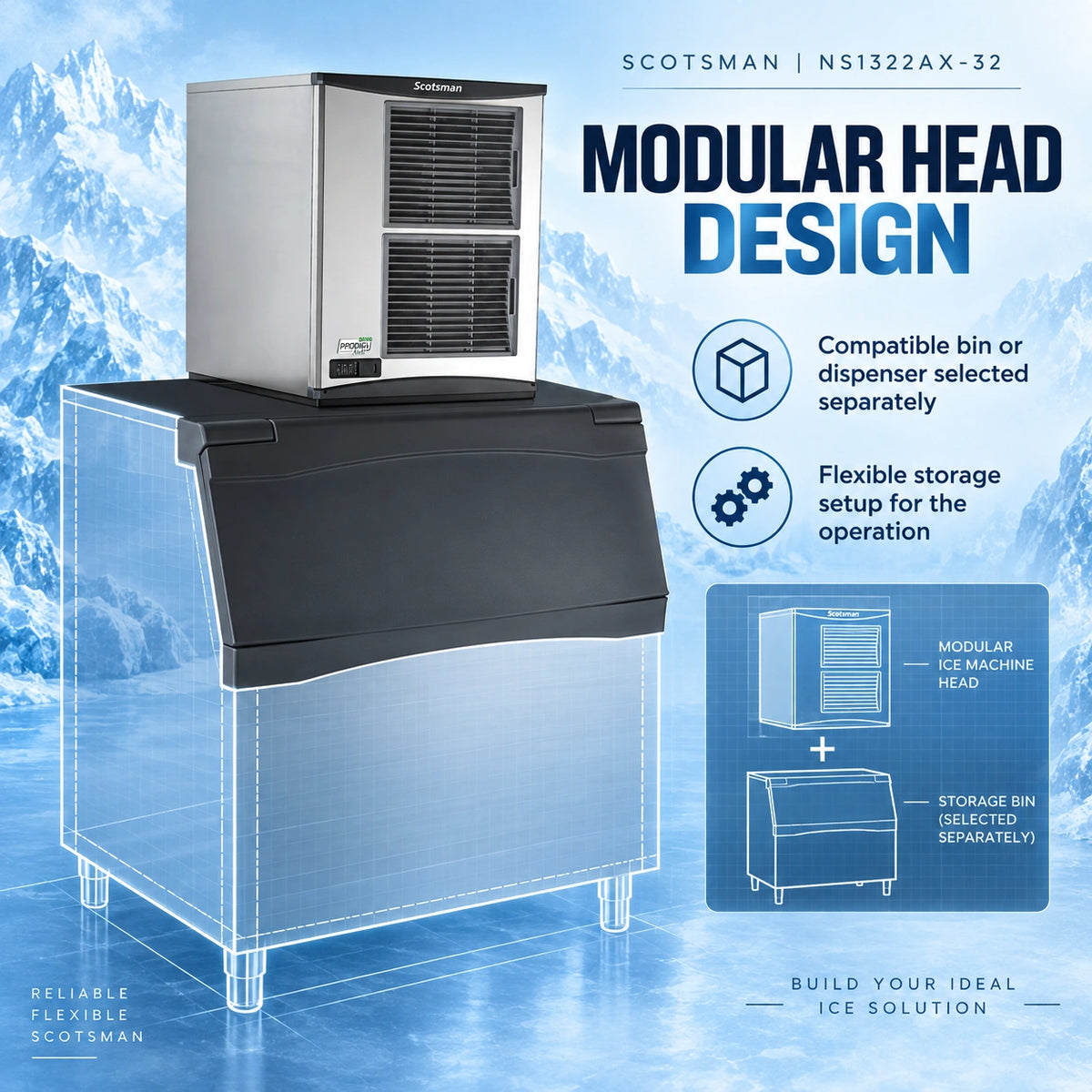

This listing is for the ice-production head only. The storage bin or dispenser, bin-top adapter or ice deflector where required, machine-to-bin control arrangement, water filter, drain materials, and field electrical connection are separate. Verify the complete Scotsman combination and total installed height before ordering. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.

Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V Features

Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V Resources

Scotsman Prodigy Plus NS1322AX-32 Commercial Nugget Ice Machine Head - 1,314 lb/Day Original Chewable Nugget Ice, 22 Inch Air-Cooled 208-230V Buying Guide

Quick Answer: Choose the Scotsman NS1322AX-32 for high-volume Original Chewable Nugget ice when you can install a complete modular system. This listing is a production head, so a compatible bin or dispenser must be selected separately. Confirm storage, mounting components, and electrical requirements before comparing total prices.

Who should consider this model

Consider it for a beverage operation with measured high daily nugget demand. A modular system lets you size storage separately from production. That flexibility is useful when opening loads or busy service periods require a reserve that an integrated undercounter bin cannot provide.

Key buying facts

Item

Value

Equipment

modular Original Chewable Nugget ice machine head

Rated output at 70 F air and 50 F water

Up to 1,314 lb per 24 hours

Rated output at 90 F air and 70 F water

1,001 lb per 24 hours

Nominal storage

Separate compatible bin or dispenser required

Listed cabinet W x D x H in inches

22 x 24 x 27 head only

Electrical supply

208 to 230V / 60 Hz / single phase

The buying decision that matters most

Build the quotation around the complete combination. Specify the exact head, bin or dispenser, manufacturer-approved adapter or top kit where needed, ice controls, and drain arrangement. Matching cabinet width does not establish compatibility. Ask for the proposed configuration in writing before ordering components from different suppliers.

Illustrative planning example: 250 lb of demand over four hours and an assumed average production of 1001/24, about 41.7 lb/hour, leaves roughly 83 lb to be supplied from starting reserve before losses. Add a practical buffer and account for real operating conditions. This is a planning calculation, not a bin recommendation or guaranteed recovery rate.

Check the installation before ordering

The 22 x 24 x 27-inch dimensions describe the head, not the installed system. Add the approved bin, legs, connecting parts, utilities, and service clearance. This model uses 208 to 230V single-phase power; have the electrician verify the nameplate and wiring instructions. Its published heat rejection is also a reason to review room ventilation with the installer.

Compare the right alternative

The HID312AX-1 is an integrated cup dispenser with much lower reserve and output, not an interchangeable replacement for this system. Browse the Scotsman collection for smaller nugget heads if measured demand does not justify the NS1322AX-32 configuration.

Plan the complete purchase

Treat the reviewed $10,671 price as head-only when building your budget. Add compatible storage, required mounting components, water treatment, electrical and plumbing work, freight services, and installation. Confirm the full suffix on the supplier quotation because competing listings may show an additional revision letter.

For help separating production from ready reserve, read our ice storage sizing guide.

Buyer questions

Does the NS1322AX-32 include a bin?

No. A compatible storage bin or dispenser is required separately.

Can it plug into a standard 115V outlet?

No. The listed electrical supply is 208 to 230V, 60 Hz, single phase. Follow the exact nameplate and wiring instructions.

Does a 22-inch bin automatically fit a 22-inch head?

No. Verify the manufacturer-approved combination and required adapters, controls, and mounting components.

Confirm your configuration

Send Ice Maker Supply your ZIP code, peak ice demand, available space, and installation details. Ask for a quote for the Scotsman NS1322AX-32 with the required accessories and current delivery estimate.
