Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

Brand:Scotsman
Model:Prodigy Plus NH0422AX-1
H² Nugget Ice Air-Cooled Up to 375 lb/day 22 in. Wide Modular Head 115V
Free Standard Shipping on Eligible Orders Within the Contiguous U.S.
Regular price $5,051.00
Sale price $5,051.00 Regular price $12,320.00
Unit price
Save 59%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

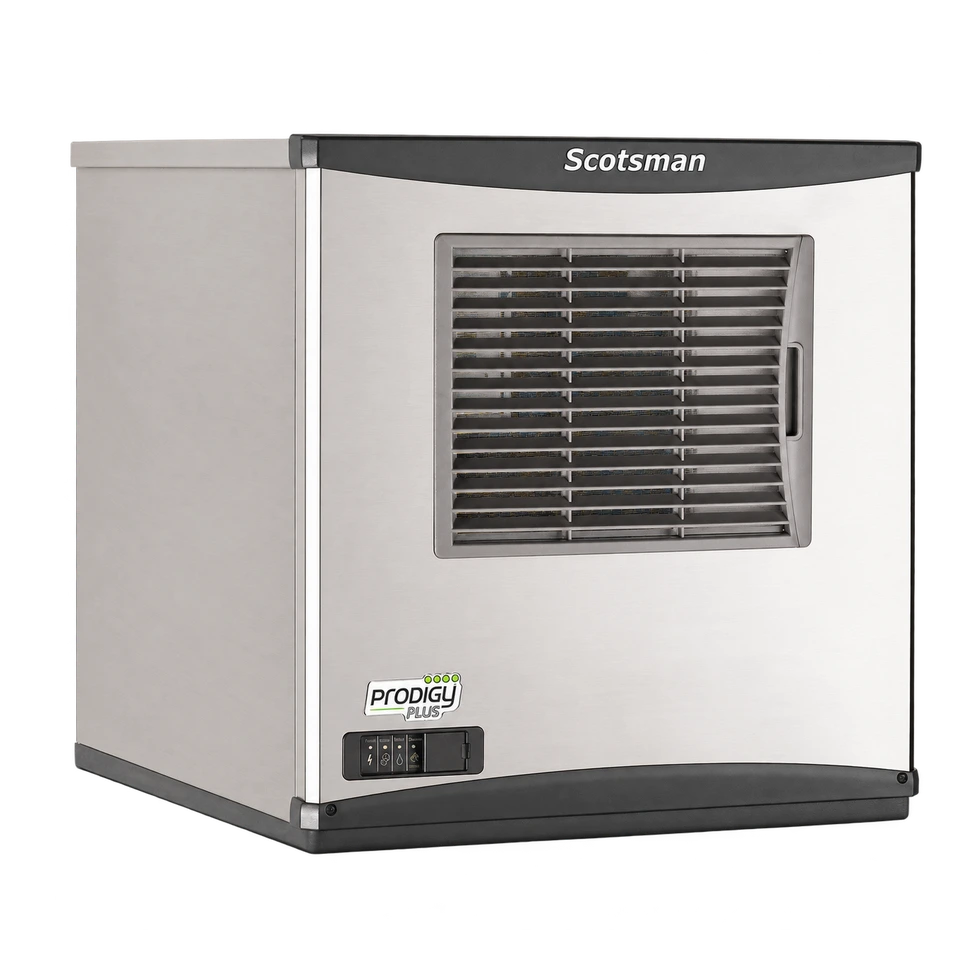

NH0422AX-1 is an air-cooled modular ice machine head producing up to 375 lb/day of h² nugget ice. 115/60/1; R290.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

We’ll use these details only to respond to your quote request.

Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.

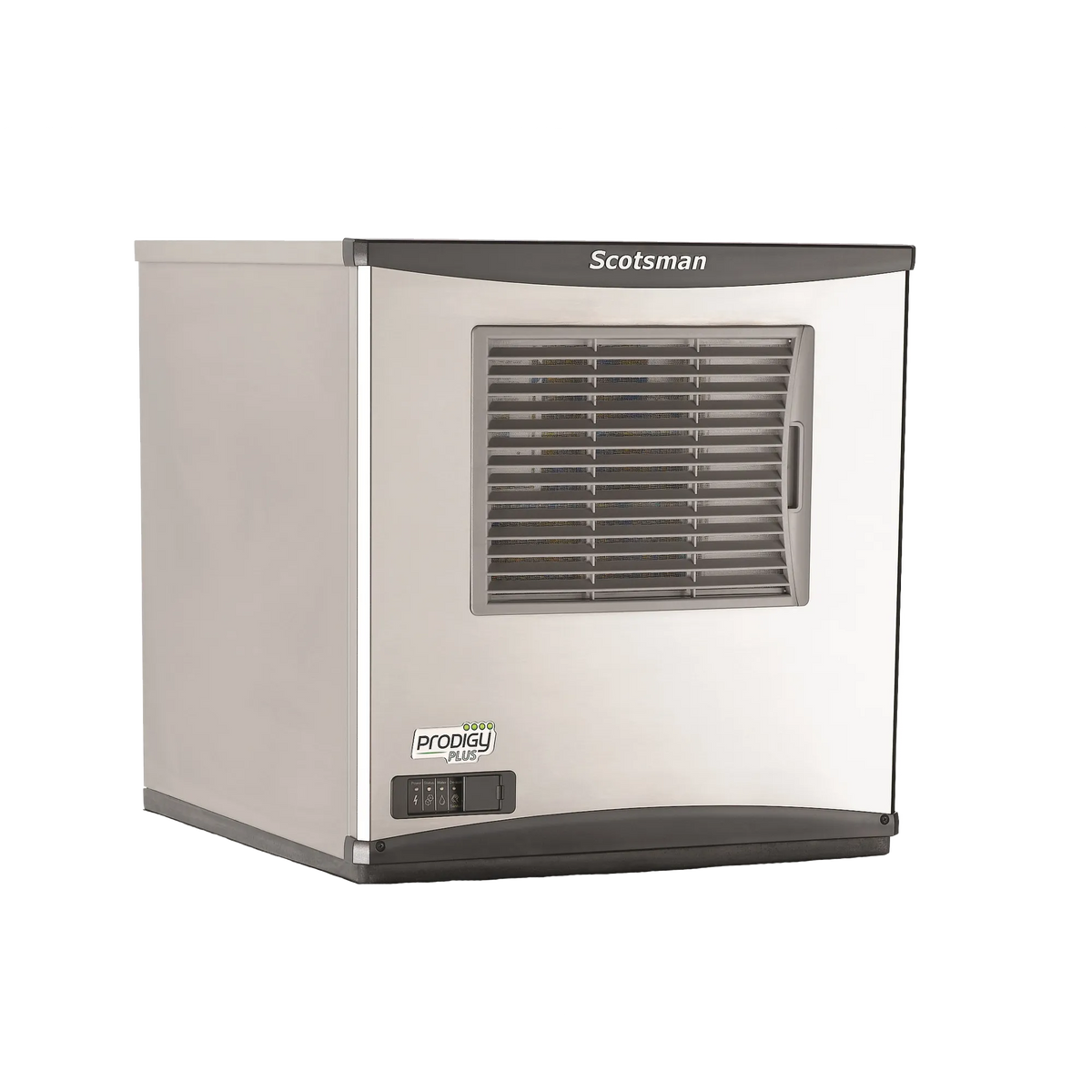

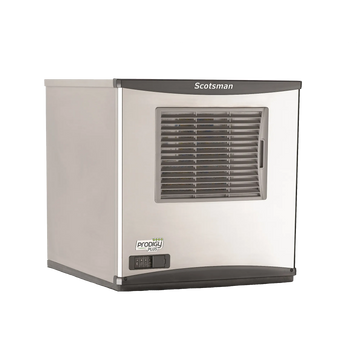

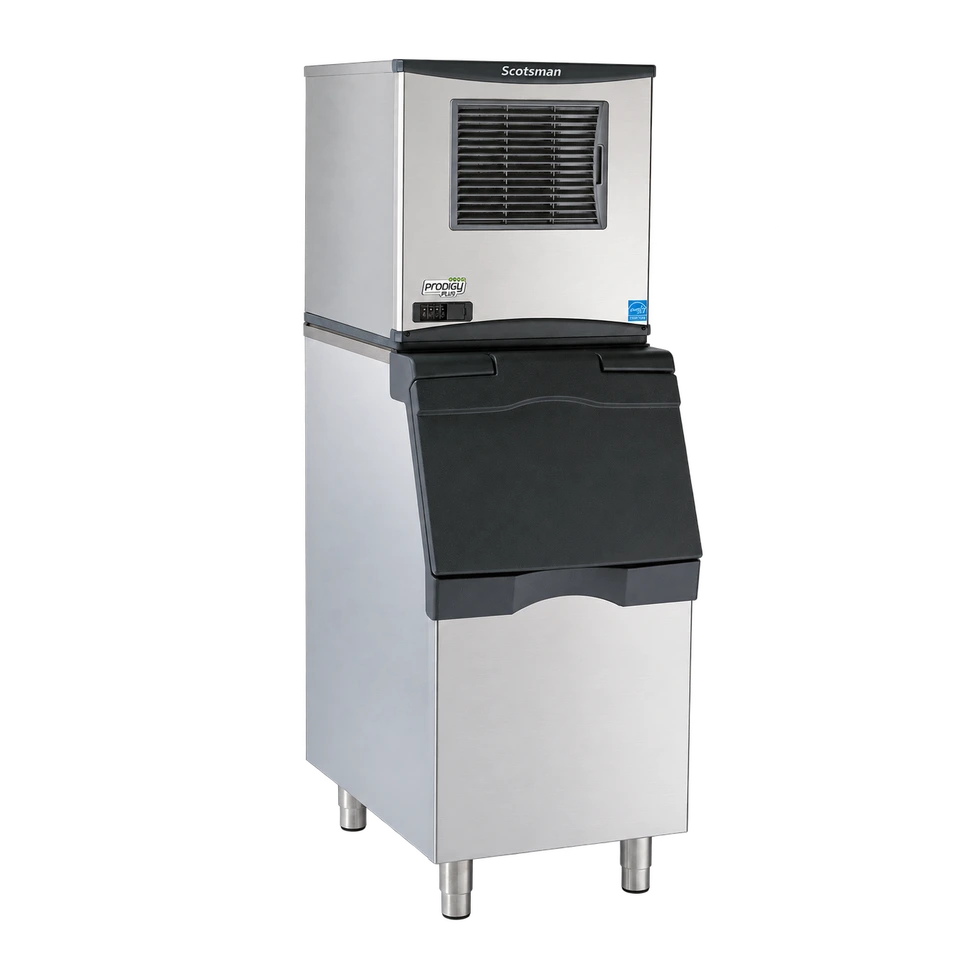

A stainless steel commercial ice machine with a dark gray top and bottom trim, featuring a front vented door and a visible ExpiCyte digital display on the lower left. The brand 'Scotsman' is printed on the top front panel.

Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V

Regular price $5,051.00
Sale price $5,051.00 Regular price $12,320.00
Unit price

Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Description

Harder, Slower-Melting H² Nugget Ice for Modular Systems

The Scotsman NH0422AX-1 Prodigy Plus is a head-only, air-cooled modular nugget ice machine rated for up to 375 lb of H² Nugget Ice per day. Under the warmer 90°F air/70°F water test condition, the official rating is 285 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. The 22-inch cabinet sits on a compatible bin or dispenser, giving restaurants, healthcare facilities, hotels, and beverage programs the freedom to choose storage separately from production.

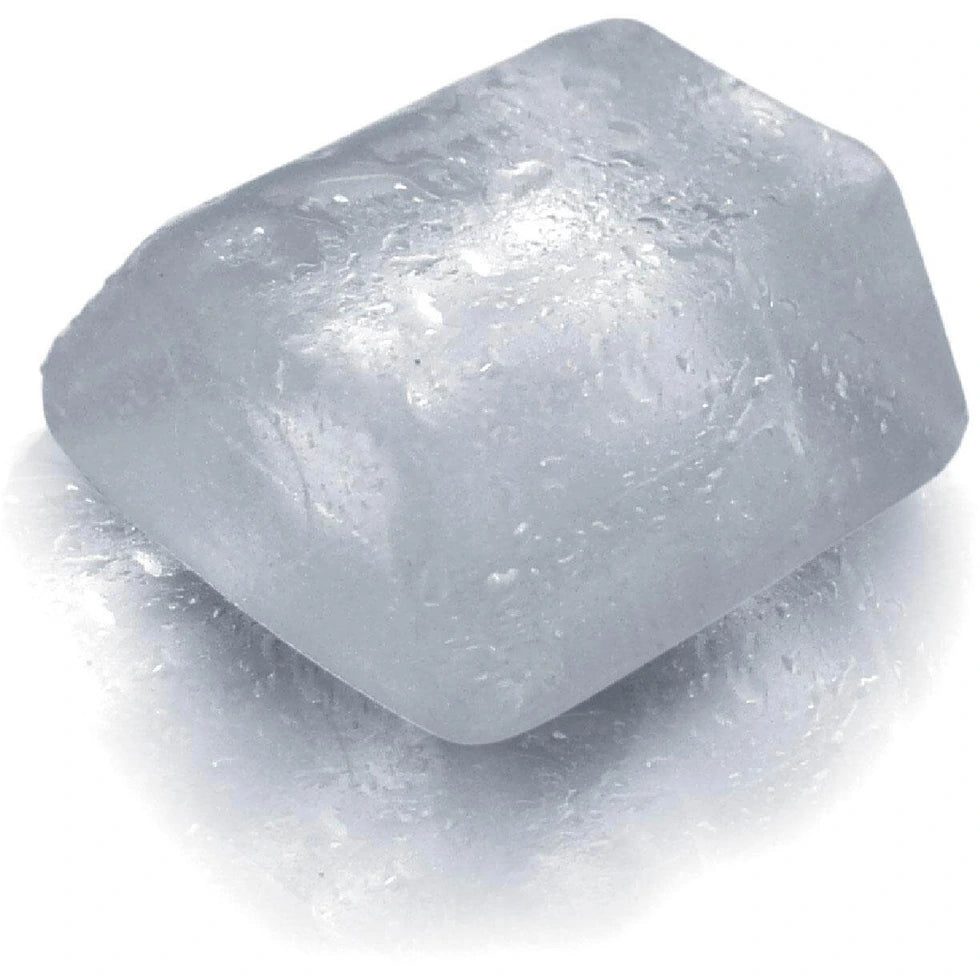

This exact model produces H² Nugget Ice, approximately 3/4 x 5/16 x 3/8 in.; hard rating 87%. Scotsman rates H² at about 87% hardness: it remains chewable, but is firmer and slower melting than the Original Chewable form, making it especially useful in fountain beverages and high-volume dispensing.

Prodigy Plus engineering is designed to reduce routine maintenance. Sealed, maintenance-free bearings eliminate bearing greasing, while a stainless-steel evaporator and auger support long service life. AutoAlert™ indicators show operating status, and a unit-specific QR code gives technicians direct access to cleaning guides, service manuals, and warranty history. The compact front-breathing design requires no side air clearance when installed according to the manual.

Optional Vari-Smart™ control can maintain a chosen ice level, and the optional Smart-Board™ adds diagnostic and operating data. Antimicrobial protection guards internal surfaces between cleanings. This NH0422AX-1 is the 115/60/1, air-cooled R290 version; the bin or dispenser, any required top adapter or ice deflector, water treatment, and code-compliant utilities are ordered separately.

💡 Need more H² nugget production? Compare the Scotsman NH0622AX-1.


Key Features

  • Up to 375 lb/day: 285 lb/day at 90°F air/70°F water

  • H² Nugget Ice: 3/4 x 5/16 x 3/8 in.; hard rating 87%

  • Sealed, maintenance-free bearings: no routine bearing greasing or wearable bearing parts

  • Stainless-steel evaporator and auger: durable food-zone components

  • AutoAlert™ and unit QR code: visible status and direct access to model-specific support

  • Front-breathing air cooling: no side air clearance required when installed to the manual

  • Optional controls: Vari-Smart ice-level control and Smart-Board advanced diagnostics

  • Antimicrobial protection: guards internal surfaces between scheduled cleanings

  • Compact operational footprint: supports high production without an oversized cabinet

  • Exact utility package: air-cooled, 115/60/1, R290


Best For

Beverage dispensers, quick-service restaurants, and high-volume operations that want a firmer, slower-melting nugget.


Full Specifications

Brand | Scotsman |

Model | NH0422AX-1 |

Series | N0422 Prodigy Plus |

Machine Type | Modular ice machine head; storage bin sold separately |

Ice Type | H² Nugget Ice |

Ice Size / Hardness | 3/4 x 5/16 x 3/8 in.; hard rating 87% |

Cooling | Air-cooled |

Daily Production - 70°F air/50°F water | 375 lb (170 kg)/24 hours |

Daily Production - 90°F air/70°F water | 285 lb (129 kg)/24 hours |

Storage Capacity | Separate bin or dispenser required |

Cabinet Dimensions (W x D x H) | 22 x 24 x 23 in. |

Shipping Weight | 172 lb |

Electrical | 115/60/1 |

Maximum Fuse / Breaker | 20 A |

Minimum Circuit Ampacity | 11.1 A |

Power Connection | Field electrical connection; follow model wiring diagram |

Refrigerant | R290 |

Heat Rejection | 5,000 BTU/hr |

Energy Use at 90°F/70°F | 5.00 kWh/100 lb |

Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |

Potable Water Inlet | 3/8 in. FPT potable-water inlet |

Drain Connection | 3/4 in. FPT machine drain |

Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |

Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |

Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |

Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |

Published Certifications | cULus, NSF, ENERGY STAR®, AHRI |


Warranty

  • Machine: 3 years parts and labor on all components

  • Compressor: 5 years parts

The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.


Accessories & Installation

Optional controls: KVS Vari-Smart™ ice-level control and KSBU/KSBU-N Smart-Board™ diagnostic modules. Choose a compatible Scotsman storage bin or dispenser and confirm the required adapter, ice deflector, and bin-control arrangement before ordering.

This listing is for the ice-production head only. The storage bin or dispenser, bin-top adapter or ice deflector where required, machine-to-bin control arrangement, water filter, drain materials, and field electrical connection are separate. Verify the complete Scotsman combination and total installed height before ordering. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.

Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Features

Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Resources

Scotsman Prodigy Plus NH0422AX-1 Commercial Nugget Ice Machine Head - 375 lb/Day H² Nugget Ice, 22 Inch Air-Cooled 115V Buying Guide

Quick Answer: Choose the Scotsman NH0422AX-1 when you want H2 nugget ice with the flexibility of separate storage. This air-cooled head is rated at up to 375 lb/day, or 285 lb/day at 90 F air and 70 F water. It needs a compatible bin or dispenser and a properly planned installation.

Who should consider this model

This is a candidate for a beverage program that needs a larger or differently arranged reserve than an integrated dispenser provides. Decide how users will collect ice. A scoop-access bin and an automatic cup dispenser serve different workflows. Have the complete proposed combination approved before choosing the head solely for its ice form.

Key buying facts

Item

Published detail

Ice and configuration

H2 nugget air-cooled modular head

Output at 70 F air and 50 F water

Up to 375 lb per 24 hours

Output at 90 F air and 70 F water

285 lb per 24 hours

Storage

Compatible bin or dispenser sold separately

Head dimensions W x D x H

22 x 24 x 23 in nominal summary

Electrical supply

115V 60 Hz single phase

The main buying decision

Compare daily production and peak reserve independently. A modular head can be paired with storage that supports a concentrated service window, but a large bin does not make the head produce more ice. Measure the ice needed at opening and the amount required before the machine has time to rebuild reserve.

Compared with NH0622AX-1, this model saves $1,631 at the reviewed head prices and has 181 lb/day less published warm-condition output. Choosing the smaller model is sensible only when its expected production and recovery leave enough headroom. Add the same necessary bin and installation items to both quotations before comparing totals.

Installation checks

Use the current drawing for the exact mounting and utility arrangement. The family sheet summarizes the unit as 22 x 24 x 23 inches, but its centimeter width is inconsistent with that inch value. Confirm the dimension instead of treating the category label as a guaranteed fit. The published electrical table lists 11.1 A minimum circuit ampacity and a 20 A maximum fuse or breaker.

Compare the right alternative

Compare the NH0622AX-1 for higher production in the same general footprint class. Compare the HID312AX-1 when integrated touch-free cup dispensing and a small onboard reserve better suit the station. The Meridian unit is a different complete format, so compare workflow as well as daily output.

Plan the complete purchase

Check the required bin-top components, water treatment, drain routing, and electrical connection in writing. Confirm who will install and commission the complete system. Scotsman's family sheet provides three years of parts and labor on components and five years of compressor parts for qualifying commercial installations; confirm the terms for the actual unit and use.

Use our bin sizing guide to organize your peak-demand and reserve measurements.

Buyer questions

Does NH0422AX-1 come with an ice bin?

No. Its listing is for the production head. Compatible storage or dispensing equipment is separate.

Is the 375 lb/day figure an hourly dispensing rate?

No. It is maximum production over 24 hours under stated conditions, not a dispensing-speed measurement.

Do antimicrobial parts replace cleaning?

No. Follow the manufacturer cleaning and sanitation instructions for the head and the separate bin or dispenser.

Request a complete quote

Send your ZIP code, current equipment models, measured peak demand, and available space. Ask Ice Maker Supply for a quote for the Scotsman NH0422AX-1 with the required storage, installation components, and current delivery estimate.
