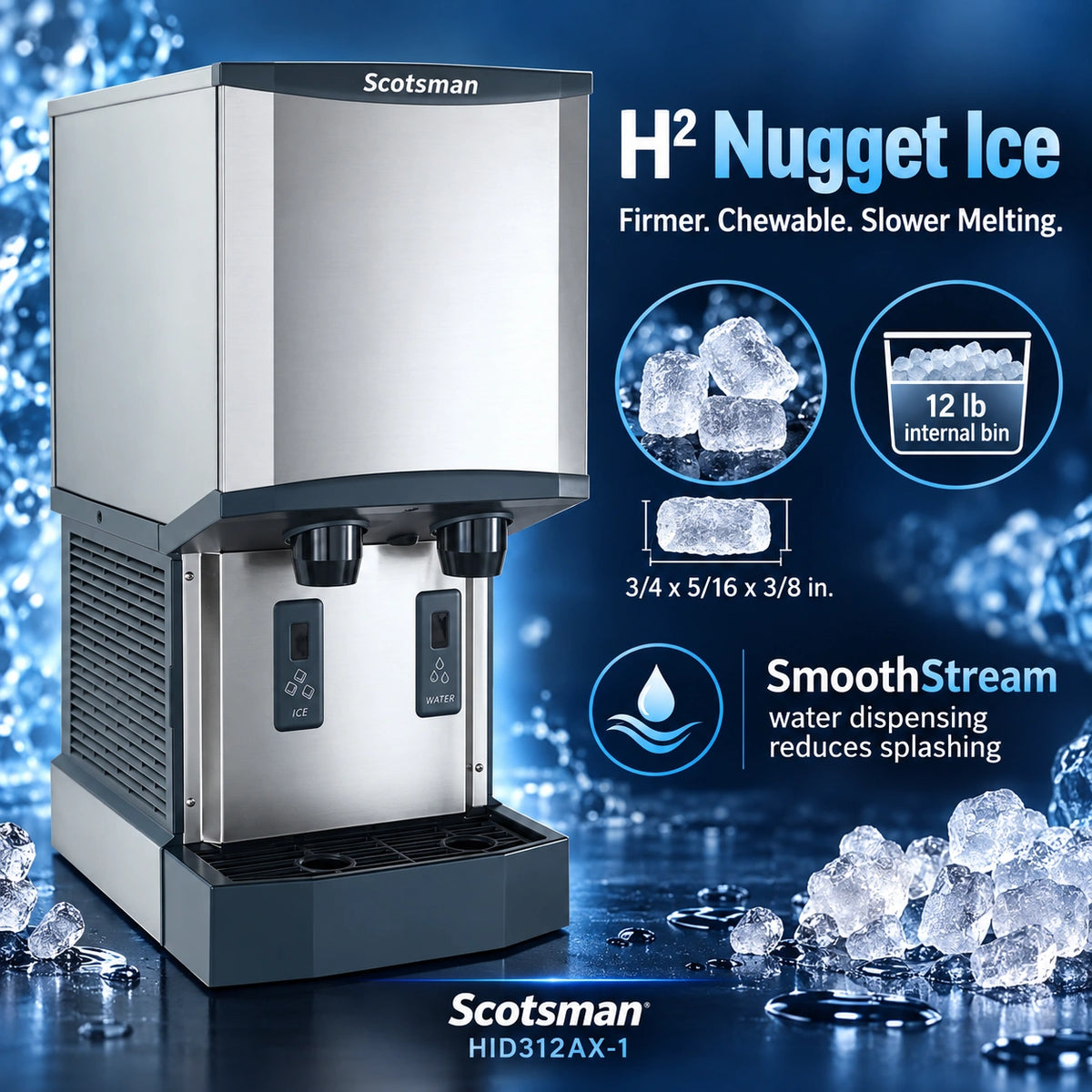

Touch-Free H² Nugget Ice and Water in a 16-Inch Cabinet

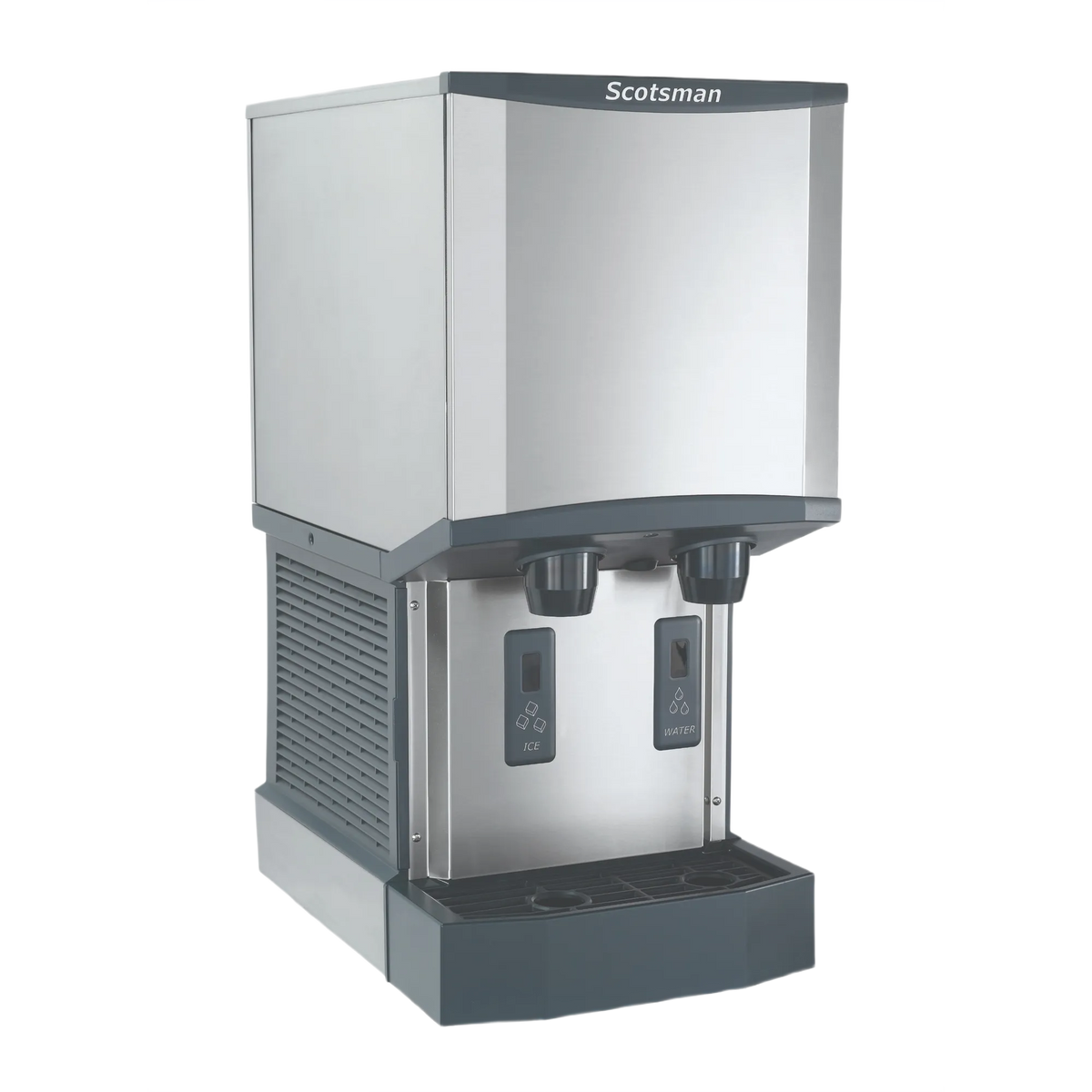

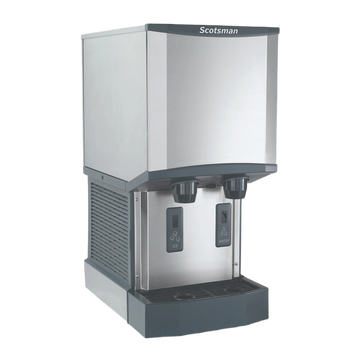

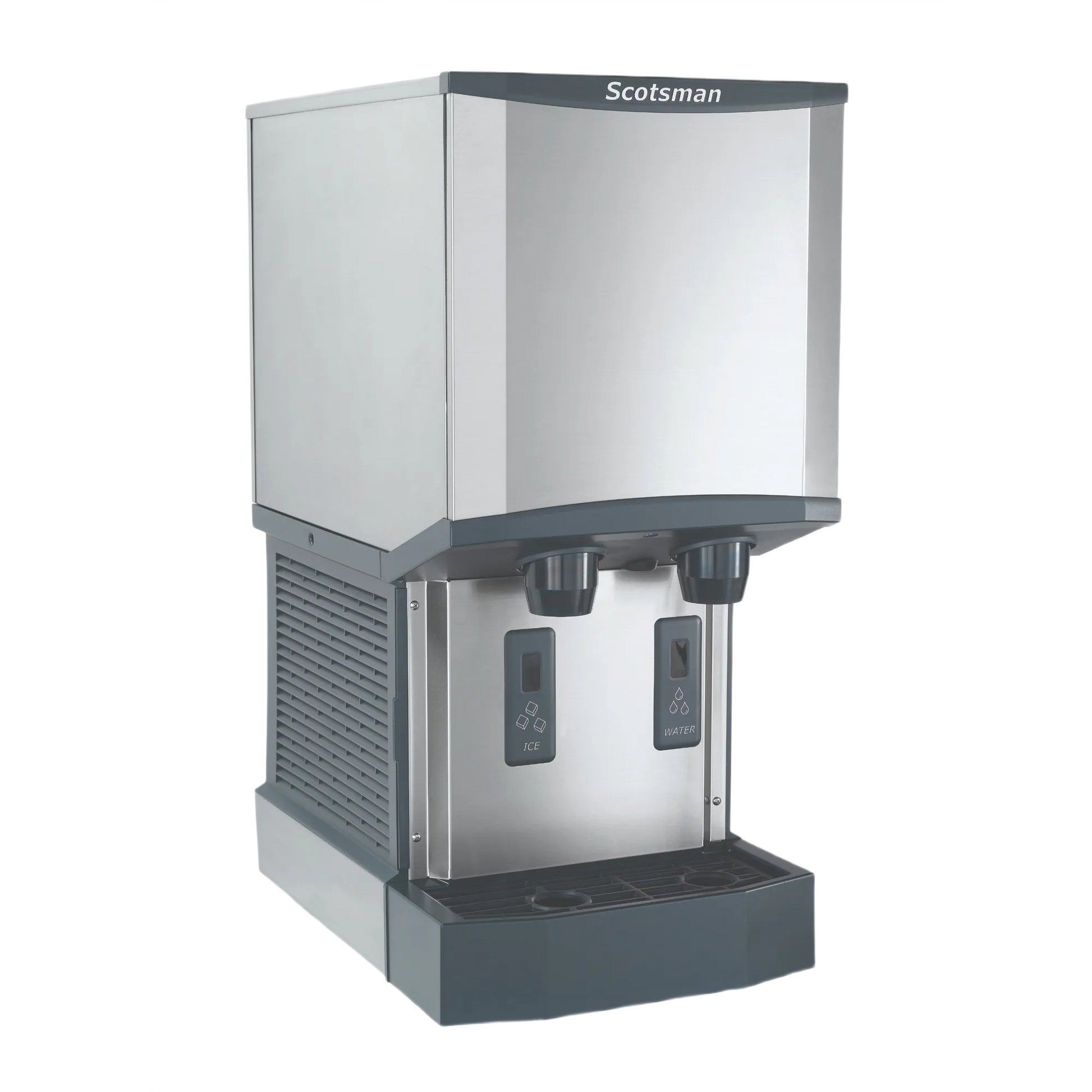

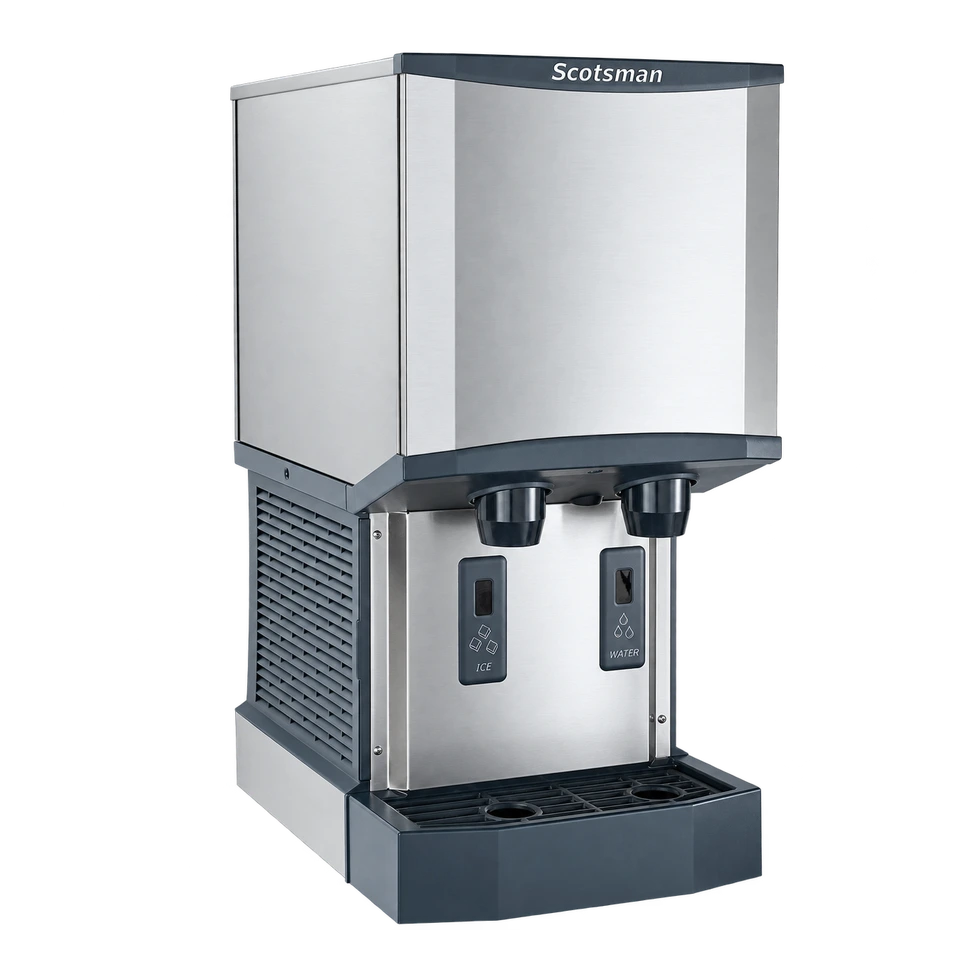

The Scotsman HID312AX-1 Meridian is a self-contained commercial ice-and-water dispenser that produces up to 320 lb of H² Nugget Ice every 24 hours and holds 12 lb in its internal bin. Under the warmer 90°F air/70°F water test condition, the official rating is 245 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. Production, storage, and dispensing are combined in one cabinet, eliminating the need to handle an ice scoop in offices, healthcare areas, hotels, education facilities, and self-service beverage locations.
The infrared interface dispenses ice and water without requiring users to touch a button. The machine produces H² Nugget Ice, approximately 3/4 x 5/16 x 3/8 in. (1.9 x 0.8 x 0.95 cm). This firmer Scotsman nugget remains chewable while retaining its shape and melting more slowly for dependable dispensing. SmoothStream™ water delivery reduces splashing around the sink and cup area.
Meridian's sanitary design includes AgION® and other antimicrobial compounds molded into key components, a sealed refrigeration system, and a bin, spouts, air filter, sink, and grille that can be removed for cleaning. The front-accessible air filter simplifies regular maintenance. Durable stainless-steel components, sealed maintenance-free bearings, and contoured sides are designed for reliability and airflow in a compact footprint.
Intuitive LED diagnostics and a USB connection help technicians identify conditions and install software updates, while the model-specific QR code opens service and warranty information. This exact HID312AX-1 is the touch-free, air-cooled, 115/60/1 version with R290 refrigerant and a factory power cord. Plan for the manufacturer-required ventilation space, potable-water connection, drain, filtration, cup clearance, and a load-bearing counter or compatible stand.
Key Features
-
Up to 320 lb/day: 245 lb/day at 90°F air/70°F water
-
12 lb storage: onboard reserve for dispensing demand
-
Touch-free dispensing: sensor-based ice and water selection
-

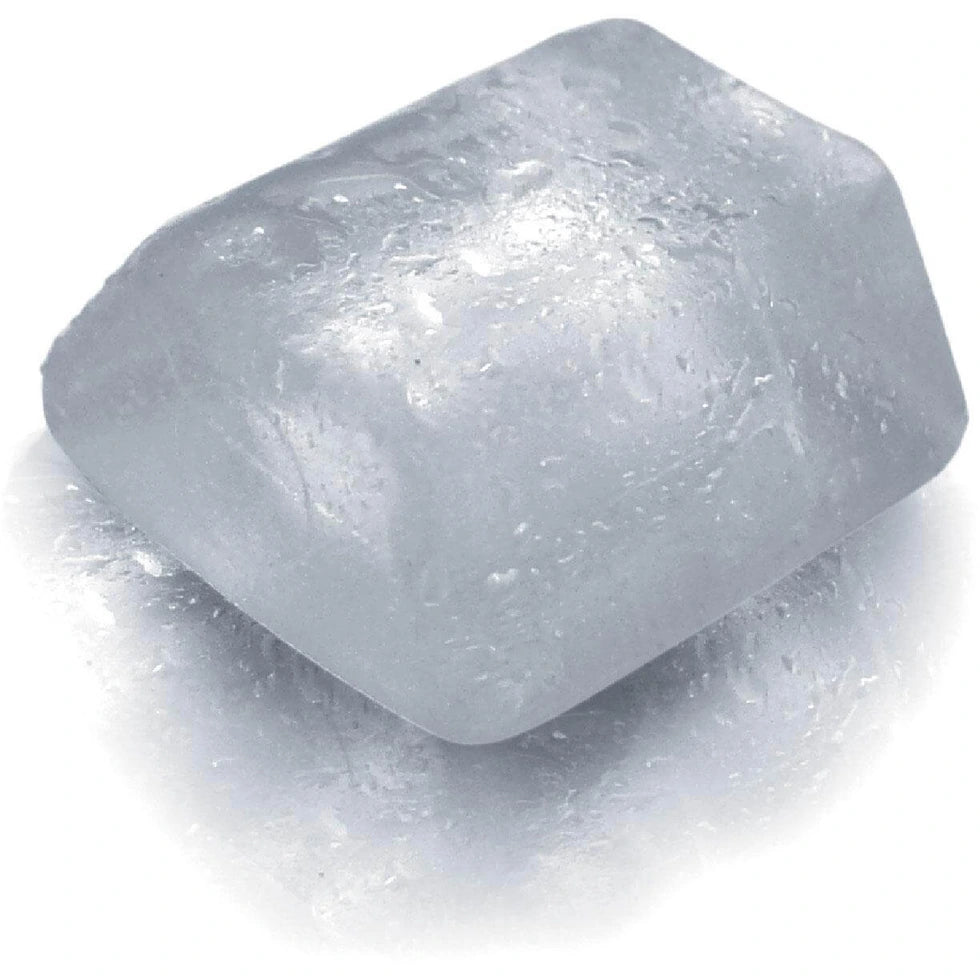

H² Nugget Ice: approximately 3/4 x 5/16 x 3/8 in. (1.9 x 0.8 x 0.95 cm)
-
SmoothStream™ water dispensing: reduces splashing around the cup and sink area
-
AgION® antimicrobial protection: molded into key components
-
Removable food-zone parts: bin, spouts, air filter, sink, and grille remove for cleaning
-
Sealed refrigeration system: minimizes exposure to outside airborne contamination
-
Service support: LED diagnostics, USB software updates, and unit-specific QR code
-
Commercial construction: stainless-steel exterior panels and evaporator with maintenance-free bearings
-
Exact utility package: air-cooled, 115/60/1, R290
Best For
Offices, hotels, healthcare facilities, education, fitness, waiting areas, and self-service foodservice where touch-free nugget ice and water are preferred.

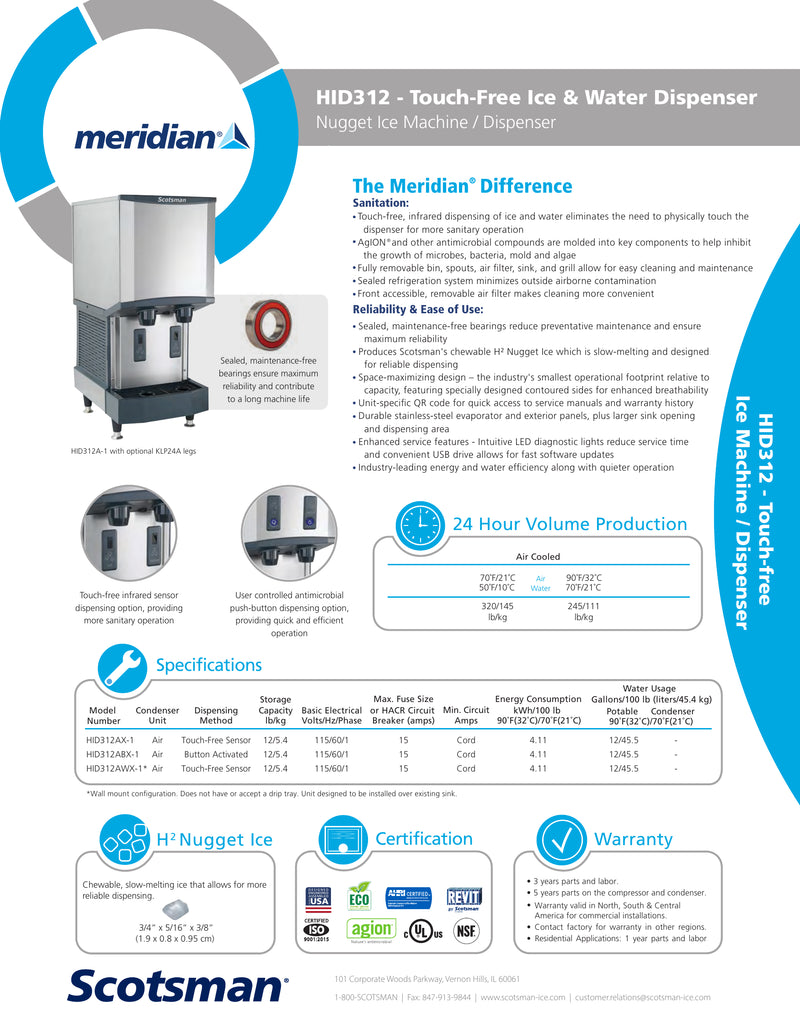

Full Specifications
Brand | Scotsman |
Model | HID312AX-1 |
Series | HID312 Meridian |
Machine Type | Self-contained touch-free ice and water dispenser |
Ice Type | H² Nugget Ice |
Ice Size / Hardness | 3/4 x 5/16 x 3/8 in. (1.9 x 0.8 x 0.95 cm) |
Cooling | Air-cooled |
Daily Production - 70°F air/50°F water | 320 lb (145 kg)/24 hours |
Daily Production - 90°F air/70°F water | 245 lb (111 kg)/24 hours |
Storage Capacity | 12 lb (5 kg) |

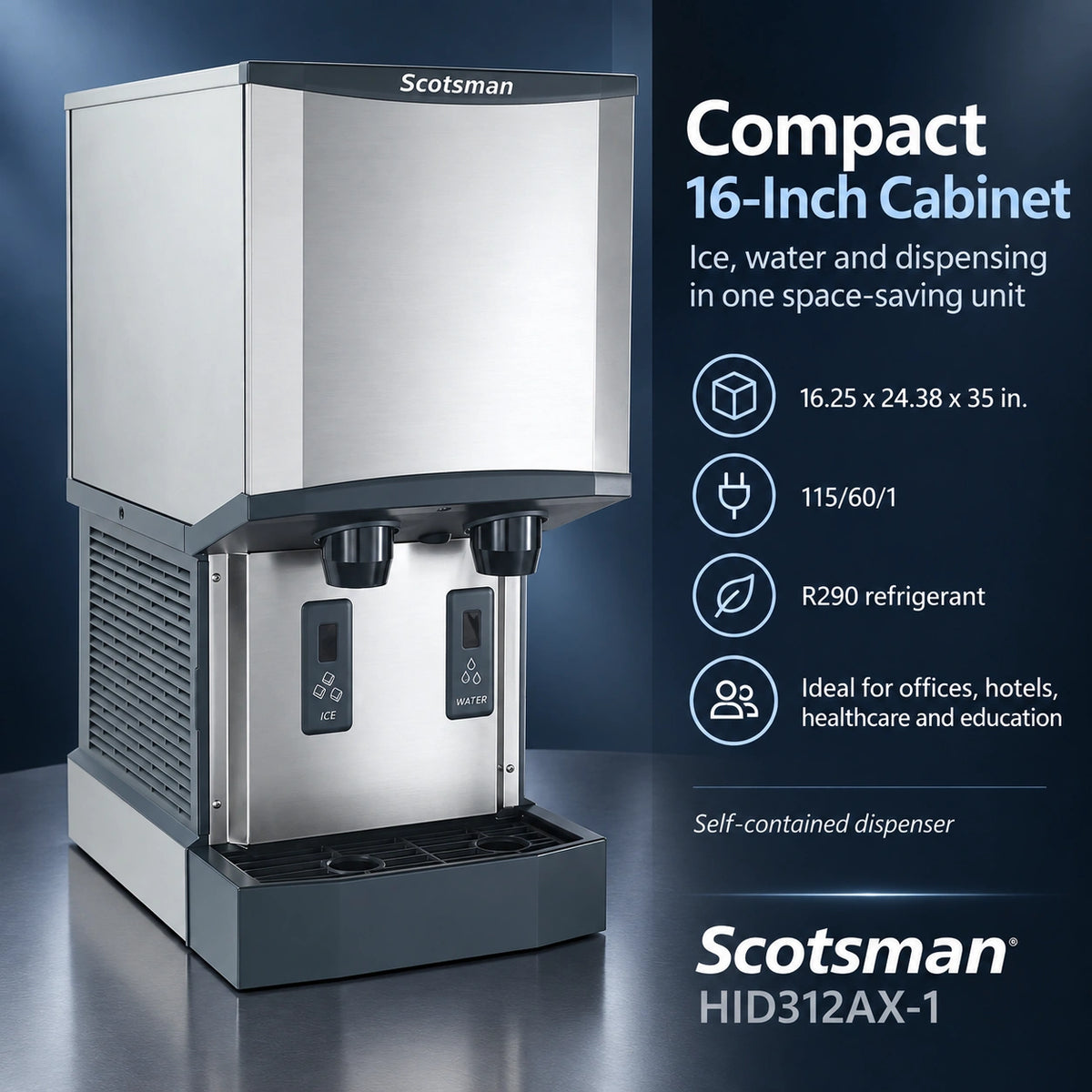

Cabinet Dimensions (W x D x H) | 16.25 x 24.38 x 35 in. |
Shipping Weight | 183 lb |
Electrical | 115/60/1 |
Maximum Fuse / Breaker | 15 A |
Power Connection | 7.5 ft cord with NEMA 5-15P plug |
Refrigerant | R290 |
Refrigerant Charge | 5 oz |
Heat Rejection | 3,200 BTU/hr |
Energy Use at 90°F/70°F | 4.11 kWh/100 lb |
Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |
Potable Water Inlet | 3/8 in. flare |
Drain Connection | 3/4 in. FPT |
Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |
Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |
Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |
Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |
Published Certifications | ADA-compliant reach, cULus, NSF, AHRI |
Warranty
-
Machine: 3 years parts and labor
-
Compressor and condenser: 5 years parts
The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.
Accessories & Installation
Optional: KLP24A set of four 4-inch adjustable legs; HST16-A stand with locking reversible door and shelf; HST16B-A basic stand.
Allow the manufacturer-specified 6 inches at the left, back, and right for ventilation and utility connections. Confirm the support surface or stand, cup clearance, water filtration, inlet, drain, and dedicated electrical circuit before delivery. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.
