Scotsman KBT38 Bin Top Adapter Kit - 22-Inch Nugget or Flake Machine Description
Scotsman KBT38 - Centered Bin-Top Kit for One 22-Inch Nugget or Flake Ice Machine on a B948S Bin
The Scotsman KBT38 is a bin-top adapter kit for installing one compatible 22-inch-wide modular nugget or flake ice machine on a Scotsman B948S storage bin. The two filler plates close the open bin-top space on the left and right sides when the machine is centered over the 48-inch-wide bin.

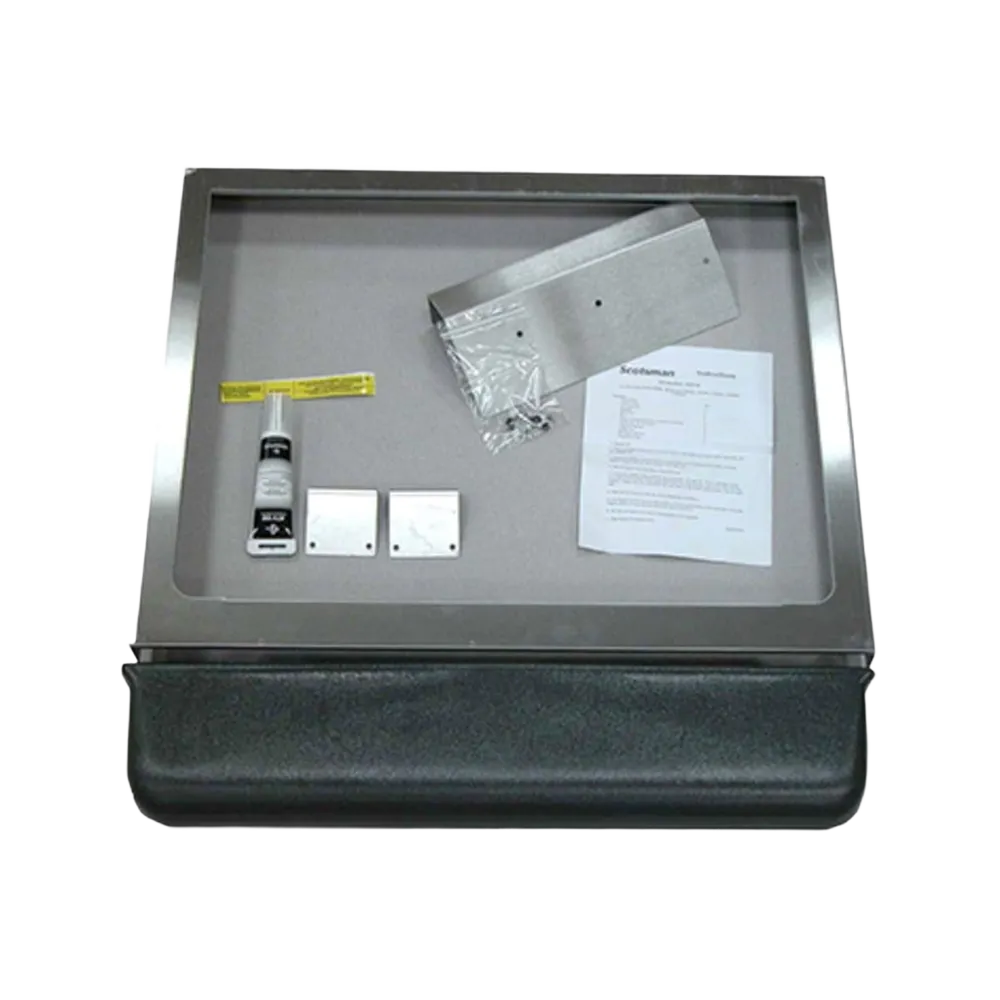

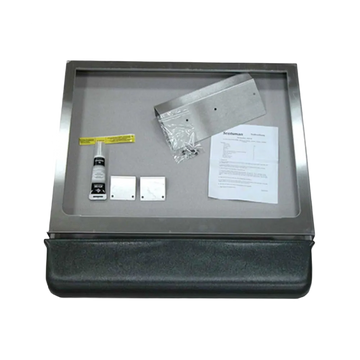

The kit includes two filler plates, two bolts, two washers and a tube of food-grade silastic sealant. Each filler plate has a specific left or right orientation, determined by the insulation attached to its underside. Correct placement keeps the insulation nearest the ice machine and supports a close fit at the machine base.
After the machine is centered, the filler plates slide into position and are secured at the rear with the supplied bolts and washers. A bead of the included sealant is applied where each filler plate meets the machine to close the joint. The machine is then secured using the brackets and bolts supplied with the ice maker.
KBT38 is intended for a single approved machine on the B948S. Installations using two 22-inch machines side by side require the separately specified KBT38-2X arrangement.
Key Features
- Fits one compatible 22-inch modular nugget or flake ice machine on a B948S bin
- Centers the machine on the 48-inch-wide storage bin
- Includes dedicated left and right filler plates
- Insulated filler-plate construction supports correct fitment
- Includes two bolts and two washers
- Includes food-grade silastic sealant
- Single-machine kit; dual-machine installations use KBT38-2X
Best For
Commercial nugget- or flake-ice systems that pair one approved 22-inch Scotsman modular head with a B948S storage bin and require a centered factory bin-top installation.
Full Specifications
| Brand | Scotsman |
| Model | KBT38 |
| Product Type | Bin-top adapter and filler-panel kit |
| Compatible Machine Format | One approved 22-inch modular nugget or flake ice machine |
| Compatible Bin | Scotsman B948S |
| Machine Position | Centered |
| Included Components | Two filler plates, two bolts, two washers and food-grade silastic sealant |
| Dual-Machine Kit | KBT38-2X, sold separately |
| Ice Production | None - installation accessory only |
Installation and Compatibility Notes
- Orient the left and right filler plates so their underside insulation is closest to the machine.
- Center the machine over the bin before positioning the filler plates.
- Use the brackets and bolts supplied with the ice machine to secure the head.
- Apply the included sealant along the top edge of each filler plate next to the machine.

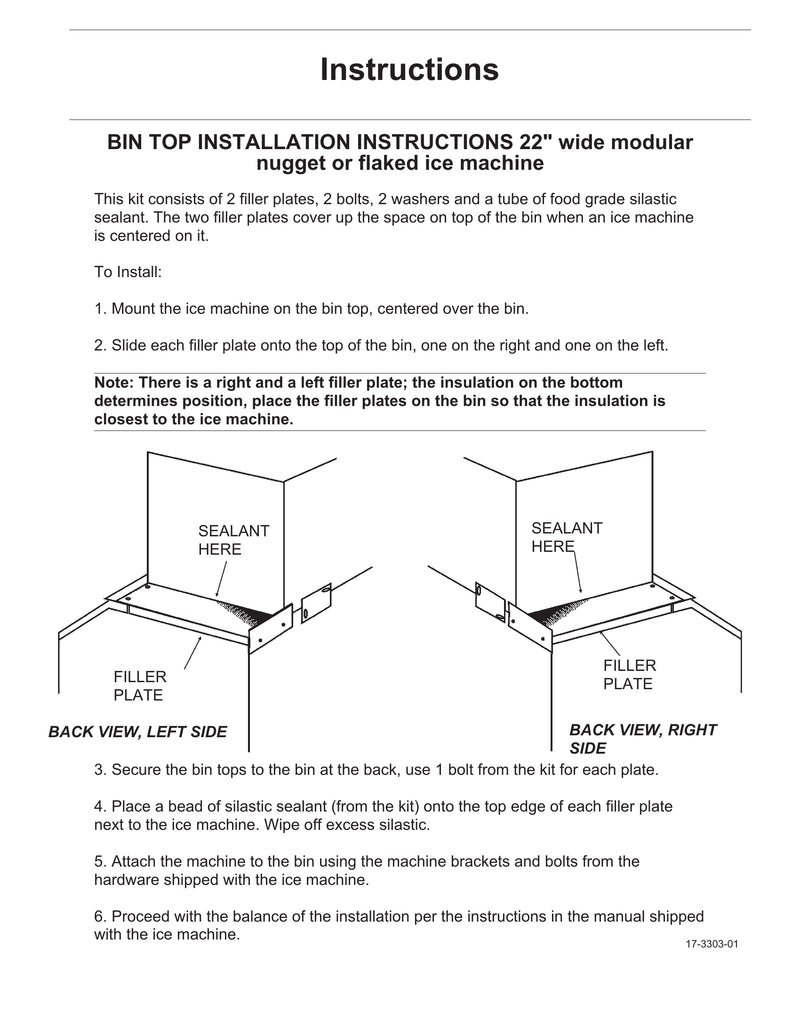

- Installation should follow Scotsman instruction 17-3303-01.
