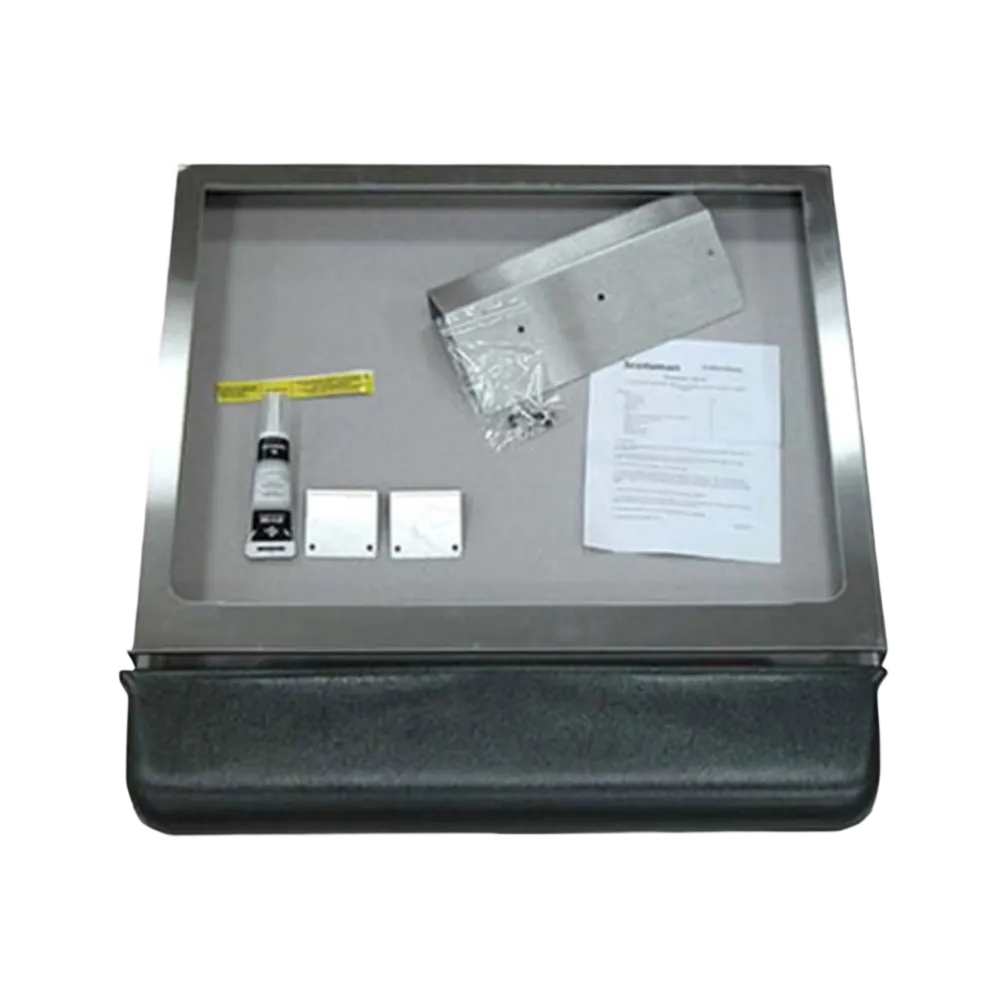

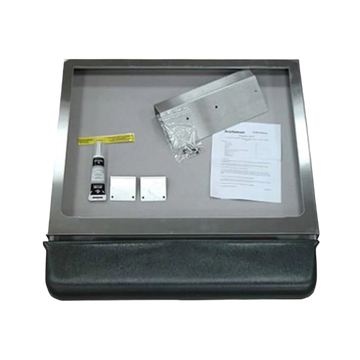

Scotsman KBT39 Bin Top Adapter Kit - 22-Inch Nugget or Flake Machine to B842
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Scotsman KBT39 Bin Top Adapter Kit - 22-Inch Nugget or Flake Machine to B842
Scotsman KBT39 Bin Top Adapter Kit - 22-Inch Nugget or Flake Machine to B842 Description
Connected Medium Cube Production for 22-Inch Bin Systems
The Scotsman MC0322MAX-1 Prodigy ELITE is a head-only, air-cooled modular cuber that produces up to 362 lb of medium cube ice every 24 hours. Under the warmer 90°F air/70°F water test condition, the official rating is 248 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. Its 22-inch-wide cabinet is intended for a compatible Scotsman storage bin or ice dispenser, allowing the production head and storage capacity to be selected around the operation's real demand instead of accepting a fixed built-in bin.
Each medium cube measures approximately 7/8 x 7/8 x 7/8 in.. This familiar, solid cube provides useful displacement and dependable chilling for soft drinks, cocktails, water service, banquet beverage stations, and back-of-house prep. Because this SKU is the medium-cube version, it should not be confused with the small-cube variants in the same family.
The Prodigy ELITE platform adds tools that matter after installation. The integrated ICELINQ® app connects through Bluetooth® for real-time diagnostics, settings, unit information, and guided cleaning. Upgraded ice-thickness and water sensors improve durability and cleanability, while Preservation Mode helps maximize uptime and alerts users to developing issues. The external AutoAlert™ panel displays machine status, bin-full condition, and an easier-to-read 16-segment display without requiring staff to remove a panel.
Sanitation and water management are also built into the design. A removable external air filter speeds routine cleaning, WaterSense adaptive purge helps control dissolved minerals and water use, and antimicrobial protection guards internal surfaces between scheduled cleanings. This exact MC0322MAX-1 is the 115/60/1, air-cooled R290 configuration. It does not include an ice bin, adapter, or water filter, so those components must be matched to the installation separately.
💡 Prefer a 30-inch modular head? Compare the Scotsman MC0330MAX-1.
Key Features
-
Up to 362 lb/day: 248 lb/day at 90°F air/70°F water
-
Medium cube: approximately 7/8 x 7/8 x 7/8 in.
-
ICELINQ® mobile access: real-time diagnostics, guided cleaning, settings, troubleshooting support, and unit information
-
Bluetooth® connection: pairs with the app without opening the cabinet
-
AutoAlert™ panel: machine status, external bin-full light, and readable 16-segment display
-
Preservation Mode: helps maximize uptime and alerts users to potential issues
-
Upgraded sensors: improved ice-thickness and water-sensor cleanability and durability
-
WaterSense adaptive purge: manages mineral concentration while optimizing potable-water use
-
Sanitary service design: removable external air filter, guided cleaning, and antimicrobial protection
-
Modular configuration: compatible storage bin or dispenser and any required adapter are sold separately
-
Exact utility package: air-cooled, 115/60/1, R290
Best For
Restaurants, bars, hotels, institutional kitchens, and other operations that need dependable medium-cube output and want to size the storage bin separately.
Full Specifications
Brand | Scotsman |
Model | MC0322MAX-1 |
Series | MC0322 Prodigy ELITE |
Machine Type | Modular ice machine head; storage bin sold separately |
Ice Type | Medium cube |
Ice Size / Hardness | 7/8 x 7/8 x 7/8 in. |
Cooling | Air-cooled |
Daily Production - 70°F air/50°F water | 362 lb (164 kg)/24 hours |
Daily Production - 90°F air/70°F water | 248 lb (112 kg)/24 hours |
Storage Capacity | Separate bin or dispenser required |
Cabinet Dimensions (W x D x H) | 22 x 24 x 23 in. |
Shipping Weight | 155 lb |
Electrical | 115/60/1 |
Maximum Fuse / Breaker | 15 A |
Minimum Circuit Ampacity | 10.3 A |
Power Connection | Field electrical connection; follow model wiring diagram |
Refrigerant | R290 |
Heat Rejection | 5,200 BTU/hr |
Energy Use at 90°F/70°F | 5.99 kWh/100 lb |
Potable Water Use at 90°F/70°F | 20.0 gal/100 lb |
Potable Water Inlet | 3/8 in. FPT potable-water inlet |
Drain Connection | 3/4 in. FPT machine drain |
Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |
Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |
Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |
Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |
Published Certifications | NSF, ICELINQ® compatible, cULus, Bluetooth® enabled, ENERGY STAR®, AHRI |
Warranty
-
Machine: 3 years parts and labor on all components
-
Evaporator: 5 years parts and labor
-
Compressor and condenser: 5 years parts
The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.
Accessories & Installation
Optional controls and sanitation: KVS Vari-Smart™ ultrasonic ice-level control; KBILC basic thermistor ice-level control; KSBU Smart-Board™; KSBU-N network-capable Smart-Board™; KPAS Prodigy Advanced Sustainability Kit; XR-30 XSafe® sanitation system. Select a compatible Scotsman bin or dispenser and the required bin-top adapter separately.
This listing is for the ice-production head only. The storage bin or dispenser, bin-top adapter or ice deflector where required, machine-to-bin control arrangement, water filter, drain materials, and field electrical connection are separate. Verify the complete Scotsman combination and total installed height before ordering. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.
