Scotsman KBT22B Bin Top Adapter Kit - 30-Inch Ice Machine to 48-Inch Bin Description
Center a 30-Inch Modular Head on a 48-Inch Scotsman Bin
The Scotsman KBT22B is a model-specific bin-top adapter kit used to install 30 in. wide x 24 in. deep modular ice machine on a 48 in. wide Scotsman bin, including B948. It closes the unused portion of the storage-bin top and positions the modular ice head over the intended drop opening so harvested ice enters the bin correctly.
Head centered left-to-right; filler plates sit beside, not beneath, the machine. The insulated or formed filler panels create a finished transition between cabinets of different widths and help keep heat, moisture, and debris out of the storage area. The supplied food-grade sealant is applied where identified in the Scotsman instructions to close seams around the machine and panels.
This kit is not a universal adapter. Two machines with the same nominal cabinet width can have different drop openings, mounting points, or deflector requirements. Verify the complete ice-machine model, bin model, head position, cabinet depth, and current Scotsman compatibility instructions before ordering.
Key Features
-
Published application: 30 in. wide x 24 in. deep modular ice machine on a 48 in. wide Scotsman bin, including B948
-

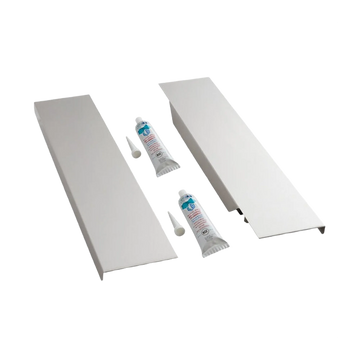

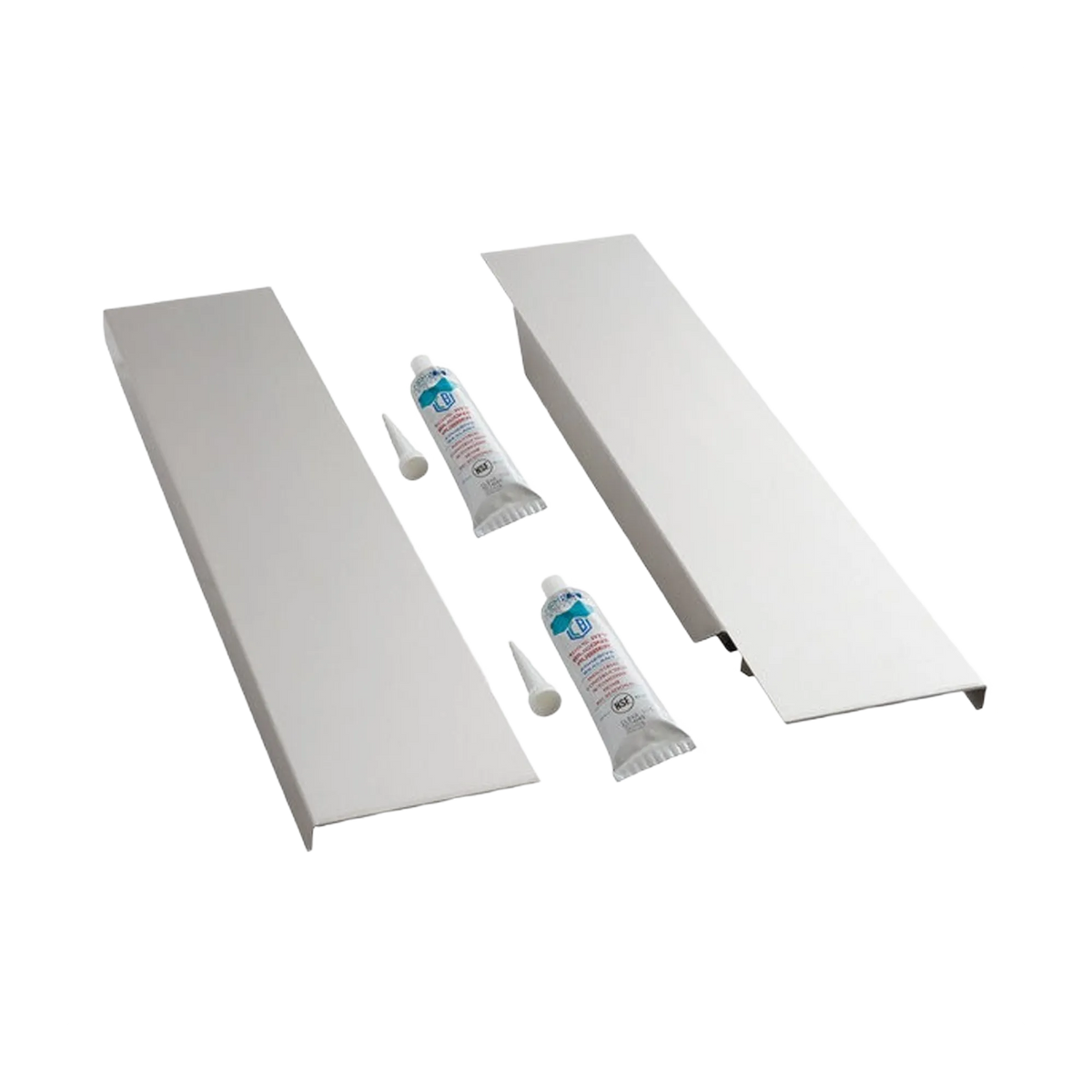

Kit contents: Left and right filler plates; silicone sealant
-
Machine placement: Head centered left-to-right; filler plates sit beside, not beneath, the machine
-
Closes unused bin-top space: creates a supported transition around the modular head
-
Directs ice to the correct opening: preserves the intended harvest path into the bin
-
Food-zone installation: supplied sealant is used according to the official instructions
-
Model-specific fit: designed for the stated Scotsman head-and-bin combination
Best For
New or replacement Scotsman modular ice systems where the selected machine head is narrower than the storage bin or requires a model-specific filler-panel layout. It is intended for trained equipment installers assembling a verified compatible system.
Full Specifications
Brand | Scotsman |
Model | KBT22B |
Accessory Type | Bin-top adapter / filler-panel kit |
Application | 30 in. wide x 24 in. deep modular ice machine on a 48 in. wide Scotsman bin, including B948 |
Kit Contents | Left and right filler plates; silicone sealant |
Machine Position | Head centered left-to-right; filler plates sit beside, not beneath, the machine |
Primary Equipment | Ice machine and storage bin sold separately |
Installation Material | Food-grade sealant as listed in the official instructions |
Compatibility | Model-specific; verify both head and bin before ordering |
Warranty
The installation sheet does not publish a separate model-specific warranty term for this adapter. Coverage may follow Scotsman's current commercial parts warranty; verify the written warranty with the seller or manufacturer before purchase.

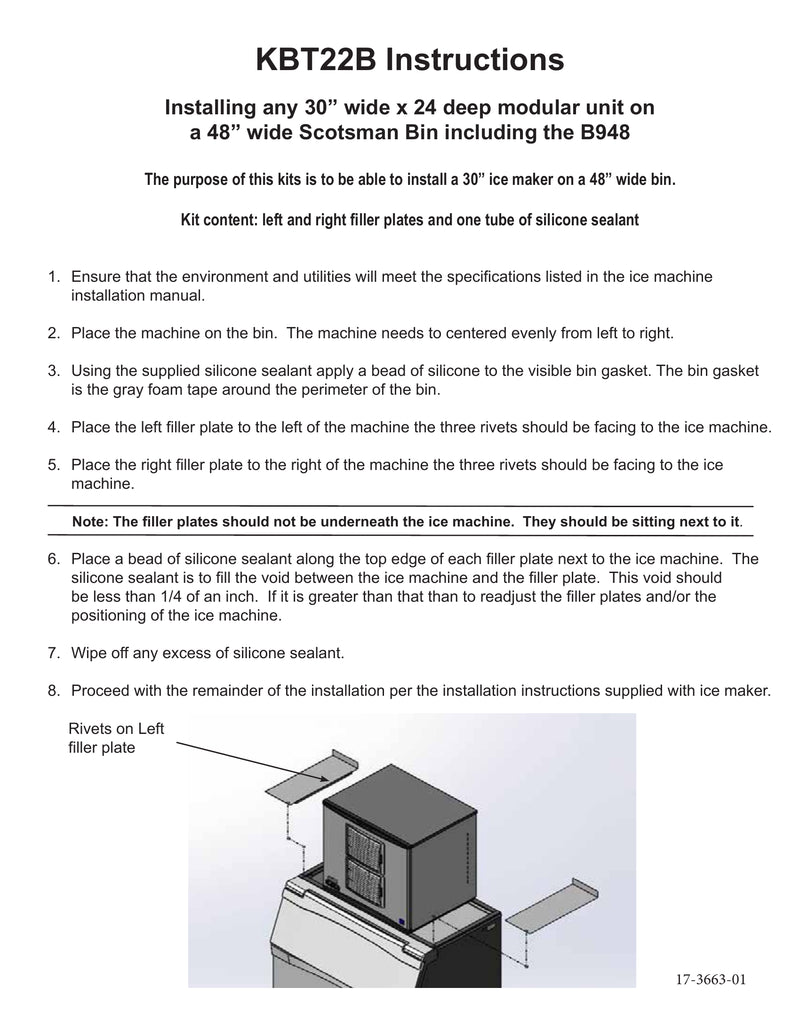

Installation Notes
Turn off and disconnect the ice machine before installation. Support the machine safely, clean the bin top, place the designated left and right filler plates in the orientation shown in the instructions, apply the supplied sealant only where directed, and secure any straps or hardware before returning the system to service. The panels must not sit beneath an unsupported cabinet edge or obstruct the ice-drop opening.
After assembly, confirm that the head is stable and level, all seams are sealed, the bin control and any ice deflector operate correctly, and harvested ice falls freely into the storage area. Follow the official Scotsman instructions exactly and use qualified lifting assistance for the machine head.
