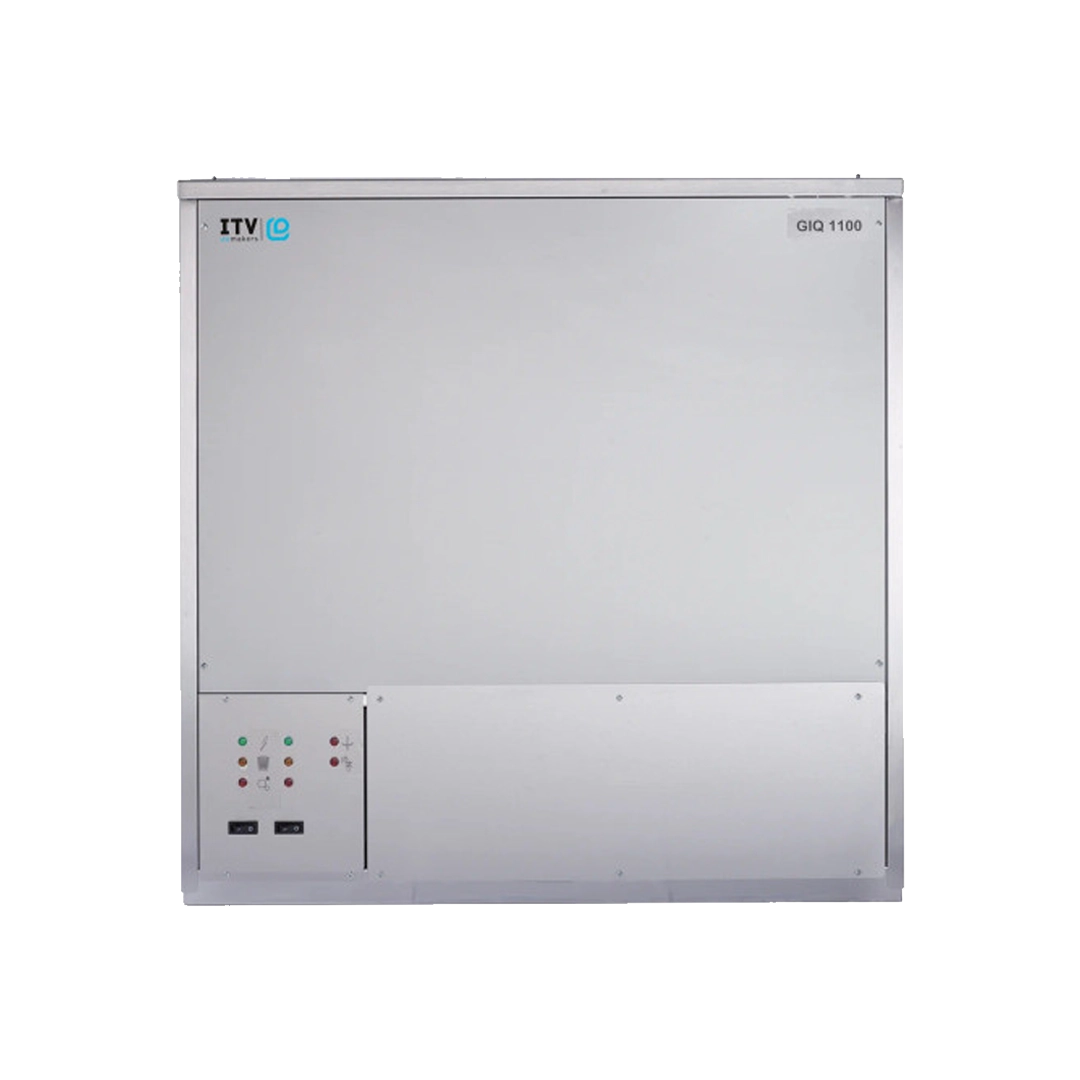

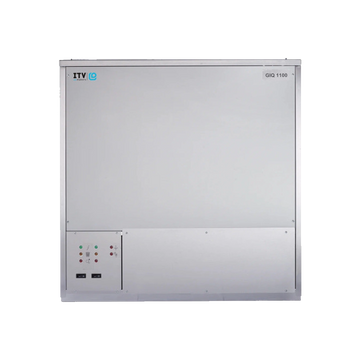

ITV IQ 2700 R Commercial Chip Ice Machine Head - 2,860 lb/Day, 31 inches Remote-Condenser Modular
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
ITV IQ 2700 R Commercial Chip Ice Machine Head - 2,860 lb/Day, 31 inches Remote-Condenser Modular
ITV IQ 2700 R Commercial Chip Ice Machine Head - 2,860 lb/Day, 31 inches Remote-Condenser Modular Description
Wet granular ice — often called chip ice — is soft, moldable, and easy to chew. The split ("R", for remote) version of the IQ 2700 produces drier chip ice with 25% residual water content — firmer and less wet than the 40–50% ice from the self-contained IQ 2700 — which travels and stores well and is excellent for bagging, beverages, and food display. The head produces ice continuously through a stainless steel auger system and drops it out of an opening in the bottom of the unit into the bin below.
In a split system, the noisy, heat-generating components — the compressor and condenser — are moved into a separate remote condensing unit connected to the head by refrigerant lines (3/8" liquid and 1/2" suction). This keeps the ice head lighter and quieter, and moves rejected heat out of the conditioned space entirely. Because the compressor is remote, the head itself draws only about 1,200 W on site; the remote condensing unit must be sized to handle a cooling load of 20,207 BTU/h (5,922 W). Together with its very high output, this makes the IQ 2700 R ideal for high-volume operations in hot kitchens, noise-sensitive spaces, and sites where venting condenser heat indoors isn't practical.
Notably, the split head is far more compact than the self-contained IQ 2700: because the dual condensers are moved remotely, the IQ 2700 R fits in a single ~31" wide cabinet (vs. ~53" for the self-contained model). Built with an AISI 304 stainless steel body and a high-efficiency evaporator with no gaskets or seals, it is designed for long service life and simple maintenance, with a powerful speed reducer on top and an electromechanical control system.
Key Features
- Split / remote-condenser system — compressor and condenser are housed in a separate remote unit, keeping the head quiet and cool on site
- Highest output in the split line: up to 2,860 lb (1,297 kg) of ice per day
- Drier chip ice: wet granular ice with 25% residual water content — firmer than the self-contained model's 40–50% ice
- Compact footprint: ~31" wide cabinet (vs. ~53" for the self-contained IQ 2700)
- Low on-site power draw: about 1,200 W at the head (compressor is remote)
- Three-phase power: 208–230V / 60Hz / 3-phase
- The most efficient evaporator on the market — lower energy consumption and higher ice production
- Evaporator without gaskets or seals for reliability and easy cleaning
- Stainless steel auger with resilient coating to maximise lifespan
- Powerful speed reducer mounted on top
- AISI 304 stainless steel body
- Electromechanical control system
- EASI (Easy Access for Service & Installation) and STIF (Strong Inox Frame)
- NSF and ETL (Intertek) certified
Best For
- The highest-volume operations needing a remote condenser: large food production, healthcare campuses, supermarkets
- Hot kitchens and enclosed spaces where rejecting condenser heat indoors isn't practical
- Noise-sensitive environments (the loud components are moved remote)
- Sites with 208–230V three-phase power and room for a remote condensing unit

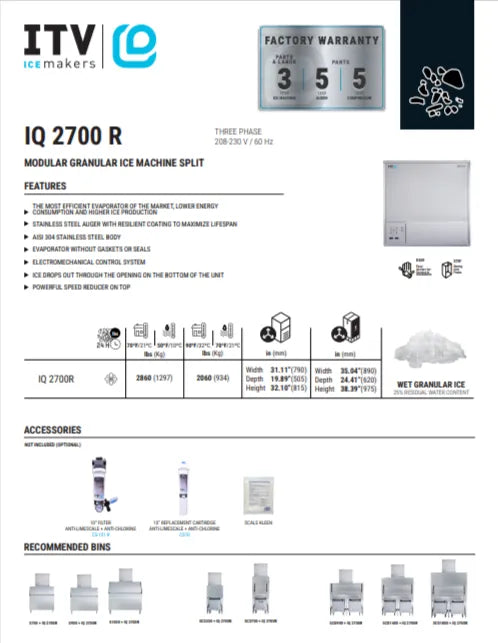

Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Wet granular (chip) ice, 25% residual water content |
| Machine Type | Split-system modular ice machine head — requires a separate remote condensing unit, line set, and storage bin |
| Condenser / Cooling | Remote air-cooled condensing unit (sold separately) |
| Ice Production (nominal, 50°F air / 70°F water) | 2,860 lb (1,297 kg) / 24 h |
| Ice Production (ASHRAE, 90°F air / 70°F water) | 2,060 lb (934 kg) / 24 h |
| Production Range (across conditions) | ~1,400–3,050 lb (635–1,383 kg) / 24 h |
| Refrigerant | R404A |
| Refrigerant Line Connections | Liquid 3/8", Suction 1/2" |
| Remote Cooling Requirement | 20,207 BTU/h (5,922 W) |
| Electrical | 208–230 V / 60 Hz / 3-phase (±10%) |
| Power Consumption at Head (109°F) | 1,200 W |
| Wiring / Fuse | 14 AWG (1.5 mm²), 3-conductor / 10 A fuse |
| Evaporator Temp. | 5°F |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 41–109°F (5–43°C) |
| Water Temp. Range | 41–95°F (5–35°C) |
| Cabinet Dimensions (W × D × H) | 31.11" × 19.89" × 32.10" (790 × 505 × 815 mm) |
| Shipping Dimensions (W × D × H) | 35.04" × 24.41" × 38.39" (890 × 620 × 975 mm) |
| Net Weight | 309 lb (140 kg) |
| Shipping Weight | 368 lb (167 kg) |
| Certifications | NSF, ETL (Intertek) |
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Auger: 5 years parts
- Compressor: 5 years parts
Accessories
Optional (not included):
- CS-101 K — 10" anti-limescale + anti-chlorine water filter
- CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: S750, S900, S1050, SCS350, SCS700, SCD900, SCD1400, SCD1800 (each paired with the IQ 2700R).
💡The IQ 2700 R is a split system: to operate it, you'll need a matching remote condensing unit and line set plus a separate storage bin — none are included. If you'd prefer an all-in-one unit without a remote condenser, choose the self-contained IQ 2700 A (air-cooled) or IQ 2700 W (water-cooled); for a smaller remote system, step down to the IQ 1300 R.
