ITV Ice Makers IQ 1300 R 27" Remote-Condenser Modular Granular (Chip) Ice Machine Head – 1,430 lb/Day (Split System, Head Only) Description
Wet granular ice — often called chip ice — is soft, moldable, and easy to chew. The split ("R", for remote) version of the IQ 1300 produces drier chip ice with 25% residual water content — firmer and less wet than the 40–50% ice from the self-contained IQ 1300 — which travels and stores well and is excellent for bagging, beverages, and food display. The head produces ice continuously through a stainless steel auger system and drops it out of an opening in the bottom of the unit into the bin below.
In a split system, the noisy, heat-generating components — the compressor and condenser — are moved into a separate remote condensing unit connected to the head by refrigerant lines (3/8" liquid and 1/2" suction). This keeps the ice head light (just 154 lb), quiet, and cool in the kitchen, and moves rejected heat out of the conditioned space entirely. Because the compressor is remote, the head itself draws only about 600 W on site; the remote condensing unit must be sized to handle a cooling load of 11,600 BTU/h (3,400 W). This makes the IQ 1300 R ideal for hot kitchens, noise-sensitive spaces, and sites where venting condenser heat indoors isn't practical.
Built with an AISI 304 stainless steel body and a high-efficiency evaporator with no gaskets or seals, the IQ 1300 R is designed for long service life and simple maintenance, with a powerful speed reducer on top and an electromechanical control system.
Key Features
- Split / remote-condenser system — compressor and condenser are housed in a separate remote unit, keeping the head light, quiet, and cool on-site
- Drier chip ice: wet granular ice with 25% residual water content — firmer than the self-contained model's 40–50% ice
- High output: up to 1,430 lb (649 kg) of ice per day
- Low on-site power draw: about 600 W at the head (compressor is remote)
- Three-phase power: 208–230V / 60Hz / 3-phase
- The most efficient evaporator on the market — lower energy consumption and higher ice production
- Evaporator without gaskets or seals for reliability and easy cleaning
- Stainless steel auger with resilient coating to maximise lifespan
- Powerful speed reducer mounted on top
- AISI 304 stainless steel body
- Electromechanical control system
- Front ventilation, EASI (Easy Access for Service & Installation), and STIF (Strong Inox Frame)
- NSF and ETL (Intertek) certified
Best For
- Hot kitchens and enclosed spaces where rejecting condenser heat indoors isn't practical
- Noise-sensitive environments (the loud components are moved remote)
- High-volume beverage service, ice bagging, seafood and produce display, and healthcare
- Sites with 208–230V three-phase power and room for a remote condensing unit

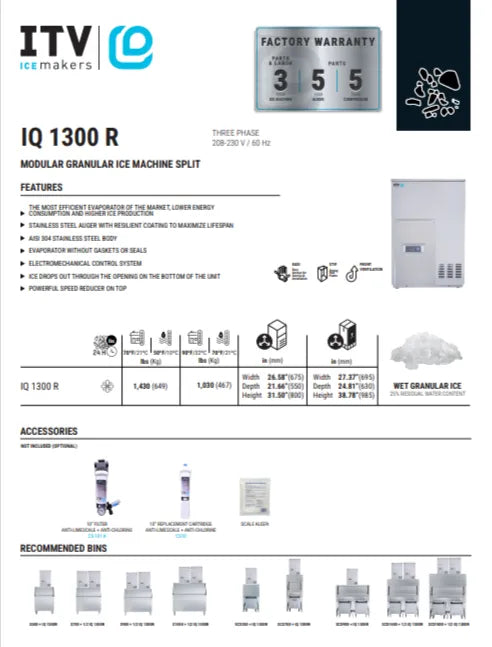

Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Wet granular (chip) ice, 25% residual water content |
| Machine Type | Split-system modular ice machine head — requires a separate remote condensing unit, line set, and storage bin |
| Condenser / Cooling | Remote air-cooled condensing unit (sold separately) |
| Ice Production (nominal, 50°F air / 70°F water) | 1,430 lb (649 kg) / 24 h |
| Ice Production (ASHRAE, 90°F air / 70°F water) | 1,030 lb (467 kg) / 24 h |
| Production Range (across conditions) | ~700–1,525 lb (318–692 kg) / 24 h |
| Refrigerant | R404A |
| Refrigerant Line Connections | Liquid 3/8", Suction 1/2" |
| Remote Cooling Requirement | 11,600 BTU/h (3,400 W) |
| Electrical | 208–230 V / 60 Hz / 3-phase (±10%) |
| Power Consumption at Head (109°F) | 600 W |
| Water Consumption | 12 gal / 100 lb of ice (27 L/h) |
| Wiring / Fuse | 14 AWG (1.5 mm²), 5-conductor / 10 A fuse |
| Evaporator Temp. | 5°F |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 41–109°F (5–43°C) |
| Water Temp. Range | 41–95°F (5–35°C) |
| Cabinet Dimensions (W × D × H) | 26.58" × 21.66" × 31.50" (675 × 550 × 800 mm) |
| Shipping Dimensions (W × D × H) | 27.37" × 24.81" × 38.78" (695 × 630 × 985 mm) |
| Net Weight | 154 lb (70 kg) |
| Shipping Weight | 201 lb (91 kg) |
| Certifications | NSF, ETL (Intertek) |
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Auger: 5 years parts
- Compressor: 5 years parts
Accessories
Optional (not included):
- CS-101 K — 10" anti-limescale + anti-chlorine water filter
- CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: S500, S750 (1|2), S900 (1|2), S1050 (1|2), SCS350, SCS700, SCD900, SCD1400 (1|2), SCD1800 (1|2).
💡The IQ 1300 R is a split system: to operate it, you'll need a matching remote condensing unit and line set plus a separate storage bin — none are included. If you'd prefer an all-in-one unit without a remote condenser, choose the self-contained IQ 1300 A (air-cooled) or IQ 1300 W (water-cooled) instead.
