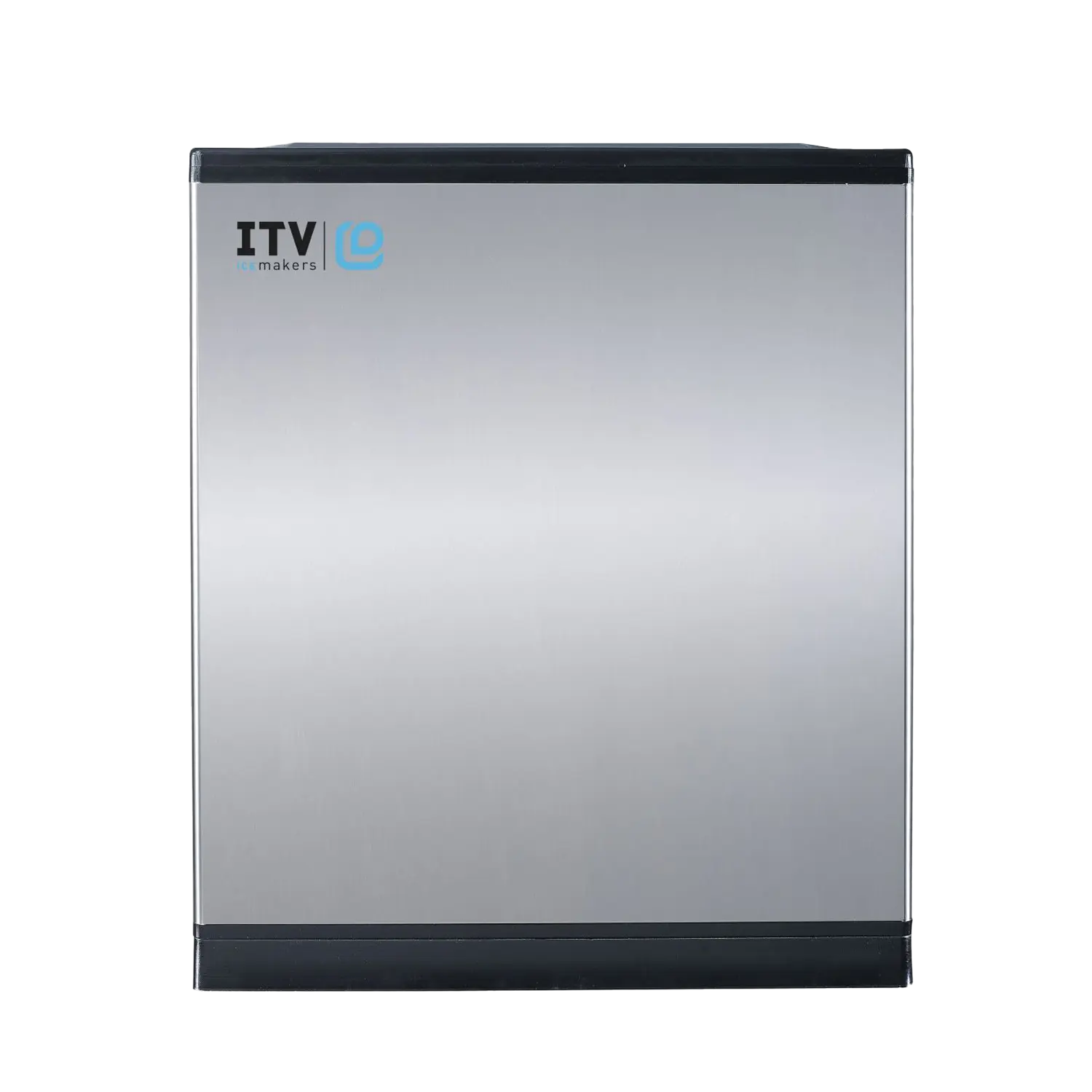

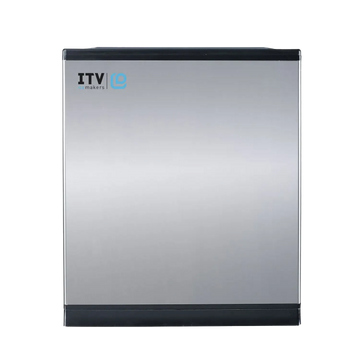

ITV Ice Makers SPIKA MS700W2F 22" Water-Cooled Modular Full-Dice Cube Ice Machine – 676 lb/Day, 208–230V (Head Only)

Name: ITV Ice Makers SPIKA MS700W2F 22" Water-Cooled Modular Full-Dice Cube Ice Machine – 676 lb/Day, 208–230V (Head Only)
Brand: ITV Ice Makers
SKU: 18,503
Price: 4938.0 USD
Availability: InStock

$4,938.00

$4,938.00 ~~$9,876.00~~

Save 50%

The ITV SPIKA MS700W2F is the 208–230V, water-cooled version of ITV's 22"-wide modular ice machine head, making up to 676 lb (307 kg) of classic full-dice cube ice per day. Water cooling lets it hold output and run cooler and quieter in hot or poorly ventilated rooms, while the 208–230V supply keeps running current low. Its larger, slow-melting full-dice cube is the "Classic American" cube preferred for bars and premium beverage service. This is a head-only unit that sits on a separate storage bin, and is typically supplied as a special order.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS700W2F 22" Water-Cooled Modular Full-Dice Cube Ice Machine – 676 lb/Day, 208–230V (Head Only) Description

The MS700-22 platform is built for high output in a space-saving 22"-wide cabinet. This W2F version combines two specialized traits: water cooling and 208–230V / 60 Hz single-phase power. It packs serious full-dice capacity into a footprint narrower than the 30" SPIKA MS500. The cabinet is taller and deeper to fit the larger system into the narrow footprint.

Water cooling transfers condenser heat to a water loop instead of blowing it into the room, which keeps the machine running cooler and quieter and protects output in hot kitchens or spaces with limited airflow, where an air-cooled machine would struggle. The trade-off is water use — a water-cooled condenser consumes considerably more water than an air-cooled model — so it's best where ambient heat or ventilation is the limiting factor, and that water cost is acceptable. Combined with the 208–230V supply (lower running current than a 115V unit), it suits sites with specific electrical and environmental constraints. Water-cooled SPIKA units are typically supplied as a special order.

Full-dice cubes measure about 1" × 0.9" × 1" (26 × 23 × 26 mm) — a substantial, traditional cube that melts slowly and dilutes drinks less, making it the go-to choice for spirits, cocktails, and upscale fountain and bar service. The machine forms about 240 of these cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor for clean, consistent cubes.

The head pairs with a range of ITV storage bins and can be stacked two-high on the larger SCD-series bins. A smart electronic control board manages all parameters and displays self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens.

Key Features

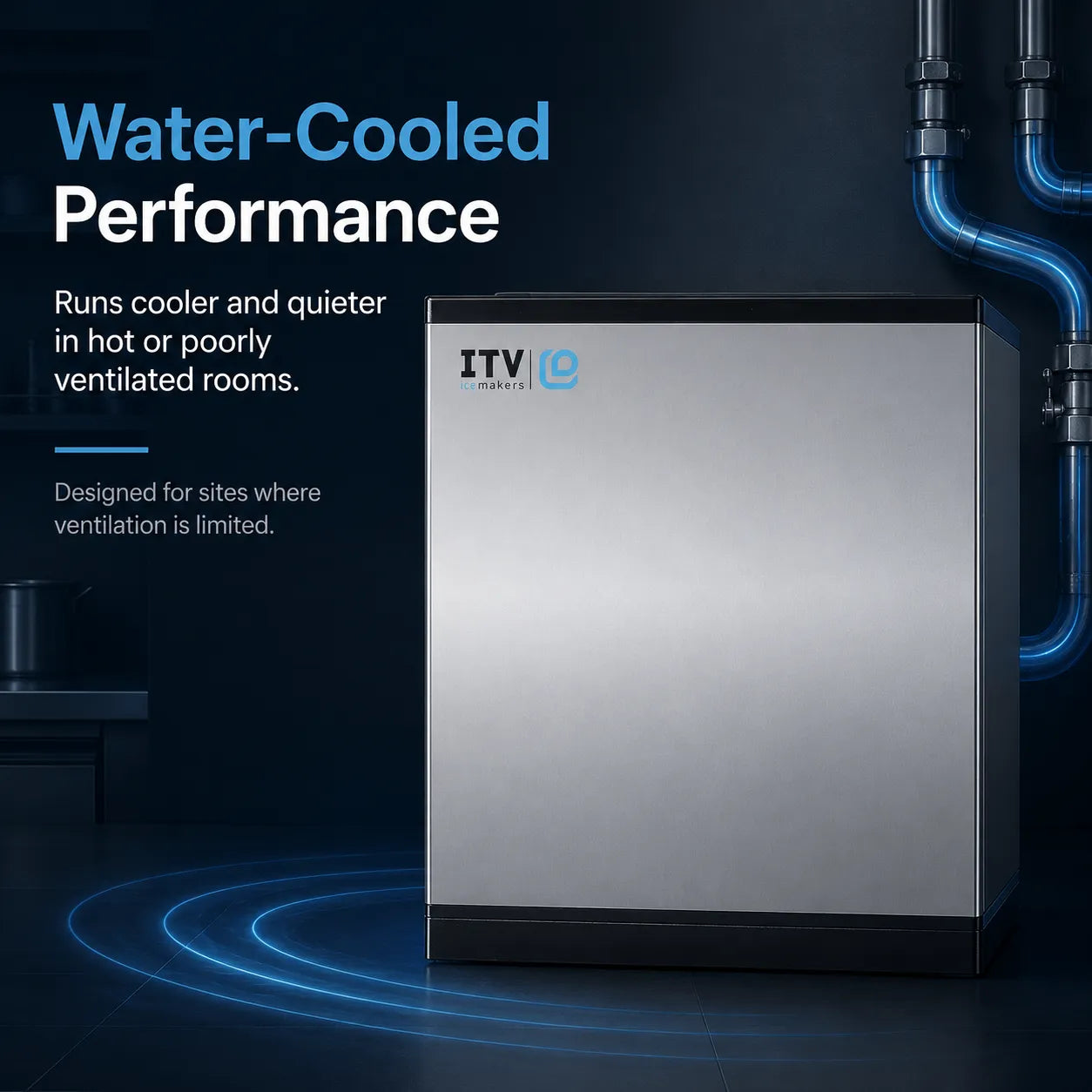

Water-cooled: runs cooler and quieter and holds output in hot or poorly ventilated rooms

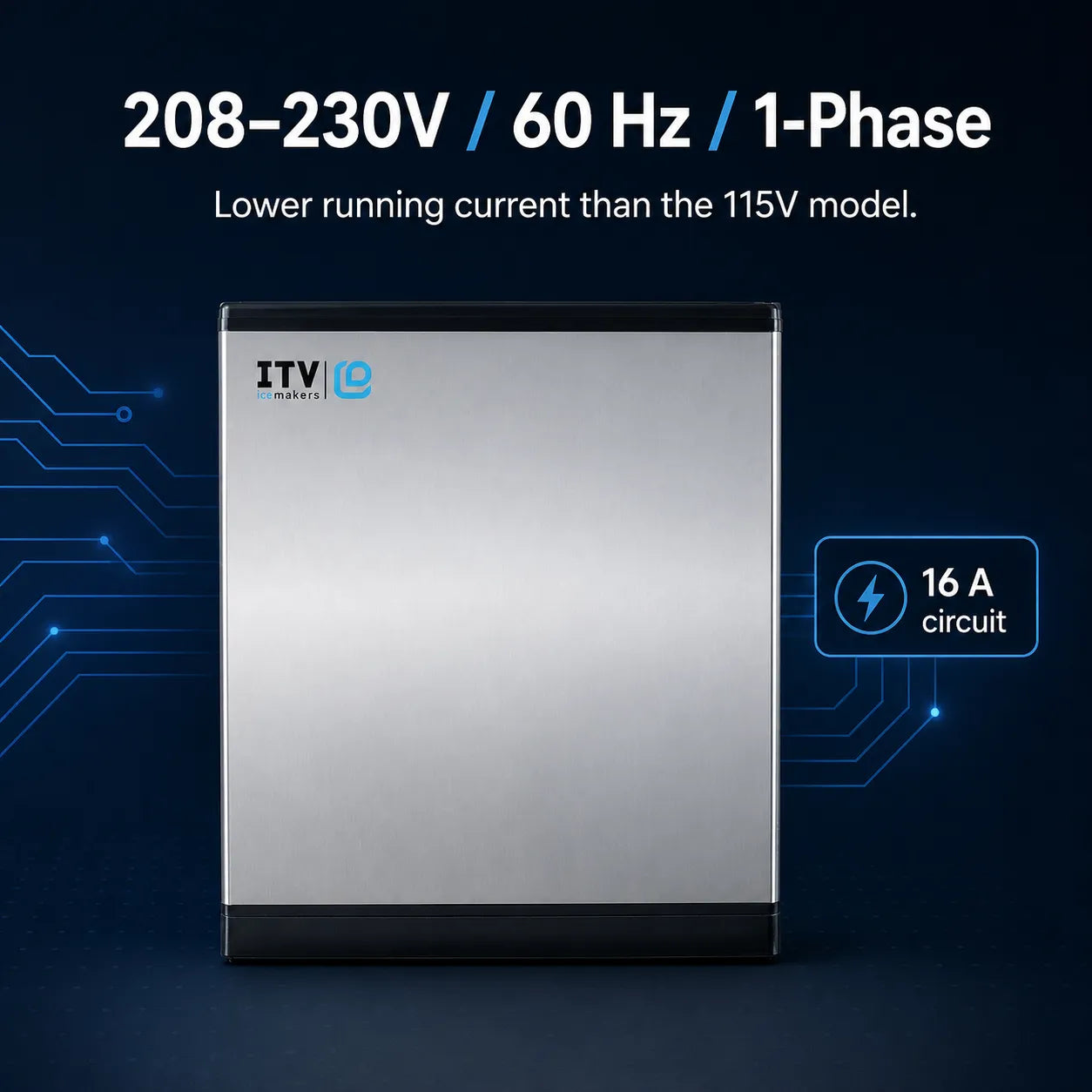

208–230V / 60 Hz / single-phase power — lower running current than a 115V unit

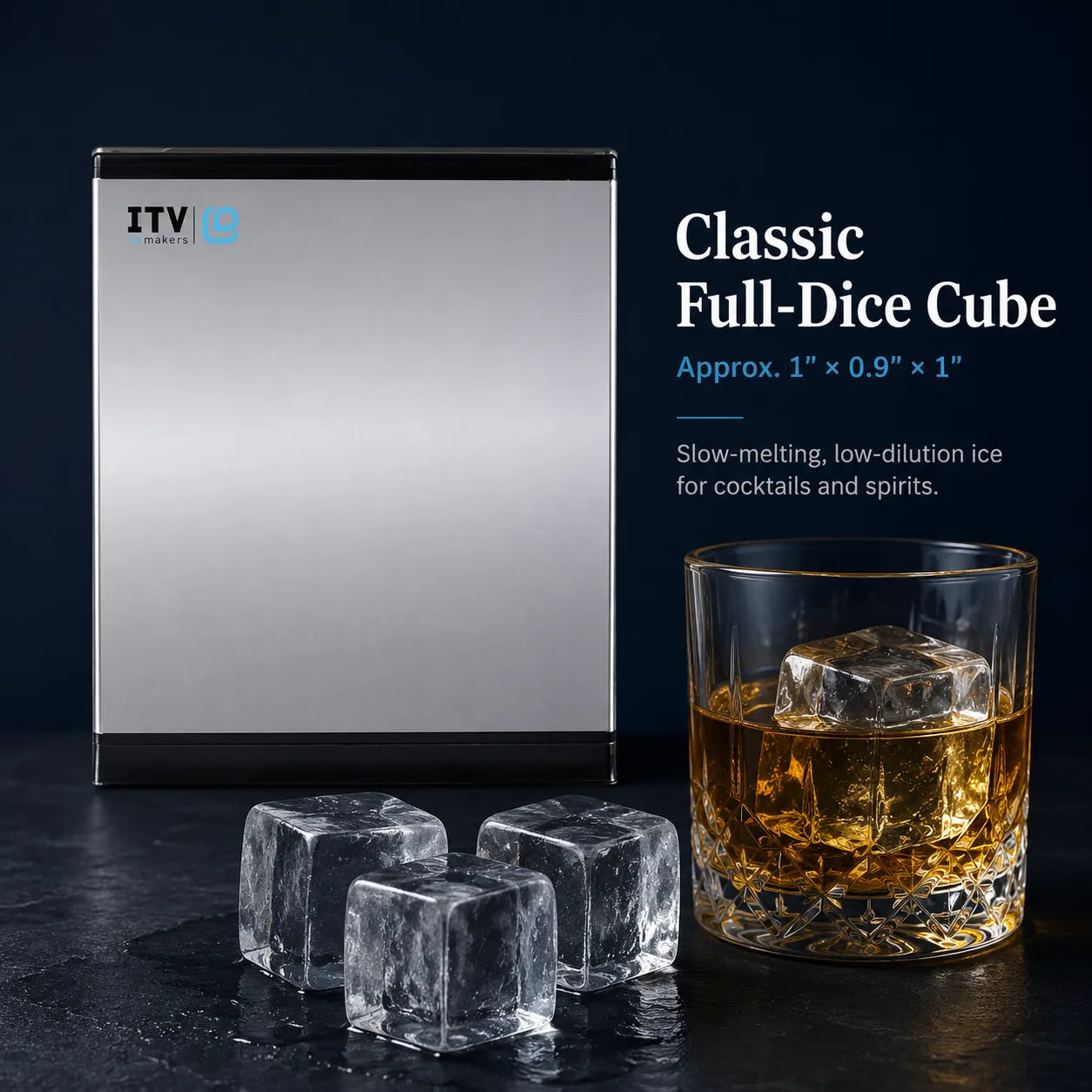

Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — slow-melting, low-dilution "Classic American" cube

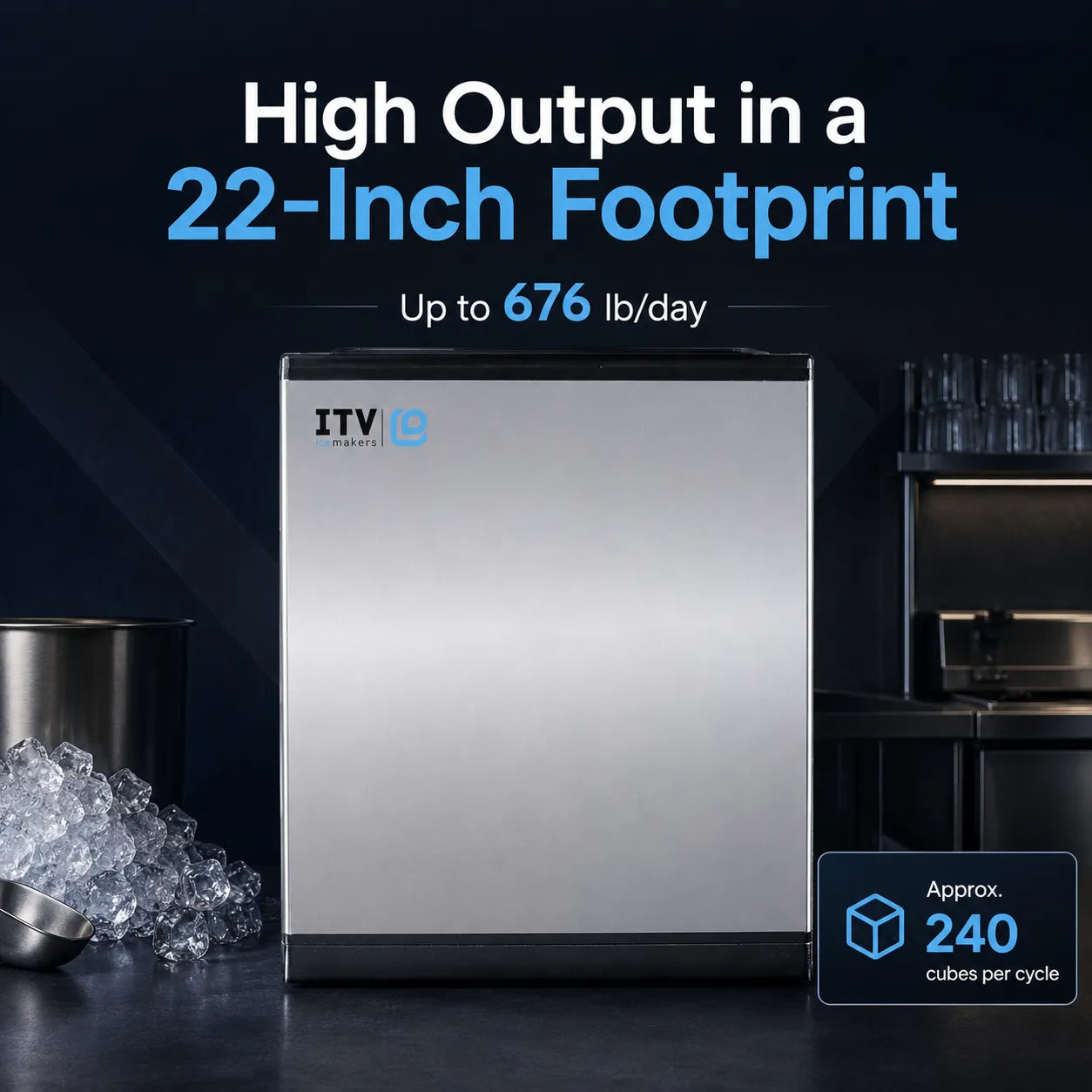

High output from a 22" footprint: up to 676 lb (307 kg) per day
Approx. 240 cubes per cycle
Stackable two-high on larger SCD-series bins
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

Hot kitchens or rooms with limited ventilation where air-cooled output would suffer
Sites wired for 208–230V that also need water-cooled operation
Bars, lounges, and restaurants serving spirits and cocktails where slow-melting, low-dilution cubes matter
Sites where lower noise and heat output in the room are priorities and water cost is acceptable

Full Specifications

Specification	Detail
Ice Type	Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm)
Machine Type	Modular ice machine head (requires separate storage bin); stackable 2-high on larger bins
Condenser / Cooling	Water-cooled
Ice Production (nominal)*	676 lb (307 kg) / 24 h
Ice Production (ASHRAE)*	~527 lb (239 kg) / 24 h
Cubes per Cycle	~240
Refrigerant	R404A
Electrical	208–230 V / 60 Hz / 1-phase (±10%)
Power Consumption (at 109°F)†	1,070 W
ASHRAE Cooling Capacity	13,853 BTU/h (4,060 W)
Heat Rejected	9,076 BTU/h (2,660 W)
Energy Use†	8.4 kWh / 100 lb of ice
Water Consumption (total, incl. condenser)†	71.31 gal / 100 lb of ice
Wiring / Fuse	14 AWG (2.5 mm²), 3-conductor / 16 A fuse
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range	41–109°F (5–43°C)
Water Temp. Range	41–95°F (5–35°C)
Cabinet Dimensions (W × D × H)	22" × 24.45" × 25.95" (559 × 621 × 659 mm)
Shipping Dimensions (W × D × H)	25.6" × 27.96" × 32.29" (650 × 710 × 820 mm)
Net Weight†	~155 lb (70 kg)
Shipping Weight†	~181 lb (82 kg)
Certifications	NSF, ETL (Intertek)

*Full-dice production figures are referenced from the 115V full-dice datasheet; the 208–230V sheet does not publish full-dice output.

†Referenced from the 115V water-cooled datasheet; the 208–230V sheet leaves the water-cooled power, energy, water-consumption, and weight figures blank. Confirm exact 208–230V water-cooled specs with ITV.

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Optional (not included):

CS102 — double 10" anti-limescale + anti-chlorine water filter
CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
Adapter plates — for mounting on various storage bins
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S400 and SCS350 (recommended); also pairs with S500, S750, S900, S1050, SCS700, SCD900, SCD1350, and SCD1800 (larger SCD bins support two stacked heads).

💡The SPIKA MS700W2F is a head-only unit and needs a separate storage bin to operate. Have good ventilation and want to avoid condenser water cost? See the air-cooled SPIKA MS700A2F. Need 115V water-cooled power instead? See the SPIKA MS700W1F.

ITV Ice Makers SPIKA MS700W2F 22" Water-Cooled Modular Full-Dice Cube Ice Machine – 676 lb/Day, 208–230V (Head Only) Features

Premium Quality

Build to Last

Full Cube Ice

Slow Melting

High Output

Up to 676 lb/day

Modular Design

Choose Your Bin

Water-Cooled

Stable Heat Rejection

Stainless Frame

AISI 304 Build

Easy Service

Removable Panels

Compact Design

Fits Anywhere

Commercial Listed

NSF ETL Certified
