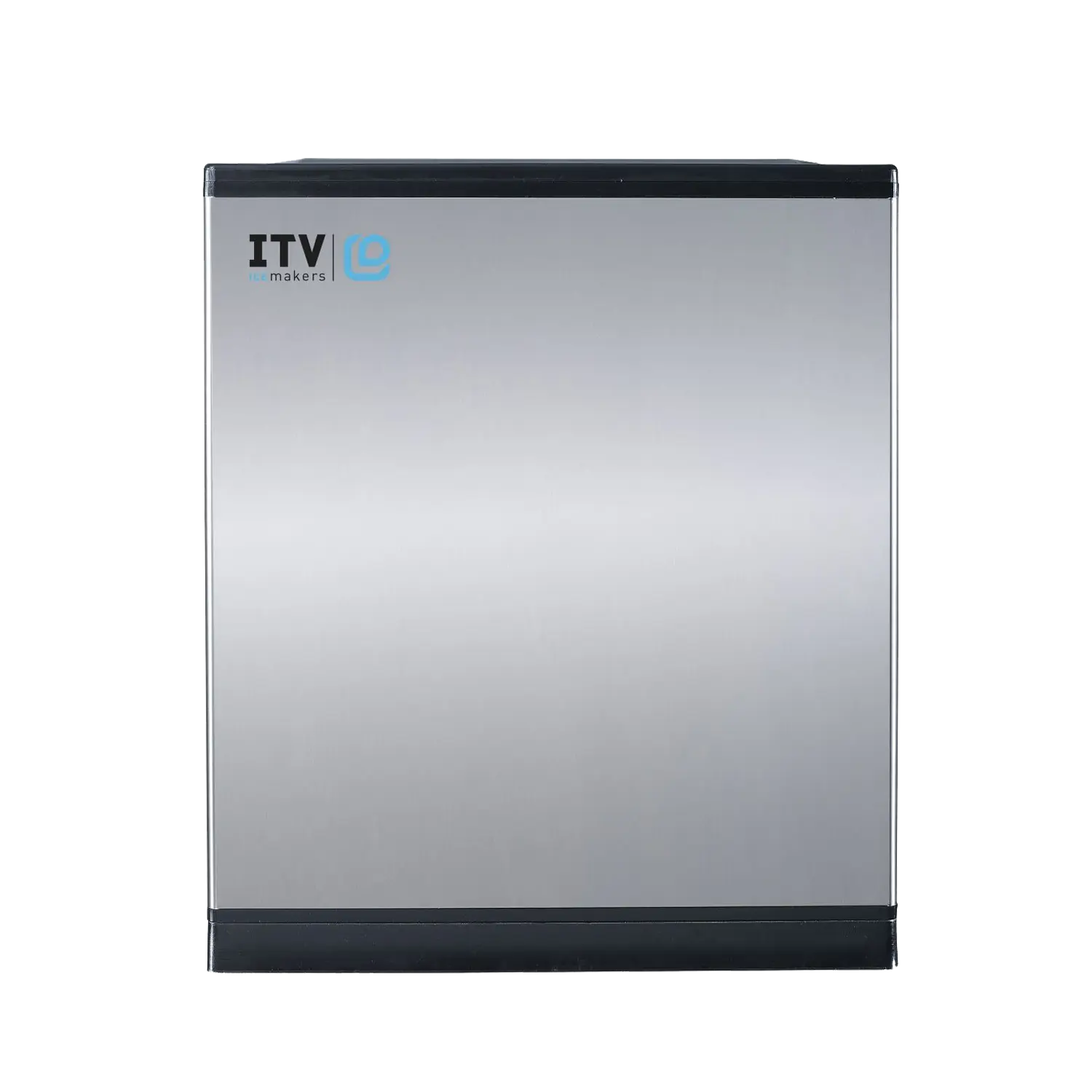

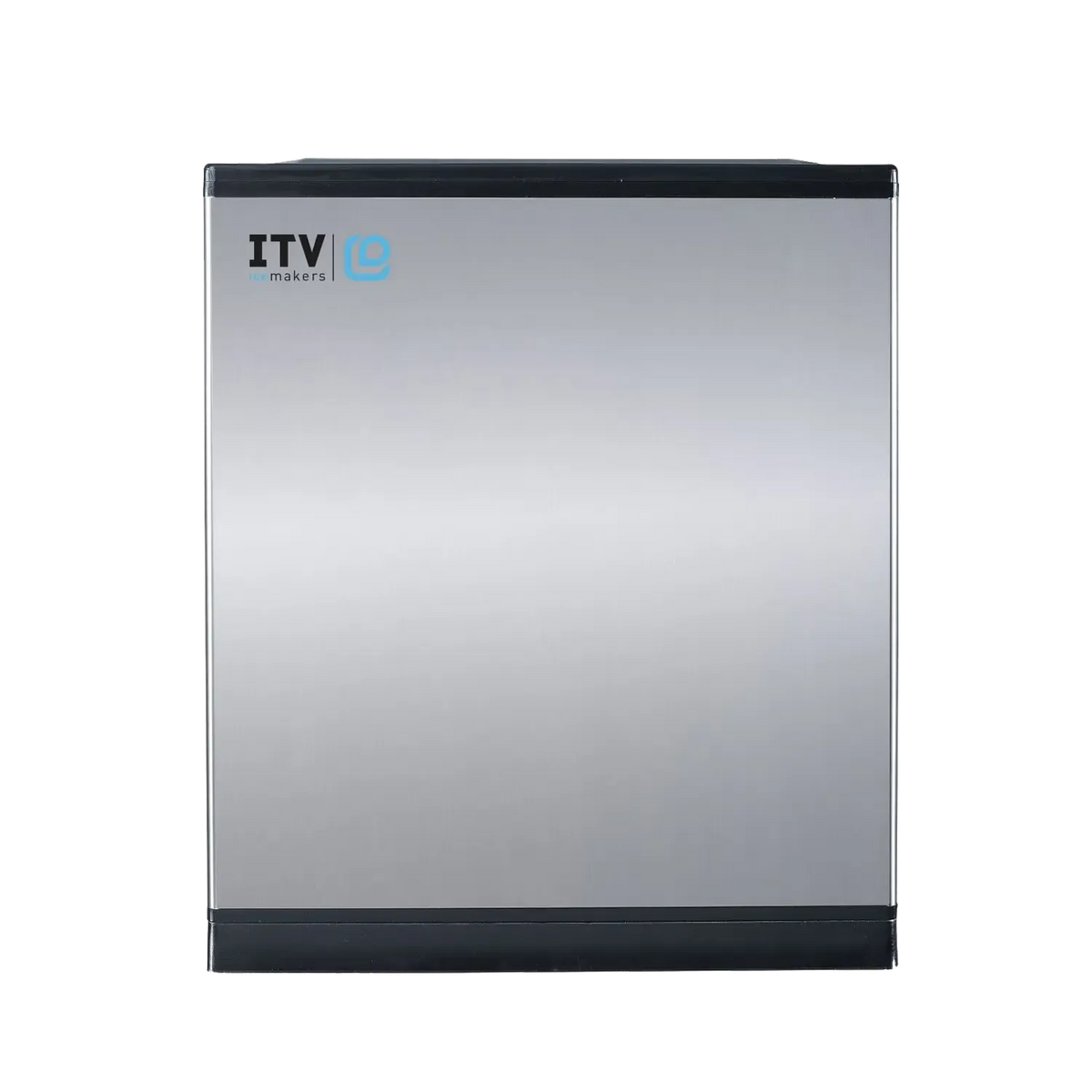

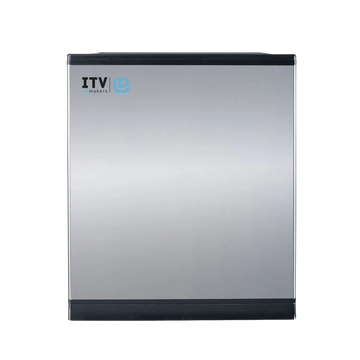

ITV SPIKA MS700W1F Commercial Ice Machine Head - 676 lb/Day Full Dice Cube, 22 inches Water-Cooled Modular
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
ITV SPIKA MS700W1F Commercial Ice Machine Head - 676 lb/Day Full Dice Cube, 22 inches Water-Cooled Modular
ITV SPIKA MS700W1F Commercial Ice Machine Head - 676 lb/Day Full Dice Cube, 22 inches Water-Cooled Modular Description

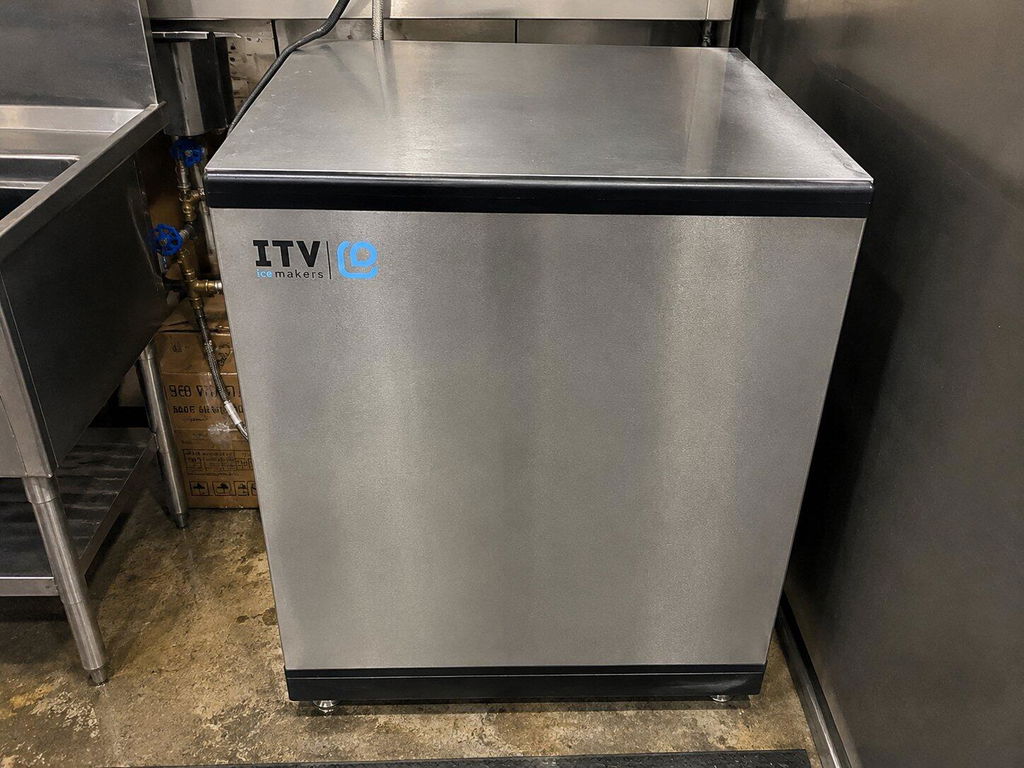

The MS700-22 platform is built for high output in a space-saving 22"-wide cabinet. At up to 676 lb (307 kg) per day, the MS700W1F packs serious capacity into a footprint narrower than the 30" SPIKA MS500 — useful where floor space is tight but ice demand is high. The cabinet is taller and deeper to fit the larger system into the narrow footprint.
This version is water-cooled: instead of blowing condenser heat into the room, it transfers heat to a water loop. That keeps the machine running cooler and quieter and protects output in hot kitchens or spaces with limited airflow, where an air-cooled machine would struggle. The trade-off is water use — the condenser consumes about 71.31 gal per 100 lb of ice, much more than the air-cooled version — so it's best where ambient heat or ventilation is the limiting factor and that water cost is acceptable. Water-cooled SPIKA units are often supplied as a special order.
Full-dice cubes measure about 1" × 0.9" × 1" (26 × 23 × 26 mm) — a substantial, traditional cube that melts slowly and dilutes drinks less, making it the go-to choice for spirits, cocktails, and upscale fountain and bar service. The machine forms about 240 of these cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor for clean, consistent cubes.
The head pairs with a range of ITV storage bins and can be stacked two-high on the larger SCD-series bins. A smart electronic control board manages every parameter and shows self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. It runs on 115 V single-phase power.
Key Features

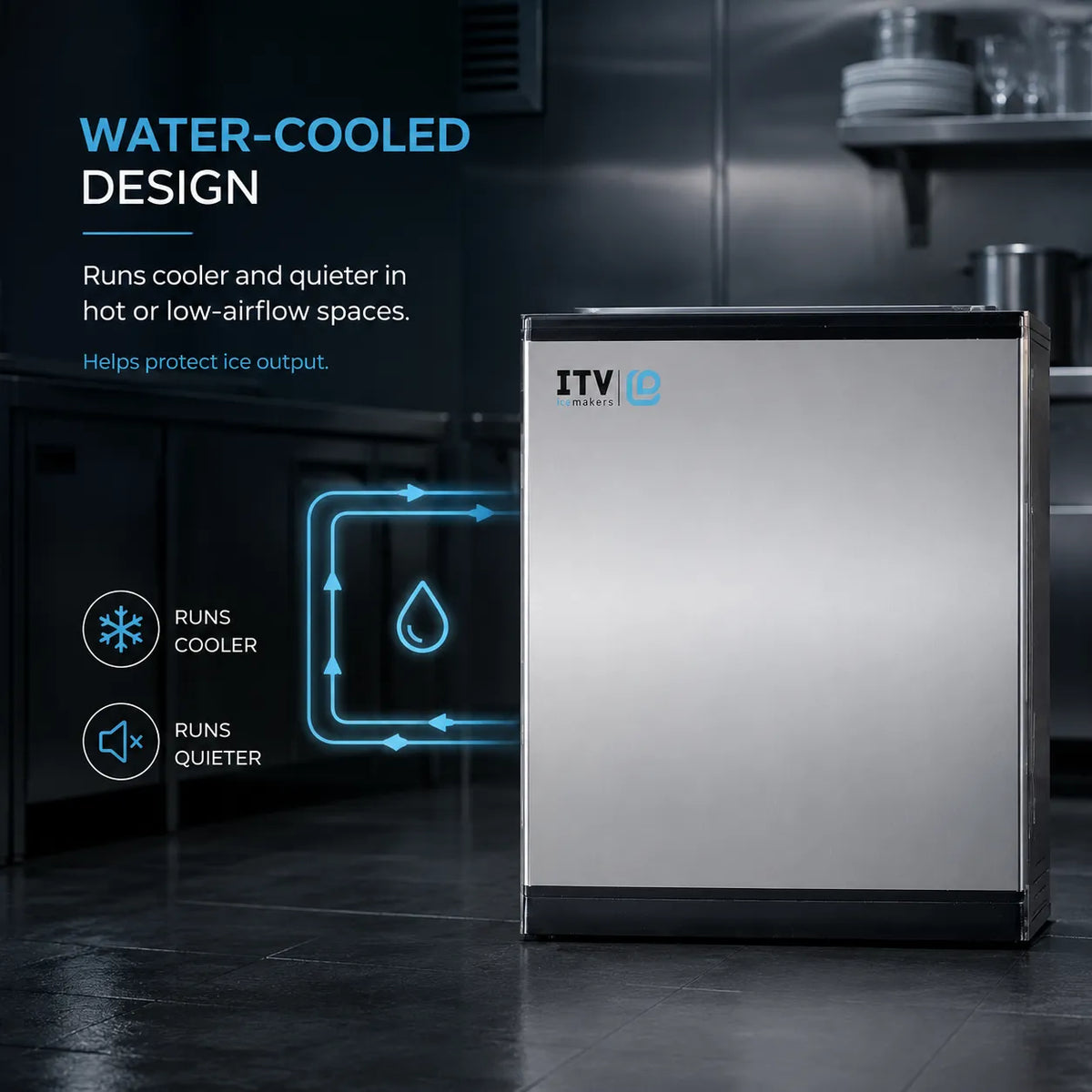

- Water-cooled: runs cooler and quieter and holds output in hot or poorly ventilated rooms

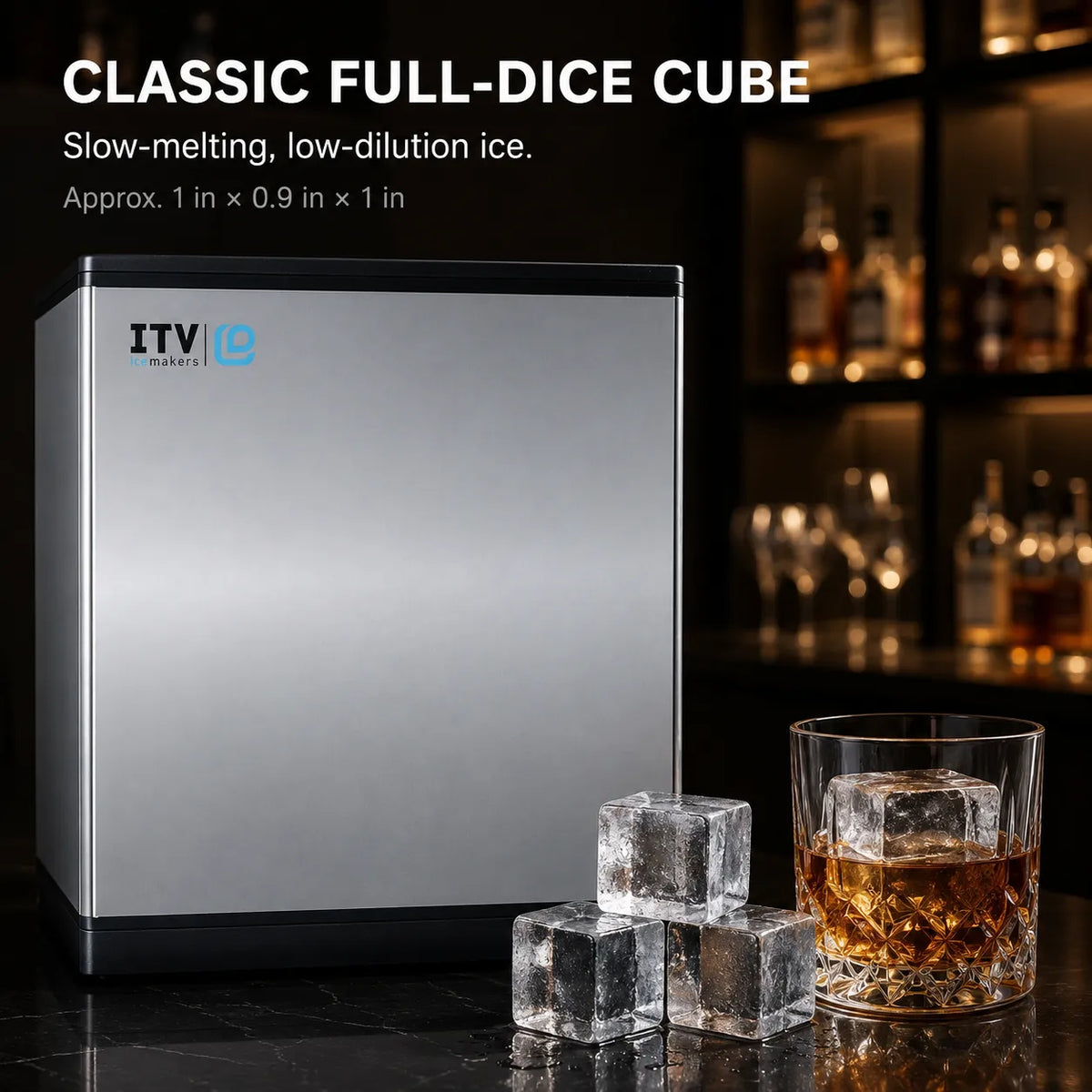

- Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — slow-melting, low-dilution "Classic American" cube

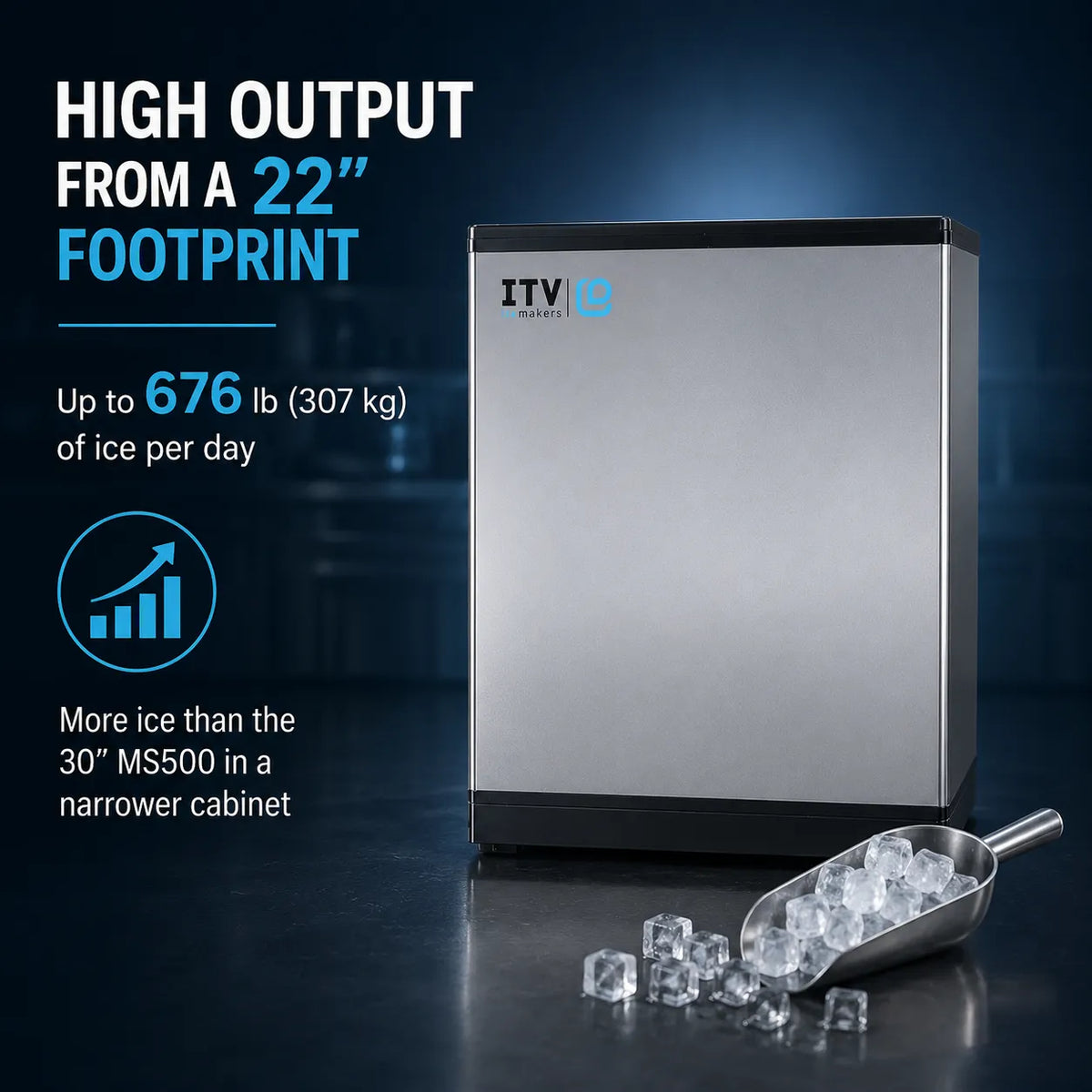

- High output from a 22" footprint: up to 676 lb (307 kg) per day
- Approx. 240 cubes per cycle
- Lower power draw than the air-cooled model (1,070 W vs 1,350 W at 109°F)

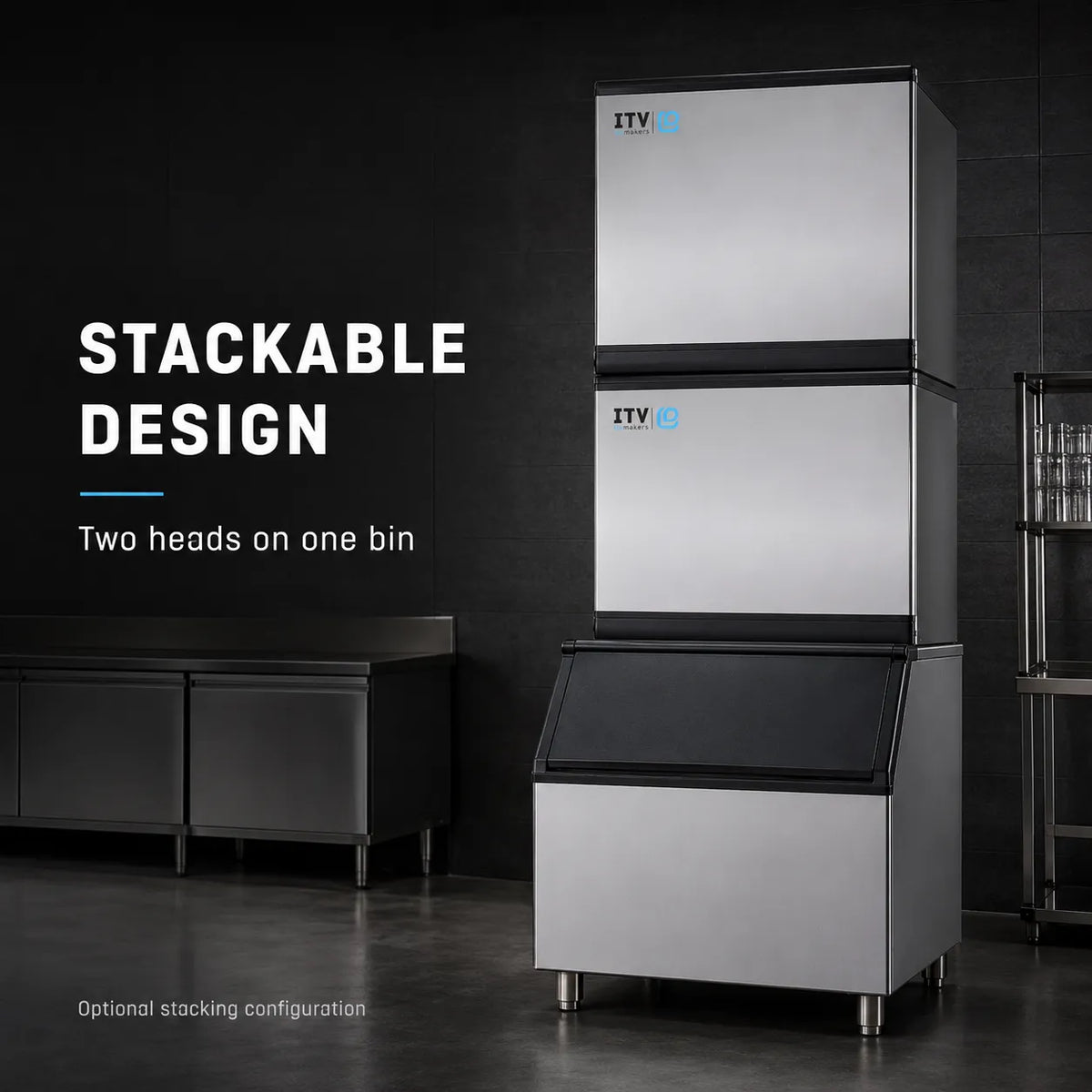

- Stackable two-high on larger SCD-series bins
- 115 V / 60 Hz / single-phase power
- Patented smart water distributor for clean, consistent cubes and better scale resistance
- High-efficiency vertical plate evaporator
- Smart electronic control board with self-diagnostics
- Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
- High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
- Ice scoop included
- NSF and ETL (Intertek) certified
Best For
- Hot kitchens or rooms with limited ventilation where air-cooled output would suffer
- Bars, lounges, and restaurants serving spirits and cocktails where slow-melting, low-dilution cubes matter
- Sites where lower noise and heat output in the room are priorities and water cost is acceptable
- Operations that may scale up later by stacking a second head on a larger bin
Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm) |
| Machine Type | Modular ice machine head (requires separate storage bin); stackable 2-high on larger bins |
| Condenser / Cooling | Water-cooled |
| Ice Production (nominal) | 676 lb (307 kg) / 24 h |
| Ice Production (ASHRAE) | ~527 lb (239 kg) / 24 h |
| Production Range (across conditions) | ~378–707 lb (171–321 kg) / 24 h |
| Cubes per Cycle | ~240 |
| Refrigerant | R404A |
| Electrical | 115 V / 60 Hz / 1-phase (±10%) |
| Power Consumption (at 109°F) | 1,070 W |
| ASHRAE Cooling Capacity | 13,853 BTU/h (4,060 W) |
| Heat Rejected | 9,076 BTU/h (2,660 W) |
| Energy Use | 8.4 kWh / 100 lb of ice |
| Water Consumption (total, incl. condenser) | 71.31 gal / 100 lb of ice (78.6 L/h) |
| Wiring / Fuse | 14 AWG (2.5 mm²), 3-conductor / 25 A fuse |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 41–109°F (5–43°C) |
| Water Temp. Range | 41–95°F (5–35°C) |
| Cabinet Dimensions (W × D × H) | 22" × 24.45" × 25.95" (559 × 621 × 659 mm) |
| Shipping Dimensions (W × D × H) | 25.6" × 27.96" × 32.29" (650 × 710 × 820 mm) |
| Net Weight | 155 lb (70 kg) |
| Shipping Weight | 181 lb (82 kg) |
| Certifications | NSF, ETL (Intertek) |
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Compressor: 5 years parts
Accessories
Included: ice scoop
Optional (not included):
- CS102 — double 10" anti-limescale + anti-chlorine water filter
- CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
- Adapter plates — for mounting on various storage bins
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: S400 and SCS350 (recommended); also pairs with S500, S750, S900, S1050, SCS700, SCD900, SCD1350, and SCD1800 (larger SCD bins support two stacked heads).
💡The SPIKA MS700W1F is a head-only unit and needs a separate storage bin to operate. Have good ventilation and want to avoid condenser water cost? See the air-cooled SPIKA MS700A1F. Need smaller, faster-chilling cubes for high-volume fountain service? See the half-dice SPIKA MS700W1H.
