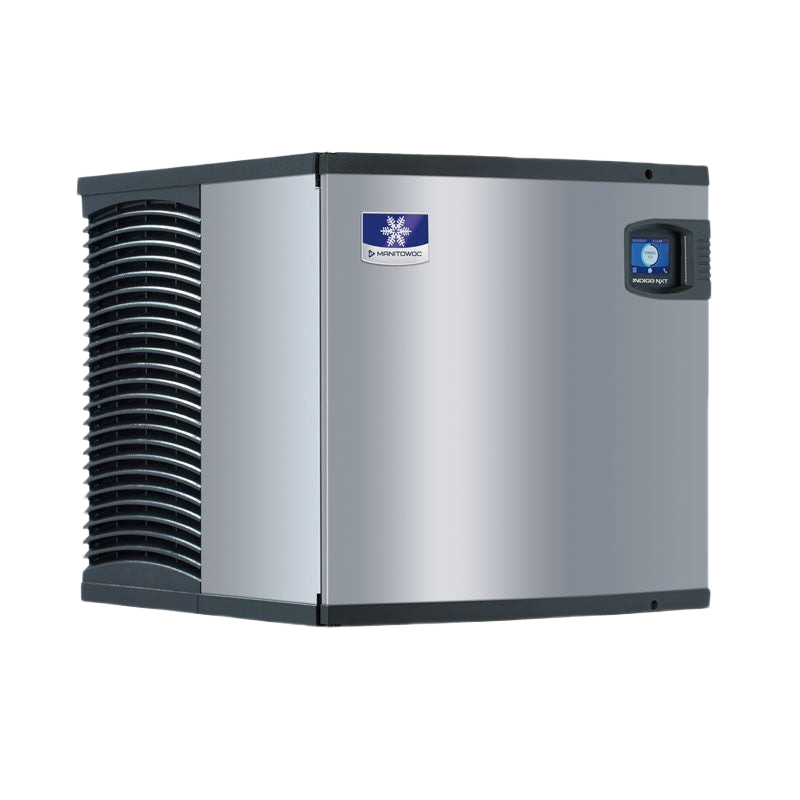

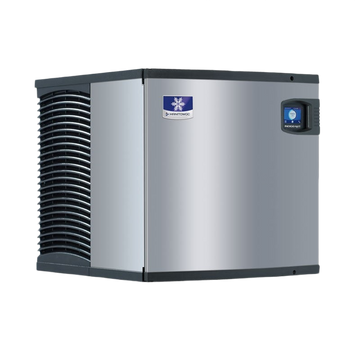

Manitowoc IDT0620A Indigo NXT 22-Inch Air-Cooled Full Dice Cube Ice Machine Head - 560 lb/Day

Brand:Manitowoc
Model:IDT0620A
Ice type: Full Cube Format: Modular head Configuration: IDT0620A-161 Cooling: Air-Cooled Production: up to 560 lb/day (70°F air / 50°F water) Ice storage bin sold separately

The Manitowoc IDT0620A (IDT0620A-161) is a commercial modular dice / full cube ice maker head producing up to 560 lb/day at 70°F air / 50°F water and 450 lb/day at 90°F air / 70°F water. A compatible storage bin or dispenser is required separately. This configuration is Air-cooled with R410A refrigerant. Cabinet dimensions are 22 W × 24-1/2 D × 21-1/2 H in. It is best suited for restaurants, bars, cafés, hotels and institutional beverage service. Confirm water, drain, ventilation and electrical requirements before installation. This model is listed as legacy/replaced; the current replacement shown in the workbook is IDP0620A.


Certified by
AHRI Certified
NSF Listed
ENERGY STAR® Certified
cULus Listed
CE Listed

Ask a question

Ask a Question

* Required fields

Size guide Share
Free Standard Shipping
Regular price $4,302.00
Sale price $4,302.00 Regular price $9,243.00
Unit price
Save 53%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Let us know and our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Manitowoc IDT0620A Indigo NXT 22-Inch Air-Cooled Full Dice Cube Ice Machine Head - 560 lb/Day
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Manitowoc IDT0620A Indigo NXT 22-Inch Air-Cooled Full Dice Cube Ice Machine Head - 560 lb/Day

We’ll use these details only to respond to your quote request.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Quick Shipping with Bank Deposit

Want your ice machine shipped sooner? Choose Bank Deposit at checkout for priority order processing once your payment is confirmed. Eligible orders are prioritized for fulfillment to help get your equipment on its way sooner.

Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.

Manitowoc IDT0620A Indigo NXT 22-Inch Air-Cooled Full Dice Cube Ice Machine Head, front view

Manitowoc IDT0620A Indigo NXT 22-Inch Air-Cooled Full Dice Cube Ice Machine Head - 560 lb/Day

Regular price $4,302.00
Sale price $4,302.00 Regular price $9,243.00
Unit price

Manitowoc IDT0620A Indigo NXT 22-Inch Air-Cooled Full Dice Cube Ice Machine Head - 560 lb/Day Description

The Manitowoc IDT0620A (IDT0620A-161) is a modular commercial ice maker head designed to produce dice / full cube ice for commercial use. It is rated for up to 560 lb per 24 hours at 70°F air / 50°F water and 450 lb per 24 hours at 90°F air / 70°F water. This is an ice machine head; storage is selected separately. Any bin or adapter shown in the quoted accessories is part of the quoted package, not integral storage inside the head.

Dice / full cube ice makes the IDT0620A a practical fit for restaurants, bars, cafés, hotels and institutional beverage stations that require dependable cube ice. Because production and storage are separate, an operator can pair the head with a compatible bin or dispenser sized around peak demand and service pattern.

The Indigo NXT platform is designed around accessible operation and service information. Its commercial modular format supports planned ice production while removable food-zone components and programmable controls help operators organize routine cleaning, sanitation and demand management. Exact feature availability should be confirmed for the quoted electrical and model generation, especially where this workbook identifies a legacy unit and a newer replacement.

The listed configuration combines Air-cooled heat rejection, R410A refrigeration, the quoted 115v/60/1-ph, 12.2 amps electrical arrangement, a cabinet measuring 22 × 24-1/2 × 21-1/2 in.. Electrical, plumbing, drainage and ventilation work must follow the model installation instructions and applicable local codes. Do not size openings or utility connections from the marketing description alone; use the installation drawing for final field work.

The workbook identifies IDT0620A as legacy/replaced and lists IDP0620A as the current replacement. The two models should not be assumed interchangeable without checking dimensions, utilities, ice type, bin fit, adapters and production performance. Confirm exact-model availability before publishing or accepting an order.

Key Features

  • Up to 560 lb/day at 70°F air / 50°F water
  • 450 lb/day at 90°F air / 70°F water
  • Dice / full cube ice format
  • Modular head for use with a compatible separate bin or dispenser
  • Air-cooled configuration
  • R410A refrigerant
  • 22 × 24-1/2 × 21-1/2 in. cabinet
  • Quoted electrical configuration: 115v/60/1-ph, 12.2 amps
  • Listed certifications/marks: AHRI, ENERGY STAR, NSF, cULus, CE
  • Legacy model; listed current replacement: IDP0620A

Best For

restaurants, bars, cafés, hotels and institutional beverage stations that require dependable cube ice, especially where storage capacity must be selected independently from production.

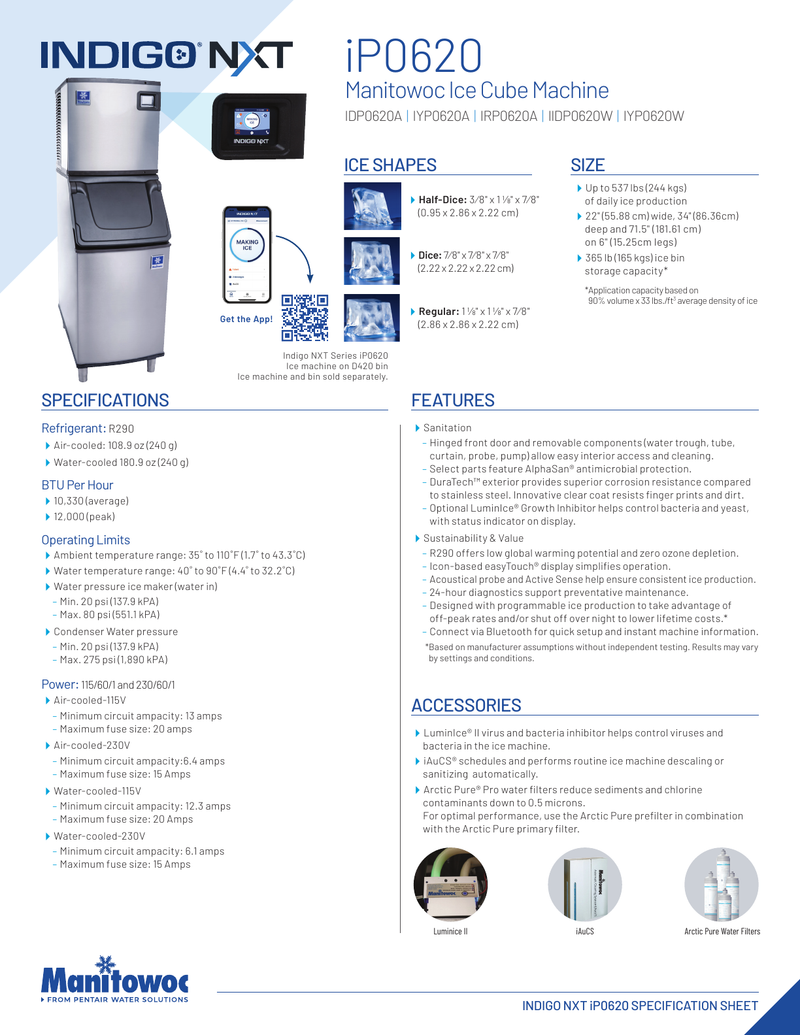

Full Specifications

Specification Details
Brand Manitowoc
Model IDT0620A
Quoted configuration IDT0620A-161
Product family Indigo NXT modular cube
Machine type Ice Maker, Cube-Style
Format Modular head
Ice type Dice / full cube
Cooling Air-cooled
Production at 70°F air / 50°F water 560 lb/24 hr
Production at 90°F air / 70°F water 450 lb/24 hr
Storage Separate compatible bin or dispenser required
Dimensions (W × D × H) 22 × 24-1/2 × 21-1/2 in.
Electrical 115v/60/1-ph, 12.2 amps
Refrigerant R410A
Certifications and listed marks AHRI, ENERGY STAR, NSF, cULus, CE
Lifecycle status Legacy / replaced
Current replacement IDP0620A

Warranty

  • Ice machine: 3 years parts and labor.
  • Evaporator: 5 years parts and labor.
  • Compressor: 5 years parts and 3 years labor.
  • Coverage is subject to registration requirements, terms, exclusions and the eligibility of the exact model.

Accessories

  • AR-10000-P: Arctic Pure Plus Primary Water Filter Assembly.
  • D570: Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening.
  • K00472: Bin Adapter, for 22" Indigo, Indigo NXT, RFF, RNF ice.
  • These are quote-listed configuration items. Confirm included quantities and compatibility against the final sales quote before ordering.

Installation and Maintenance Notes

  • Install the machine on a compatible, properly supported bin or dispenser; use the model-specific adapter or deflector where required.
  • Provide potable water, a correctly routed drain and the electrical service stated for IDT0620A-161; plumbing and electrical work must follow the installation manual and local codes.
  • Keep condenser air paths and required ventilation clear; restricted airflow or high ambient temperature can reduce production.
  • Size capacity using realistic site conditions. Ice production changes with ambient temperature, incoming water temperature, water quality and maintenance condition.
  • Clean and sanitize the food zone on the manufacturer's schedule. Maintain filtration, inspect drains and keep the condenser or ventilation path clean.
  • Verify parts support, warranty eligibility and replacement-model compatibility before committing to a legacy unit.
