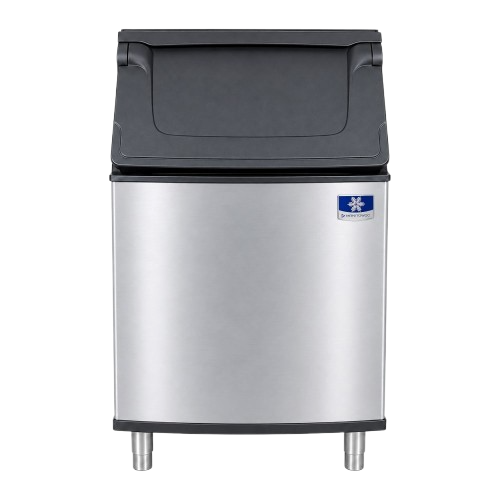

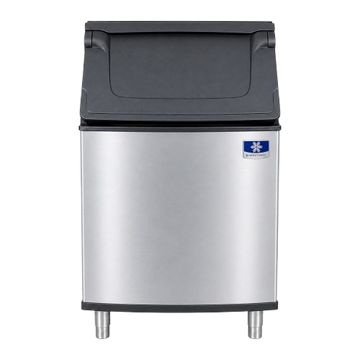

Manitowoc D570 - More Ice Storage Within a 30-Inch Footprint
Give a busy ice station additional reserve capacity with the Manitowoc D570 ice storage bin. It holds up to 532 lb of ice by application capacity while retaining a 30-inch width. The taller 50-inch overall profile, including 6-inch legs, makes use of vertical space beneath a compatible modular ice machine.
The Duratech metal exterior resists smudging and corrosion, while the Arctic Blue polyurethane liner and foamed-insulated door support practical day-to-day storage. This is an insulated storage bin, not an ice-producing machine or refrigerated freezer; a separate compatible head supplies the ice and a gravity drain carries away meltwater.
A door angled at 53 degrees improves access toward the bottom of the bin. Side grips make it possible to lift the door from either side or the center, and the cammed hinge holds it open while ice is scooped. The included sanitary scoop has thumb and knuckle guards, and its built-in holder keeps the handle above the stored ice.
The cabinet measures 30 inches wide by 34 inches deep by 50 inches high with legs at 6 inches. The legs are adjustable for leveling, and the bin has a 3/4-inch drain. A K00472 adapter is used when specified 22-inch Indigo NXT, RFF or RNF machines are installed on this 30-inch bin.
Key Features
- Up to 532 lb application storage capacity
- 30-inch-wide cabinet
- 17.9 cu. ft. AHRI-rated internal volume
- Duratech smudge-resistant metal finish
- Foamed-insulated door with side grips and stay-open hinge
- Arctic Blue polyurethane liner
- Sanitary scoop, built-in holder and adjustable legs included
- NSF and AHRI certification
Best For
Commercial kitchens and hospitality beverage stations needing a 30-inch storage base beneath a compatible modular ice machine.

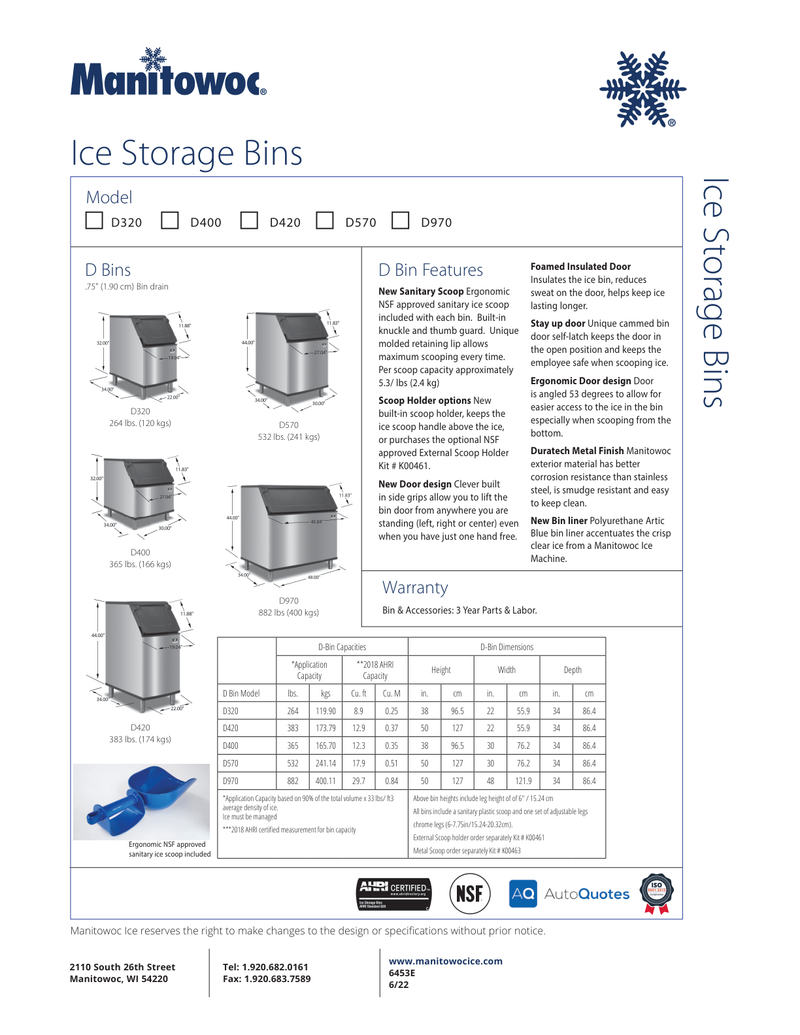

Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | D570 |
| Product type | Insulated ice storage bin; bin only |
| Application storage capacity | 532 lb |
| AHRI internal volume | 17.9 cu. ft. |
| Dimensions (W x D x H) | 30 x 34 x 50 in.; height includes legs at 6 in. |
| Exterior | Duratech metal finish |
| Interior liner | Arctic Blue polyurethane |
| Door | Foamed-insulated; side grips; stay-open hinge |
| Door access angle | 53 degrees |
| Drain | 3/4 in. |
| Included equipment | Sanitary scoop, internal scoop holder, one set of adjustable legs |
| Approximate shipping weight | 115 lb |
| Certifications | NSF; AHRI |
| Capacity basis | Application capacity uses 90% of volume x 33 lb/cu. ft. average ice density; ice must be managed |
Warranty
3 years parts and labor for commercial bin and accessory coverage, subject to Manitowoc limited-warranty terms.
Installation and Maintenance Notes
- Ice machine head and any required adapter or deflector are sold separately.
- Level the bin before mounting the compatible ice machine and connect its gravity drain.
- Maintain the head's required ventilation and service clearances.
- Clean and sanitize the bin and scoop on the prescribed maintenance schedule.
- Optional external scoop holder: K00461; optional metal scoop: K00463.
