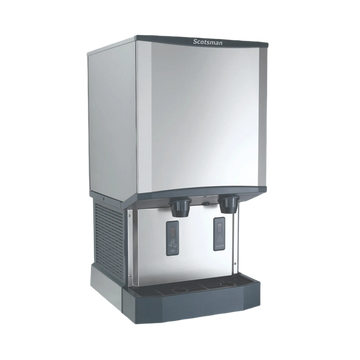

Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage

Brand:Scotsman
Model:Meridian HID540AX-1
Nugget Ice Up to 500 lb/day 40 lb Storage Touch-Free Ice and Water Dispenser
Free Standard Shipping on Eligible Orders Within the Contiguous U.S.
Regular price $9,640.00
Sale price $9,640.00 Regular price $23,513.00
Unit price
Save 59%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

HID540AX-1 is an air-cooled touch-free ice and water dispenser producing up to 500 lb/day of h² nugget ice with 40 lb of integrated storage. 115/60/1; R290.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Quick Shipping with Bank Deposit

Want your ice machine shipped sooner? Choose Bank Deposit at checkout for priority order processing once your payment is confirmed. Eligible orders are prioritized for fulfillment to help get your equipment on its way sooner.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage

We’ll use these details only to respond to your quote request.

Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.
A Goodyear UltraGrip winter tire mounted on a silver multi-spoke alloy wheel, shown from a three-quarter angle against a plain white background.

Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage

Regular price $9,640.00
Sale price $9,640.00 Regular price $23,513.00
Unit price

Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage Description

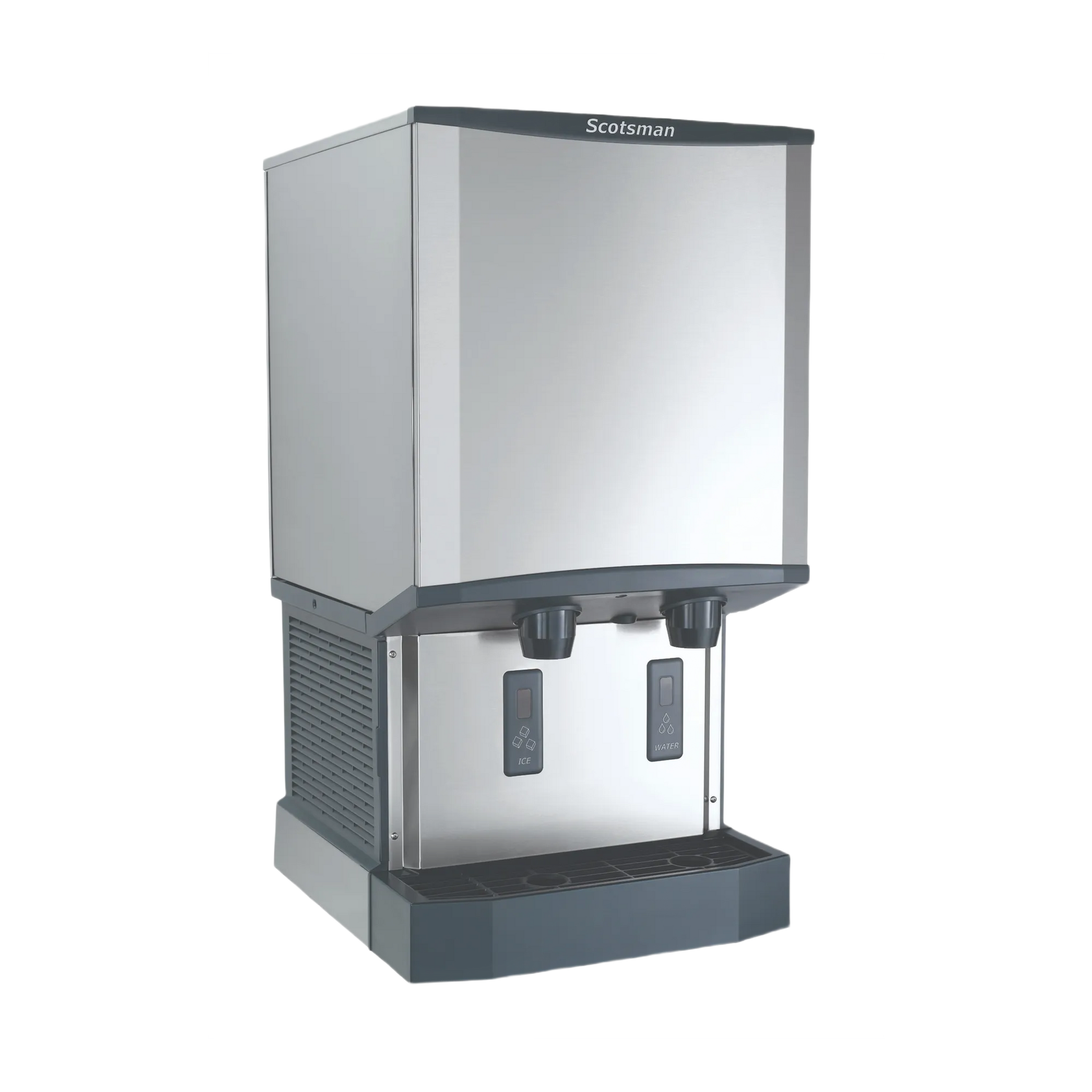

The Scotsman HID540AX-1 Meridian is a self-contained commercial ice-and-water dispenser that produces up to 500 lb of H² Nugget Ice every 24 hours and holds 40 lb in its internal bin. Under the warmer 90°F air/70°F water test condition, the official rating is 380 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. Production, storage, and dispensing are combined in one cabinet, eliminating the need to handle an ice scoop in offices, healthcare areas, hotels, education facilities, and self-service beverage locations.

The infrared interface dispenses ice and water without requiring users to touch a button. The machine produces H² Nugget Ice, approximately 3/4 x 5/16 x 3/8 in. (1.9 x 0.8 x 0.95 cm). This firmer Scotsman nugget remains chewable while retaining its shape and melting more slowly for dependable dispensing. SmoothStream™ water delivery reduces splashing around the sink and cup area.

Meridian's sanitary design includes AgION® and other antimicrobial compounds molded into key components, a sealed refrigeration system, and a bin, spouts, air filter, sink, and grille that can be removed for cleaning. The front-accessible air filter simplifies regular maintenance. Durable stainless-steel components, sealed maintenance-free bearings, and contoured sides are designed for reliability and airflow in a compact footprint.

Intuitive LED diagnostics and a USB connection help technicians identify conditions and install software updates, while the model-specific QR code opens service and warranty information. This exact HID540AX-1 is the touch-free, air-cooled, 115/60/1 version with R290 refrigerant and a factory power cord. Plan for the manufacturer-required ventilation space, potable-water connection, drain, filtration, cup clearance, and a load-bearing counter or compatible stand.

💡 Need the same production in a shorter cabinet? Compare the Scotsman HID525AX-1.


Key Features

  • Up to 500 lb/day: 380 lb/day at 90°F air/70°F water

  • 40 lb storage: onboard reserve for dispensing demand

  • Touch-free dispensing: sensor-based ice and water selection

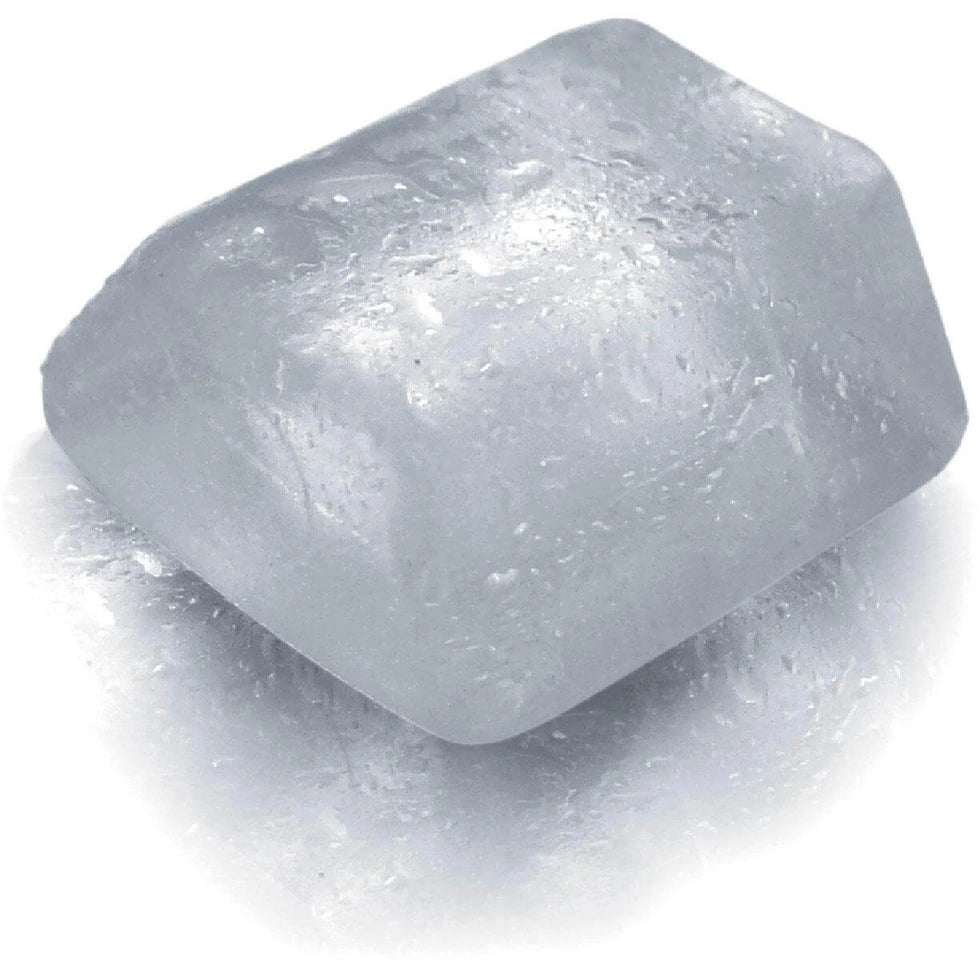

  • H² Nugget Ice: approximately 3/4 x 5/16 x 3/8 in. (1.9 x 0.8 x 0.95 cm)

  • SmoothStream™ water dispensing: reduces splashing around the cup and sink area

  • AgION® antimicrobial protection: molded into key components

  • Removable food-zone parts: bin, spouts, air filter, sink, and grille remove for cleaning

  • Sealed refrigeration system: minimizes exposure to outside airborne contamination

  • Service support: LED diagnostics, USB software updates, and unit-specific QR code

  • Commercial construction: stainless-steel exterior panels and evaporator with maintenance-free bearings

  • Exact utility package: air-cooled, 115/60/1, R290


Best For

Offices, hotels, healthcare facilities, education, fitness, waiting areas, and self-service foodservice where touch-free nugget ice and water are preferred.


Full Specifications

Brand | Scotsman |

Model | HID540AX-1 |

Series | HID540 Meridian |

Machine Type | Self-contained touch-free ice and water dispenser |

Ice Type | H² Nugget Ice |

Ice Size / Hardness | 3/4 x 5/16 x 3/8 in. (1.9 x 0.8 x 0.95 cm) |

Cooling | Air-cooled |

Daily Production - 70°F air/50°F water | 500 lb (227 kg)/24 hours |

Daily Production - 90°F air/70°F water | 380 lb (172 kg)/24 hours |

Storage Capacity | 40 lb (18 kg) |

Cabinet Dimensions (W x D x H) | 21.25 x 24.38 x 41 in. |

Shipping Weight | 215 lb |

Electrical | 115/60/1 |

Maximum Fuse / Breaker | 15 A |

Power Connection | 7.5 ft cord with NEMA 5-15P plug |

Refrigerant | R290 |

Refrigerant Charge | 5 oz |

Heat Rejection | 6,800 BTU/hr |

Energy Use at 90°F/70°F | 4.18 kWh/100 lb |

Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |

Potable Water Inlet | 3/8 in. flare |

Drain Connection | 3/4 in. FPT |

Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |

Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |

Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |

Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |

Published Certifications | ADA-compliant reach, cULus, NSF, AHRI |


Warranty

  • Machine: 3 years parts and labor

  • Compressor and condenser: 5 years parts

The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.


Accessories & Installation

Optional: KLP24A set of four 4-inch adjustable legs; HST21-A stand with locking reversible door and shelf; HST21B-A basic stand.

Allow the manufacturer-specified 6 inches at the left, back, and right for ventilation and utility connections. Confirm the support surface or stand, cup clearance, water filtration, inlet, drain, and dedicated electrical circuit before delivery. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.

Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage Features

Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage Resources

Scotsman Meridian HID540AX-1 Touch-Free Ice and Water Dispenser - 500 lb/Day Nugget Ice, 40 lb Storage Buying Guide

Quick Answer: The Scotsman HID540AX-1 makes and dispenses H2 nugget ice and water through touch-free controls, with 40 lb of integrated ice storage. It is rated at 500 lb per day at 70°F air and 50°F water, or 380 lb at 90°F air and 70°F water. Choose it over the HID525 when extra stored reserve matters and the taller cabinet fits your service location.

Who should consider this model

Consider it for an office, hotel, self-service beverage point or healthcare facility that needs an integrated ice-and-water station. Suitability in a healthcare setting still depends on the facility’s infection-control, water-management and cleaning requirements. Touch-free controls reduce contact with operating buttons; they do not eliminate cleaning or establish clinical protection.

Key buying facts

Item

Published detail

Product type

Touch-free H2 nugget ice and water dispenser

Output at 70°F air and 50°F water

Up to 500 lb per 24 hours

Output at 90°F air and 70°F water

380 lb per 24 hours

Storage

40 lb integrated bin

Dimensions

21.25 x 24.38 x 41 in published unit summary

Electrical

115V / 60Hz / single phase

The main buying decision

The closest comparison is HID525AX-1. Both air-cooled models have the same published 500/380 lb production ratings. The HID540 stores 40 lb versus 25 lb, a 15 lb increase or 60% more nominal storage. It is about 6 inches taller by the published unit summaries. At the checked prices, the equipment premium is $807. Buy that extra reserve because it helps a measured rush, rather than expecting faster ice production.

At an illustrative 8 oz of ice by weight per serving, the additional 15 lb corresponds to 30 servings of stored ice before melt and practical delivery limits. That is 15 × 16 ÷ 8, not a tested cups-per-minute or guaranteed service count. Weigh your actual serving because cup volume, beverage volume and ice weight are different quantities.

Installation checks

The sheet’s unit summary is 21.25 x 24.38 x 41 inches. It calls for 6 inches at the left, right and back for ventilation and connections. Cabinet width alone therefore understates the planned operating space. Use a suitably rated counter or approved stand and verify the combined operating load. Check cup clearance, control reach, service access, potable-water supply and the 3/4-inch FPT drain.

Compare the right alternative

This AX-1 is the air-cooled, touch-free, 115V single-phase version. Do not import the water-cooled warmer-condition rating or the button-operated configuration into its specifications. The wall-mount variant is a different model. If lower daily production and a smaller station would work, compare HID312AX-1 before committing to this cabinet and budget.

Plan ownership and maintenance

The removable bin, spouts, air filter, sink and grille support access for cleaning. Assign a sanitation routine that covers the entire food and water path. Antimicrobial materials do not replace that work. The sheet lists a 15 A maximum protective device and a factory cord. Include filtration, approved support, drain work, installation and written warranty coverage in the quote.

Use our bin sizing guide to organize demand and reserve measurements before requesting a quote.

Buyer questions

Does the HID540 make more ice than HID525?

No. These air-cooled versions have the same published production. HID540 provides 15 lb more storage.

Is this a wall-mount model?

No. Confirm the separate approved wall-mount variant if that is required.

Does touch-free mean maintenance-free?

No. Cleaning, descaling and sanitation remain essential.

Request a complete quote

Send your ZIP code, site measurements, current equipment models and busiest-period ice use. Ask Ice Maker Supply for a HID540AX-1 quote with the required installation components, receiving services and current delivery estimate.
