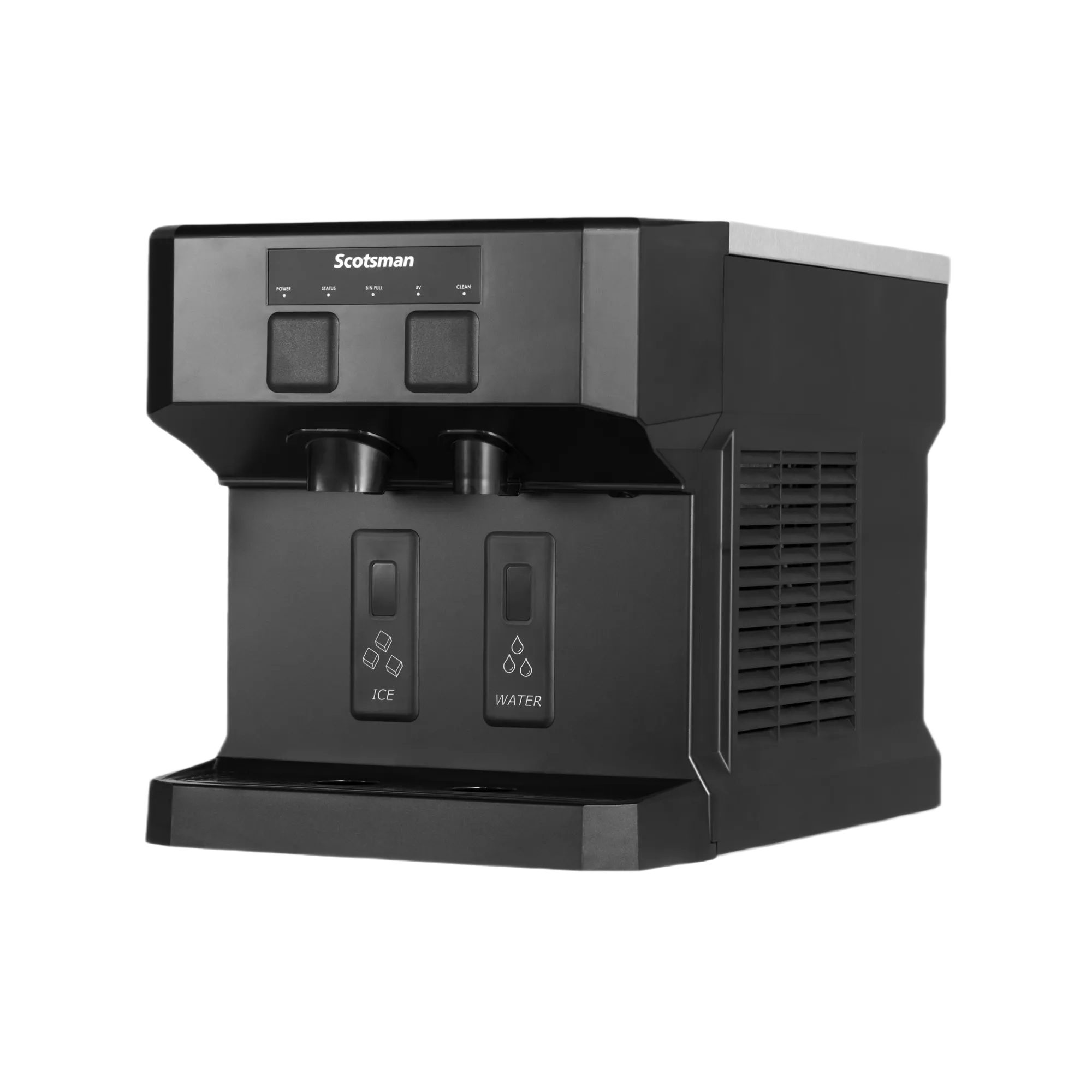

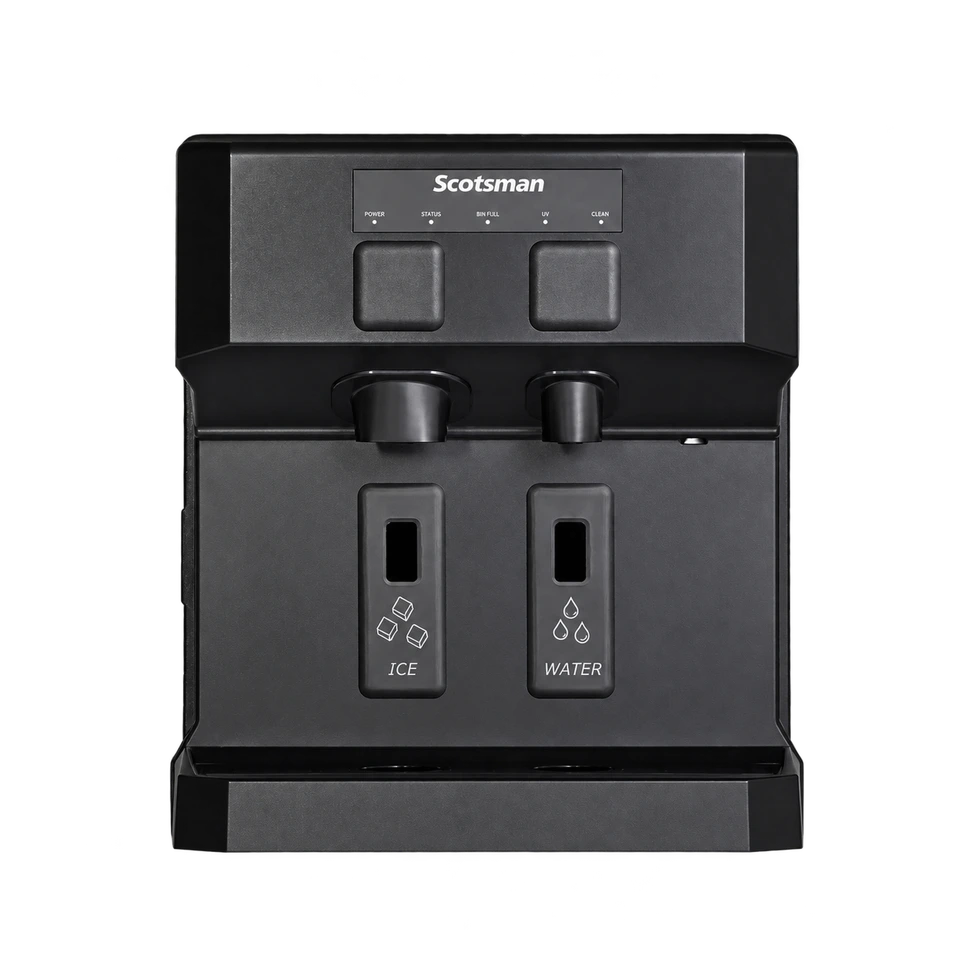

A black commercial soft drink dispenser with two spouts, labeled SCOTSMAN on the front panel, featuring ice and water buttons, set against a plain white background.

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage

Regular price $5,236.00
Sale price $5,236.00 Regular price $12,771.00
Unit price

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage Description

UV-Treated Touch-Free Nugget Ice and Water in a Compact Countertop Format

The Scotsman HID207AX-1 Meridian is a self-contained commercial ice-and-water dispenser that produces up to 196 lb of Original Chewable Nugget Ice every 24 hours and holds 7 lb in its internal bin. Under the warmer 90°F air/70°F water test condition, the official rating is 160 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. Production, storage, and dispensing are combined in one cabinet, eliminating the need to handle an ice scoop in offices, healthcare areas, hotels, education facilities, and self-service beverage locations.

The infrared interface dispenses ice and water without requiring users to touch a button. The machine produces Original Chewable Nugget Ice, approximately 7/16 x 5/16 x 3/8 in. (1.11 x 0.8 x 0.95 cm). This soft, chewable nugget is well suited to fountain drinks, hydration stations, and patient-care environments. SmoothStream™ water delivery reduces splashing around the sink and cup area.

Meridian's sanitary design includes AgION® and other antimicrobial compounds molded into key components, a sealed refrigeration system, and a bin, spouts, air filter, sink, and grille that can be removed for cleaning. An internal UV-LED sanitation module actively treats incoming water for clean, refreshing ice and water, adding another layer of protection in this compact model. The front-accessible air filter simplifies regular maintenance. Durable stainless-steel components, sealed maintenance-free bearings, and contoured sides are designed for reliability and airflow in a compact footprint.

The AutoAlert™ panel displays relevant machine status where staff can see it. This exact HID207AX-1 is the touch-free, air-cooled, 115/60/1 version with R290 refrigerant and a factory power cord. Plan for the manufacturer-required ventilation space, potable-water connection, drain, filtration, cup clearance, and a load-bearing counter or compatible stand.


Key Features

  • Up to 196 lb/day: 160 lb/day at 90°F air/70°F water

  • 7 lb storage: onboard reserve for dispensing demand

  • Touch-free dispensing: sensor-based ice and water selection

  • UV-LED sanitation: actively treats incoming water used for ice and dispensing

  • Original Chewable Nugget Ice: approximately 7/16 x 5/16 x 3/8 in. (1.11 x 0.8 x 0.95 cm)

  • SmoothStream™ water dispensing: reduces splashing around the cup and sink area

  • AgION® antimicrobial protection: molded into key components

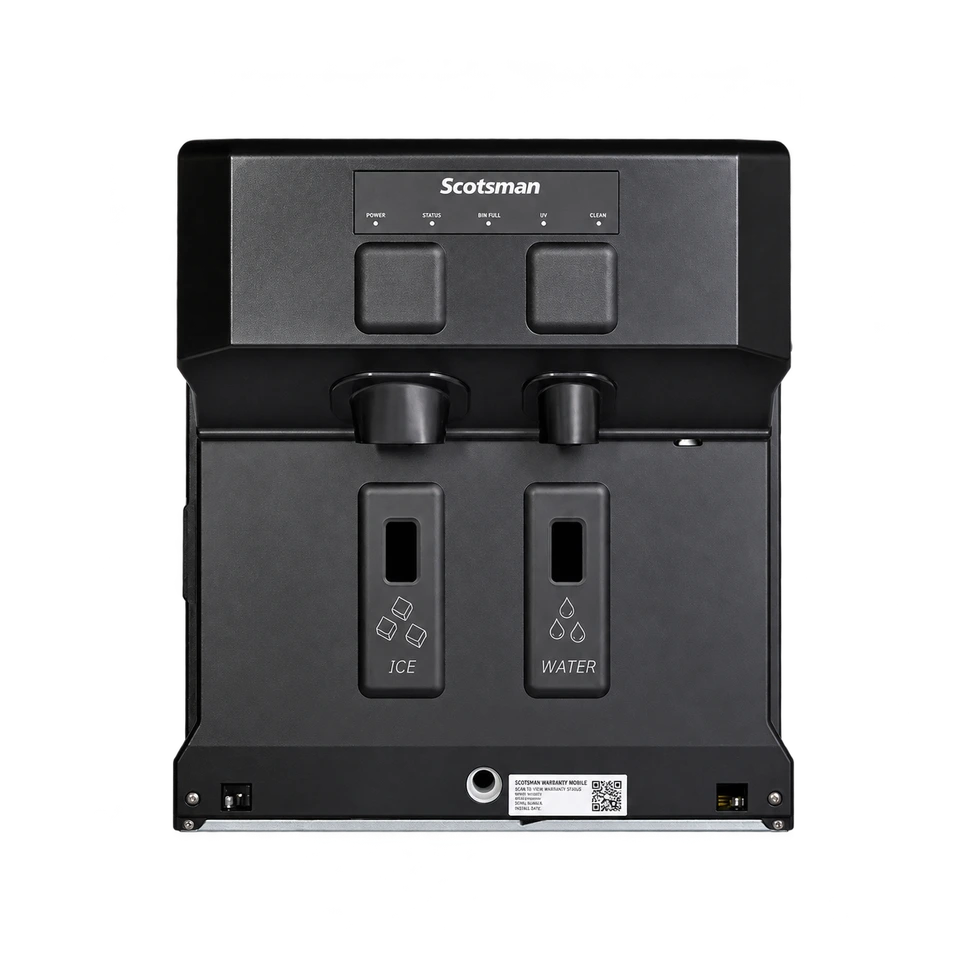

  • Removable food-zone parts: bin, spouts, air filter, sink, and grille remove for cleaning

  • Sealed refrigeration system: minimizes exposure to outside airborne contamination

  • AutoAlert™ panel: visible machine status helps staff recognize operating conditions

  • Commercial construction: stainless-steel exterior panels and evaporator with maintenance-free bearings

  • Exact utility package: air-cooled, 115/60/1, R290


Best For

Offices, hotels, healthcare facilities, education, fitness, waiting areas, and self-service foodservice where touch-free nugget ice and water are preferred.


Full Specifications

Brand | Scotsman |

Model | HID207AX-1 |

Series | HID207 Meridian |

Machine Type | Self-contained touch-free ice and water dispenser |

Ice Type | Original Chewable Nugget Ice |

Ice Size / Hardness | 7/16 x 5/16 x 3/8 in. (1.11 x 0.8 x 0.95 cm) |

Cooling | Air-cooled |

Daily Production - 70°F air/50°F water | 196 lb (89 kg)/24 hours |

Daily Production - 90°F air/70°F water | 160 lb (73 kg)/24 hours |

Storage Capacity | 7 lb (3 kg) |

Cabinet Dimensions (W x D x H) | 16.05 x 23.44 x 17.54 in. |

Shipping Weight | 80 lb |

Electrical | 115/60/1 |

Maximum Fuse / Breaker | 15 A |

Power Connection | 6 ft cord with NEMA 5-15P plug |

Refrigerant | R290 |

Heat Rejection | 3,200 BTU/hr |

Energy Use at 90°F/70°F | 4.90 kWh/100 lb |

Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |

Potable Water Inlet | 1/4 in. O.D. poly tubing, 6 ft supplied |

Drain Connection | 3/4 in. I.D. drain connection |

Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |

Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |

Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |

Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |

Published Certifications | ADA-compliant reach, NSF, cULus, AHRI |


Warranty

  • Machine: 3 years parts and labor

  • Compressor and condenser: 5 years parts

The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.


Accessories & Installation

Optional: KLP24A set of four 4-inch adjustable legs and HSTCD16-A machine stand with reversible door and shelf.

Allow the manufacturer-specified 6 inches at the left, back, and right for ventilation and utility connections. Confirm the support surface or stand, cup clearance, water filtration, inlet, drain, and dedicated electrical circuit before delivery. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage Features

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage Resources

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage Buying Guide

Quick Answer: The Scotsman HID207AX-1 suits a compact countertop station that dispenses Original Chewable Nugget ice and water without a push button. Its 7 lb reserve favors frequent, smaller draws. Confirm peak demand and the complete installed footprint before choosing it for a shared beverage area.

Who should consider this model

Consider this model when cabinet height is a major constraint and users mainly fill individual cups. A compact machine can make the station easier to place, but service access and ventilation still need room. Measure the largest cup or bottle your users bring; cabinet height alone does not tell you whether a container fits under the spout.

Key buying facts

Item

Value

Equipment

Original Chewable Nugget ice and water dispenser

Rated output at 70 F air and 50 F water

Up to 196 lb per 24 hours

Rated output at 90 F air and 70 F water

160 lb per 24 hours

Nominal storage

7 lb integrated

Listed cabinet W x D x H in inches

16.05 x 23.44 x 17.54

Electrical supply

115V / 60 Hz / single phase

The buying decision that matters most

Start with the busiest five to fifteen minutes. Daily production can look generous while the small reserve is quickly drawn down. Record the number of visitors in that interval and weigh a typical ice fill. That gives you a much more useful buying question than asking only how many employees use the building.

Illustrative planning example: 20 users taking 0.4 lb each need 8 lb of ice. That exceeds the nominal 7 lb reserve before replenishment is considered. Actual results depend on starting fill, temperatures, dispensing speed, and production during the interval. A second station or a larger dispenser may suit concentrated traffic.

Check the installation before ordering

Check the countertop strength and utility route before ordering. The touch-free sensor also needs a suitable location: the Scotsman user manual warns that direct sunlight on the sensor or nearby infrared emitters can trigger unwanted dispensing. Review placement with the installer instead of positioning the unit solely for appearance.

Compare the right alternative

Compare the HID312AX-1 when you need a larger stored reserve. It has a taller cabinet and makes H2 nugget ice, so the choice changes both space and ice texture. Select the HID207AX-1 when its compact arrangement matches measured demand and the softer Original Chewable format is preferred.

Plan the complete purchase

Ask for a complete quote covering filtration, water and drain connections, installation, and any support accessories. Keep the ongoing cleaning supplies and replacement filter cartridges in the operating budget.

For help separating production from ready reserve, read our ice storage sizing guide.

Buyer questions

Does the HID207AX-1 store 196 lb of ice?

No. The 196 lb figure is a maximum 24-hour production rating. Its onboard storage is 7 lb.

Can I put the dispenser beside a sunny window?

Review that position against the sensor placement instructions. Direct sunlight on the dispensing sensor can cause unwanted activation.

Is the HID207AX-1 a scoop-access ice machine?

It is an integrated ice-and-water dispenser. Choose a bin-access machine if the operation depends on scooping larger quantities.

Confirm your configuration

Send Ice Maker Supply your ZIP code, peak ice demand, available space, and installation details. Ask for a quote for the Scotsman HID207AX-1 with the required accessories and current delivery estimate.

Shipping Policy

Ice Maker Supply ships commercial ice makers, ice storage bins, dispensers, filters, accessories, and related equipment through manufacturers, authorized distributors, fulfillment facilities, and parcel or freight carriers. The following terms explain delivery estimates, shipping coverage, freight service, and how to receive an order safely.

1. Where We Ship

We currently ship to eligible street addresses in the 48 contiguous United States. We do not offer shipping to Alaska, Hawaii, Puerto Rico, other U.S. territories, APO/FPO/DPO military addresses, international destinations, or P.O. boxes.

Delivery to rural, remote, construction, or limited-access locations may require extra coordination or may not be available for certain equipment. If a location cannot be serviced, we will contact you to review the options, including cancellation and refund when appropriate.

2. Free Standard Shipping & Additional Charges

Free standard shipping is available for qualifying products and eligible delivery addresses within the contiguous United States, as shown on the product page or at checkout. If a product does not qualify, the applicable shipping charge will be shown during checkout or in a written quotation before you complete the purchase.

Free standard shipping does not automatically include the services below, which may incur additional charges when requested or required:

  • Liftgate unloading when the receiving location does not have a suitable loading dock or forklift.
  • Inside delivery, room placement, unpacking, assembly, or installation.
  • Residential, remote-area, limited-access, special-appointment, or other carrier accessorial services.
  • Redelivery, storage, or address-reassignment charges caused by delivery access or receiving issues.

We will explain required additional shipping services or charges before arranging them and obtain your approval when applicable. Fees or exclusions shown in a product-specific quotation take precedence over general offers.

3. Order Processing & Estimated Delivery

Estimated standard delivery: 5–7 business days for eligible, in-stock products under normal shipping conditions.

This 5–7-business-day estimate is measured from order confirmation and successful payment verification (whichever occurs later) to expected delivery. It includes ordinary processing and transportation; processing time is not added again on top of this estimate.

Business days are Monday through Friday, excluding major U.S. holidays. Orders placed outside normal business hours may begin processing on the next business day. Shipment and arrival can vary with product availability, warehouse location, freight schedules, and destination.

The 5–7-business-day estimate does not apply to backorders, special orders, made-to-order items, products with a longer published lead time, or shipments requiring exceptional freight arrangements. Large freight shipments and remote destinations may take longer. Any different timeline shown on an individual product page or provided in writing for your order takes precedence.

Delivery dates are estimates, not guaranteed arrival dates. Please schedule equipment installers only after delivery and inspection.

4. Parcel Shipping & Freight Delivery

Smaller items may arrive by parcel carrier. Larger or heavier ice machines, bins, and commercial equipment often ship on pallets through a freight carrier.

Unless a different service is confirmed in writing, standard freight delivery is generally to an accessible truckside, curbside, or receiving/loading area. It does not include carrying equipment inside the property, placement in a kitchen or storage room, unpacking, disposal of packaging, or installation.

The receiving location must be accessible to the assigned carrier and must have an appropriate unloading plan. Let us know before shipment if you do not have a loading dock or forklift.

5. Liftgate, Residential & Limited-Access Delivery

A liftgate is a platform used to lower certain freight items from the truck to ground level. It may be necessary when the receiving location lacks a suitable loading dock or forklift. Liftgate service must be requested before dispatch and is subject to carrier availability, weight, size, and any applicable fee.

Residential addresses, schools, churches, construction sites, storage sites, and other restricted-access locations may have special freight requirements. Not all shipments can be delivered by liftgate. Contact us before ordering if your unloading conditions are uncertain.

6. Delivery Appointments & Receiving Requirements

Some freight carriers will call to schedule delivery. Please provide an accurate phone number and a receiving contact who can be available during the carrier’s delivery window.

Delivery windows depend on the carrier and are not guaranteed unless expressly confirmed. If the carrier cannot deliver because the recipient is unavailable, the location is inaccessible, or suitable unloading arrangements are missing, redelivery or storage fees may apply.

7. Shipping Confirmation & Tracking

We will provide shipping confirmation and available tracking details after the order has been handed to the shipping carrier and the information becomes available. Freight shipments may use a PRO number or other freight reference instead of a parcel tracking number.

Tracking information may take time to update after dispatch. If your shipment shows no movement for more than five business days, contact us so we can investigate with the carrier or shipping warehouse.

8. Orders Arriving in Multiple Shipments

An ice machine head, bin, dispenser, water filter, accessory, or replacement part may ship separately, especially when the products come from different facilities or suppliers. Each shipment may have its own tracking number and arrival date.

9. Inspecting Freight at Delivery

Commercial equipment should be inspected before signing the carrier’s delivery receipt whenever reasonably possible. We recommend that you:

1.  Confirm the correct number of cartons or pallets and look for missing items.

2.  Examine the packaging for tears, punctures, crushed corners, moisture, or broken pallets.

3.  Check accessible equipment surfaces for visible damage, and photograph any concerns.

4.  Write clear notes describing visible damage or shortages on the carrier’s delivery receipt before signing.

5.  Retain the receipt, photographs, and original packaging until the equipment is checked.

If there is serious visible damage, document it and contact us immediately for guidance. Do not accept a badly damaged shipment without noting the condition on the receipt. An unqualified signature may make the freight claim process more difficult, but does not override applicable legal rights.

10. Damaged, Missing, or Incorrect Products

If equipment arrives damaged, an item is missing, or a different model is delivered, contact us promptly, preferably within one business day of delivery or as soon as the issue is discovered. This is a request for fast reporting to help preserve carrier and supplier claim evidence, not a waiver of your rights.

Please send your order number, model details, photos of the product and packaging, a description of the problem, delivery receipt notes (if available), and the serial number if relevant.

Do not install or use visibly damaged equipment before contacting us. Keep the packaging. We will coordinate with the relevant shipping, warehouse, or manufacturing partner to investigate and arrange an appropriate resolution.

11. Delays, Backorders & Special Orders

Inventory, manufacturer production, payment verification, holiday schedules, weather, and carrier operations can affect fulfillment. If we determine that an order cannot be shipped within the applicable communicated shipment timeframe, we will notify you and offer the shipment-delay, cancellation, and refund options required by applicable law.

We will not substitute a materially different model without your approval. For backordered or made-to-order items, we will communicate the available lead-time information before proceeding when possible.

12. Address Changes, Redelivery & Returned Shipments

Please confirm your complete shipping address, business name, suite number, ZIP code, telephone number, and any receiving restrictions at checkout. Contact us immediately if a correction is needed. Changes after dispatch may be unavailable or may incur a carrier reconsignment fee.

Returned-to-sender orders or refused deliveries may require review and additional transportation charges when the issue is caused by an incorrect address, unavailable recipient, or customer-requested change. We will explain the available options, subject to the order’s circumstances and applicable law.

13. Lost Shipments or Orders Marked Delivered

If tracking shows “Delivered” but the equipment has not arrived, contact us as soon as possible. We will review the shipment record, carrier proof of delivery, delivery address, and any signature information with the carrier or fulfillment partner.

If a shipment is confirmed lost or misdelivered, we will work toward a suitable resolution, including replacement or refund as appropriate under the order circumstances and applicable law.

14. Expedited Shipping

Expedited shipping is not currently offered as a standard checkout service. If you have an urgent project, contact us before ordering so we can check current stock and provide a realistic shipping estimate.

15. Cancellations, Refused Deliveries & Returns

For cancellations or voluntary returns, please review our Refund Policy before shipping any item back. Most eligible unused and uninstalled products may qualify for a return request within 30 days of delivery, subject to authorization and the conditions stated in that policy.

If a shipment is refused for a reason unrelated to shipping damage, an incorrect item, or our error, applicable return freight or handling charges may apply. Please contact us before refusing a shipment whenever possible.

Refund Policy: https://icemakersupply.com/policies/refund-policy

16. Warranty Replacement Shipping

Warranty replacement shipments, when approved, are coordinated in accordance with the relevant manufacturer’s or supplier’s warranty process. Supporting documents, photos, troubleshooting, serial number information, or return of the original item may be required. Replacement delivery timing will be confirmed when the claim is approved.

17. Contact Ice Maker Supply

For shipping questions, freight arrangements, order status, delivery damage, or tracking support, please contact us and include your order number if you already placed an order.

Email: support@icemakersupply.com

Phone: +1 (727) 285-2572

Website: https://icemakersupply.com

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage Description

UV-Treated Touch-Free Nugget Ice and Water in a Compact Countertop Format

The Scotsman HID207AX-1 Meridian is a self-contained commercial ice-and-water dispenser that produces up to 196 lb of Original Chewable Nugget Ice every 24 hours and holds 7 lb in its internal bin. Under the warmer 90°F air/70°F water test condition, the official rating is 160 lb per 24 hours—a more conservative number to use when sizing equipment for a hot kitchen or warm utility area. Production, storage, and dispensing are combined in one cabinet, eliminating the need to handle an ice scoop in offices, healthcare areas, hotels, education facilities, and self-service beverage locations.

The infrared interface dispenses ice and water without requiring users to touch a button. The machine produces Original Chewable Nugget Ice, approximately 7/16 x 5/16 x 3/8 in. (1.11 x 0.8 x 0.95 cm). This soft, chewable nugget is well suited to fountain drinks, hydration stations, and patient-care environments. SmoothStream™ water delivery reduces splashing around the sink and cup area.

Meridian's sanitary design includes AgION® and other antimicrobial compounds molded into key components, a sealed refrigeration system, and a bin, spouts, air filter, sink, and grille that can be removed for cleaning. An internal UV-LED sanitation module actively treats incoming water for clean, refreshing ice and water, adding another layer of protection in this compact model. The front-accessible air filter simplifies regular maintenance. Durable stainless-steel components, sealed maintenance-free bearings, and contoured sides are designed for reliability and airflow in a compact footprint.

The AutoAlert™ panel displays relevant machine status where staff can see it. This exact HID207AX-1 is the touch-free, air-cooled, 115/60/1 version with R290 refrigerant and a factory power cord. Plan for the manufacturer-required ventilation space, potable-water connection, drain, filtration, cup clearance, and a load-bearing counter or compatible stand.


Key Features

  • Up to 196 lb/day: 160 lb/day at 90°F air/70°F water

  • 7 lb storage: onboard reserve for dispensing demand

  • Touch-free dispensing: sensor-based ice and water selection

  • UV-LED sanitation: actively treats incoming water used for ice and dispensing

  • Original Chewable Nugget Ice: approximately 7/16 x 5/16 x 3/8 in. (1.11 x 0.8 x 0.95 cm)

  • SmoothStream™ water dispensing: reduces splashing around the cup and sink area

  • AgION® antimicrobial protection: molded into key components

  • Removable food-zone parts: bin, spouts, air filter, sink, and grille remove for cleaning

  • Sealed refrigeration system: minimizes exposure to outside airborne contamination

  • AutoAlert™ panel: visible machine status helps staff recognize operating conditions

  • Commercial construction: stainless-steel exterior panels and evaporator with maintenance-free bearings

  • Exact utility package: air-cooled, 115/60/1, R290


Best For

Offices, hotels, healthcare facilities, education, fitness, waiting areas, and self-service foodservice where touch-free nugget ice and water are preferred.


Full Specifications

Brand | Scotsman |

Model | HID207AX-1 |

Series | HID207 Meridian |

Machine Type | Self-contained touch-free ice and water dispenser |

Ice Type | Original Chewable Nugget Ice |

Ice Size / Hardness | 7/16 x 5/16 x 3/8 in. (1.11 x 0.8 x 0.95 cm) |

Cooling | Air-cooled |

Daily Production - 70°F air/50°F water | 196 lb (89 kg)/24 hours |

Daily Production - 90°F air/70°F water | 160 lb (73 kg)/24 hours |

Storage Capacity | 7 lb (3 kg) |

Cabinet Dimensions (W x D x H) | 16.05 x 23.44 x 17.54 in. |

Shipping Weight | 80 lb |

Electrical | 115/60/1 |

Maximum Fuse / Breaker | 15 A |

Power Connection | 6 ft cord with NEMA 5-15P plug |

Refrigerant | R290 |

Heat Rejection | 3,200 BTU/hr |

Energy Use at 90°F/70°F | 4.90 kWh/100 lb |

Potable Water Use at 90°F/70°F | 12.0 gal/100 lb |

Potable Water Inlet | 1/4 in. O.D. poly tubing, 6 ft supplied |

Drain Connection | 3/4 in. I.D. drain connection |

Operating Air Temperature | 50°F to 100°F (10°C to 38°C) |

Operating Water Temperature | 40°F to 100°F (4.4°C to 38°C) |

Potable Water Pressure | 20 to 80 PSIG (1.4 to 5.5 bar) |

Electrical Voltage Tolerance | -5% to +10% of nameplate voltage |

Published Certifications | ADA-compliant reach, NSF, cULus, AHRI |


Warranty

  • Machine: 3 years parts and labor

  • Compressor and condenser: 5 years parts

The published terms above apply to qualifying commercial installations in North, South, and Central America. Residential applications are listed at one year parts and labor; confirm the current written warranty and registration requirements for the installation location.


Accessories & Installation

Optional: KLP24A set of four 4-inch adjustable legs and HSTCD16-A machine stand with reversible door and shelf.

Allow the manufacturer-specified 6 inches at the left, back, and right for ventilation and utility connections. Confirm the support surface or stand, cup clearance, water filtration, inlet, drain, and dedicated electrical circuit before delivery. Production varies with ambient and inlet-water conditions. Use the current Scotsman specification sheet and installation manual, and follow local plumbing and electrical codes.

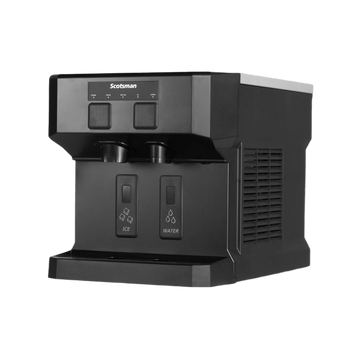

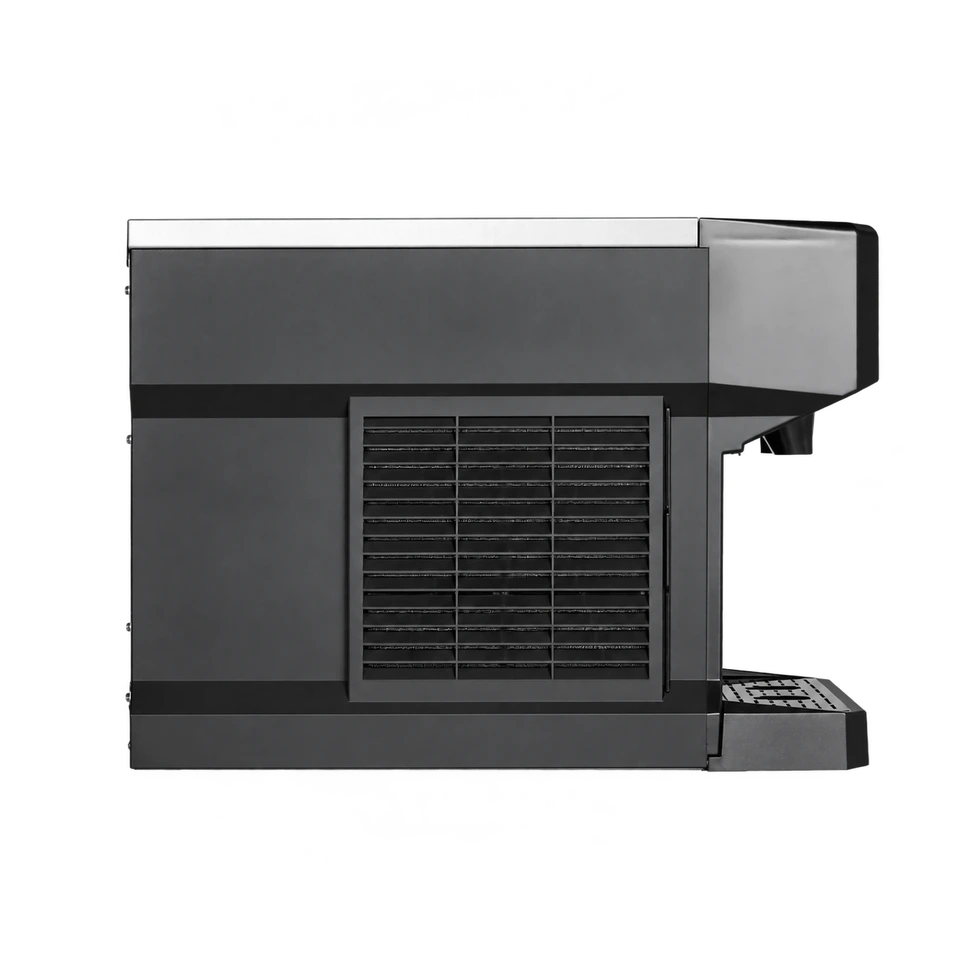

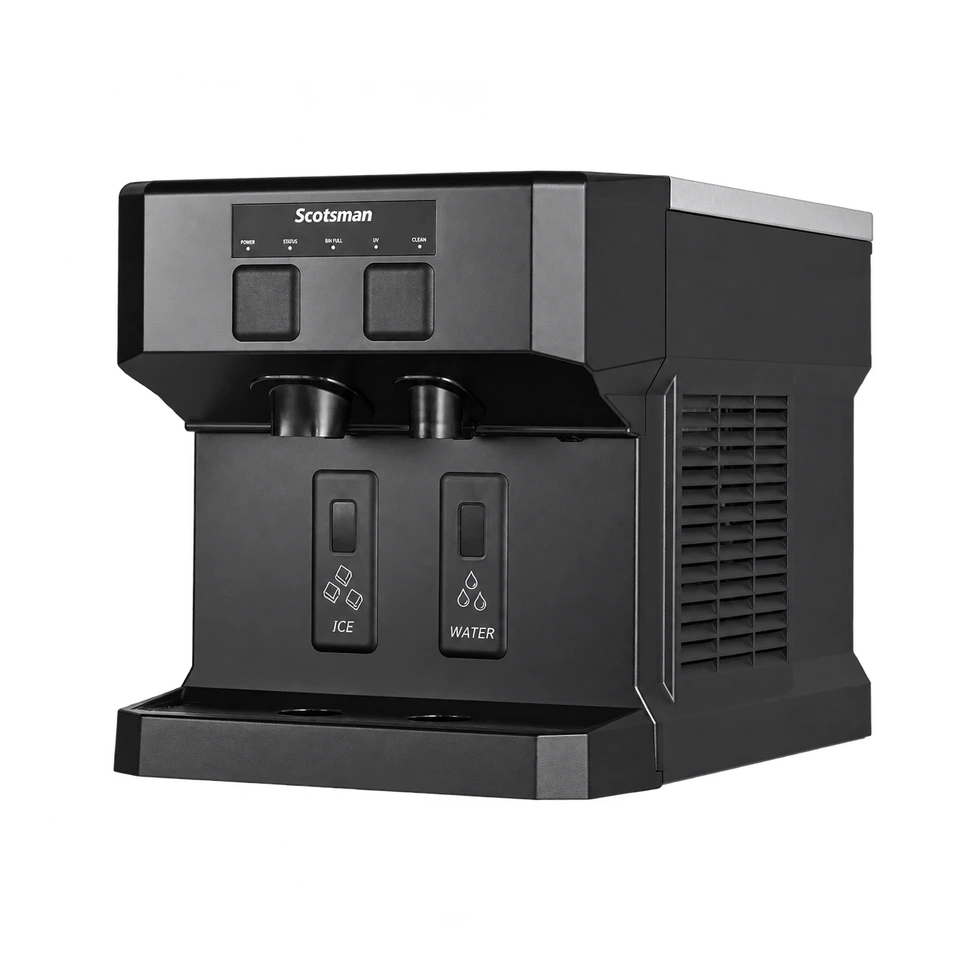

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage Resources

Scotsman Meridian HID207AX-1 Touch-Free Ice and Water Dispenser - 196 lb/Day Nugget Ice, 7 lb Storage Buying Guide

Quick Answer: The Scotsman HID207AX-1 suits a compact countertop station that dispenses Original Chewable Nugget ice and water without a push button. Its 7 lb reserve favors frequent, smaller draws. Confirm peak demand and the complete installed footprint before choosing it for a shared beverage area.

Who should consider this model

Consider this model when cabinet height is a major constraint and users mainly fill individual cups. A compact machine can make the station easier to place, but service access and ventilation still need room. Measure the largest cup or bottle your users bring; cabinet height alone does not tell you whether a container fits under the spout.

Key buying facts

Item

Value

Equipment

Original Chewable Nugget ice and water dispenser

Rated output at 70 F air and 50 F water

Up to 196 lb per 24 hours

Rated output at 90 F air and 70 F water

160 lb per 24 hours

Nominal storage

7 lb integrated

Listed cabinet W x D x H in inches

16.05 x 23.44 x 17.54

Electrical supply

115V / 60 Hz / single phase

The buying decision that matters most

Start with the busiest five to fifteen minutes. Daily production can look generous while the small reserve is quickly drawn down. Record the number of visitors in that interval and weigh a typical ice fill. That gives you a much more useful buying question than asking only how many employees use the building.

Illustrative planning example: 20 users taking 0.4 lb each need 8 lb of ice. That exceeds the nominal 7 lb reserve before replenishment is considered. Actual results depend on starting fill, temperatures, dispensing speed, and production during the interval. A second station or a larger dispenser may suit concentrated traffic.

Check the installation before ordering

Check the countertop strength and utility route before ordering. The touch-free sensor also needs a suitable location: the Scotsman user manual warns that direct sunlight on the sensor or nearby infrared emitters can trigger unwanted dispensing. Review placement with the installer instead of positioning the unit solely for appearance.

Compare the right alternative

Compare the HID312AX-1 when you need a larger stored reserve. It has a taller cabinet and makes H2 nugget ice, so the choice changes both space and ice texture. Select the HID207AX-1 when its compact arrangement matches measured demand and the softer Original Chewable format is preferred.

Plan the complete purchase

Ask for a complete quote covering filtration, water and drain connections, installation, and any support accessories. Keep the ongoing cleaning supplies and replacement filter cartridges in the operating budget.

For help separating production from ready reserve, read our ice storage sizing guide.

Buyer questions

Does the HID207AX-1 store 196 lb of ice?

No. The 196 lb figure is a maximum 24-hour production rating. Its onboard storage is 7 lb.

Can I put the dispenser beside a sunny window?

Review that position against the sensor placement instructions. Direct sunlight on the dispensing sensor can cause unwanted activation.

Is the HID207AX-1 a scoop-access ice machine?

It is an integrated ice-and-water dispenser. Choose a bin-access machine if the operation depends on scooping larger quantities.

Confirm your configuration

Send Ice Maker Supply your ZIP code, peak ice demand, available space, and installation details. Ask for a quote for the Scotsman HID207AX-1 with the required accessories and current delivery estimate.

Shipping Policy

Ice Maker Supply ships commercial ice makers, ice storage bins, dispensers, filters, accessories, and related equipment through manufacturers, authorized distributors, fulfillment facilities, and parcel or freight carriers. The following terms explain delivery estimates, shipping coverage, freight service, and how to receive an order safely.

1. Where We Ship

We currently ship to eligible street addresses in the 48 contiguous United States. We do not offer shipping to Alaska, Hawaii, Puerto Rico, other U.S. territories, APO/FPO/DPO military addresses, international destinations, or P.O. boxes.

Delivery to rural, remote, construction, or limited-access locations may require extra coordination or may not be available for certain equipment. If a location cannot be serviced, we will contact you to review the options, including cancellation and refund when appropriate.

2. Free Standard Shipping & Additional Charges

Free standard shipping is available for qualifying products and eligible delivery addresses within the contiguous United States, as shown on the product page or at checkout. If a product does not qualify, the applicable shipping charge will be shown during checkout or in a written quotation before you complete the purchase.

Free standard shipping does not automatically include the services below, which may incur additional charges when requested or required:

  • Liftgate unloading when the receiving location does not have a suitable loading dock or forklift.
  • Inside delivery, room placement, unpacking, assembly, or installation.
  • Residential, remote-area, limited-access, special-appointment, or other carrier accessorial services.
  • Redelivery, storage, or address-reassignment charges caused by delivery access or receiving issues.

We will explain required additional shipping services or charges before arranging them and obtain your approval when applicable. Fees or exclusions shown in a product-specific quotation take precedence over general offers.

3. Order Processing & Estimated Delivery

Estimated standard delivery: 5–7 business days for eligible, in-stock products under normal shipping conditions.

This 5–7-business-day estimate is measured from order confirmation and successful payment verification (whichever occurs later) to expected delivery. It includes ordinary processing and transportation; processing time is not added again on top of this estimate.

Business days are Monday through Friday, excluding major U.S. holidays. Orders placed outside normal business hours may begin processing on the next business day. Shipment and arrival can vary with product availability, warehouse location, freight schedules, and destination.

The 5–7-business-day estimate does not apply to backorders, special orders, made-to-order items, products with a longer published lead time, or shipments requiring exceptional freight arrangements. Large freight shipments and remote destinations may take longer. Any different timeline shown on an individual product page or provided in writing for your order takes precedence.

Delivery dates are estimates, not guaranteed arrival dates. Please schedule equipment installers only after delivery and inspection.

4. Parcel Shipping & Freight Delivery

Smaller items may arrive by parcel carrier. Larger or heavier ice machines, bins, and commercial equipment often ship on pallets through a freight carrier.

Unless a different service is confirmed in writing, standard freight delivery is generally to an accessible truckside, curbside, or receiving/loading area. It does not include carrying equipment inside the property, placement in a kitchen or storage room, unpacking, disposal of packaging, or installation.

The receiving location must be accessible to the assigned carrier and must have an appropriate unloading plan. Let us know before shipment if you do not have a loading dock or forklift.

5. Liftgate, Residential & Limited-Access Delivery

A liftgate is a platform used to lower certain freight items from the truck to ground level. It may be necessary when the receiving location lacks a suitable loading dock or forklift. Liftgate service must be requested before dispatch and is subject to carrier availability, weight, size, and any applicable fee.

Residential addresses, schools, churches, construction sites, storage sites, and other restricted-access locations may have special freight requirements. Not all shipments can be delivered by liftgate. Contact us before ordering if your unloading conditions are uncertain.

6. Delivery Appointments & Receiving Requirements

Some freight carriers will call to schedule delivery. Please provide an accurate phone number and a receiving contact who can be available during the carrier’s delivery window.

Delivery windows depend on the carrier and are not guaranteed unless expressly confirmed. If the carrier cannot deliver because the recipient is unavailable, the location is inaccessible, or suitable unloading arrangements are missing, redelivery or storage fees may apply.

7. Shipping Confirmation & Tracking

We will provide shipping confirmation and available tracking details after the order has been handed to the shipping carrier and the information becomes available. Freight shipments may use a PRO number or other freight reference instead of a parcel tracking number.

Tracking information may take time to update after dispatch. If your shipment shows no movement for more than five business days, contact us so we can investigate with the carrier or shipping warehouse.

8. Orders Arriving in Multiple Shipments

An ice machine head, bin, dispenser, water filter, accessory, or replacement part may ship separately, especially when the products come from different facilities or suppliers. Each shipment may have its own tracking number and arrival date.

9. Inspecting Freight at Delivery

Commercial equipment should be inspected before signing the carrier’s delivery receipt whenever reasonably possible. We recommend that you:

1.  Confirm the correct number of cartons or pallets and look for missing items.

2.  Examine the packaging for tears, punctures, crushed corners, moisture, or broken pallets.

3.  Check accessible equipment surfaces for visible damage, and photograph any concerns.

4.  Write clear notes describing visible damage or shortages on the carrier’s delivery receipt before signing.

5.  Retain the receipt, photographs, and original packaging until the equipment is checked.

If there is serious visible damage, document it and contact us immediately for guidance. Do not accept a badly damaged shipment without noting the condition on the receipt. An unqualified signature may make the freight claim process more difficult, but does not override applicable legal rights.

10. Damaged, Missing, or Incorrect Products

If equipment arrives damaged, an item is missing, or a different model is delivered, contact us promptly, preferably within one business day of delivery or as soon as the issue is discovered. This is a request for fast reporting to help preserve carrier and supplier claim evidence, not a waiver of your rights.

Please send your order number, model details, photos of the product and packaging, a description of the problem, delivery receipt notes (if available), and the serial number if relevant.

Do not install or use visibly damaged equipment before contacting us. Keep the packaging. We will coordinate with the relevant shipping, warehouse, or manufacturing partner to investigate and arrange an appropriate resolution.

11. Delays, Backorders & Special Orders

Inventory, manufacturer production, payment verification, holiday schedules, weather, and carrier operations can affect fulfillment. If we determine that an order cannot be shipped within the applicable communicated shipment timeframe, we will notify you and offer the shipment-delay, cancellation, and refund options required by applicable law.

We will not substitute a materially different model without your approval. For backordered or made-to-order items, we will communicate the available lead-time information before proceeding when possible.

12. Address Changes, Redelivery & Returned Shipments

Please confirm your complete shipping address, business name, suite number, ZIP code, telephone number, and any receiving restrictions at checkout. Contact us immediately if a correction is needed. Changes after dispatch may be unavailable or may incur a carrier reconsignment fee.

Returned-to-sender orders or refused deliveries may require review and additional transportation charges when the issue is caused by an incorrect address, unavailable recipient, or customer-requested change. We will explain the available options, subject to the order’s circumstances and applicable law.

13. Lost Shipments or Orders Marked Delivered

If tracking shows “Delivered” but the equipment has not arrived, contact us as soon as possible. We will review the shipment record, carrier proof of delivery, delivery address, and any signature information with the carrier or fulfillment partner.

If a shipment is confirmed lost or misdelivered, we will work toward a suitable resolution, including replacement or refund as appropriate under the order circumstances and applicable law.

14. Expedited Shipping

Expedited shipping is not currently offered as a standard checkout service. If you have an urgent project, contact us before ordering so we can check current stock and provide a realistic shipping estimate.

15. Cancellations, Refused Deliveries & Returns

For cancellations or voluntary returns, please review our Refund Policy before shipping any item back. Most eligible unused and uninstalled products may qualify for a return request within 30 days of delivery, subject to authorization and the conditions stated in that policy.

If a shipment is refused for a reason unrelated to shipping damage, an incorrect item, or our error, applicable return freight or handling charges may apply. Please contact us before refusing a shipment whenever possible.

Refund Policy: https://icemakersupply.com/policies/refund-policy

16. Warranty Replacement Shipping

Warranty replacement shipments, when approved, are coordinated in accordance with the relevant manufacturer’s or supplier’s warranty process. Supporting documents, photos, troubleshooting, serial number information, or return of the original item may be required. Replacement delivery timing will be confirmed when the claim is approved.

17. Contact Ice Maker Supply

For shipping questions, freight arrangements, order status, delivery damage, or tracking support, please contact us and include your order number if you already placed an order.

Email: support@icemakersupply.com

Phone: +1 (727) 285-2572

Website: https://icemakersupply.com

  • 5 stars: 5 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C
Caleb

Nice little machine. Ice, water, and no fuss.

J
Joel Mercer

We needed something compact for a smaller office area, and this fit perfectly. It’s been reliable and doesn’t make much mess around the dispenser.

W
Winston

Small footprint, good ice, and hardly any splashing around the cup area. Very happy with it.

G
Graham Foster

We put this in our staff break area and it gets used all day. Having both ice and water in one compact machine has been really convenient.

A
Arlo

Love the nugget ice. The touch-free dispenser is quick and keeps the counter a lot cleaner.

A black Scotsman nugget ice machine shown on a icy blue background with mountain scenery and text reading 'UP TO 196 LB/DAY' and feature callouts for 160 lb/day production and high-capacity nugget ice.
A black Scotsmen chewable nugget ice machine shown on a icy blue background with snow mountains, large text reading 'ORIGINAL CHEWABLE NUGGET ICE,' and feature callouts about soft satisfying texture and great for drinks and hydration.
A black Scotsman touch-free ice and water dispenser shown on a icy mountain background with promotional text on the right.
A black Scotman HID207AX-1 UV-LED sanitation dispenser shown on a icy mountain backdrop with promotional text and feature icons.

Frequently Asked Questions

What ice does the Scotsman Meridian HID207AX-1 make, and what are its dimensions?

It produces Original Chewable Nugget Ice. The nugget size is approximately 7/16 x 5/16 x 3/8 inches, or 1.11 x 0.8 x 0.95 cm.

How much ice does the Scotsman Meridian HID207AX-1 produce per day?

It produces up to 196 lb per 24 hours at 70°F air and 50°F water. Under the more conservative 90°F air and 70°F water condition, the rating is 160 lb per 24 hours.

How much ice does the Scotsman Meridian HID207AX-1 hold in storage?

It has a 7 lb internal storage bin, providing onboard reserve capacity between production cycles.

Is dispensing truly touch-free on the Scotsman Meridian HID207AX-1?

Yes. It uses an infrared interface to dispense ice and water without requiring users to touch a button, helping support hygienic, high-traffic environments.

What sanitation features are included in the Scotsman Meridian HID207AX-1?

It includes an internal UV-LED sanitation module that treats incoming water, AgION® antimicrobial protection molded into key components, and removable, cleanable food-zone parts including the bin, spouts, sink, air filter, and grille.

Recently Viewed Products
