Manitowoc URP0140A NEO Undercounter Regular Cube Ice Maker - 130 lb/Day with 90 lb Bin, Air-Cooled
Manitowoc URP0140A NEO Undercounter Regular Cube Ice Maker - 130 lb/Day with 90 lb Bin, Air-Cooled Description

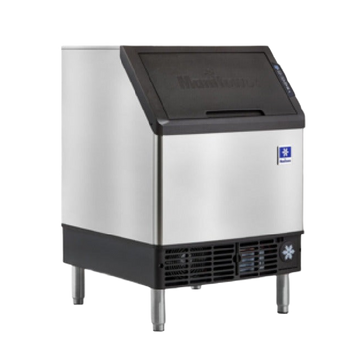

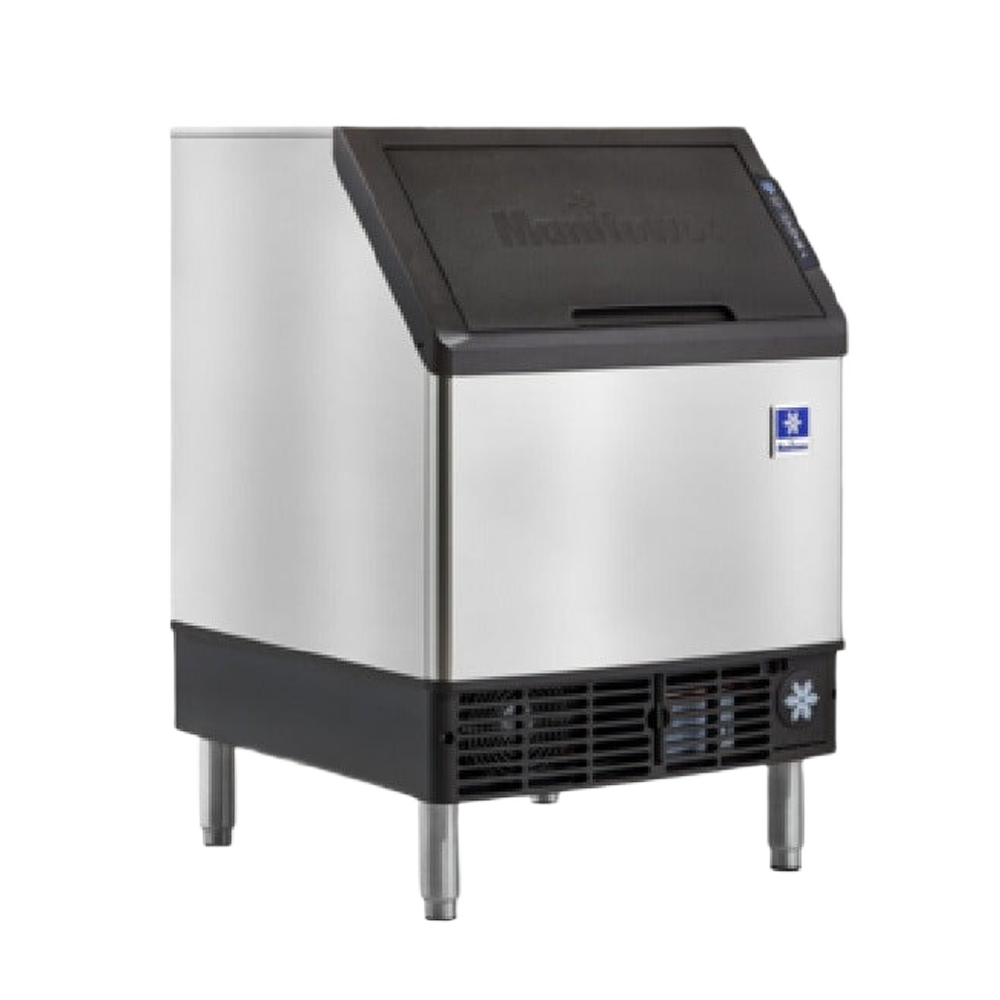

The Manitowoc URP0140A (URP0140A-161B) is a self-contained undercounter ice maker with an integrated bin designed to produce regular cube ice for commercial use. It is rated for up to 130 lb per 24 hours at 70°F air / 50°F water and 107 lb per 24 hours at 90°F air / 70°F water. Its built-in bin holds 90 lb of ice, keeping production and point-of-use storage in one cabinet.
Regular cube ice makes the URP0140A a practical fit for restaurants, bars and beverage programs that prefer a larger, presentation-focused cube. The undercounter format supports point-of-use placement while avoiding the footprint and installation complexity of a separate modular head and bin.
The URP0140A combines commercial cube production with an integrated storage section for repeated access through the workday. Actual output will vary with air temperature, incoming water temperature, water quality, ventilation and maintenance condition, so the warmer-condition rating is the better planning figure for demanding kitchens.
The listed configuration combines Air-cooled heat rejection, R290 refrigeration, the quoted 115v/60/1-ph, 5.0 amps, cord with NEMA 5-15P electrical arrangement. Electrical, plumbing, drainage and ventilation work must follow the model installation instructions and applicable local codes. Do not size openings or utility connections from the marketing description alone; use the installation drawing for final field work.
Key Features
- Up to 130 lb/day at 70°F air / 50°F water
- 107 lb/day at 90°F air / 70°F water
- Regular cube ice format
- 90-lb integrated storage bin
- Air-cooled configuration
- R290 refrigerant
- Quoted electrical configuration: 115v/60/1-ph, 5.0 amps, cord with NEMA 5-15P
- Listed certifications/marks: AHRI
Best For
restaurants, bars and beverage programs that prefer a larger, presentation-focused cube.

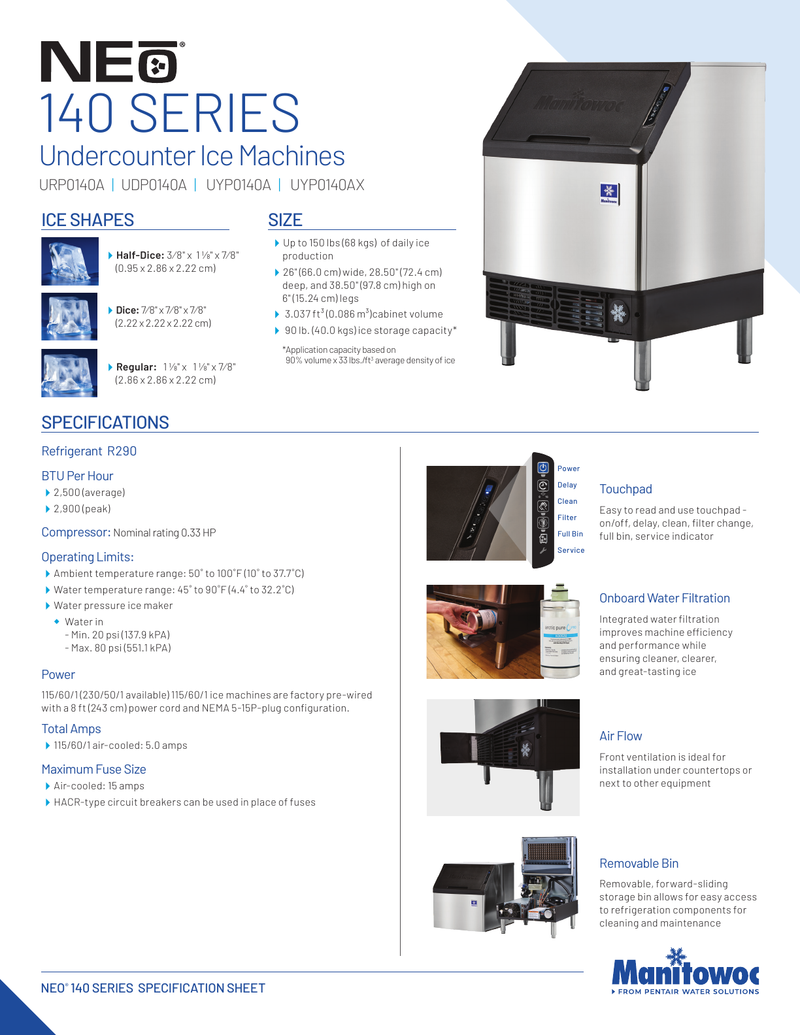

Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | URP0140A |
| Quoted configuration | URP0140A-161B |
| Product family | NEO / undercounter cube |
| Machine type | Ice Maker With Bin, Cube-Style |
| Format | Undercounter with bin |
| Ice type | Regular cube |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 130 lb/24 hr |
| Production at 90°F air / 70°F water | 107 lb/24 hr |
| Storage | 90 lb integrated |
| Dimensions (W × D × H) | Not listed in the supplied product data |
| Electrical | 115v/60/1-ph, 5.0 amps, cord with NEMA 5-15P |
| Refrigerant | R290 |
| Certifications and listed marks | AHRI |
| Lifecycle status | Current |
Warranty
- Confirm the current commercial warranty for this exact model and electrical configuration before publication or sale.
- Coverage is subject to the manufacturer's registration requirements, terms, exclusions and model lifecycle status.
Accessories
- No separate accessory is attached to this model in the supplied quote.
- Confirm water filtration, legs, stand, bin, adapter and installation-kit needs before ordering.
Installation and Maintenance Notes
- Level the cabinet and maintain the manufacturer-required clearances for the selected installation.
- Provide potable water, a correctly routed drain and the electrical service stated for URP0140A-161B; plumbing and electrical work must follow the installation manual and local codes.
- Keep condenser air paths and required ventilation clear; restricted airflow or high ambient temperature can reduce production.
- Size capacity using realistic site conditions. Ice production changes with ambient temperature, incoming water temperature, water quality and maintenance condition.
- Clean and sanitize the food zone on the manufacturer's schedule. Maintain filtration, inspect drains and keep the condenser or ventilation path clean.
