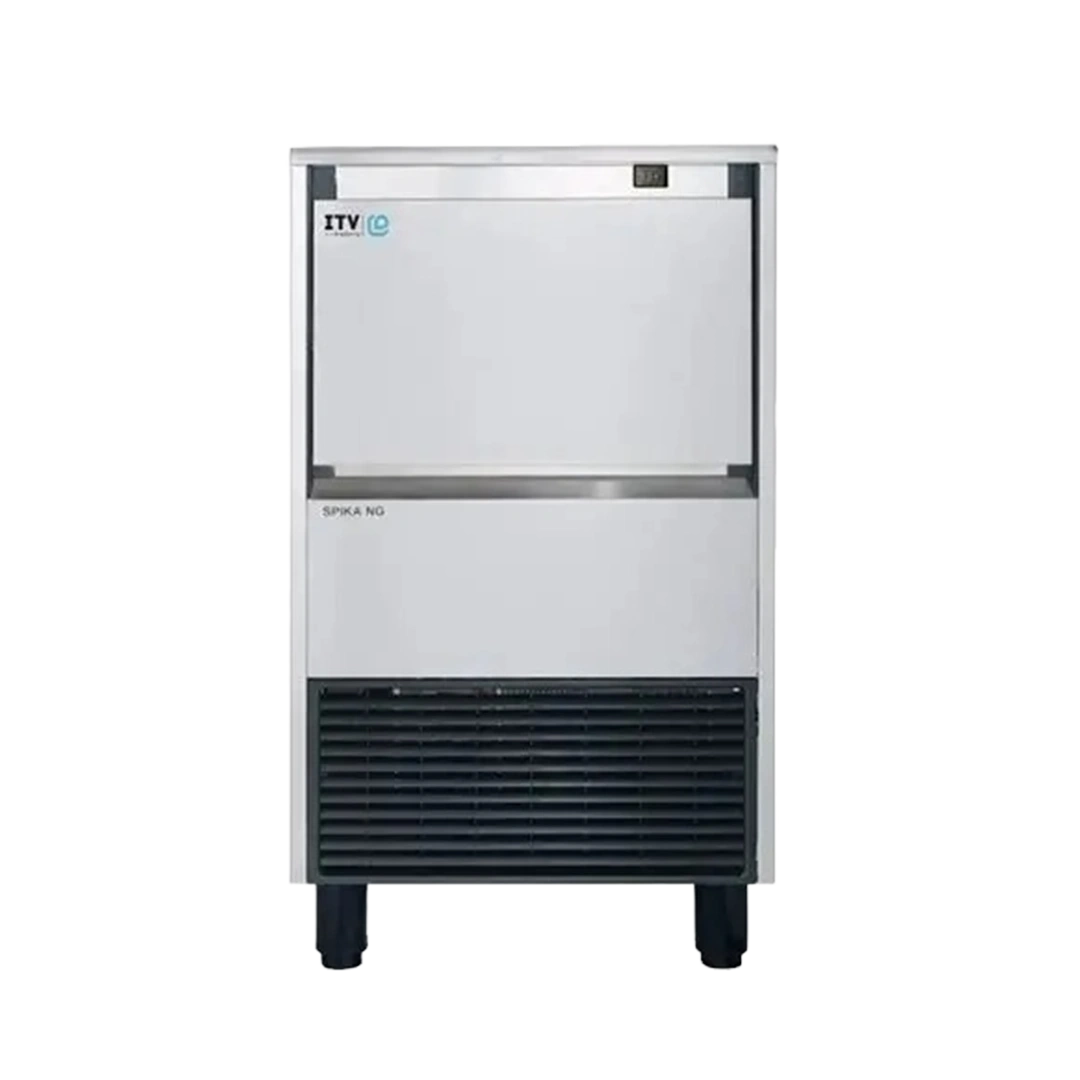

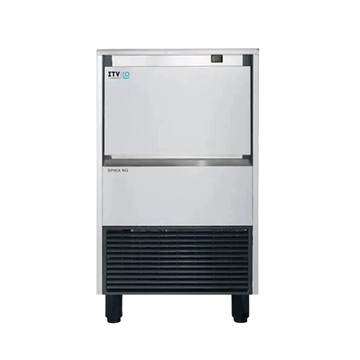

Front view of the ITV SPIKA NG 130 A1H air-cooled half cube undercounter ice machine, rated at 139 lb/day.

ITV Ice Makers SPIKA NG 130 A1H 21" Air-Cooled Half Cube Undercounter Ice Machine – 139 lb/Day with 44 lb Built-In Bin (R290)

Name: ITV Ice Makers SPIKA NG 130 A1H 21" Air-Cooled Half Cube Undercounter Ice Machine – 139 lb/Day with 44 lb Built-In Bin (R290)
Brand: ITV Ice Makers
SKU: 17042U
Price: 2813.5 USD
Availability: InStock

$2,813.50

$2,813.50 ~~$5,627.00~~

Save 50%

Smaller cubes, faster chilling, fuller glasses. The ITV SPIKA NG 130 A1H produces up to 139 lb of half-dice ice a day and stores 44 lb in its built-in bin — all from a compact 21-inch undercounter cabinet that disappears beneath the counter. Half cubes pack densely and cool drinks quickly, making this self-contained machine a favorite behind busy beverage counters. Backed by a rugged AISI 304 stainless STIF frame, a patented stainless door, front-only ventilation, and efficient R290 refrigerant, it's built to keep pace with high-volume service.

Ask a question

Size guide

Share

Estimated Delivery:Jun 21 - Jun 25

ITV Ice Makers SPIKA NG 130 A1H 21" Air-Cooled Half Cube Undercounter Ice Machine – 139 lb/Day with 44 lb Built-In Bin (R290) Description

ITV SPIKA NG 130 A1H — High-Output Half Dice for Busy Beverage Service

If your bottleneck is how fast you can fill cups, smaller ice is the fix. The SPIKA NG 130 A1H delivers up to 139 lb of half-dice cubes per day — slightly more than its full-cube sibling — and holds 44 lb in its integrated bin, all within a tidy 21-inch undercounter footprint that slots neatly into any service line.

Half dice cubes measure about 0.9" × 0.43" × 1.02". Their compact size means more pieces per scoop, denser packing in a cup, and faster cooling — exactly what high-throughput soda fountains, blended-drink stations, and self-serve beverage bars want. The machine forms 75–150 cubes per cycle, and ITV's electronic control keeps that output dependable across a wide temperature range, from a cool 41°F all the way up to a sweltering 109°F.

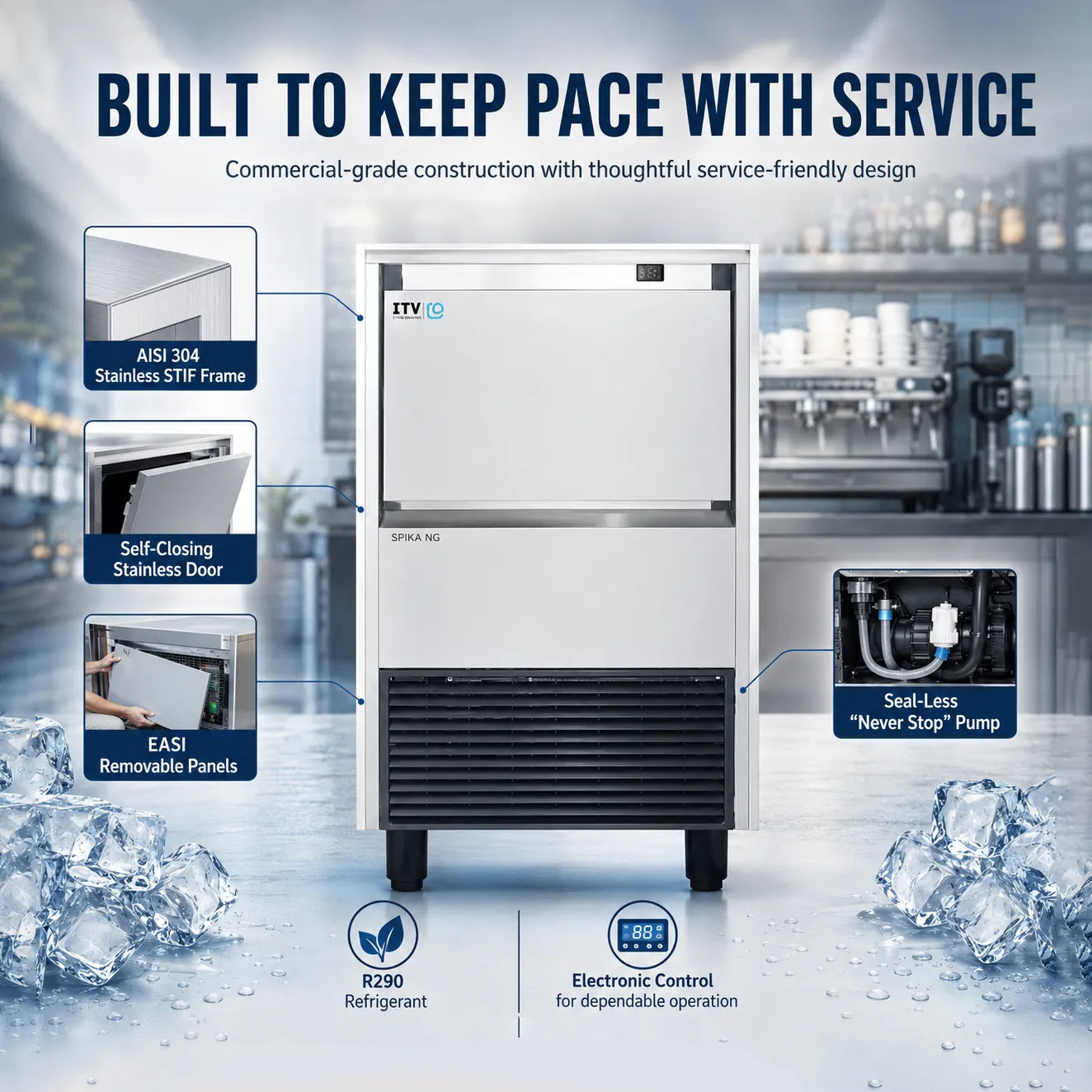

None of that speed comes at the expense of toughness. ITV's STIF (Strong Inox Frame) gives the cabinet a solid four-column AISI 304 stainless backbone, and the patented stainless door self-closes on a damped mechanism designed to outlast everyday abuse. The Smart Front Ventilation System (SFVS) vents entirely through the front for true built-in installation, while the EASI panel design lets a technician pull any panel independently for quick maintenance. A seal-less "Never Stop" pump holds performance steady on hard water, the cleaning switch simplifies descaling, and low-GWP R290 refrigerant keeps the unit efficient and future-ready.

💡Prefer larger, slower-melting cubes for spirits and water service? See the full-cube version — the ITV Ice Makers SPIKA NG 130 A1F 21" Air-Cooled Full Cube Undercounter Ice Machine — same build and footprint, in a classic full-dice shape.

Key Features

Up to 139 lb/day of fast-chilling half-dice cube ice

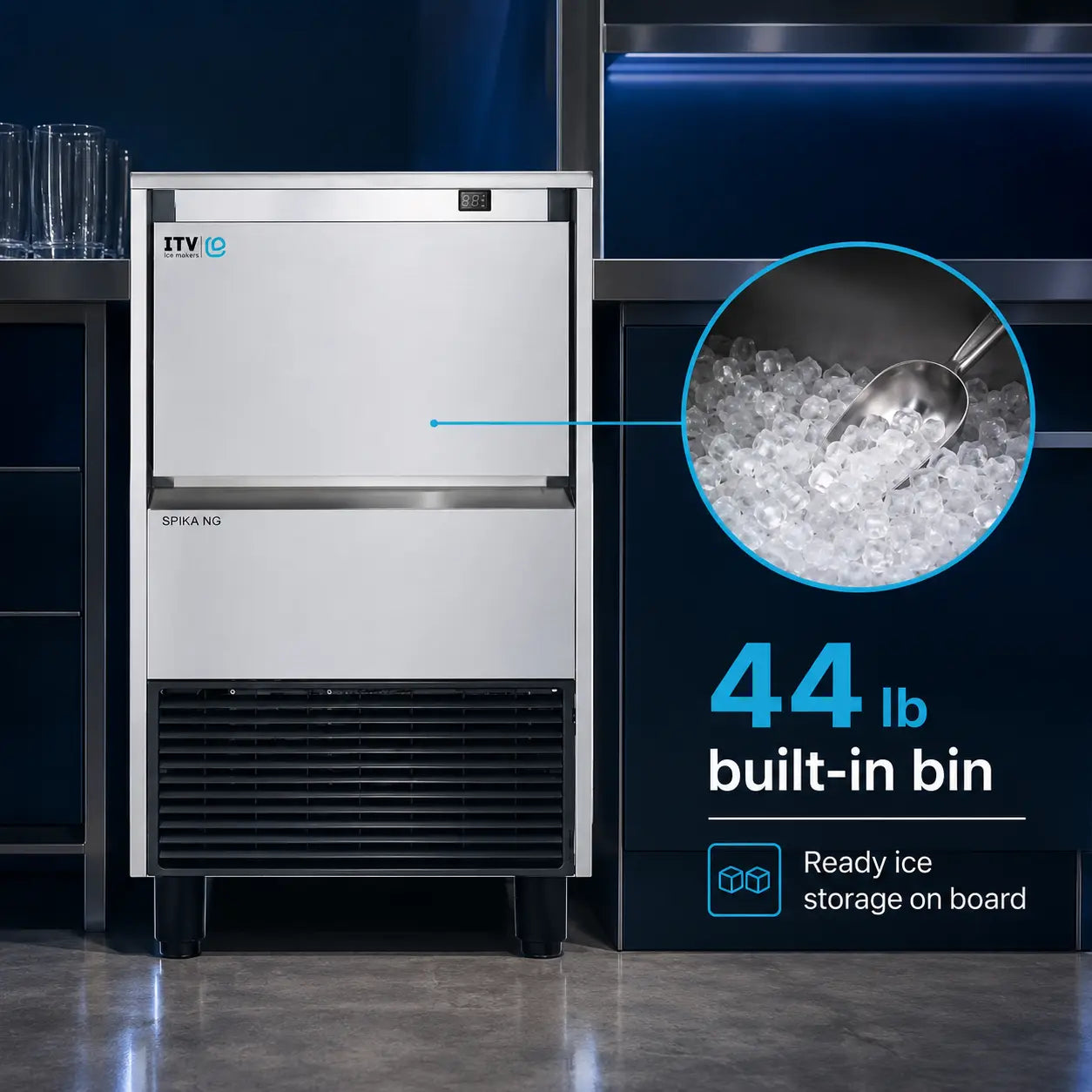

44 lb built-in storage bin

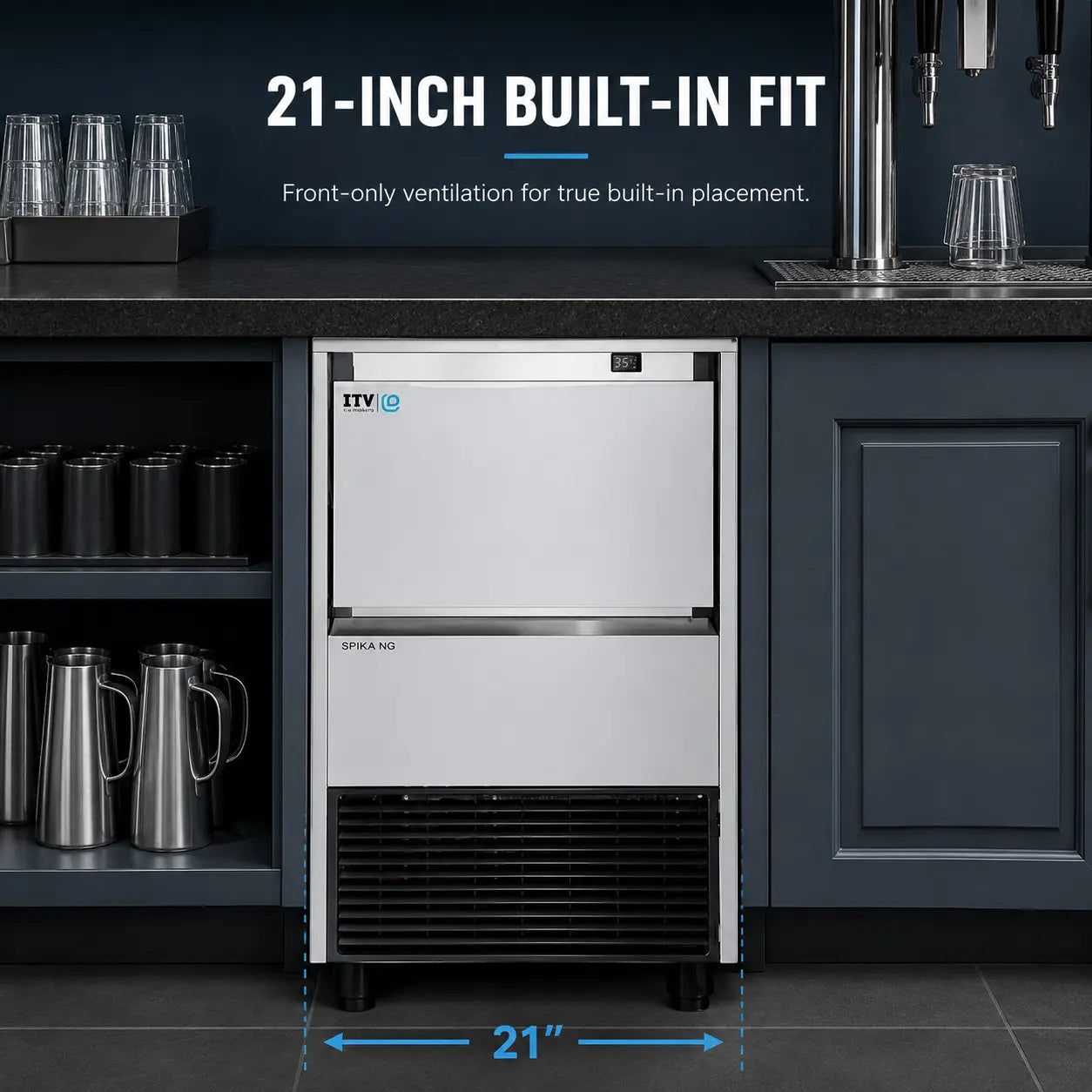

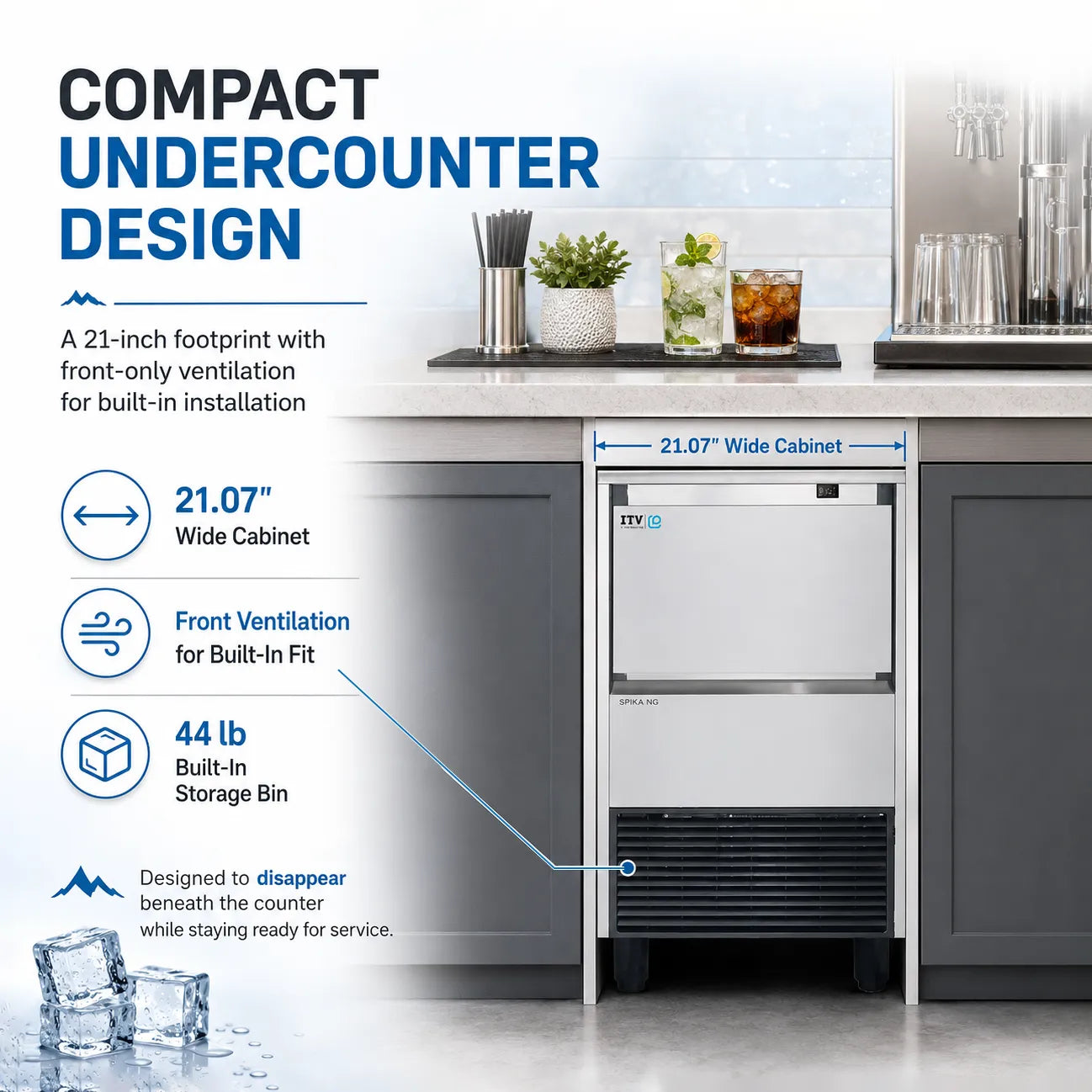

Compact 21-inch cabinet for built-in installation
Half cubes pack densely & cool drinks quickly — ideal for high-volume service

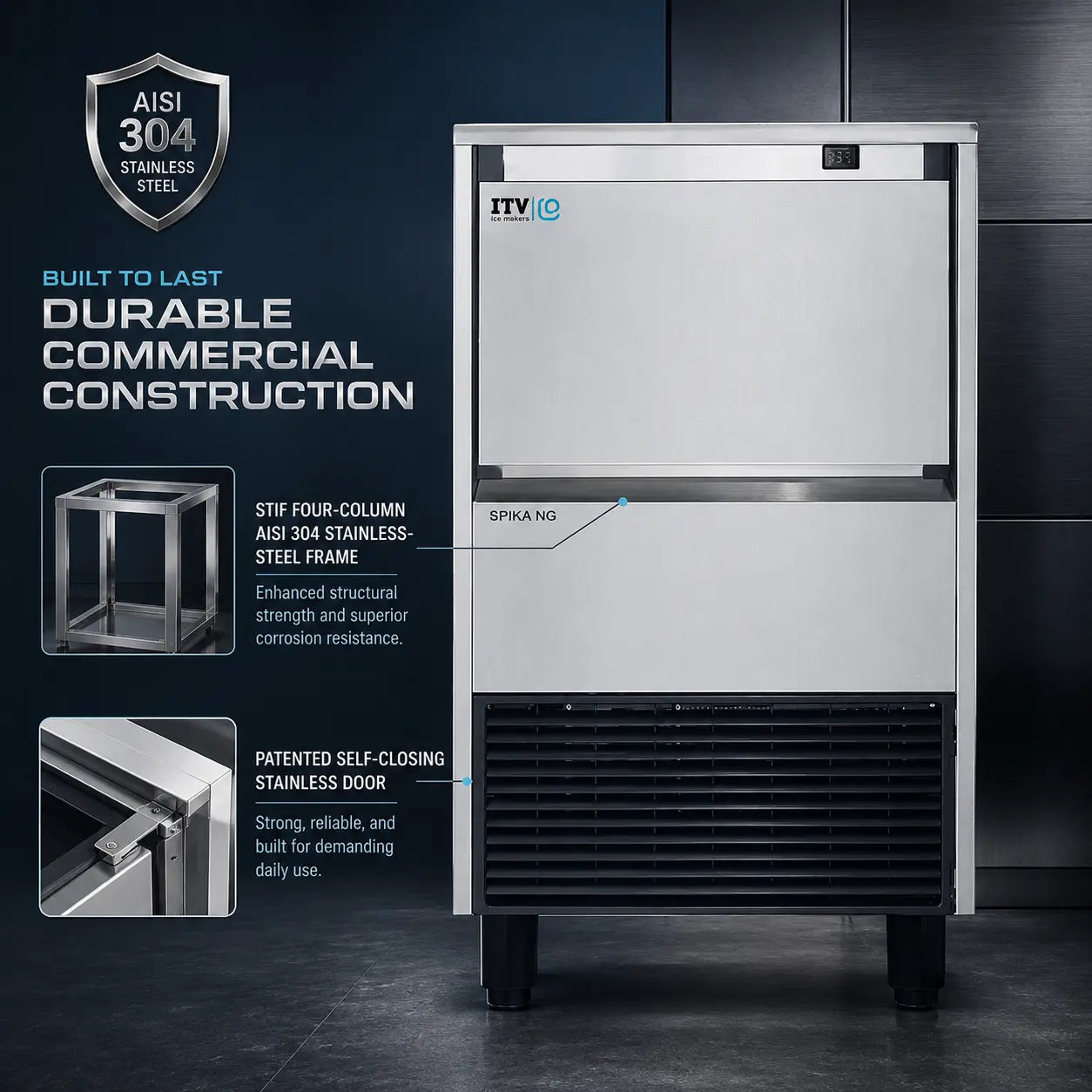

STIF four-column AISI 304 stainless steel frame
Patented, self-closing stainless steel door — the strongest in its class
SFVS front-only ventilation for zero-clearance built-in fit
Seal-less "Never Stop" pump for hard-water reliability
EASI fully removable panels for fast service
No-cool cleaning switch for simple descaling
Climate-adaptive electronic control (41°F–109°F)
Low-GWP R290 natural refrigerant
ENERGY STAR®, NSF, ETL (cETLus) listed; tropicalized T-Class build
115V / 60Hz single-phase

Best For

High-volume soda fountains, QSR and concession counters, cafés, and self-serve beverage stations that need plenty of fast-chilling ice and quick cup fills.

Full Specifications

Specification	Detail
Brand	ITV Ice Makers
Model	SPIKA NG 130 A1H
Item #	17042U
Type	Self-contained undercounter ice cube machine
Ice Type	Half dice cube (0.9"W × 0.43"D × 1.02"H / 23 × 11 × 26 mm)
Cooling	Air-cooled
Refrigerant	R290 (natural gas, low GWP)
Daily Production	Up to 139 lb/day (half dice)
Production – hot conditions	~103 lb/day (90°F air / 70°F water)
Output per cycle	75 / 150 ice cubes per cycle
Built-in Storage Bin	44.1 lb (20 kg)
Cabinet Dimensions (W×D×H)	21.07" × 23.43" × 31.07" (535 × 595 × 789 mm)
Height with legs	~35"–37" (889 / 940 mm)
Shipping/Crated Dimensions (W×D×H)	24.02" × 25.79" × 35.83" (610 × 655 × 910 mm)
Net Weight	106 lb
Shipping Weight	123.5 lb
Electrical	115V / 60Hz / 1-phase (±10%)
Power consumption	862 W (ASHRAE) / 375 W at 109°F
Energy use	8.7 kWh / 100 lb (90°F/70°F)
Heat rejection	1,605 BTU/h (470 W)
Wiring / Fuse	16 AWG (1.5 mm²) / 16 A fuse
Water Usage	21.6 gal / 100 lb (≈4.7 L/h)
Water Inlet	3/8" FPT
Drain	3/4" FPT
Water Supply Pressure	14.5 psi (1 bar) – 87 psi (6 bar)
Operating Ambient Temp	41°F – 109°F (5°C – 43°C)
Operating Water Temp	41°F – 95°F
Certifications	ENERGY STAR®, NSF, ETL (cETLus / Intertek)
Build Class	Tropicalized (T-Class), AISI 304 stainless steel

Warranty

Ice maker: 3 years parts & labour
Evaporator: 5 years parts & labour
Compressor: 5 years parts

Accessories

Included: 6" height-adjustable leg kit; ice scoop
Optional: PRO-101 K 10" anti-limescale + anti-chlorine filter

ITV Ice Makers SPIKA NG 130 A1H 21" Air-Cooled Half Cube Undercounter Ice Machine – 139 lb/Day with 44 lb Built-In Bin (R290) Features

Premium Quality

Build to Last

Compact Design

Fits Anywhere

Stainless Steel

Durable Steel Exterior

Fast Production

Ready in Minutes

Air Cooled

Uses Air for Cooling

ITV Ice Makers SPIKA NG 130 A1H 21" Air-Cooled Half Cube Undercounter Ice Machine – 139 lb/Day with 44 lb Built-In Bin (R290) Resources

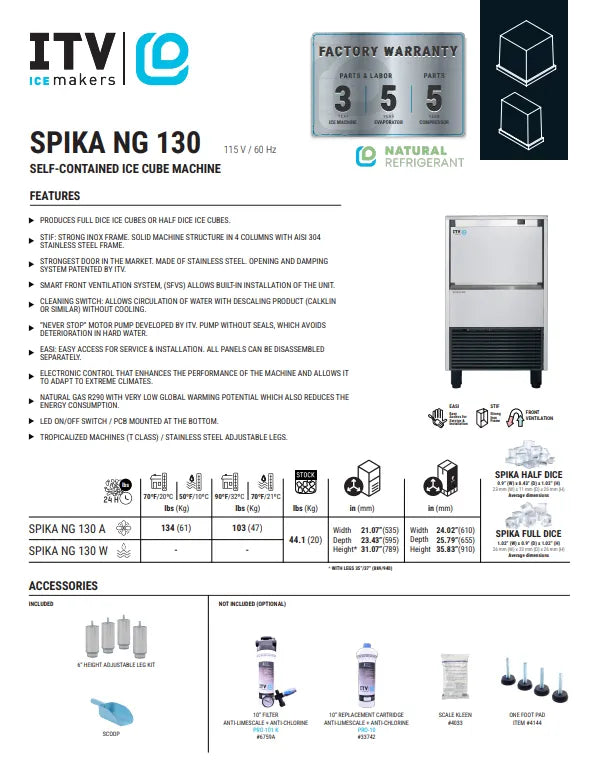

Specification
