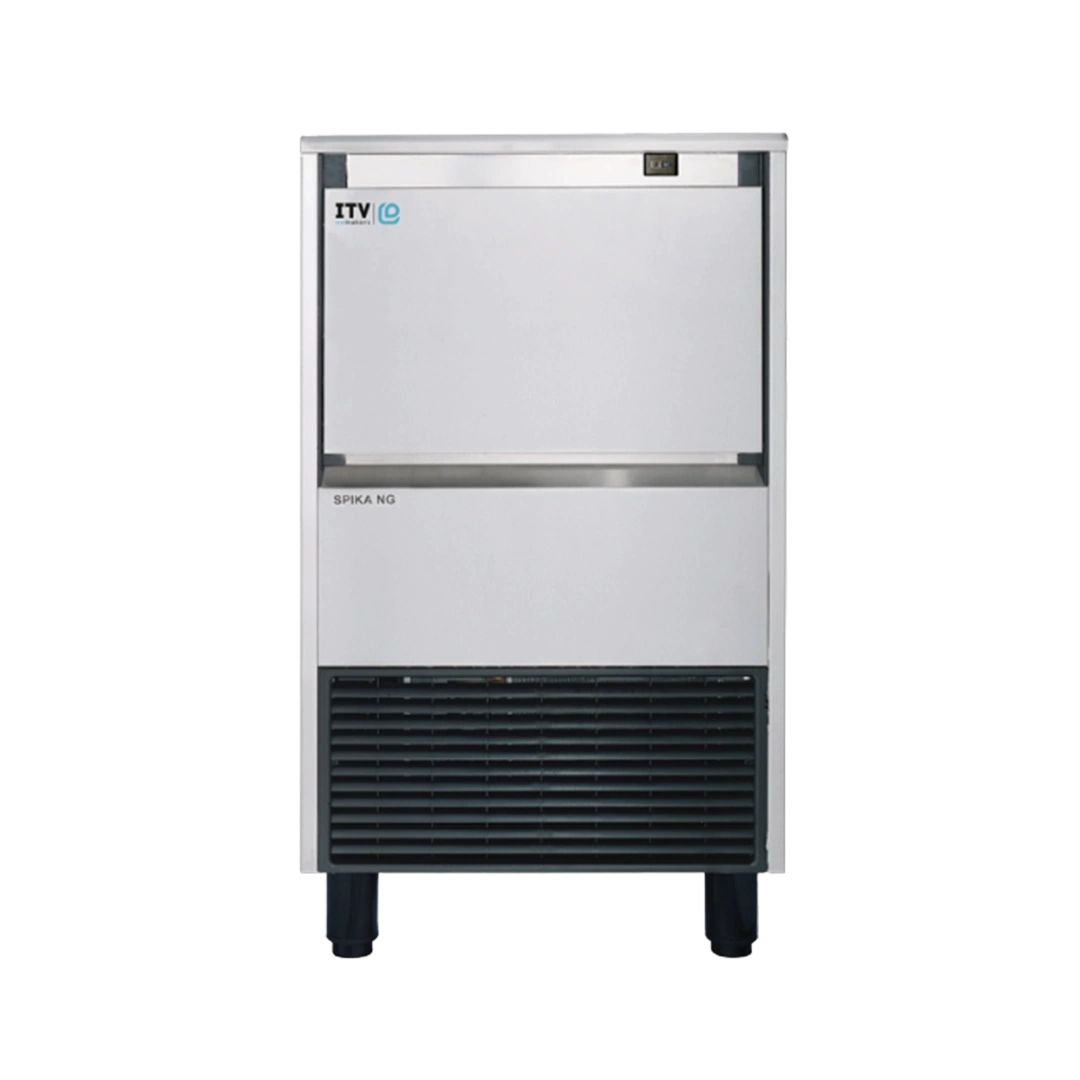

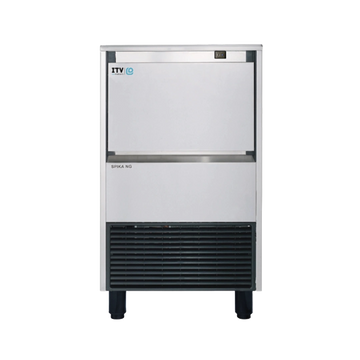

ITV Ice Makers SPIKA NG 130 A1F 21" Air-Cooled Full Cube Undercounter Ice Machine – 134 lb/Day with 44 lb Built-In Bin (R290) Description
ITV SPIKA NG 130 A1F — Full Dice Cube Ice, Built to Last
When you want the familiar, restaurant-grade cube that melts slowly and looks great in the glass, the SPIKA NG 130 A1F is the answer. This self-contained, air-cooled undercounter unit produces up to 134 lb of full dice cubes every 24 hours and stores up to 44 lb right beneath the counter — enough to keep a bar, café, or break room stocked through the daily rush without a separate ice bin.
Full dice cubes measure roughly 1.02" × 0.9" × 1.02" — the larger "American cube" prized for spirits, soft drinks, water service, and bagging. They melt slowly, dilute drinks less, and hold their shape in the glass. The machine forms 75–150 cubes per freeze cycle and uses ITV's electronic control to hold output steady whether the room is cool or pushing past 100°F.
Durability is where ITV earns its reputation. The STIF (Strong Inox Frame) wraps the machine in a rigid four-column AISI 304 stainless structure, and the patented stainless door opens and self-closes on a damped hinge built to outlast the competition. Smart Front Ventilation (SFVS) draws and exhausts air through the front, so the cabinet drops fully into a built-in run with no side clearance. When service is needed, every panel comes off independently (ITV's EASI design), and the seal-less "Never Stop" pump keeps running cleanly in hard-water conditions. Add the no-cool cleaning switch for easy descaling and low-GWP R290 refrigerant, and you get a machine that's efficient today and ready for tomorrow's regulations.
💡Need smaller, faster-chilling ice for high-volume drink service? See the half-cube version — the ITV Ice Makers SPIKA NG 130 A1H 21" Air-Cooled Half Cube Undercounter Ice Machine — identical build and footprint, in a compact half-dice shape.
Key Features
- Up to 134 lb/day of classic full dice cube ice
- 44 lb built-in storage bin

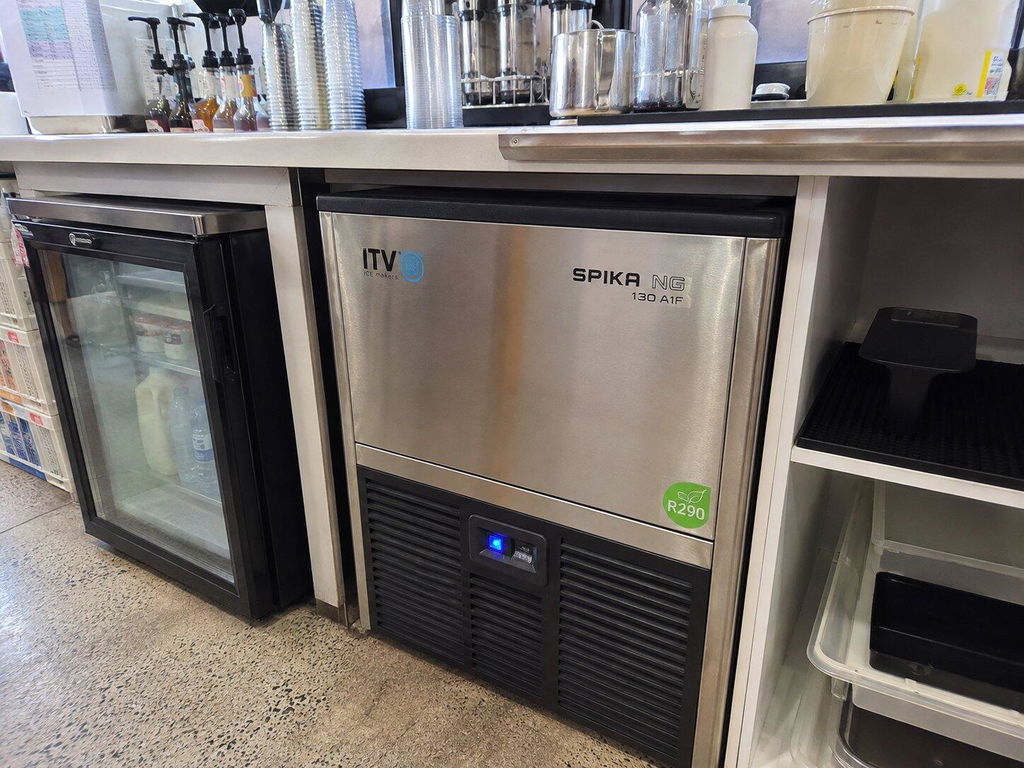

- Slim 21-inch cabinet designed for built-in installation
- Slow-melting full cubes ideal for spirits, soft drinks & water service
- STIF four-column AISI 304 stainless steel frame
- Patented, self-closing stainless steel door — the strongest in its class

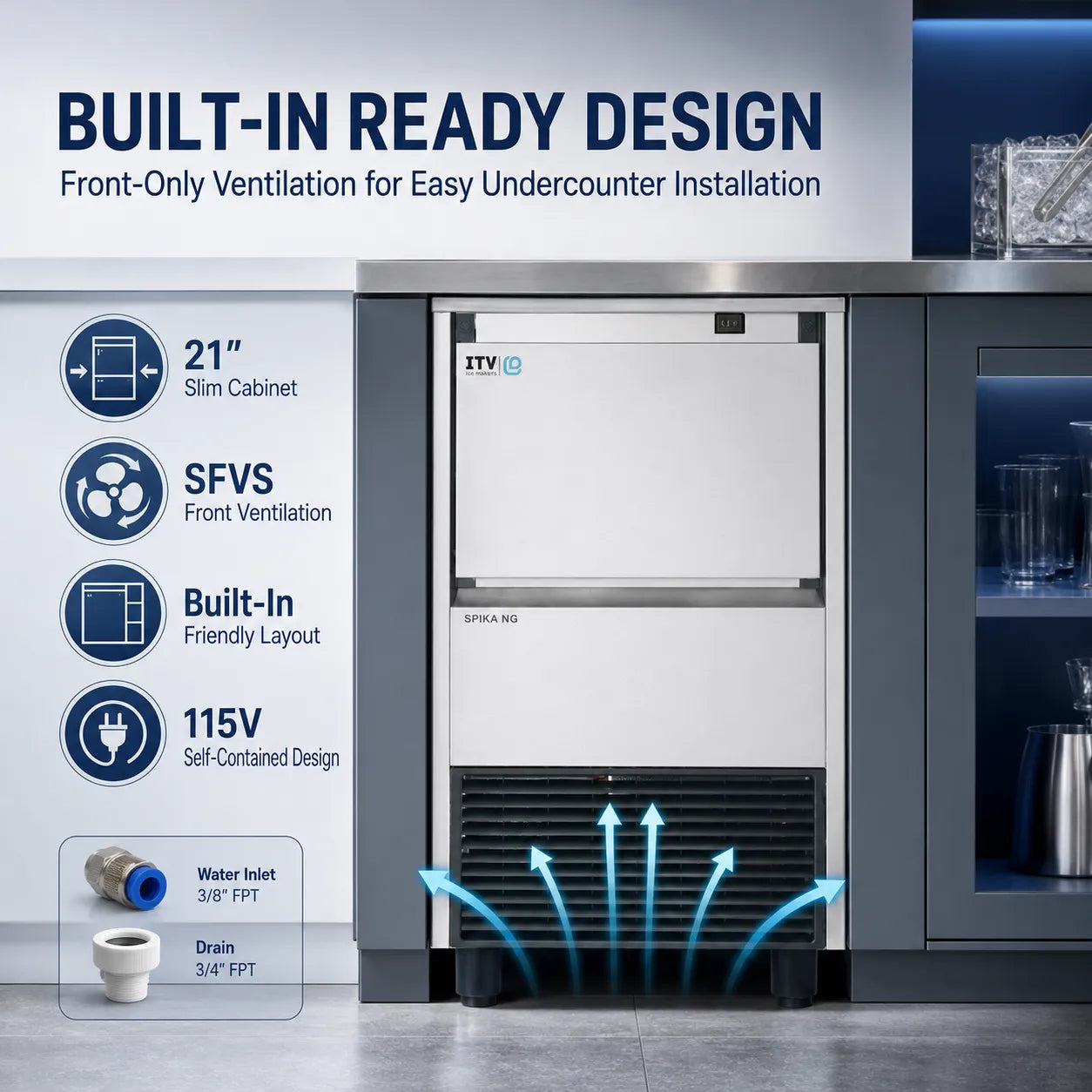

- SFVS front-only ventilation for zero-clearance built-in fit
- Seal-less "Never Stop" pump for hard-water reliability
- EASI fully removable panels for fast service
- No-cool cleaning switch for simple descaling
- Climate-adaptive electronic control (41°F–109°F)
- Low-GWP R290 natural refrigerant
- ENERGY STAR®, NSF, ETL (cETLus) listed; tropicalized T-Class build
- 115V / 60Hz single-phase
Best For
Cocktail and service bars, restaurants, coffee shops, and break rooms that want the classic, slow-melting cube for premium drink presentation and water service.
Full Specifications
| Specification | Detail |
|---|---|
| Brand | ITV Ice Makers |
| Model | SPIKA NG 130 A1F |
| Item # | 18042U |
| Type | Self-contained undercounter ice cube machine |
| Ice Type | Full dice cube (1.02"W × 0.9"D × 1.02"H / 26 × 23 × 26 mm) |
| Cooling | Air-cooled |
| Refrigerant | R290 (natural gas, low GWP) |
| Daily Production | Up to 134 lb/day (nominal, 70°F air / 50°F water) |
| Production – Hot Conditions | Approx. 103 lb/day (90°F air / 70°F water) |
| Production Range | Approx. 60–141 lb/day depending on ambient and water temperature |
| Output per Cycle | 75 / 150 ice cubes per cycle |
| Built-in Storage Bin | 44.1 lb (20 kg) |
| Cabinet Dimensions (W × D × H) | 21.07" × 23.43" × 31.07" (535 × 595 × 789 mm) |
| Height with Legs | Approx. 35"–37" (889 / 940 mm) |
| Shipping/Crated Dimensions (W × D × H) | 24.02" × 25.79" × 35.83" (610 × 655 × 910 mm) |
| Net Weight | 106 lb |
| Shipping Weight | 123.5 lb |
| Electrical | 115V / 60Hz / 1-phase (±10%) |
| Power Consumption | 862 W (ASHRAE) / 375 W at 109°F |
| Energy Use | 8.7 kWh / 100 lb (90°F / 70°F) |
| Heat Rejection | 1,605 BTU/h (470 W) |
| Wiring / Fuse | 16 AWG (1.5 mm²) / 16 A fuse |
| Water Usage | 21.6 gal / 100 lb (approx. 4.7 L/h) |
| Water Inlet | 3/8" FPT |
| Drain | 3/4" FPT |
| Water Supply Pressure | 14.5 psi (1 bar) – 87 psi (6 bar) |
| Operating Ambient Temperature | 41°F – 109°F (5°C – 43°C) |
| Operating Water Temperature | 41°F – 95°F |
| Certifications | ENERGY STAR®, NSF, ETL (cETLus / Intertek) |
| Build Class | Tropicalized (T-Class), AISI 304 stainless steel |
Warranty
- Ice maker: 3 years parts & labour
- Evaporator: 5 years parts & labour
- Compressor: 5 years parts
Accessories
- Included: 6" height-adjustable leg kit; ice scoop
- Optional: PRO-101 K 10" anti-limescale + anti-chlorine filter (#6759A); PRO-10 10" replacement cartridge (#33742); Scale Kleen descaler (#4033); One Foot Pad (Item #4144)
