ITV Ice Makers SPIKA MS500W1F 30" Water-Cooled Modular Full-Dice Cube Ice Machine – 507 lb/Day (Head Only)

Name: ITV Ice Makers SPIKA MS500W1F 30" Water-Cooled Modular Full-Dice Cube Ice Machine – 507 lb/Day (Head Only)
Brand: ITV Ice Makers
SKU: 18205
Price: 4259.5 USD
Availability: InStock

$4,259.50

$4,259.50 ~~$8,519.00~~

Save 50%

The ITV SPIKA MS500W1F is a 30"-wide water-cooled modular ice machine head that makes up to 507 lb (230 kg) of classic full-dice cube ice per day. It combines two strengths: a water-cooled condenser that holds production steady in hot or poorly ventilated rooms without dumping heat into the space, and the larger, slow-melting full-dice cube preferred for bars and premium beverage service. This is a head-only unit that sits on a separate storage bin and can be stacked two-high.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS500W1F 30" Water-Cooled Modular Full-Dice Cube Ice Machine – 507 lb/Day (Head Only) Description

This model is the water-cooled, full-dice member of the SPIKA MS500 family — a good fit when you want a premium cube but the install location is warm, enclosed, or poorly ventilated. Because it rejects heat into condenser water rather than the surrounding air, the MS500W1F keeps producing at a consistent rate where an air-cooled machine would fade, and it runs a little more efficiently on electricity (4.3 vs. 5.3 kWh per 100 lb). The trade-off is water: a water-cooled condenser uses substantially more of it and needs a proper supply and drain, so it's best reserved for sites where ambient heat or ventilation rules out air cooling.

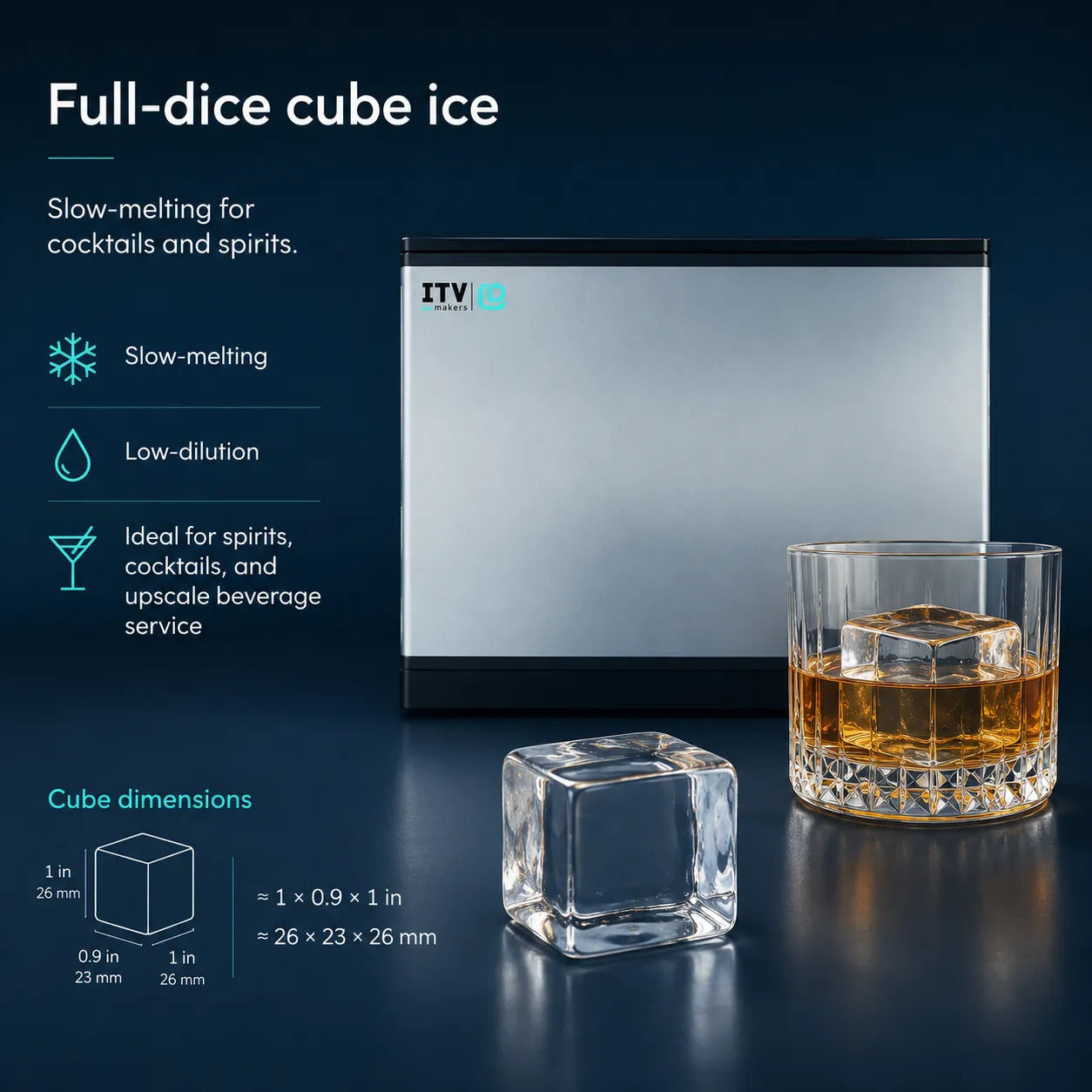

The full-dice cube measures about 1" × 0.9" × 1" (26 × 23 × 26 mm) — a substantial, traditional cube that melts slowly and dilutes drinks less, ideal for spirits, cocktails, and upscale fountain service. The machine forms about 200 cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor that cascades water across the entire evaporator for clean, consistent cubes. At nominal conditions, it makes 507 lb (230 kg) per day and 456 lb (207 kg) at ASHRAE conditions, ranging from roughly 432 to 531 lb per day depending on conditions — and because it's water-cooled, that output stays steady regardless of room temperature.

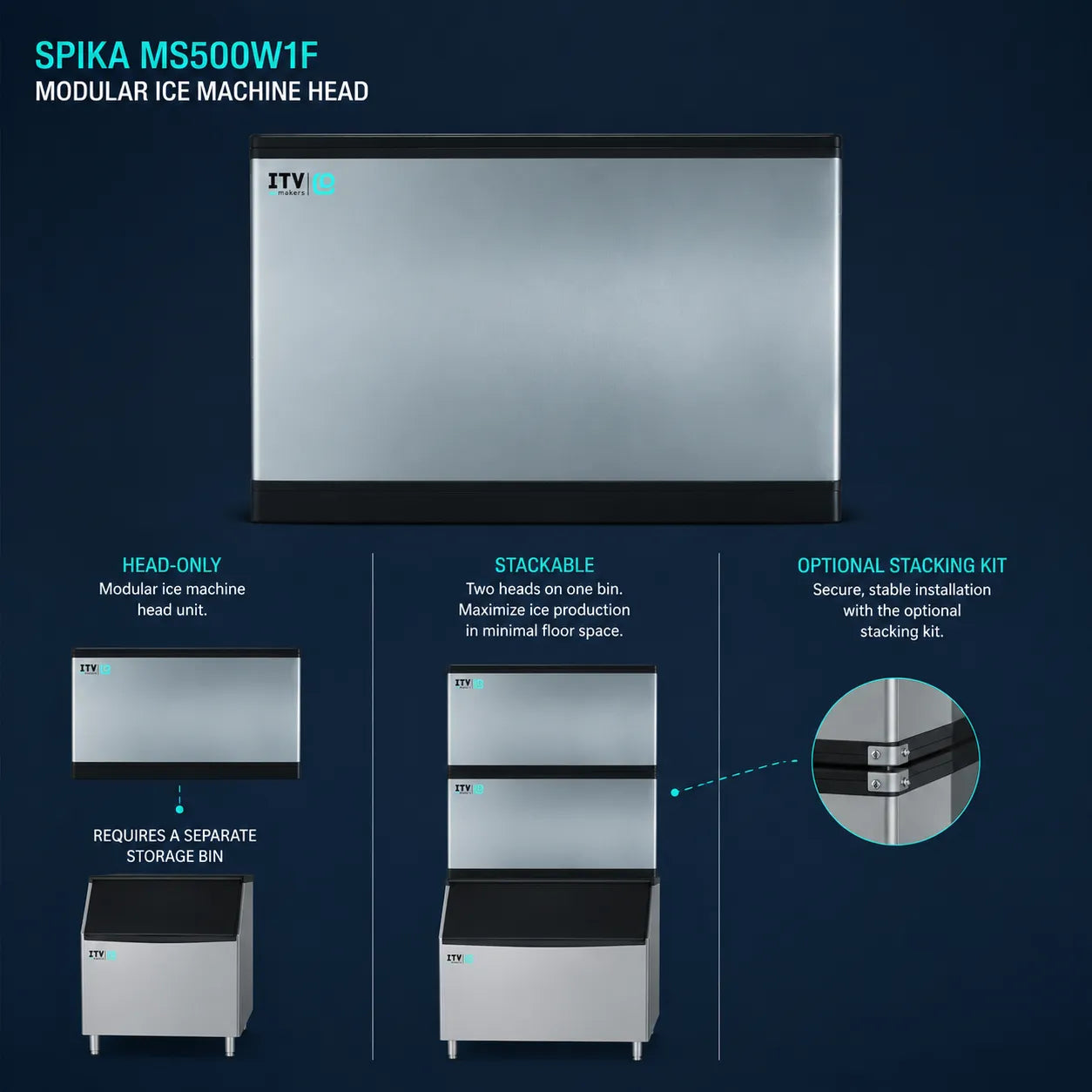

On a 30" footprint, it pairs with a range of ITV storage bins and is stackable — two heads on one large bin with the optional stacking kit. A smart electronic control board manages every parameter and shows self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. It runs on 208–230 V single-phase power.

Key Features

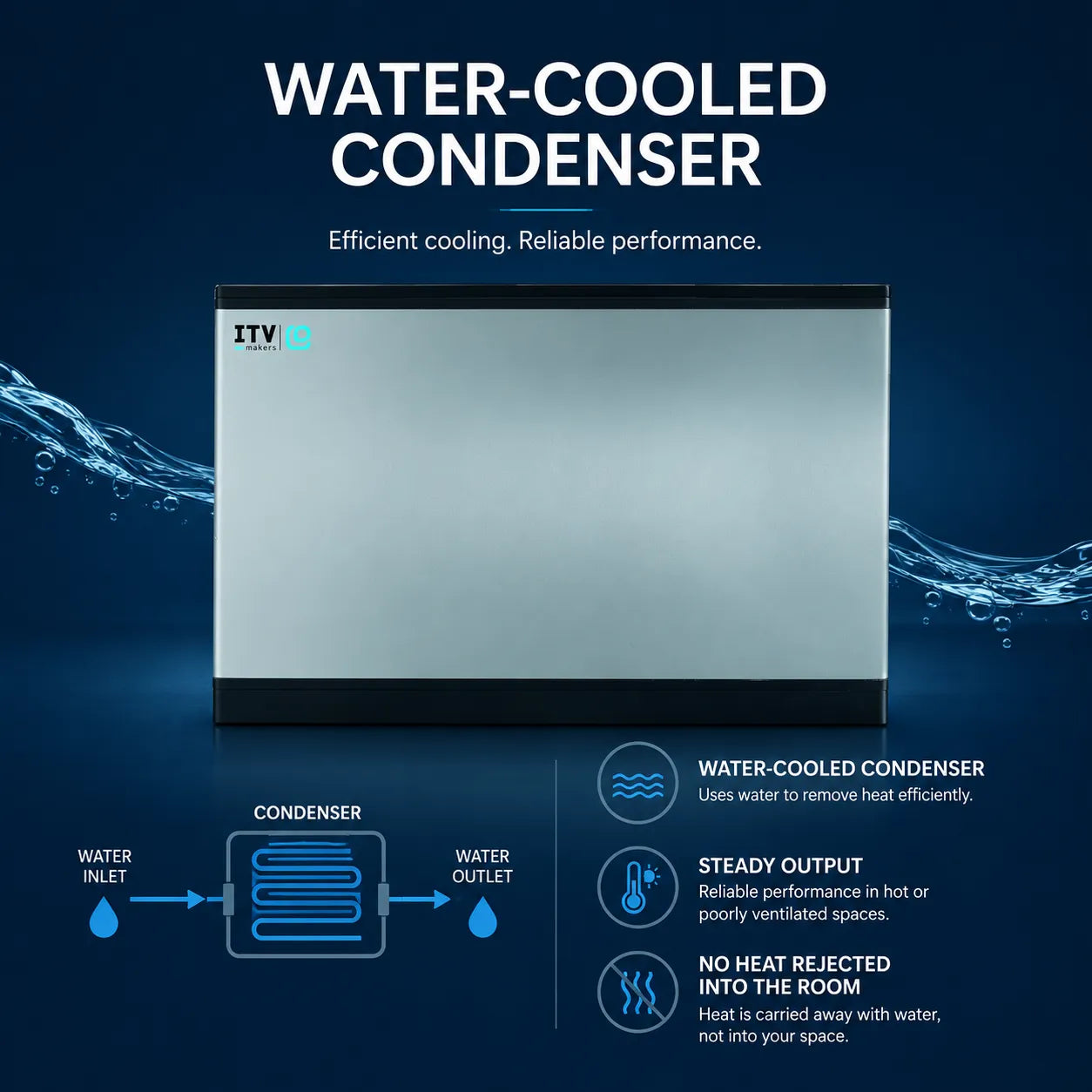

Water-cooled condenser: steady output in hot or poorly ventilated spaces; no heat rejected into the room
Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — slow-melting, low-dilution "Classic American" cube

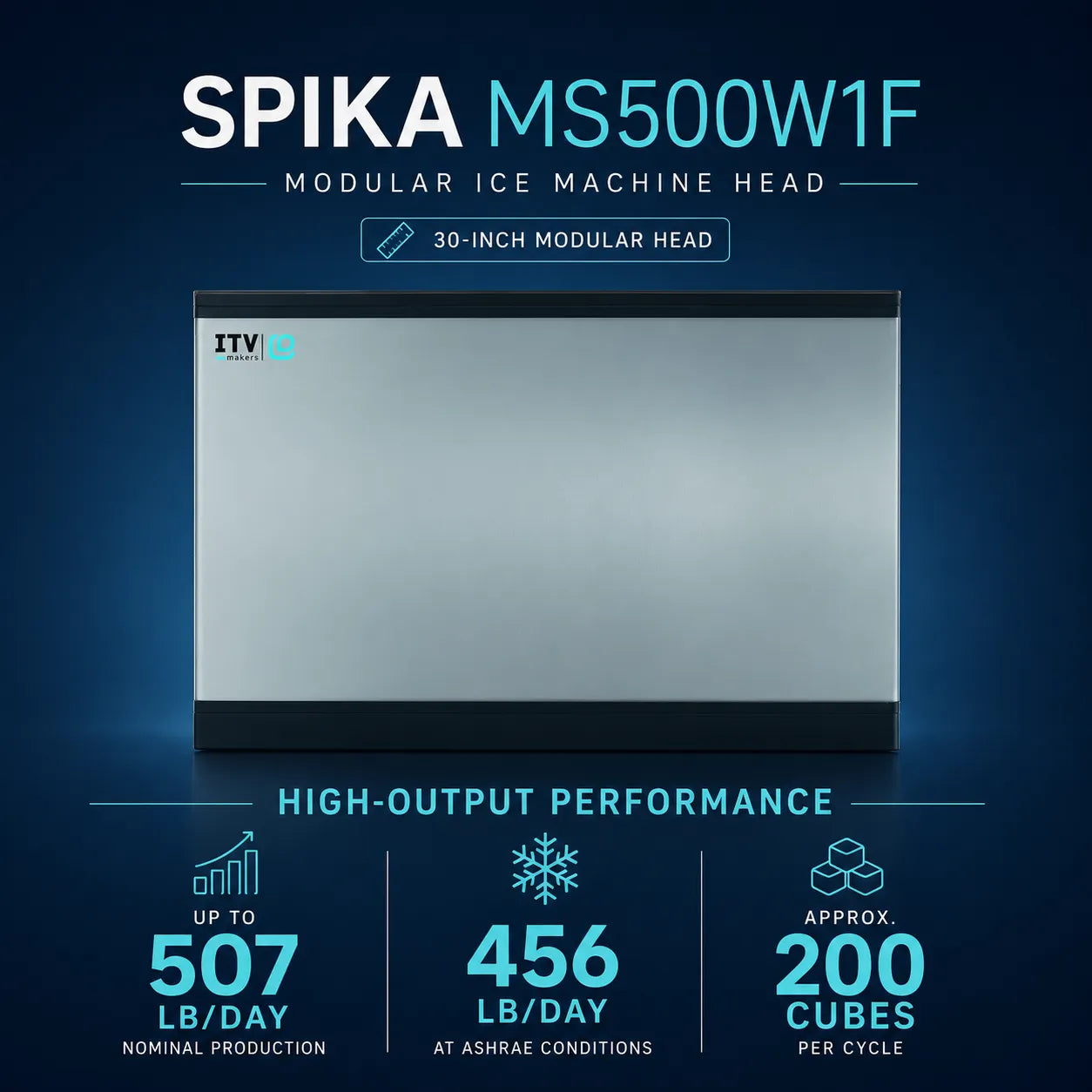

High output: up to 507 lb (230 kg) per day nominal; 456 lb (207 kg) at ASHRAE
More electrically efficient: 4.3 kWh / 100 lb (vs. 5.3 for the air-cooled version)
Approx. 200 cubes per cycle
Stackable: two heads on one bin with the optional stacking kit
208–230 V / 60 Hz / single-phase power
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

Bars and premium beverage service in kitchens where heat or limited ventilation makes air cooling impractical
Spirits and cocktail programs that want a slow-melting, low-dilution cube
Sites with a reliable water supply and drain that need steady, ambient-independent production
Operations that may scale up later by stacking a second head on the same bin

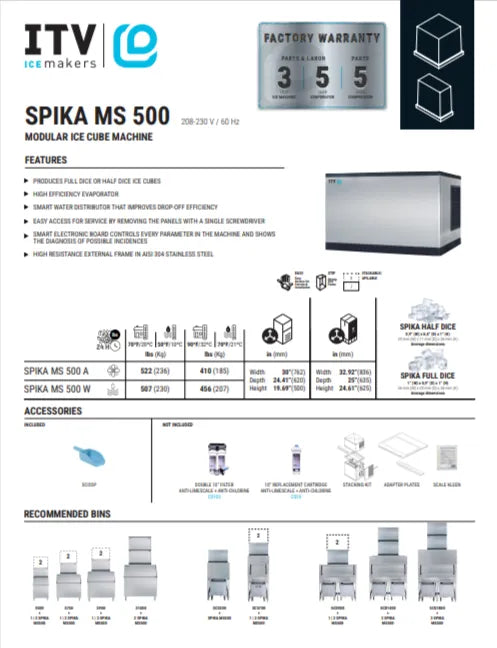

Full Specifications

Specification	Detail
Ice Type	Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm)
Machine Type	Modular ice machine head (requires separate storage bin); stackable 2-high
Condenser / Cooling	Water-cooled
Ice Production (nominal)	507 lb (230 kg) / 24 h
Ice Production (ASHRAE)	456 lb (207 kg) / 24 h
Production Range (across conditions)	~432–531 lb (196–241 kg) / 24 h
Cubes per Cycle	~200
Refrigerant	R404A
Electrical	208–230 V / 60 Hz / 1-phase (±10%)
Power Consumption (at 109°F)	1,220 W
ASHRAE Cooling Capacity	10,639 BTU/h (3,118 W)
Heat Rejected	8,250 BTU/h (2,418 W)
Energy Use	4.3 kWh / 100 lb of ice
Water Consumption	577 gal / 100 lb of ice (91.1 L/h) — includes single-pass condenser water
Wiring / Fuse	12 AWG (2.5 mm²), 3-conductor / 16 A fuse
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range	41–109°F (5–43°C)
Water Temp. Range	41–95°F (5–35°C)
Cabinet Dimensions (W × D × H)	30" × 24.41" × 19.69" (762 × 620 × 500 mm)
Shipping Dimensions (W × D × H)	32.92" × 25" × 24.61" (836 × 635 × 625 mm)
Net Weight	143 lb (65 kg)
Shipping Weight	174 lb (79 kg)
Certifications	NSF, ETL (Intertek)

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Optional (not included):

CS102 — double 10" anti-limescale + anti-chlorine water filter
CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
Stacking kit — to install two heads on a single bin
Adapter plates — for mounting on various storage bins
Scale Kleen — descaling/cleaning solution

Recommended storage bins: SCS350 (recommended); also pairs with S500, S750, S900, S1050, SCS700, SCD900, SCD1400, and SCD1800 (larger bins support two stacked heads).

💡The SPIKA MS500W1F is a head-only unit and needs a separate storage bin to operate. Have good ventilation and want to avoid the extra water use? The air-cooled SPIKA MS500A1F makes the same full-dice cube. Need a smaller, faster-chilling cube for high-volume fountain service? See the half-dice SPIKA MS500W1H.
