ITV Ice Makers SPIKA MS400-22A1F 22" Air-Cooled Modular Full-Dice Cube Ice Machine – 432 lb/Day (Head Only)
-
Estimated Delivery:Jun 24 - Jun 28
ITV Ice Makers SPIKA MS400-22A1F 22" Air-Cooled Modular Full-Dice Cube Ice Machine – 432 lb/Day (Head Only) Description
Full-dice cubes measure about 1" × 0.9" × 1" (26 × 23 × 26 mm) — a substantial, traditional cube that melts slowly and dilutes drinks less, making it the go-to choice for spirits, cocktails, and premium fountain and bar service. The SPIKA MS400-22A1F forms these cubes on a vertical plate evaporator using ITV's patented smart water distributor, which cascades water across the entire evaporator so each cube takes shape cleanly and consistently.

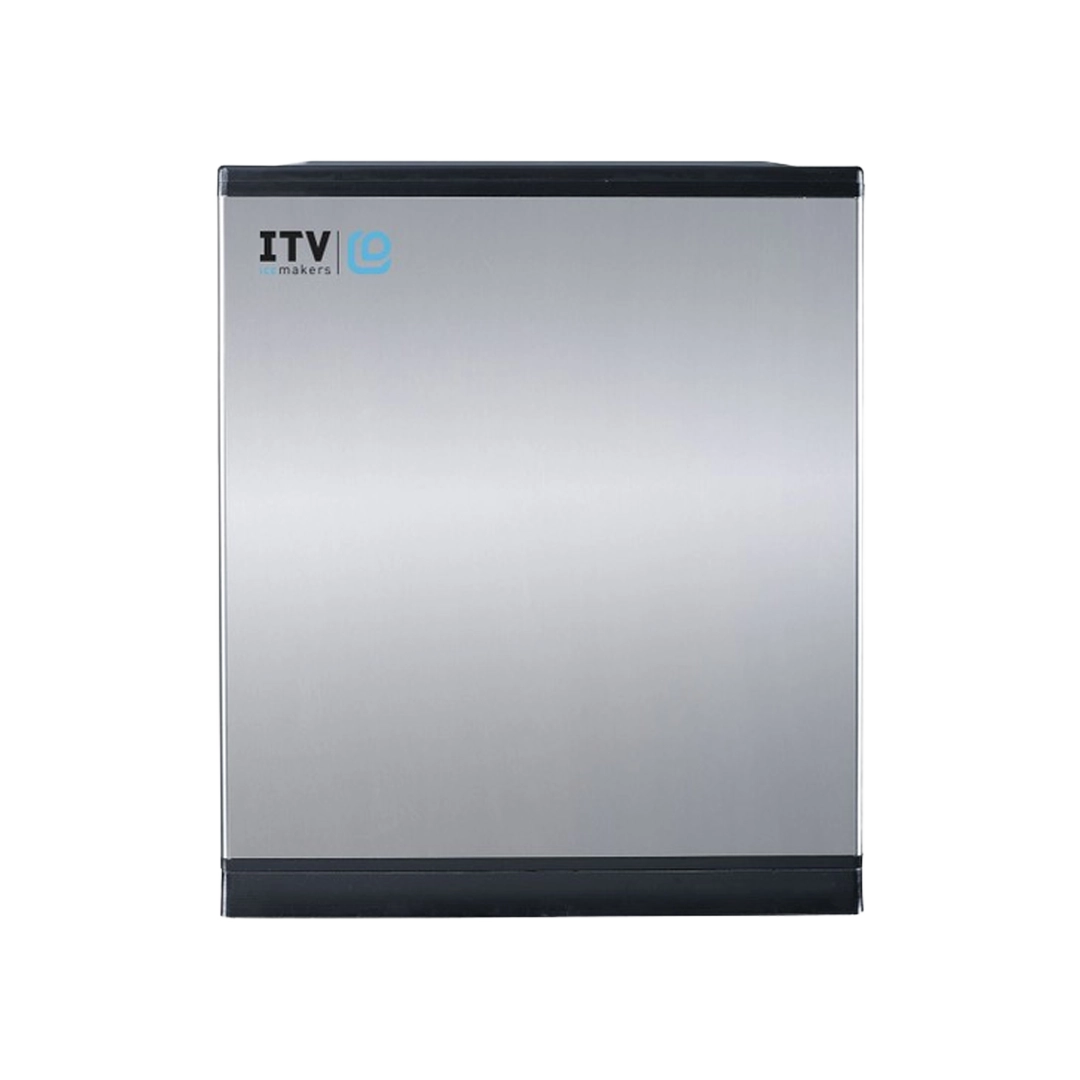

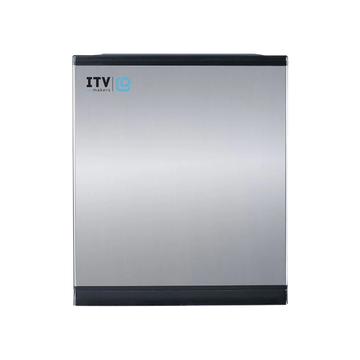

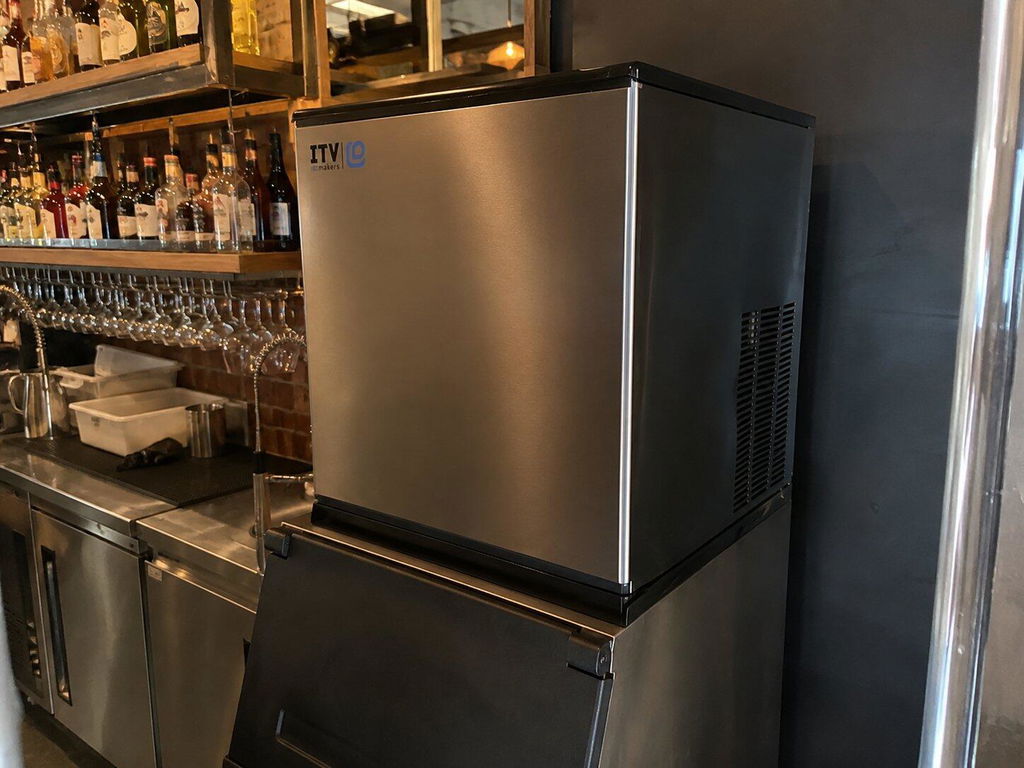

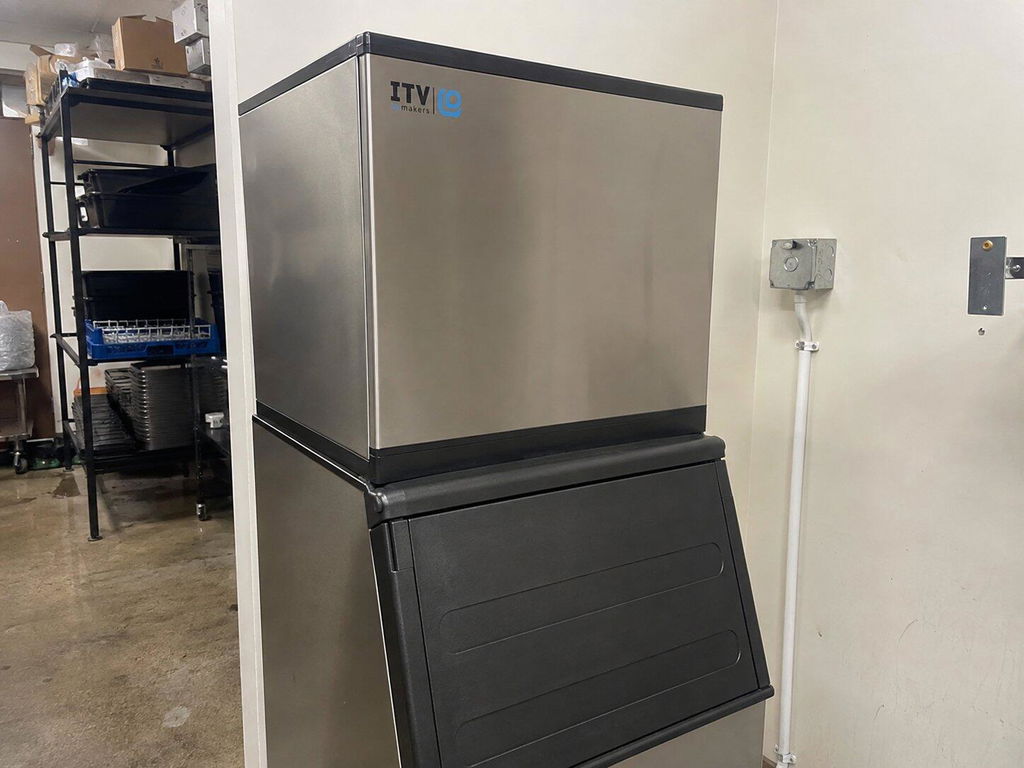

Built as a compact 22"-wide modular head, it's designed to pair with one of several storage bins to match your volume. A smart electronic control board manages every parameter of the machine. It displays self-diagnostics if a fault occurs, while panels that come off with a single screwdriver make routine service fast. The high-resistance AISI 304 stainless steel frame stands up to demanding commercial kitchens, and at just 65 lb the head is easy to handle during installation.
As an air-cooled machine, it rejects heat into the surrounding air for straightforward installation wherever there's adequate ventilation. It runs on standard 115V single-phase power, so it doesn't require special electrical service.
Key Features
- Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — slow-melting, low-dilution "Classic American" cube
- High output: up to 432 lb (196 kg) of ice per day
- Approx. 150 cubes per cycle
- Standard power: 115V / 60Hz / single-phase — no special electrical service required
- Air-cooled for simple installation wherever there's adequate ventilation
- Patented smart water distributor cascades water over the entire evaporator for clean, consistent cubes and better scale resistance
- High-efficiency vertical plate evaporator for lower operating cost
- Smart electronic control board manages every parameter and shows self-diagnostics
- Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
- High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
- Ice scoop included
- NSF and ETL (Intertek) certified
Best For
- Bars, lounges, and restaurants serving spirits and cocktails where slow-melting, low-dilution cubes matter
- Upscale fountain and beverage service
- Hotels, banquet, and catering operations wanting a premium cube
- Any 22"-footprint installation with standard 115V power and a matching storage bin

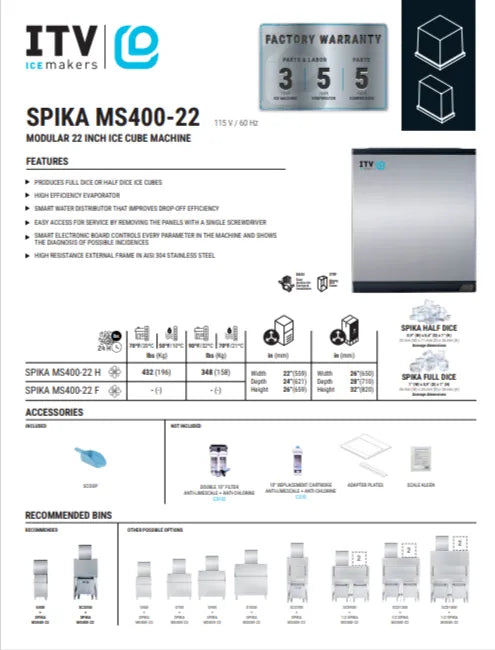

Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm) |
| Machine Type | Modular ice machine head (requires separate storage bin) |
| Condenser / Cooling | Air-cooled |
| Ice Production (nominal) | Up to 432 lb (196 kg) / 24 h |
| Cubes per Cycle | ~150 |
| Refrigerant | R404A |
| Electrical | 115 V / 60 Hz / 1-phase (±10%) |
| Power Consumption (at 109°F) | 910 W |
| ASHRAE Cooling Capacity | 8,501 BTU/h (2,490 W) |
| Heat Rejected | 5,227 BTU/h (1,531 W) |
| Energy Use | 4.48 kWh / 100 lb of ice |
| Water Consumption | 19.1 gal / 100 lb of ice (13.1 L/h) |
| Wiring / Fuse | 14 AWG (2.5 mm²), 3-conductor / 16 A fuse |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 41–109°F (5–43°C) |
| Water Temp. Range | 41–95°F (5–35°C) |
| Cabinet Dimensions (W × D × H) | 22" × 24" × 26" (559 × 621 × 659 mm) |
| Shipping Dimensions (W × D × H) | 26" × 28" × 32" (650 × 710 × 820 mm) |
| Net Weight | 65 lb (29 kg) |
| Shipping Weight | 77 lb (35 kg) |
| Certifications | NSF, ETL (Intertek) |
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Compressor: 5 years parts
Accessories
Included: ice scoop
Optional (not included):
- CS102 — double 10" anti-limescale + anti-chlorine water filter
- CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
- Adapter plates — for mounting on various storage bins
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: S400 or SCS350 (recommended); also pairs with S500, S750, S900, S1050, SCS700, SCD900, SCD1350, and SCD1800.
💡The SPIKA MS400-22A1F is a head-only unit and needs a separate storage bin to operate. Want a smaller, faster-chilling cube that packs more densely into drinks? Choose the half-dice SPIKA MS400-22A1H instead — same machine, same 432 lb/day, different cube.
