ITV Ice Makers SPIKA MS2100A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 220V (Head + RC21V Condenser)

Name: ITV Ice Makers SPIKA MS2100A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 220V (Head + RC21V Condenser)
Brand: ITV Ice Makers
SKU: 18821
Price: 9437.5 USD
Availability: InStock

$9,437.50

$9,437.50 ~~$18,875.00~~

Save 50%

The ITV SPIKA MS2100A1FR is the top of the SPIKA line — a 48"-wide remote modular head that sends its heat to the RC21V condenser mounted outdoors while producing classic full-dice cubes. Running on 220V single-phase power, it's built for the most demanding, highest-volume operations, and its clear, slow-melting full-dice cube is ideal for bars, restaurants, and premium beverage service. This is a head-only unit that requires the RC21V remote condenser and a separate storage bin.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS2100A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 220V (Head + RC21V Condenser) Description

The SPIKA MS2100R 48" is ITV's flagship modular cube machine — the largest single head in the SPIKA family. The MS2100A1FR is made for the highest-volume operations imaginable: large hotels, banquet and catering kitchens, stadiums, hospitals, and central beverage programs that need maximum ice from one head. Because it's a remote system, the compressor's heat is rejected at the RC21V air-cooled condenser installed outdoors or on a roof — keeping the kitchen cooler and quieter while the head stays indoors. It runs on 220V / 60 Hz single-phase power on a 25 A circuit.

The ice is full dice — about 1" × 0.9" × 1" (26 × 23 × 26 mm). This classic square cube is clear, dense, and slow to melt, so it chills without diluting and looks great in a glass — the go-to choice for bars, restaurants, hotels, and premium beverage programs. The machine forms about 800 cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor that cascades water across the evaporator for clean, consistent cubes.

The head pairs with ITV's larger storage bins and can be stacked two-high on the biggest SCD-series bins to push capacity even higher in the same floor space. A remote installation does require professional setup: the RC21V condenser (sold separately) connects to the head with a field-installed refrigerant line set, and the condenser is rated for outdoor temperatures from –4°F to 122°F. A smart electronic control board manages all parameters and displays self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens.

Note on production figures: ITV's datasheet for this model publishes rated output for the half-dice version. The full-dice production figures below are marked with an asterisk (*) and referenced from the half-dice ratings; actual full-dice output can differ. Confirm exact full-dice capacity with ITV before quoting a specific number.

Key Features

Top-of-line remote SPIKA: ITV's largest single 48" head, full-dice
Remote air-cooled system: rejects heat at the outdoor RC21V condenser for a cooler, quieter kitchen
220V / 60 Hz / single-phase power on a 25 A circuit
Classic full-dice cube: ~1" × 0.9" × 1" (26 × 23 × 26 mm) — clear, slow-melting, premium presentation
Approx. 800 cubes per cycle
Stackable two-high on the largest SCD-series bins
Energy: 4.28 kWh / 100 lb of ice
RC21V condenser rated for outdoor installation (–4°F to 122°F)
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

The highest-volume operations needing maximum ice from a single head
Bars, restaurants, hotels, and premium beverage service wanting clear, slow-melting cubes
Installations that benefit from moving compressor heat and noise outdoors
Banquet, catering, stadium, and large-venue food service

Full Specifications

Specification	Detail
Ice Type	Full-dice cube, ~1" × 0.9" × 1" (26 × 23 × 26 mm)
Machine Type	Remote modular ice machine head (requires RC21V condenser + separate storage bin); stackable 2-high on larger bins
Condenser / Cooling	Remote air-cooled (RC21V, sold separately)
Ice Production (nominal)*	2,042 lb (926 kg) / 24 h *(referenced from half-dice rating — confirm full-dice output with ITV)
Ice Production (ASHRAE)*	1,914 lb (868 kg) / 24 h *(referenced from half-dice rating — confirm full-dice output with ITV)
Cubes per Cycle	~800
Refrigerant	R404A
Electrical	220 V / 60 Hz / 1-phase (±10%)
Power Consumption (head, at 109°F)	3,687 W
ASHRAE Cooling Capacity	40,804 BTU/h (11,965 W)
Heat Rejected (at remote condenser)	22,247 BTU/h (6,520 W)
Energy Use	4.28 kWh / 100 lb of ice
Water Consumption	16.7 gal (50.5 L) / 100 lb of ice
Head Wiring / Fuse	14 AWG (2.5 mm²), 3-conductor / 25 A fuse
RC21V Condenser Wiring	16 AWG (1.5 mm²), 3-conductor
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range (machine)	41–109°F (5–43°C)
RC21V Condenser Temp. Range	–4–122°F (–20–50°C), outdoor-rated
Water Temp. Range	41–95°F (5–35°C)
Head Cabinet Dimensions (W × D × H)	48" × 24" × 30" (1220 × 620 × 763 mm)
Head Shipping Dimensions (W × D × H)	51" × 27" × 34" (1290 × 685 × 890 mm)
Head Net Weight	285 lb (129 kg)
RC21V Condenser Dimensions (approx.)	~46" × 28.5" × 33.5" (1170 × 722 × 850 mm)
RC21V Condenser Weight (approx.)	~285 lb (129 kg)
Refrigerant Line Connections	IN 5/8" / OUT 1/2"
Certifications	NSF, ETL (Intertek)

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Optional (not included):

RC21V remote air-cooled condenser (required for operation, sold separately) + field-installed refrigerant line set
Adapter plates (for bin fit-up)
CS102 — double 10" anti-limescale + anti-chlorine water filter
CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S900, S1050, SCD900, SCD1400, and SCD1800 (larger SCD bins support two stacked heads).

💡The SPIKA MS2100A1FR is a head-only unit that requires the RC21V remote condenser and a separate storage bin to operate. Need more cubes per pound for soft-drink and self-serve dispensing? See the half-dice SPIKA MS2100A1HR.

ITV Ice Makers SPIKA MS2100A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 220V (Head + RC21V Condenser) Features

Premium Quality

Build to Last

Full Cube Ice

Slow Melting

High Output

Up to 2,042 lb/day

Remote Condenser

Cooler Workspace

Modular Design

Choose Your Bin

Easy Service

Removable Panels

Stainless Frame

AISI 304 Build

Commercial Listed

NSF ETL Certified

ITV Ice Makers SPIKA MS2100A1FR 48" Remote Air-Cooled Modular Full-Dice Cube Ice Machine – 220V (Head + RC21V Condenser) Resources

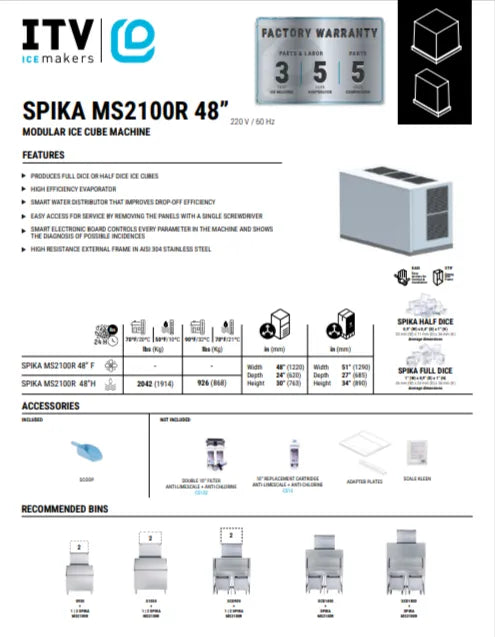

Specification
