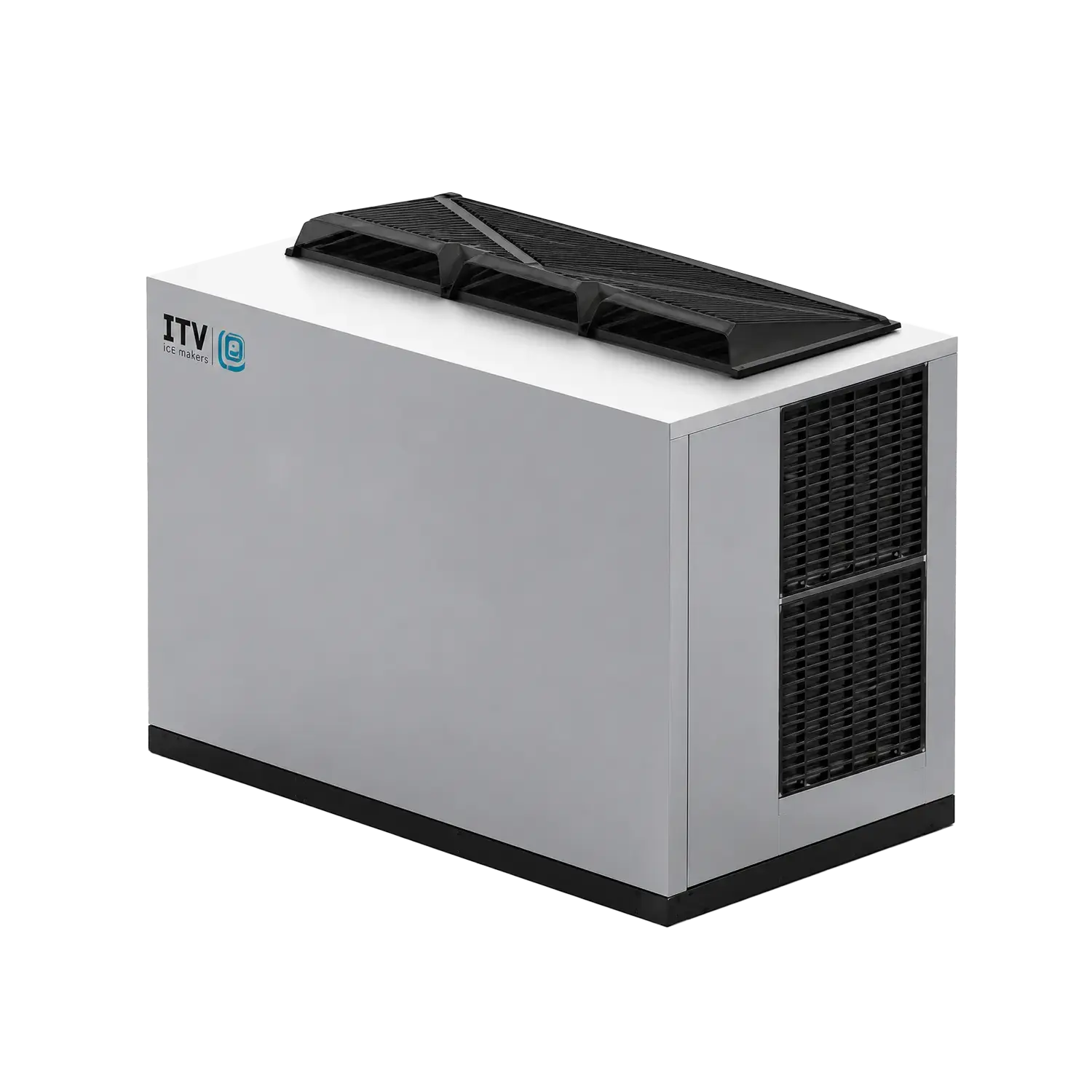

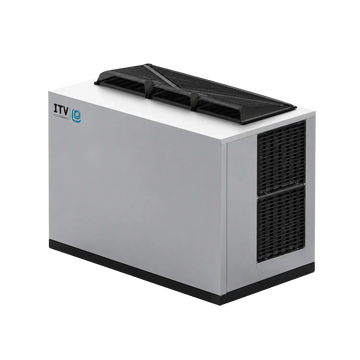

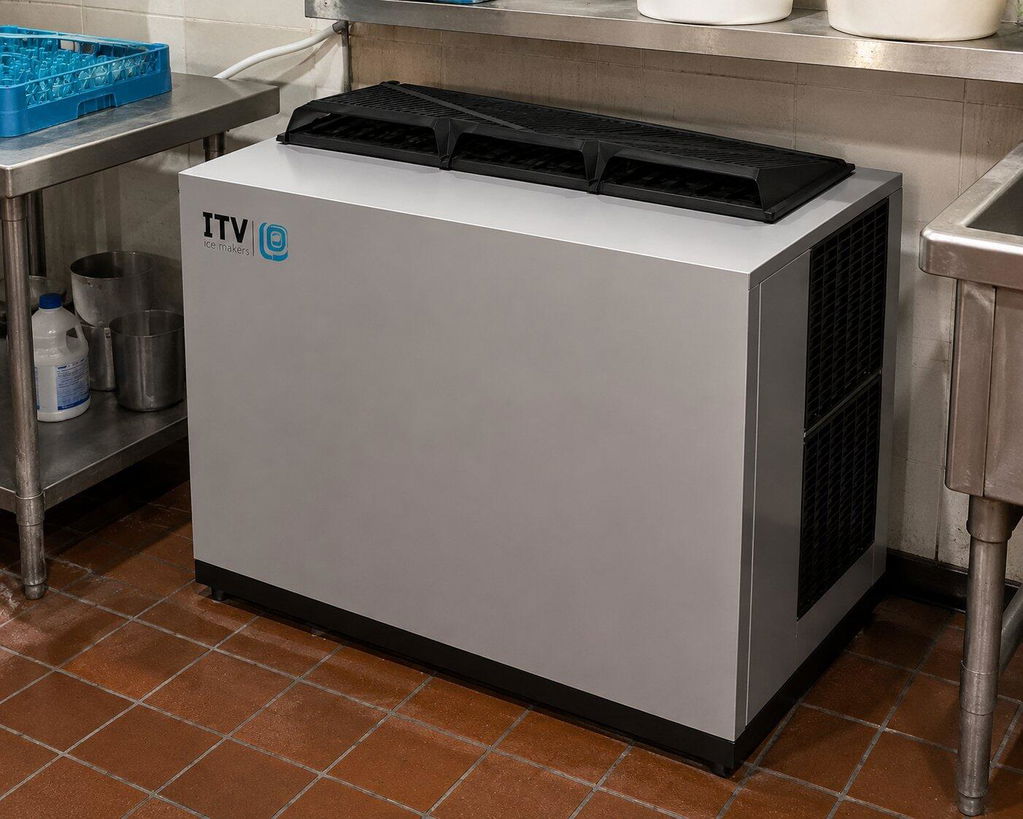

Right-angle side view of the ITV SPIKA MS1800 A1H air-cooled modular half-dice ice machine head, rated at up to 1,811 lb/day

ITV Ice Makers SPIKA MS1800A1H 48" Air-Cooled Modular Half-Dice Cube Ice Machine – 1,811 lb/Day, 220V (Head Only)

Name: ITV Ice Makers SPIKA MS1800A1H 48" Air-Cooled Modular Half-Dice Cube Ice Machine – 1,811 lb/Day, 220V (Head Only)
Brand: ITV Ice Makers
SKU: 17802
Price: 9906.0 USD
Availability: InStock

$9,906.00

$9,906.00 ~~$19,812.00~~

Save 50%

The ITV SPIKA MS1800A1H is a 48"-wide air-cooled modular ice machine that produces up to 1,811 lb (825 kg) of ice per day from a single cabinet — the highest-output self-contained head in the SPIKA line. Running on 220V single-phase power, it's built for the most demanding operations, and its compact half-dice cube packs densely and chills drinks fast. This is a head-only unit that sits on a separate storage bin.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS1800A1H 48" Air-Cooled Modular Half-Dice Cube Ice Machine – 1,811 lb/Day, 220V (Head Only) Description

The SPIKA MS1800 48" is ITV's top-capacity self-contained modular cube machine: a single 48"-wide head that delivers what would otherwise take two machines, with no remote condenser to install. At up to 1,811 lb (825 kg) per day, the MS1800A1H is made for the highest-volume kitchens, banquet and catering operations, hotels, and busy beverage programs that need maximum ice from one footprint. It runs on 220V / 60 Hz single-phase power on a 25 A circuit.

The ice is half dice — about 0.9" × 0.4" × 1" (23 × 11 × 26 mm). These smaller, flatter cubes pack tightly into a cup, expose more surface area to cool drinks quickly, and stretch further per pound, which makes them ideal for soft-drink fountains, self-serve dispensing, and high-volume food service. The machine forms about 1,600 cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor that cascades water across the evaporator for clean, consistent cubes.

The head pairs with ITV's larger storage bins and can be stacked two-high on the biggest SCD-series bins to push capacity even higher in the same floor space. A smart electronic control board manages all parameters and displays self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. As an air-cooled machine, it installs easily wherever there's adequate ventilation to carry away the heat this much ice production generates.

Key Features

Highest-output self-contained SPIKA: up to 1,811 lb (825 kg) per day from one 48" cabinet — no remote condenser needed
220V / 60 Hz / single-phase power on a 25 A circuit
Compact half-dice cube: ~0.9" × 0.4" × 1" (23 × 11 × 26 mm) — packs densely and chills drinks fast
Approx. 1,600 cubes per cycle
Stackable two-high on the largest SCD-series bins
Energy: 4.19 kWh / 100 lb of ice
Air-cooled for simple installation wherever there's adequate ventilation
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

The highest-volume operations needing maximum ice from a single self-contained head
Banquet, catering, hotel, and large-venue food service
High-volume soft-drink fountains and self-serve beverage dispensing
Operations wired for 220V power with adequate ventilation

Full Specifications

Specification	Detail
Ice Type	Half-dice cube, ~0.9" × 0.4" × 1" (23 × 11 × 26 mm)
Machine Type	Modular ice machine head (requires separate storage bin); stackable 2-high on larger bins
Condenser / Cooling	Air-cooled (self-contained)
Ice Production (nominal)	1,811 lb (825 kg) / 24 h
Ice Production (ASHRAE)	1,516 lb (688 kg) / 24 h
Cubes per Cycle	~1,600
Refrigerant	R404A
Electrical	220 V / 60 Hz / 1-phase (±10%)
Power Consumption (at 109°F)	2,700 W
ASHRAE Cooling Capacity	28,746 BTU/h (8,424 W)
Heat Rejected	19,250 BTU/h (5,640 W)
Energy Use	4.19 kWh / 100 lb of ice
Water Consumption	17.24 gal (65.25 L) / 100 lb of ice
Wiring / Fuse	14 AWG (2.5 mm²), 3-conductor / 25 A fuse
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range	41–109°F (5–43°C)
Water Temp. Range	41–95°F (5–35°C)
Cabinet Dimensions (W × D × H)	48" × 24" × 30" (1220 × 620 × 763 mm)
Shipping Dimensions (W × D × H)	51" × 27" × 34" (1290 × 685 × 890 mm)
Net Weight	320 lb (145 kg)
Shipping Weight	373 lb (169 kg)
Certifications	NSF, ETL (Intertek)

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Optional (not included):

CS102 — double 10" anti-limescale + anti-chlorine water filter
CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S900, S1050, SCD900, SCD1400, and SCD1800 (larger SCD bins support two stacked heads).

💡The SPIKA MS1800A1H is a head-only unit and needs a separate storage bin to operate. Prefer a larger, slow-melting cube for bar and premium service? See the full-dice SPIKA MS1800A1F.

ITV Ice Makers SPIKA MS1800A1H 48" Air-Cooled Modular Half-Dice Cube Ice Machine – 1,811 lb/Day, 220V (Head Only) Features

Premium Quality

Build to Last

Half Cube Ice

Fast Drink Cooling

High Output

Up to 1,811 lb/day

Air-Cooled

Simple Installation

Modular Design

Choose Your Bin

Easy Service

Removable Panels

Stainless Frame

AISI 304 Build

Commercial Listed

NSF ETL Certified

ITV Ice Makers SPIKA MS1800A1H 48" Air-Cooled Modular Half-Dice Cube Ice Machine – 1,811 lb/Day, 220V (Head Only) Resources

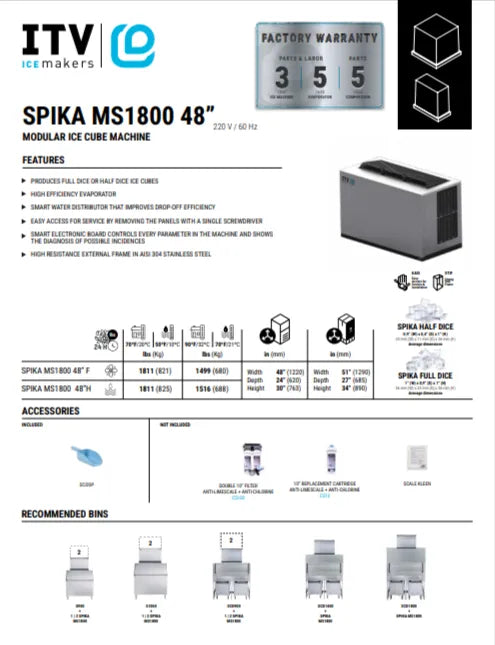

Specification
