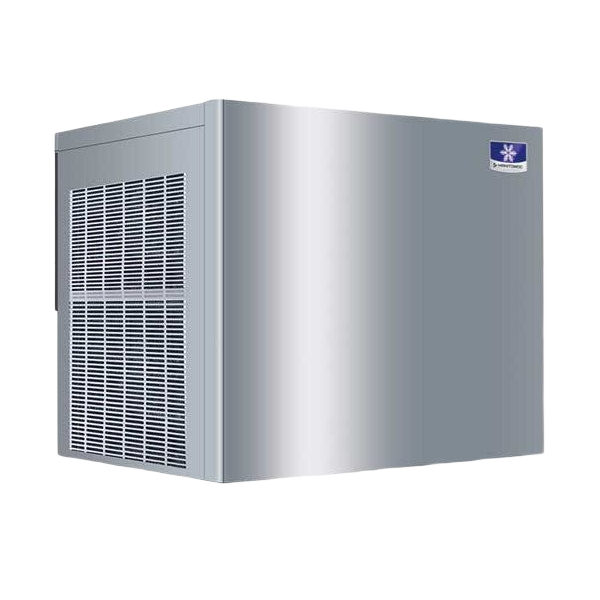

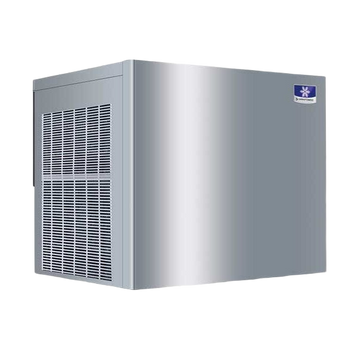

Manitowoc RNF1100A Modular Nugget Ice Maker
Manitowoc RNF1100A Modular Nugget Ice Maker Description
Manitowoc RNF1100A — 1,078-pound daily production in a modular Nugget ice head
The Manitowoc RNF1100A (RNF1100A-261) is a modular commercial ice maker head designed to produce nugget ice for commercial use. It is rated for up to 1,078 lb per 24 hours at 70°F air / 50°F water and 825 lb per 24 hours at 90°F air / 70°F water. This is an ice machine head; storage is selected separately. Any bin or adapter shown in the quoted accessories is part of the quoted package, not integral storage inside the head.
Nugget ice makes the RNF1100A a practical fit for soft-drink, iced-tea, healthcare, hospitality and self-service beverage applications where chewable ice is preferred. Because production and storage are separate, an operator can pair the head with a compatible bin or dispenser sized around peak demand and service pattern.
The nugget-making system forms small, chewable pieces rather than hard solid cubes. This texture works well in drinks and service environments where guests may consume the ice itself. Routine water treatment and scheduled cleaning are especially important for maintaining ice quality and helping the continuous ice-making mechanism operate as intended.
The listed configuration combines Air-cooled heat rejection, R404A refrigeration, the quoted 208-230v/60/1-ph, 14.2 amps, standard electrical arrangement, a cabinet measuring 30 × 23-5/8 × 27-3/8 in.. Electrical, plumbing, drainage and ventilation work must follow the model installation instructions and applicable local codes. Do not size openings or utility connections from the marketing description alone; use the installation drawing for final field work.
The workbook identifies RNF1100A as legacy/replaced and lists RNP1100A as the current replacement. The two models should not be assumed interchangeable without checking dimensions, utilities, ice type, bin fit, adapters and production performance. Confirm exact-model availability before publishing or accepting an order.
Key Features
- Up to 1,078 lb/day at 70°F air / 50°F water
- 825 lb/day at 90°F air / 70°F water
- Nugget ice format
- Modular head for use with a compatible separate bin or dispenser
- Air-cooled configuration
- R404A refrigerant
- 30 × 23-5/8 × 27-3/8 in. cabinet
- Quoted electrical configuration: 208-230v/60/1-ph, 14.2 amps, standard
- Listed certifications/marks: AHRI, NSF, cULus
- Legacy model; listed current replacement: RNP1100A
Best For
soft-drink, iced-tea, healthcare, hospitality and self-service beverage applications where chewable ice is preferred, especially where storage capacity must be selected independently from production.

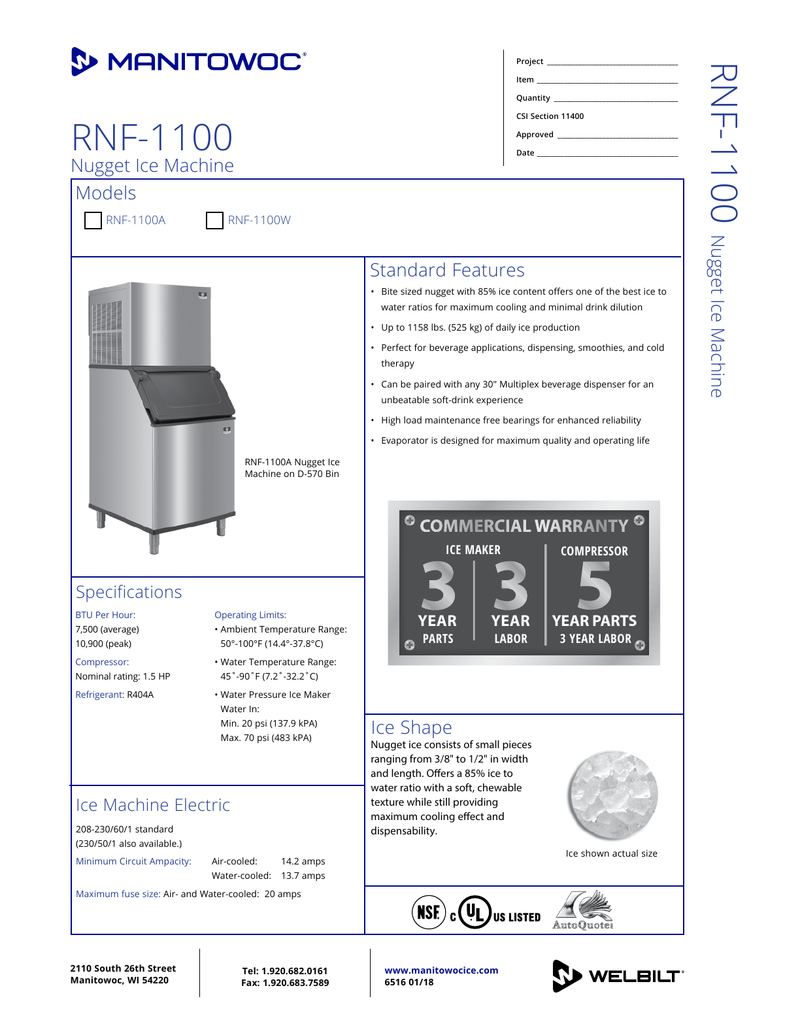

Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | RNF1100A |
| Quoted configuration | RNF1100A-261 |
| Product family | Modular nugget |
| Machine type | Nugget Ice Maker |
| Format | Modular head |
| Ice type | Nugget |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 1,078 lb/24 hr |
| Production at 90°F air / 70°F water | 825 lb/24 hr |
| Storage | Separate compatible bin or dispenser required |
| Dimensions (W × D × H) | 30 × 23-5/8 × 27-3/8 in. |
| Electrical | 208-230v/60/1-ph, 14.2 amps, standard |
| Refrigerant | R404A |
| Certifications and listed marks | AHRI, NSF, cULus |
| Lifecycle status | Legacy / replaced |
| Current replacement | RNP1100A |
Warranty
- Confirm the current commercial warranty for this exact model and electrical configuration before publication or sale.
- Coverage is subject to the manufacturer's registration requirements, terms, exclusions and model lifecycle status.
Accessories
- AR-20000-P: Arctic Pure Plus Primary Water Filter Assembly.
- D970: Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening.
- K00470: Bin Adapter, for 30" Indigo, Indigo NXT, RFF, RNF, ice.
- These are quote-listed configuration items. Confirm included quantities and compatibility against the final sales quote before ordering.
Installation and Maintenance Notes
- Install the machine on a compatible, properly supported bin or dispenser; use the model-specific adapter or deflector where required.
- Provide potable water, a correctly routed drain and the electrical service stated for RNF1100A-261; plumbing and electrical work must follow the installation manual and local codes.
- Keep condenser air paths and required ventilation clear; restricted airflow or high ambient temperature can reduce production.
- Size capacity using realistic site conditions. Ice production changes with ambient temperature, incoming water temperature, water quality and maintenance condition.
- Clean and sanitize the food zone on the manufacturer's schedule. Maintain filtration, inspect drains and keep the condenser or ventilation path clean.
- Verify parts support, warranty eligibility and replacement-model compatibility before committing to a legacy unit.
