Manitowoc K00470 Bin Adapter Kit - 30-Inch Ice Machine on 48-Inch Bin Description
Manitowoc K00470 - Mount a Compatible 30-Inch Head on a 48-Inch Bin

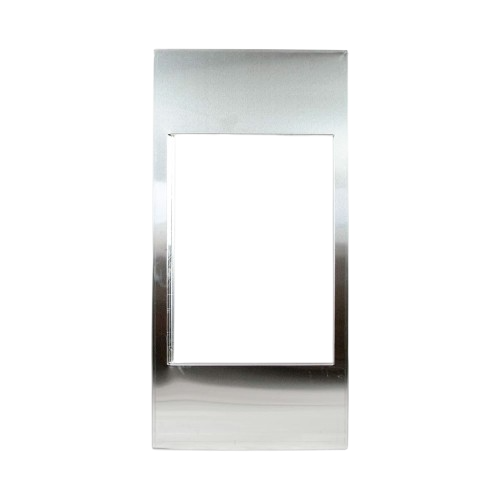

The Manitowoc K00470 bin adapter kit provides the mounting interface for a compatible 30-inch ice machine on a 48-inch bin. The manufacturer specifies this adapter for designated Indigo NXT, RFF and RNF machines on the D970 storage bin, making it a practical component when the chosen ice head is narrower than the storage base.
The kit forms the bin-top transition around the ice machine footprint and uses a support rail at the opening. The manufacturer instructions call for the rail to face the front of the bin, with foam tape applied to the support and around the opening. This seals the mounting interface when the compatible machine is installed.
The adapter is placed on the prepared bin top without separate bin-top fasteners according to the instruction sheet. The bin must be leveled in its final position before the ice machine is installed, and the completed machine and bin must be cleaned and sanitized before use.
An adapter does not replace an ice deflector. Deflector requirements depend on the exact machine and bin configuration, particularly with dual-evaporator cubers. The ice machine, storage bin and any separately specified deflector are not included with this adapter kit.
Key Features
- Width transition: 30-inch machine to 48-inch bin
- Specified Indigo NXT, RFF and RNF applications
- Manufacturer adapter and support-rail arrangement
- Foam-tape sealing at the support and bin opening
- Bin-top adapter placement requires no separate fasteners
- Designed for specified D970 applications
Best For
Installers configuring a compatible narrower Manitowoc ice machine on the specified wider storage bin or dispenser.
Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | K00470 |
| Product type | Ice machine bin adapter kit |
| Machine width | 30 in. |
| Bin width | 48 in. |
| Application | Specified 30-in. Indigo NXT, RFF and RNF heads on D970; B970/K970 applications addressed in the instruction sheet |
| Installation components | Bin-top adapter, support rail and foam-tape arrangement |
| Approximate shipping weight | 34 lb |
| Ice maker / bin included | No |
| Ice deflector | Separate where required by machine configuration |
Warranty
Manitowoc related-accessory kits carry the same basic warranty as the machine they are used on unless otherwise stated. The specified Indigo NXT cube-machine application has 3 years parts and labor basic commercial coverage; extended compressor and evaporator warranties do not apply to this kit.
Installation and Maintenance Notes
- Remove protective coating before assembly and orient the support rail toward the front.

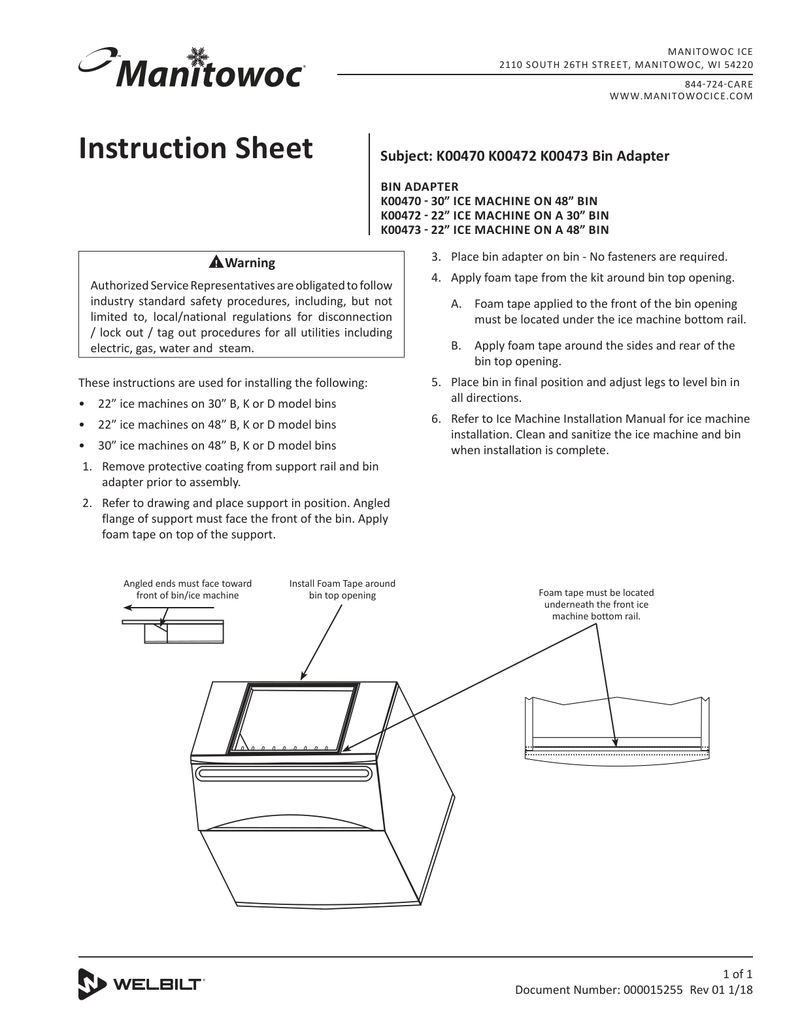

- Apply foam tape as shown in the manufacturer instructions, including beneath the front machine rail.
- Level the bin before mounting the machine.
- Maintain the ice machine's ventilation and service clearances.
- Clean and sanitize the completed machine/bin assembly before use.
