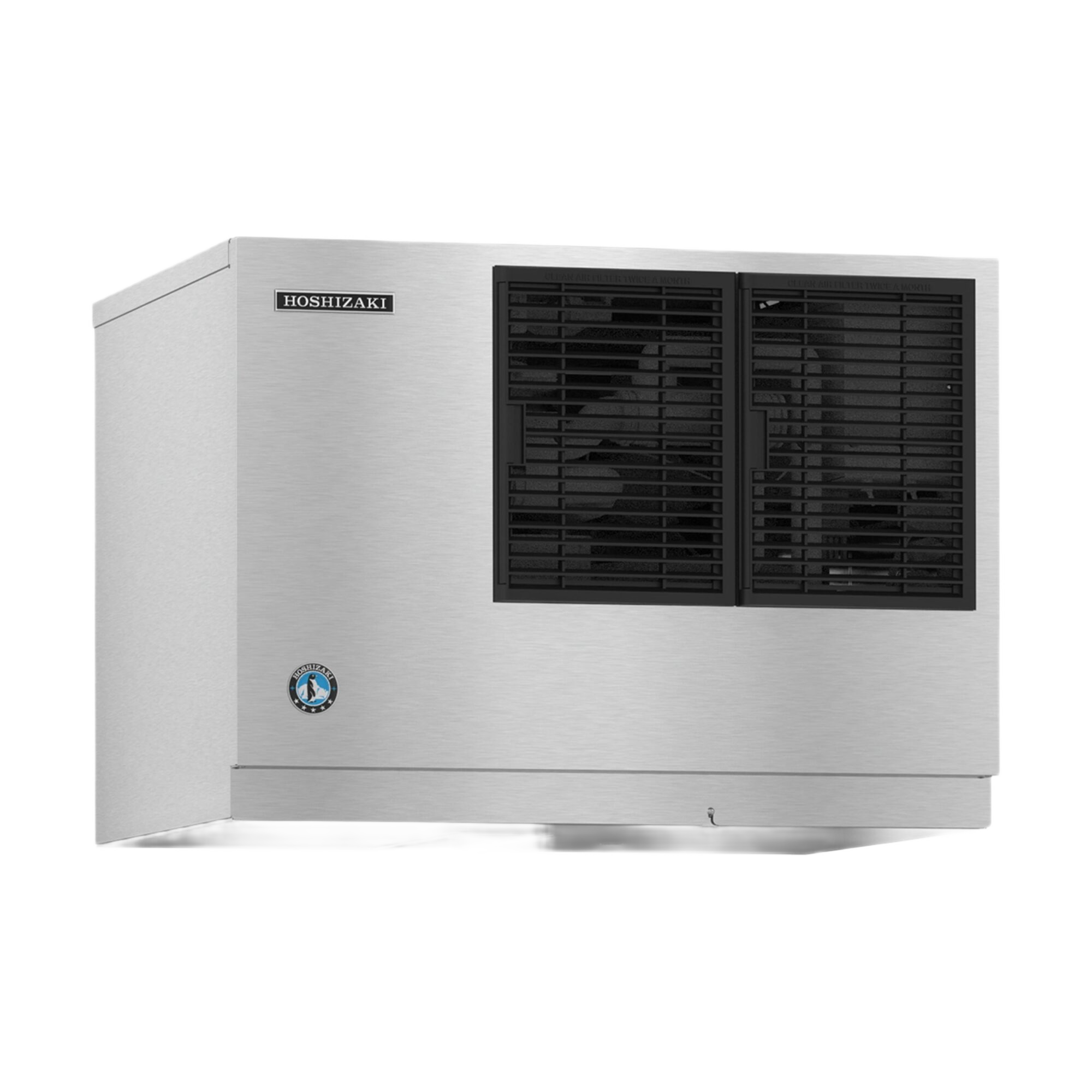

Hoshizaki KMD-505MAJ 30-Inch Air-Cooled Crescent Cube Ice Machine Head - 500 lb/Day, Dispenser-Ready
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki KMD-505MAJ 30-Inch Air-Cooled Crescent Cube Ice Machine Head - 500 lb/Day, Dispenser-Ready
Hoshizaki KMD-505MAJ 30-Inch Air-Cooled Crescent Cube Ice Machine Head - 500 lb/Day, Dispenser-Ready Description
The Hoshizaki KMD-505MAJ modular crescent cube ice maker is a high-output, 30-inch air-cooled machine head for ice-on-beverage and compatible storage applications. It produces up to 500 lb of crescent cube ice per 24 hours at 70°F air and 50°F water; pair it with a compatible bin or dispenser selected for the operation.
The KMEdge double-sided stainless steel evaporator forms individual crescent cubes for fountain drinks, iced water and bar service. Its modular, dispenser-ready layout lets an operator build an ice station around the required storage capacity and cup-service pattern.

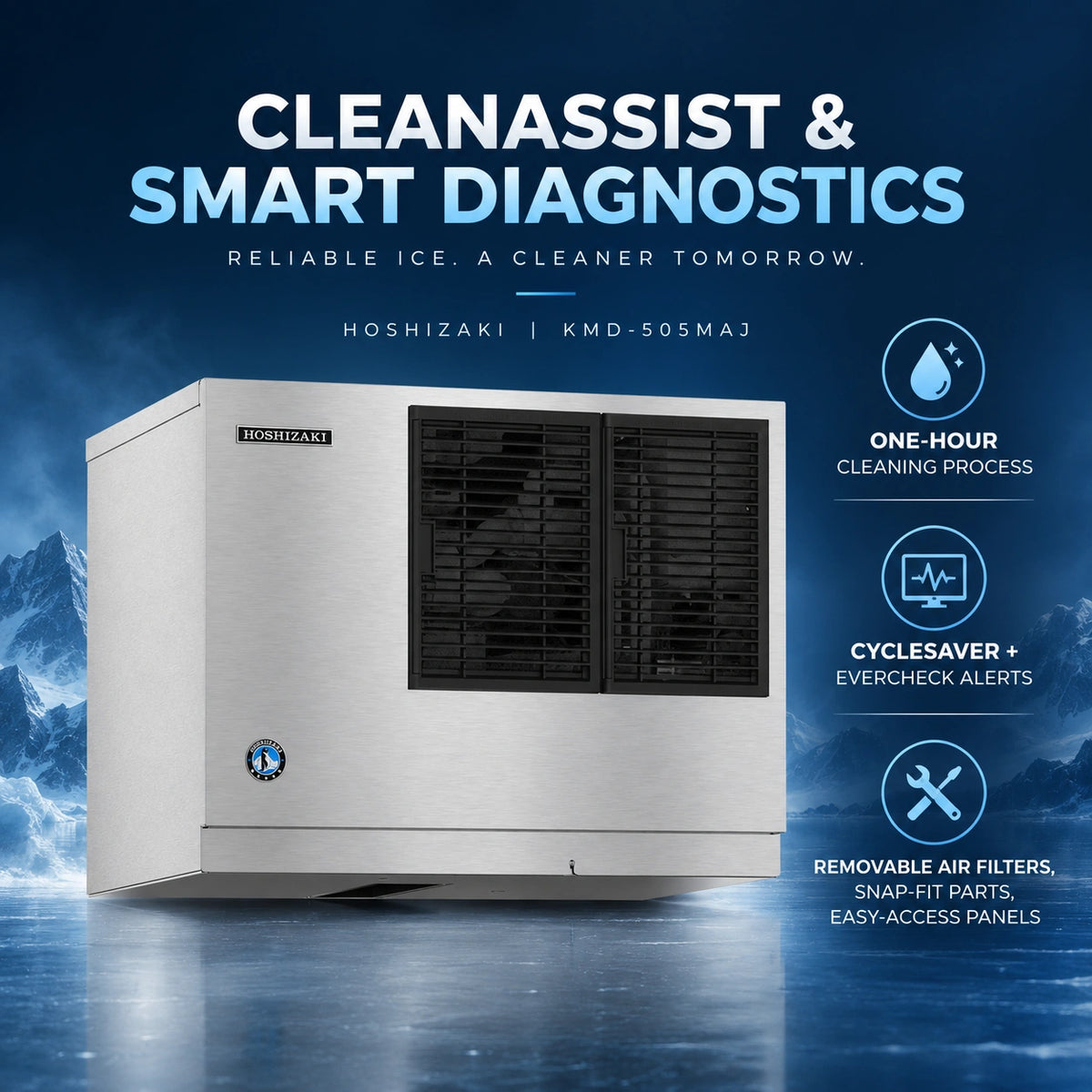

CleanAssist provides a one-hour cleaning process. CycleSaver design, self-diagnostic programming, adjustable ultrasonic bin control and EverCheck alerts support reliable operation. Snap-fit parts, removable air filters and removable panels simplify access for routine cleaning and service.
Key Features
- Crescent Cube Ice
- Air-Cooled
- Up to 500 lb/day
- 30 in. Wide
- Modular Dispenser-Ready Head
Best For
High-volume beverage counters, QSR fountain stations, break rooms and other self-service operations that need modular crescent cube production.

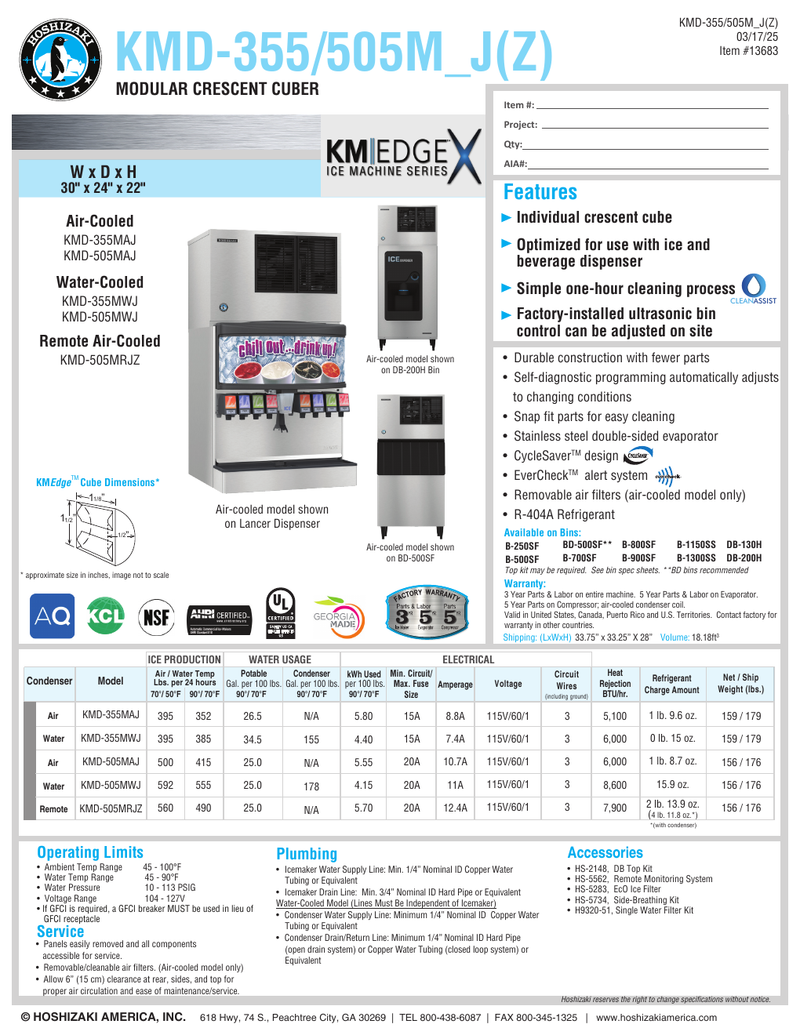

Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | KMD-505MAJ |
| Equipment type | Modular dispenser-ready ice machine head; bin or dispenser sold separately |
| Ice type | Crescent cube ice |
| Cooling | Air-cooled |
| Daily production | 500 lb/24 hr at 70°F air / 50°F water; 415 lb/24 hr at 90°F air / 70°F water |
| Dimensions (W × D × H) | 30 × 24 × 22 in. |
| Electrical | 115V / 60Hz / 1 phase; 10.7A; 20A maximum fuse; hardwired |
| Energy use | 5.55 kWh per 100 lb at 90°F air / 70°F water |
| Water use | 25 gal per 100 lb at 90°F air / 70°F water |
| Heat rejection | 6,000 BTU/hr |
| Refrigerant | R-404A; 1 lb 8.7 oz charge |
| Water inlet / drain | 1/2 in. FPT inlet / 3/4 in. FPT drain |
| Operating limits | 45-100°F ambient; 45-90°F water; 10-113 psig water pressure |
| Net / shipping weight | 156 / 176 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Warranty coverage is subject to Hoshizaki terms and conditions.
Installation and Maintenance Notes
- Allow 6 in. clearance at the rear, sides and top for air circulation and maintenance.
- Hardwire to a dedicated 115V electrical supply; no cord or plug is supplied.
- Confirm the compatible bin or dispenser and any required top kit before installation.
