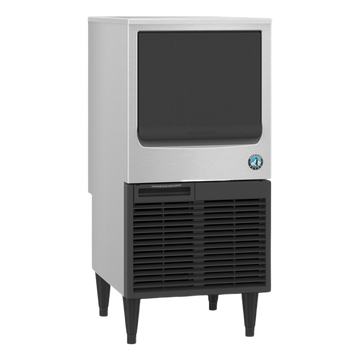

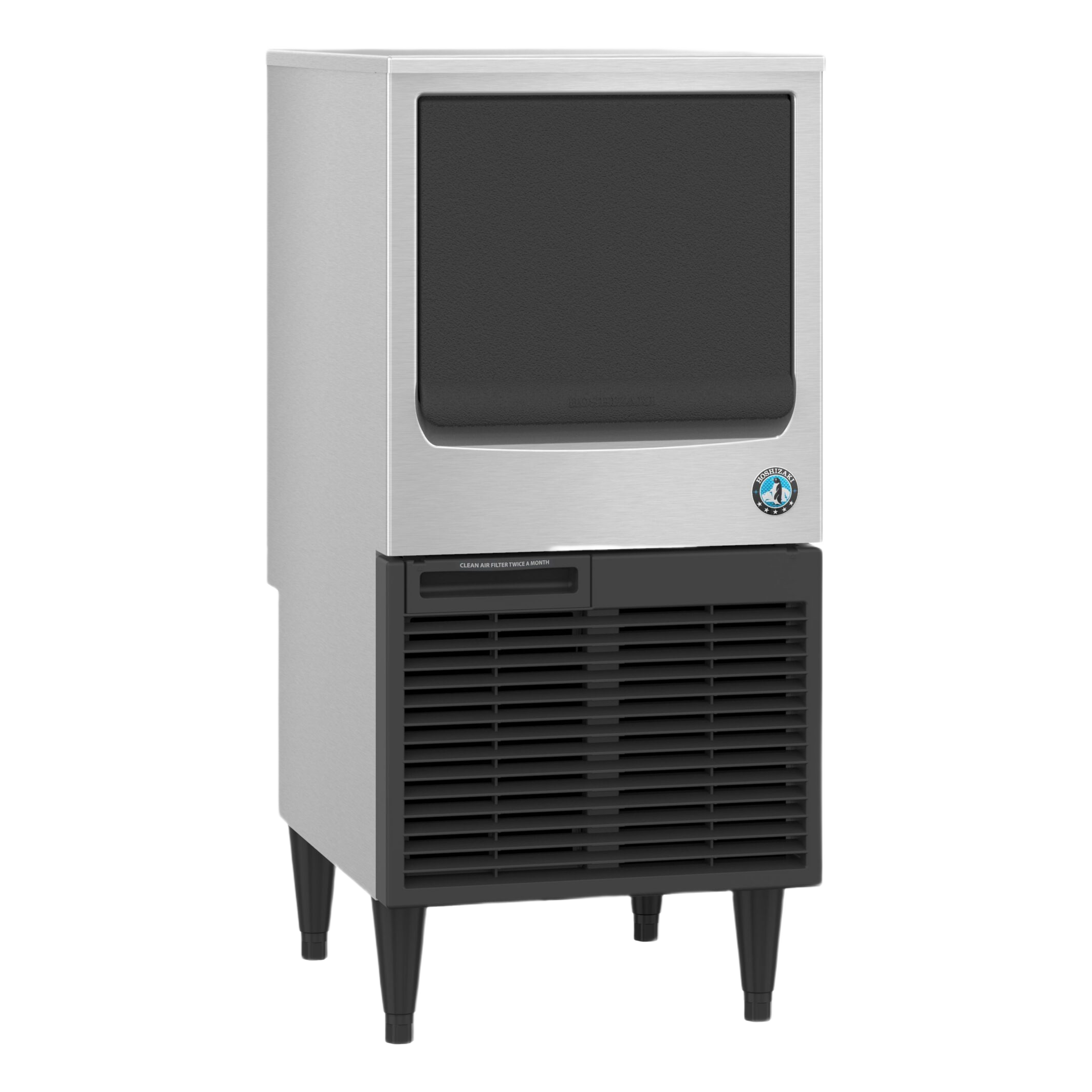

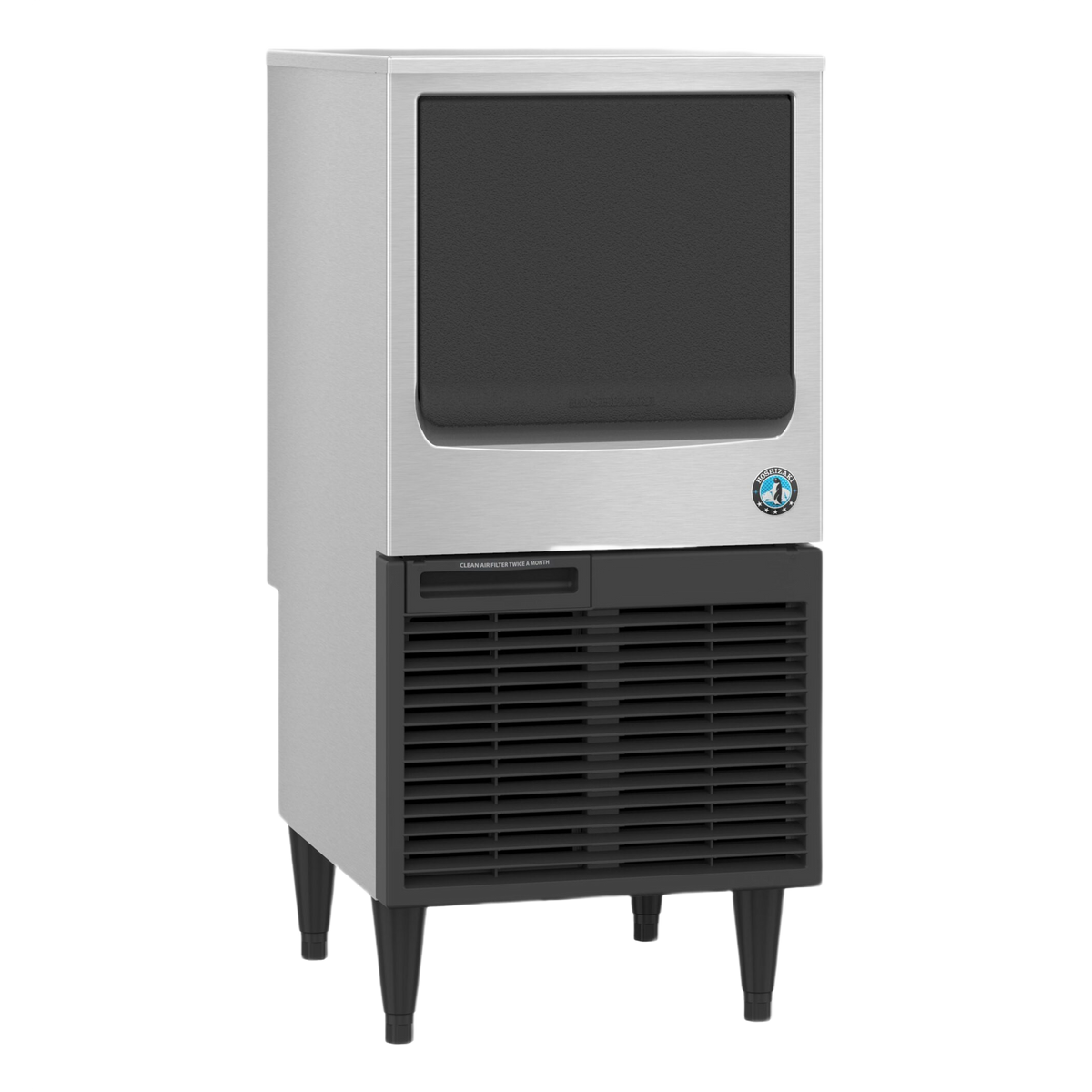

Hoshizaki KM-81BAK Undercounter Crescent Cube Ice Maker - 98 lb/Day with 38 lb Bin, Air-Cooled
Hoshizaki KM-81BAK Undercounter Crescent Cube Ice Maker - 98 lb/Day with 38 lb Bin, Air-Cooled Description
Hoshizaki KM-81BAK — Undercounter Crescent Cube Ice Production with Built-In Storage
Put crescent ice within reach of a compact beverage station. The narrow cabinet combines ice production and storage in one unit, so a café, office kitchen or small bar does not need floor space for a separate ice head and bin. The Hoshizaki KM-81BAK undercounter crescent cube ice maker produces up to 98 lb per 24 hours at 70°F air/50°F water. At 90°F air/70°F water, its rated output is 76 lb per day. The built-in bin holds up to 38 lb of ice.

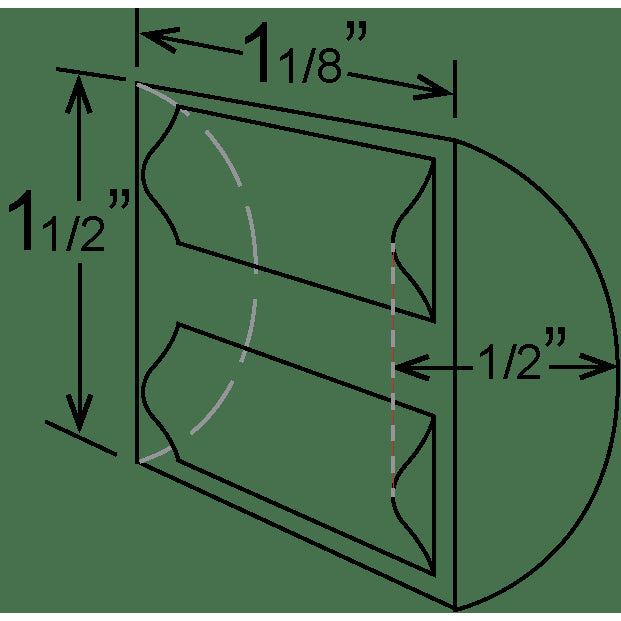

The individual crescent cubes measure approximately 1-1/8 × 1-1/2 × 1/2 in. Their curved profile is suited to everyday beverage service, from iced water and soft drinks to bar pours. A stainless steel evaporator forms the ice, while CycleSaver design supports the production cycle. The EverCheck alert system provides equipment-status information that can help operators identify when service attention is needed.

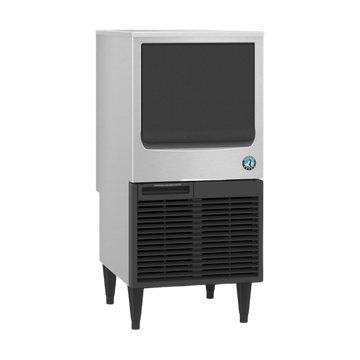

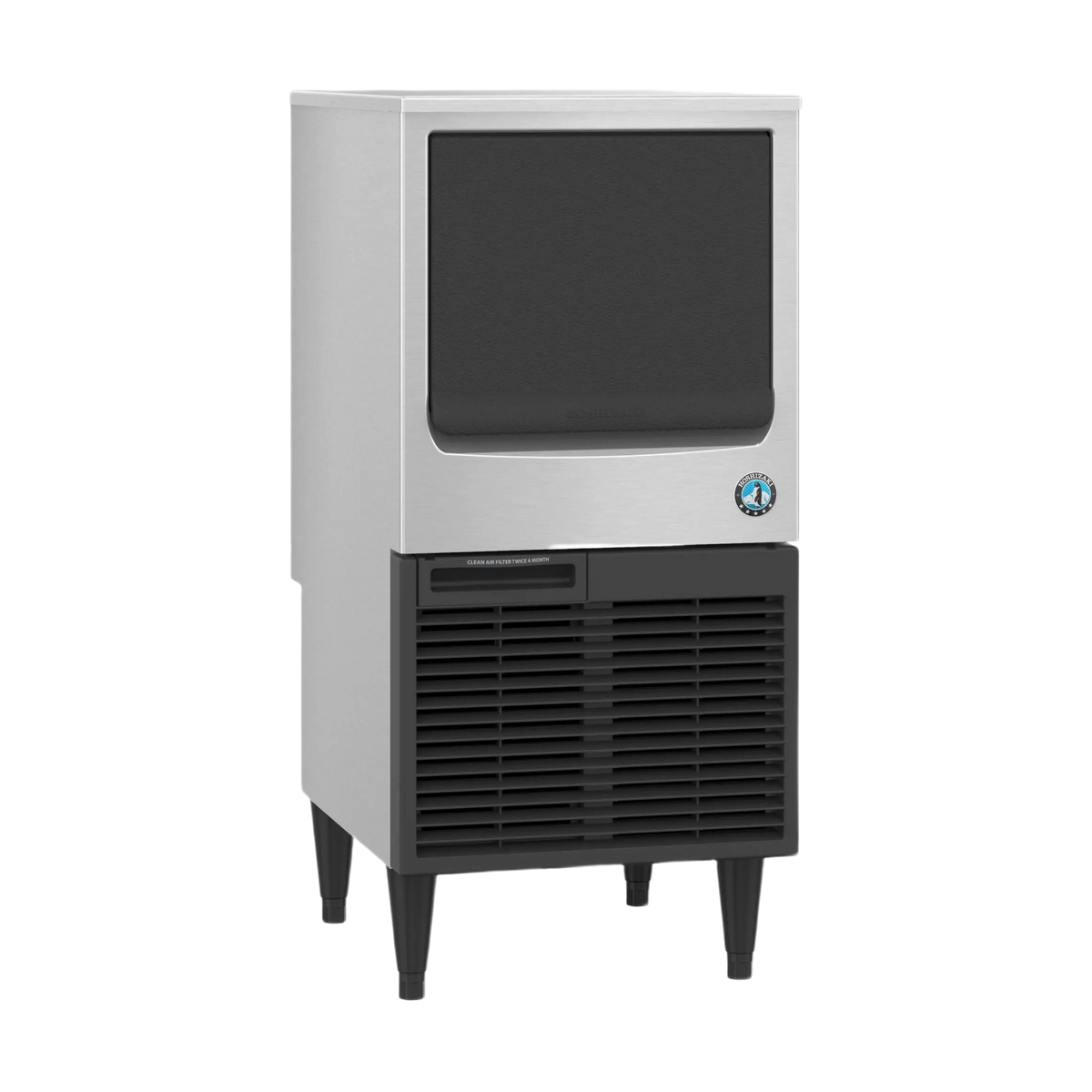

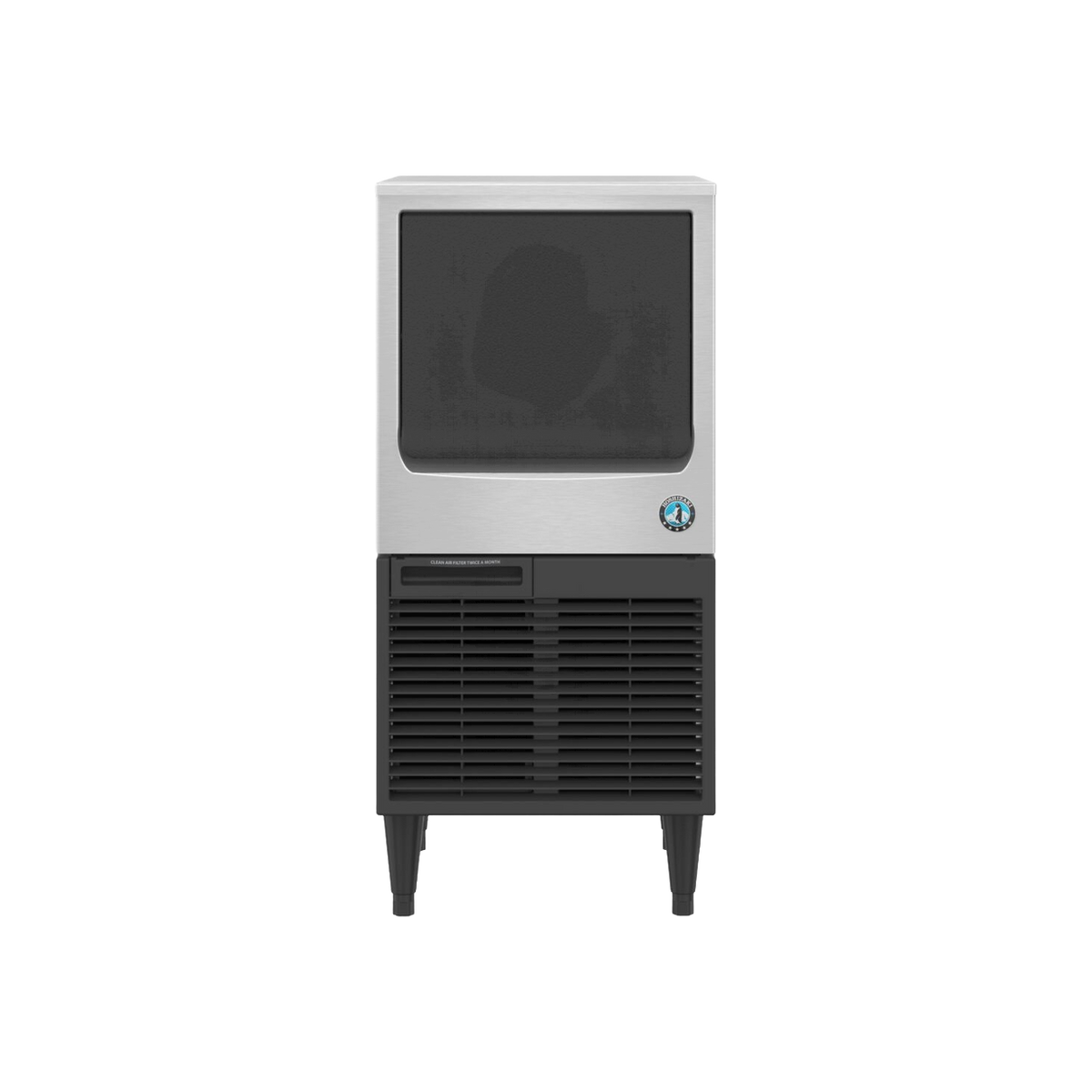

The stainless steel exterior and slide-in bin door are designed for a working service environment. Front-in, front-out airflow allows built-in installation when the required service space and utility access are maintained. A removable air filter simplifies periodic condenser care. R290 hydrocarbon refrigerant is used in the air-cooled refrigeration system.
The cabinet dimensions are 17-3/4 × 24 × 39 in. (including 6-in. legs) (W × D × H). Electrical service is 115V/60Hz/single phase with a 15A circuit/fuse rating. Provide room at the rear for utility connections, at least 12 in. in front and at least 0.6 in. above for maintenance. Production changes with room and inlet-water temperatures, so size the installation using the hotter-condition output as well as the maximum rating.
Key Features
- Up to 98 lb/day at 70°F air/50°F water
- 38 lb built-in ice storage
- Stainless steel evaporator and exterior
- Front-in, front-out airflow supports built-in installation
- CycleSaver design and EverCheck alert system
- Slide-in bin door for convenient access
- Removable air filter and accessible power switch
- 6.5-ft power cord with NEMA 5-15P plug
- R290 hydrocarbon refrigerant
Best For
Cafés, bars, break rooms and hospitality beverage counters that need individual crescent cube ice close to the point of service.

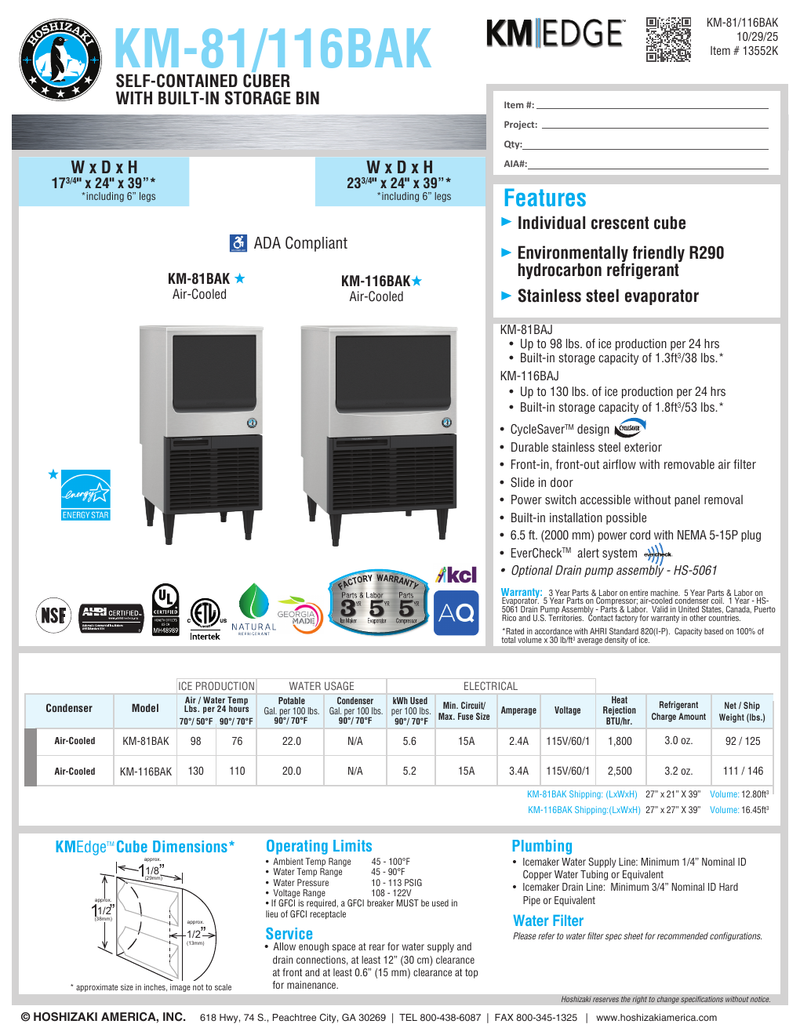

Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | KM-81BAK |
| Equipment type | Undercounter ice maker with built-in bin |
| Ice type | Crescent Cube Ice |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 98 lb/24 hr |
| Production at 90°F air / 70°F water | 76 lb/24 hr |
| Storage | 38 lb built-in bin |
| Dimensions (W × D × H) | 17-3/4 × 24 × 39 in. (including 6-in. legs) |
| Electrical | 115V / 60Hz / 1 phase; 2.4A |
| Circuit / maximum fuse | 15A |
| Energy use at 90°F / 70°F | 5.6 kWh per 100 lb |
| Potable water use at 90°F / 70°F | 22 gal per 100 lb |
| Heat rejection | 1,800 BTU/hr |
| Refrigerant | R290; 3 oz. charge |
| Water inlet | 1/2-in. FPT; minimum 1/4-in. nominal ID supply tubing |
| Drain | 3/4-in. FPT; minimum 3/4-in. nominal ID drain piping |
| Ambient temperature | 45–100°F |
| Water temperature | 45–90°F |
| Water pressure | 10–113 PSIG |
| Net / shipping weight | 92 / 125 lb |
| Power cord | 6.5 ft; NEMA 5-15P |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
- 1 year parts and labor on the optional HS-5061 drain pump assembly
Manufacturer coverage applies in the United States, Canada, Puerto Rico and U.S. territories, subject to Hoshizaki's warranty terms.
Installation and Maintenance Notes
- Provide room at the rear for utility connections, at least 12 in. in front and at least 0.6 in. above for maintenance.
- Connect to a potable cold-water supply and suitable drain. Follow the manufacturer's installation instructions and applicable local codes.
- Keep ventilation paths clear and follow the specified cleaning and sanitizing schedule. Automatic control and flushing features do not eliminate routine maintenance.
