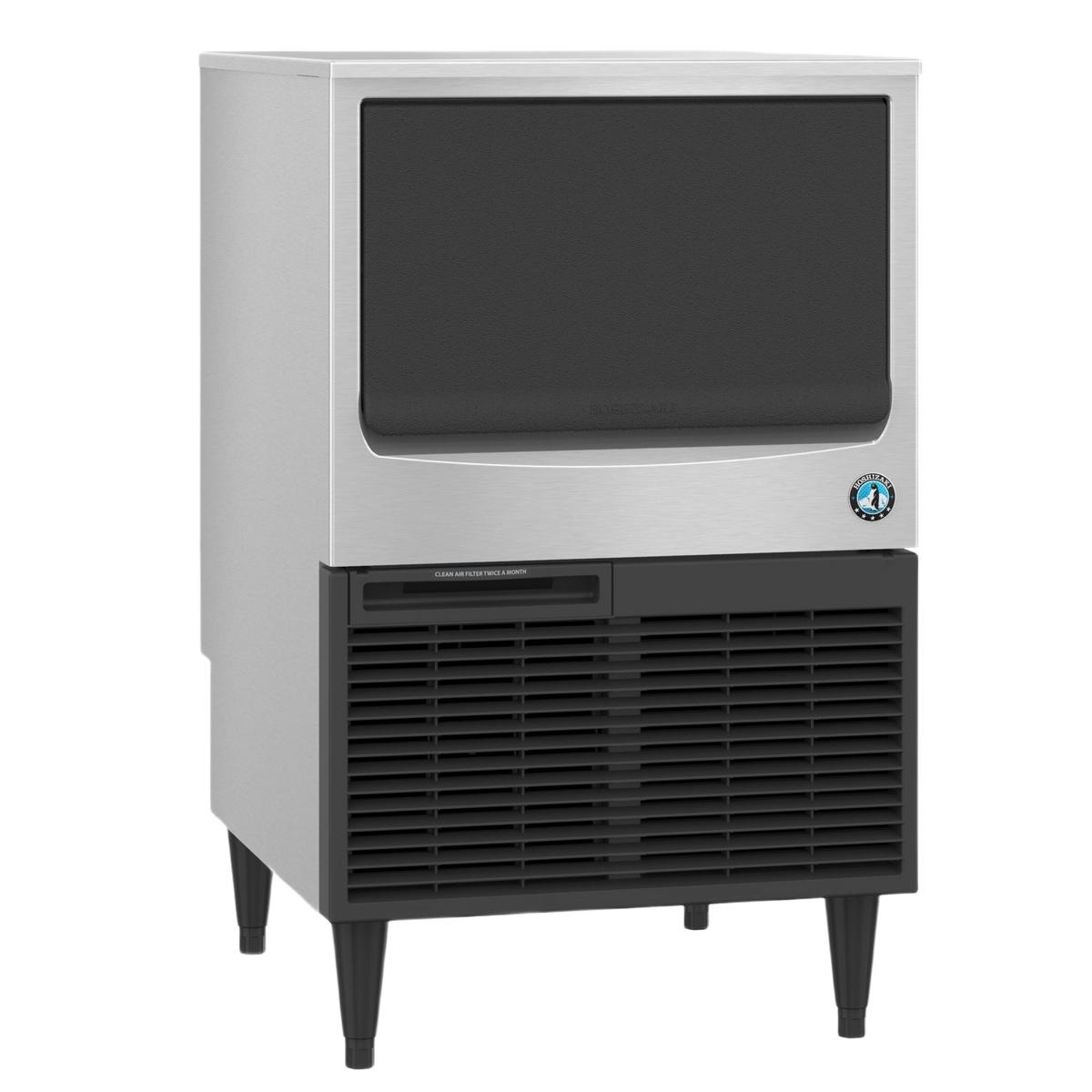

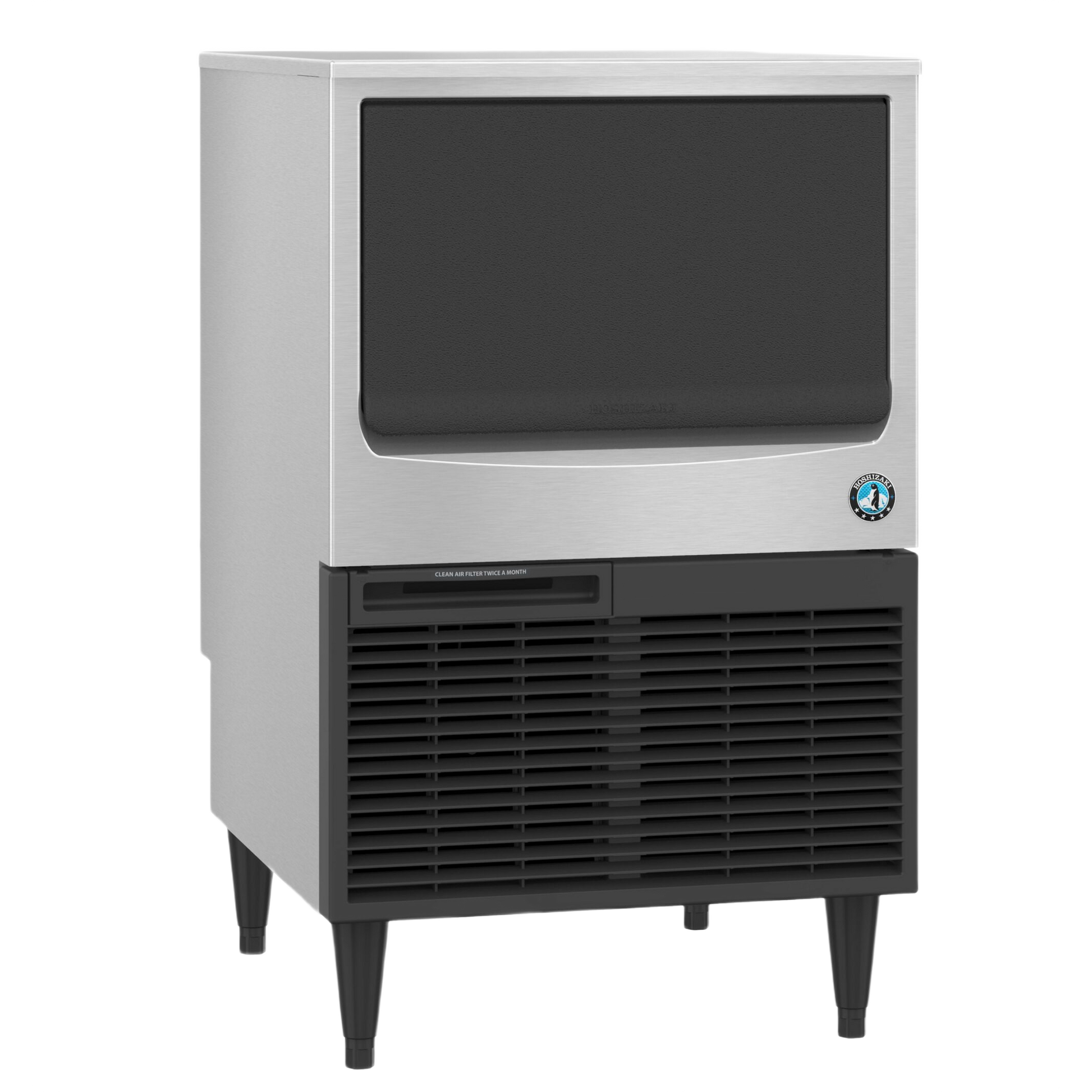

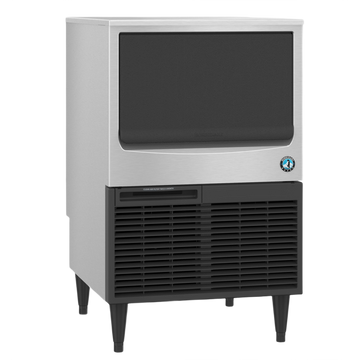

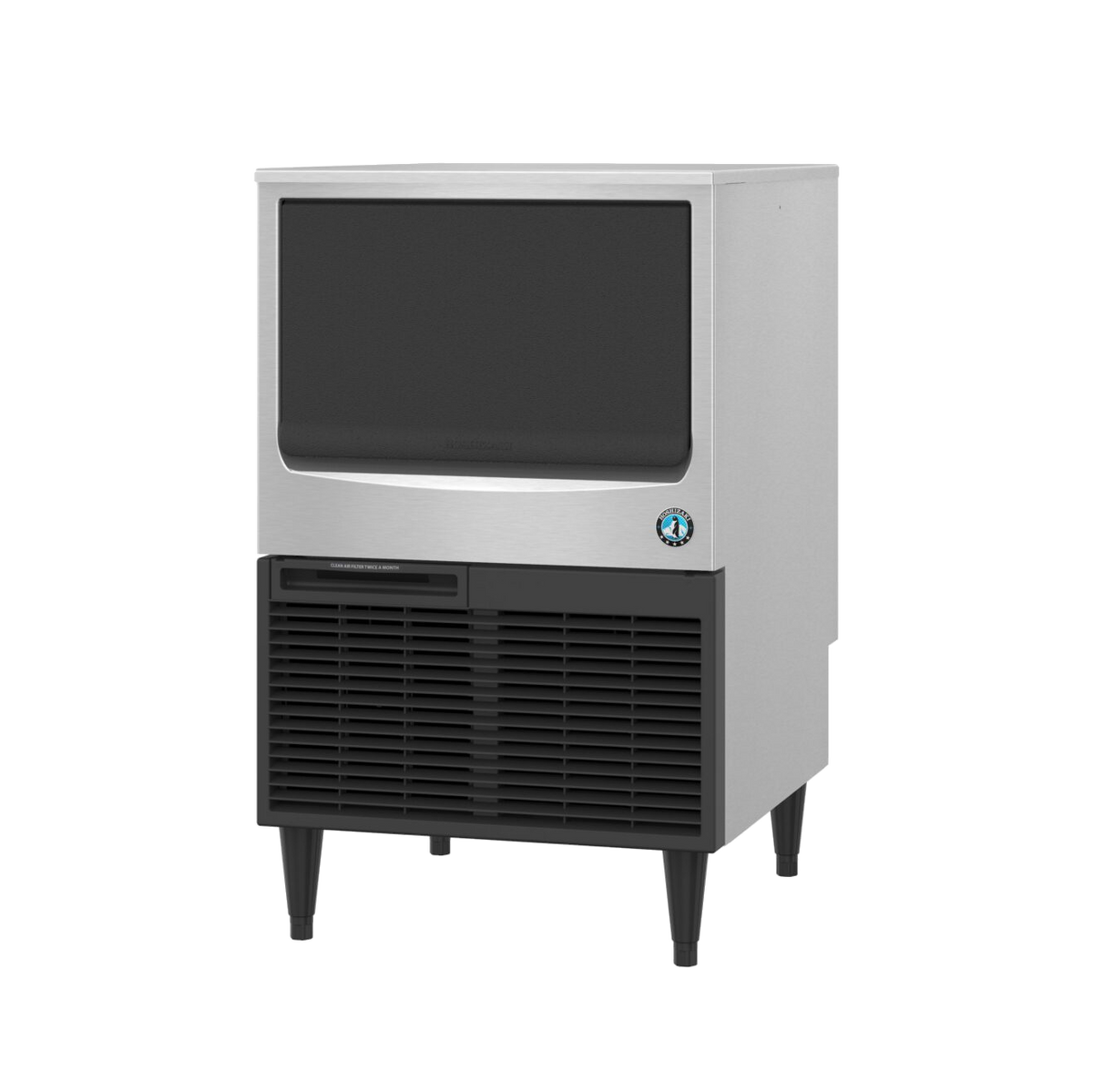

Hoshizaki KM-116BAK Undercounter Crescent Cube Ice Maker - 130 lb/Day with 53 lb Bin, Air-Cooled
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki KM-116BAK Undercounter Crescent Cube Ice Maker - 130 lb/Day with 53 lb Bin, Air-Cooled
Hoshizaki KM-116BAK Undercounter Crescent Cube Ice Maker - 130 lb/Day with 53 lb Bin, Air-Cooled Description
Hoshizaki KM-116BAK Undercounter Crescent Cube Ice Maker - 130 lb/Day with 53 lb Bin, Air-Cooled Commercial Description
Hoshizaki KM-116BAK Undercounter Crescent Cube Ice Maker - 130 lb/Day with ENERGY STAR Efficiency

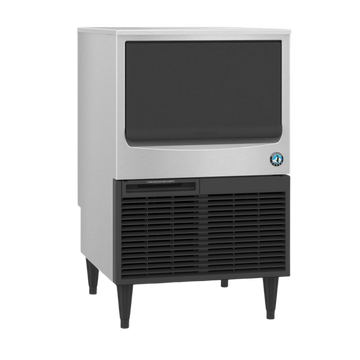

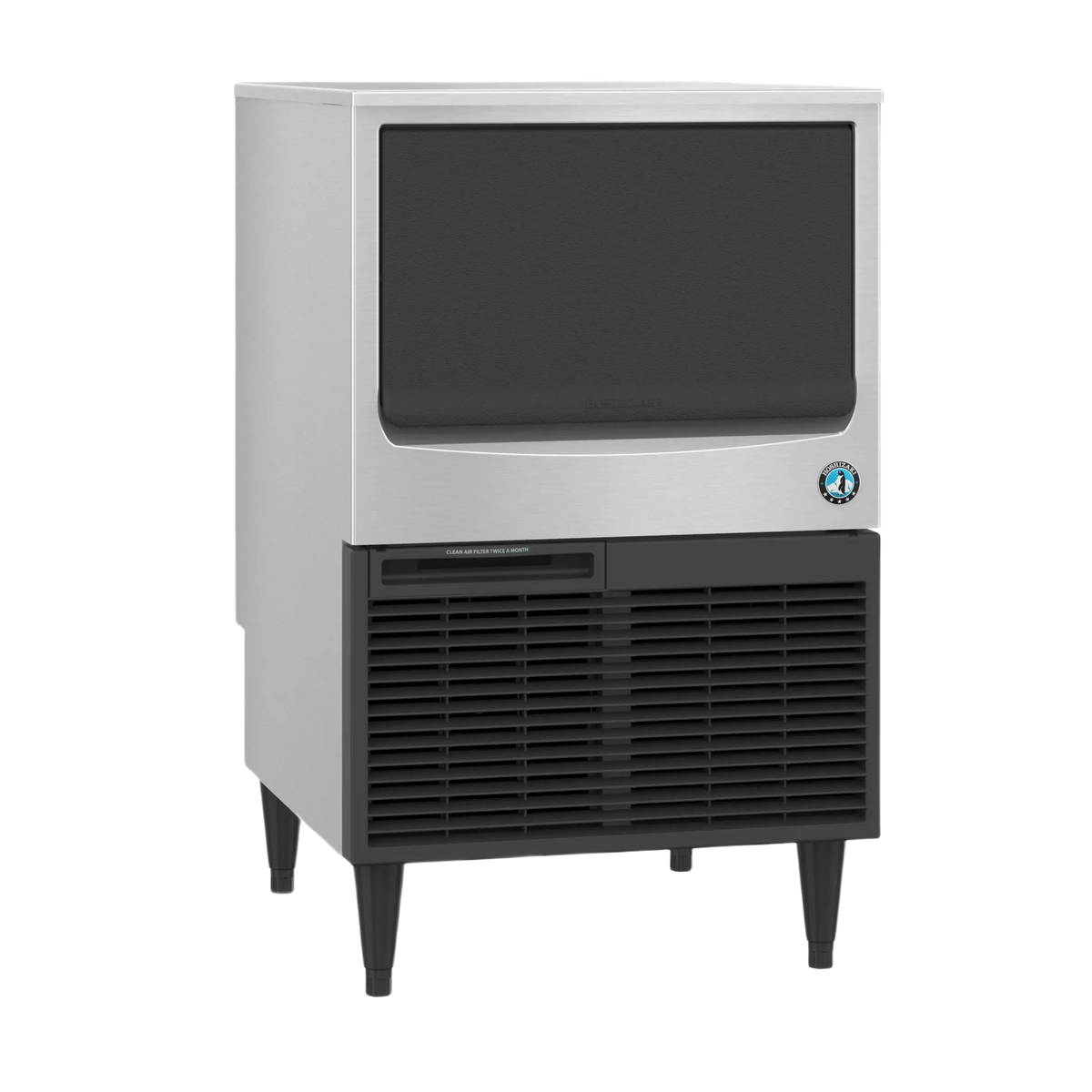

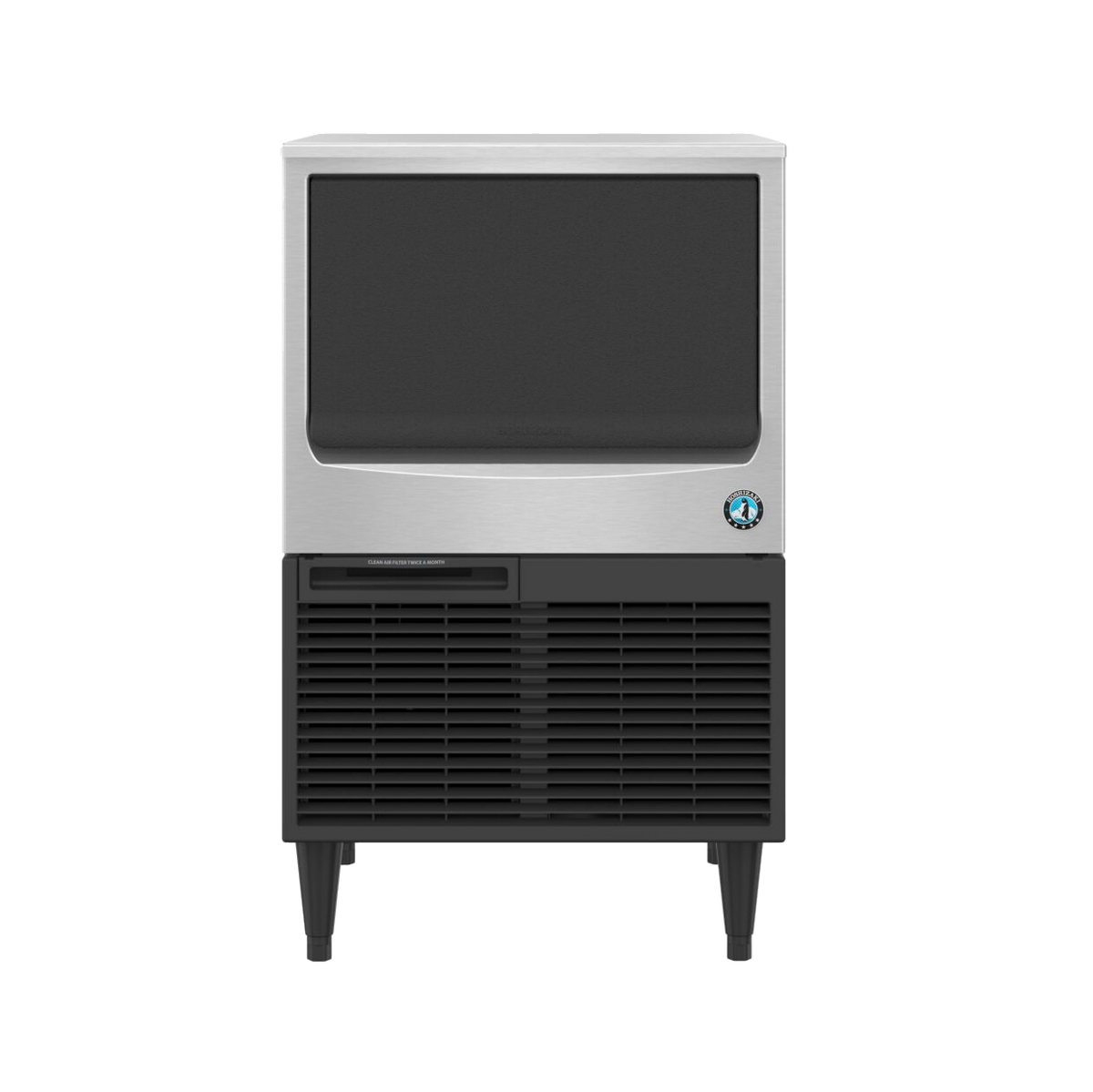

The Hoshizaki KM-116BAK undercounter crescent cube ice maker is a current-generation, self-contained solution for locations needing dependable ice production in a compact footprint. It produces up to 130 lb of KMEdge crescent ice per day and stores up to 53 lb in its built-in 1.8-cubic-foot bin. The 23-3/4-inch-wide cabinet fits beverage stations, bars, cafés, offices, and small foodservice operations without requiring a separate modular bin.

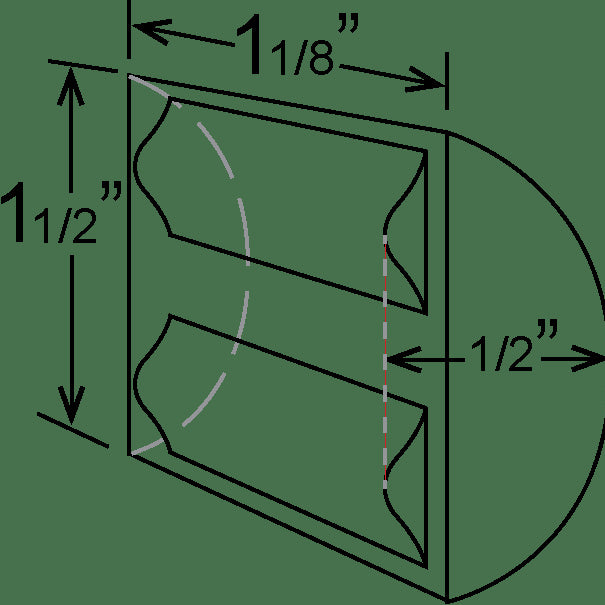

Each KMEdge crescent cube measures approximately 1-1/2 x 1-1/8 x 1/2 inch. The hard, clear shape provides attractive drink presentation and reliable displacement in glasses. Ice forms on both sides of the stainless steel evaporator, while the CycleSaver design reduces the number of freeze-and-harvest cycles needed to produce ice, supporting durability and consistent output.
The air-cooled machine uses R290 natural refrigerant, draws only 3.4 amps, and is ENERGY STAR qualified. Front-in/front-out airflow and a removable condenser air filter simplify undercounter planning and routine cleaning. Additional practical details include EverCheck monitoring, a slide-in door that stays out of the aisle, a cleanable inlet-water screen, stainless steel construction, and an ADA-compliant bin opening.
Maximum production is measured at 70°F air and 50°F water. At the more demanding 90°F air and 70°F water condition, the listed output is approximately 110 lb per day. Buyers should size the machine around real peak demand and site conditions, then provide the required clearances, water pressure, dedicated electrical service, and gravity drain—or use the approved optional pump where appropriate.
Key Features

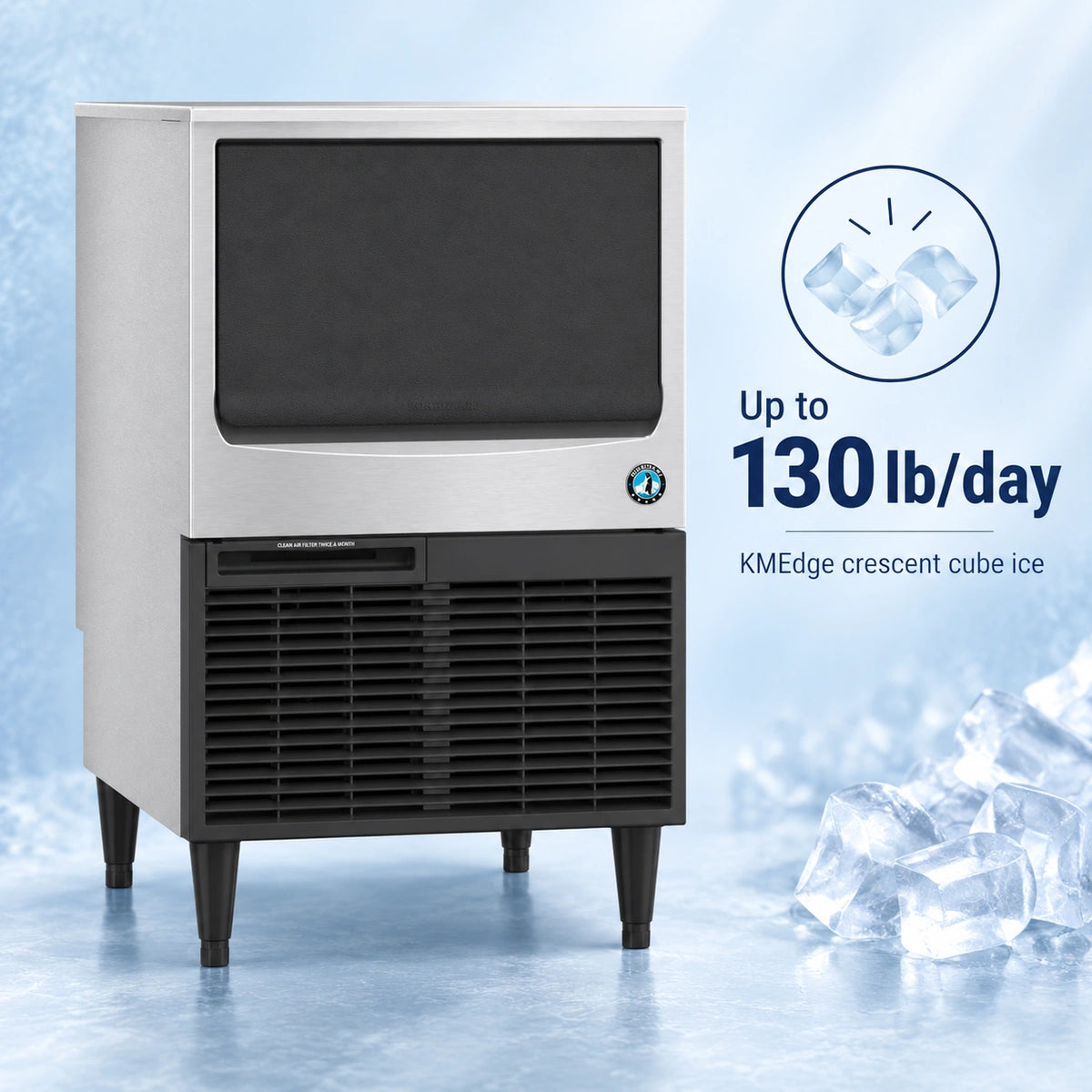

- Produces up to 130 lb/day of KMEdge crescent cube ice

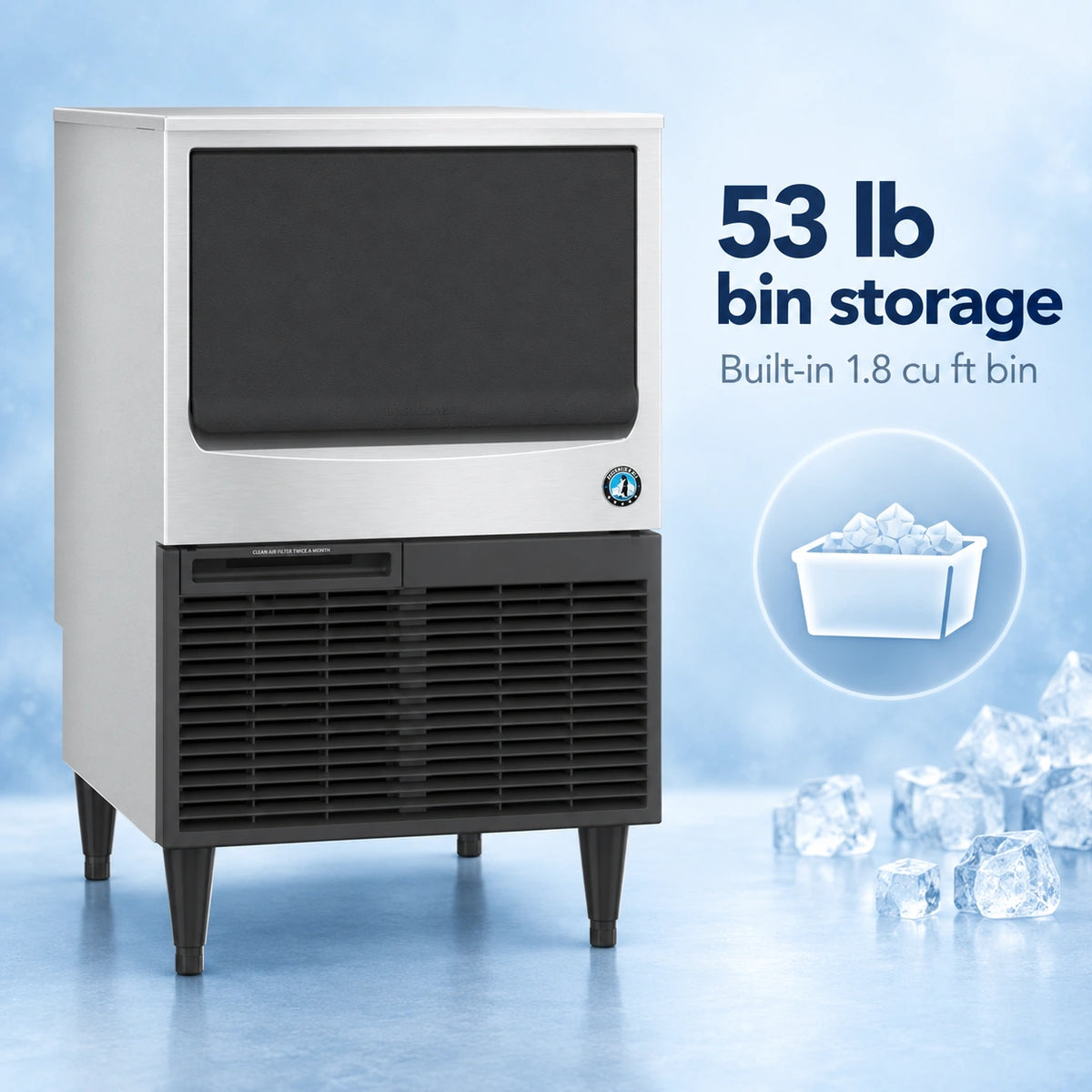

- Built-in bin stores up to 53 lb / 1.8 cu ft
- 23-3/4-inch-wide self-contained undercounter cabinet
- Double-sided stainless steel evaporator
- CycleSaver design and EverCheck monitoring
- R290 natural refrigerant
- ENERGY STAR qualified
- Front-in/front-out airflow and removable air filter
- Slide-in door and ADA-compliant bin opening
- Cleanable inlet-water screen
- Ice scoop included
Best For
Cafés, bars, small restaurants, office break rooms, hotel service areas, healthcare refreshment stations, and compact beverage counters that need efficient current-generation crescent ice production with built-in storage.

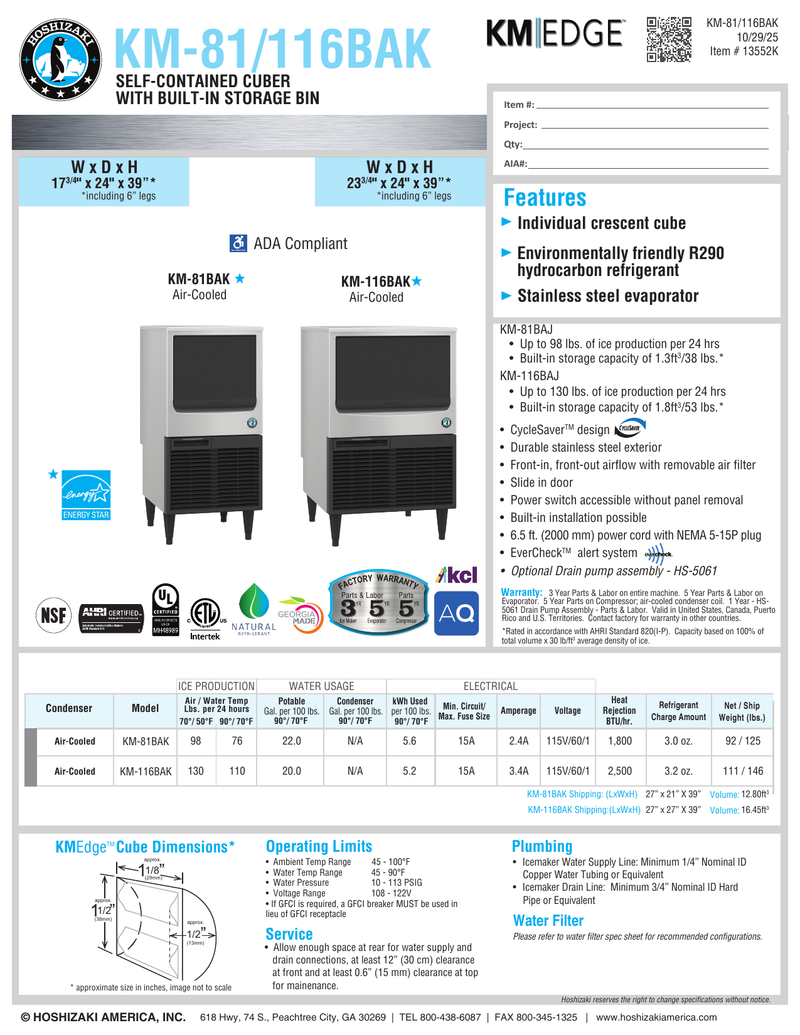

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | KM-116BAK |
| Type | Self-contained undercounter crescent cube ice maker |
| Ice Type | KMEdge crescent cube, approximately 1-1/2 x 1-1/8 x 1/2 inch |
| Cooling | Air-cooled; front-in/front-out airflow |
| Maximum Production | Up to 130 lb/24 hr at 70°F air / 50°F water |
| AHRI Production | Approximately 110 lb/24 hr at 90°F air / 70°F water |
| Built-in Storage | 53 lb / 1.8 cu ft |
| Dimensions (W x D x H) | 23-3/4 x 24 x 39 inches, including 6-inch legs |
| Net / Shipping Weight | 111 lb / 146 lb |
| Electrical | 115V / 60Hz / 1 phase; 3.4A; 15A maximum circuit; NEMA 5-15 plug; 6.5 ft cord |
| Refrigerant | R290, 3.2 oz |
| Energy Use | 5.2 kWh per 100 lb at 90°F air / 70°F water |
| Potable Water Use | 20 gal per 100 lb at 90°F air / 70°F water |
| Heat Rejection | 2,500 BTU/hr |
| Water Inlet | 1/2-inch FPT; minimum 1/4-inch supply line |
| Drain | 3/4-inch FPT; minimum 3/4-inch drain line |
| Operating Range | 45-100°F air; 45-90°F water; 10-113 PSIG; 108-122V |
| Certifications | ENERGY STAR; ADA-compliant bin opening |
Warranty
- Entire machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
- Optional HS-5061 drain pump: 1 year parts and labor
Installation and Maintenance Notes
- Provide rear connection space, approximately 12 inches at the front, and 0.6 inch at the top; follow the latest installation manual for final clearances.
- Connect to a properly dedicated 115V circuit within the specified 108-122V operating range.
- Optional HS-5061 drain pump is available for approved non-gravity-drain installations.
- Use the H9320-51 filter option or site-appropriate water treatment and maintain scheduled descaling and sanitation.
