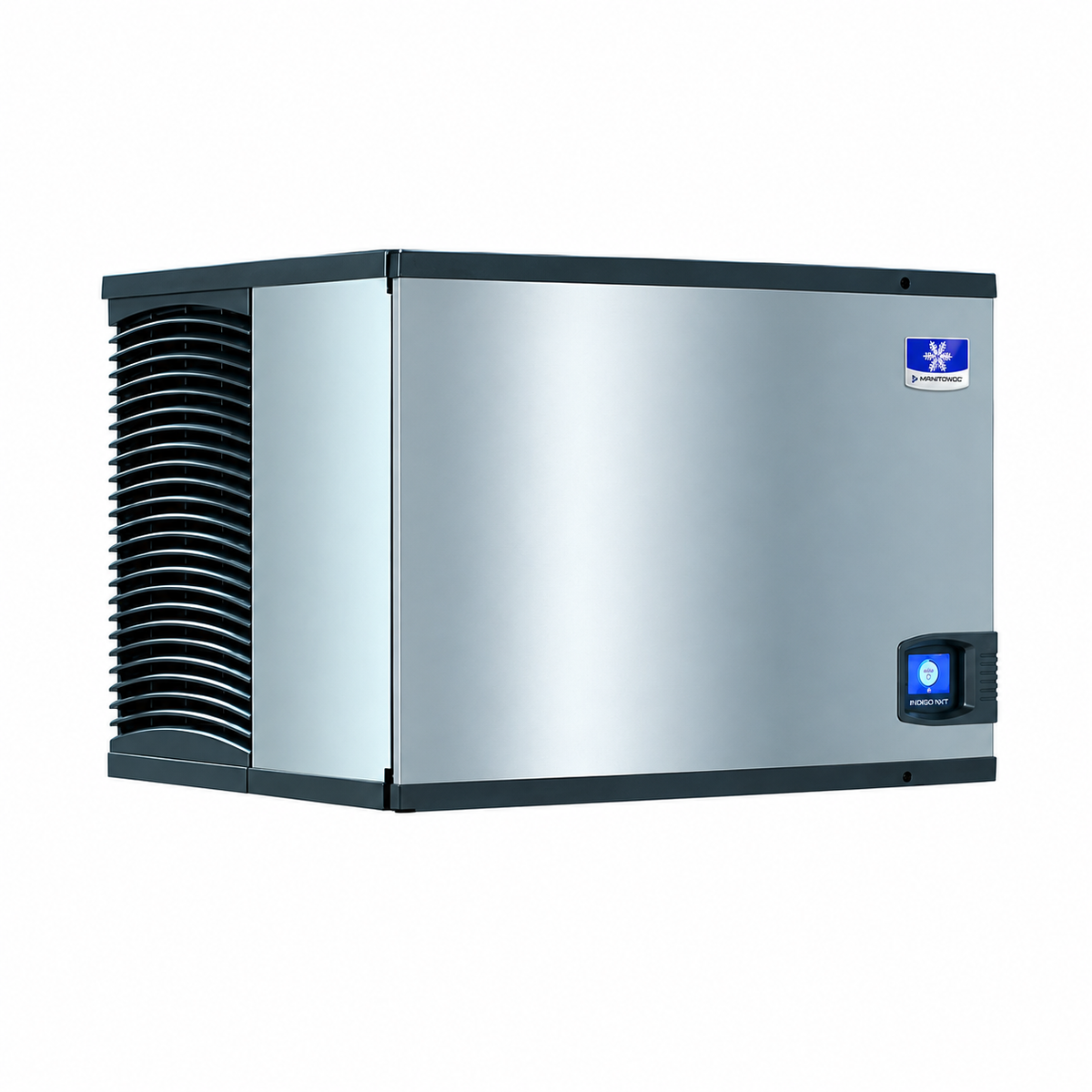

Manitowoc IRP0500A Modular Regular Cube Ice Maker
Manitowoc IRP0500A Modular Regular Cube Ice Maker Description
Manitowoc IRP0500A — 509-pound daily production in a modular Regular cube ice head
The Manitowoc IRP0500A (IRP0500A-161) is a modular commercial ice maker head designed to produce regular cube ice for commercial use. It is rated for up to 509 lb per 24 hours at 70°F air / 50°F water and 411 lb per 24 hours at 90°F air / 70°F water. This is an ice machine head; storage is selected separately. Any bin or adapter shown in the quoted accessories is part of the quoted package, not integral storage inside the head.
Regular cube ice makes the IRP0500A a practical fit for restaurants, bars and beverage programs that prefer a larger, presentation-focused cube. Because production and storage are separate, an operator can pair the head with a compatible bin or dispenser sized around peak demand and service pattern.
The Indigo NXT platform is designed around accessible operation and service information. Its commercial modular format supports planned ice production while removable food-zone components and programmable controls help operators organize routine cleaning, sanitation and demand management. Exact feature availability should be confirmed for the quoted electrical and model generation, especially where this workbook identifies a legacy unit and a newer replacement.
The listed configuration combines Air-cooled heat rejection, R290 refrigeration, the quoted 115v/60/1-ph electrical arrangement, a cabinet measuring 30 × 24 × 21.5 in.. Electrical, plumbing, drainage and ventilation work must follow the model installation instructions and applicable local codes. Do not size openings or utility connections from the marketing description alone; use the installation drawing for final field work.
Key Features
- Up to 509 lb/day at 70°F air / 50°F water
- 411 lb/day at 90°F air / 70°F water
- Regular cube ice format
- Modular head for use with a compatible separate bin or dispenser
- Air-cooled configuration
- R290 refrigerant
- 30 × 24 × 21.5 in. cabinet
- Quoted electrical configuration: 115v/60/1-ph
- Listed certifications/marks: AHRI, ENERGY STAR, NSF, cULus, CE
Best For
restaurants, bars and beverage programs that prefer a larger, presentation-focused cube, especially where storage capacity must be selected independently from production.
Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | IRP0500A |
| Quoted configuration | IRP0500A-161 |
| Product family | Indigo NXT modular cube |
| Machine type | Ice Maker, Cube-Style |
| Format | Modular head |
| Ice type | Regular cube |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 509 lb/24 hr |
| Production at 90°F air / 70°F water | 411 lb/24 hr |
| Storage | Separate compatible bin or dispenser required |
| Dimensions (W × D × H) | 30 × 24 × 21.5 in. |
| Electrical | 115v/60/1-ph |
| Refrigerant | R290 |
| Certifications and listed marks | AHRI, ENERGY STAR, NSF, cULus, CE |
| Lifecycle status | Current |
Warranty
- Ice machine: 3 years parts and labor.
- Evaporator: 5 years parts and labor.
- Compressor: 5 years parts and 3 years labor.
- Coverage is subject to registration requirements, terms, exclusions and the eligibility of the exact model.
Accessories
- AR-10000-P: Arctic Pure Plus Primary Water Filter Assembly.
- F1300: Upright Ice Storage Bin, large, first ice in/first ice out, 48"W.
- K00347: Ice Deflector, for 30" Indigo ice machines on LB-Style bins.
- These are quote-listed configuration items. Confirm included quantities and compatibility against the final sales quote before ordering.
Installation and Maintenance Notes
- Install the machine on a compatible, properly supported bin or dispenser; use the model-specific adapter or deflector where required.
- Provide potable water, a correctly routed drain and the electrical service stated for IRP0500A-161; plumbing and electrical work must follow the installation manual and local codes.
- Keep condenser air paths and required ventilation clear; restricted airflow or high ambient temperature can reduce production.
- Size capacity using realistic site conditions. Ice production changes with ambient temperature, incoming water temperature, water quality and maintenance condition.
- Clean and sanitize the food zone on the manufacturer's schedule. Maintain filtration, inspect drains and keep the condenser or ventilation path clean.
Manitowoc IRP0500A Modular Regular Cube Ice Maker Features

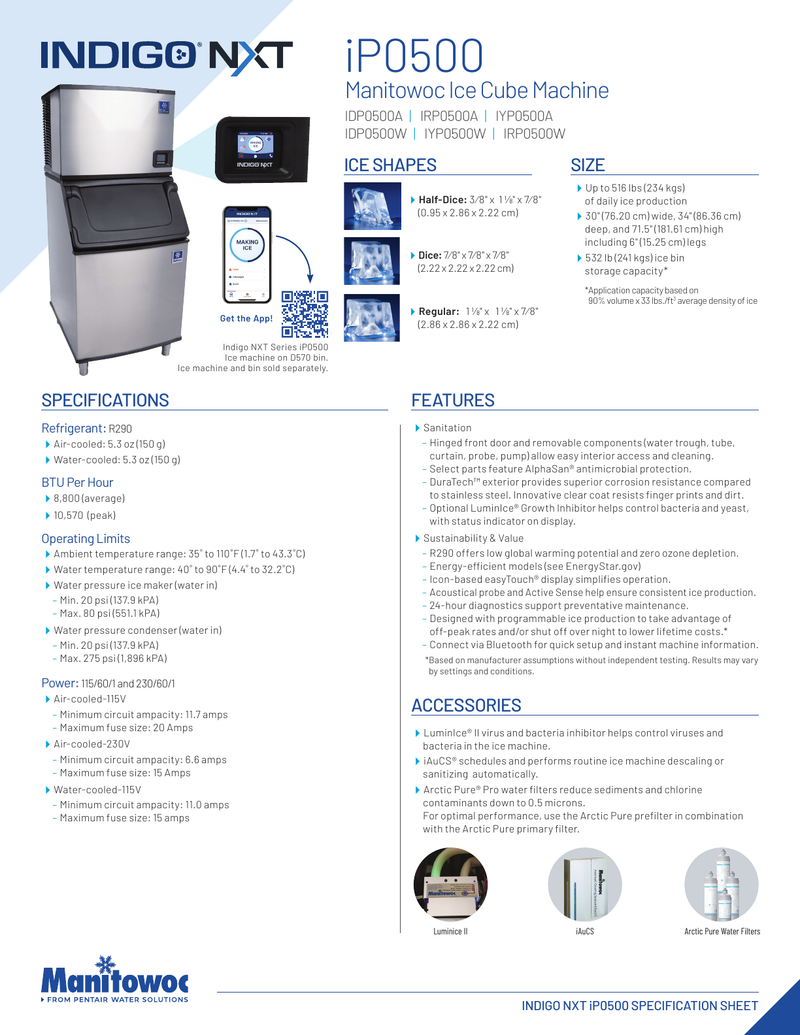

Manitowoc IRP0500A Modular Regular Cube Ice Maker Resources
