ITV Ice Makers IQ 1300 W3 27" Water-Cooled Three-Phase Modular Granular (Chip) Ice Machine – 1,450 lb/Day (Head Only)

Name: ITV Ice Makers IQ 1300 W3 27" Water-Cooled Three-Phase Modular Granular (Chip) Ice Machine – 1,450 lb/Day (Head Only)
Brand: ITV Ice Makers
SKU: 10163
Price: 8265.5 USD
Availability: InStock

$8,265.50

$8,265.50 ~~$16,531.00~~

Save 50%

The ITV IQ 1300 W3 is the three-phase, water-cooled version of the IQ 1300 modular ice machine head, producing up to 1,450 lb (658 kg) of wet granular "chip" ice per day. It pairs a water-cooled condenser — for low energy use and steady output in warm, enclosed spaces — with a 208–230V / 60Hz three-phase electrical supply. This is a head-only unit and requires a separate storage bin.

Ask a question

Size guide

Share

Estimated Delivery:Jun 24 - Jun 28

ITV Ice Makers IQ 1300 W3 27" Water-Cooled Three-Phase Modular Granular (Chip) Ice Machine – 1,450 lb/Day (Head Only) Description

Wet granular ice — often called chip ice — is soft, moldable, and easy to chew, with a 40–50% residual water content that makes it ideal for chilling drinks, displaying fresh food, and patient care. The IQ 1300 W3 produces this ice continuously through a stainless steel auger system and drops it out of an opening in the bottom of the unit into the bin below.

The "W3" designation means this unit is water-cooled (the "W") and runs on three-phase power (the "3"). As a water-cooled machine, it rejects heat into a water supply rather than into the air, which keeps electricity use low and output steady — at the cost of much higher water consumption, so it needs a reliable water supply and proper drainage. The three-phase supply spreads the electrical load evenly and suits larger kitchens, production facilities, and industrial buildings already wired for three-phase service. Together, these make the W3 a strong fit for hot or enclosed equipment rooms in high-volume, three-phase facilities.

Built with an AISI 304 stainless steel body and a high-efficiency evaporator with no gaskets or seals, the IQ 1300 W3 is designed for long service life and simple maintenance. It uses a straightforward electromechanical control system with an on/off lighted rocker switch on the front panel, and its Tropicalized (T-Class) design lets it keep producing in high ambient temperatures.

Key Features

Three-phase power: 208–230V / 60Hz / 3-phase — ideal for facilities wired for three-phase service
Water-cooled condenser for lower energy use and stable output in warm or enclosed spaces
High output: up to 1,450 lb (658 kg) of ice per day
Energy efficient: 4.2 kWh per 100 lb of ice
Wet granular (chip) ice with 40–50% residual water content — soft, chewable, and ideal for beverages and food display
The most efficient evaporator on the market — lower energy consumption and higher ice production
Evaporator without gaskets or seals for reliability and easy cleaning
Stainless steel auger with resilient coating to maximize lifespan
Powerful speed reducer mounted on top
AISI 304 stainless steel body
Electromechanical control system with an on/off lighted rocker switch on the front panel
Tropicalized (T-Class) for reliable operation in high ambient temperatures
EASI (Easy Access for Service & Installation) and STIF (Strong Inox Frame)
NSF and ETL (Intertek) certified

Best For

High-volume commercial and industrial sites already wired for 208–230V three-phase power
Hot kitchens, enclosed equipment rooms, or sites with limited ventilation where air-cooled units underperform
Large restaurants, hotels, and catering operations; healthcare and patient ice service
Soda fountains, blended/frozen drinks, salad bars, seafood and produce display, and retail ice bagging

Full Specifications

Specification	Detail
Ice Type	Wet granular (chip) ice, 40–50% residual water content
Machine Type	Modular ice machine head (requires separate storage bin)
Condenser / Cooling	Water-cooled
Ice Production (nominal, 50°F air / 70°F water)	1,450 lb (658 kg) / 24 h
Ice Production (ASHRAE, 90°F air / 70°F water)	1,050 lb (476 kg) / 24 h
Production Range (across conditions)	~714–1,546 lb (324–701 kg) / 24 h
Refrigerant	R404A
Electrical	208–230 V / 60 Hz / 3-phase (±10%)
Power Consumption (ASHRAE)	5,257 W
Power Consumption (at 109°F)	1,700 W
Energy Use	4.2 kWh / 100 lb of ice
Water Consumption	47.6 gal / 100 lb of ice (110 L/h)
Heat Rejected	13,584 BTU/h (3,981 W)
Wiring / Fuse	14 AWG (1.5 mm²), 5-conductor / 16 A fuse
Evaporator Temp.	5°F
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range	50–109°F (10–43°C)
Water Temp. Range	41–100°F (5–38°C)
Cabinet Dimensions (W × D × H)	26.58" × 21.66" × 31.50" (675 × 550 × 800 mm)
Shipping Dimensions (W × D × H)	29.53" × 25.60" × 35.44" (750 × 650 × 900 mm)
Net Weight	231 lb (105 kg)
Shipping Weight	287 lb (130 kg)
Certifications	NSF, ETL (Intertek)

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Auger: 5 years parts
Compressor: 5 years parts

Accessories

Optional (not included):

CS-101 K — 10" anti-limescale + anti-chlorine water filter
CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S500, S750, S900, S1050 (1|2), SCS350, SCS700, SCD900 (1|2), SCD1400 (1|2), SCD1800 (1|2).

💡As a head-only unit, the IQ 1300 W3 needs a separate storage bin to operate. If your site runs on single-phase power, choose the IQ 1300 W instead; if you'd rather avoid the higher water use of water-cooling, the air-cooled IQ 1300 A3 is the three-phase alternative.

ITV Ice Makers IQ 1300 W3 27" Water-Cooled Three-Phase Modular Granular (Chip) Ice Machine – 1,450 lb/Day (Head Only) Features

Premium Quality

Build to Last

Wet Granular Ice

Soft & Moist

High Output

Up to 1,450 lb/day

Water-Cooled

Stable Heat Rejection

Stainless Frame

AISI 304 Build

Easy Service

Removable Panels

ITV Ice Makers IQ 1300 W3 27" Water-Cooled Three-Phase Modular Granular (Chip) Ice Machine – 1,450 lb/Day (Head Only) Resources

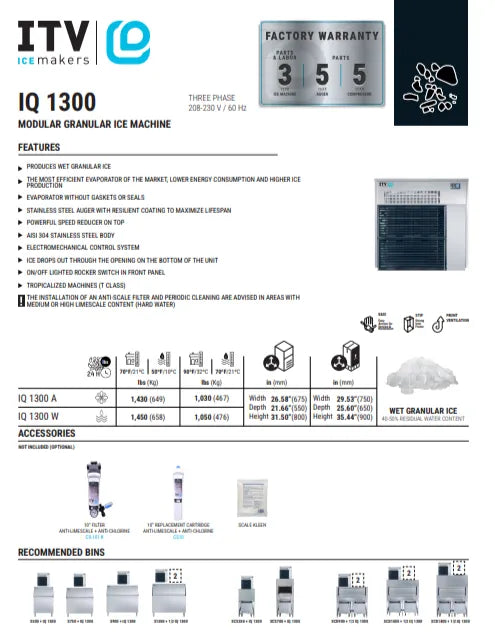

Specification
