ITV IQ 1300 A3 Commercial Granular Chip Ice Machine Head - 1,430 lb/Day, 27 inches Air-Cooled Modular 3-Phase
ITV IQ 1300 A3 Commercial Granular Chip Ice Machine Head - 1,430 lb/Day, 27 inches Air-Cooled Modular 3-Phase Description
Wet granular ice — often called chip ice — is soft, moldable, and easy to chew, with a 40–50% residual water content that makes it ideal for chilling drinks, displaying fresh food, and patient care. The IQ 1300 A3 produces this ice continuously through a stainless steel auger system and drops it out of an opening in the bottom of the unit into the bin below.
The "A3" designation means this unit is air-cooled (the "A") and runs on three-phase power (the "3"). It delivers the same high output as the single-phase IQ 1300 A — up to 1,430 lb of ice per day — but connects to a 208–230V three-phase supply instead of single-phase. Three-phase wiring spreads the electrical load more evenly and is standard in many larger kitchens, production facilities, and industrial buildings, so the A3 is the model to specify when the site already has three-phase service. Being air-cooled, it sheds heat into the surrounding air and keeps installation simple wherever there is adequate ventilation.
Built with an AISI 304 stainless steel body and a high-efficiency evaporator with no gaskets or seals, the IQ 1300 A3 is designed for long service life and simple maintenance. It uses a straightforward electromechanical control system with an on/off lighted rocker switch on the front panel, and its Tropicalized (T-Class) design lets it keep producing in high ambient temperatures.
Key Features

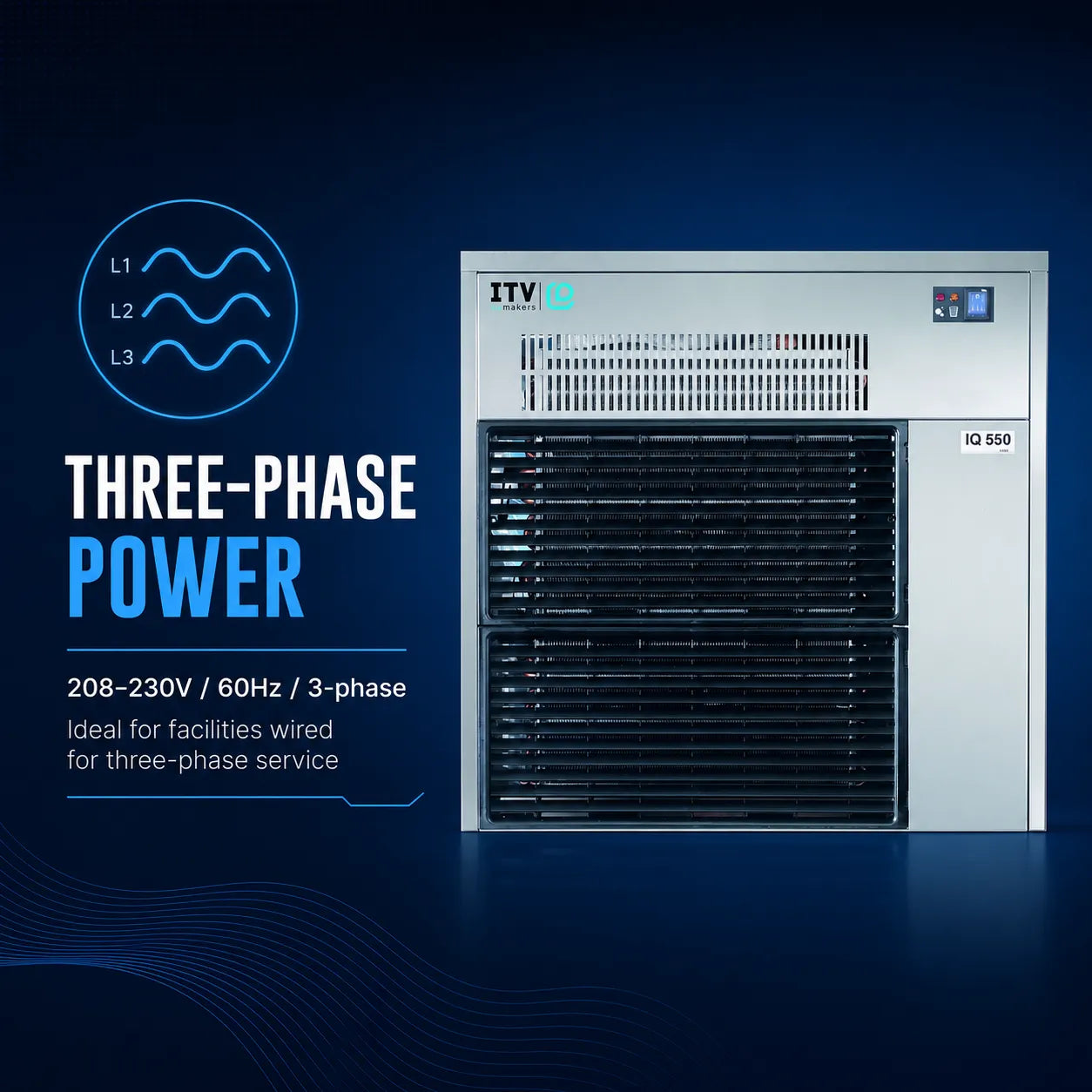

- Three-phase power: 208–230V / 60Hz / 3-phase — ideal for facilities wired for three-phase service

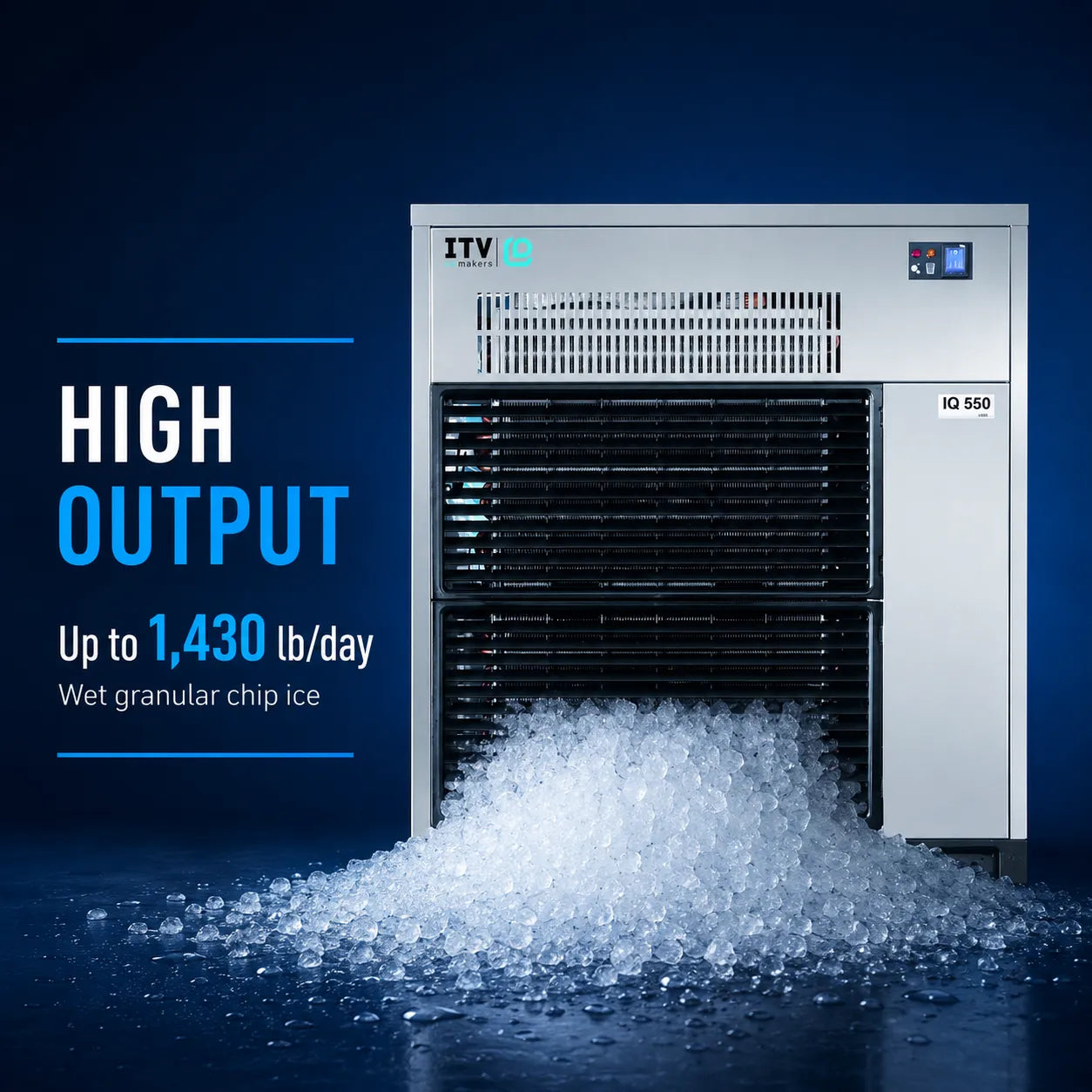

- High output: up to 1,430 lb (649 kg) of ice per day

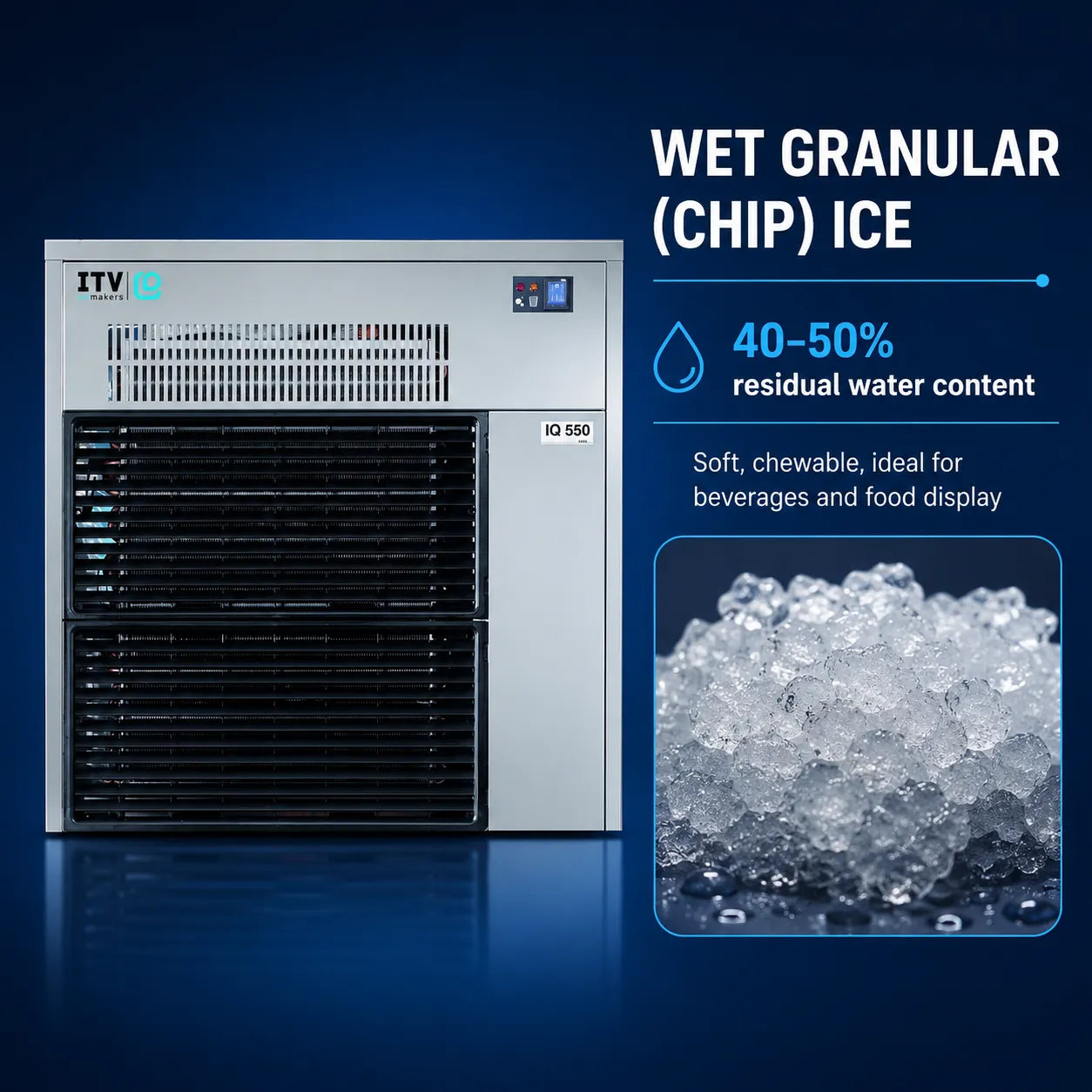

- Wet granular (chip) ice with 40–50% residual water content — soft, chewable, and ideal for beverages and food display

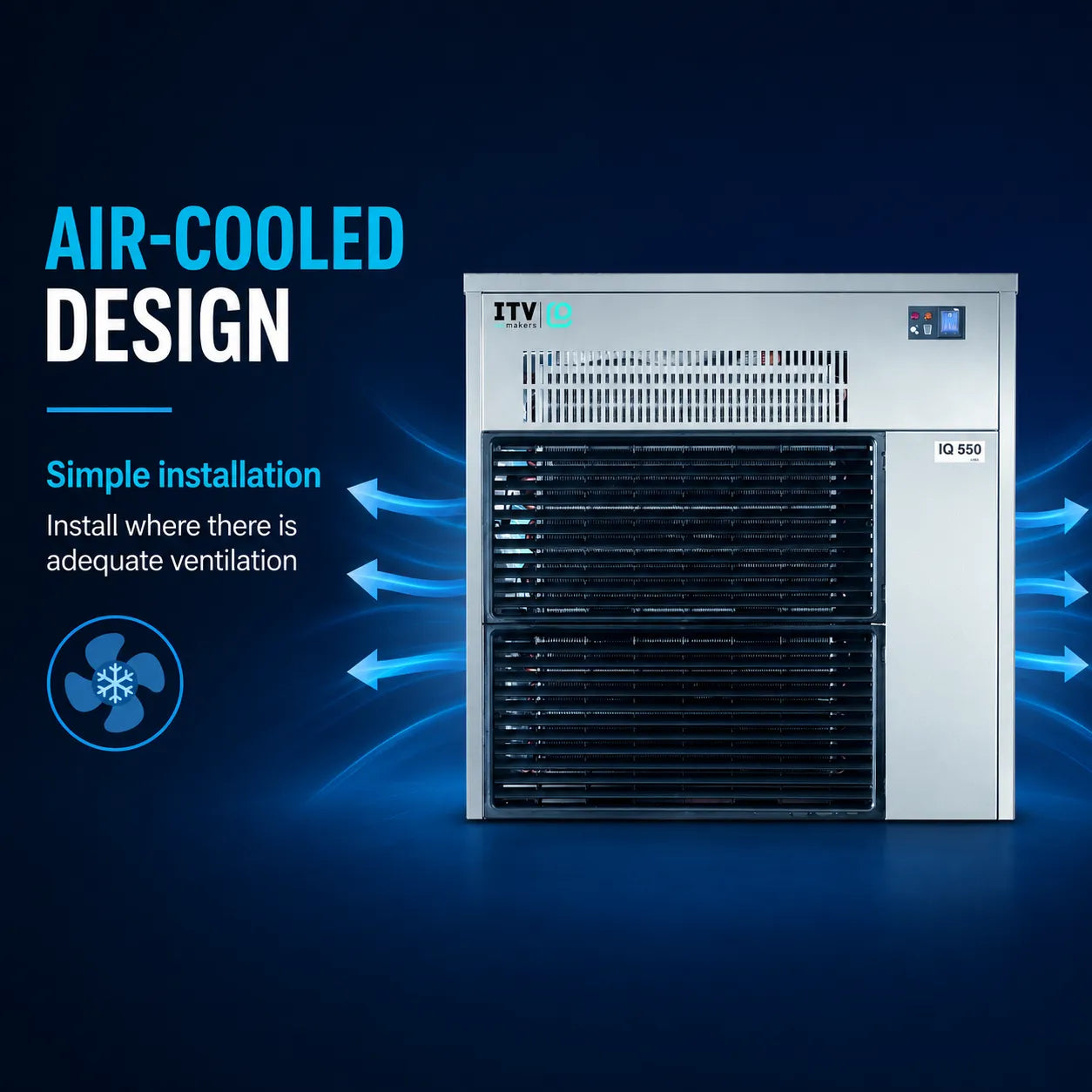

- Air-cooled condenser for simple installation wherever there is adequate ventilation
- The most efficient evaporator on the market — lower energy consumption and higher ice production
- Evaporator without gaskets or seals for reliability and easy cleaning
- Stainless steel auger with resilient coating to maximize lifespan
- Powerful speed reducer mounted on top
- AISI 304 stainless steel body
- Electromechanical control system with an on/off lighted rocker switch on the front panel
- Tropicalized (T-Class) for reliable operation in high ambient temperatures
- Front ventilation, EASI (Easy Access for Service & Installation), and STIF (Strong Inox Frame)
- NSF and ETL (Intertek) certified
Best For
- High-volume commercial and industrial sites already wired for 208–230V three-phase power
- Large restaurants, hotels, and catering operations
- Healthcare facilities and patient ice service
- Soda fountains, blended/frozen drinks, salad bars, seafood and produce display, and retail ice bagging

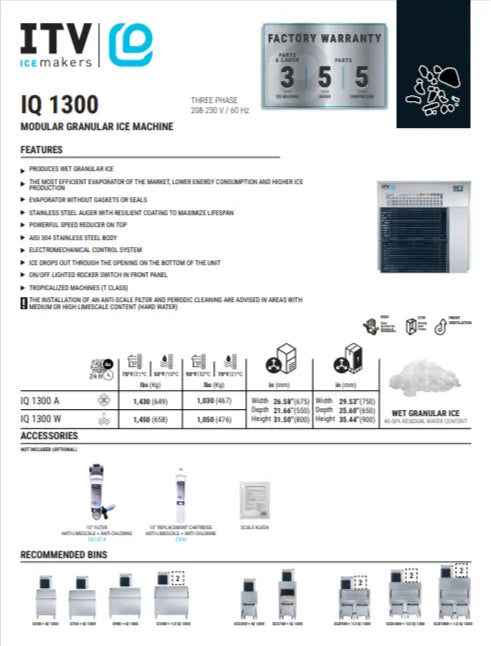

Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Wet granular (chip) ice, 40–50% residual water content |
| Machine Type | Modular ice machine head (requires separate storage bin) |
| Condenser / Cooling | Air-cooled |
| Ice Production (nominal, 50°F air / 70°F water) | 1,430 lb (649 kg) / 24 h |
| Ice Production (ASHRAE, 90°F air / 70°F water) | 1,030 lb (467 kg) / 24 h |
| Production Range (across conditions) | ~700–1,525 lb (318–692 kg) / 24 h |
| Refrigerant | R404A |
| Electrical | 208–230 V / 60 Hz / 3-phase (±10%) |
| Power Consumption (ASHRAE) | 5,257 W |
| Power Consumption (at 109°F) | 1,700 W |
| Energy Use | 4.2 kWh / 100 lb of ice |
| Water Consumption | 12 gal / 100 lb of ice (27 L/h) |
| Heat Rejected | 13,584 BTU/h (3,981 W) |
| Wiring / Fuse | 14 AWG (1.5 mm²), 5-conductor / 16 A fuse |
| Evaporator Temp. | 5°F |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 50–109°F (10–43°C) |
| Water Temp. Range | 41–100°F (5–38°C) |
| Cabinet Dimensions (W × D × H) | 26.58" × 21.66" × 31.50" (675 × 550 × 800 mm) |
| Shipping Dimensions (W × D × H) | 29.53" × 25.60" × 35.44" (750 × 650 × 900 mm) |
| Net Weight | 231 lb (105 kg) |
| Shipping Weight | 287 lb (130 kg) |
| Certifications | NSF, ETL (Intertek) |
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Auger: 5 years parts
- Compressor: 5 years parts
Accessories
Optional (not included):
- CS-101 K — 10" anti-limescale + anti-chlorine water filter
- CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: S500, S750, S900, S1050 (1|2), SCS350, SCS700, SCD900 (1|2), SCD1400 (1|2), SCD1800 (1|2).
💡As a head-only unit, the IQ 1300 A3 needs a separate storage bin to operate. If your site runs on single-phase power, choose the IQ 1300 A instead; for the highest output, step up to the IQ 2700 A.
ITV IQ 1300 A3 Commercial Granular Chip Ice Machine Head - 1,430 lb/Day, 27 inches Air-Cooled Modular 3-Phase Features
Premium Quality
Built to Last
Wet Granular Ice
Soft & Moist
High Output
Up to 1,430 lb/day
Air-Cooled
Uses Air for Cooling
Modular Design
Choose Your Bin
Front Venting
Built-In Ready
Easy Service
Removable Panels
Stainless Frame
AISI 304 Build
Commercial Listed
NSF ETL Certified
ITV IQ 1300 A3 Commercial Granular Chip Ice Machine Head - 1,430 lb/Day, 27 inches Air-Cooled Modular 3-Phase Resources
Shipping Policy
At Ice Maker Supply, we work to make shipping clear, reliable, and easy to track. Most orders are shipped through trusted warehouse, supplier, or carrier partners. Shipping times may vary based on product availability, warehouse location, delivery address, carrier schedule, freight requirements, and order volume.
Standard Delivery
Our estimated delivery time is 4-6 business days for most eligible areas after the order has been processed and shipped.
Some larger ice machines may require freight delivery. Freight shipments may take longer depending on location, carrier availability, and delivery appointment scheduling.
Delivery times are estimates and are not guaranteed.
Order Processing
Orders are usually processed during regular business days, Monday through Friday.
Processing may take longer during:
- Holidays
- High order volume
- Supplier delays
- Payment review
- Address verification
- Product backorders
- Freight scheduling
If there is a delay with your order, we will do our best to keep you updated.
Shipping Confirmation and Tracking
Once your order ships, you will receive a shipping confirmation email with your order and tracking details.
You may be able to see:
- Order status
- Carrier name
- Tracking number
- Estimated delivery date
- Shipment updates
Tracking may not update immediately after the label is created. In some cases, the package may already be moving even if the tracking page has not refreshed.
If your tracking has not updated for more than 5 business days, please contact us so we can help check the shipment status.
Multiple Shipments
Some orders may ship in multiple packages, especially if your order includes:
- Bundled products
- Accessories
- Replacement parts
- Items from different warehouses
- Products from different suppliers
If your order ships separately, you may receive more than one tracking number.
Shipping Areas
Orders placed on icemakersupply.com are currently shipped only within the contiguous United States.
At this time, we do not ship to:
- Alaska
- Hawaii
- Puerto Rico
- U.S. Virgin Islands
- Guam
- American Samoa
- Northern Mariana Islands
- Marshall Islands
- Palau
- Armed Forces Americas
- Armed Forces Europe
- Armed Forces Pacific
- International addresses
If your address is outside our available shipping area, your order may be canceled and refunded.
Expedited Shipping
Expedited shipping is not available at this time.
Because many ice makers are large, heavy, or shipped through supplier warehouses, faster shipping options may not be available for every product.
Freight Delivery
Some commercial or larger ice machines may ship by freight carrier instead of standard parcel delivery.
Freight delivery may require:
- A delivery appointment
- A valid phone number
- Someone available to receive the shipment
- Inspection before signing
- Extra time for scheduling
Please inspect freight shipments carefully before accepting delivery. If the item or packaging appears damaged, note the damage with the carrier and contact us as soon as possible.
If possible, take clear photos of the packaging and product before moving or installing the item.
Damaged Packages
If your order arrives damaged, please contact us immediately.
Send us:
- Your order number
- Photos of the damaged packaging
- Photos of the damaged product
- A short description of the issue
- Delivery receipt notes, if available
Damage claims are easier to process when reported quickly. Late damage reports may limit our ability to file a carrier or supplier claim.
Do not install or use a damaged product before contacting us.
Incorrect or Incomplete Address
Please make sure your shipping address is complete and accurate before placing your order.
Ice Maker Supply is not responsible for delays, failed deliveries, or extra charges caused by:
- Incorrect address
- Missing apartment, suite, or unit number
- Wrong ZIP code
- Unreachable phone number
- Delivery restrictions at the location
If an order is returned because of an incorrect or incomplete address, additional shipping charges may apply before the item can be reshipped.
Can I Change My Delivery Address?
If your order has not shipped yet, contact us as soon as possible. We may be able to update the shipping address before fulfillment begins.
Once an order has shipped or is in transit, we usually cannot change the delivery address.
For freight shipments, address changes may not be possible after carrier pickup.
Returned to Sender
A package may be returned to the sender due to:
- Incorrect address
- Incomplete address
- Failed delivery attempts
- Refused delivery
- Carrier access issues
- Unclaimed shipment
If your package is returned to the sender, contact us with your order number and correct shipping address.
We will review the situation and help arrange the next step. Reshipping fees may apply.
Pre-Order or Backordered Items
If a product is listed as pre-ordered or backordered, the product page may show the estimated shipping date.
Pre-order and backorder shipping dates are estimates and may change due to supplier production, warehouse availability, or carrier delays.
If the estimated shipping date changes, we will do our best to keep you informed.
Warranty Replacement Shipping
If a warranty replacement is approved, shipping may depend on the manufacturer, supplier, or warranty provider.
Replacement orders may require:
- Proof of purchase
- Photos or videos of the issue
- Troubleshooting steps
- Return of the original item
- Supplier or manufacturer approval
A replacement will be shipped only after the required review process is complete.
Lost or Stalled Shipments
If your tracking shows no movement for more than 5 business days, contact us.
We may contact the carrier, warehouse, or supplier to check the shipment status.
If a package is confirmed lost, we will review available options based on the carrier investigation and supplier rules.
Contact Us
Need help with shipping or tracking?
Contact Ice Maker Supply:
- Email: support@icemakersupply.com
- Website: icemakersupply.com
Our support team can help with order status, tracking questions, delivery issues, and shipping concerns.
ITV IQ 1300 A3 Commercial Granular Chip Ice Machine Head - 1,430 lb/Day, 27 inches Air-Cooled Modular 3-Phase Description
Wet granular ice — often called chip ice — is soft, moldable, and easy to chew, with a 40–50% residual water content that makes it ideal for chilling drinks, displaying fresh food, and patient care. The IQ 1300 A3 produces this ice continuously through a stainless steel auger system and drops it out of an opening in the bottom of the unit into the bin below.
The "A3" designation means this unit is air-cooled (the "A") and runs on three-phase power (the "3"). It delivers the same high output as the single-phase IQ 1300 A — up to 1,430 lb of ice per day — but connects to a 208–230V three-phase supply instead of single-phase. Three-phase wiring spreads the electrical load more evenly and is standard in many larger kitchens, production facilities, and industrial buildings, so the A3 is the model to specify when the site already has three-phase service. Being air-cooled, it sheds heat into the surrounding air and keeps installation simple wherever there is adequate ventilation.
Built with an AISI 304 stainless steel body and a high-efficiency evaporator with no gaskets or seals, the IQ 1300 A3 is designed for long service life and simple maintenance. It uses a straightforward electromechanical control system with an on/off lighted rocker switch on the front panel, and its Tropicalized (T-Class) design lets it keep producing in high ambient temperatures.
Key Features
- Three-phase power: 208–230V / 60Hz / 3-phase — ideal for facilities wired for three-phase service
- High output: up to 1,430 lb (649 kg) of ice per day
- Wet granular (chip) ice with 40–50% residual water content — soft, chewable, and ideal for beverages and food display
- Air-cooled condenser for simple installation wherever there is adequate ventilation
- The most efficient evaporator on the market — lower energy consumption and higher ice production
- Evaporator without gaskets or seals for reliability and easy cleaning
- Stainless steel auger with resilient coating to maximize lifespan
- Powerful speed reducer mounted on top
- AISI 304 stainless steel body
- Electromechanical control system with an on/off lighted rocker switch on the front panel
- Tropicalized (T-Class) for reliable operation in high ambient temperatures
- Front ventilation, EASI (Easy Access for Service & Installation), and STIF (Strong Inox Frame)
- NSF and ETL (Intertek) certified
Best For
- High-volume commercial and industrial sites already wired for 208–230V three-phase power
- Large restaurants, hotels, and catering operations
- Healthcare facilities and patient ice service
- Soda fountains, blended/frozen drinks, salad bars, seafood and produce display, and retail ice bagging
Full Specifications
| Specification | Detail |
|---|---|
| Ice Type | Wet granular (chip) ice, 40–50% residual water content |
| Machine Type | Modular ice machine head (requires separate storage bin) |
| Condenser / Cooling | Air-cooled |
| Ice Production (nominal, 50°F air / 70°F water) | 1,430 lb (649 kg) / 24 h |
| Ice Production (ASHRAE, 90°F air / 70°F water) | 1,030 lb (467 kg) / 24 h |
| Production Range (across conditions) | ~700–1,525 lb (318–692 kg) / 24 h |
| Refrigerant | R404A |
| Electrical | 208–230 V / 60 Hz / 3-phase (±10%) |
| Power Consumption (ASHRAE) | 5,257 W |
| Power Consumption (at 109°F) | 1,700 W |
| Energy Use | 4.2 kWh / 100 lb of ice |
| Water Consumption | 12 gal / 100 lb of ice (27 L/h) |
| Heat Rejected | 13,584 BTU/h (3,981 W) |
| Wiring / Fuse | 14 AWG (1.5 mm²), 5-conductor / 16 A fuse |
| Evaporator Temp. | 5°F |
| Operating Pressure | 14.5–87 psi (1–6 bar) |
| Ambient Temp. Range | 50–109°F (10–43°C) |
| Water Temp. Range | 41–100°F (5–38°C) |
| Cabinet Dimensions (W × D × H) | 26.58" × 21.66" × 31.50" (675 × 550 × 800 mm) |
| Shipping Dimensions (W × D × H) | 29.53" × 25.60" × 35.44" (750 × 650 × 900 mm) |
| Net Weight | 231 lb (105 kg) |
| Shipping Weight | 287 lb (130 kg) |
| Certifications | NSF, ETL (Intertek) |
Warranty
- Ice machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Auger: 5 years parts
- Compressor: 5 years parts
Accessories
Optional (not included):
- CS-101 K — 10" anti-limescale + anti-chlorine water filter
- CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
- Scale Kleen — descaling/cleaning solution
Recommended storage bins: S500, S750, S900, S1050 (1|2), SCS350, SCS700, SCD900 (1|2), SCD1400 (1|2), SCD1800 (1|2).
💡As a head-only unit, the IQ 1300 A3 needs a separate storage bin to operate. If your site runs on single-phase power, choose the IQ 1300 A instead; for the highest output, step up to the IQ 2700 A.

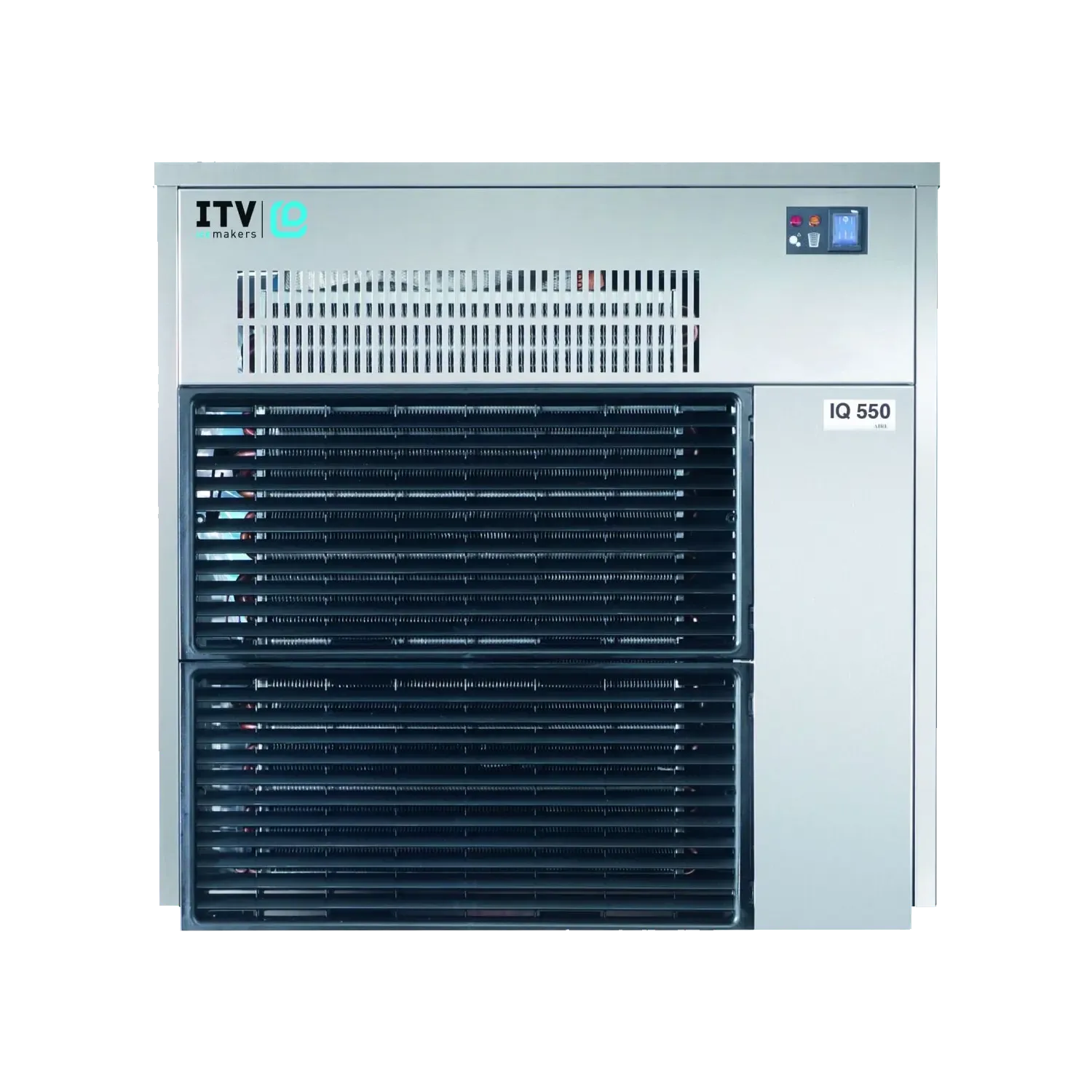

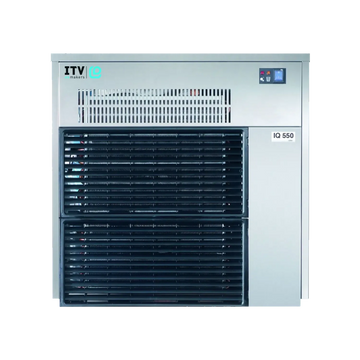

ITV IQ 1300 A3 Commercial Granular Chip Ice Machine Head - 1,430 lb/Day, 27 inches Air-Cooled Modular 3-Phase Features
Premium Quality
Built to Last
Wet Granular Ice
Soft & Moist
High Output
Up to 1,430 lb/day
Air-Cooled
Uses Air for Cooling
Modular Design
Choose Your Bin
Front Venting
Built-In Ready
Easy Service
Removable Panels
Stainless Frame
AISI 304 Build
Commercial Listed
NSF ETL Certified
ITV IQ 1300 A3 Commercial Granular Chip Ice Machine Head - 1,430 lb/Day, 27 inches Air-Cooled Modular 3-Phase Resources
Shipping Policy
At Ice Maker Supply, we work to make shipping clear, reliable, and easy to track. Most orders are shipped through trusted warehouse, supplier, or carrier partners. Shipping times may vary based on product availability, warehouse location, delivery address, carrier schedule, freight requirements, and order volume.
Standard Delivery
Our estimated delivery time is 4-6 business days for most eligible areas after the order has been processed and shipped.
Some larger ice machines may require freight delivery. Freight shipments may take longer depending on location, carrier availability, and delivery appointment scheduling.
Delivery times are estimates and are not guaranteed.
Order Processing
Orders are usually processed during regular business days, Monday through Friday.
Processing may take longer during:
- Holidays
- High order volume
- Supplier delays
- Payment review
- Address verification
- Product backorders
- Freight scheduling
If there is a delay with your order, we will do our best to keep you updated.
Shipping Confirmation and Tracking
Once your order ships, you will receive a shipping confirmation email with your order and tracking details.
You may be able to see:
- Order status
- Carrier name
- Tracking number
- Estimated delivery date
- Shipment updates
Tracking may not update immediately after the label is created. In some cases, the package may already be moving even if the tracking page has not refreshed.
If your tracking has not updated for more than 5 business days, please contact us so we can help check the shipment status.
Multiple Shipments
Some orders may ship in multiple packages, especially if your order includes:
- Bundled products
- Accessories
- Replacement parts
- Items from different warehouses
- Products from different suppliers
If your order ships separately, you may receive more than one tracking number.
Shipping Areas
Orders placed on icemakersupply.com are currently shipped only within the contiguous United States.
At this time, we do not ship to:
- Alaska
- Hawaii
- Puerto Rico
- U.S. Virgin Islands
- Guam
- American Samoa
- Northern Mariana Islands
- Marshall Islands
- Palau
- Armed Forces Americas
- Armed Forces Europe
- Armed Forces Pacific
- International addresses
If your address is outside our available shipping area, your order may be canceled and refunded.
Expedited Shipping
Expedited shipping is not available at this time.
Because many ice makers are large, heavy, or shipped through supplier warehouses, faster shipping options may not be available for every product.
Freight Delivery
Some commercial or larger ice machines may ship by freight carrier instead of standard parcel delivery.
Freight delivery may require:
- A delivery appointment
- A valid phone number
- Someone available to receive the shipment
- Inspection before signing
- Extra time for scheduling
Please inspect freight shipments carefully before accepting delivery. If the item or packaging appears damaged, note the damage with the carrier and contact us as soon as possible.
If possible, take clear photos of the packaging and product before moving or installing the item.
Damaged Packages
If your order arrives damaged, please contact us immediately.
Send us:
- Your order number
- Photos of the damaged packaging
- Photos of the damaged product
- A short description of the issue
- Delivery receipt notes, if available
Damage claims are easier to process when reported quickly. Late damage reports may limit our ability to file a carrier or supplier claim.
Do not install or use a damaged product before contacting us.
Incorrect or Incomplete Address
Please make sure your shipping address is complete and accurate before placing your order.
Ice Maker Supply is not responsible for delays, failed deliveries, or extra charges caused by:
- Incorrect address
- Missing apartment, suite, or unit number
- Wrong ZIP code
- Unreachable phone number
- Delivery restrictions at the location
If an order is returned because of an incorrect or incomplete address, additional shipping charges may apply before the item can be reshipped.
Can I Change My Delivery Address?
If your order has not shipped yet, contact us as soon as possible. We may be able to update the shipping address before fulfillment begins.
Once an order has shipped or is in transit, we usually cannot change the delivery address.
For freight shipments, address changes may not be possible after carrier pickup.
Returned to Sender
A package may be returned to the sender due to:
- Incorrect address
- Incomplete address
- Failed delivery attempts
- Refused delivery
- Carrier access issues
- Unclaimed shipment
If your package is returned to the sender, contact us with your order number and correct shipping address.
We will review the situation and help arrange the next step. Reshipping fees may apply.
Pre-Order or Backordered Items
If a product is listed as pre-ordered or backordered, the product page may show the estimated shipping date.
Pre-order and backorder shipping dates are estimates and may change due to supplier production, warehouse availability, or carrier delays.
If the estimated shipping date changes, we will do our best to keep you informed.
Warranty Replacement Shipping
If a warranty replacement is approved, shipping may depend on the manufacturer, supplier, or warranty provider.
Replacement orders may require:
- Proof of purchase
- Photos or videos of the issue
- Troubleshooting steps
- Return of the original item
- Supplier or manufacturer approval
A replacement will be shipped only after the required review process is complete.
Lost or Stalled Shipments
If your tracking shows no movement for more than 5 business days, contact us.
We may contact the carrier, warehouse, or supplier to check the shipment status.
If a package is confirmed lost, we will review available options based on the carrier investigation and supplier rules.
Contact Us
Need help with shipping or tracking?
Contact Ice Maker Supply:
- Email: support@icemakersupply.com
- Website: icemakersupply.com
Our support team can help with order status, tracking questions, delivery issues, and shipping concerns.
