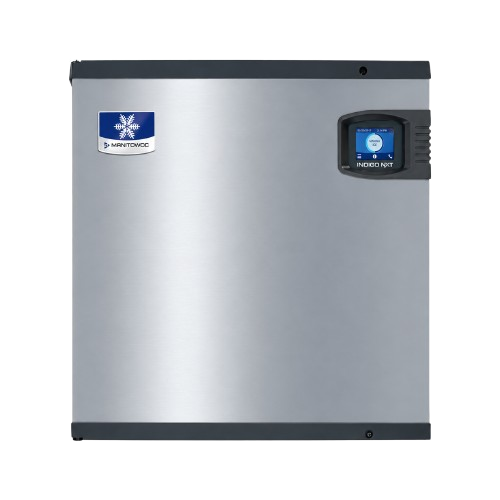

Manitowoc IDT0420A — 470 lb/Day Full Dice Ice Production in a 22-Inch Modular Head
The Manitowoc IDT0420A Indigo NXT full dice cube ice machine supplies restaurants, bars and hospitality beverage stations with up to 470 lb of ice every 24 hours at 70°F air and 50°F water. At the warmer AHRI rating conditions of 90°F air and 70°F water, its output is 375 lb per day. This air-cooled modular head measures just 22 inches wide and uses a self-contained condenser. An ice storage bin is purchased separately, allowing the storage setup to suit the operation.
The IDT0420A makes full dice cubes measuring 7/8 inch on each side. This familiar cube shape suits mixed drinks, water service and general beverage cooling. Manitowoc's acoustical ice sensing probe works with Active Sense software to manage harvest cycles as operating conditions change. The machine uses R410A refrigerant, and its air-cooled configuration does not require the condenser cooling-water supply used by water-cooled models.
The easyTouch display brings operating information and production settings to the front of the machine. Operators can schedule on/off times, program daily ice production volume and use nighttime settings to match changing service needs. Intelligent diagnostics monitor the system around the clock and provide maintenance and diagnostic feedback. The DuraTech exterior has a clear-coat finish that resists fingerprints and dirt and can be wiped clean during routine care.
Cleaning access is built into the design. A hinged front door opens to the foodzone, where the water trough, distribution tube, curtain, water probe and water pump can be removed for service and cleaning. Selected components contain AlphaSan antimicrobial material; regular cleaning and sanitizing are still required. The quoted IDT0420A-161 configuration operates on 115V, 60Hz, single-phase power and requires a potable water supply, a drain and adequate ventilation around the head.
Key Features
- Up to 470 lb of full dice cube ice per 24 hours at 70°F air/50°F water
- 375 lb/day AHRI-rated output at 90°F air/70°F water
- 22-inch-wide modular head with an air-cooled, self-contained condenser
- Full dice cubes measure 7/8 in. × 7/8 in. × 7/8 in.
- easyTouch display with programmable operating times, daily production volume and nighttime settings
- Acoustical ice sensing probe and Active Sense harvest control
- Continuous intelligent diagnostics with maintenance and service feedback
- Hinged front access and removable foodzone components simplify cleaning
- DuraTech clear-coated exterior and AlphaSan antimicrobial protection on selected components
- ENERGY STAR qualified air-cooled model; AHRI, NSF, cULus and CE marks shown in the manufacturer literature
- Ice storage bin sold separately; no built-in storage is included
Best For
Restaurants, bars, hotel beverage stations and catered-service operations that need a full-dice ice supply from a compact-width modular head. Separate bin selection makes it practical to match stored ice capacity to service peaks while retaining a 22-inch-wide machine.

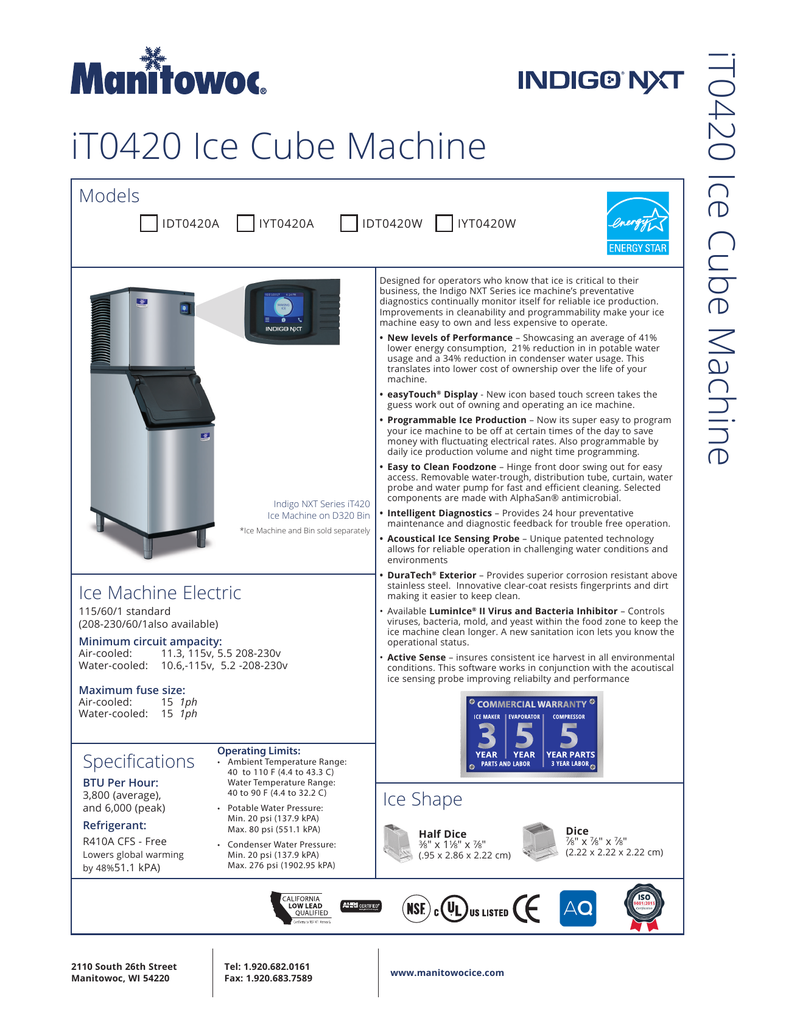

Full Specifications
| Brand | Manitowoc |
| Series | Indigo NXT |
| Model / Quoted Configuration | IDT0420A / IDT0420A-161 |
| Equipment Type | Modular ice machine head; separate storage bin required |
| Ice Type | Full dice cube |
| Cube Dimensions | 7/8 in. × 7/8 in. × 7/8 in. (2.22 × 2.22 × 2.22 cm) |
| Cooling | Air-cooled, self-contained condenser |
| Maximum Daily Production | 470 lb/24 hr at 70°F air / 50°F water |
| AHRI Daily Production | 375 lb/24 hr at 90°F air / 70°F water |
| Built-In Ice Storage | None; bin sold separately |
| Head Dimensions (W × D × H) | 22 in. × 24-1/2 in. × 21-1/2 in. |
| Electrical | 115V / 60Hz / 1 phase (-161 configuration) |
| Minimum Circuit Ampacity | 11.3A at 115V |
| Maximum Fuse Size | 15A |
| Energy Use | 5.6 kWh per 100 lb of ice at 90°F air / 70°F water |
| Potable Water Use | 19.9 US gal per 100 lb of ice |
| Heat Rejection | 3,800 BTU/hr average; 6,000 BTU/hr peak |
| Refrigerant | R410A |
| Ice-Making Water Inlet | 3/8-in. FPT |
| Ice-Making Water Drain | 1/2-in. FPT |
| Auxiliary Base Drain Socket | 1/2 in. |
| Ambient Operating Temperature | 40°F to 110°F |
| Incoming Water Temperature | 40°F to 90°F |
| Potable Water Pressure | 20 to 80 psi |
| Minimum Installation Clearance | 12 in. above and at the sides; 5 in. at the rear |
| Exterior | DuraTech clear-coated finish |
| Controls | easyTouch display with programmable production and intelligent diagnostics |
| Certifications and Marks | AHRI, ENERGY STAR, NSF, cULus and CE |
Warranty
- Ice machine: 3 years parts and labor for commercial use
- Evaporator: 5 years parts and labor for commercial use
- Compressor: 5 years parts and 3 years labor for commercial use
Coverage is subject to Manitowoc's commercial warranty terms, installation requirements and exclusions.
Accessories and Storage Options
- D320 storage bin: shown by Manitowoc as a compatible 22-inch-wide pairing, with 264 lb published ice storage capacity; sold separately
- D420 storage bin: another manufacturer-shown 22-inch-wide pairing, with 383 lb published ice storage capacity; sold separately
- AR-10000-P Arctic Pure Plus filter: separately quoted water filtration accessory; not included with this ice machine head
- LuminIce II and iAuCS: optional manufacturer-listed sanitation and cleaning accessories; not included
Installation and Maintenance Notes
- Install the head on a compatible ice storage bin. Head dimensions do not include the bin, legs or service clearances.
- Maintain at least 12 in. clearance above and at the sides and 5 in. at the rear, as specified in the iT0420 sheet.
- Provide 115V single-phase power, a potable water connection and properly routed drains in accordance with the installation instructions and local codes.
- Keep the condenser air path clear and follow Manitowoc's cleaning, sanitizing and preventive-maintenance instructions.
- Ice output varies with air and water temperatures. Use the 375 lb/day AHRI figure when planning for warmer operating conditions.
