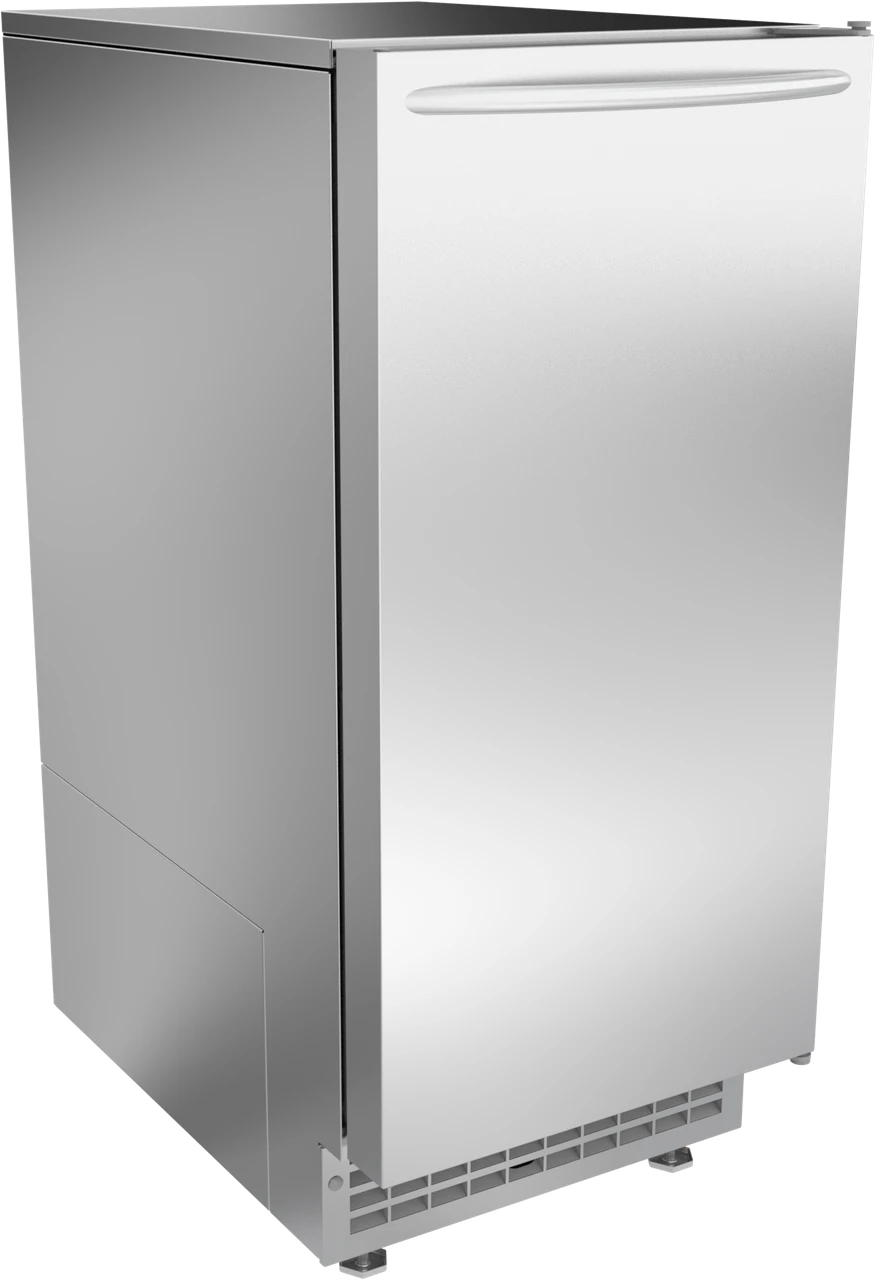

Ice-O-Matic GEMU09090 — Chewable Pearl Ice in a slim, self-contained 15-inch cabinet
The Ice-O-Matic GEMU09090 is an air-cooled undercounter pearl nugget ice maker producing up to 110 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated output is 72 lb per day. A 26 lb built-in storage bin keeps ice close to the point of service, with no separate bin needed. The 15-inch-wide cabinet brings production and storage together in one self-contained unit.
Ice-O-Matic's Pearl Ice measures 1/2 x 3/8 in. and has the soft, chewable texture associated with nugget-style ice. It suits fountain drinks, iced tea and other beverage service where customers enjoy both the drink and the ice. The GEMU09090 makes this small, irregular ice format automatically, bringing a different texture to the menu than a hard full cube or gourmet cube.
The 15-inch-wide stainless steel cabinet is designed for a compact undercounter position. A reversible door with concealed hinges makes the access direction adaptable to the layout, and the 34-inch overall height offers a low cabinet profile. A sealed top bearing supports the ice-making mechanism, while the integrated bin eliminates the need to find space for a separate storage cabinet.
The GEMU09090 operates on 115V / 60Hz / single-phase power with a standard electrical plug and uses R290 refrigerant. Water enters through a 1/4-inch copper compression connection. The standard drain arrangement is gravity drainage through 5/8-inch ID flexible tubing; an optional KPMP drain pump is available for installations needing pumped drainage. This compact Pearl Ice maker carries a one-year parts-and-labor warranty for residential or commercial installation.
Key Features
- Up to 110 lb/day at 70°F air / 50°F water
- 72 lb/day at 90°F air / 70°F water
- Pearl Nugget Ice: 1/2 x 3/8 in.
- Built-in 26 lb ice storage bin
- 15 W × 24 D × 34 H inch cabinet
- Stainless steel exterior
- Reversible door with concealed hinges
- Sealed top bearing
- Gravity drainage; optional KPMP drain pump
- R290 refrigerant; 115V / 60Hz / 1 phase
Best For
Small bars, hospitality suites, office beverage areas and home entertaining spaces that prefer chewable nugget-style Pearl Ice in a compact, self-contained unit.

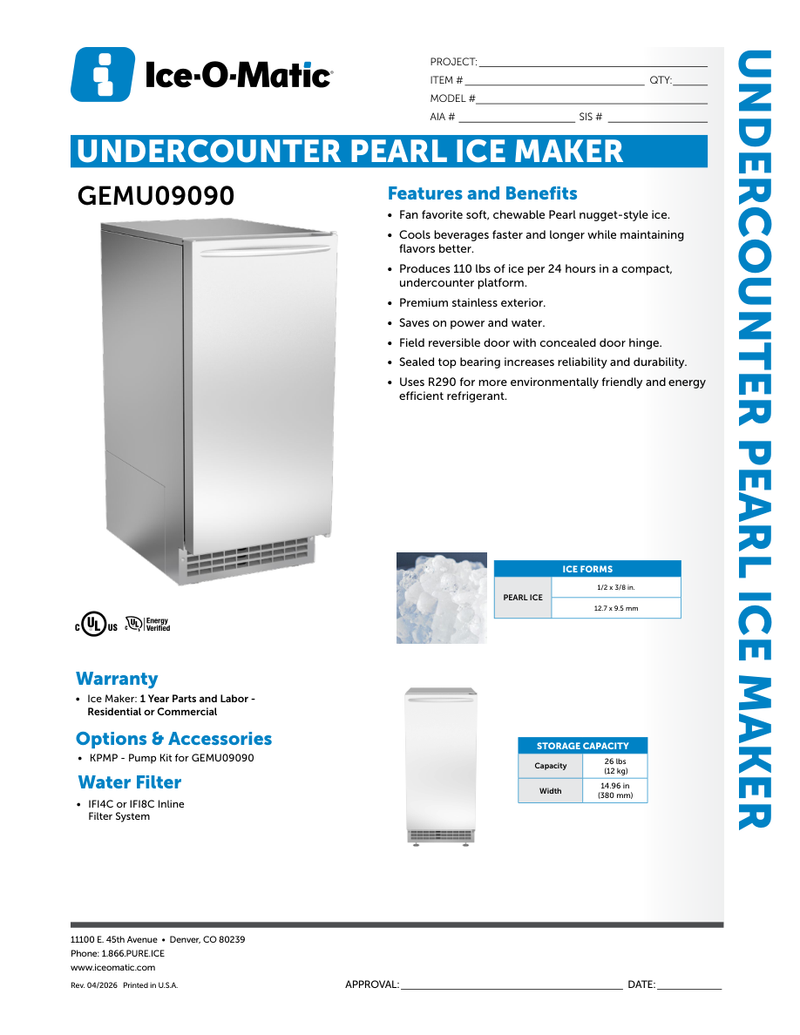

Full Specifications
| Brand | Ice-O-Matic |
| Model | GEMU09090 |
| Machine type | Undercounter ice maker with integrated bin |
| Ice type | Pearl Nugget Ice |
| Ice dimensions | 1/2 x 3/8 in. |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 110 lb/24 hr |
| Production at 90°F air / 70°F water | 72 lb/24 hr |
| Storage | 26 lb built-in bin |
| Dimensions (W × D × H) | 15 × 24 × 34 in. |
| Electrical | 115V / 60Hz / 1 phase |
| Maximum breaker size | 15 A |
| Energy at 70°F air / 50°F water | 4.2 kWh/100 lb |
| Energy at 90°F air / 70°F water | 6.4 kWh/100 lb |
| Potable water at 90°F air / 70°F water | 12 gal/100 lb |
| Approximate heat output | 1500 BTU/hr |
| Refrigerant | R290 |
| Refrigerant charge | 85 g |
| Water inlet | 1/4 in. copper compression |
| Drain | 5/8 in. ID flexible tubing; gravity drain |
| Ambient operating range | 50-100°F |
| Water temperature range | 40-100°F |
| Water pressure | 20-80 psi |
| Shipping weight | 114 lb |
| Shipping dimensions | 27 W x 17 D x 36 H in. |
| Certifications and verified marks | cULus Listed, UL Energy Verified |
Warranty
- Ice maker: 1 year parts and labor for residential or commercial installation.
- Warranty repairs require manufacturer preapproval.
Accessories
- Included: integrated storage bin and electrical plug connection.
- Optional drainage: KPMP drain pump; the standard arrangement is gravity drainage.
- Optional filtration: IFQ1-S water-filter system.
Installation and Maintenance Notes
- Use potable water within the specified 20-80 psi pressure range and 40-100°F temperature range.
- Locate the machine where the ambient temperature remains within 50-100°F; keep ventilation openings clear.
- Provide the specified 115V single-phase supply and proper drainage; have electrical and plumbing work completed to the manufacturer’s installation instructions and local codes.
- Clean and sanitize the ice-making system routinely and maintain the water filter and air path. Production varies with air and water temperature and site conditions.
