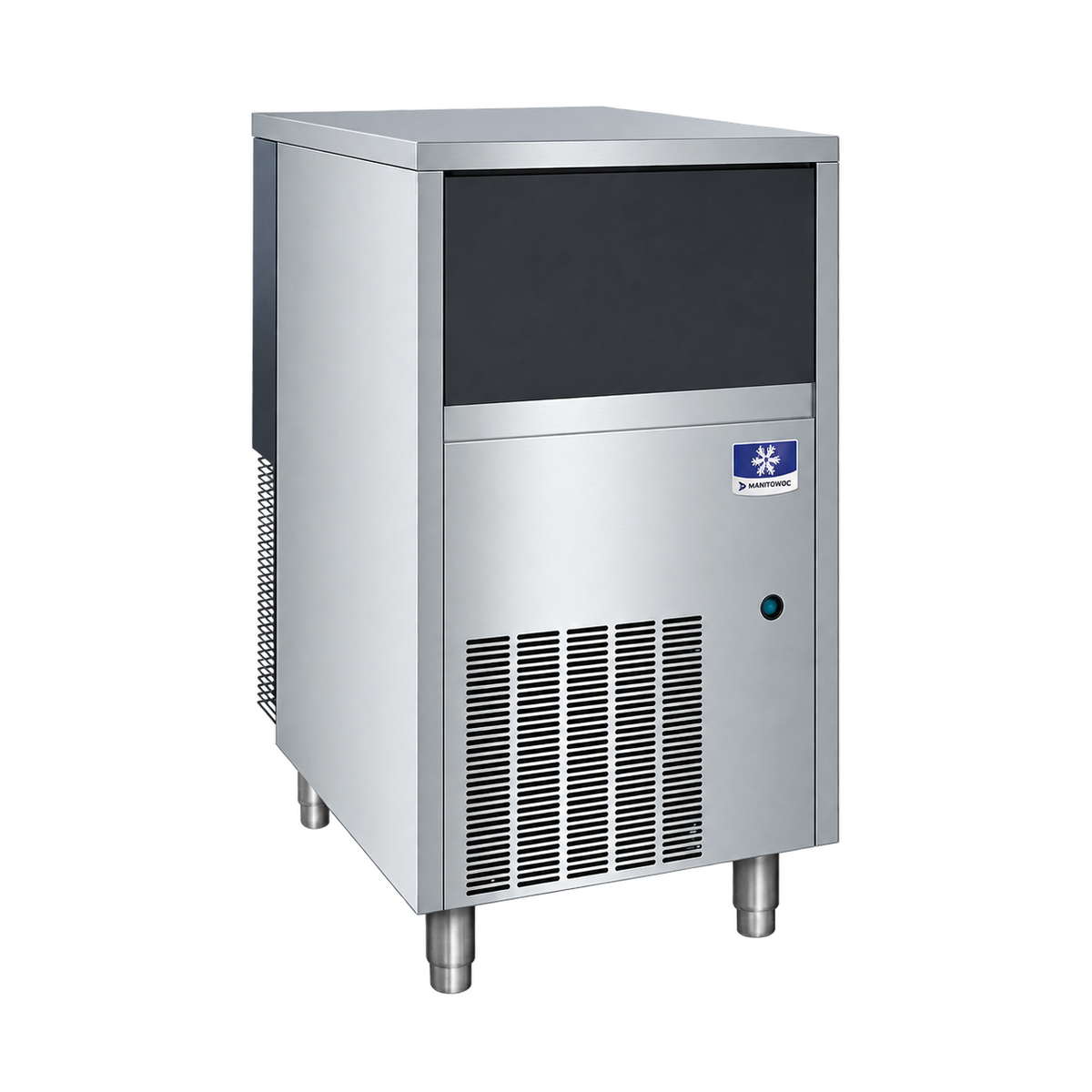

Manitowoc UFP0200A Undercounter Flake Ice Maker
Manitowoc UFP0200A Undercounter Flake Ice Maker Description
Manitowoc UFP0200A — 257-pound daily production with 50-pound integrated storage
The Manitowoc UFP0200A (UFP0200A-161) is a self-contained undercounter ice maker with an integrated bin designed to produce flake ice for commercial use. It is rated for up to 257 lb per 24 hours at 70°F air / 50°F water and 198 lb per 24 hours at 90°F air / 70°F water. Its built-in bin holds 50 lb of ice, keeping production and point-of-use storage in one cabinet.
Flake ice makes the UFP0200A a practical fit for food displays, seafood merchandising, produce presentation, blended applications and other uses that benefit from moldable ice. The undercounter format supports point-of-use placement while avoiding the footprint and installation complexity of a separate modular head and bin.
Flake ice is soft and moldable, allowing it to surround displayed products and spread evenly across presentation surfaces. That characteristic makes the unit useful beyond beverage service, although food-contact procedures, drainage and cleaning schedules must match the application and local sanitation requirements.
The listed configuration combines Air-cooled heat rejection, the quoted 115v/60/1-ph, 7.5 amps, cord with NEMA 5-15P electrical arrangement, a cabinet measuring 19-3/16 × 25-63/64 × 37-1/2 in.. Electrical, plumbing, drainage and ventilation work must follow the model installation instructions and applicable local codes. Do not size openings or utility connections from the marketing description alone; use the installation drawing for final field work.
Key Features
- Up to 257 lb/day at 70°F air / 50°F water
- 198 lb/day at 90°F air / 70°F water
- Flake ice format
- 50-lb integrated storage bin
- Air-cooled configuration
- 19-3/16 × 25-63/64 × 37-1/2 in. cabinet
- Quoted electrical configuration: 115v/60/1-ph, 7.5 amps, cord with NEMA 5-15P
- Listed certifications/marks: AHRI, ENERGY STAR, cETLus
Best For
food displays, seafood merchandising, produce presentation, blended applications and other uses that benefit from moldable ice.
Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | UFP0200A |
| Quoted configuration | UFP0200A-161 |
| Product family | Undercounter flake |
| Machine type | Ice Flaker With Bin |
| Format | Undercounter with bin |
| Ice type | Flake |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 257 lb/24 hr |
| Production at 90°F air / 70°F water | 198 lb/24 hr |
| Storage | 50 lb integrated |
| Dimensions (W × D × H) | 19-3/16 × 25-63/64 × 37-1/2 in. |
| Electrical | 115v/60/1-ph, 7.5 amps, cord with NEMA 5-15P |
| Refrigerant | Not listed in the supplied product data |
| Certifications and listed marks | AHRI, ENERGY STAR, cETLus |
| Lifecycle status | Current |
Warranty
- Confirm the current commercial warranty for this exact model and electrical configuration before publication or sale.
- Coverage is subject to the manufacturer's registration requirements, terms, exclusions and model lifecycle status.
Accessories
- AR-PRE-P (qty. 2): Arctic Pure Plus Pre-Filter Assembly, 5 micron filtration.
- These are quote-listed configuration items. Confirm included quantities and compatibility against the final sales quote before ordering.
Installation and Maintenance Notes
- Level the cabinet and maintain the manufacturer-required clearances for the selected installation.
- Provide potable water, a correctly routed drain and the electrical service stated for UFP0200A-161; plumbing and electrical work must follow the installation manual and local codes.
- Keep condenser air paths and required ventilation clear; restricted airflow or high ambient temperature can reduce production.
- Size capacity using realistic site conditions. Ice production changes with ambient temperature, incoming water temperature, water quality and maintenance condition.
- Clean and sanitize the food zone on the manufacturer's schedule. Maintain filtration, inspect drains and keep the condenser or ventilation path clean.
