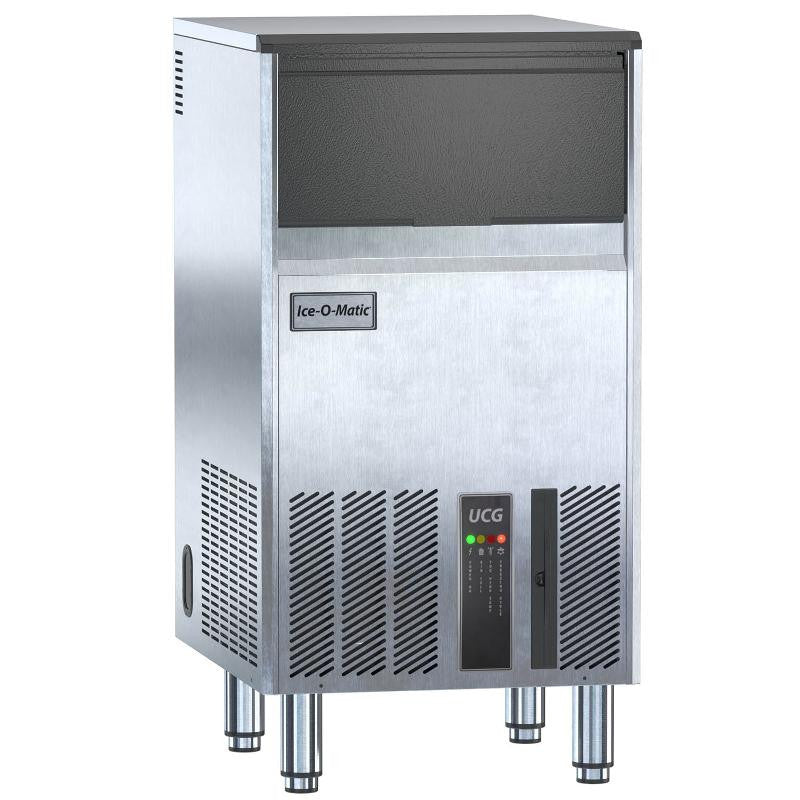

Ice-O-Matic UCG130GA 18.25-Inch Air-Cooled Grande Gourmet Undercounter Ice Maker - 121 lb/Day with 48.5 lb Bin
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Ice-O-Matic UCG130GA 18.25-Inch Air-Cooled Grande Gourmet Undercounter Ice Maker - 121 lb/Day with 48.5 lb Bin
Ice-O-Matic UCG130GA 18.25-Inch Air-Cooled Grande Gourmet Undercounter Ice Maker - 121 lb/Day with 48.5 lb Bin Description
Ice-O-Matic UCG130GA 18.25-Inch Air-Cooled Grande Gourmet Undercounter Ice Maker - 121 lb/Day with 48.5 lb Bin Commercial Description
Ice-O-Matic UCG130GA — Oversized Grande gourmet ice for distinctive drink presentation
The Ice-O-Matic UCG130GA is an air-cooled undercounter grande gourmet ice maker producing up to 121 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated output is 100.5 lb per day. A 48.5 lb built-in storage bin keeps ice close to the point of service, with no separate bin needed. The 18.25-inch-wide cabinet brings production and storage together in one self-contained unit.
The Grande gourmet cube measures 1.5 in. high x 1.65 in. diameter, creating an oversized ice presentation for cocktails and premium beverage service. This is the Grande configuration, with a different cube size and a 100.5 lb/day warm-condition rating; it is not simply a renamed standard UCG130A. The 48.5 lb storage compartment keeps the larger cubes ready for scooping during service.
The cabinet combines corrosion-resistant stainless steel and fingerprint-resistant plastic. Front air discharge helps the unit serve compact counter layouts, and the removable air filter can be accessed for routine cleaning. The bare cabinet measures 18.25 W × 22.25 D × 31 H inches. With the supplied adjustable legs, the overall height is 36-37.75 in.; the leg height is therefore an important part of planning the installation.
The UCG130GA uses R290 refrigerant and a 115V / 60Hz / single-phase supply with a power cord. Its plumbing connections are a 3/4 in. water inlet and a 25/32 in. drain. The optional short-leg kit 1011411-87 changes the installed height to 33.125-33.5 in.. Select the leg configuration to match the available counter opening and service access.
Key Features
- Up to 121 lb/day at 70°F air / 50°F water
- 100.5 lb/day at 90°F air / 70°F water
- Grande Gourmet Ice: 1.5 in. high x 1.65 in. diameter
- Integrated 48.5 lb storage bin
- Stainless steel and fingerprint-resistant plastic construction
- Front air discharge
- Removable air filter for maintenance
- Includes adjustable legs and power cord
- Optional short-leg kit 1011411-87
- R290 refrigerant; 115V / 60Hz / 1 phase
Best For
Cocktail bars, cafés, restaurants and hospitality beverage stations that want oversized Grande gourmet ice with storage built into the machine.

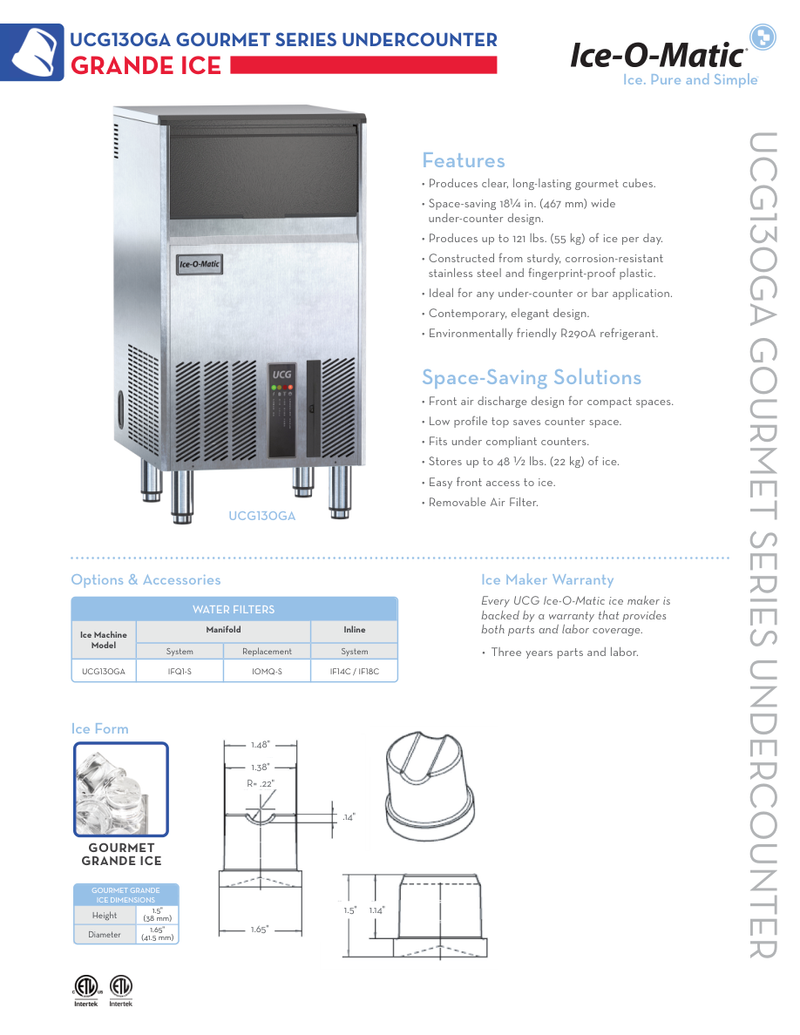

Full Specifications
| Brand | Ice-O-Matic |
| Model | UCG130GA |
| Machine type | Undercounter ice maker with integrated bin |
| Ice type | Grande Gourmet Ice |
| Ice dimensions | 1.5 in. high x 1.65 in. diameter |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 121 lb/24 hr |
| Production at 90°F air / 70°F water | 100.5 lb/24 hr |
| Storage | 48.5 lb built-in bin |
| Dimensions (W × D × H) | 18.25 × 22.25 × 31 in.; cabinet without legs |
| Electrical | 115V / 60Hz / 1 phase |
| Height with supplied legs | 36-37.75 in. |
| Height with optional short legs | 33.125-33.5 in. |
| Maximum amperage (manufacturer test conditions) | 5.4 A |
| Energy at 90°F air / 70°F water | 10.05 kWh/100 lb |
| Water consumption | 1.32 gal/hr |
| Refrigerant | R290 |
| Water inlet | 3/4 in. |
| Drain | 25/32 in. |
| Ambient operating range | 50-109°F |
| Water temperature range | 41-100°F |
| Water pressure | 14-70 psi |
| Shipping weight | 97 lb |
| Certifications and verified marks | cETLus Listed, ETL Sanitation |
Warranty
- Ice maker: 3 years parts and labor.
- Coverage above is the standard commercial warranty and is subject to the manufacturer’s registration requirements, terms and exclusions.
Accessories
- Included: built-in bin, adjustable legs and power cord.
- Optional short legs: kit 1011411-87; installed height 33.125-33.5 in..
- Optional filtration: IFQ1-S water-filter system.
Installation and Maintenance Notes
- Use potable water within the specified 14-70 psi pressure range and 41-100°F temperature range.
- Locate the machine where the ambient temperature remains within 50-109°F; keep ventilation openings clear.
- Provide the specified 115V single-phase supply and proper drainage; have electrical and plumbing work completed to the manufacturer’s installation instructions and local codes.
- Clean and sanitize the ice-making system routinely and maintain the water filter and air path. Production varies with air and water temperature and site conditions.
