ITV Ice Makers SPIKA NG 160 A1F 21" Air-Cooled Full Dice Undercounter Ice Machine – 159 lb/Day with 44 lb Built-In Bin (R290)
-
Estimated Delivery:Jun 21 - Jun 25
ITV Ice Makers SPIKA NG 160 A1F 21" Air-Cooled Full Dice Undercounter Ice Machine – 159 lb/Day with 44 lb Built-In Bin (R290) Description
ITV SPIKA NG 160 A1F — Full Dice Cube Ice in a Compact 21-Inch Cabinet

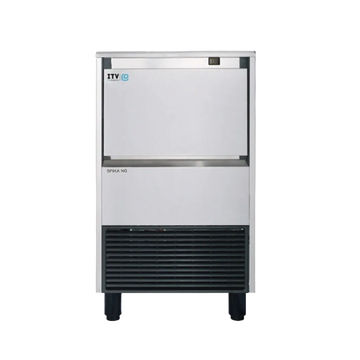

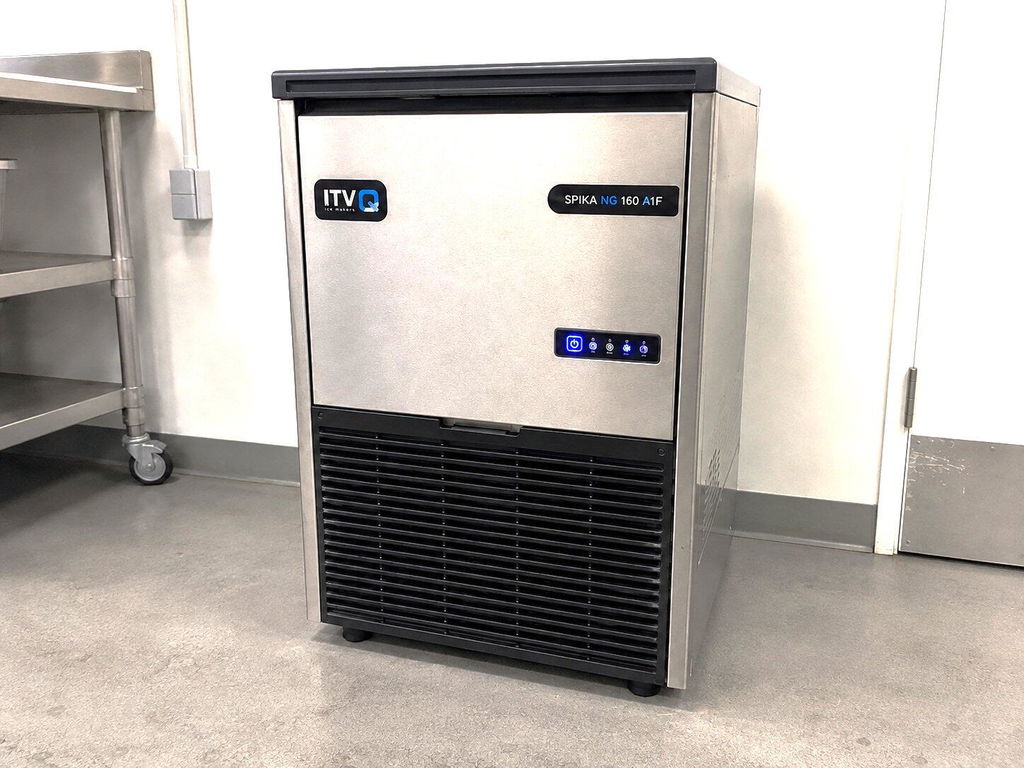

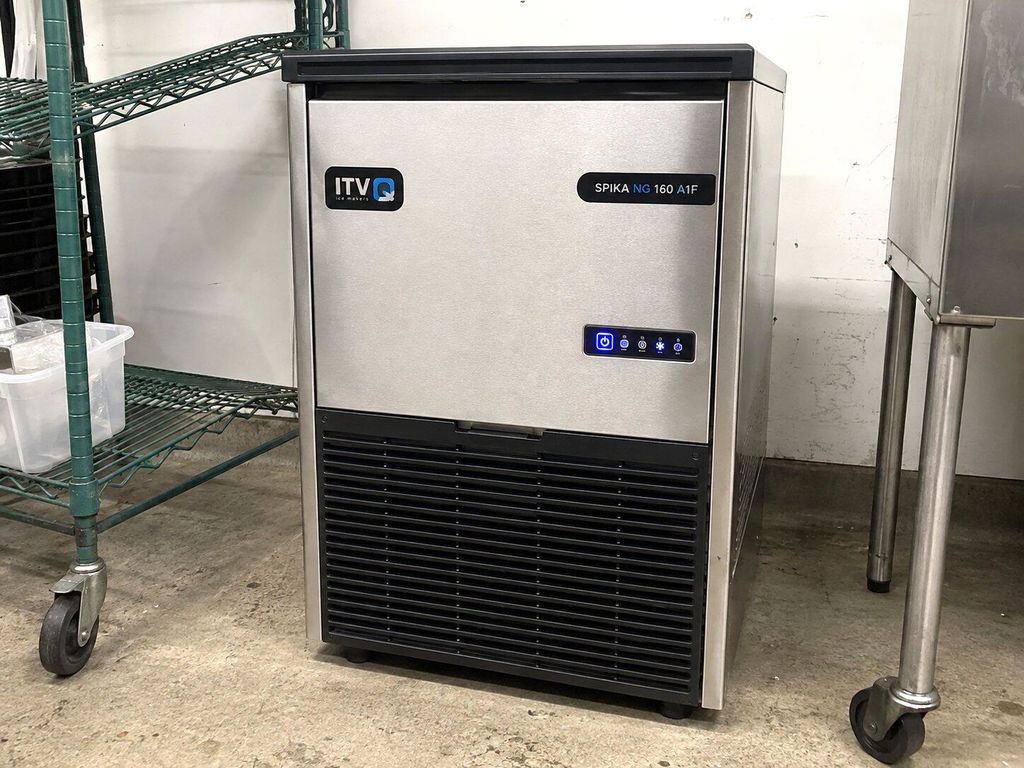

The ITV SPIKA NG 160 A1F is a self-contained, air-cooled undercounter ice machine that produces up to 159 lb (72 kg) of full dice cube ice every 24 hours and stores 44 lb (20 kg) in its built-in bin. It fits a slim 21-inch undercounter footprint, making it a practical choice for bars, restaurants, hotels, and kitchens that need a dependable supply of classic cube ice without giving up floor space.
Each full dice cube measures 1.02" × 0.9" × 1.02" (26 × 23 × 26 mm) — the larger "American" cube that melts slowly, holds its shape in the glass, and dilutes drinks less, making it ideal for spirits, soft drinks, water service, and bagging. The machine forms 75–150 cubes per freeze cycle, and ITV's electronic control adapts production to the room to keep output steady across a wide temperature range (41°F to 109°F / 5°C to 43°C).
Durability and easy service are built in. The STIF (Strong Inox Frame) gives the machine a rigid four-column AISI 304 stainless steel structure, and ITV's patented stainless steel door opens and self-closes on a damped system. The Smart Front Ventilation System (SFVS) draws and exhausts air through the front, so the unit can be fully built in with no side clearance, while EASI panels remove separately for quick maintenance. A seal-less "Never Stop" pump resists deterioration in hard water, a built-in cleaning switch circulates descaler without cooling, and low-GWP R290 refrigerant keeps energy use and environmental impact low.
💡Looking for smaller, faster-chilling ice? This machine is also available in a half dice version — the ITV Ice Makers SPIKA NG 160 A1H 21" Air-Cooled Half Dice Undercounter Ice Machine.
Key Features
- Produces up to 159 lb (72 kg)/day of classic full dice cube ice
- Built-in storage bin holds up to 44 lb (20 kg) of ice

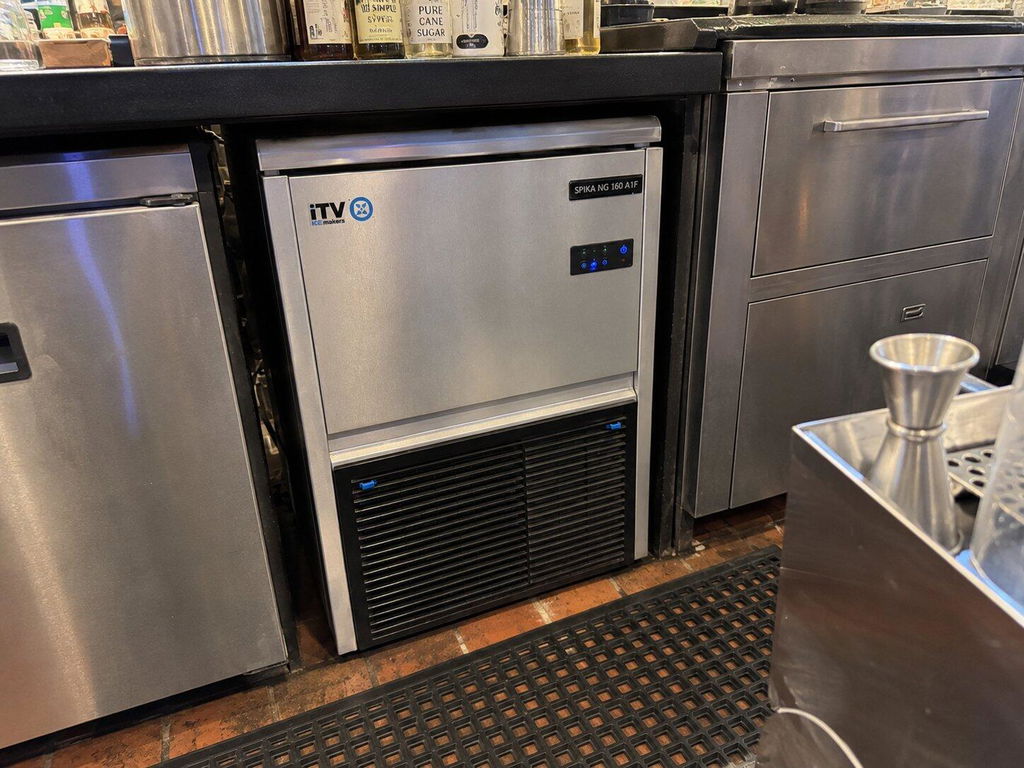

- Compact 21-inch undercounter cabinet for built-in installation
- Slow-melting full dice cubes ideal for spirits, soft drinks & water service
- STIF — four-column AISI 304 stainless steel frame
- Patented, self-closing stainless steel door
- Smart Front Ventilation System (SFVS) for fully built-in installation
- Seal-less "Never Stop" pump resists hard-water deterioration
- EASI — all panels remove separately for easy service
- Built-in cleaning switch circulates descaler without cooling
- Electronic control adapts performance to extreme climates
- R290 natural refrigerant — very low GWP and reduced energy use
- ENERGY STAR®, NSF, and ETL (cETLus) listed; tropicalized T-Class build
- 115V / 60Hz single-phase
Best For
Cocktail and service bars, restaurants, hotels, cafés, and break rooms that want a dependable supply of classic, slow-melting cube ice for spirits, soft drinks, and water service.
Full Specifications
| Specification | Detail |
|---|---|
| Brand | ITV Ice Makers |
| Model | SPIKA NG 160 A1F |
| Item # | 18064U |
| Type | Self-contained undercounter ice cube machine |
| Ice Type | Full dice cube (1.02"W × 0.9"D × 1.02"H / 26 × 23 × 26 mm) |
| Cooling | Air-cooled |
| Refrigerant | R290 (natural gas, low GWP) |
| Daily Production | Up to 159 lb (72 kg)/day (nominal, 70°F air / 50°F water) |
| Production – ASHRAE conditions | 117 lb (53 kg)/day (90°F air / 70°F water) |
| Production range | ~71–159 lb (32–72 kg)/day depending on ambient & water temperature |
| Output per cycle | 75 / 150 ice cubes per cycle |
| Built-in Storage Bin | 44.1 lb (20 kg) |
| Cabinet Dimensions (W×D×H) | 21.07" × 23.43" × 31.07" (535 × 595 × 789 mm) |
| Height with legs | ~35"–37" (889 / 940 mm) |
| Shipping/Crated Dimensions (W×D×H) | 24.02" × 25.79" × 35.83" (610 × 655 × 910 mm) |
| Net Weight | 106 lb (48 kg) |
| Shipping Weight | 123.5 lb (56 kg) |
| Electrical | 115V / 60Hz / 1-phase (±10%) |
| Power consumption | 992 W (ASHRAE) / 374 W at 109°F |
| Energy use | 7.3 kWh / 100 lb (90°F/70°F) |
| Heat rejection | 2,277 BTU/h (~667 W) |
| Wiring / Fuse | 16 AWG (1.5 mm²) / 16 A fuse |
| Water Usage | 20.5 gal / 100 lb (≈5.2 L/h) |
| Water Inlet | 3/8" FPT |
| Drain | 3/4" FPT |
| Water Supply Pressure | 14.5 psi (1 bar) – 87 psi (6 bar) |
| Operating Ambient Temp | 41°F – 109°F (5°C – 43°C) |
| Operating Water Temp | 41°F – 95°F (5°C – 35°C) |
| Certifications | ENERGY STAR®, NSF, ETL (cETLus / Intertek) |
| Build Class | Tropicalized (T-Class), AISI 304 stainless steel |
Warranty
- Ice maker: 3 years parts & labour
- Evaporator: 5 years parts & labour
- Compressor: 5 years parts
Accessories
- Included: 6" height-adjustable leg kit; ice scoop
- Optional: PRO-101 K 10" anti-limescale + anti-chlorine filter (#6759A); PRO-10 10" replacement cartridge (#33742); Scale Kleen descaler (#4033); One Foot Pad (Item #4144)
