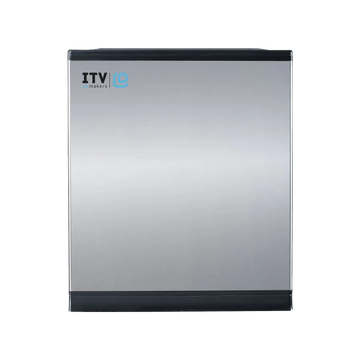

ITV Ice Makers SPIKA MS700A2H 22" Air-Cooled Modular Half-Dice Cube Ice Machine – 668 lb/Day, 208–230V (Head Only)

Name: ITV Ice Makers SPIKA MS700A2H 22" Air-Cooled Modular Half-Dice Cube Ice Machine – 668 lb/Day, 208–230V (Head Only)
Brand: ITV Ice Makers
SKU: 17508
Price: 4938.0 USD
Availability: InStock

$4,938.00

$4,938.00 ~~$9,876.00~~

Save 50%

The ITV SPIKA MS700A2H is the 208–230V version of ITV's 22"-wide air-cooled modular ice machine head, making up to 668 lb (303 kg) of half-dice cube ice per day. Running on 208–230V single-phase power, it draws lower current (16 A) than the 115V model, which can simplify electrical planning in commercial kitchens. Its compact half-dice cube packs densely and chills drinks fast. This is a head-only unit that sits on a separate storage bin.

Ask a question

Size guide

Share

Estimated Delivery:Jun 28 - Jul 02

ITV Ice Makers SPIKA MS700A2H 22" Air-Cooled Modular Half-Dice Cube Ice Machine – 668 lb/Day, 208–230V (Head Only) Description

The MS700-22 platform is built for high output in a space-saving 22"-wide cabinet. This A2H version runs on 208–230V / 60 Hz single-phase power — the higher supply voltage means a lower running current (a 16 A circuit versus the 25 A needed by the 115V model), which can make it easier to fit into a panel where 115V capacity is tight. At up to 668 lb (303 kg) per day, it delivers strong output from a footprint narrower than the 30" SPIKA MS500. The cabinet is taller and deeper to fit the larger system into the narrow footprint.

The ice is half dice — about 0.9" × 0.4" × 1" (23 × 11 × 26 mm). These smaller, flatter cubes pack tightly into a cup, expose more surface area to cool drinks quickly, and stretch further per pound, which makes them ideal for soft-drink fountains, self-serve dispensing, and high-volume food service. The machine forms about 480 cubes per cycle on a high-efficiency vertical plate evaporator, using ITV's patented smart water distributor that cascades water across the evaporator for clean, consistent cubes.

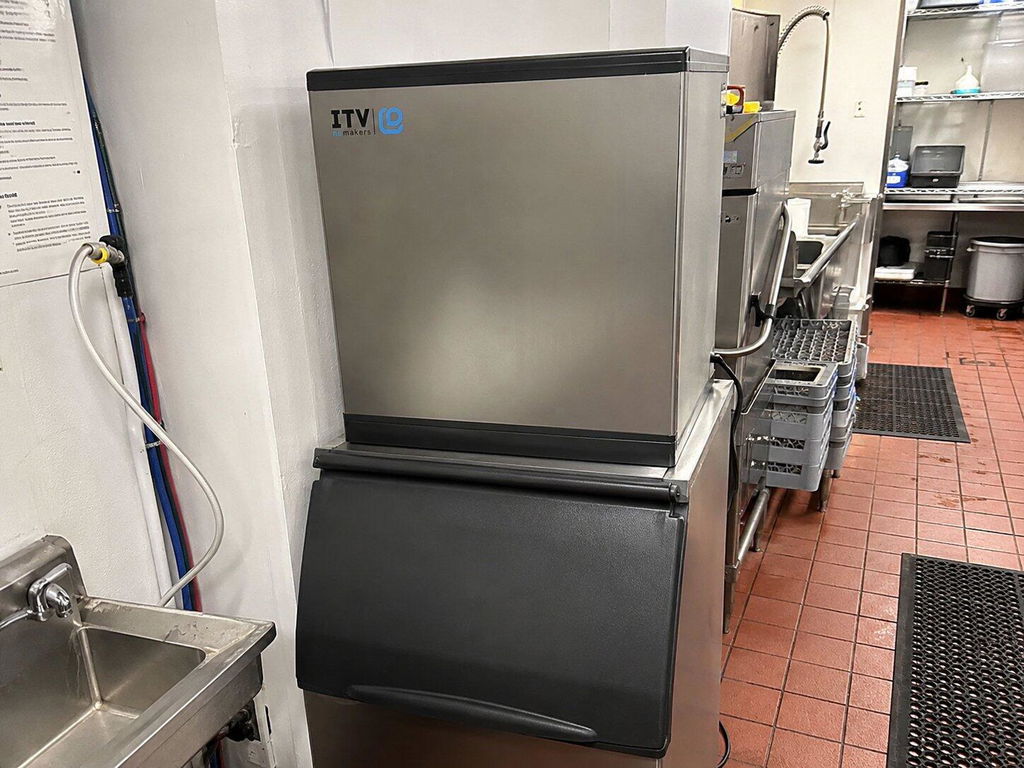

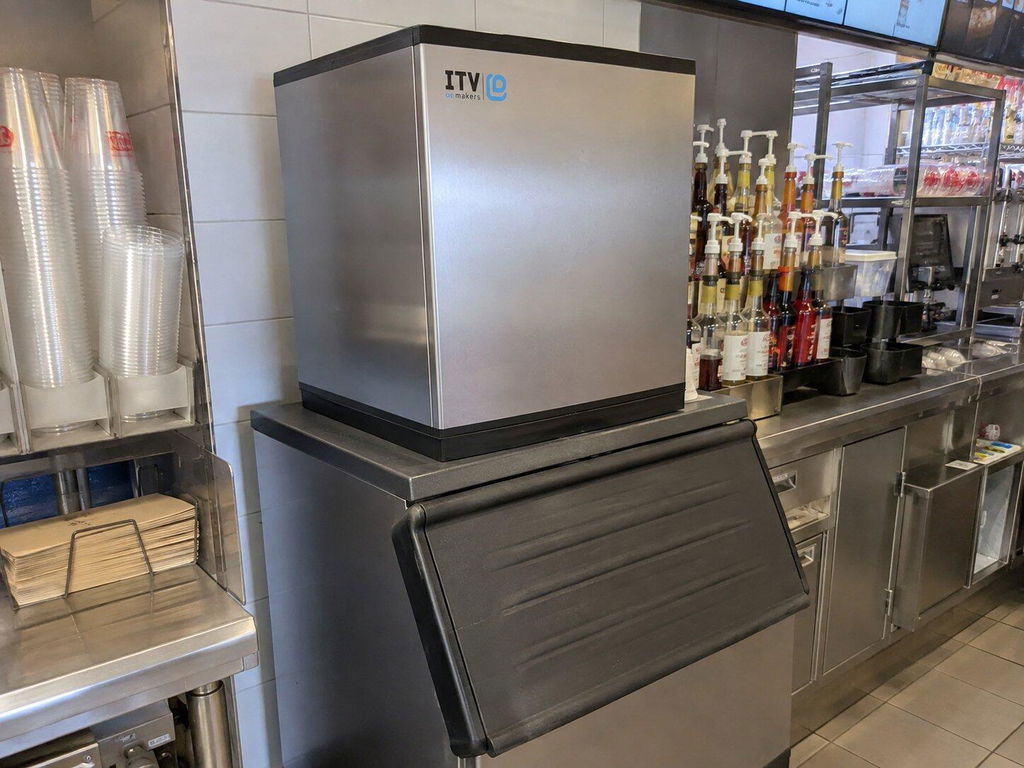

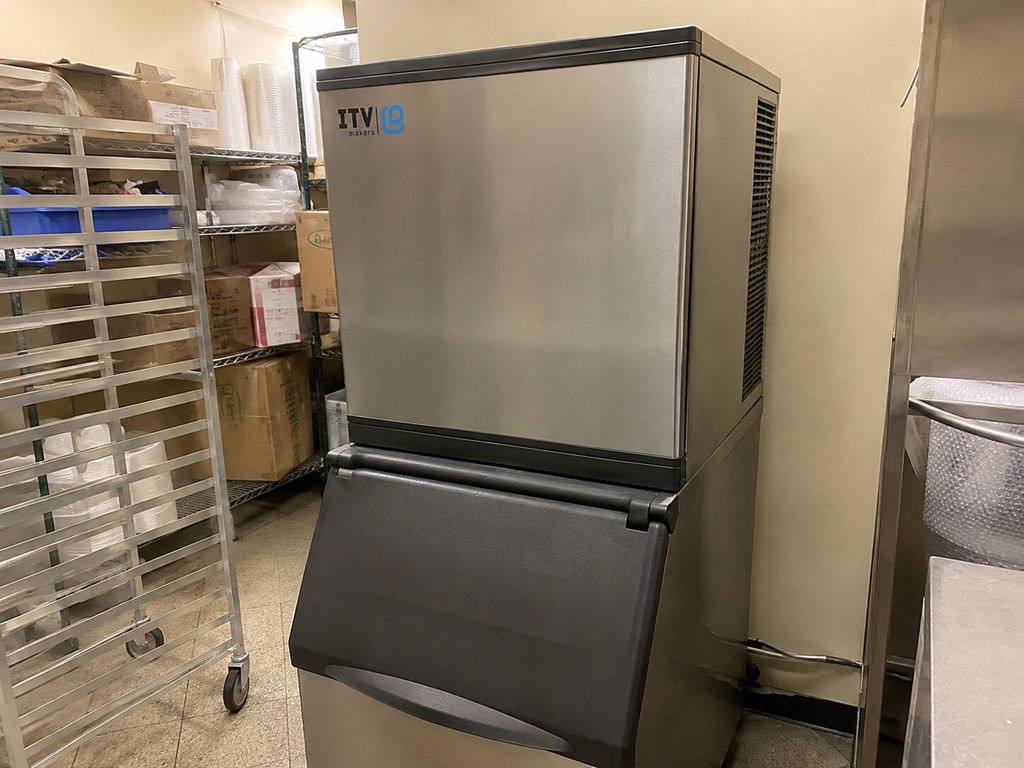

The head pairs with a range of ITV storage bins to match your volume, and it can be stacked two-high on the larger SCD-series bins. A smart electronic control board manages all parameters and displays self-diagnostics; panels come off with a single screwdriver for fast service, and the high-resistance AISI 304 stainless steel frame is built for demanding kitchens. As an air-cooled machine, it installs easily wherever there's adequate ventilation.

Key Features

208–230V / 60 Hz / single-phase power — lower running current (16 A) than the 115V model
High output from a 22" footprint: up to 668 lb (303 kg) per day; 553 lb (251 kg) at ASHRAE
Compact half-dice cube: ~0.9" × 0.4" × 1" (23 × 11 × 26 mm) — packs densely and chills drinks fast
Approx. 480 cubes per cycle
Energy-efficient: 4.72 kWh / 100 lb of ice
Stackable two-high on larger SCD-series bins
Air-cooled for simple installation wherever there's adequate ventilation
Patented smart water distributor for clean, consistent cubes and better scale resistance
High-efficiency vertical plate evaporator
Smart electronic control board with self-diagnostics
Tool-light service: panels remove with a single screwdriver (EASI — Easy Access for Service & Installation)
High-resistance AISI 304 stainless steel frame (STIF — Strong Inox Frame)
Ice scoop included
NSF and ETL (Intertek) certified

Best For

Sites wired for 208–230V or where 115V circuit capacity is limited
High-volume soft-drink fountains and self-serve beverage dispensing
Busy restaurants, bars, and cafeterias needing maximum ice in a narrow footprint
Operations that may scale up later by stacking a second head on a larger bin

Full Specifications

Specification	Detail
Ice Type	Half-dice cube, ~0.9" × 0.4" × 1" (23 × 11 × 26 mm)
Machine Type	Modular ice machine head (requires separate storage bin); stackable 2-high on larger bins
Condenser / Cooling	Air-cooled
Ice Production (nominal)	668 lb (303 kg) / 24 h
Ice Production (ASHRAE)	553 lb (251 kg) / 24 h
Production Range (across conditions)	~480–745 lb (218–338 kg) / 24 h
Cubes per Cycle	~480
Refrigerant	R404A
Electrical	208–230 V / 60 Hz / 1-phase (±10%)
Power Consumption (at 109°F)	1,290 W
ASHRAE Cooling Capacity	13,853 BTU/h (4,060 W)
Heat Rejected	9,076 BTU/h (2,660 W)
Energy Use	4.72 kWh / 100 lb of ice
Water Consumption	~17 gal / 100 lb of ice
Wiring / Fuse	14 AWG (2.5 mm²), 3-conductor / 16 A fuse
Operating Pressure	14.5–87 psi (1–6 bar)
Ambient Temp. Range	41–109°F (5–43°C)
Water Temp. Range	41–95°F (5–35°C)
Cabinet Dimensions (W × D × H)	22" × 24.45" × 25.95" (559 × 621 × 659 mm)
Shipping Dimensions (W × D × H)	25.6" × 27.96" × 32.29" (650 × 710 × 820 mm)
Net Weight	155 lb (70 kg)
Shipping Weight	181 lb (82 kg)
Certifications	NSF, ETL (Intertek)

Warranty

Ice machine: 3 years parts and labor
Evaporator: 5 years parts and labor
Compressor: 5 years parts

Accessories

Included: ice scoop

Optional (not included):

CS102 — double 10" anti-limescale + anti-chlorine water filter
CS10 — 10" replacement cartridge (anti-limescale + anti-chlorine)
Adapter plates — for mounting on various storage bins
Scale Kleen — descaling/cleaning solution

Recommended storage bins: S400 and SCS350 (recommended); also pairs with S500, S750, S900, S1050, SCS700, SCD900, SCD1350, and SCD1800 (larger SCD bins support two stacked heads).

💡The SPIKA MS700A2H is a head-only unit and needs a separate storage bin to operate. Need 115V power instead? See the SPIKA MS700A1H. Prefer a larger, slow-melting cube for bar and premium service? See the full-dice SPIKA MS700A2F.
