Hoshizaki KM-81BAJ - Narrow Crescent Ice Production for Space-Conscious Commercial Installations

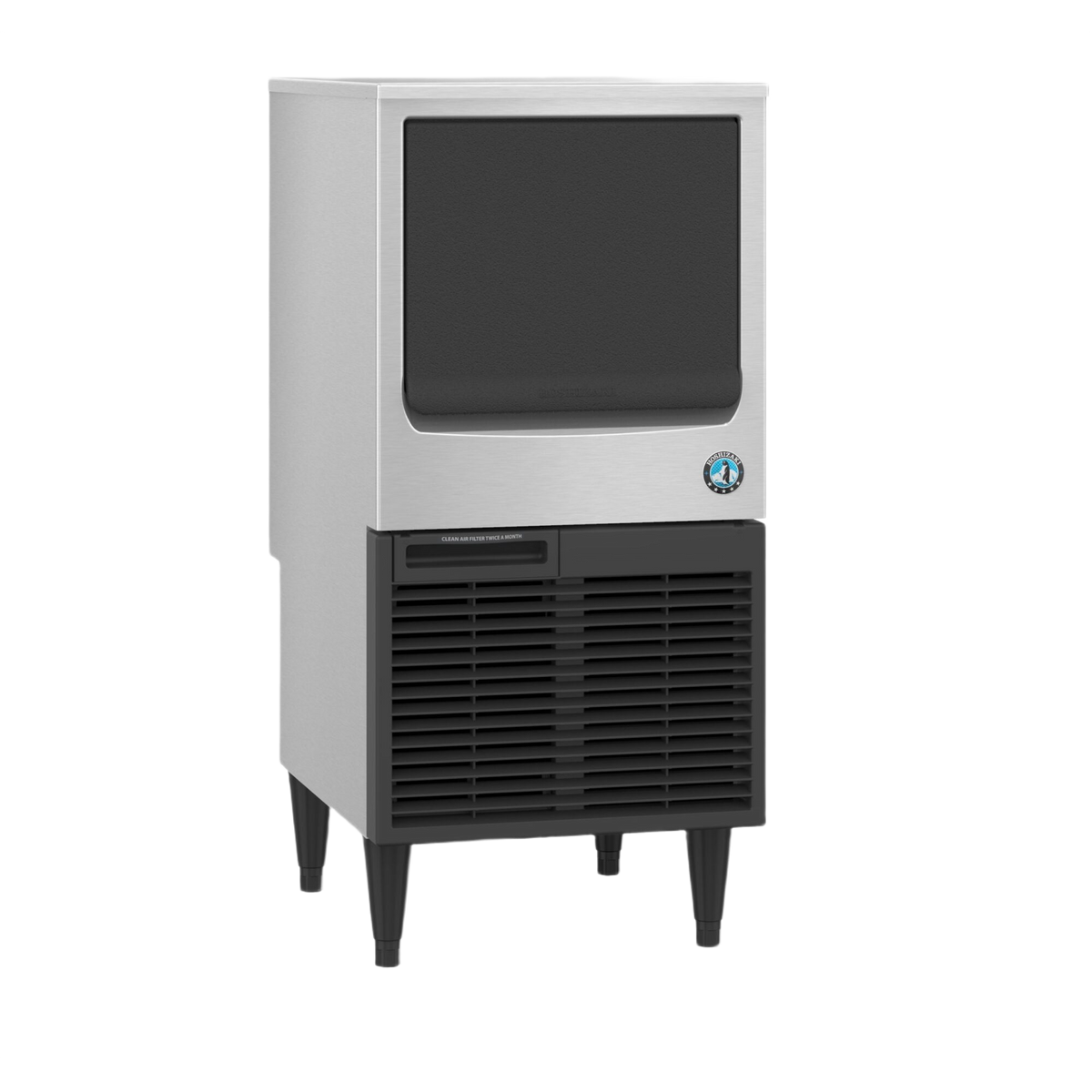

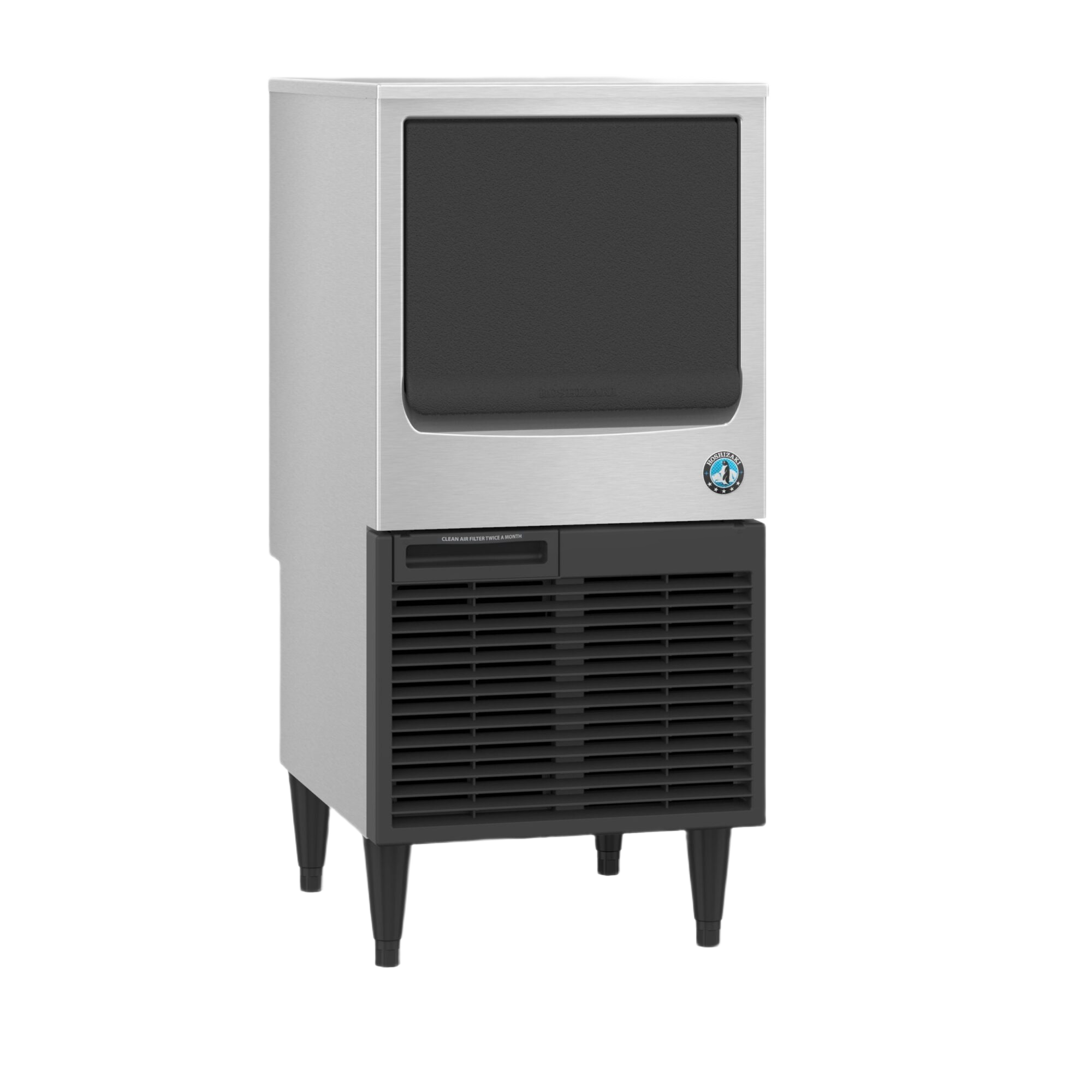

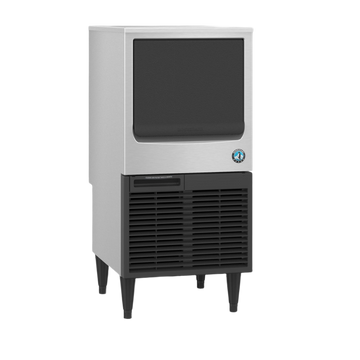

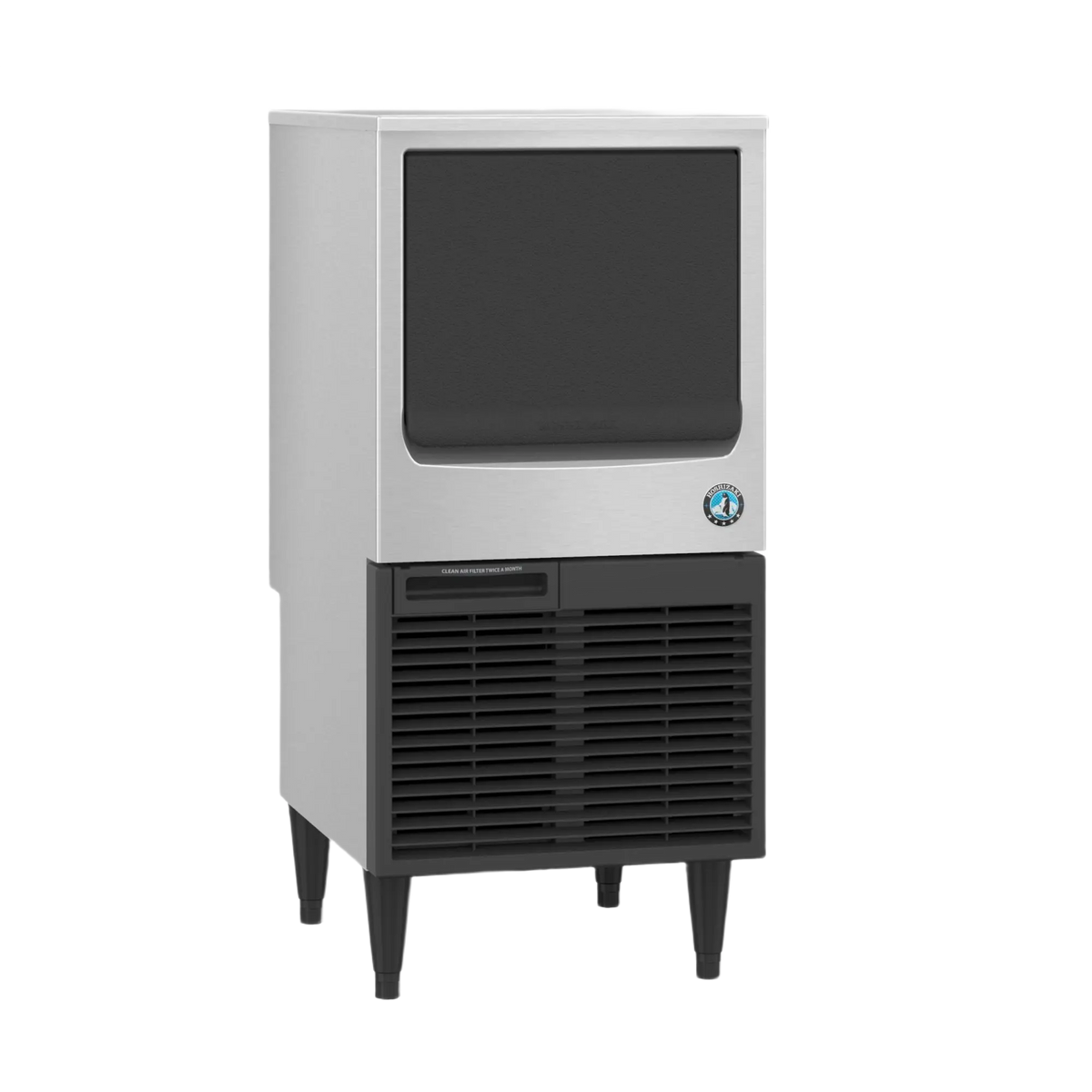

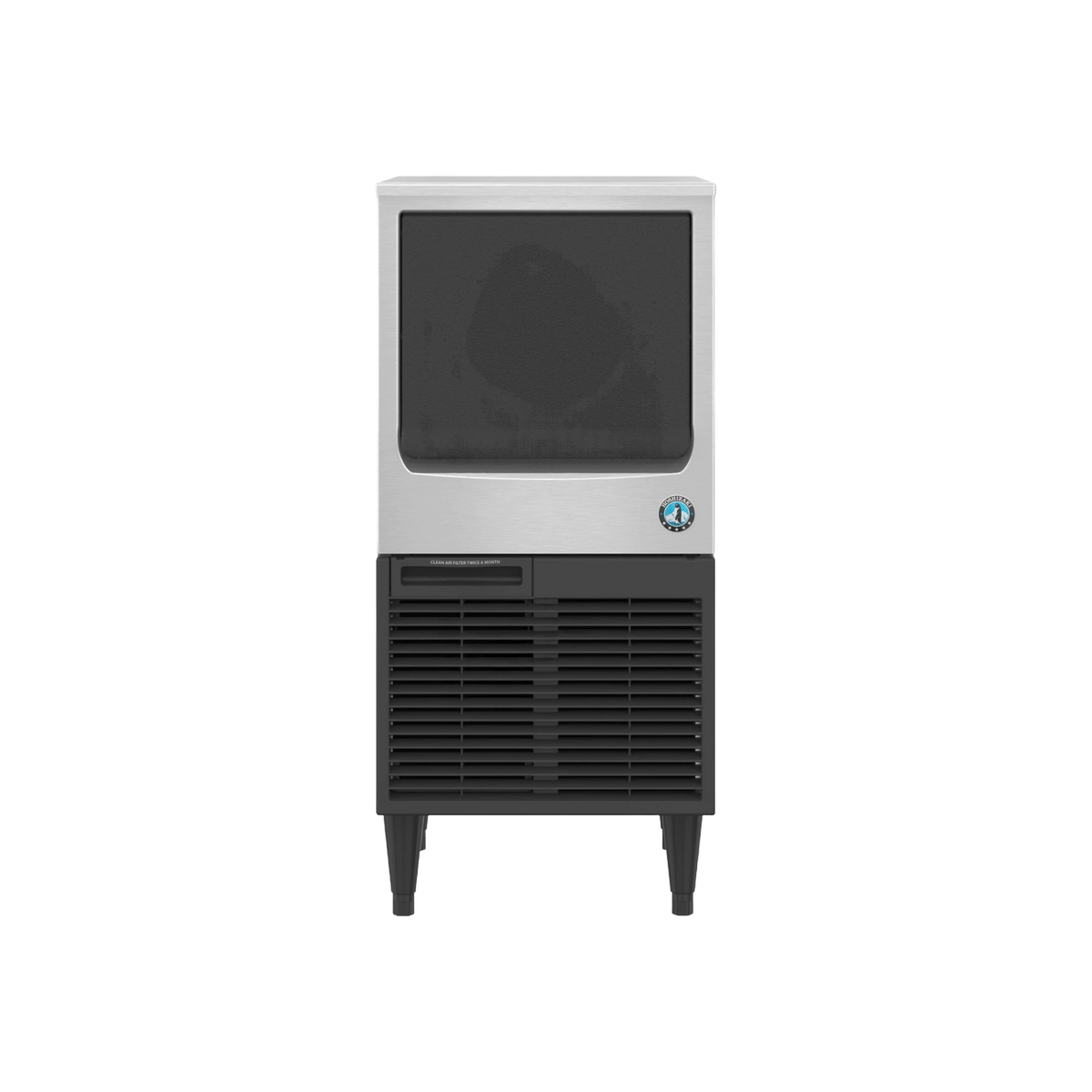

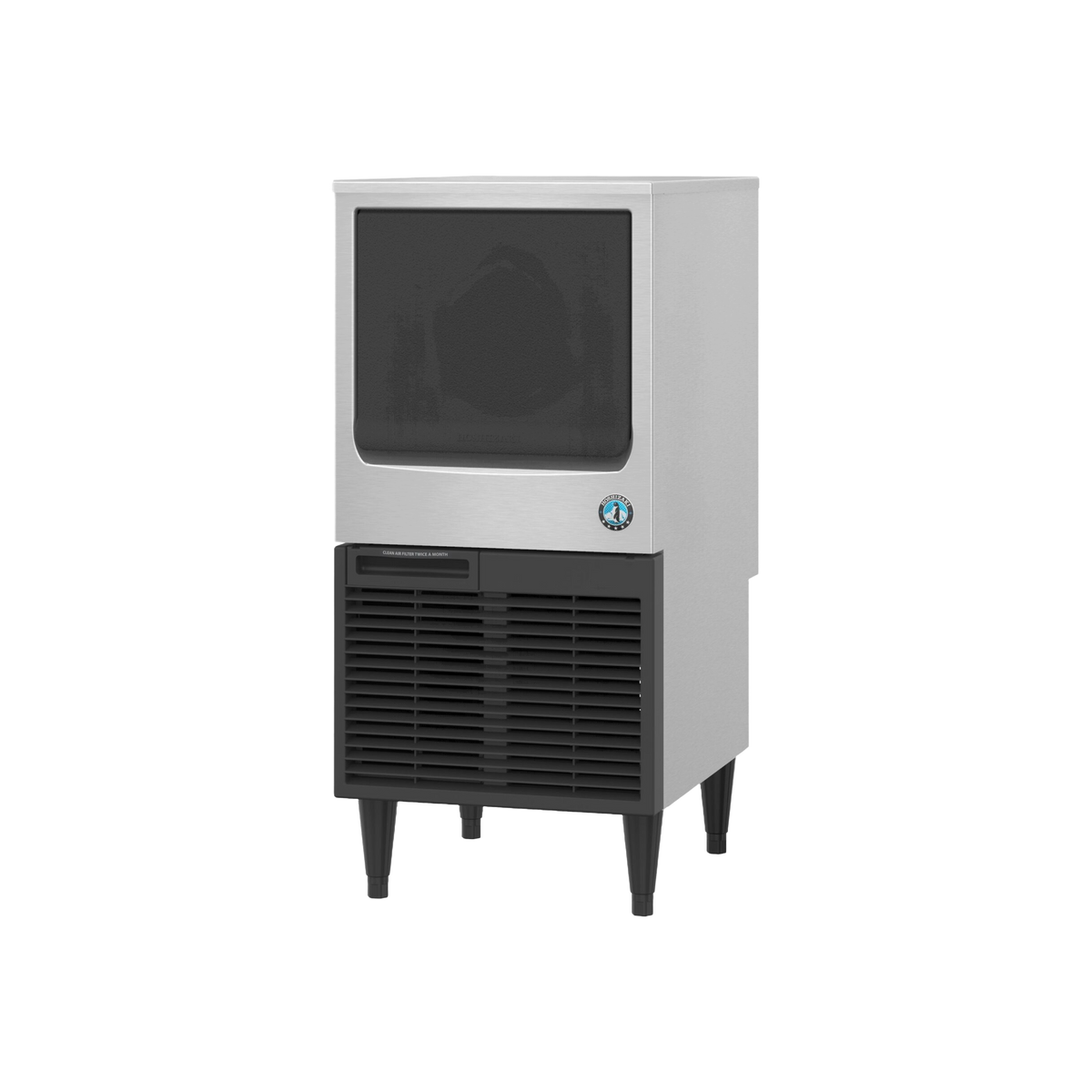

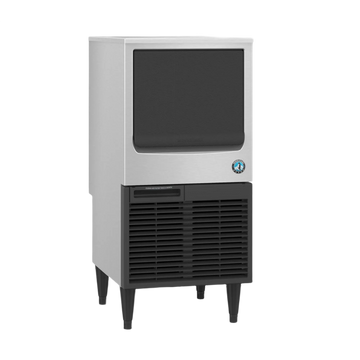

The Hoshizaki KM-81BAJ is a self-contained, air-cooled undercounter crescent cube ice maker. Its official specification PDF rates the air-cooled model for up to 78 lb of ice per 24 hours at 70°F air and 50°F water, with approximately 52 lb per day at 90°F air and 70°F water. The built-in bin stores up to 38 lb of ice, creating a practical all-in-one solution for lower-volume locations where floor space is limited.

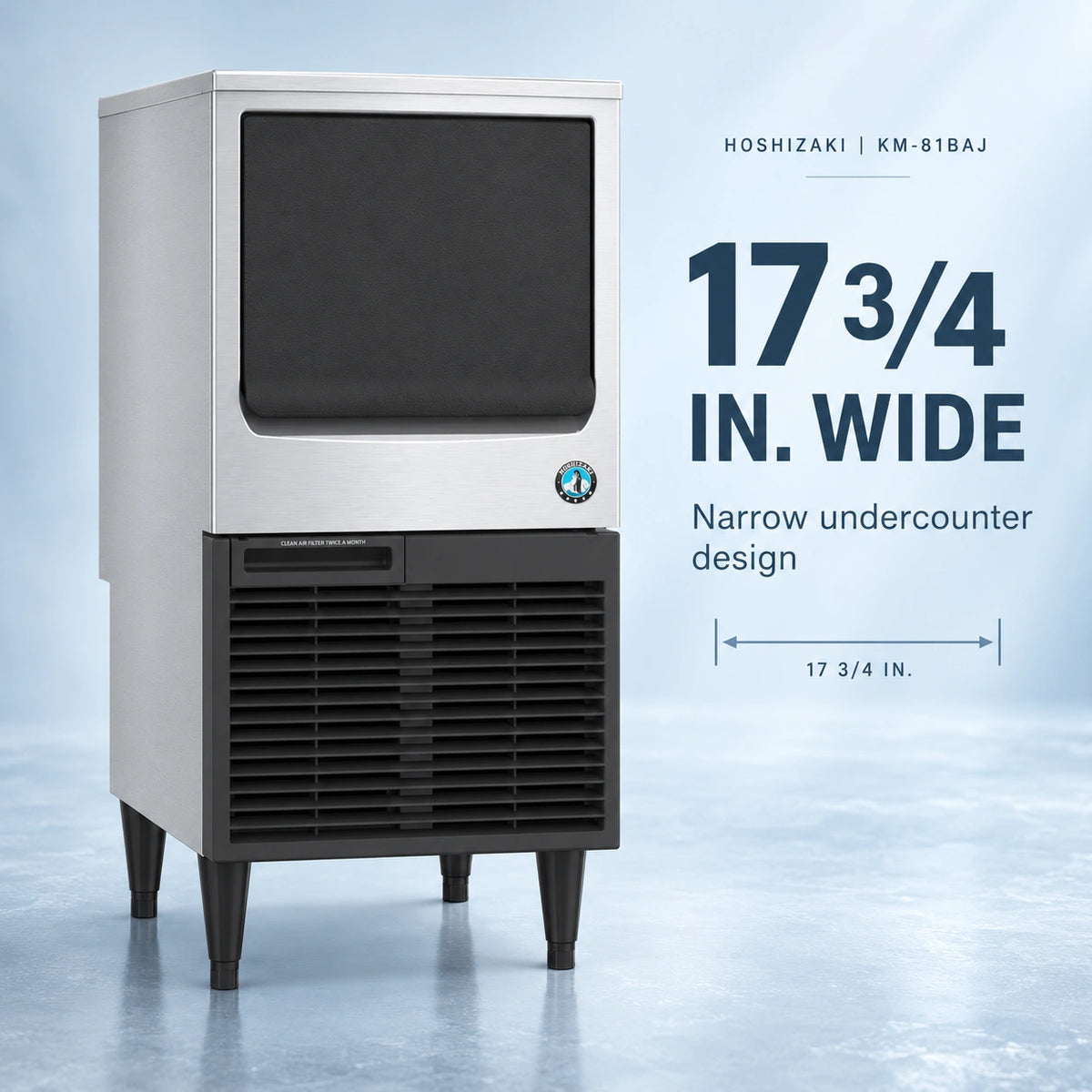

At only 17-3/4 in. wide, the stainless steel cabinet fits into narrow undercounter positions. Hoshizaki's front-in, front-out airflow design supports built-in use, while the removable front filter provides convenient access for regular cleaning. The slide-in bin door avoids a projecting swing path, and the ADA-compliant bin opening helps make stored ice easier to reach.
The stainless steel evaporator produces individual crescent cubes. CycleSaver® design supports dependable production cycles, and the EverCheck™ alert system provides equipment status information. The power switch is accessible without removing the front panel, helping simplify routine operation.
This model uses R-134a refrigerant and connects to a 115V single-phase supply using the included NEMA 5-15P cord. It requires a potable cold-water supply and gravity drain. Where a gravity drain is not practical, Hoshizaki lists the HS-5061 optional drain pump assembly; compatibility and installation requirements must be confirmed before ordering.
Key Features
- Official specification PDF rating of up to 78 lb/day at 70°F air/50°F water
- Produces approximately 52 lb/day at 90°F air/70°F water
- Built-in storage bin holds up to 38 lb
- Narrow 17-3/4-in.-wide stainless steel cabinet
- Individual crescent cube ice and stainless steel evaporator
- CycleSaver® design and EverCheck™ alert system

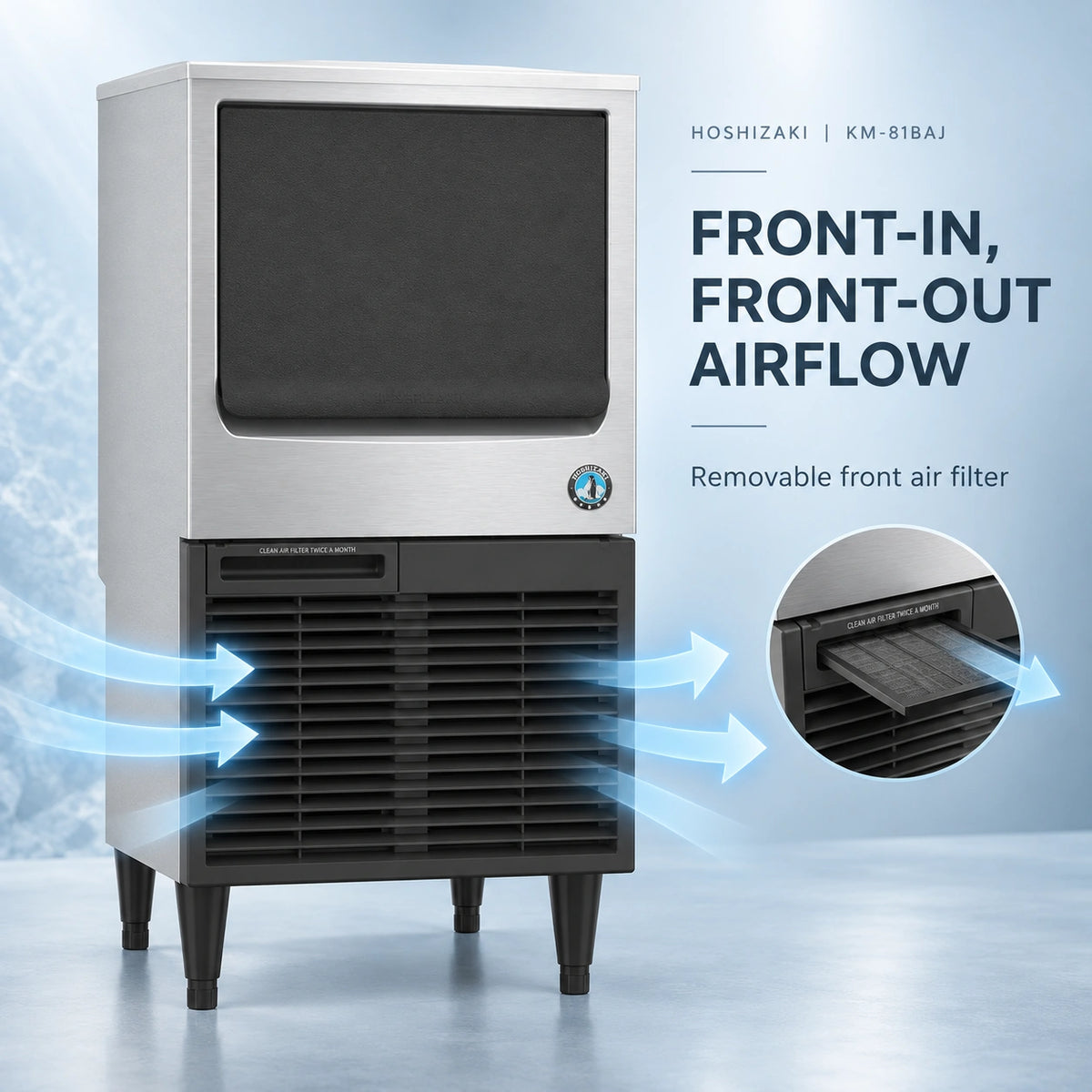

- Front-in, front-out airflow with removable front air filter
- ADA-compliant bin opening and slide-in door
- Optional HS-5061 drain pump assembly
Best For
Compact bars, cafés, offices and hospitality stations that need a narrow self-contained crescent ice maker with integrated storage.

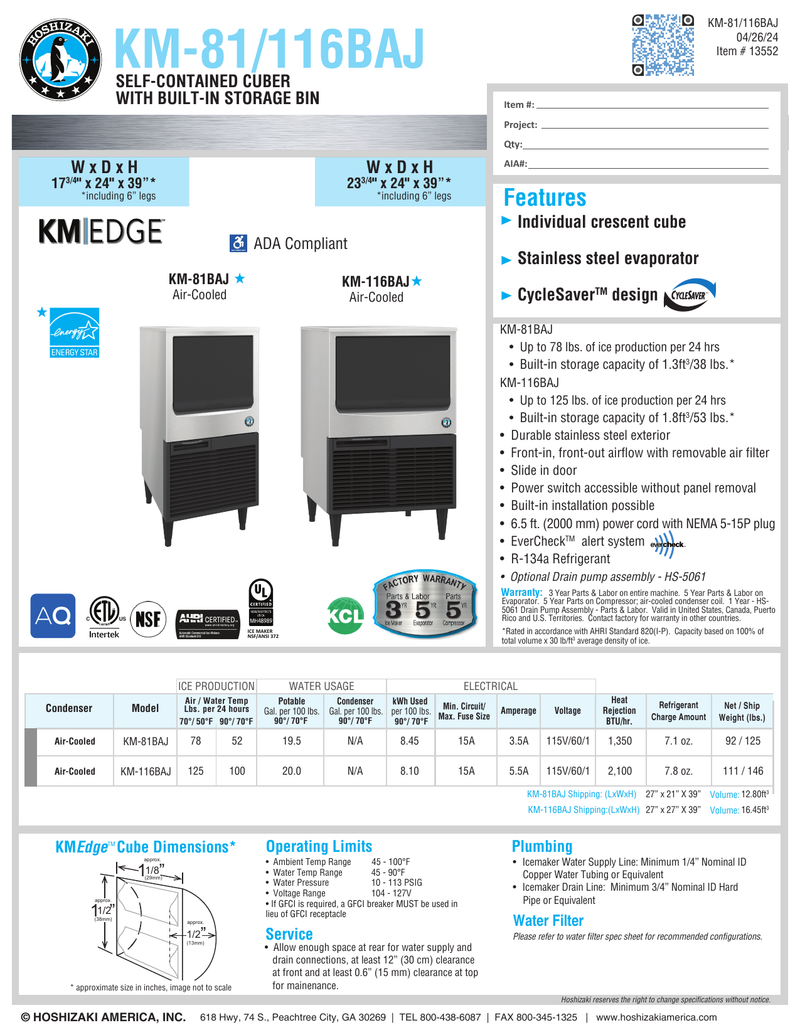

Full Specifications
| Brand | Hoshizaki |
| Model | KM-81BAJ |
| Type | Self-contained undercounter ice maker with built-in bin |
| Ice Type | Individual crescent cube |
| Cooling | Air-cooled |
| Maximum Production | 78 lb/24 hr at 70°F air/50°F water, per official specification PDF |
| AHRI Production | 52 lb/24 hr at 90°F air/70°F water |
| Built-In Bin Capacity | 38 lb / 1.3 cu. ft. |
| Dimensions | 17-3/4 in. W × 24 in. D × 39 in. H, including 6-in. legs |
| Electrical | 115V / 60Hz / 1 phase; 15A circuit; 3.5A |
| Plug | NEMA 5-15P; 6.5-ft cord |
| Energy Use | 8.45 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 19.5 gal per 100 lb at 90°F/70°F |
| Heat Rejection | 1,350 BTU/hr |
| Refrigerant | R-134a, 7.1 oz. |
| Water Inlet / Drain | 1/2-in. FPT inlet / 3/4-in. FPT drain |
| Operating Air / Water Temperature | 45°F-100°F air / 45°F-90°F water |
| Water Pressure | 10 to 113 PSIG |
| Net / Shipping Weight | 92 lb / 125 lb |
| Optional Drain Pump | HS-5061 |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
- Optional HS-5061 drain pump: 1 year parts and labor
Installation and Maintenance Notes
- Allow rear utility access, at least 12 in. at the front and approximately 0.6 in. above the unit.
- Use a potable cold-water supply and independent gravity drain unless an approved drain pump is properly installed.
- Clean the front air filter regularly; actual output varies with ambient and water conditions.
