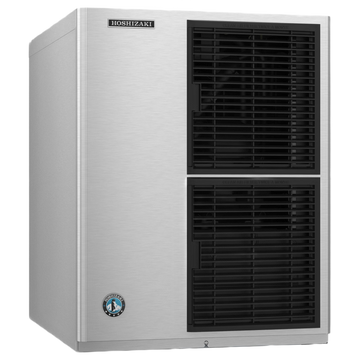

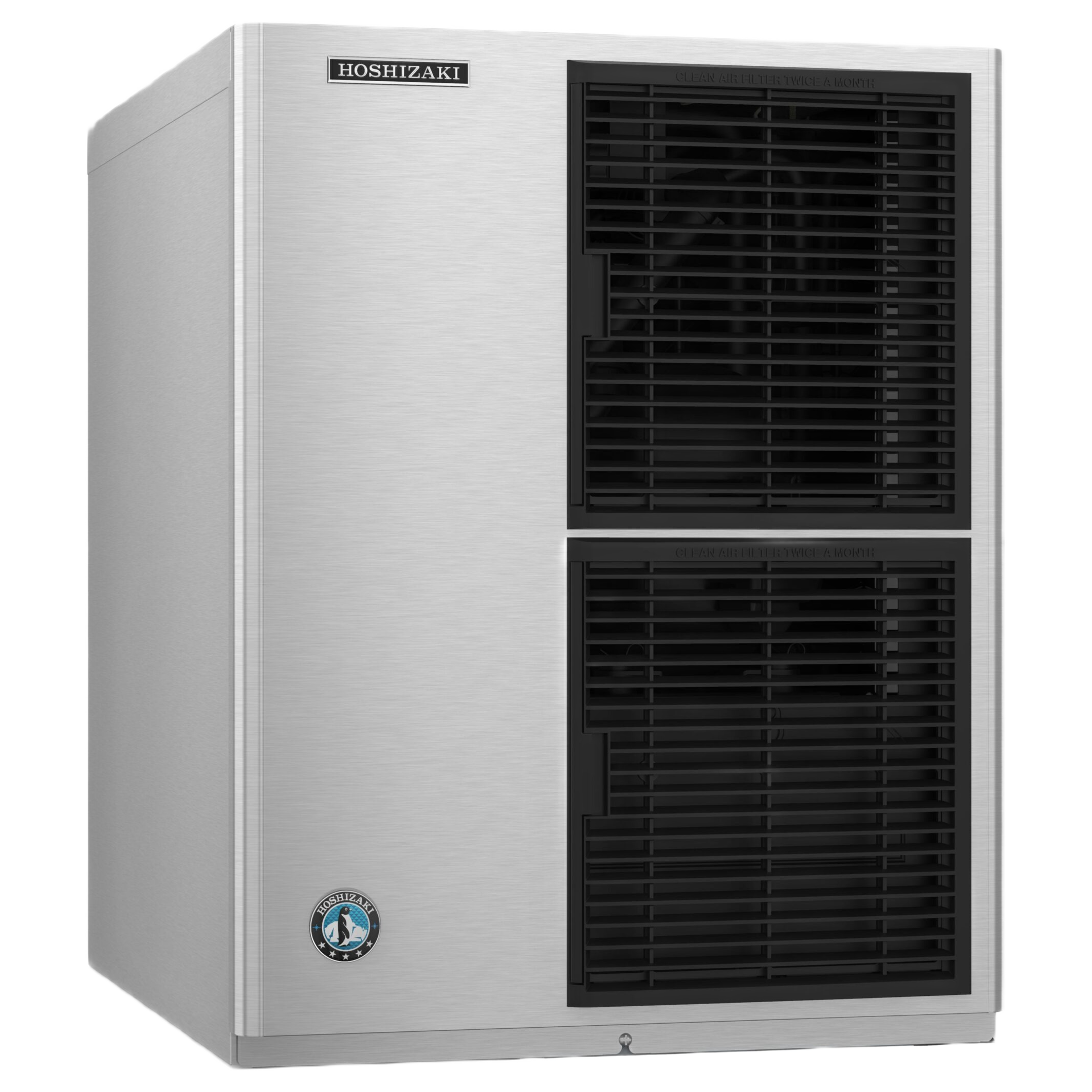

Hoshizaki KM-522MAK Modular Crescent Cube Ice Machine Head - 548 lb/Day, Air-Cooled
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki KM-522MAK Modular Crescent Cube Ice Machine Head - 548 lb/Day, Air-Cooled
Hoshizaki KM-522MAK Modular Crescent Cube Ice Machine Head - 548 lb/Day, Air-Cooled Description
Hoshizaki KM-522MAK — Modular Crescent Cube Ice Production with Flexible Storage
With more than 500 lb of rated daily capacity in a 22-inch-wide head, this slim-line model suits busy beverage programs where equipment width matters. A separate compatible bin lets you size storage independently of the ice-making head. The Hoshizaki KM-522MAK modular crescent cube ice machine produces up to 548 lb per 24 hours at 70°F air/50°F water. At 90°F air/70°F water, its rated output is 445 lb per day. A storage bin or dispenser is not included with the machine head.
The individual crescent cubes measure approximately 1-1/8 × 1-1/2 × 1/2 in. Their curved profile is suited to everyday beverage service, from iced water and soft drinks to bar pours. A stainless steel double-sided evaporator, CycleSaver design and self-diagnostic programming support the production process. The factory-installed ultrasonic bin control can be adjusted on site to suit the approved storage or dispensing setup.
CleanAssist provides a simple one-hour cleaning process. Snap-fit parts, removable air filters and easily removed panels help technicians access the machine for cleaning and maintenance. The EverCheck alert system supports equipment monitoring without changing the need for scheduled service. R290 hydrocarbon refrigerant is used in the air-cooled refrigeration system.
The cabinet dimensions are 22 × 27-3/8 × 28 in. (W × D × H). Electrical service is 115V/60Hz/single phase with a 20A circuit/fuse rating. Allow 6 in. clearance at the rear, sides and top for air circulation and maintenance. Production changes with room and inlet-water temperatures, so size the installation using the hotter-condition output as well as the maximum rating.
Key Features
- Up to 548 lb/day at 70°F air/50°F water
- Individual crescent cubes formed on a stainless steel double-sided evaporator
- Factory-installed ultrasonic bin control adjustable on site
- CleanAssist one-hour cleaning process
- CycleSaver design and EverCheck alert system
- Self-diagnostic programming adjusts to changing conditions
- Snap-fit parts and removable air filters simplify cleaning
- R290 hydrocarbon refrigerant
Best For
Restaurants, cafés, hotels and self-service beverage stations that need individual crescent cube ice and independently selected storage or dispensing equipment.
Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | KM-522MAK |
| Equipment type | Modular ice machine head; separate bin/dispenser required |
| Ice type | Crescent Cube Ice |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 548 lb/24 hr |
| Production at 90°F air / 70°F water | 445 lb/24 hr |
| Storage | Separate compatible bin/dispenser, sold separately |
| Dimensions (W × D × H) | 22 × 27-3/8 × 28 in. |
| Electrical | 115V / 60Hz / 1 phase; 10.8A |
| Circuit / maximum fuse | 20A |
| Energy use at 90°F / 70°F | 5.15 kWh per 100 lb |
| Potable water use at 90°F / 70°F | 17 gal per 100 lb |
| Heat rejection | 8,400 BTU/hr |
| Refrigerant | R290; 5.3 oz. charge |
| Water inlet | 1/2-in. FPT; minimum 1/4-in. nominal ID supply tubing |
| Drain | 3/4-in. FPT; minimum 3/4-in. nominal ID drain piping |
| Ambient temperature | 45–100°F |
| Water temperature | 45–90°F |
| Water pressure | 10–113 PSIG |
| Net / shipping weight | 145 / 175 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Manufacturer coverage applies in the United States, Canada, Puerto Rico and U.S. territories, subject to Hoshizaki's warranty terms.
Installation and Maintenance Notes
- Allow 6 in. clearance at the rear, sides and top for air circulation and maintenance.
- Connect to a potable cold-water supply and suitable drain. Follow the manufacturer's installation instructions and applicable local codes.
- Confirm the exact bin/dispenser combination and any required top kit before installation; storage equipment is sold separately.
- Keep ventilation paths clear and follow the specified cleaning and sanitizing schedule. Automatic control and flushing features do not eliminate routine maintenance.
