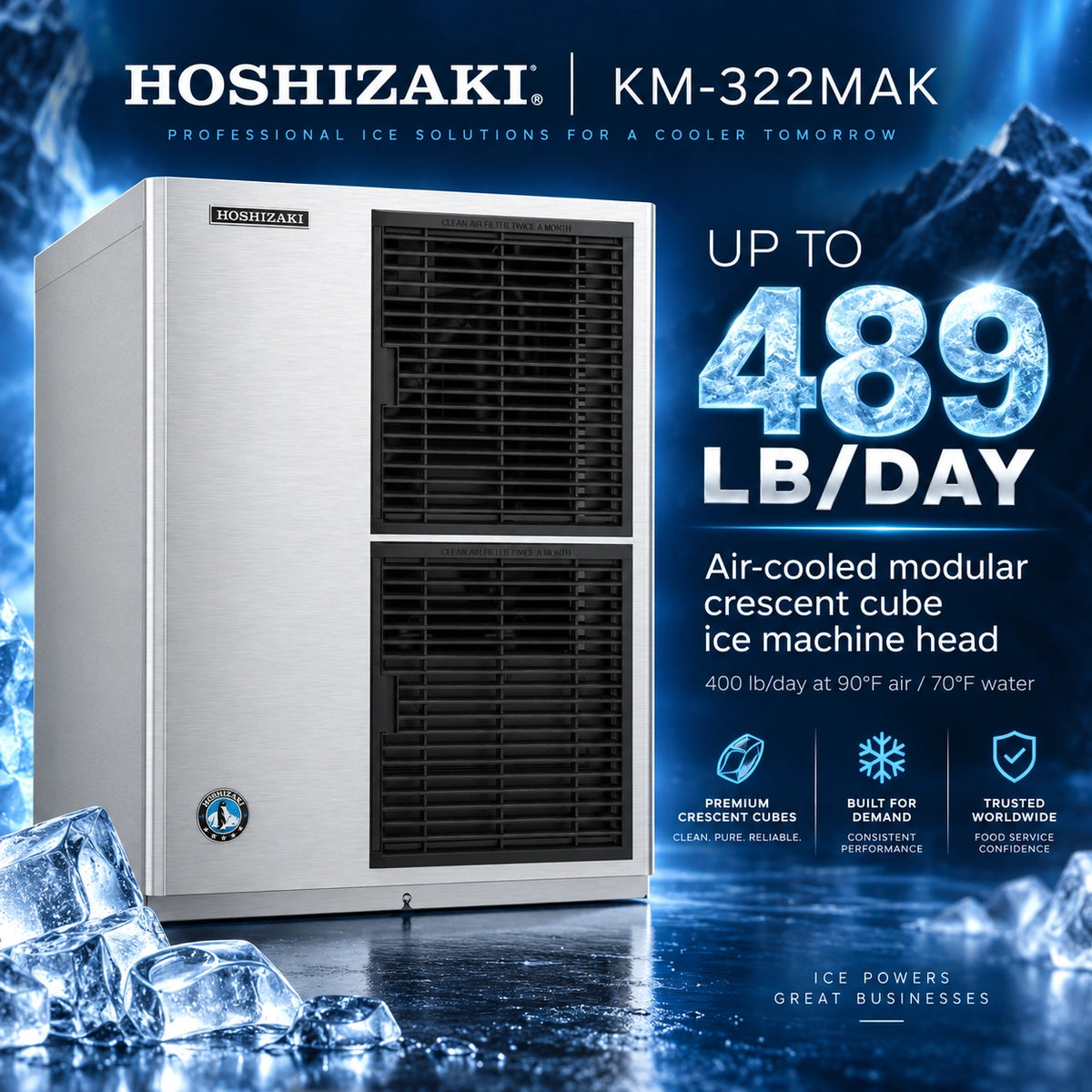

Hoshizaki KM-322MAK Modular Crescent Cube Ice Machine Head - 489 lb/Day, Air-Cooled

Brand:Hoshizaki
Model:KM-322MAK
Crescent Cube Ice Air-Cooled Up to 489 lb/day 22 in. Wide Modular Head
Free Standard Shipping on Eligible Orders Within the Contiguous U.S.
Regular price $4,515.00
Sale price $4,515.00 Regular price $9,030.00
Unit price
Save 50%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Hoshizaki KM-322MAK Modular Crescent Cube Ice Machine Head - 489 lb/Day, Air-Cooled
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

The Hoshizaki KM-322MAK is an air-cooled modular crescent cube ice machine head producing up to 489 lb/day at 70°F air/50°F water. Its 22-inch-wide head combines ultrasonic bin control with CleanAssist cleaning; a compatible bin or dispenser is sold separately.

Certified by
AHRI Certified
NSF Listed
ENERGY STAR® Certified
UL Listed
A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Quick Shipping with Bank Deposit

Want your ice machine shipped sooner? Choose Bank Deposit at checkout for priority order processing once your payment is confirmed. Eligible orders are prioritized for fulfillment to help get your equipment on its way sooner.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Hoshizaki KM-322MAK Modular Crescent Cube Ice Machine Head - 489 lb/Day, Air-Cooled

We’ll use these details only to respond to your quote request.

Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.

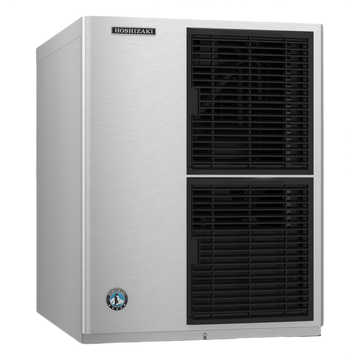

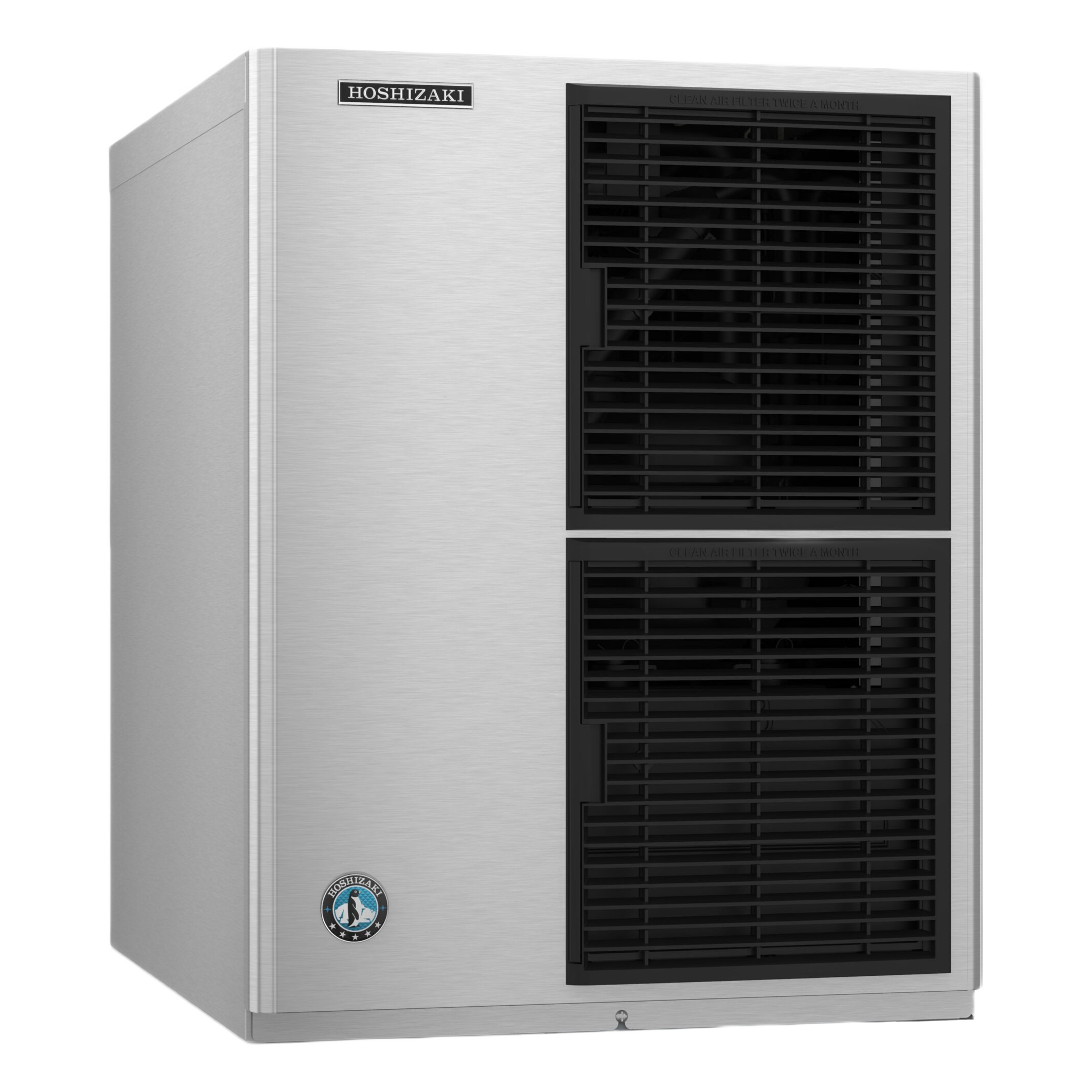

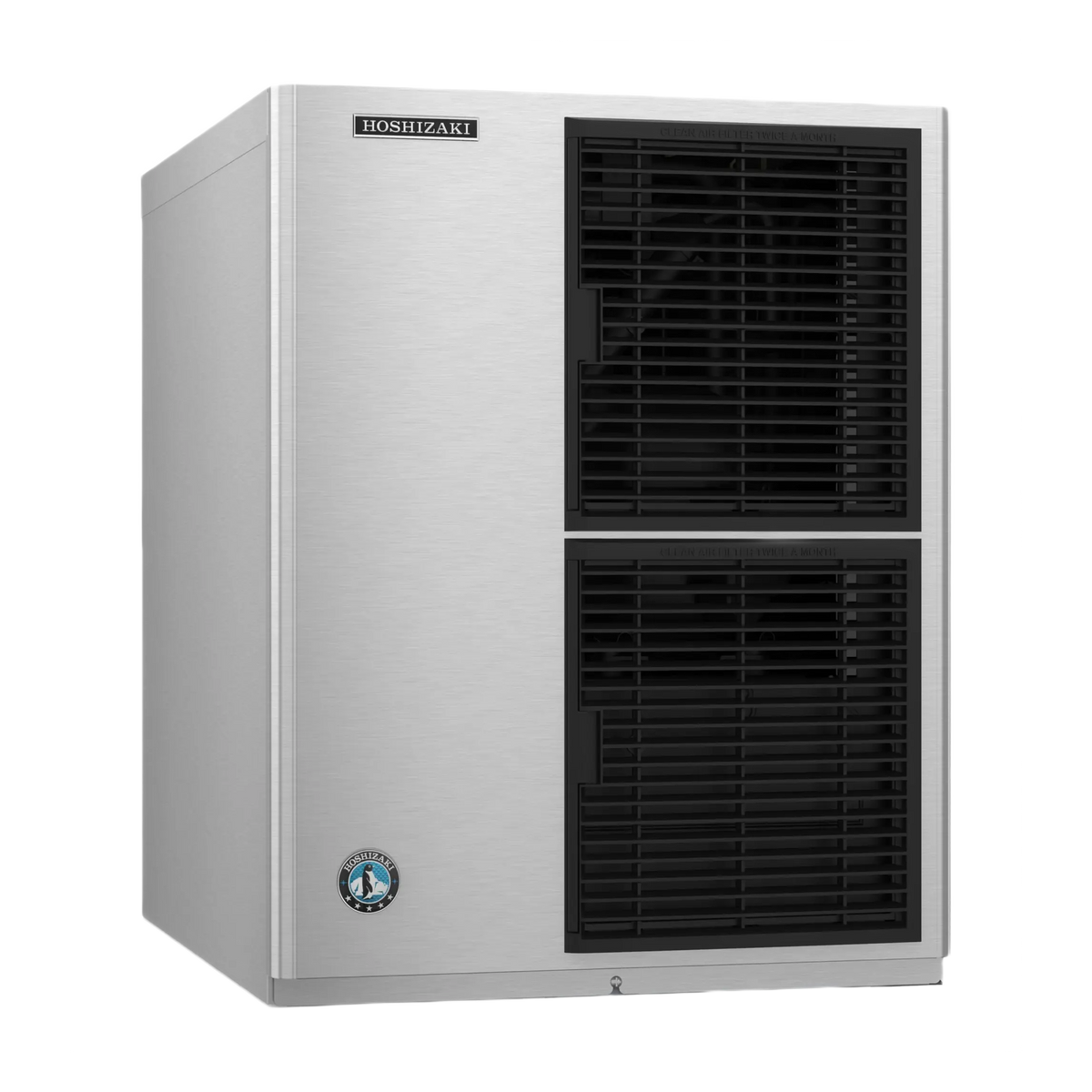

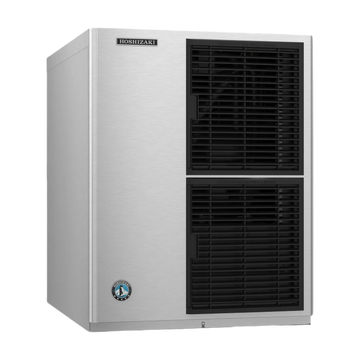

Hoshizaki ice machine on a white background

Hoshizaki KM-322MAK Modular Crescent Cube Ice Machine Head - 489 lb/Day, Air-Cooled

Regular price $4,515.00
Sale price $4,515.00 Regular price $9,030.00
Unit price

Hoshizaki KM-322MAK Modular Crescent Cube Ice Machine Head - 489 lb/Day, Air-Cooled Description

Hoshizaki KM-322MAK — Modular Crescent Cube Ice Production with Flexible Storage

Build a higher-output ice station without committing to a wide machine head. Its slim 22-inch cabinet lets operators pair production with a compatible storage bin or dispenser sized for their own service pattern. The Hoshizaki KM-322MAK modular crescent cube ice machine produces up to 489 lb per 24 hours at 70°F air/50°F water. At 90°F air/70°F water, its rated output is 400 lb per day. A storage bin or dispenser is not included with the machine head.

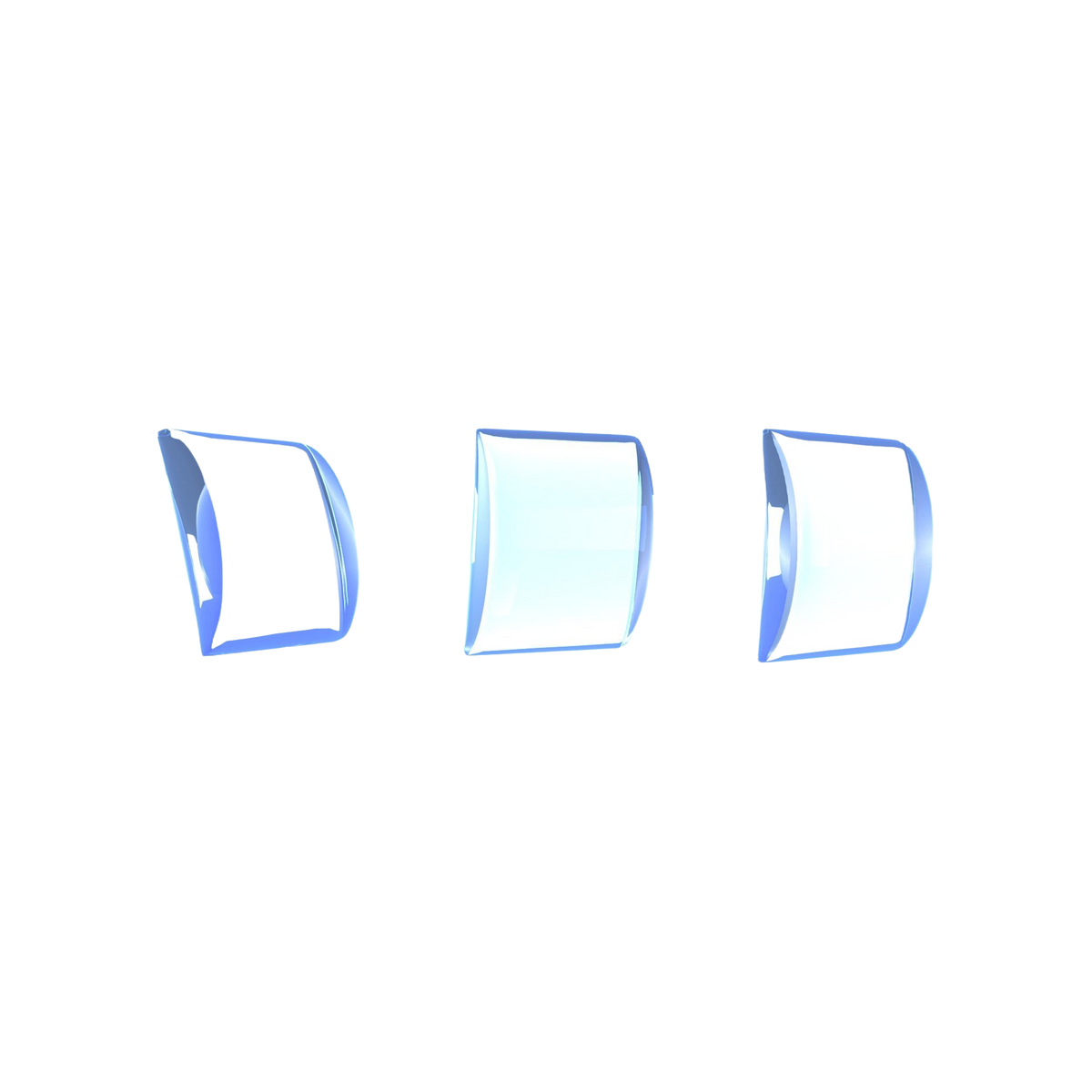

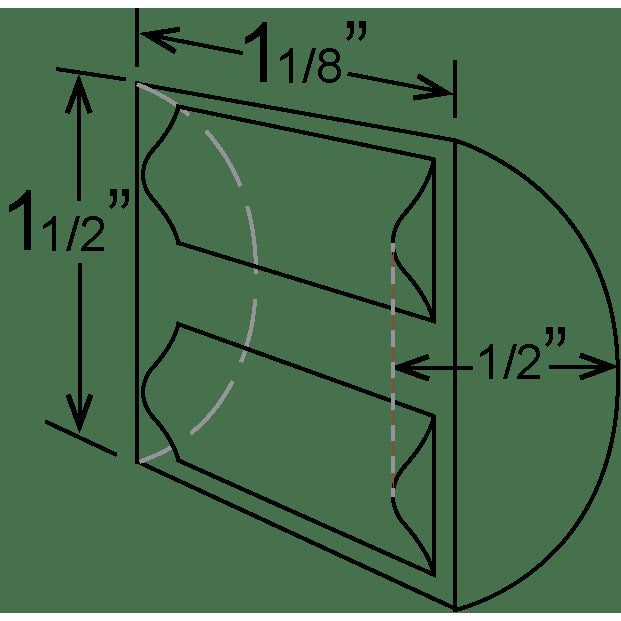

The individual crescent cubes measure approximately 1-1/8 × 1-1/2 × 1/2 in. Their curved profile is suited to everyday beverage service, from iced water and soft drinks to bar pours. A stainless steel double-sided evaporator, CycleSaver design and self-diagnostic programming support the production process. The factory-installed ultrasonic bin control can be adjusted on site to suit the approved storage or dispensing setup.

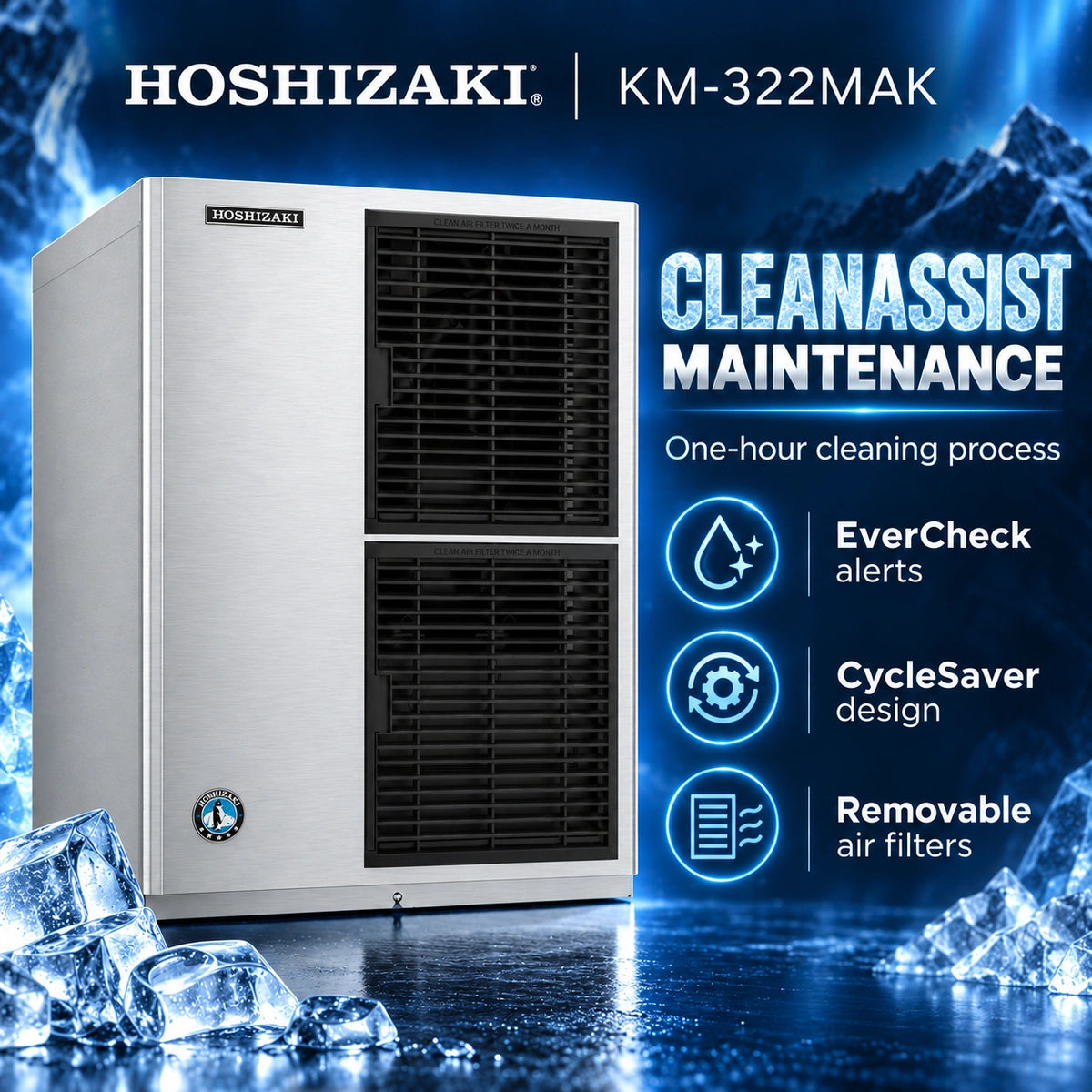

CleanAssist provides a simple one-hour cleaning process. Snap-fit parts, removable air filters and easily removed panels help technicians access the machine for cleaning and maintenance. The EverCheck alert system supports equipment monitoring without changing the need for scheduled service. R290 hydrocarbon refrigerant is used in the air-cooled refrigeration system.

The cabinet dimensions are 22 × 27-3/8 × 28 in. (W × D × H). Electrical service is 115V/60Hz/single phase with a 20A circuit/fuse rating. Allow 6 in. clearance at the rear, sides and top for air circulation and maintenance. Production changes with room and inlet-water temperatures, so size the installation using the hotter-condition output as well as the maximum rating.

Key Features

  • Up to 489 lb/day at 70°F air/50°F water
  • Individual crescent cubes formed on a stainless steel double-sided evaporator
  • Factory-installed ultrasonic bin control adjustable on site
  • CleanAssist one-hour cleaning process
  • CycleSaver design and EverCheck alert system
  • Self-diagnostic programming adjusts to changing conditions
  • Snap-fit parts and removable air filters simplify cleaning
  • R290 hydrocarbon refrigerant

Best For

Restaurants, cafés, hotels and self-service beverage stations that need individual crescent cube ice and independently selected storage or dispensing equipment.

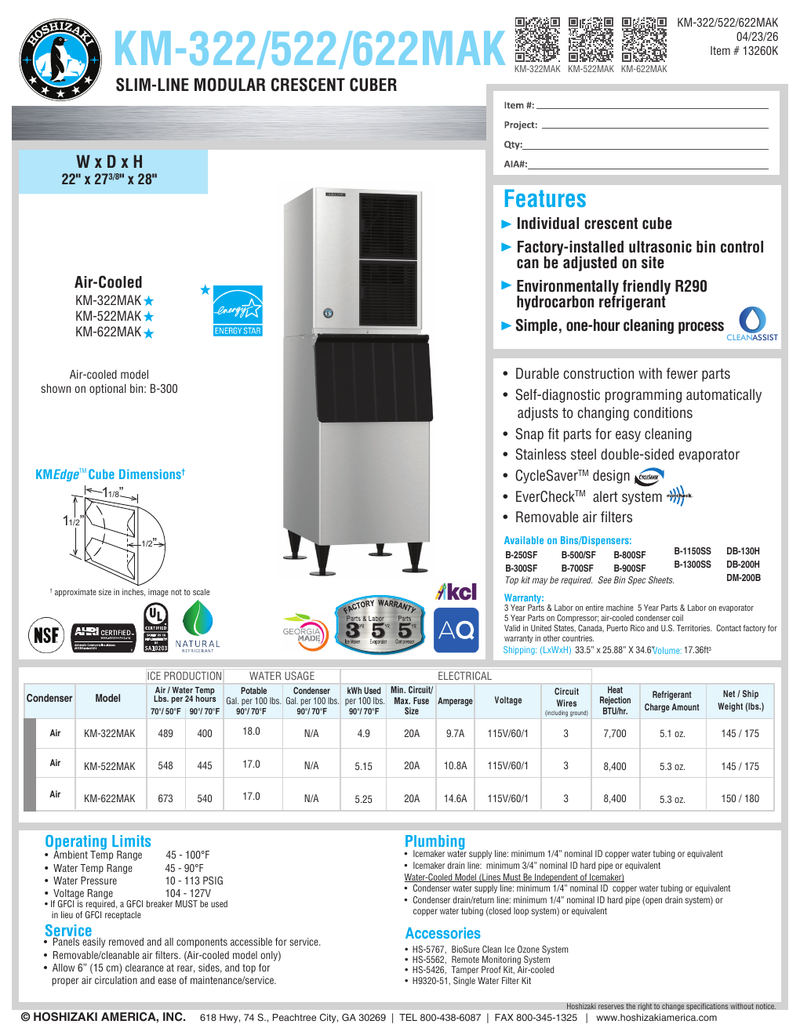

Full Specifications

Specification Detail
Brand Hoshizaki
Model KM-322MAK

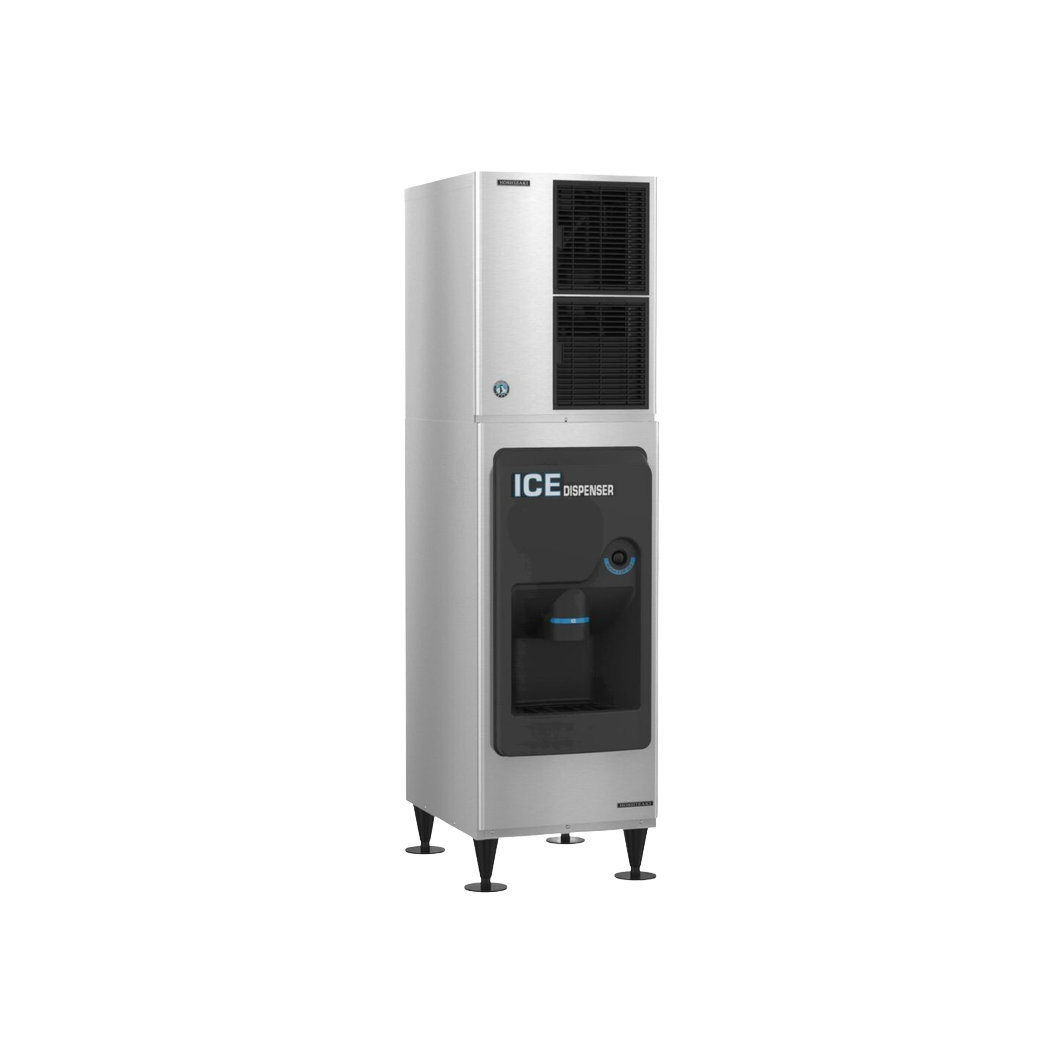

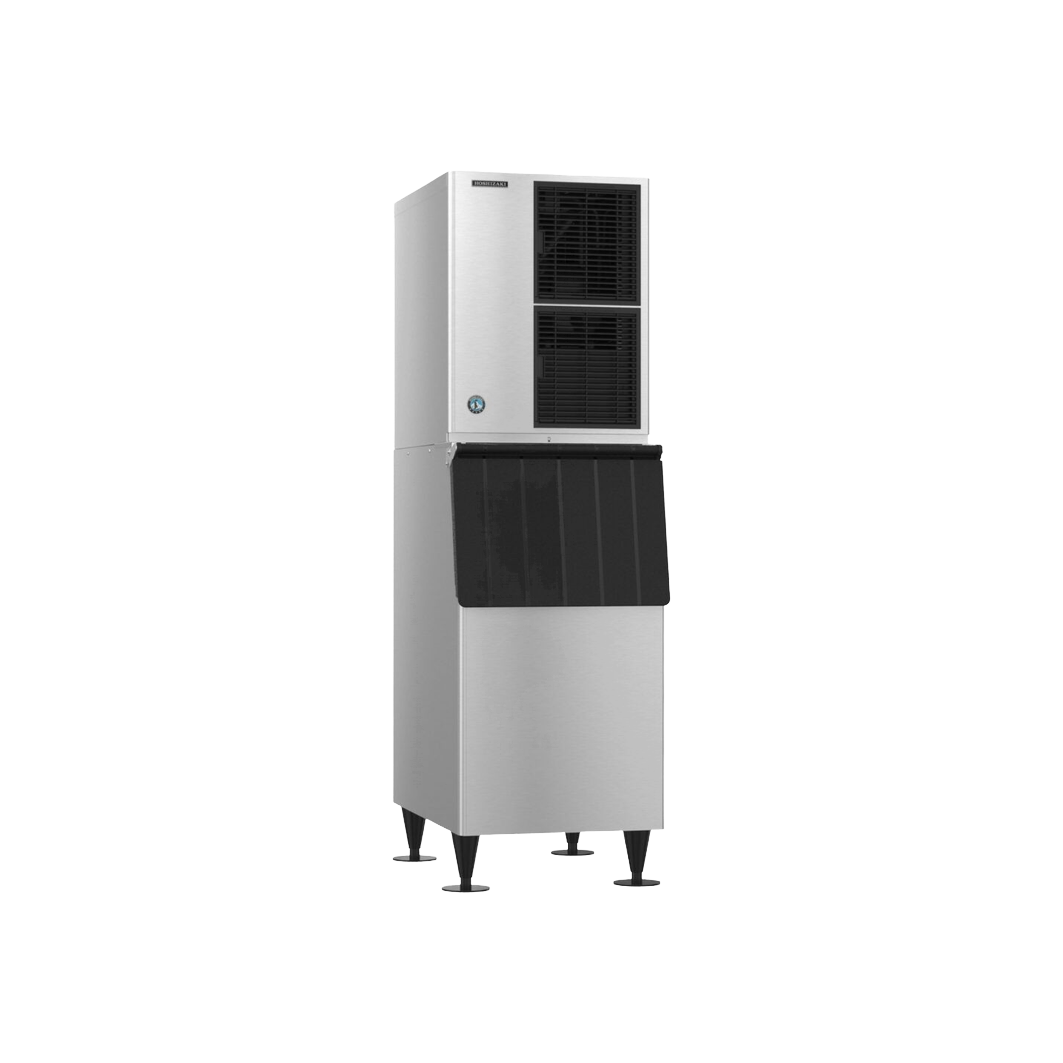

Equipment type Modular ice machine head; separate bin/dispenser required
Ice type Crescent Cube Ice
Cooling Air-cooled
Production at 70°F air / 50°F water 489 lb/24 hr
Production at 90°F air / 70°F water 400 lb/24 hr
Storage Separate compatible bin/dispenser, sold separately
Dimensions (W × D × H) 22 × 27-3/8 × 28 in.
Electrical 115V / 60Hz / 1 phase; 9.7A
Circuit / maximum fuse 20A
Energy use at 90°F / 70°F 4.9 kWh per 100 lb
Potable water use at 90°F / 70°F 18 gal per 100 lb
Heat rejection 7,700 BTU/hr
Refrigerant R290; 5.1 oz. charge
Water inlet 1/2-in. FPT; minimum 1/4-in. nominal ID supply tubing
Drain 3/4-in. FPT; minimum 3/4-in. nominal ID drain piping
Ambient temperature 45–100°F
Water temperature 45–90°F
Water pressure 10–113 PSIG
Net / shipping weight 145 / 175 lb

Warranty

  • 3 years parts and labor on the entire machine
  • 5 years parts and labor on the evaporator
  • 5 years parts on the compressor and air-cooled condenser coil

Manufacturer coverage applies in the United States, Canada, Puerto Rico and U.S. territories, subject to Hoshizaki's warranty terms.

Installation and Maintenance Notes

  • Allow 6 in. clearance at the rear, sides and top for air circulation and maintenance.
  • Connect to a potable cold-water supply and suitable drain. Follow the manufacturer's installation instructions and applicable local codes.
  • Confirm the exact bin/dispenser combination and any required top kit before installation; storage equipment is sold separately.
  • Keep ventilation paths clear and follow the specified cleaning and sanitizing schedule. Automatic control and flushing features do not eliminate routine maintenance.
