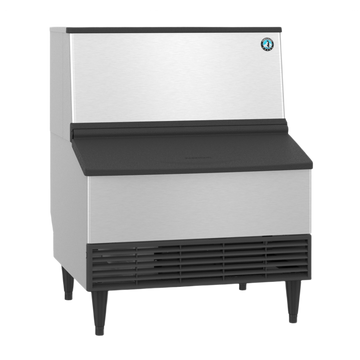

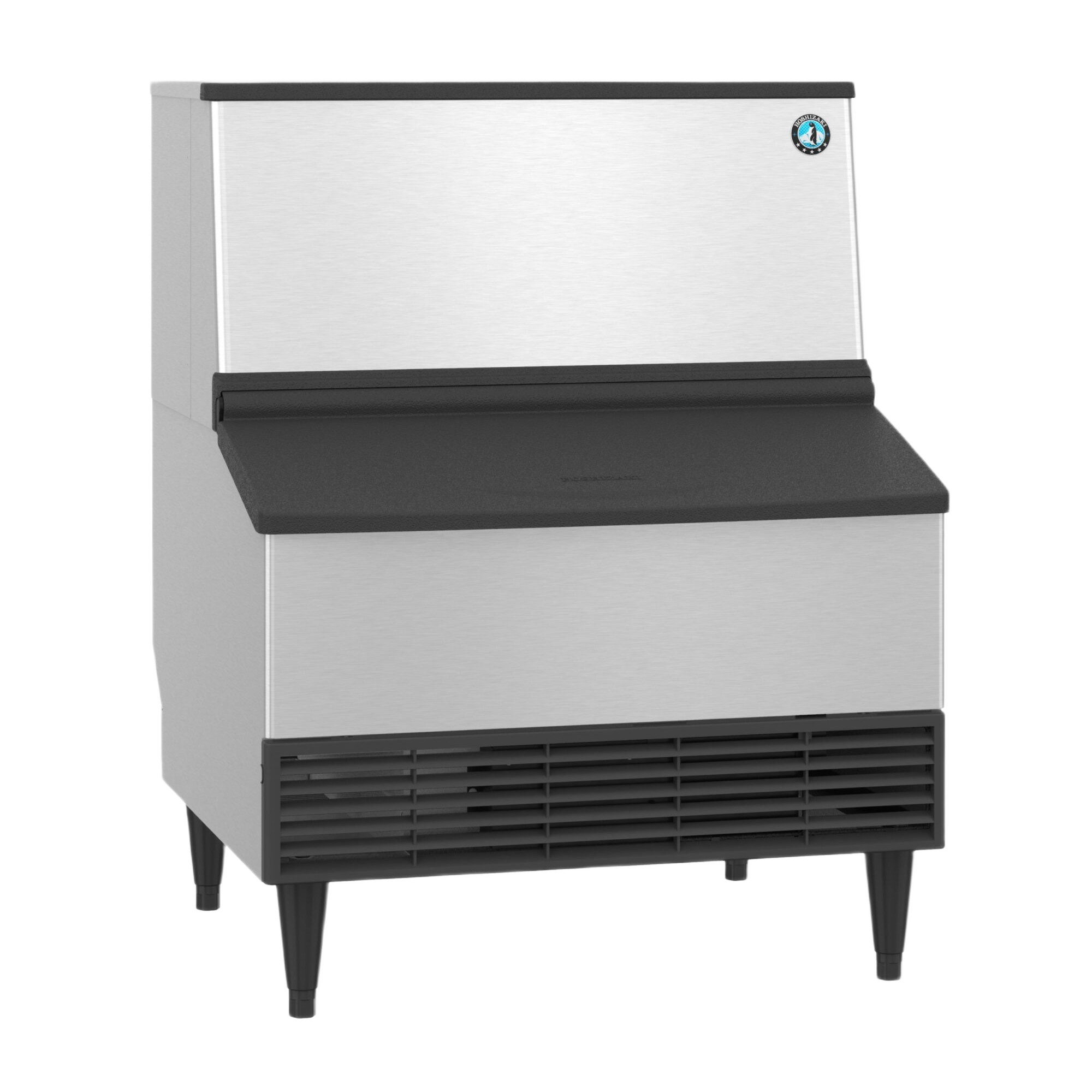

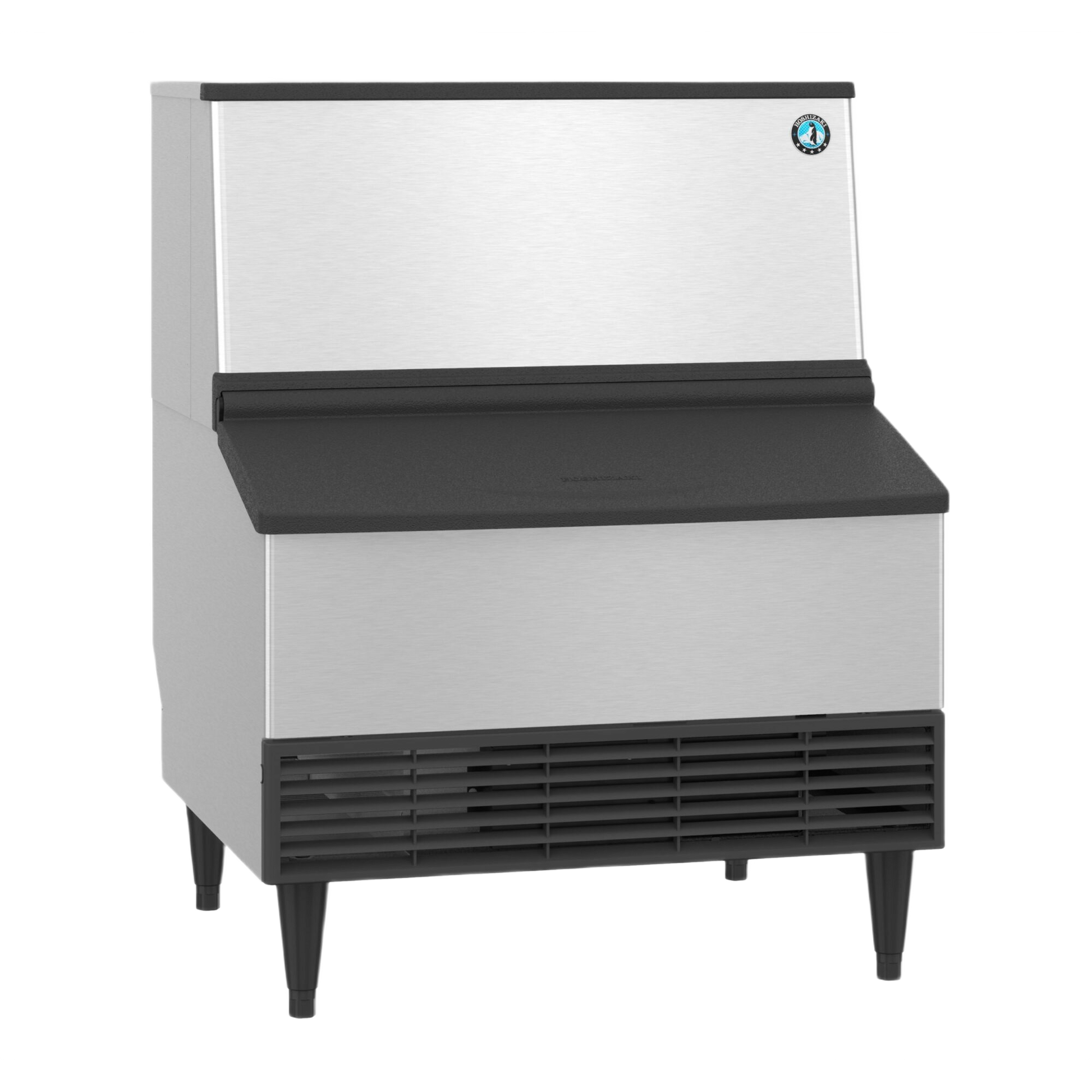

Hoshizaki KM-301BAJ - High-Capacity Crescent Ice and 100-Pound Storage in a Self-Contained Cabinet
The Hoshizaki KM-301BAJ is a self-contained, air-cooled undercounter crescent cube ice maker rated for up to 290 lb of ice per 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, it produces approximately 212 lb per day. A built-in bin stores up to 100 lb of ice, giving demanding bars, kitchens and beverage stations strong daily output and meaningful reserve capacity in one cabinet.
Its stainless steel evaporator forms individual crescent cubes that provide reliable drink cooling and good displacement. Hoshizaki's CycleSaver® design supports consistent operating cycles, while the EverCheck™ alert system communicates machine status. The stainless steel exterior is designed for commercial environments, and the ADA-compliant bin opening and slide-in door help keep ice accessible without occupying aisle space.
Front-in, front-out airflow supports undercounter placement, and the removable front air filter allows straightforward cleaning. The KM-301BAJ uses R-404A refrigerant and requires a 115V single-phase electrical supply through the included NEMA 5-15P cord. Installers must also provide a correctly sized potable cold-water connection and gravity drain.
Key Features
- Produces up to 290 lb/day at 70°F air/50°F water
- Produces approximately 212 lb/day at 90°F air/70°F water
- Built-in storage bin holds up to 100 lb
- Individual crescent cube ice made on a stainless steel evaporator
- CycleSaver® design and EverCheck™ alert system
- Front-in, front-out airflow and removable front air filter
- ADA-compliant bin opening with slide-in door
- Durable stainless steel exterior
- Includes adjustable 6-in. legs and a NEMA 5-15P power cord
Best For
Bars, restaurants, cafés, hotels, healthcare facilities and beverage stations that need high undercounter production with integrated storage in a compact commercial cabinet.

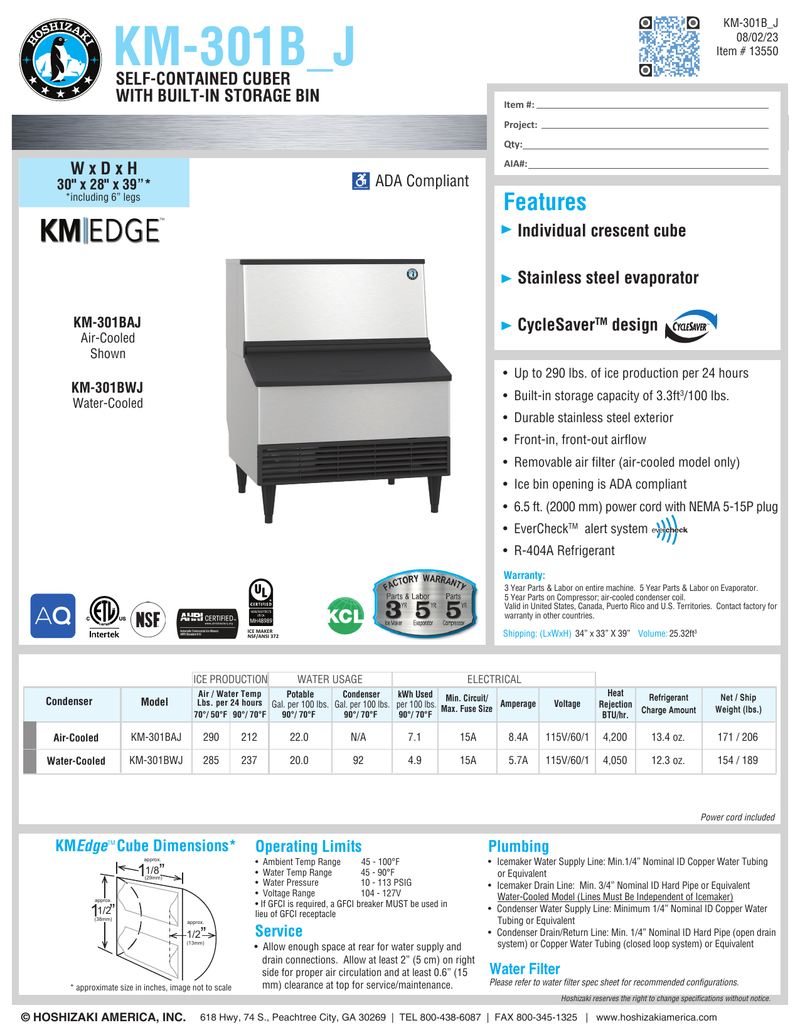

Full Specifications
| Brand | Hoshizaki |
| Model | KM-301BAJ |
| Type | Self-contained undercounter ice maker with built-in bin |
| Ice Type | Individual crescent cube |
| Cooling | Air-cooled |
| Maximum Production | 290 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 212 lb/24 hr at 90°F air/70°F water |
| Built-In Bin Capacity | 100 lb / 3.3 cu. ft. |
| Dimensions | 30 in. W × 28 in. D × 39 in. H, including 6-in. legs |
| Electrical | 115V / 60Hz / 1 phase; 15A circuit; 8.4A |
| Plug | NEMA 5-15P; 6.5-ft cord |
| Energy Use | 7.1 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 22 gal per 100 lb at 90°F/70°F |
| Heat Rejection | 4,200 BTU/hr |
| Refrigerant | R-404A, 13.4 oz. |
| Water Inlet / Drain | 1/2-in. FPT inlet / 3/4-in. FPT drain |
| Operating Air / Water Temperature | 45°F-100°F air / 45°F-90°F water |
| Water Pressure | 10 to 113 PSIG |
| Net / Shipping Weight | 171 lb / 206 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Allow rear utility access, 2 in. at the right side and approximately 0.6 in. above the cabinet.
- Provide a potable cold-water supply and independent gravity drain, and clean the front air filter routinely.
- Production varies with ambient air, incoming water temperature, pressure and installation conditions.
