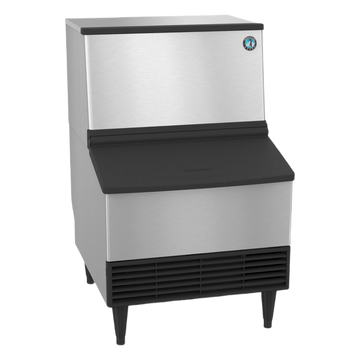

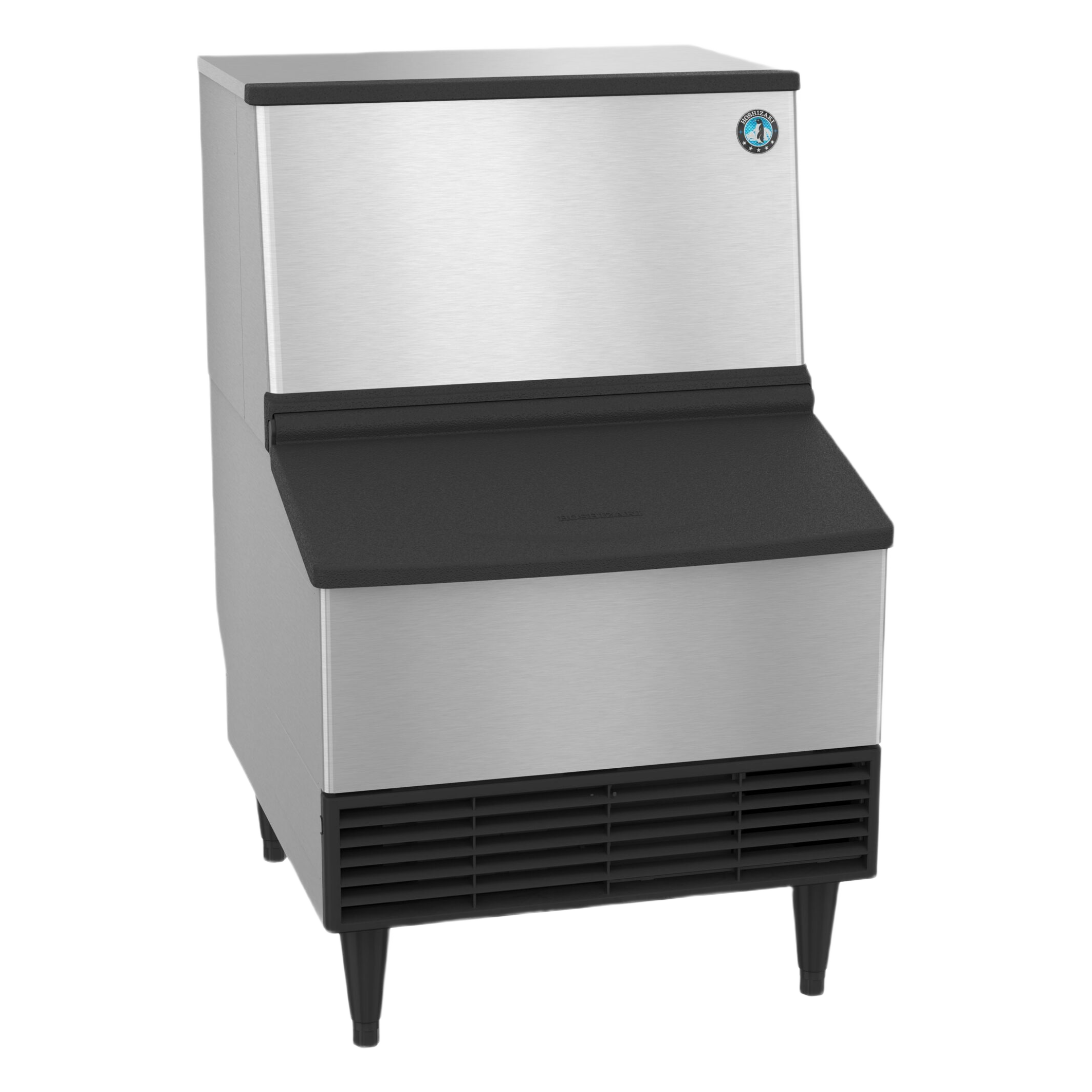

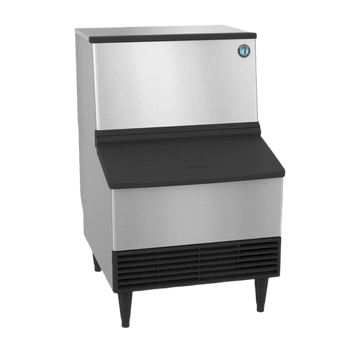

Hoshizaki KM-231BAK Undercounter Crescent Cube Ice Maker - 223 lb/Day with 80 lb Bin, Air-Cooled
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki KM-231BAK Undercounter Crescent Cube Ice Maker - 223 lb/Day with 80 lb Bin, Air-Cooled
Hoshizaki KM-231BAK Undercounter Crescent Cube Ice Maker - 223 lb/Day with 80 lb Bin, Air-Cooled Description
Hoshizaki KM-231BAK Undercounter Crescent Cube Ice Maker - 223 lb/Day with 80 lb Bin, Air-Cooled Commercial Description
Hoshizaki KM-231BAK - High-Volume Crescent Ice and 80 Pounds of Storage in a 24-Inch Cabinet

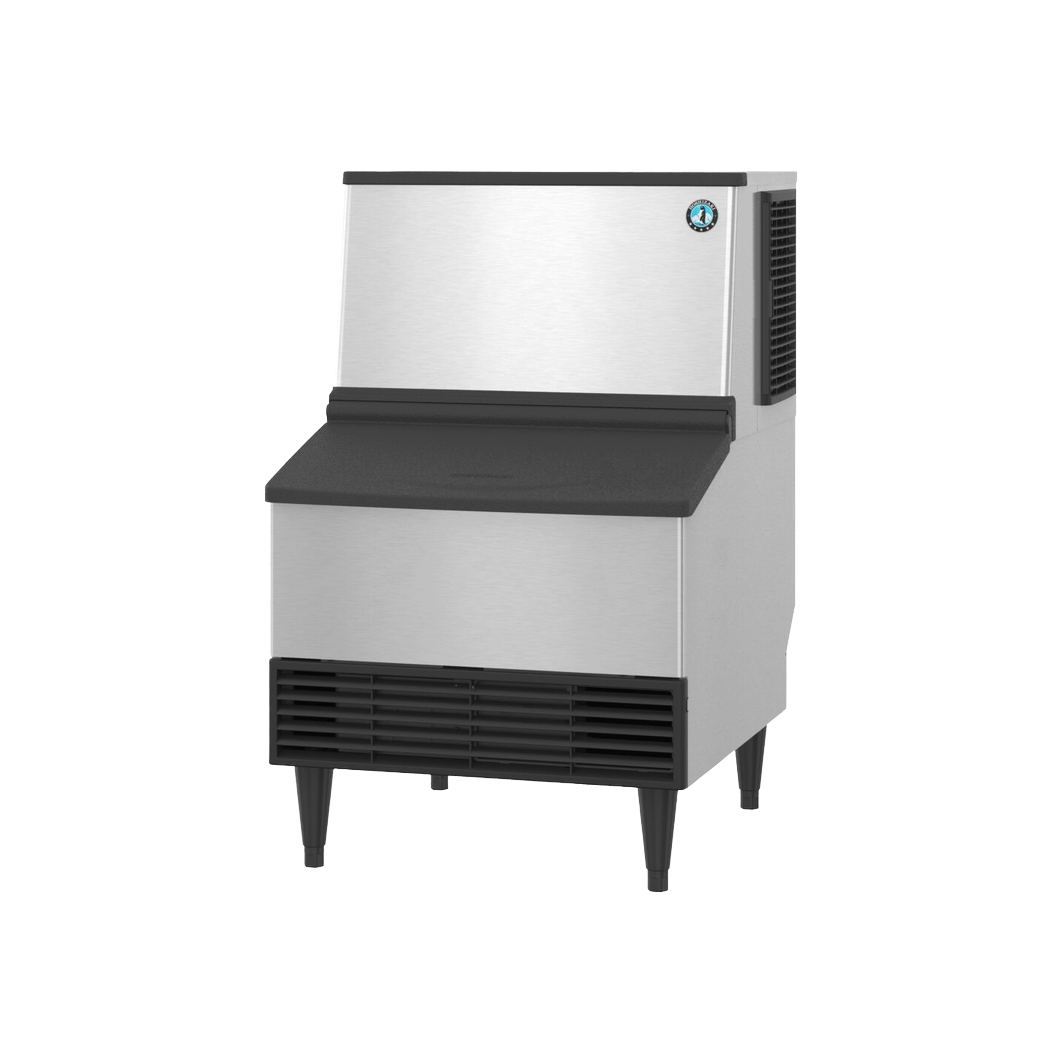

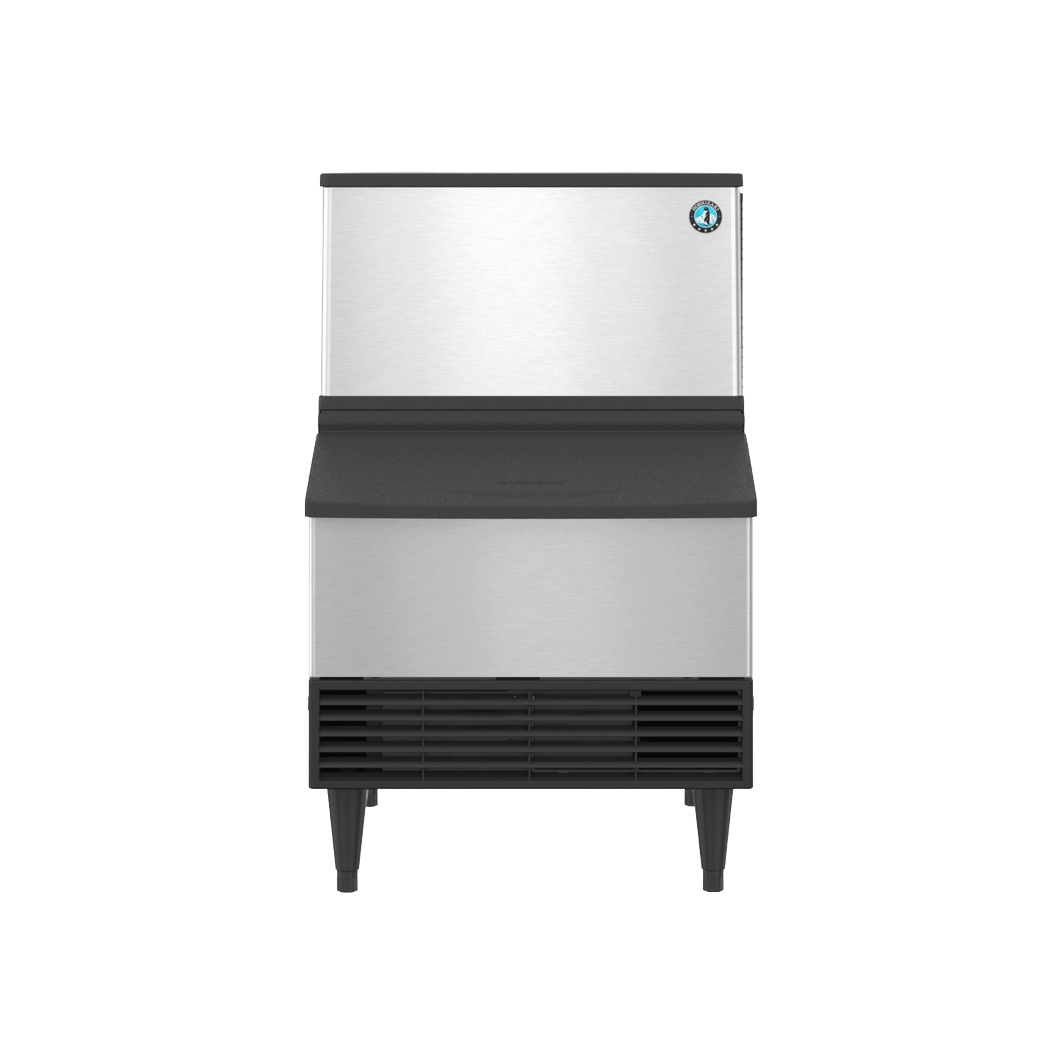

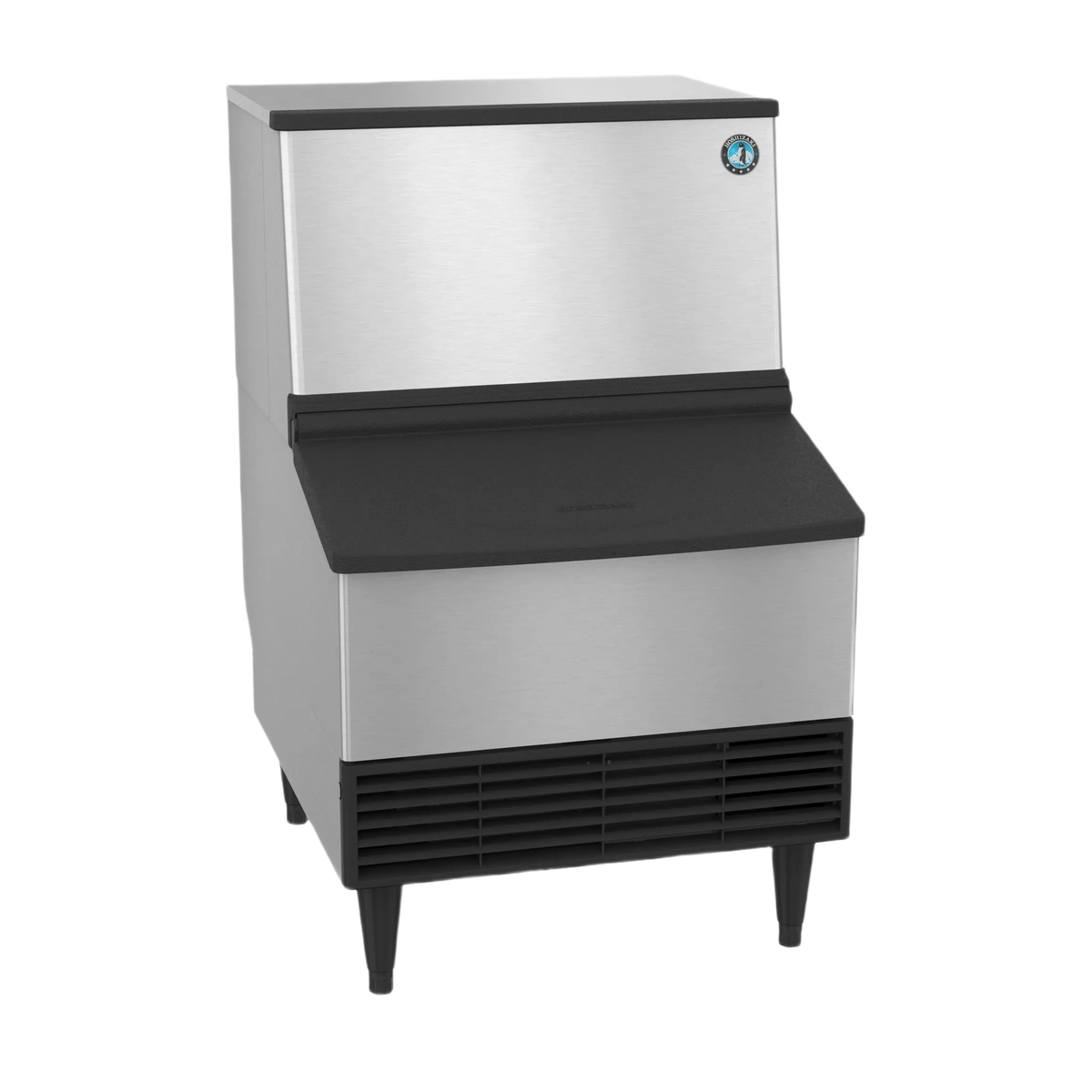

The Hoshizaki KM-231BAK is a self-contained, air-cooled undercounter crescent cube ice maker that produces up to 223 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated production is approximately 163 lb per day. The built-in bin stores up to 80 lb of ice, making this model a strong fit for busy drink stations that need more output than a compact undercounter machine without moving to a separate modular head and bin.
Individual crescent cubes are formed on Hoshizaki's stainless steel evaporator. The CycleSaver® design promotes dependable production cycles, and the EverCheck™ alert system helps communicate operating status. Crescent ice provides good liquid displacement and broad cooling contact while presenting a recognizable, clean appearance in soft drinks, water and mixed beverages.
The 24-in.-wide stainless steel cabinet is designed for commercial service. Its front-in, front-out airflow arrangement supports built-in placement, while the removable front air filter is easy to access for routine cleaning. An ADA-compliant bin opening and slide-in door improve access without requiring extra door-swing clearance in a narrow aisle.
The KM-231BAK uses R290 hydrocarbon refrigerant and connects to a standard 115V single-phase electrical supply through the included NEMA 5-15P cord. It requires a potable cold-water connection and a dedicated gravity drain. For reliable performance, size and install all utilities according to the official Hoshizaki specification sheet.
Key Features
- Produces up to 223 lb/day at 70°F air/50°F water
- Produces approximately 163 lb/day at 90°F air/70°F water

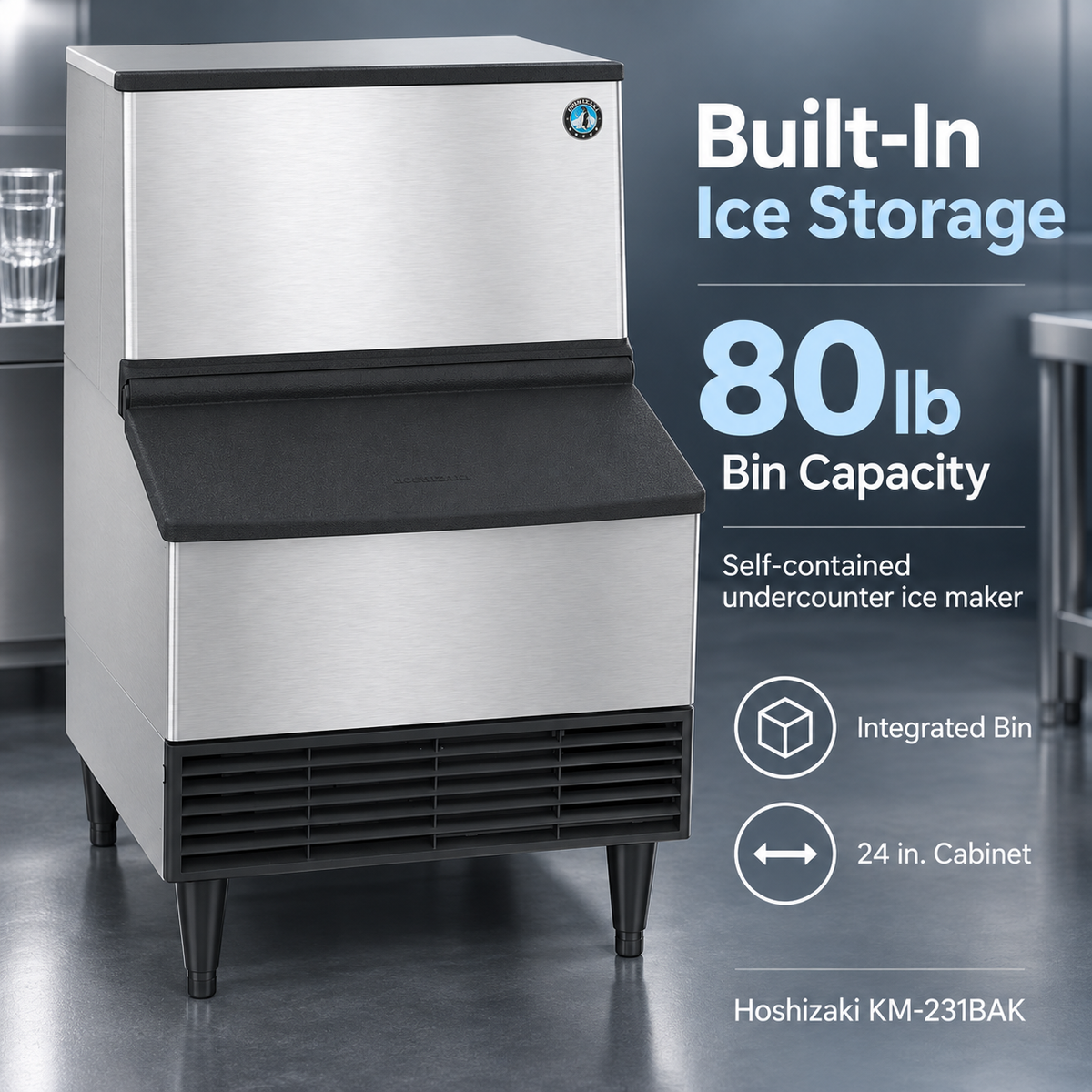

- Built-in ice storage capacity of 80 lb

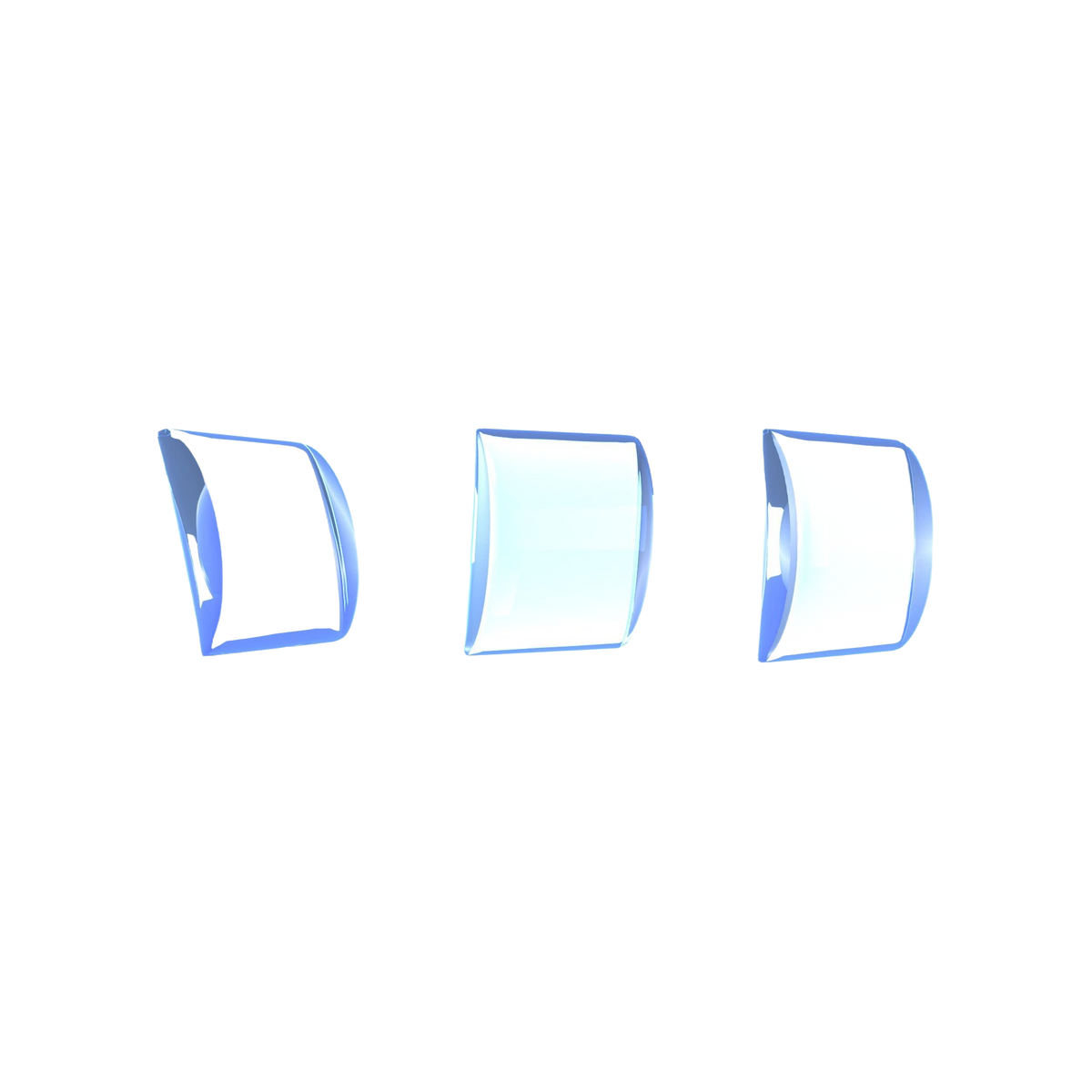

- Individual crescent cube ice with stainless steel evaporator
- CycleSaver® design and EverCheck™ alert system

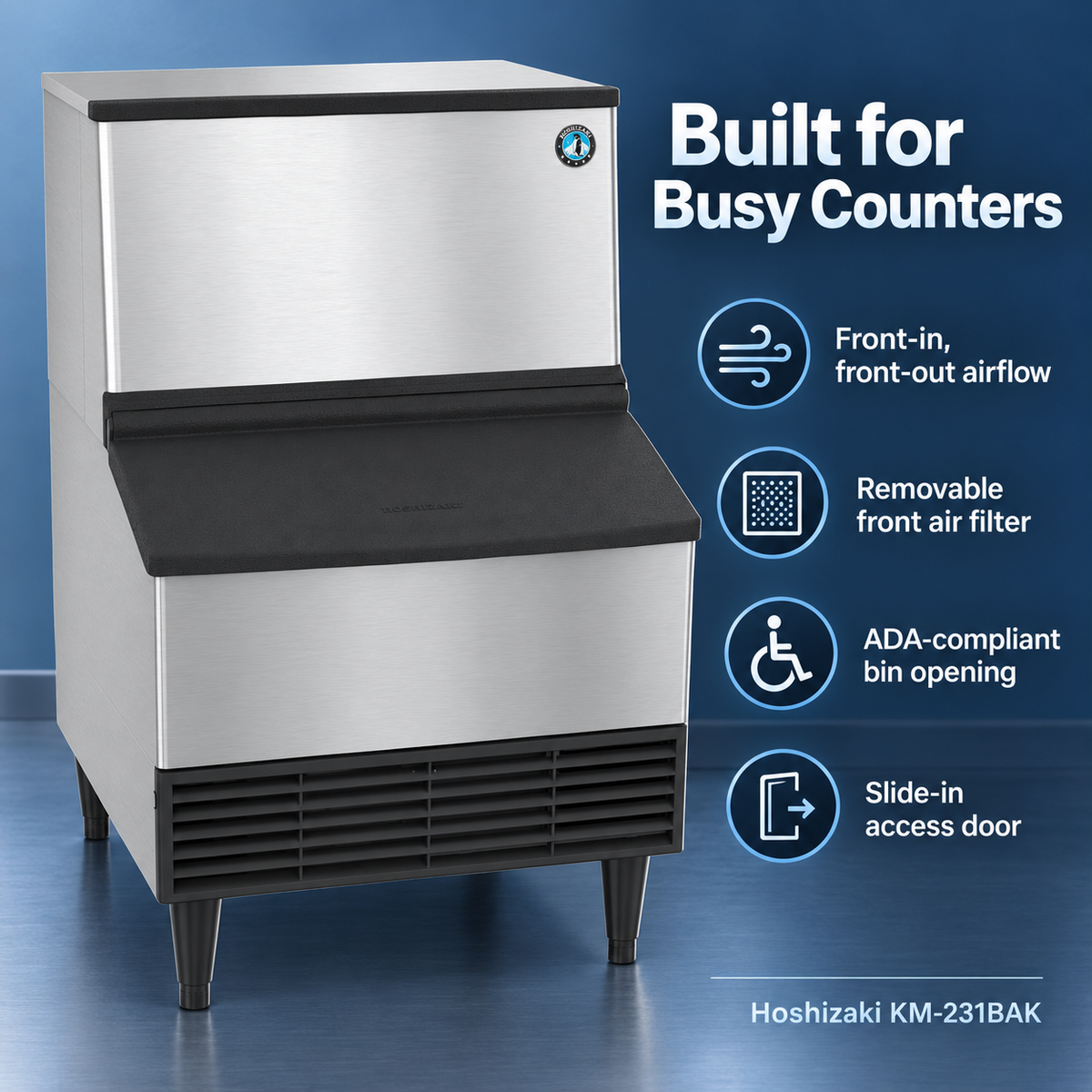

- Front-in, front-out airflow for undercounter and built-in layouts
- Removable front air filter for easier preventive maintenance
- ADA-compliant bin opening and slide-in access door
- Durable stainless steel exterior
- Low-GWP R290 hydrocarbon refrigerant
Best For
High-traffic cafés, bars, restaurants, hotels, offices and beverage counters that need substantial crescent ice production, integrated storage and a 24-in. undercounter footprint.

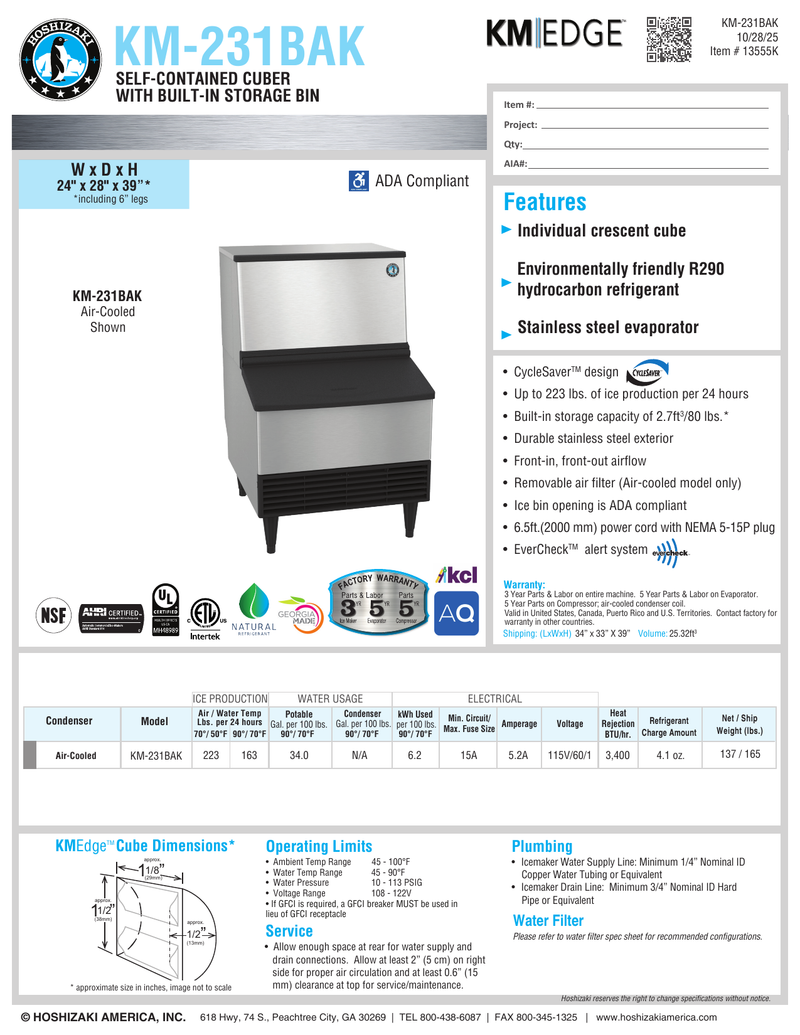

Full Specifications
| Brand | Hoshizaki |
| Model | KM-231BAK |
| Type | Self-contained undercounter ice maker with built-in bin |

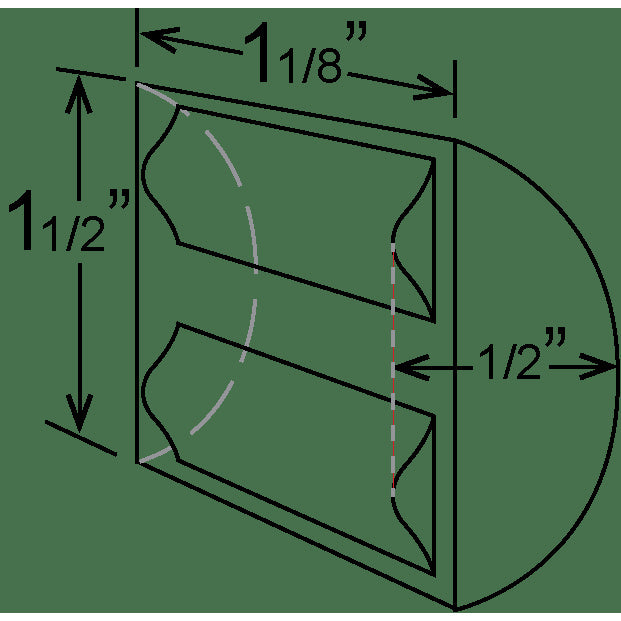

| Ice Type | Individual crescent cube |
| Cooling | Air-cooled |
| Maximum Production | 223 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 163 lb/24 hr at 90°F air/70°F water |
| Built-In Bin Capacity | 80 lb / 2.7 cu. ft. |
| Dimensions | 24 in. W × 28 in. D × 39 in. H, including 6-in. legs |
| Electrical | 115V / 60Hz / 1 phase; 15A circuit; 5.2A |
| Plug | NEMA 5-15P; 6.5-ft cord |
| Energy Use | 6.2 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 34 gal per 100 lb at 90°F/70°F |
| Heat Rejection | 3,400 BTU/hr |
| Refrigerant | R290, 4.1 oz. |
| Water Inlet / Drain | 1/2-in. FPT inlet / 3/4-in. FPT drain |
| Operating Air / Water Temperature | 45°F-100°F air / 45°F-90°F water |
| Water Pressure | 10 to 113 PSIG |
| Net / Shipping Weight | 137 lb / 165 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Allow rear utility access, 2 in. of right-side clearance and approximately 0.6 in. above the cabinet.
- Provide a potable cold-water supply and a properly vented, independent gravity drain.
- Clean the front air filter routinely and follow Hoshizaki's cleaning and sanitizing instructions.
- Production varies with ambient air, incoming water temperature, water pressure and installation conditions.
