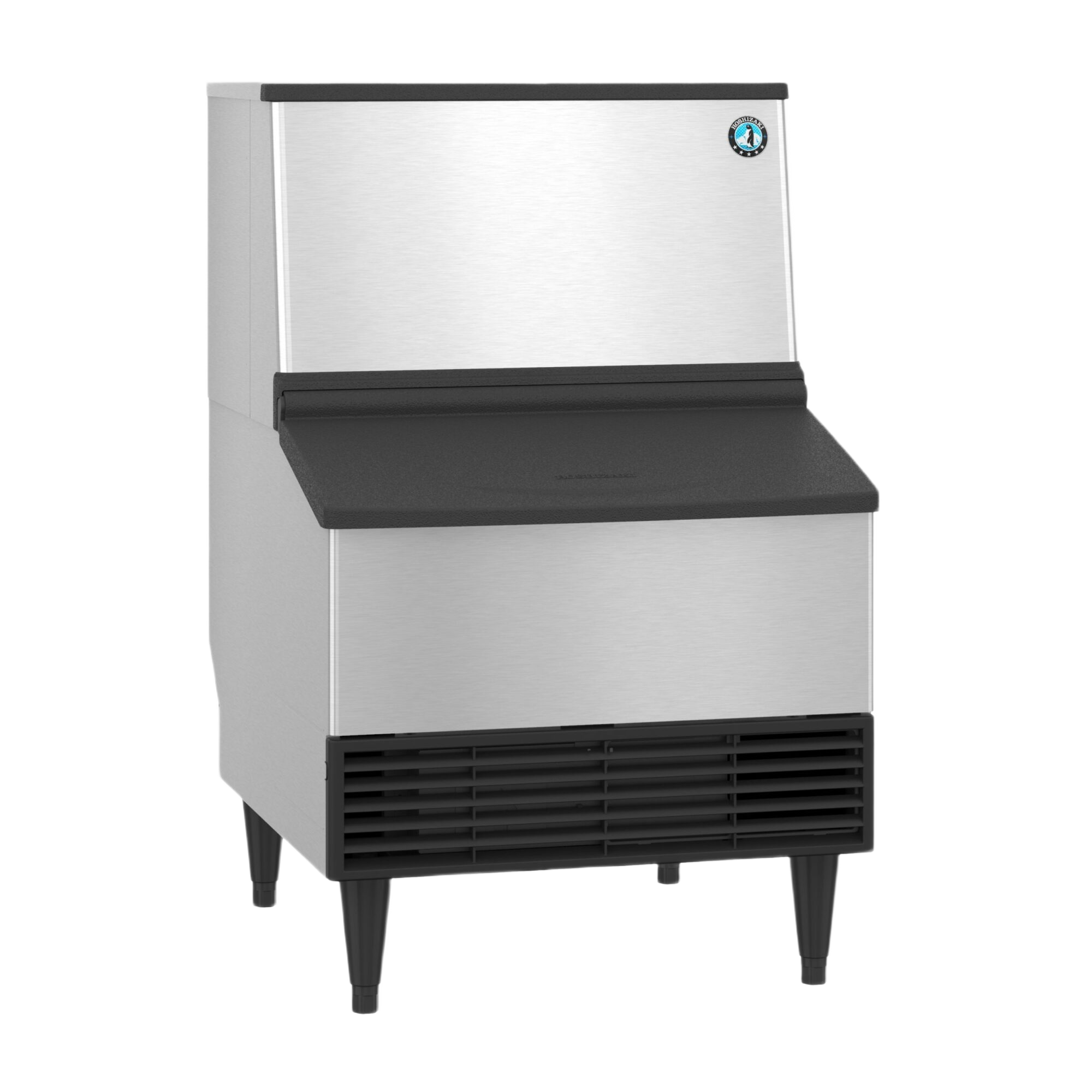

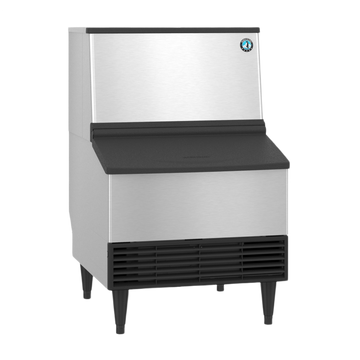

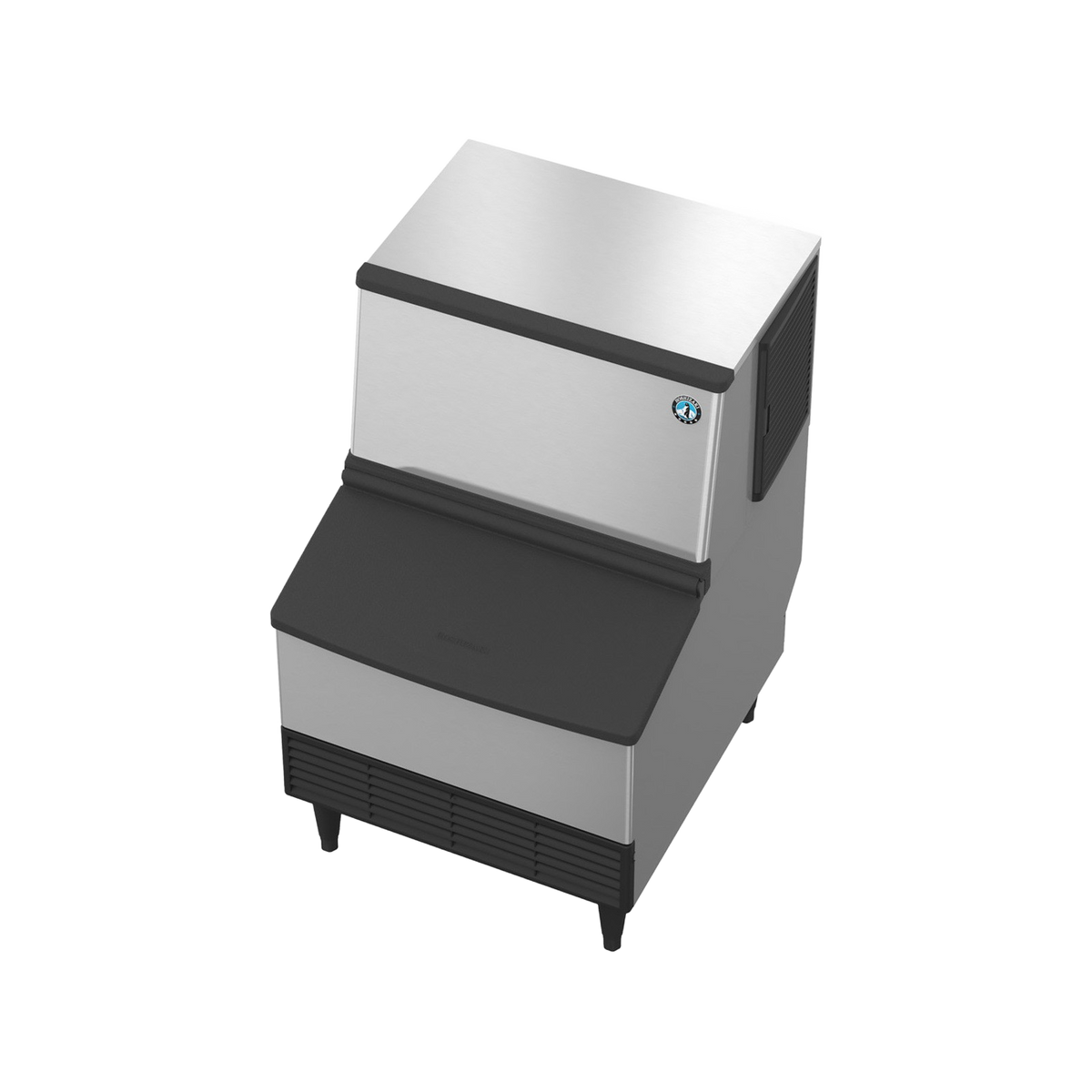

Hoshizaki KM-231BAJ Undercounter Crescent Cube Ice Maker - 213 lb/Day with 80 lb Bin, Air-Cooled
Hoshizaki KM-231BAJ Undercounter Crescent Cube Ice Maker - 213 lb/Day with 80 lb Bin, Air-Cooled Description
Hoshizaki KM-231BAJ Undercounter Crescent Cube Ice Maker - 213 lb/Day with 80 lb Bin, Air-Cooled Commercial Description
Hoshizaki KM-231BAJ - High-Output Crescent Ice in a Self-Contained 24-Inch Cabinet

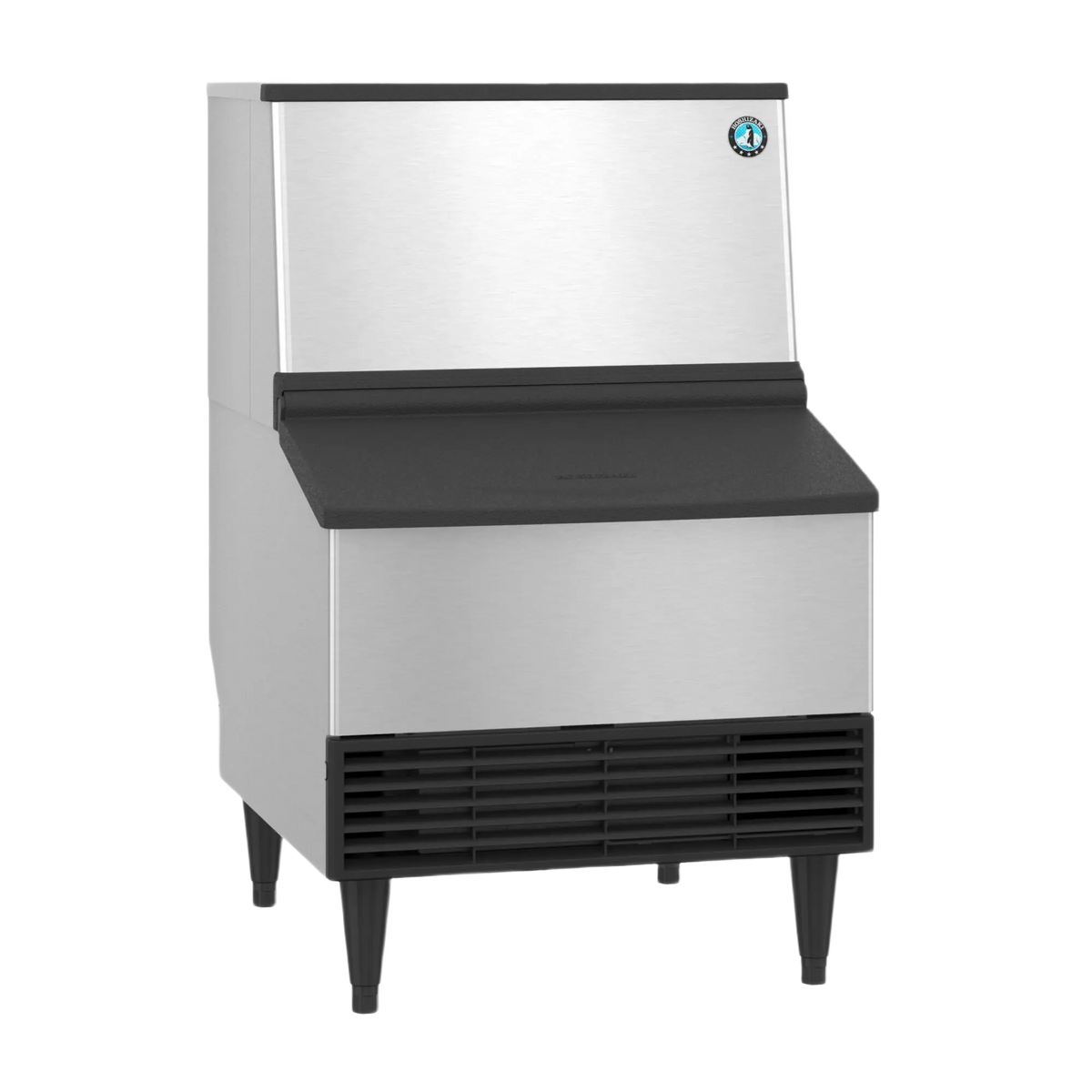

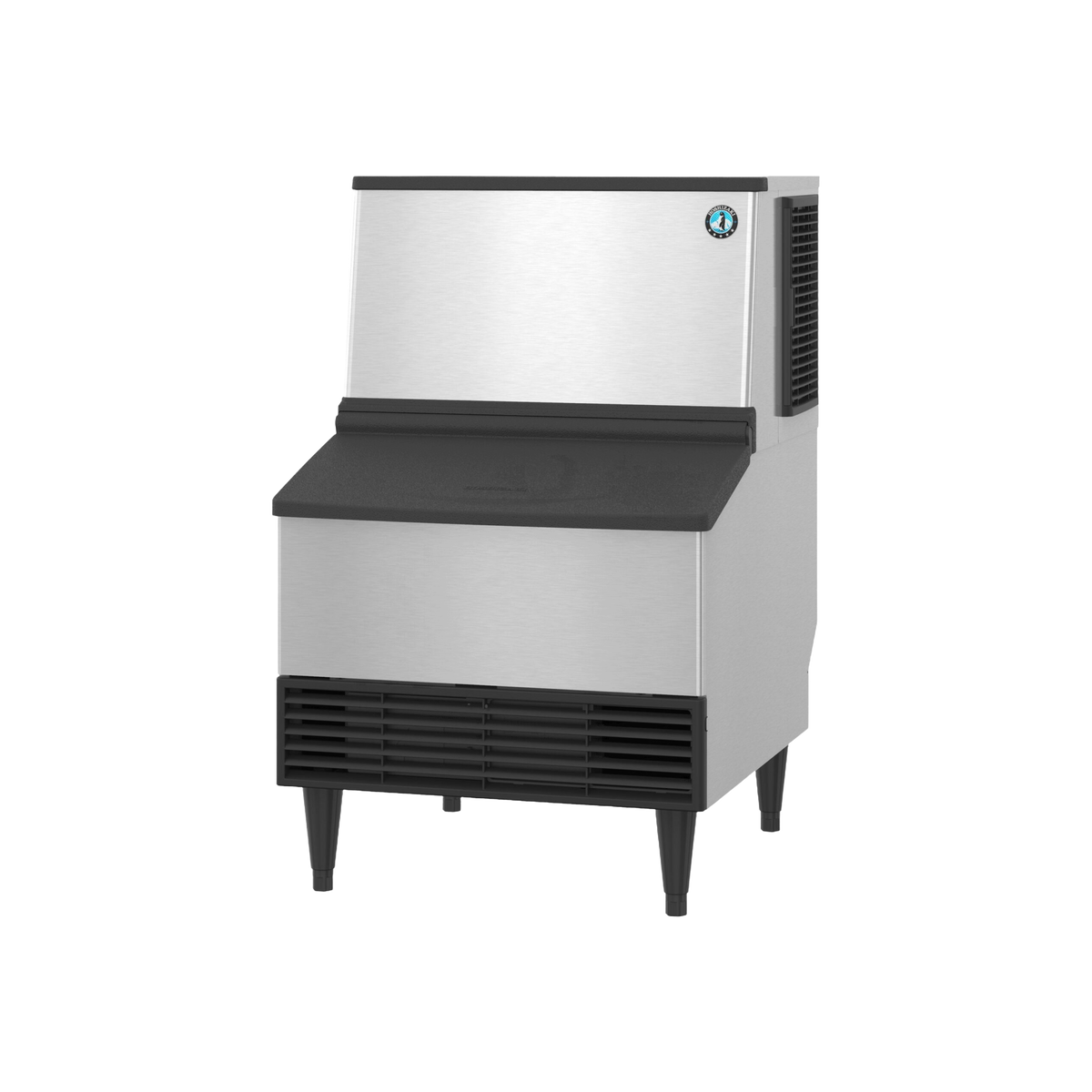

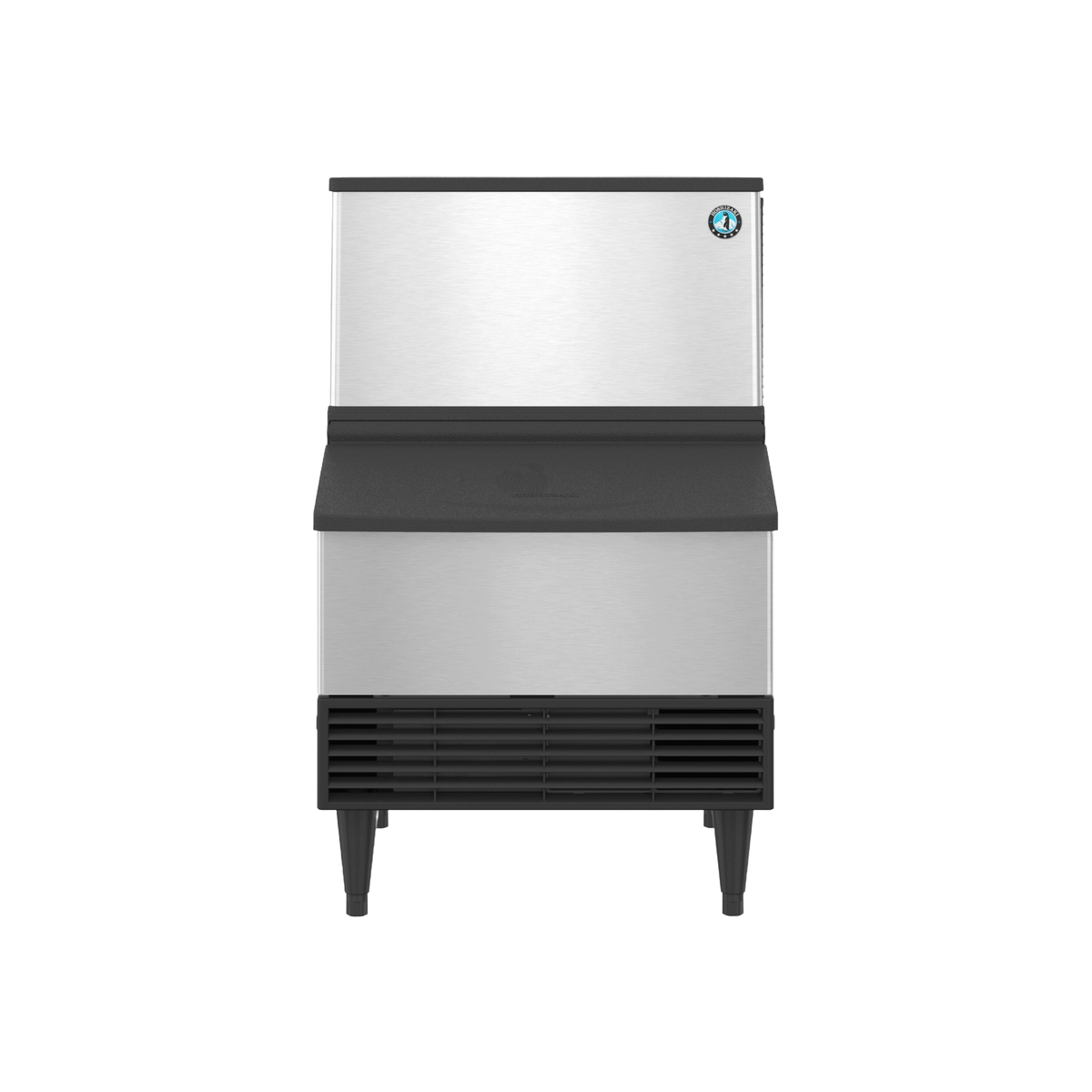

The Hoshizaki KM-231BAJ is a self-contained, air-cooled undercounter ice maker rated to produce up to 213 lb of individual crescent cube ice per day at 70°F air and 50°F water. At 90°F air and 70°F water, output is approximately 147 lb per day. Its integrated bin holds up to 80 lb of ice, combining production and storage in one 24-in.-wide commercial cabinet.
The machine forms Hoshizaki's individual crescent cubes on a stainless steel evaporator. CycleSaver® design supports consistent ice cycles, while the EverCheck™ alert system provides equipment status information for operation and service. A stainless steel exterior, ADA-compliant bin opening and slide-in door make the cabinet well suited to customer-facing beverage stations and busy back-of-house applications.
Front-in, front-out airflow helps the KM-231BAJ work in built-in layouts, and the front air filter can be removed for routine cleaning. The machine uses R-404A refrigerant and operates on a 115V single-phase supply through an included NEMA 5-15P cord. Potable cold water and a separate gravity drain are required.
Key Features

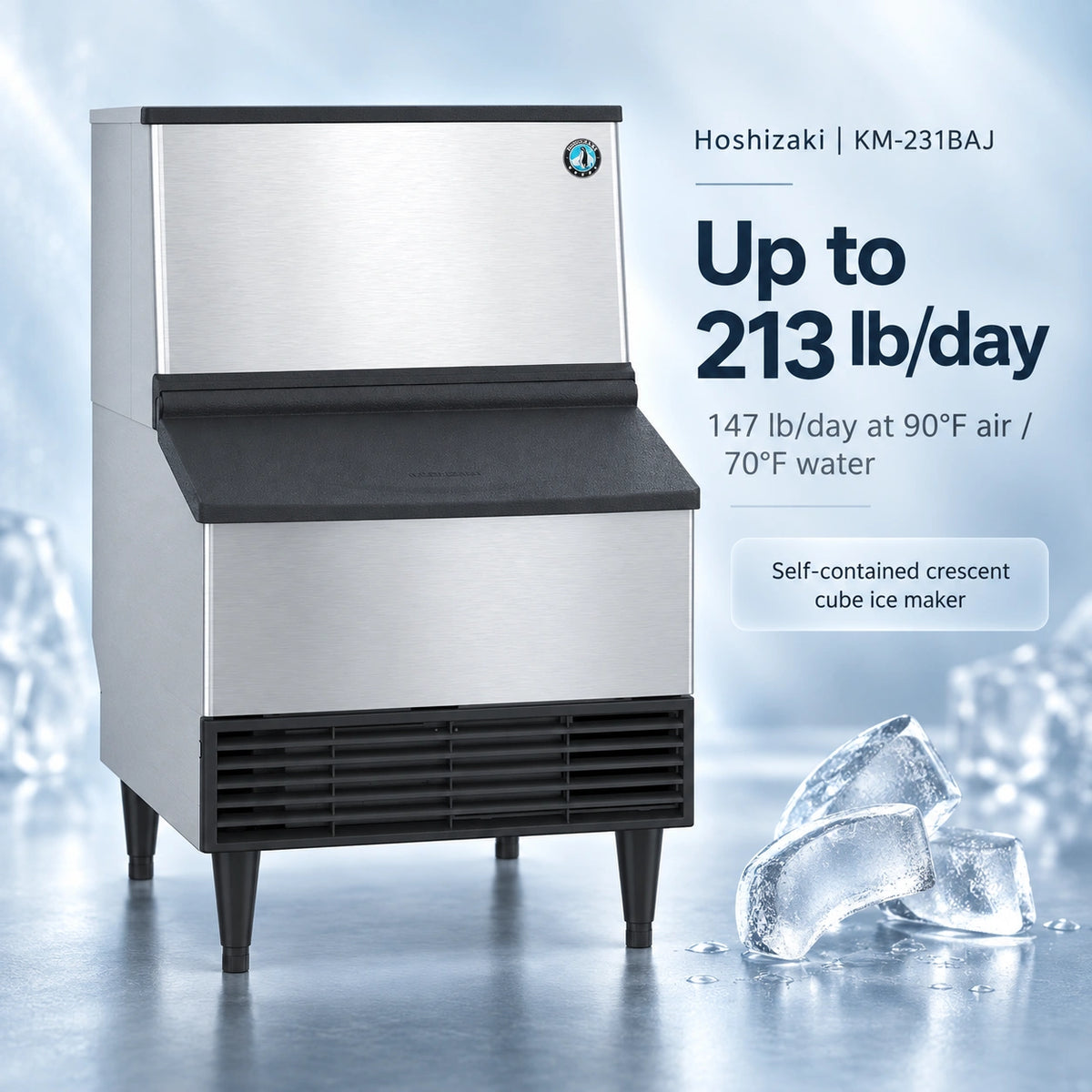

- Produces up to 213 lb/day at 70°F air/50°F water
- Produces approximately 147 lb/day at 90°F air/70°F water

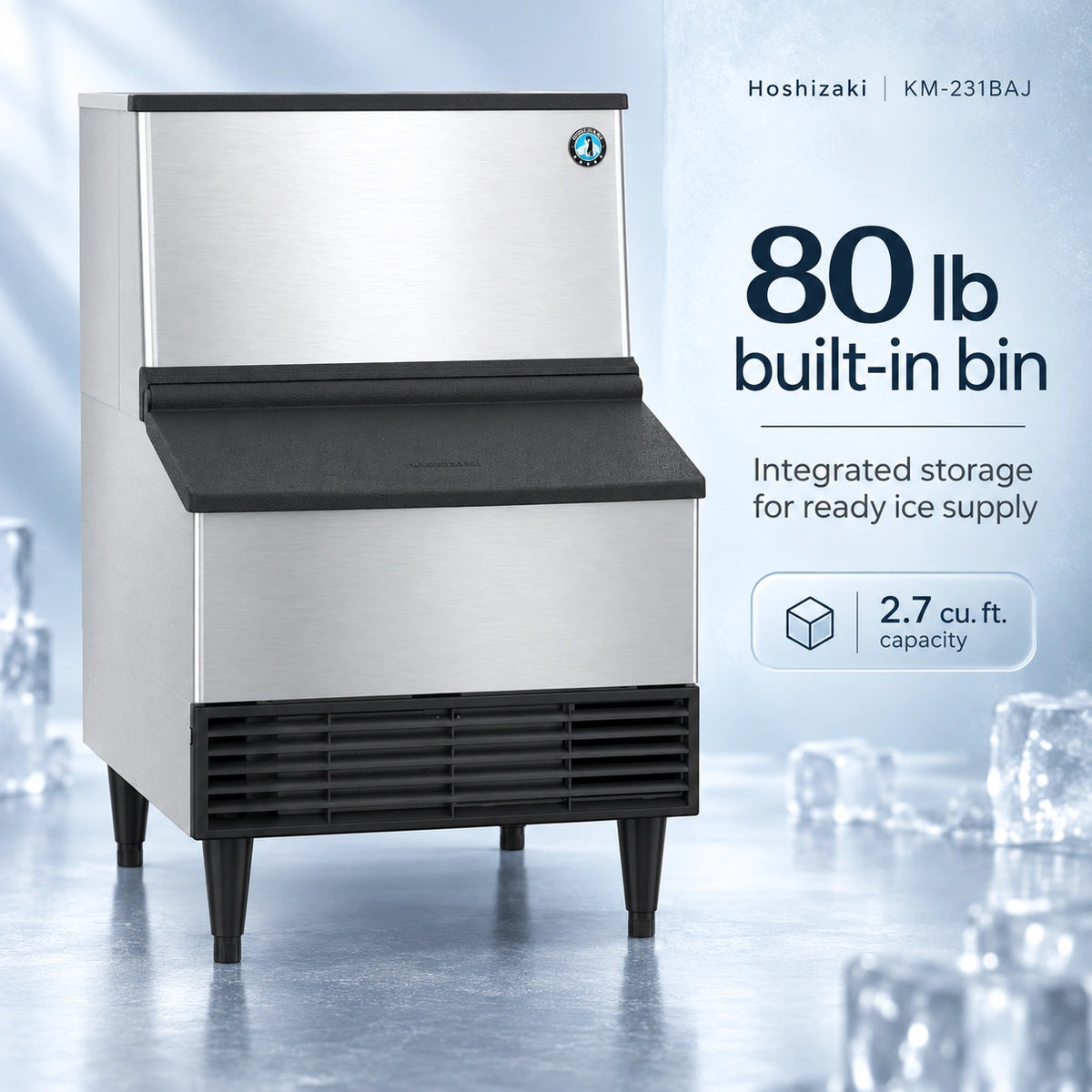

- Integrated storage bin holds up to 80 lb

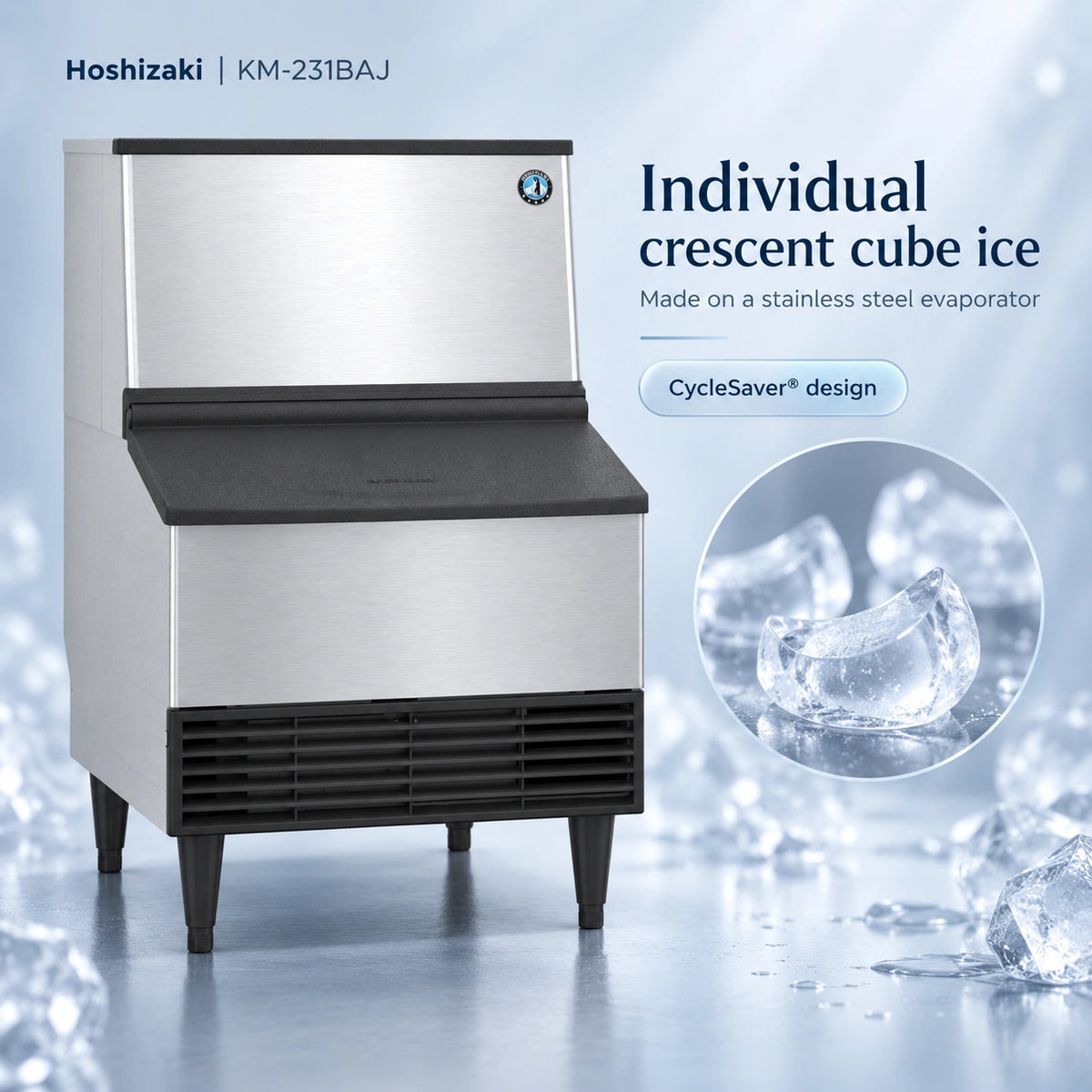

- Individual crescent cube ice and stainless steel evaporator
- CycleSaver® design and EverCheck™ alert system

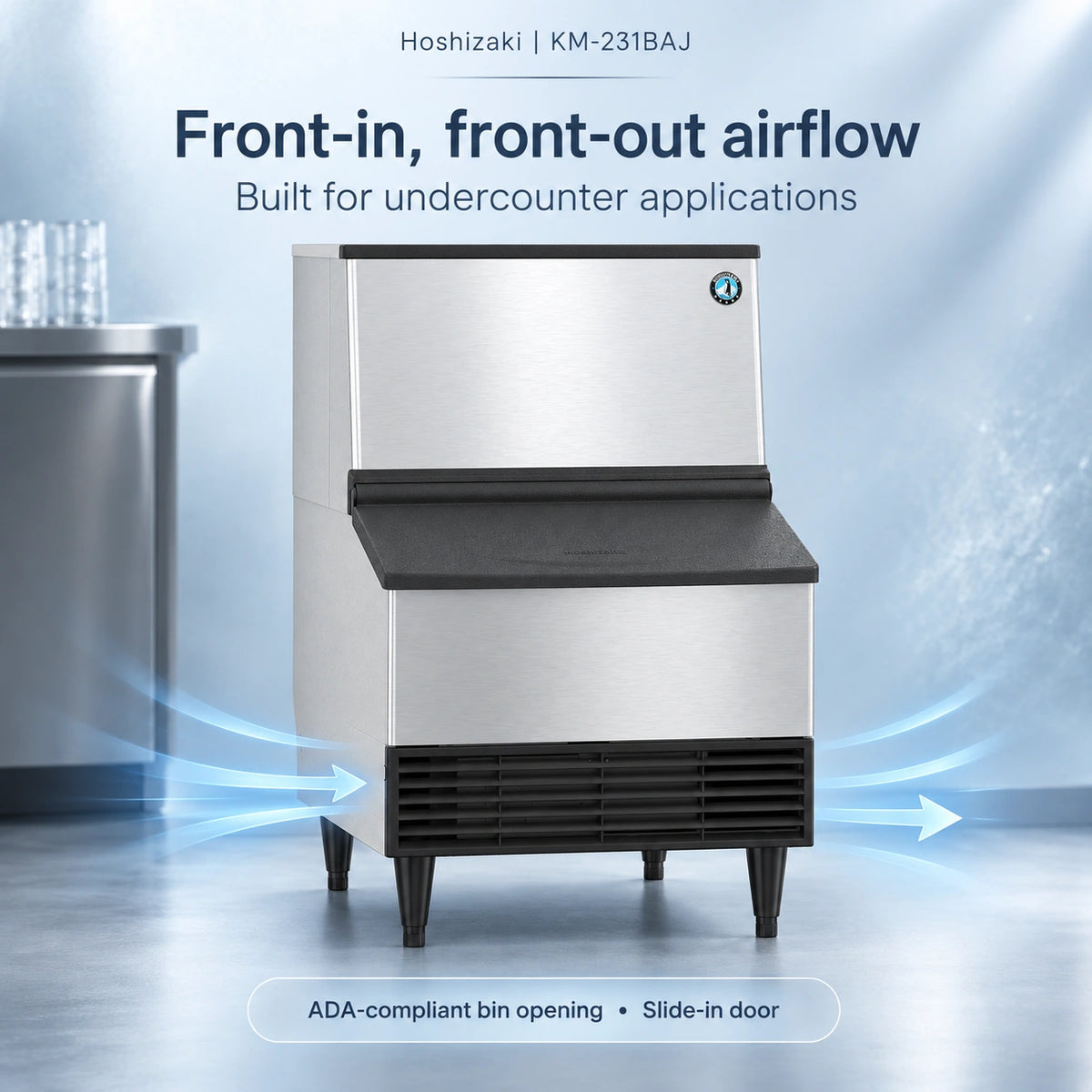

- Front-in, front-out airflow with removable front air filter
- ADA-compliant bin opening and space-saving slide-in door
- Durable stainless steel exterior
- Includes 6-in. adjustable legs and NEMA 5-15P power cord
Best For
Bars, restaurants, cafés, hotels, healthcare facilities and beverage stations that need a 24-inch self-contained crescent ice maker with substantial built-in storage.

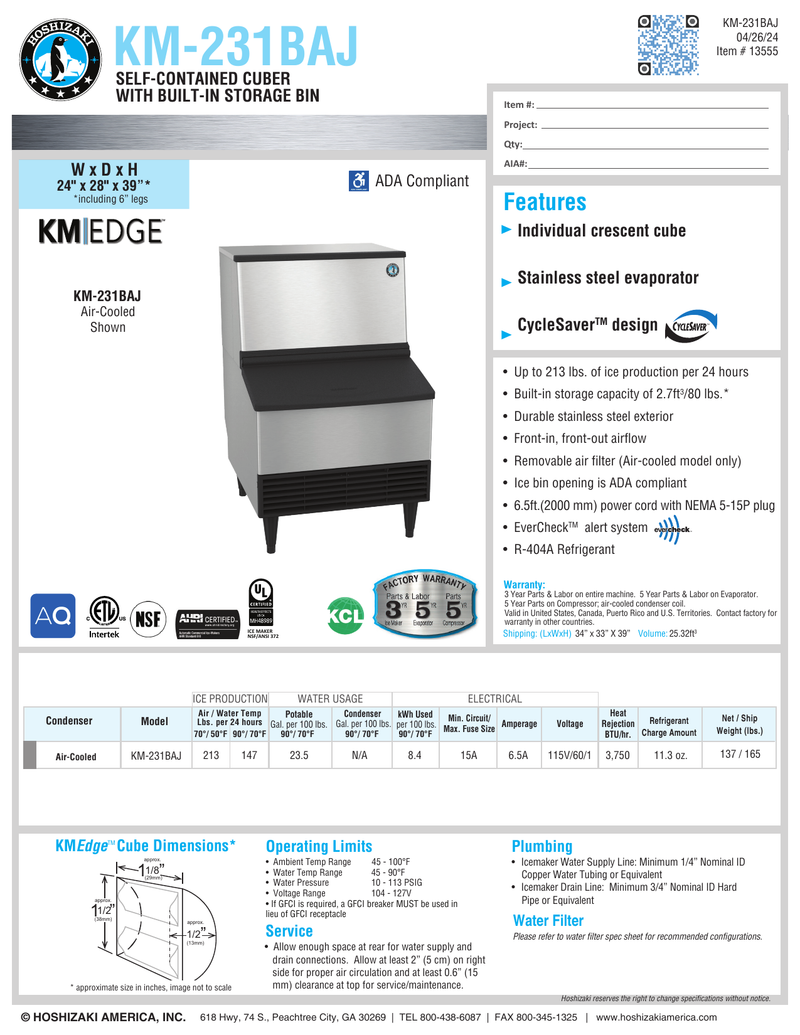

Full Specifications
| Brand | Hoshizaki |
| Model | KM-231BAJ |
| Type | Self-contained undercounter ice maker with built-in bin |
| Ice Type | Individual crescent cube |
| Cooling | Air-cooled |
| Maximum Production | 213 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 147 lb/24 hr at 90°F air/70°F water |
| Built-In Bin Capacity | 80 lb / 2.7 cu. ft. |
| Dimensions | 24 in. W × 28 in. D × 39 in. H, including 6-in. legs |
| Electrical | 115V / 60Hz / 1 phase; 15A circuit; 6.5A |
| Plug | NEMA 5-15P; 6.5-ft cord |
| Energy Use | 8.4 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 23.5 gal per 100 lb at 90°F/70°F |
| Heat Rejection | 3,750 BTU/hr |
| Refrigerant | R-404A, 11.3 oz. |
| Water Inlet / Drain | 1/2-in. FPT inlet / 3/4-in. FPT drain |
| Operating Air / Water Temperature | 45°F-100°F air / 45°F-90°F water |
| Water Pressure | 10 to 113 PSIG |
| Net / Shipping Weight | 137 lb / 165 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Allow rear access for utilities, 2 in. at the right side and approximately 0.6 in. above the cabinet.
- Use a potable cold-water supply and a separate gravity drain; clean the front air filter regularly.
- Actual production varies with ambient temperature, incoming water temperature, pressure and site conditions.
