Hoshizaki KM-1900SAJ - High-Capacity Stackable Crescent Cube Ice Machine Head

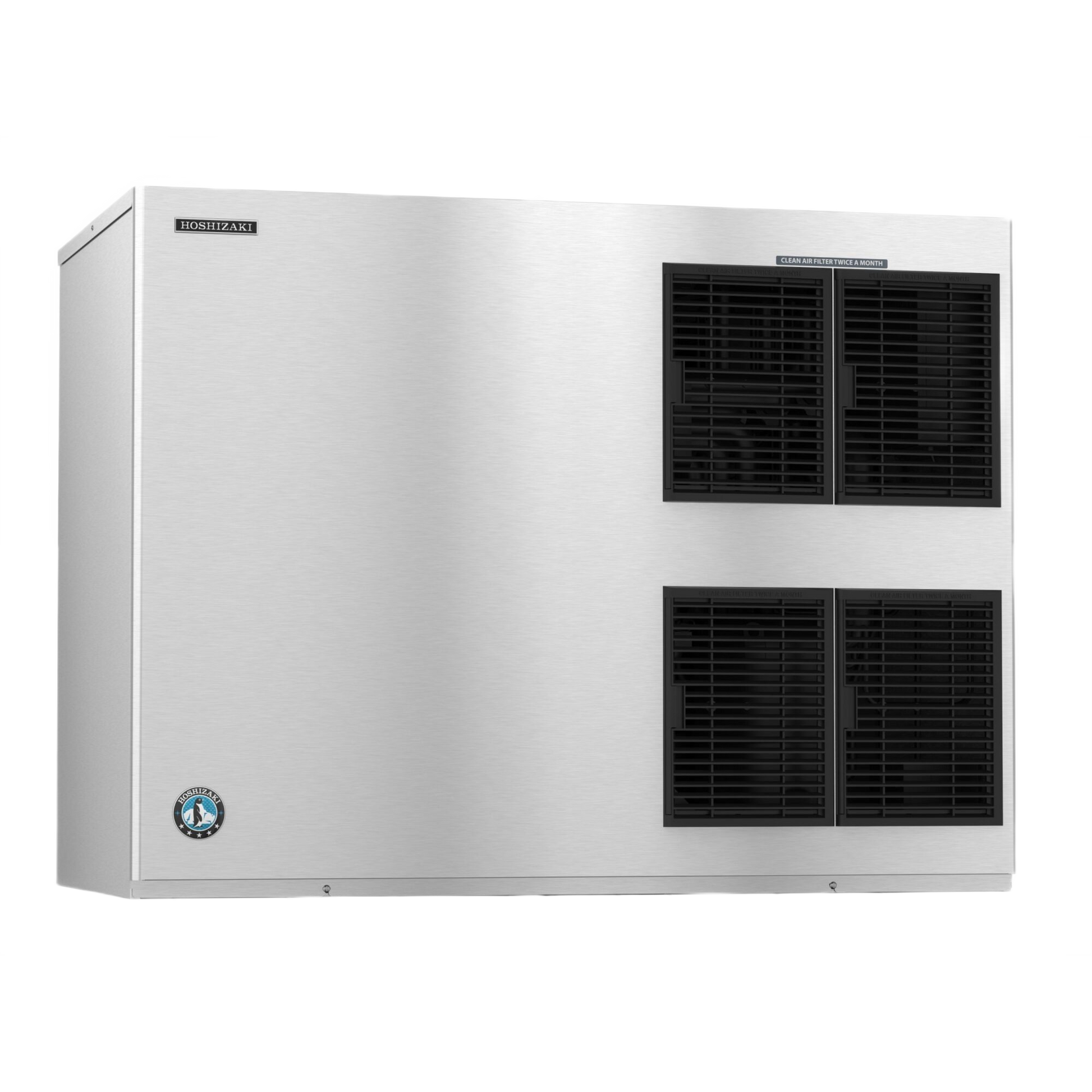

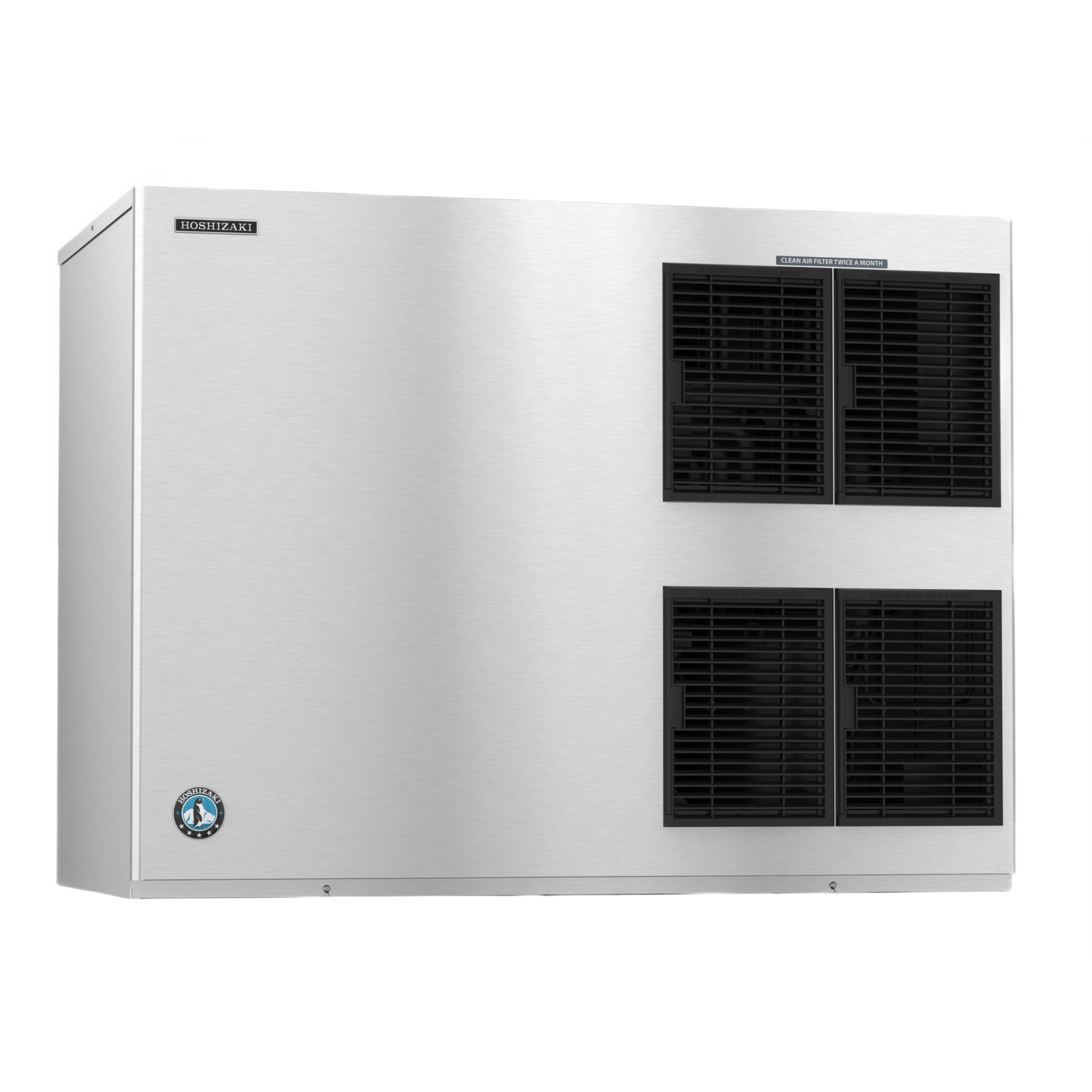

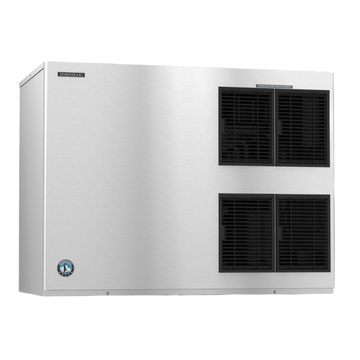

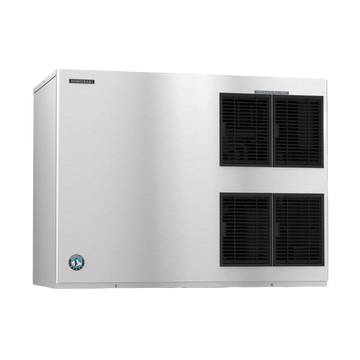

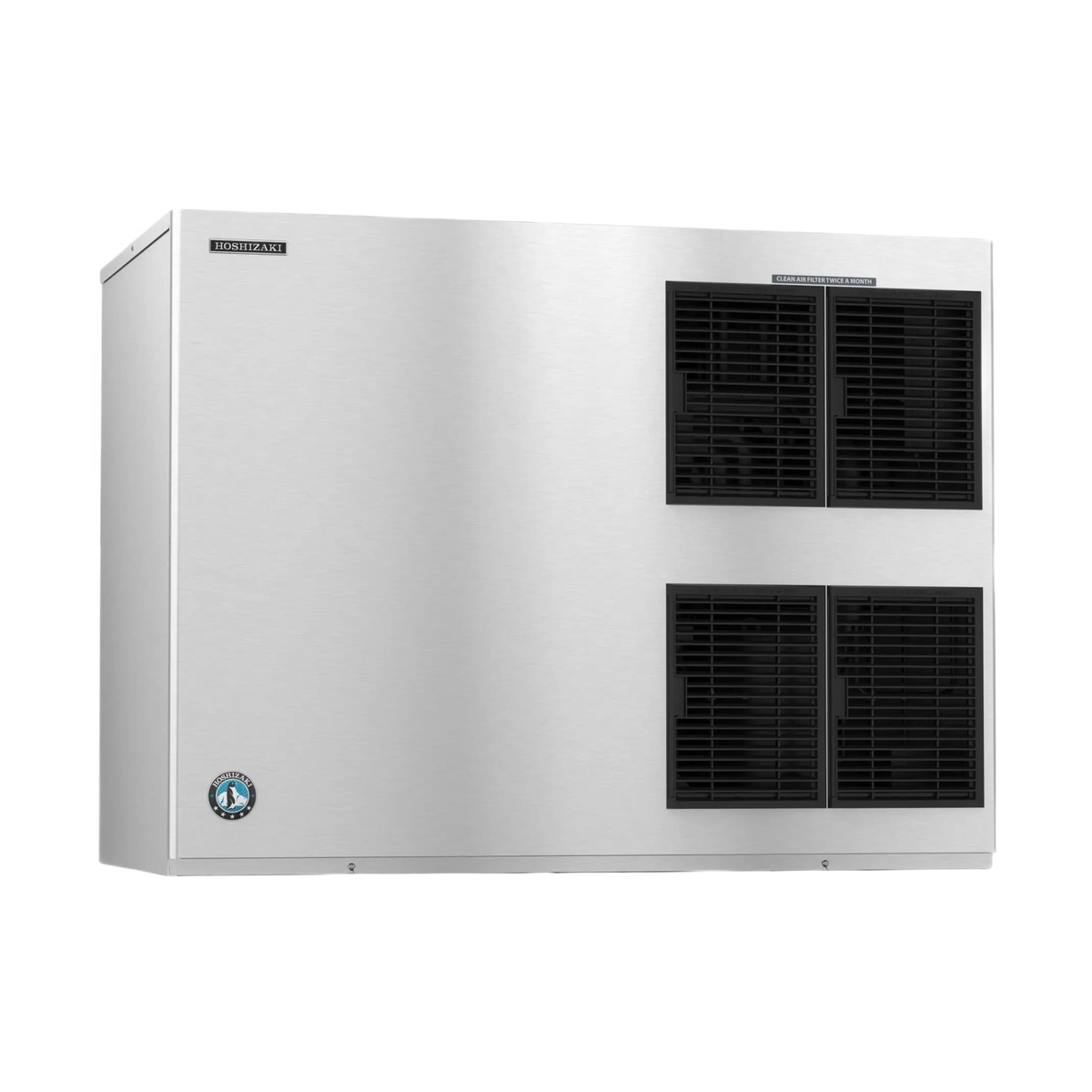

The Hoshizaki KM-1900SAJ is a commercial, air-cooled modular ice maker that produces up to 1,875 lb of individual crescent cube ice in 24 hours at 70°F air and 50°F water. Under the AHRI rating condition of 90°F air and 70°F water, it produces approximately 1,675 lb per day. This high-output ice machine head is designed to sit on a compatible Hoshizaki storage bin or dispenser, allowing operators to size ice storage for restaurants, hotels, healthcare operations, stadiums and high-volume beverage programs.
Hoshizaki's individual crescent cube has a distinctive curved profile that cools beverages efficiently while providing a comfortable, durable cube for self-service and bar applications. The stainless steel double-sided evaporator, CycleSaver® design and durable fewer-parts construction support dependable harvest cycles. A factory-installed ultrasonic bin control can be adjusted on site, and the EverCheck™ self-diagnostic system helps communicate operating status to service personnel.
The KM-1900SAJ uses a stainless steel exterior, snap-fit components and removable air filters to simplify routine service. CleanAssist supports a straightforward cleaning cycle, while the stackable cabinet design allows two units to be installed together for up to 3,866 lb per day of combined output. It operates on 208-230V single-phase power and uses R-404A refrigerant. A compatible bin, top kit where required, potable water connection and gravity drain are required for installation; the power cord is not included.
Key Features
- Produces up to 1,875 lb/day at 70°F air/50°F water
- Approximately 1,675 lb/day at 90°F air/70°F water

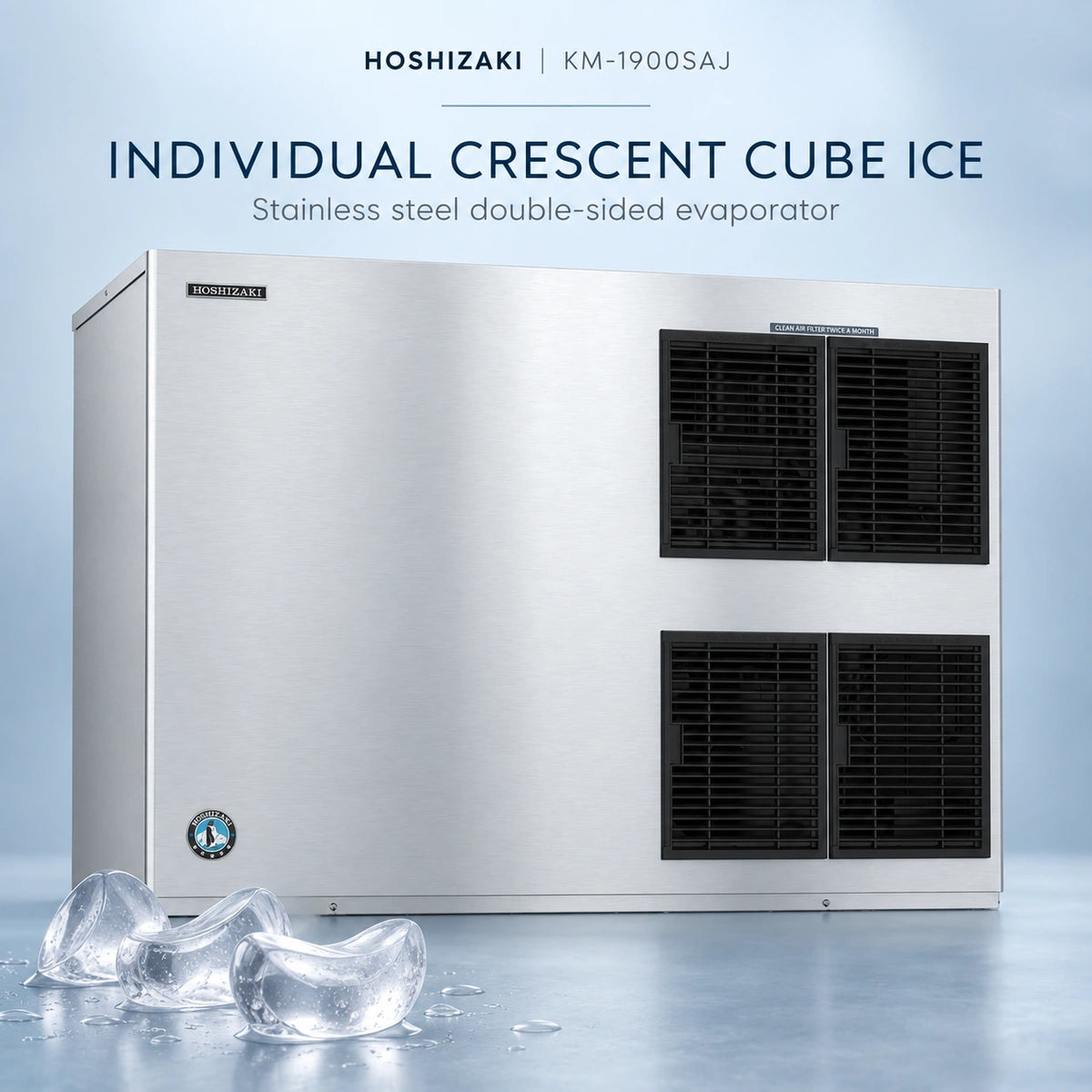

- Individual crescent cube ice from a stainless steel double-sided evaporator

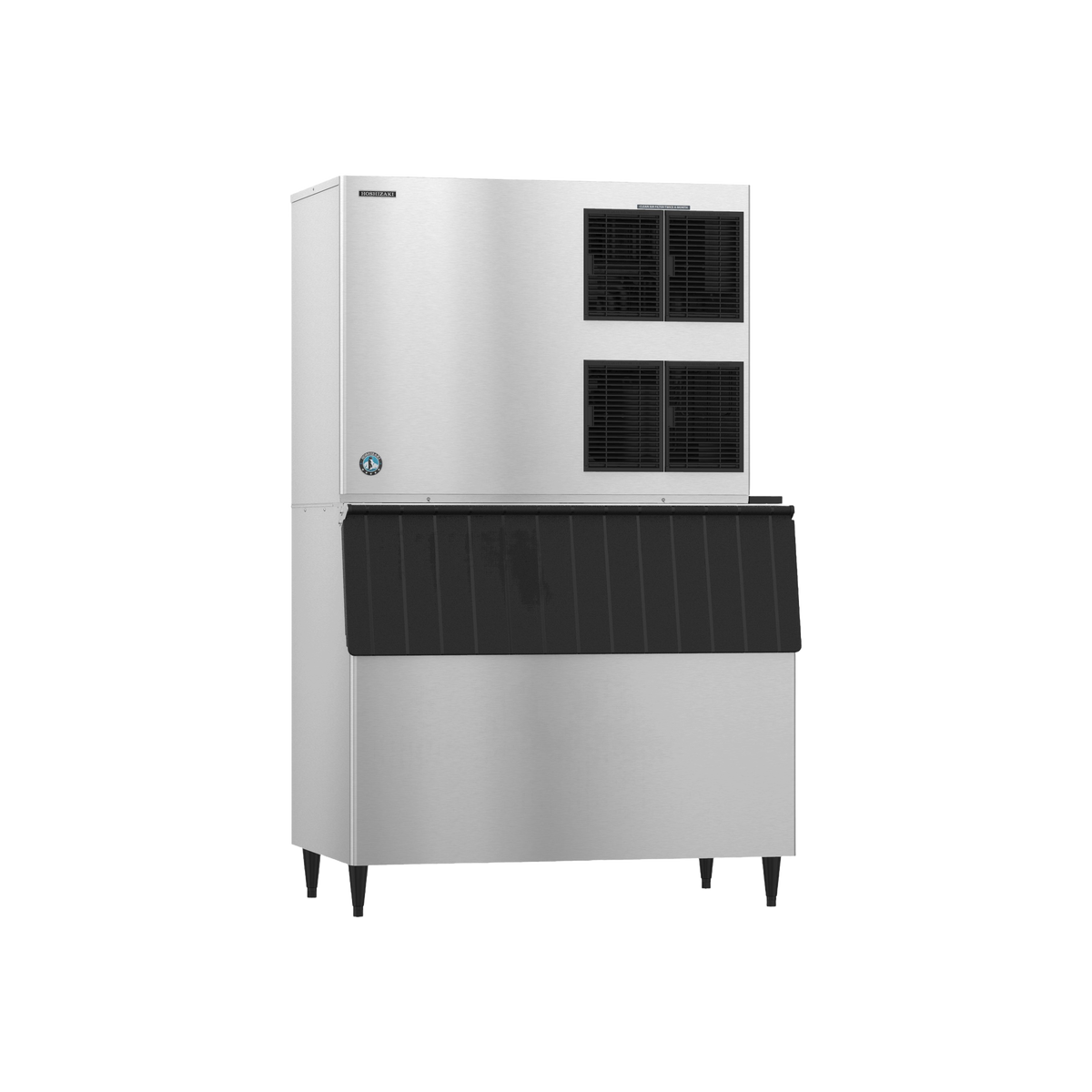

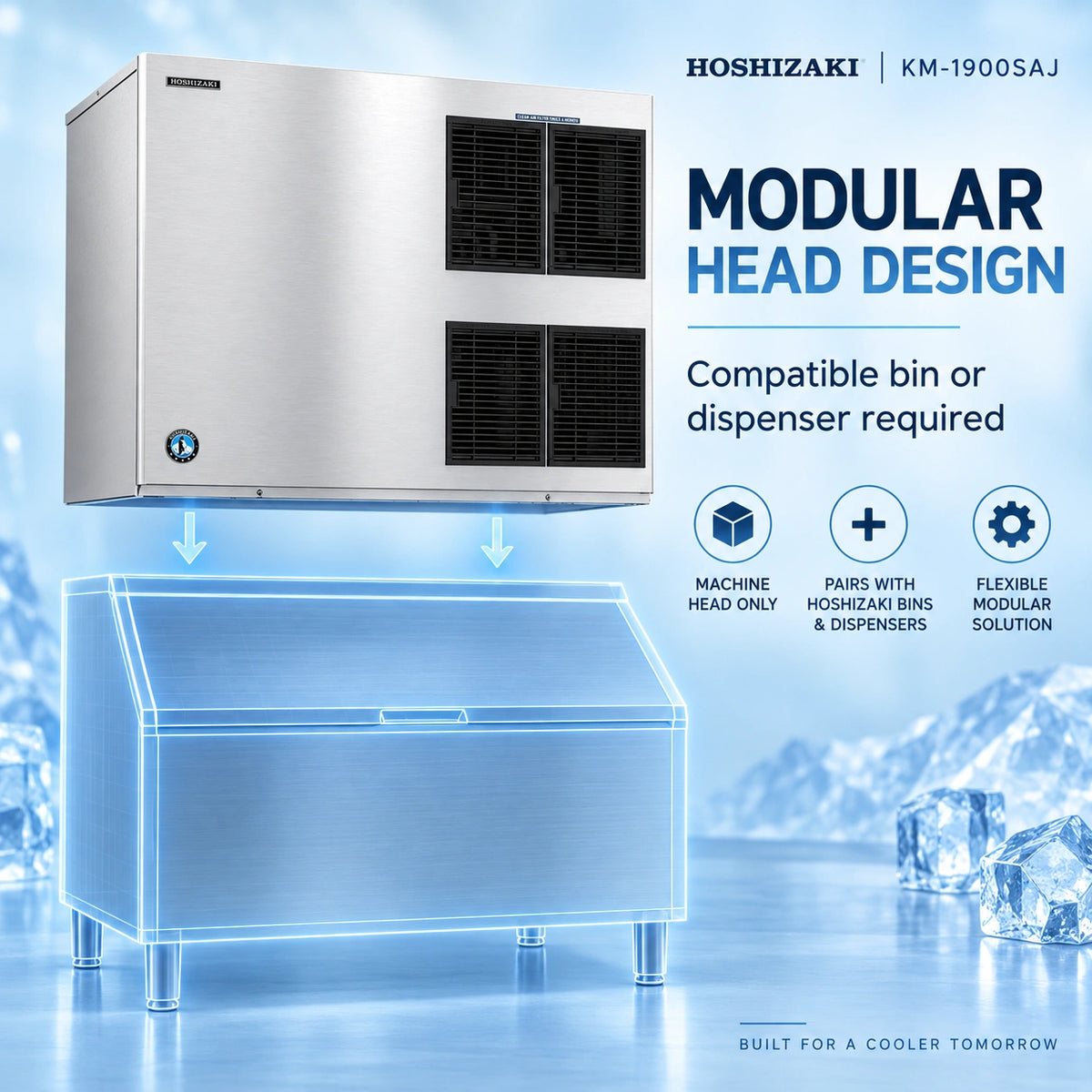

- Modular head for compatible Hoshizaki bins and dispensers (sold separately)
- Stackable design can reach up to 3,866 lb/day with two units
- Ultrasonic bin control, CycleSaver® and EverCheck™ diagnostics

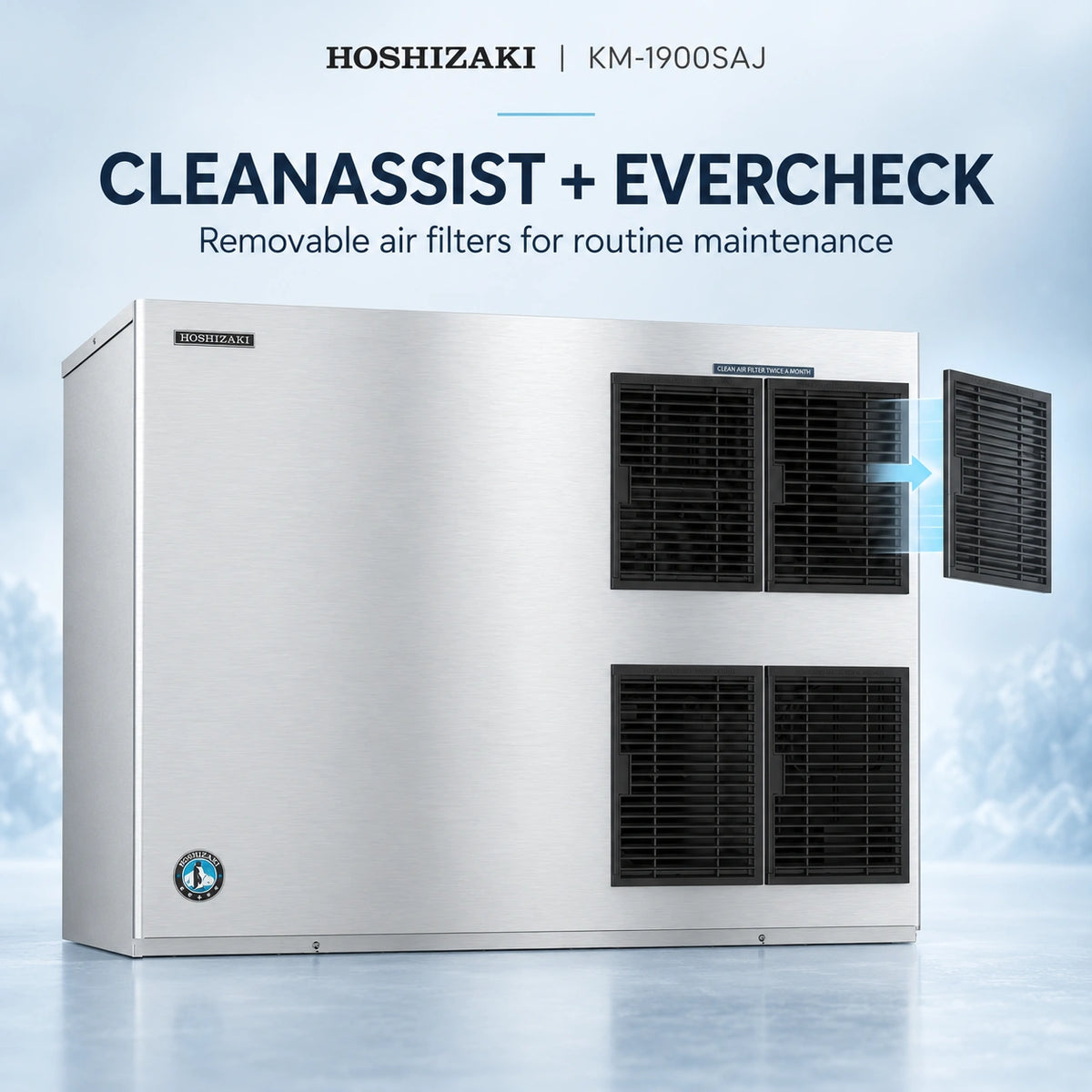

- CleanAssist cleaning cycle and removable air filters
- Durable stainless steel cabinet with snap-fit service parts
- 208-230V single-phase electrical supply; R-404A refrigerant
Best For
Large restaurants, hotels, hospitals, sports and entertainment venues, foodservice commissaries and beverage operations that need a high-output modular crescent cube ice machine head with scalable bin capacity.

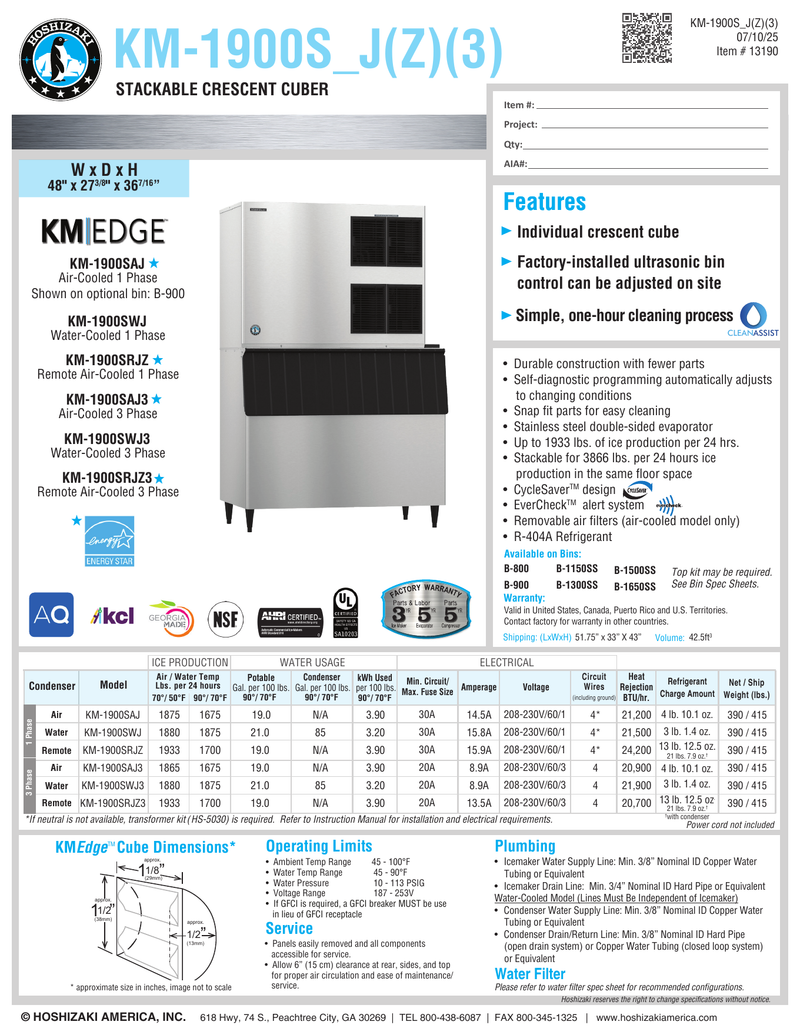

Full Specifications
| Brand | Hoshizaki |
| Model | KM-1900SAJ |
| Type | Modular commercial ice machine head |
| Ice Type | Individual crescent cube |
| Cooling | Air-cooled |
| Maximum Production | 1,875 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 1,675 lb/24 hr at 90°F air/70°F water |
| Cube Size | Approx. 1-1/2 in. high × 1-1/8 in. wide × 1/2 in. deep |
| Dimensions | 48 in. W × 27-3/8 in. D × 36-7/16 in. H |
| Electrical | 208-230V / 60Hz / 1 phase; 30A maximum fuse; 14.5A |
| Energy Use | 3.90 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 19.0 gal per 100 lb |
| Heat Rejection | 21,200 BTU/hr |
| Refrigerant | R-404A; 4 lb 10.1 oz charge |
| Water Inlet / Drain | Minimum 3/8-in. ID water line / minimum 3/4-in. hard-pipe drain |
| Operating Temperatures | Air 45-100°F; water 45-90°F |
| Water Pressure | 10-113 PSIG |
| Net / Shipping Weight | 390 lb / 415 lb |
| Bin Compatibility | B-800, B-900, B-1150SS, B-1300SS, B-1500SS and B-1650SS; top kit may be required |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Install on a compatible storage bin or dispenser; this is a modular head only.
- Provide at least 6 in. clearance at the rear, sides and top for service and airflow.
- Connect potable cold water and an independent gravity drain according to local code.
- Clean removable air filters and follow the Hoshizaki cleaning and sanitizing schedule.
- Production varies with air temperature, water temperature, water pressure and site conditions.
