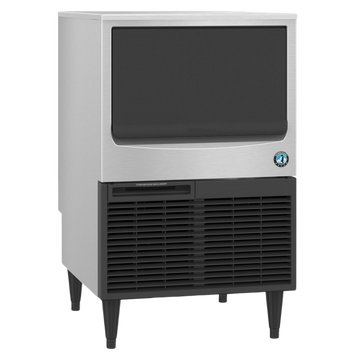

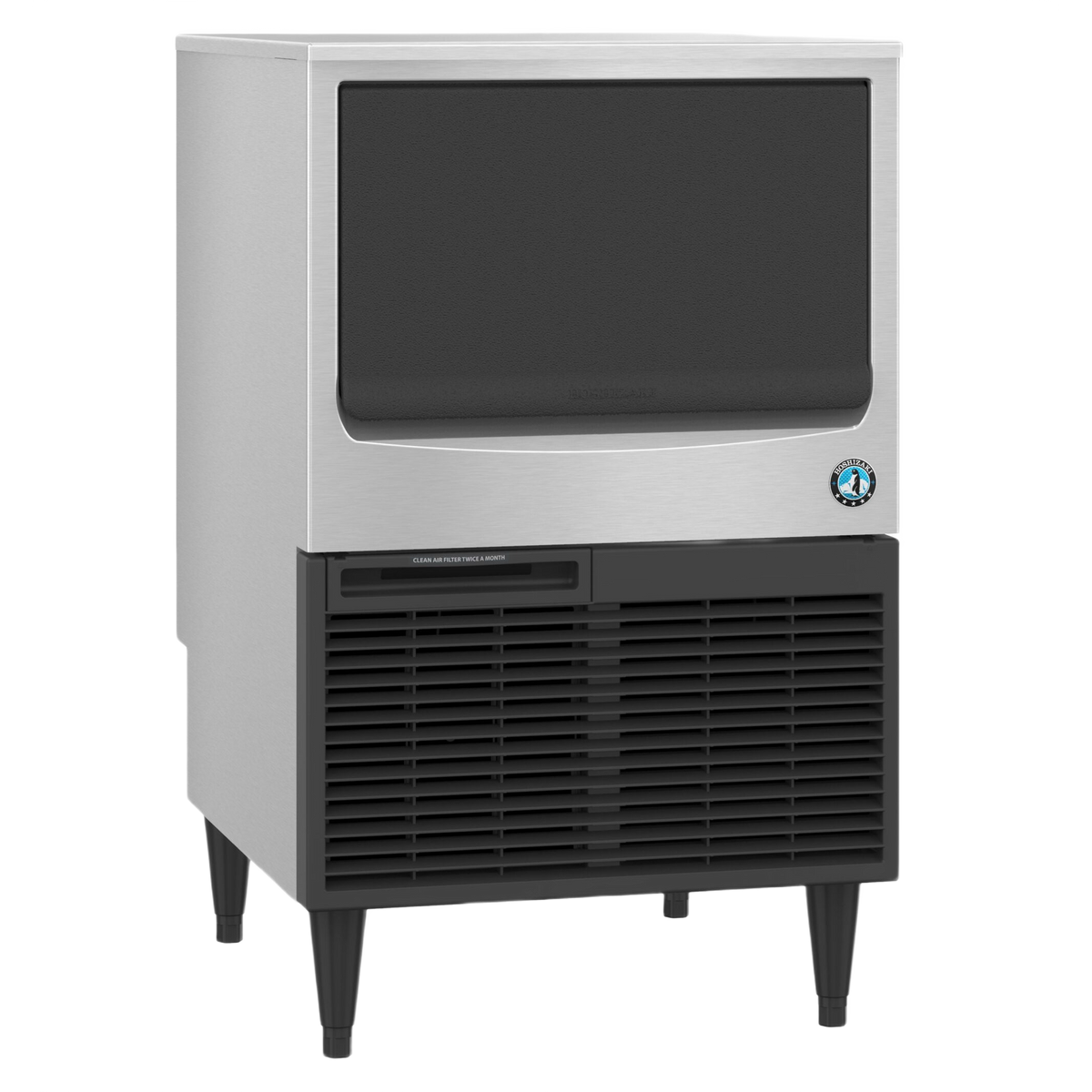

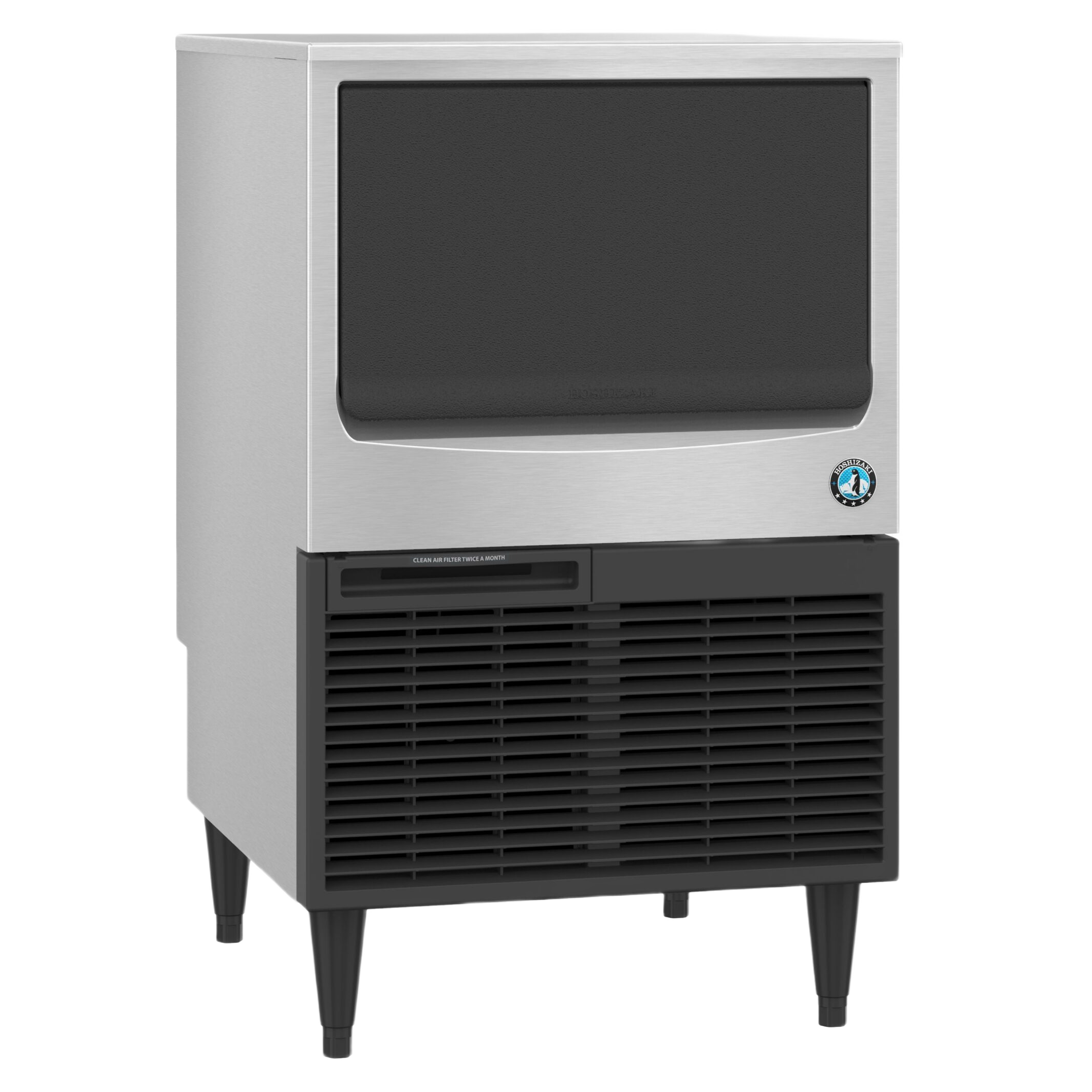

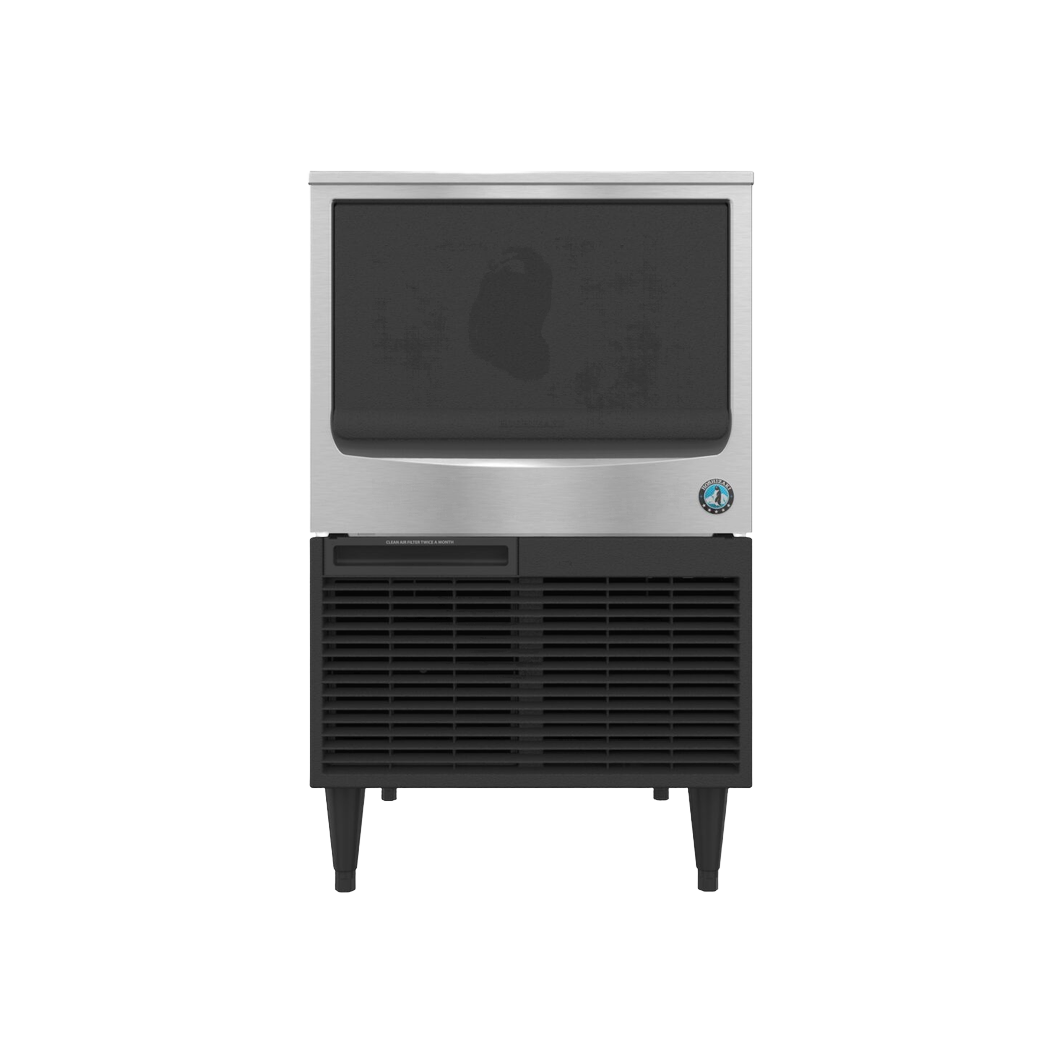

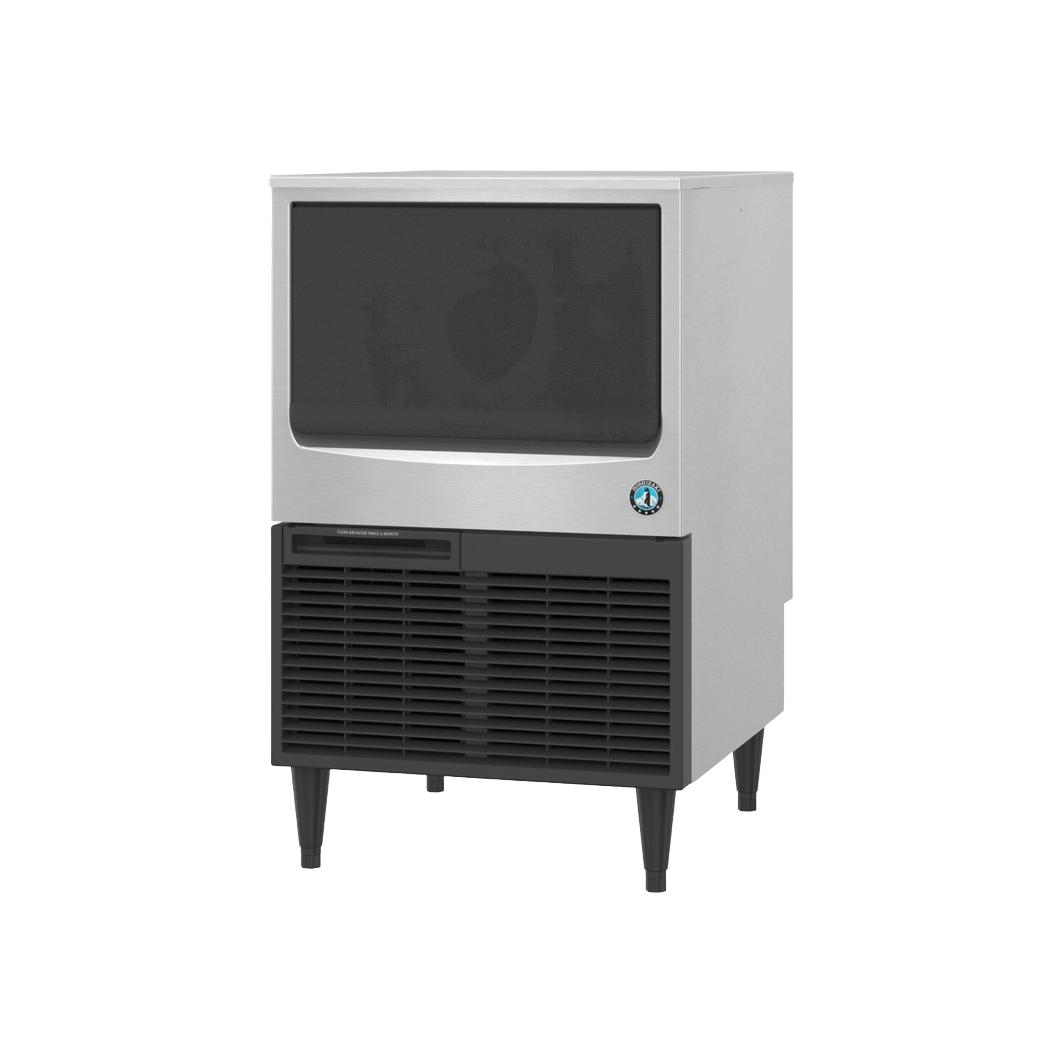

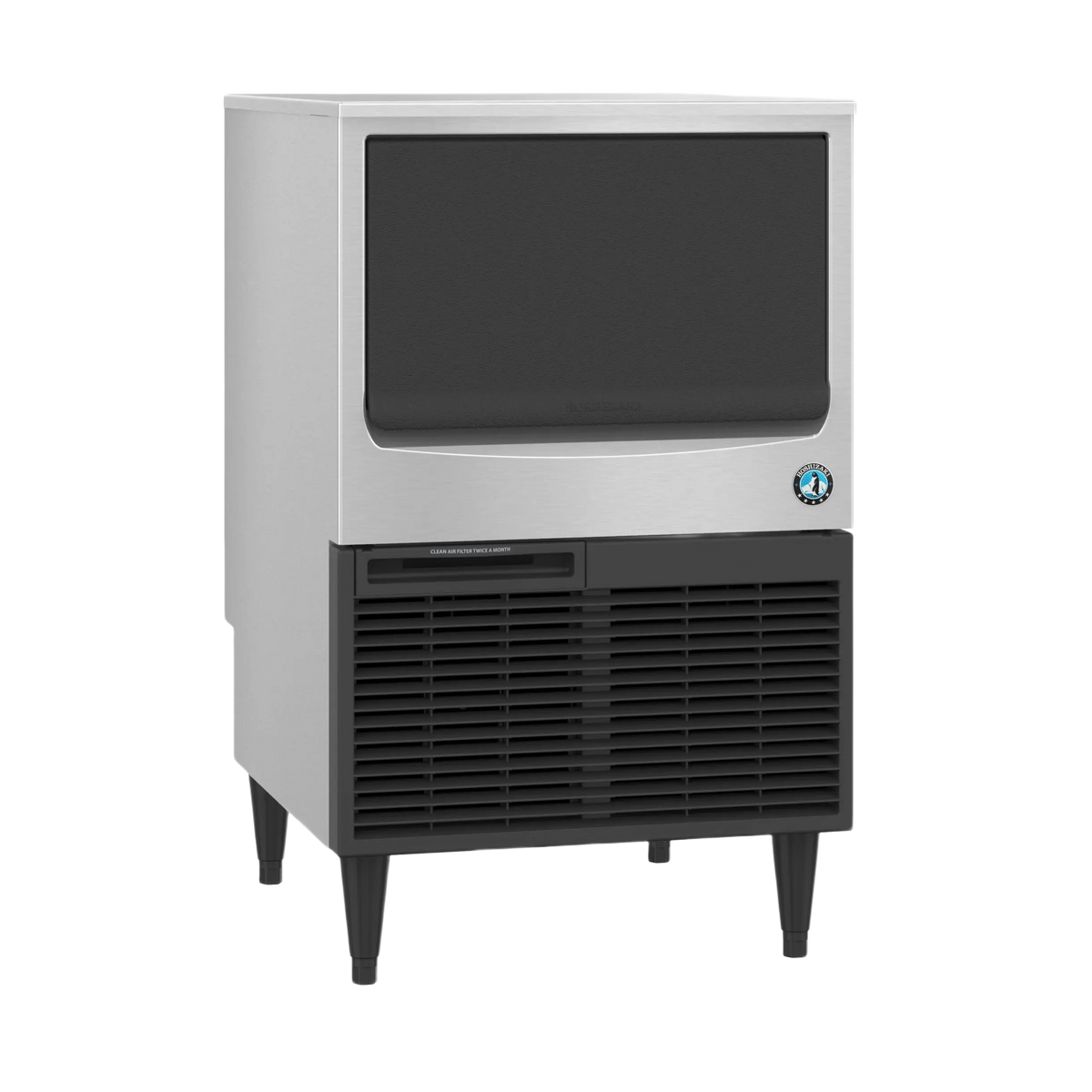

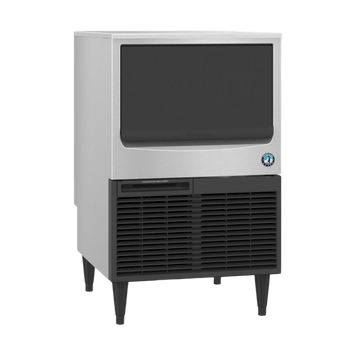

Hoshizaki KM-161BAK - Compact, Self-Contained Crescent Ice Production with Front Ventilation
The Hoshizaki KM-161BAK is a self-contained, air-cooled undercounter ice maker engineered to produce up to 156 lb of individual crescent cube ice every 24 hours under 70°F air and 50°F water conditions. At the AHRI-rated 90°F air and 70°F water condition, it produces approximately 125 lb per day. Its built-in bin stores up to 78 lb of ice, giving beverage stations, bars, offices and hospitality operations a practical supply of fresh ice without requiring a separate storage bin.
Hoshizaki's crescent cube is formed on a durable stainless steel evaporator. The distinctive cube shape offers a high displacement rate and broad surface contact for dependable drink cooling. The KM-161BAK uses the manufacturer's CycleSaver® design to support efficient, consistent harvest cycles, while the EverCheck™ alert system assists operators and service technicians by communicating equipment status.
A front-in, front-out airflow path and a removable air filter make the KM-161BAK suitable for built-in applications where side ventilation is limited. The stainless steel exterior stands up to frequent commercial use, and the slide-in door provides convenient access to the ice compartment without swinging into the aisle. The cabinet measures 23-3/4 in. wide by 28 in. deep by 39 in. high with the included 6-in. adjustable legs.
This KMLink-compatible model uses R290 hydrocarbon refrigerant and a 115V single-phase electrical connection. A 6.5-ft power cord with NEMA 5-15P plug is included. The machine requires a potable cold-water connection and a gravity drain; final installation must follow the Hoshizaki specification sheet and all applicable local codes.
Key Features
- Produces up to 156 lb of crescent cube ice per day at 70°F air/50°F water
- Produces approximately 125 lb/day at 90°F air/70°F water

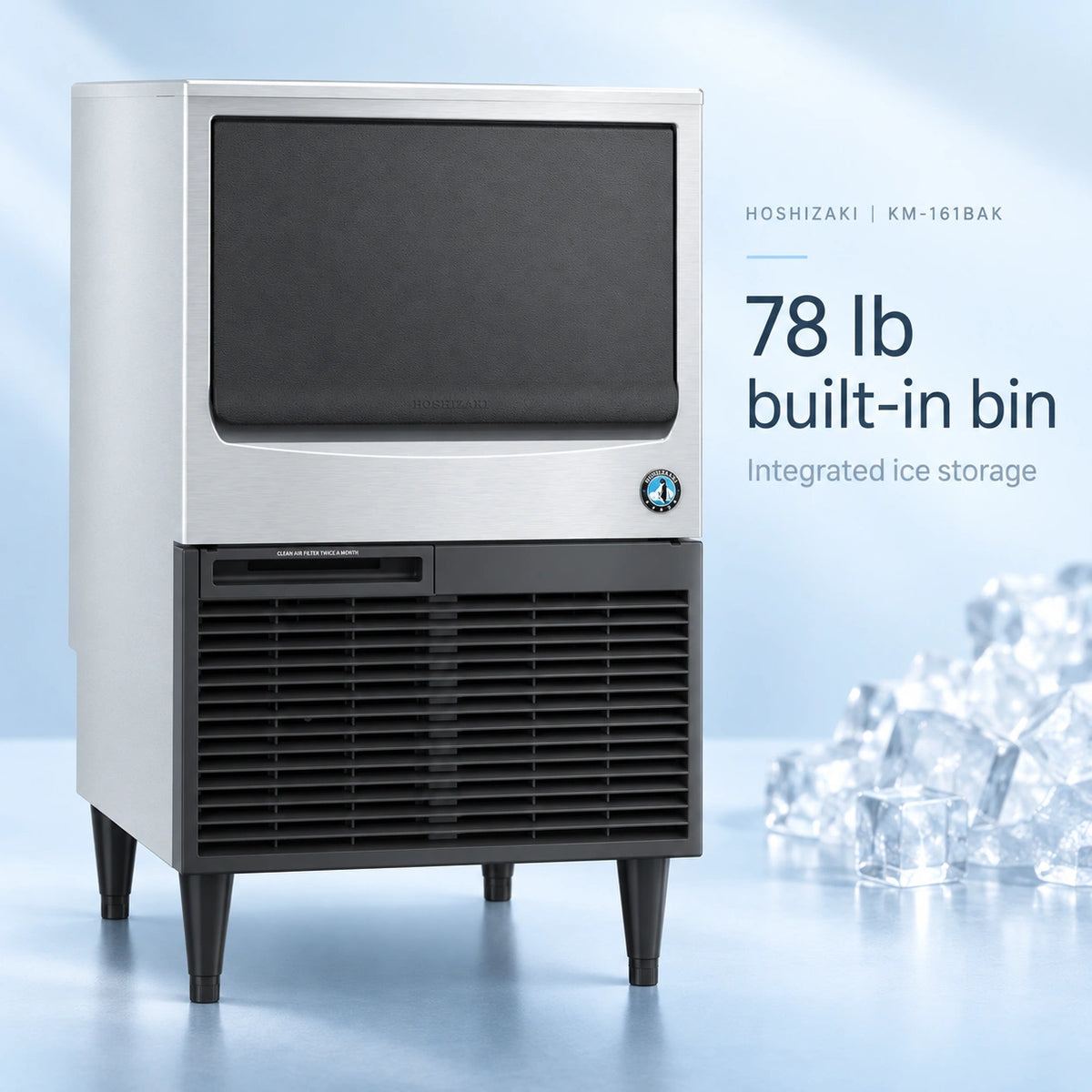

- Built-in storage bin holds up to 78 lb of ice

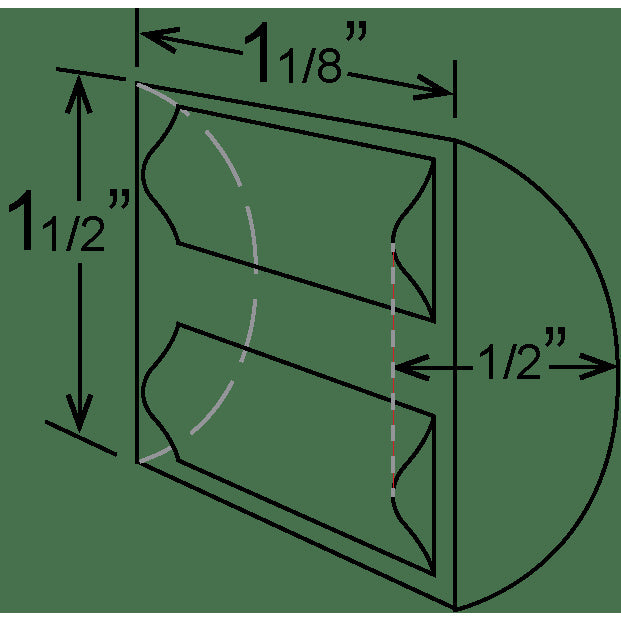

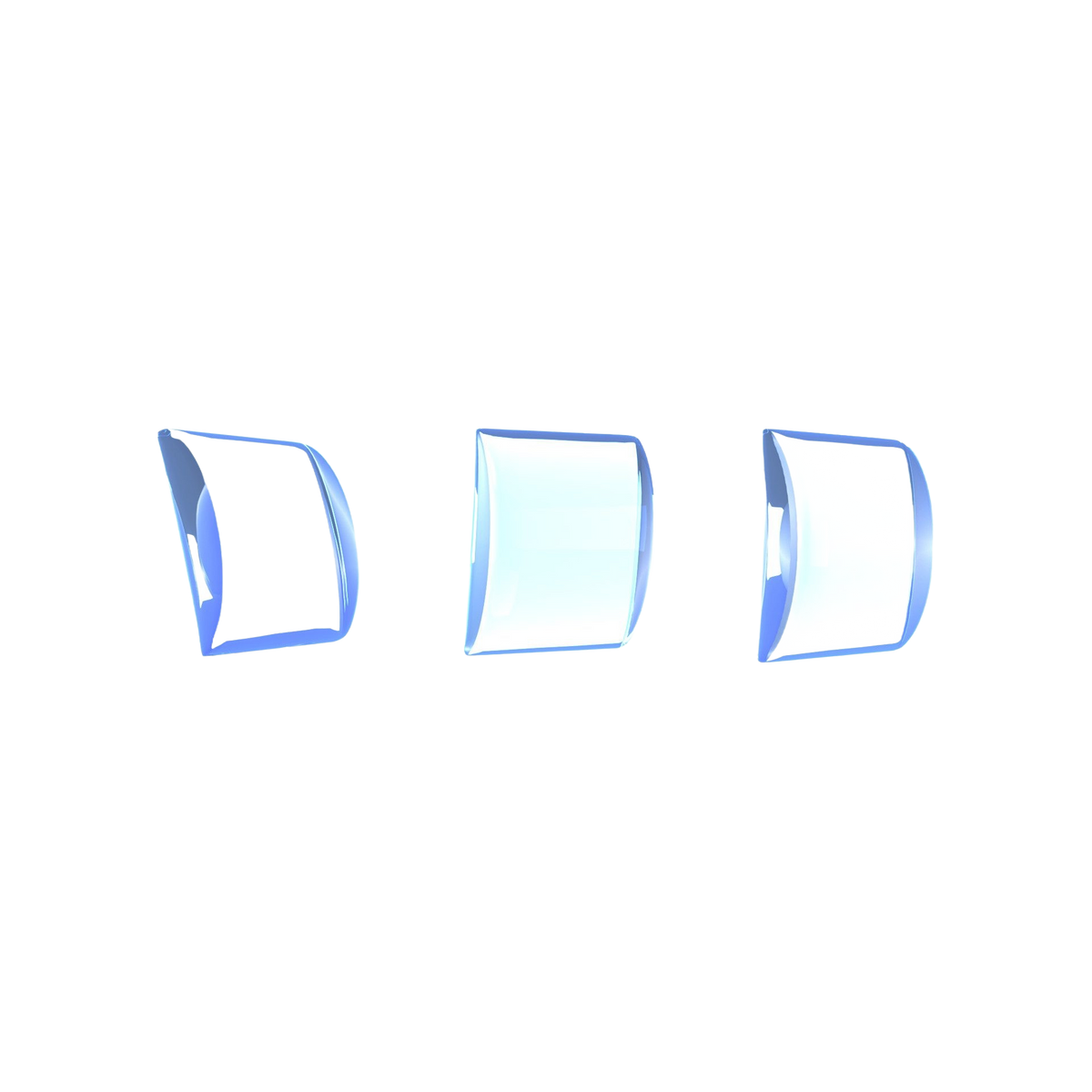

- Individual crescent cube ice made on a stainless steel evaporator

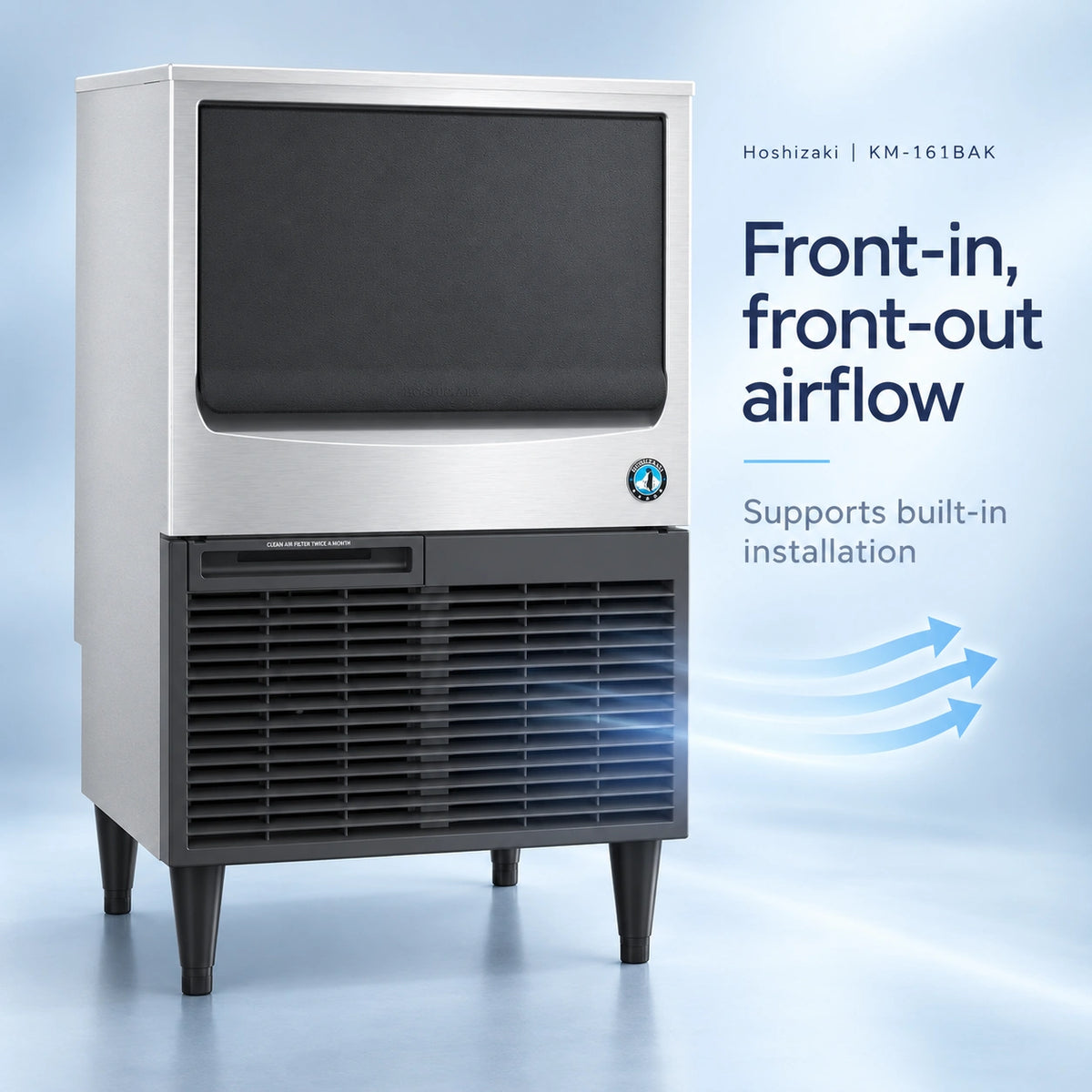

- Front-in, front-out airflow supports built-in installation
- Removable, cleanable air filter simplifies routine maintenance

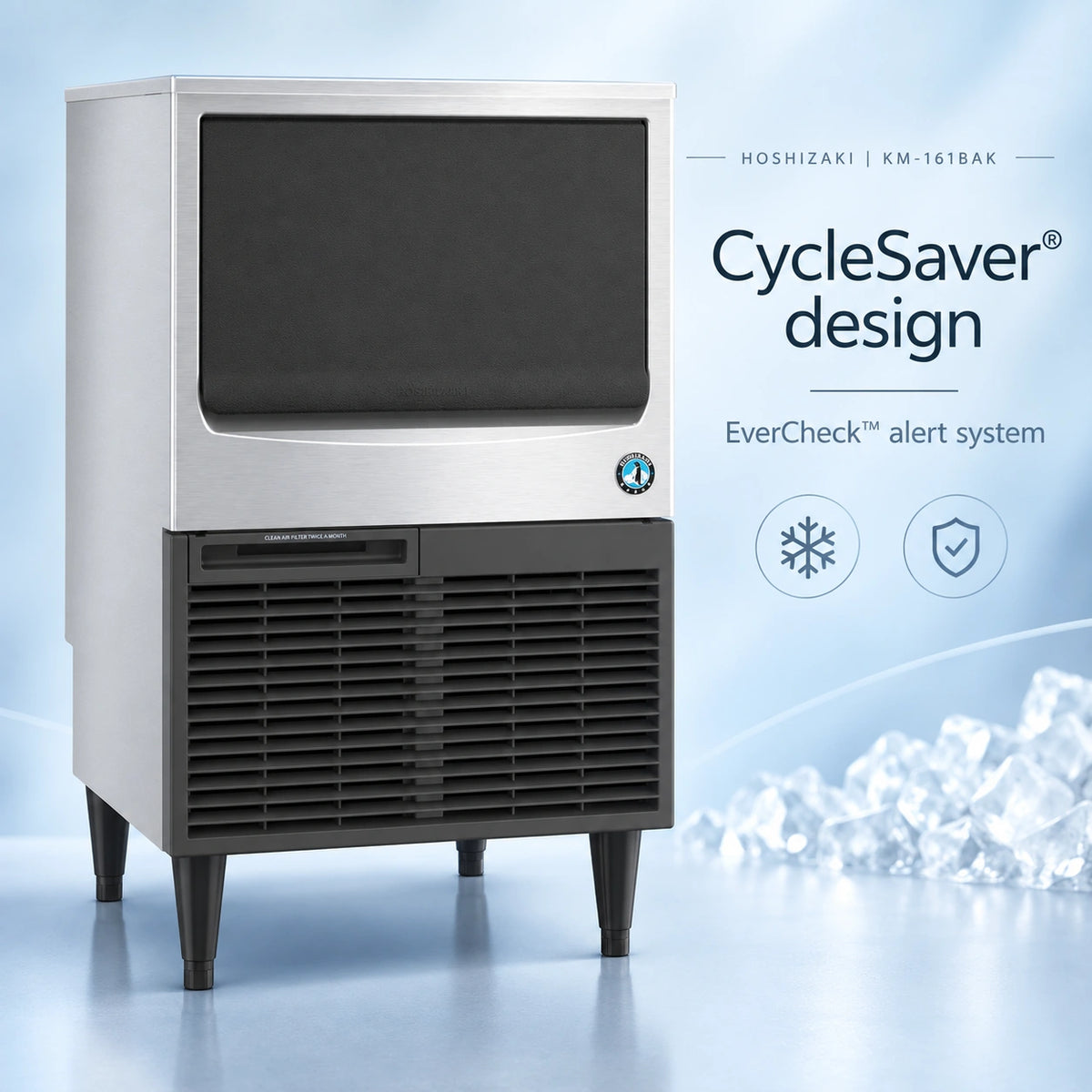

- CycleSaver® design and EverCheck™ alert system
- Stainless steel exterior with space-saving slide-in bin door
- Environmentally friendly R290 hydrocarbon refrigerant
- Includes 6-in. adjustable legs and 6.5-ft power cord with NEMA 5-15P plug
Best For
Restaurants, bars, hotels, break rooms, cafés and service counters that need a compact undercounter crescent cube ice maker with integrated storage and front ventilation.

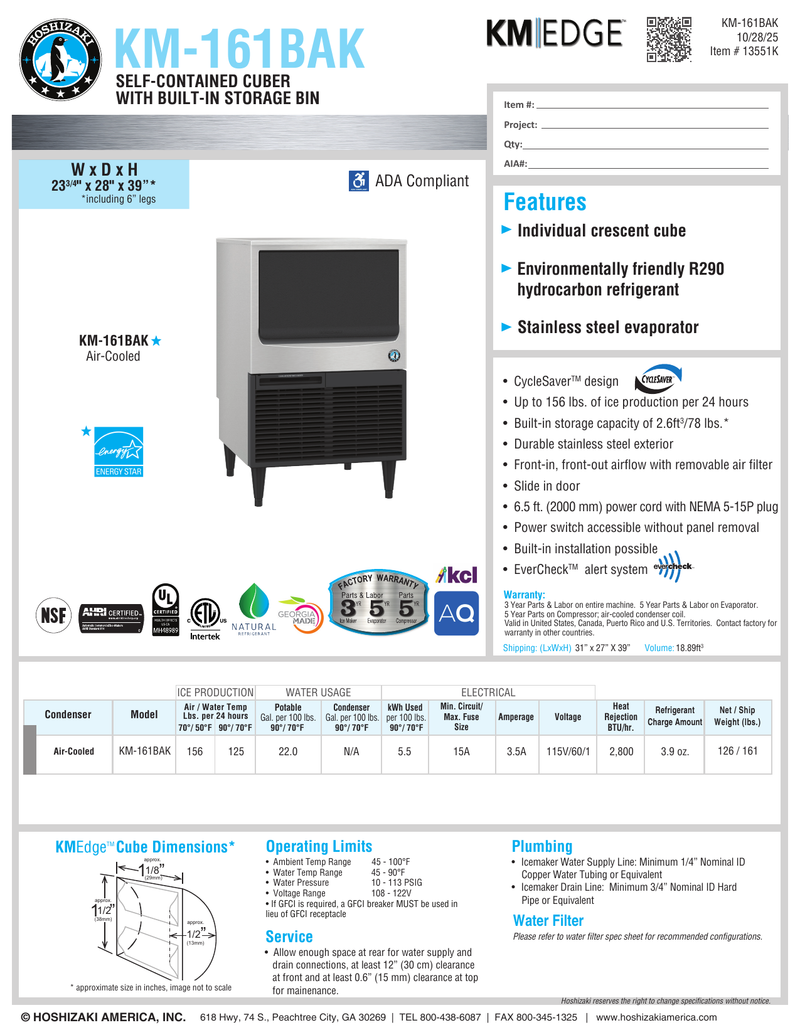

Full Specifications
| Brand | Hoshizaki |
| Model | KM-161BAK |
| Type | Self-contained undercounter ice maker with built-in bin |
| Ice Type | Individual crescent cube |
| Cooling | Air-cooled |
| Maximum Production | 156 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 125 lb/24 hr at 90°F air/70°F water |
| Built-In Bin Capacity | 78 lb / 2.6 cu. ft. |
| Dimensions | 23-3/4 in. W × 28 in. D × 39 in. H, including 6-in. legs |
| Electrical | 115V / 60Hz / 1 phase; 15A circuit; 3.5A |
| Plug | NEMA 5-15P; 6.5-ft cord |
| Energy Use | 5.5 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 22 gal per 100 lb at 90°F/70°F |
| Heat Rejection | 2,800 BTU/hr |
| Refrigerant | R290, 3.9 oz. |
| Water Inlet | 1/2-in. FPT; minimum 1/4-in. ID supply line |
| Drain | 3/4-in. FPT; minimum 3/4-in. ID hard-pipe drain |
| Operating Air Temperature | 45°F to 100°F |
| Operating Water Temperature | 45°F to 90°F |
| Water Pressure | 10 to 113 PSIG |
| Net / Shipping Weight | 126 lb / 161 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Allow access at the rear for water, drain and electrical connections, at least 12 in. at the front and approximately 0.6 in. above the unit.
- Connect to a potable cold-water supply and an independent gravity drain.
- Clean the removable air filter regularly and follow the manufacturer's cleaning and sanitizing schedule.
- Production figures vary with incoming water temperature, room temperature, water pressure and site conditions.
